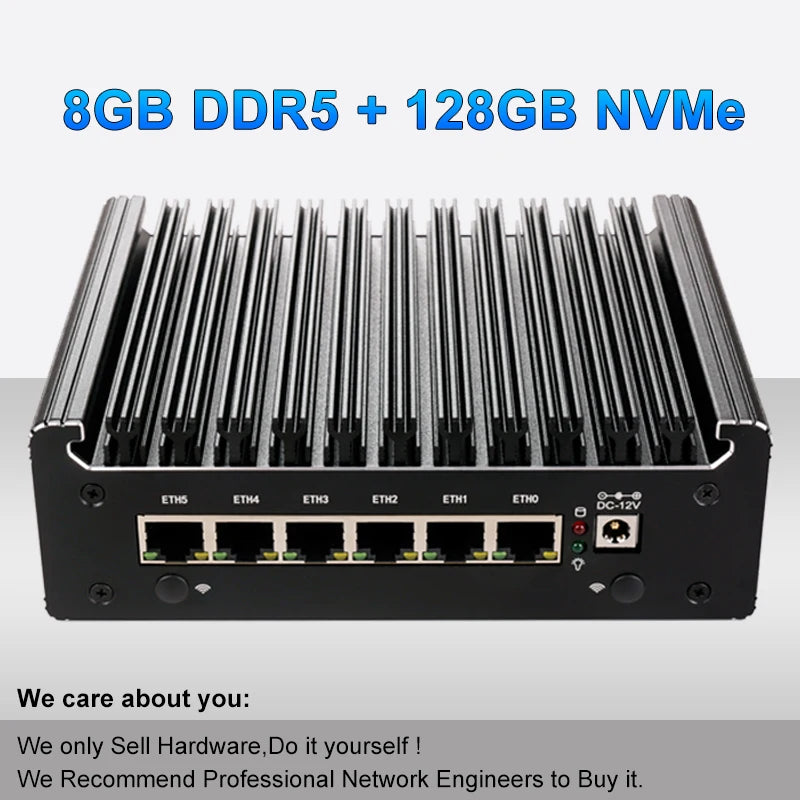

Intel Pentium Gold 8505 Soft Router 6 Lans I226-V 2.5G Fanless Mini PC COM HD DP USB Type-C DDR5 SATA PfSense Firewall Appliance
Intel Pentium Gold 8505 Soft Router 6 Lans I226-V 2.5G Fanless Mini PC COM HD DP USB Type-C DDR5 SATA PfSense Firewall Appliance
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: tellyee
Certification: CE,FCC,RoHS
Color: Black
DDR4 compatible version: 4800MHz max supported expansion is 64GB
Graphics Card Type: Integrated Card
HD interface: HDMI2.1 & 1xDP1.4
Hard Drive Capacity: 128 GB
High-concerned chemical: None
Material: carved aluminum shell
Memory Capacity: ≥ 4GB
Model Number: T03
Network port: 6xIntel i226-V 2.5G RJ45 LANs, 1xCOM
Origin: Mainland China
Processor Brand: Intel
Processor Main Frequency: Max Turbo Frequency 4.4GHz
Processor Model: Intel Pentium Gold 8505
RAM: DDR5-8GB/16GB/32GB/64GB-Buy as needed
Support 4 storage: 2xM.2 2280 NVMe/PCIex4 SSD(one on each side of motherboard)+2xSATA3.0 SSD/HDD
Type: Mini Desktop,Mini PC
USB interface: 3xUSB3.0, 1xUSB2.0
Use: Multimedia
system: We only provide hardware support & do not sell software.
Product Highlight:
●Processor: Intel Pentium Gold 8505(5 cores, 6threads,L3 Cache-8M,Max Turbo Frequency-4.40GHz,TDP-15W)
●Network interface: 6xIntel i226-V 2.5G RJ45 LANs.
●Ram: 2xDDR5 SODIMM non-ECC ram slots, support max 64GB 4800MHz.
●Support 4 storage: 2xM.2 2280 NVMe/PCIex4 SSD(one on each side of motherboard)+2xSATA3.0 SSD/HDD.
●HD interface: 1xHDMI and 1xDP support dual 4K@60Hz UHD video display.
●Expansion card tray:1xM.2 2230 WiFi slot, support WiFi connection(optional).
●Data interface: 3xUSB3.0, 1xUSB2.0, 1xType-C.
●Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
●Full Aluminum Alloy solid-built shell, excellent cooling performance,exquisite production craft on outside design.
It is silent and durable to work as long as 7x24 hours.
●Fanless system without cooling fan, noiselessness and durability fit for industrial grade field.
●COM interface: COM cannot be used as a network port. It has no network speed and does not transmit data.
The serial communication port (cluster communication port) is the COM port, or serial port for short.
It can be used for many purposes, such as connecting a mouse, printer or modem, and it can also connect Industrial instrumentation.
Package List:
●1xMini PC(Ship according to order specifications).
●1xSATA Cable.
●1xScrews Bag.
●1xCorner Cushion Bag.
●1x8CM silent fan (Free attachments-DIY).
●1xPower Adapter (EU/US/UK/Australia plugs are purchased and shipped upon order).
we care about you:
●Suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23.x, pfSense Plus, OpenWrt,ESXi, Proxmox, CentOS etc.
●We only provide hardware support & don't sell any commercial system software. Do it yourself.
●This product has certain network expertise and is recommended for professional network engineers to purchase.
