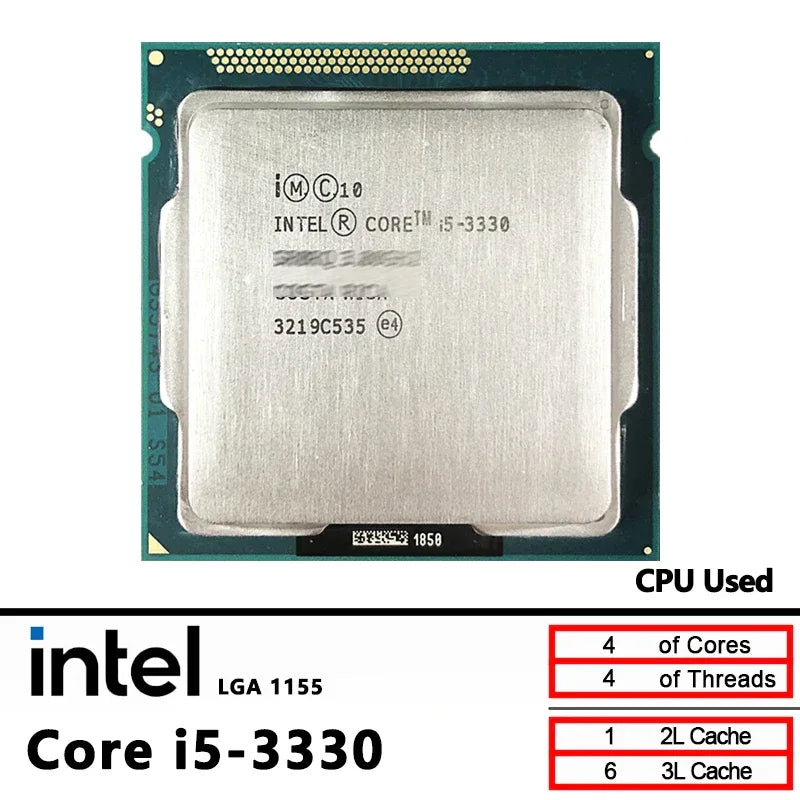

Intel Core i5-3330 Used i5 3330 3.0 GHz 6M 77W LGA 1155
Intel Core i5-3330 Used i5 3330 3.0 GHz 6M 77W LGA 1155
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop
Brand Name: Intel
Chip Process: 22 Nanometers
Choice: yes
Cooling system: No
Default TDP / TDP: 95
GPU-built: Yes
High-concerned chemical: None
Intel Model: Intel Core i5-3330
L2 Cache Capacity: 1 MB
L3 Cache Capacity: 6 MB
Launch Date: 2004
Number OF Therads: 4
Number of Cores: Quad-Core
Origin: MY(Origin)
PCIe VERSION: PCIe
Package: No
Processor Type: Intel core i5
Socket Type: LGA 1155
Support Chipset Models: Intel H61
Support Memory Channels: 2
Support Memory Type: DDR3
Type: Quad-Core
Unlocked: No
Usage Scenario: others
The Intel Core i5-3330 is a mid-range desktop processor of Intel's third-generation Core (Ivy Bridge architecture), released in 2012. It is positioned slightly higher than the low-power version i5-3330S and focuses on balancing performance and power consumption, suitable for light multitasking and daily application scenarios. Here is its detailed information:
Core parameters
Core/Thread: 4 cores and 4 threads (without hyper threading technology, continuing the classic design of the third generation i5, consistent with the same generation i5-3470 and other models)
Base frequency: 3.0GHz (higher than 2.7GHz for the low-power version i5-3330S and lower than 3.2GHz for the standard version i5-3470)
Maximum turbo frequency: 3.2GHz (the highest frequency under single/dual core load, lower than the 3.6GHz of i5-3470, with slightly inferior single core performance compared to the standard version of the same generation)
Cache: L1=128KB, L2=1MB, L3=6MB (shared level 3 cache, consistent with the same generation i5 specifications, ensuring fast data reading)
Process technology: 22nm (Ivy Bridge architecture standard, compared to the second-generation 32nm process, it has better energy efficiency and heat control)
Platform and compatibility
Interface type: LGA 1155 (compatible with second-generation and third-generation Core processors, compatible with 6-series (H61, Z68) and 7-series (B75, Z77, etc.) motherboards, some older motherboards require BIOS support updates)
Intel Core i5-3330 specifications
General information | |
Type |
|
Market segment |
Desktop |
Family |
|
Model number ? |
i5-3330 |
CPU part numbers |
|
Frequency ? |
3000 MHz |
Maximum turbo frequency |
3200 MHz (1 or 2 cores) |
Low power frequency |
1600 MHz |
Bus speed ? |
5 GT/s DMI |
Clock multiplier ? |
30 |
Package |
1155-land Flip-Chip Land Grid Array |
Socket |
Socket 1155 / H2 / LGA1155 |
Size |
1.48" x 1.48" / 3.75cm x 3.75cm |
Introduction date |
|
End-of-Life date |
Last order date is December 26, 2014 |
S-spec numbers | |
Architecture / Microarchitecture | |
Microarchitecture |
Ivy Bridge |
Processor core ? |
|
Core stepping ? |
E1 (QC3Y, SR0RQ) |
CPUID |
306A9 (SR0RQ) |
Manufacturing process |
0.022 micron |
Data width |
64 bit |
The number of CPU cores |
4 |
The number of threads |
4 |
Floating Point Unit |
Integrated |
Level 1 cache size ? |
4 x 32 KB 8-way set associative instruction caches |
Level 2 cache size ? |
4 x 256 KB 8-way set associative caches |
Level 3 cache size |
6 MB 12-way set associative shared cache |
Physical memory |
32 GB |
Multiprocessing |
Uniprocessor |
Features |
|
Low power features |
Enhanced SpeedStep technology ? |
Integrated peripherals / components | |
Integrated graphics |
GPU Type: HD 2500 |
Memory controller |
The number of controllers: 1 |
Other peripherals |
|
Electrical / Thermal parameters | |
Maximum operating temperature ? |
67.4°C (case) |
Thermal Design Power ? |
77 Watt |
