SPECIFICATIONS

Application: car/rv/home

Brand Name: HOULI

Efficiency: 90%,>90%

Input voltage range: 12V OR 24V

Model Number: HPFSC0035U

Network: None

OEM, ODM: Support

Output Current: Other

Output Frequency: 50 Hz

Output Type: Single

Output Waveform: Pure Sine Wave

Peak Power: 7000W

Peak Power Duration: 3s

Phase: Single Phase

Place of Origin: Guangdong, China

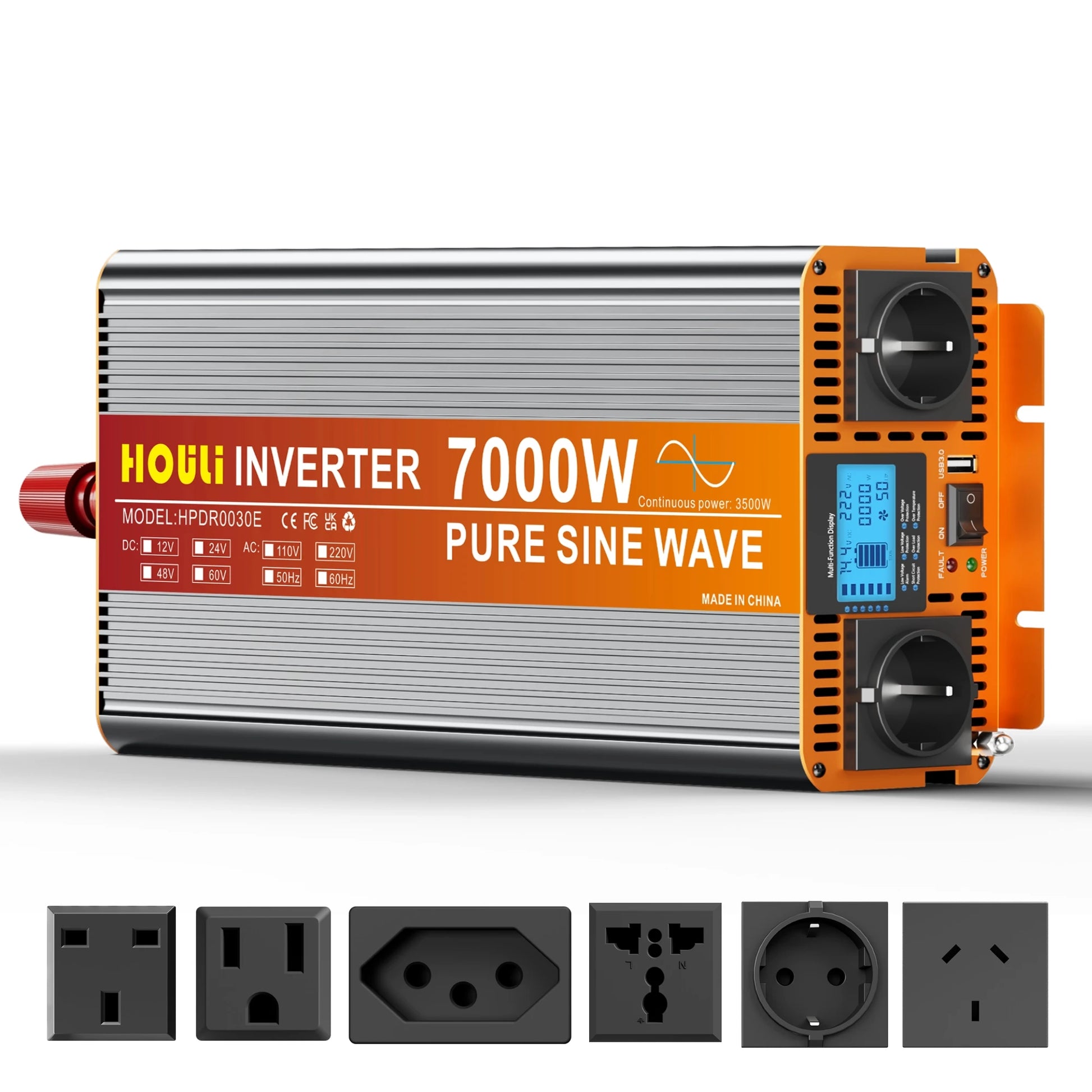

Product name: Pure Sine Wave Car Power Inverter 3500W 7000W

Reted Power: 3500W

Size: 435*180*86mm

Type: DC/AC Inverters,Car Power Inverter/RV Inverter/Home Inverter

Warranty period: 1year

Weight: 6KG

output voltage range: 220V±10%

Products Description

Model	HPFSC0035U
Output AC Voltage	AC220V
Input DC Voltage	DC12V / 24V
Continuous Power	3500W
Surge Power	7000W
Waveform	Pure Sine Wave (THD<3%)
Efficiency	>90%
Frenquency	50HZ
Working temperature	0~70℃
Storage temperature	-30℃~+70℃

Note:

The continuous power is the actual power of the inverter. (Such as the peak power Inverter 10000W, actual power(continuous power) is 5000W ) When purchasing an inverter, you must first understand the voltage and frequency used in your country. Buying an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!

Feature:
1. Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high conversion efficiency (up to 90%), the low power consumption of the product itself can greatly extend battery life.
2. You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances such as refrigerators, freezers, induction cookers.
3. Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.
4. Eight-bit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, overcurrent protection, insurance protection,Intelligent chip control, perfect protection.

Company Profile

FAQ

How to choose an inverter?

1.Determine what the battery voltage is, and what is the capacity of the battery? If your battery output voltage is 12V.you have to choose a 12V inverter. The size of the battery will directly affect the size of the charger. The laeger the battery,the more electrical appliances it can carry. Such as 12Vbattery *60AH capacity *0.8 conversion rate + 576W or less can be brought.

2.What kind of electrical appliances can I bring? Electrical appliances are divided into resistive loads and inductive load appliances. Resisstive appliances: computers,televisions,fans,electric lights and other household appliances. Inductive appliances: refrigerators,washing machines,jce machines,hand drills,pumps,sanders,etc. Resistive appliances do not have starting power,and inductive appliances have starting power,which is generally between 3 and 7 times. Therefore, it is necessary to detemine whether the appliances is a resistive appliances or an inductive appliance.

However, the inductive load appliance has a starting power of 3-7 times, the continuous power meets the condition, and the starting power must also meet the conditions before it can be driven.

FOR EXAMPLE

If the battery is 12V/60AH,can you use a 2000W inverter with a 500W hard drill ?

1.First look at the maximum battery charger is :12*60*0.8 = 576W,>500W.

2.Determine whether the electrical appliance is a resistive electrical appliance or an inductive electrical appliance: the hand drill is an inductive electric drill.

3.The continuous power of the hand drill is 500W,and the duration of 2000W is 1000W,>500W.

The starting power is generally about 3 times (the starting power of dofferent electrical appliances is different) so 500W X 3 = 1500W, the starting power of the 2000W inverter is 2000W,>1500W Therefore,the 500W hand drill can be used with a 12V/60AH battery and a 2000W inverter.

Other appliances can also be judged by this method.

If you have problems, do not understand the operation, you can also consult customer service, thank you!
