SPECIFICATIONS

Operating Temp. Range: -10℃~60℃

Operational Pressure Range: 0-7Bar

Type: SOLENOID VALVES

Voltage: Dc 24V,Dc 12V,AC 220 V

application: General

brand name: HIGHEND or without

customized support: OBM,ODM,OEM

media: Gas

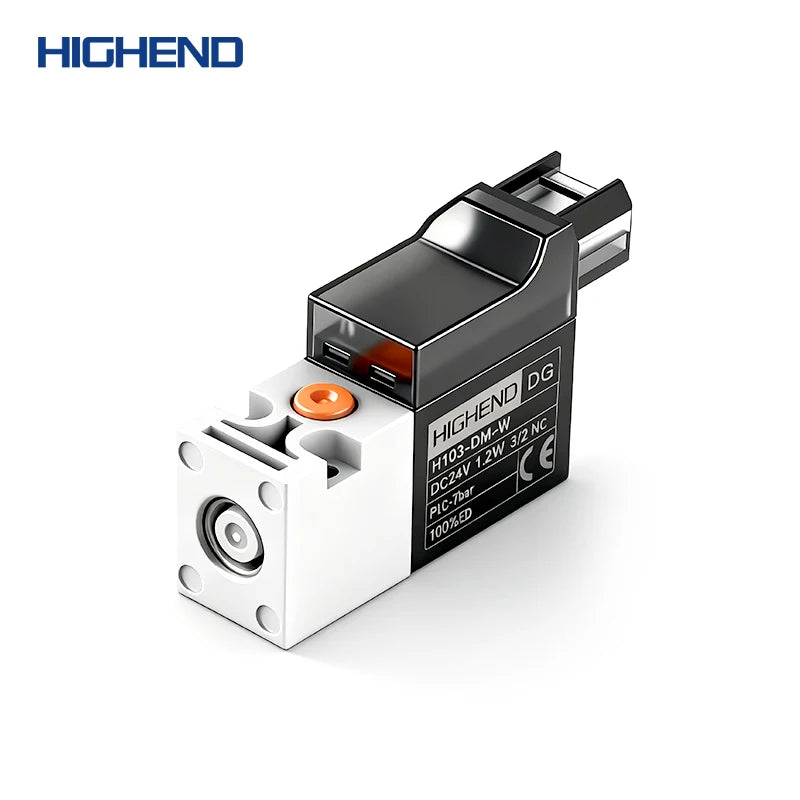

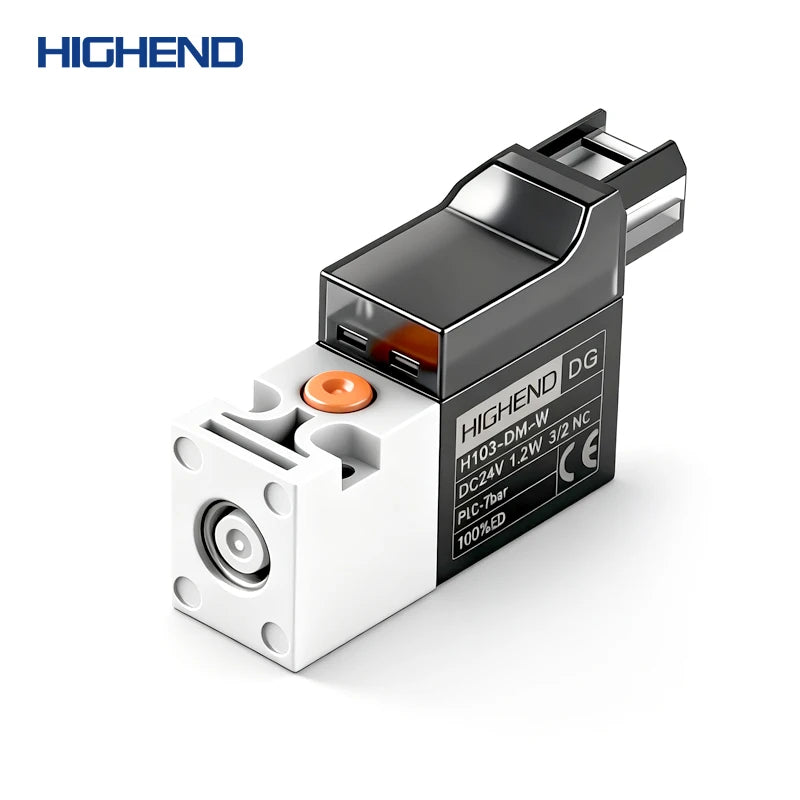

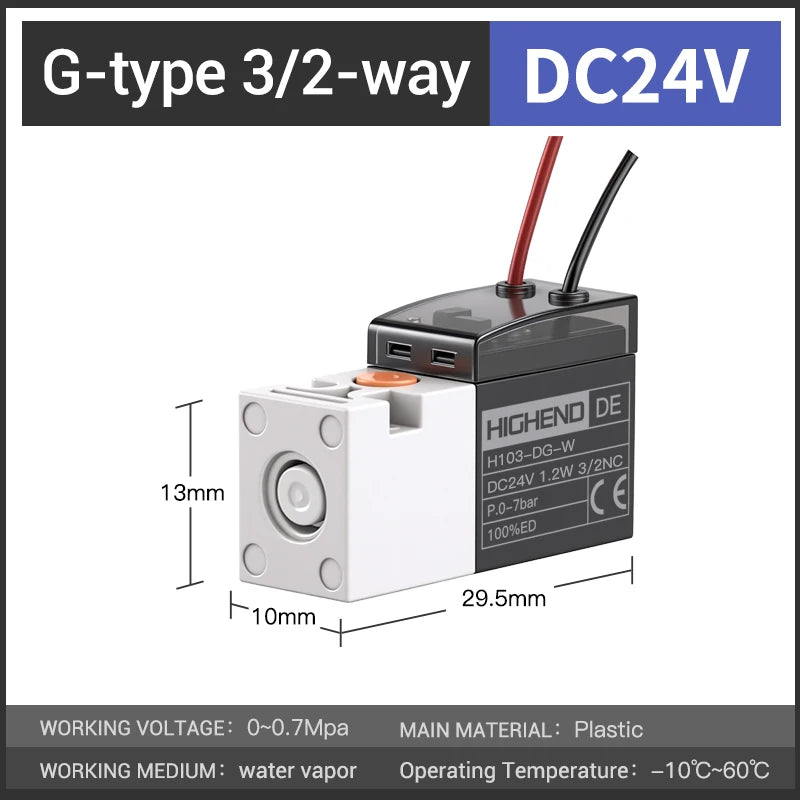

model number: H103-G

place of origin: Zhejiang, China

port size: M5

power: Solenoid

structure: Control

temperature of media: Normal Temperature

warranty: 1 years

Product Highlights

Special customized structure perfectly matched for sock knitting textile machines, stable continuous production. Simple plug-and-fit manifold base connection, quick assembly and easy later maintenance replacement. Wide application for vacuum adsorption equipment, small automatic machinery and textile knitting equipment. SMC equivalent standard size, directly replace original valves without modifying installation structure.

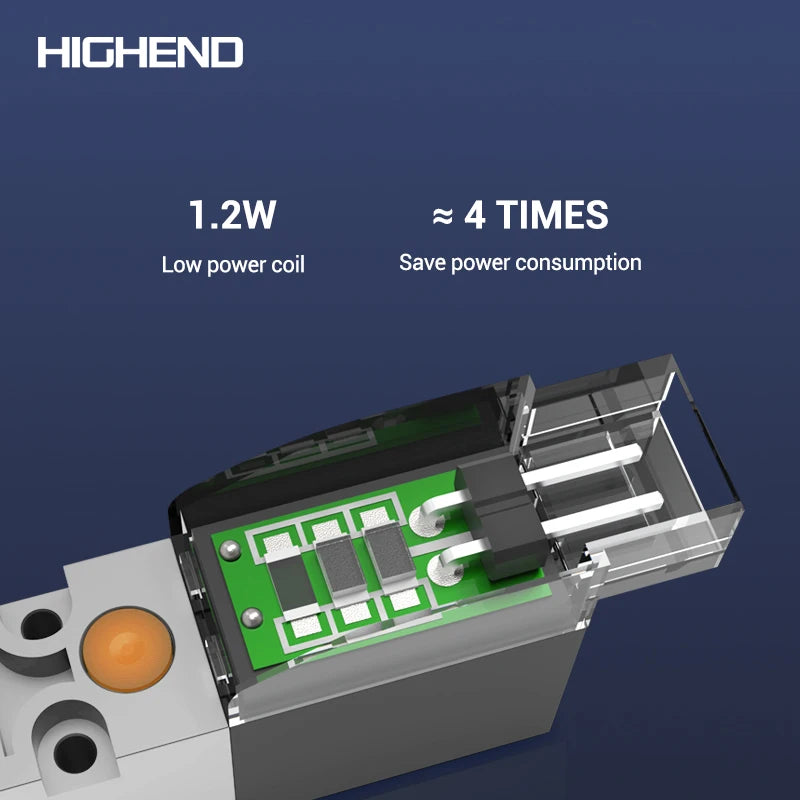

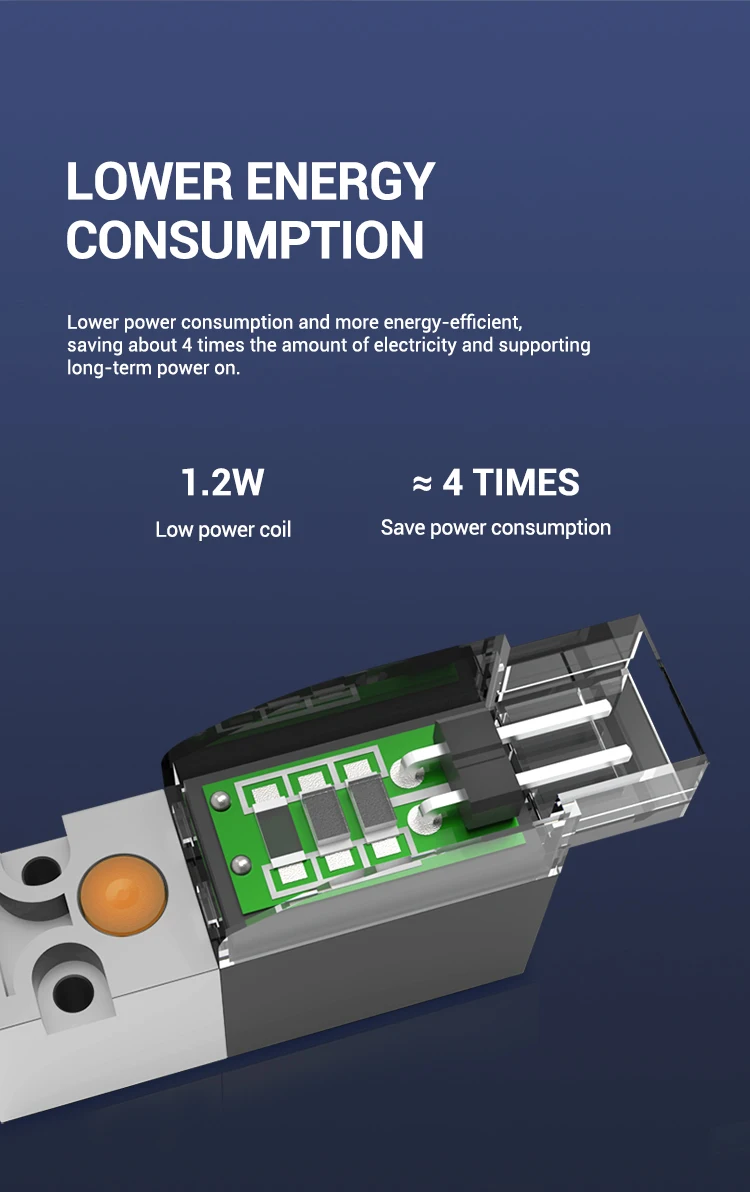

Ultra-high frequency rapid switching design, large air flow output even with tiny 10mm miniature size. Energy-saving low-power coil structure, less heat generation to cut operating costs for long-time running. Two-position 2-way & 3-way optional, support vacuum and ordinary gas circuit dual control demand. Modular manifold assembly design, realize one-in multi-out centralized installation to save mounting space. Ultra-long service life up to over 100 million switching cycles, stable performance without frequent replacement. Multiple voltage options including DC6V, DC12V, DC24V and AC220V, match different industrial control systems. Compact mini body structure, occupy minimal installation space for small automation and textile equipment.

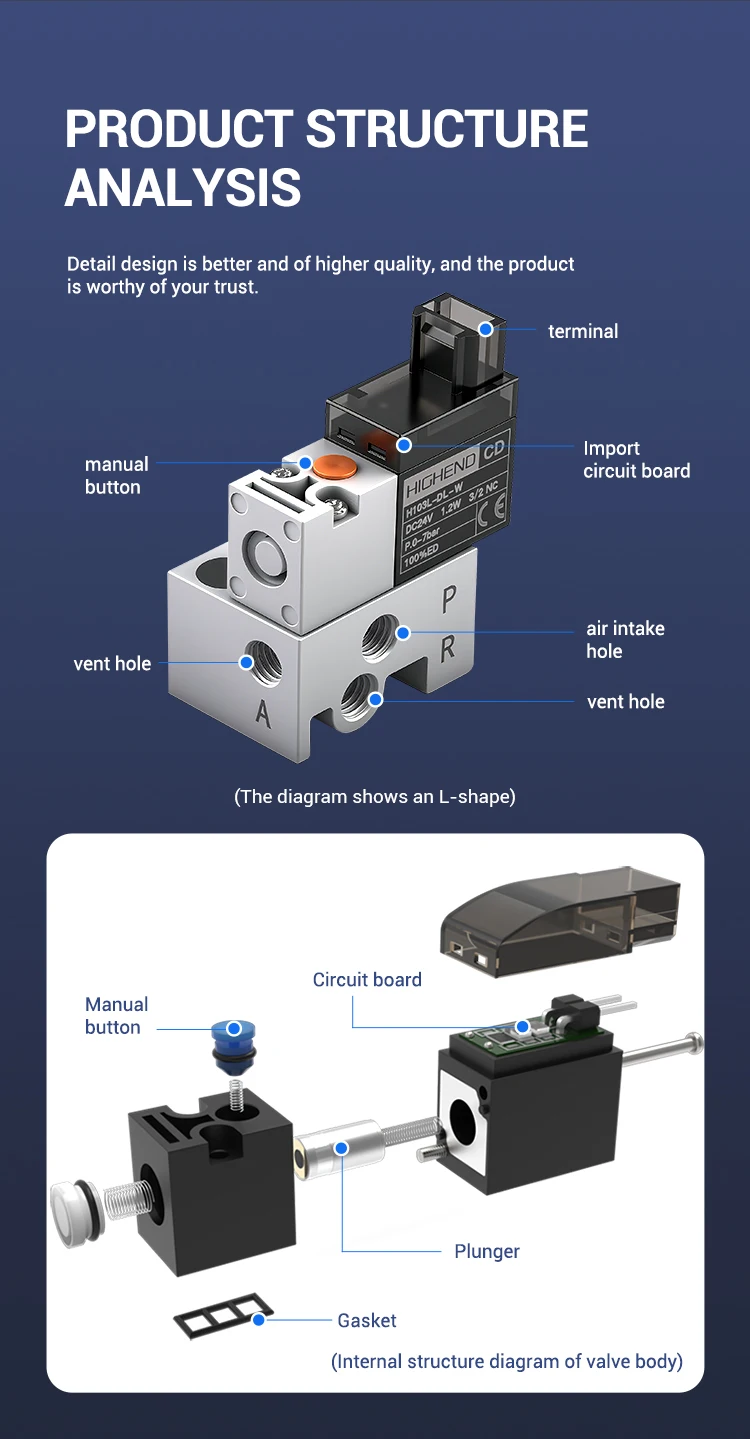

High precision aluminum alloy valve body with anti-corrosion surface anodizing, wear-resistant and rust-proof for long-term use. Imported high elasticity sealing rubber diaphragm, oil resistant and airtight, no air leakage under frequent high-frequency switching. High purity copper coil with insulated enameled wire, uniform heat dissipation, low power consumption and no burnout easily. Integrated CNC machining manifold base, smooth internal air channel, no burr to block airflow. Reinforced stainless steel spring core, stable reset performance after billions of repeated actions.

FAQs

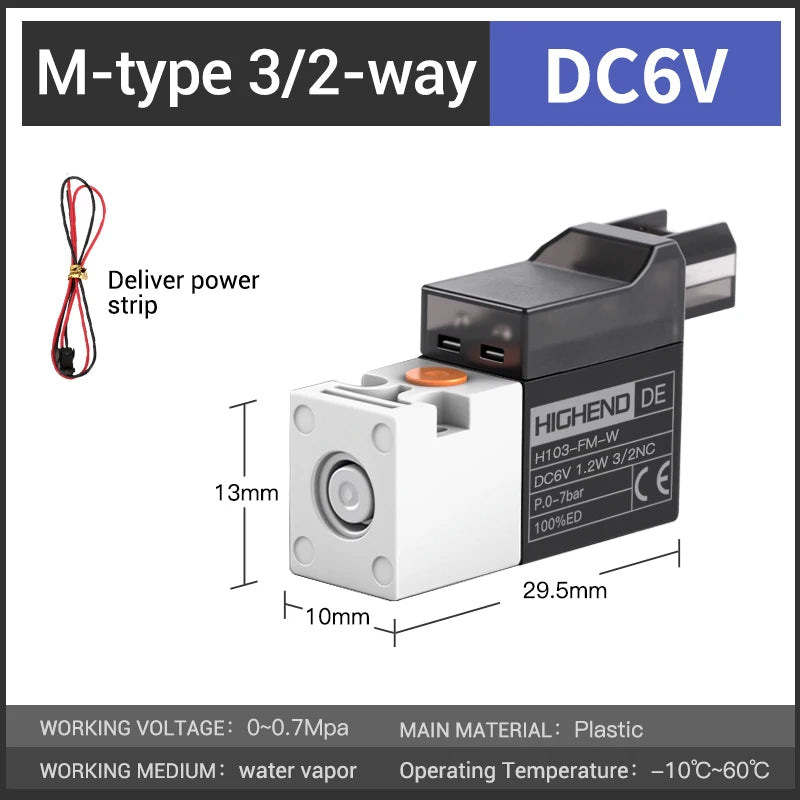

Q: What voltages are available for this micro solenoid valve?

A: We support multiple voltage options including DC6V, DC12V, DC24V and AC220V to fit different industrial control systems.

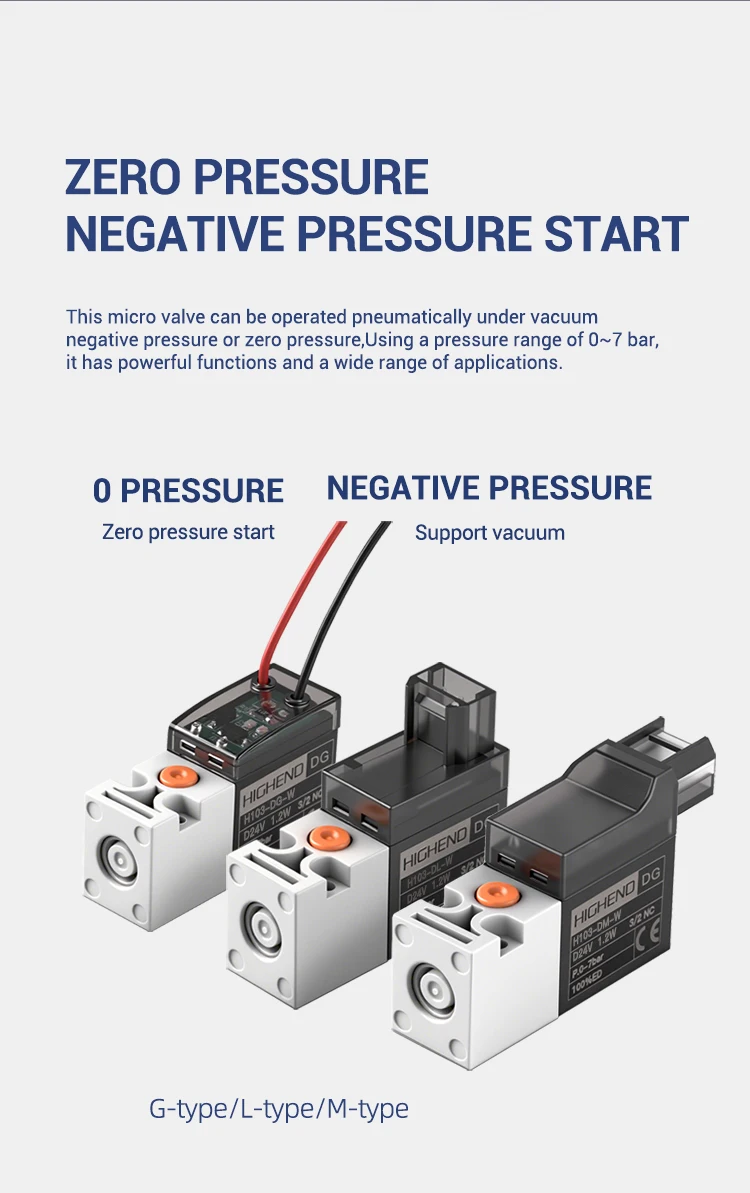

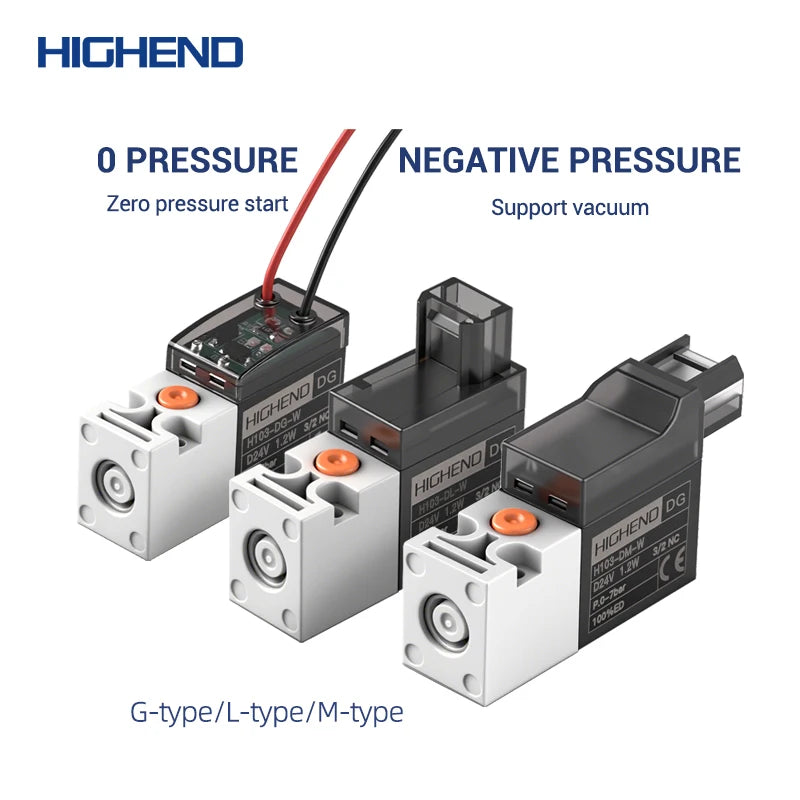

Q: Does this valve work for vacuum circuits and sock knitting machines?

A: Yes. It is designed for both ordinary air and vacuum control, widely used as replacement valve for automatic sock knitting textile machines.

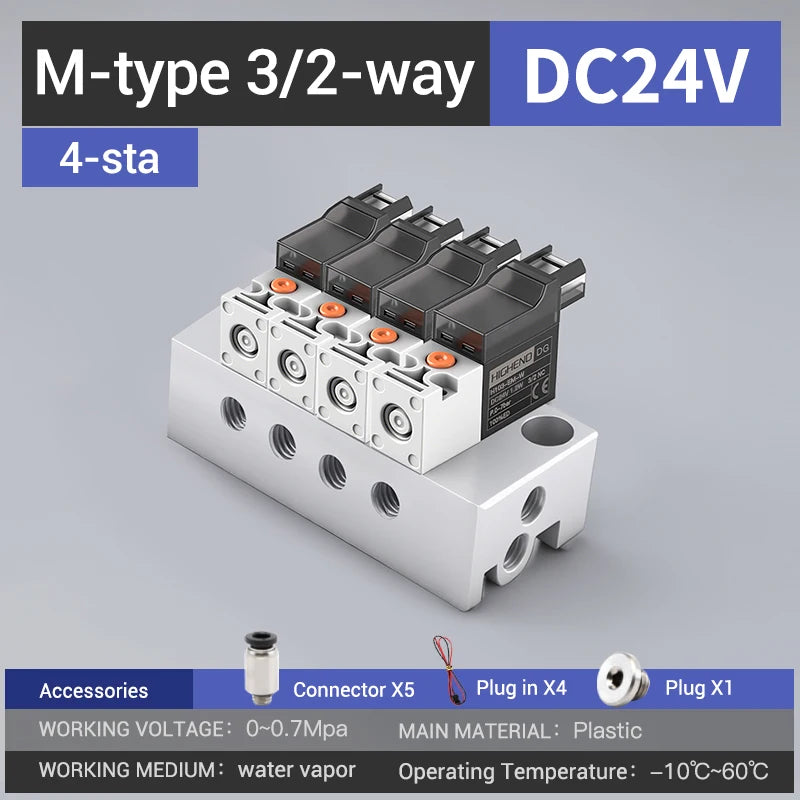

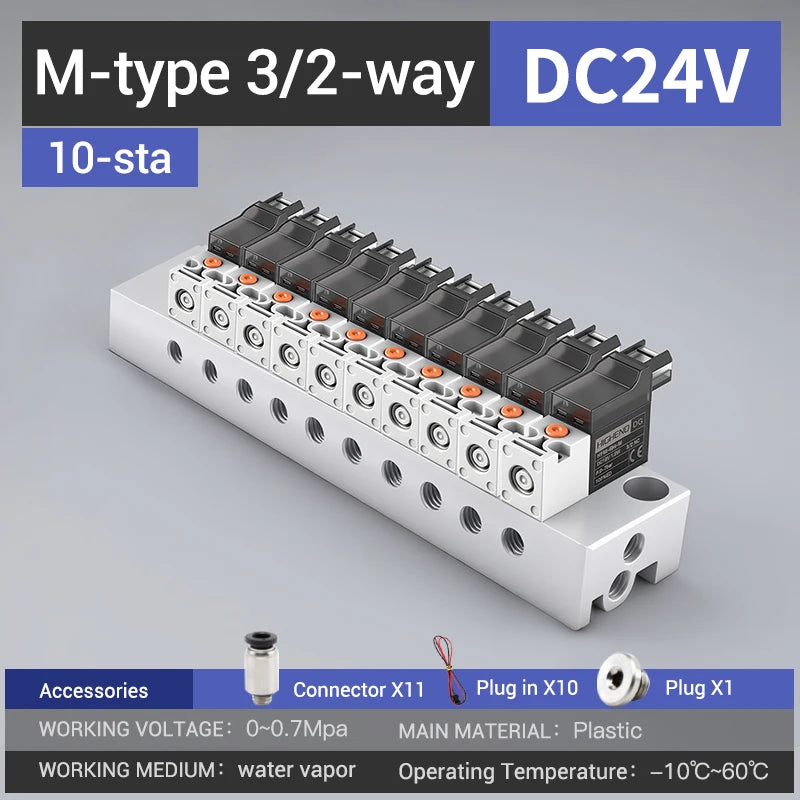

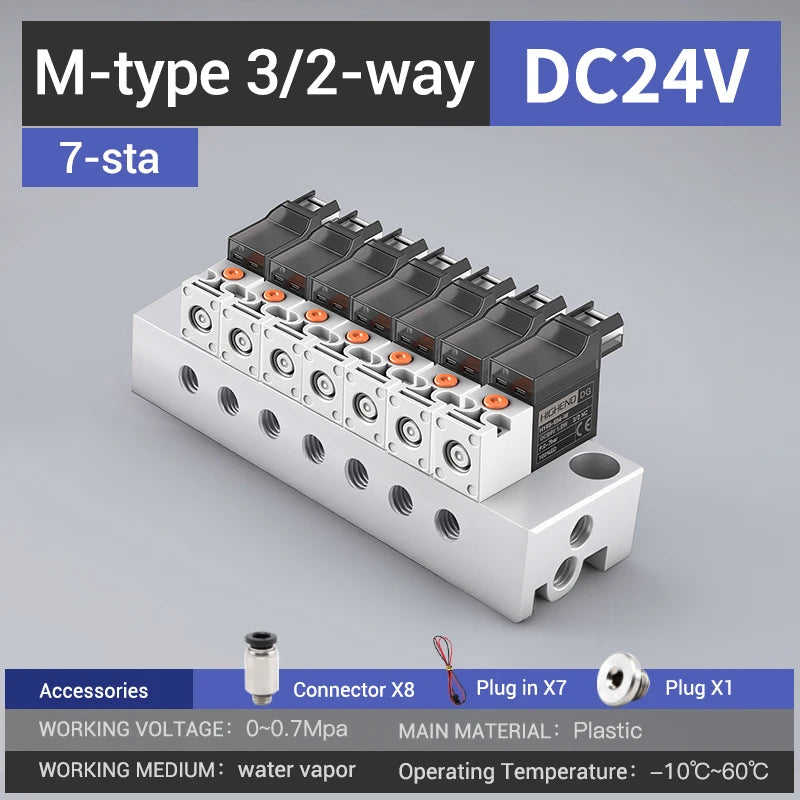

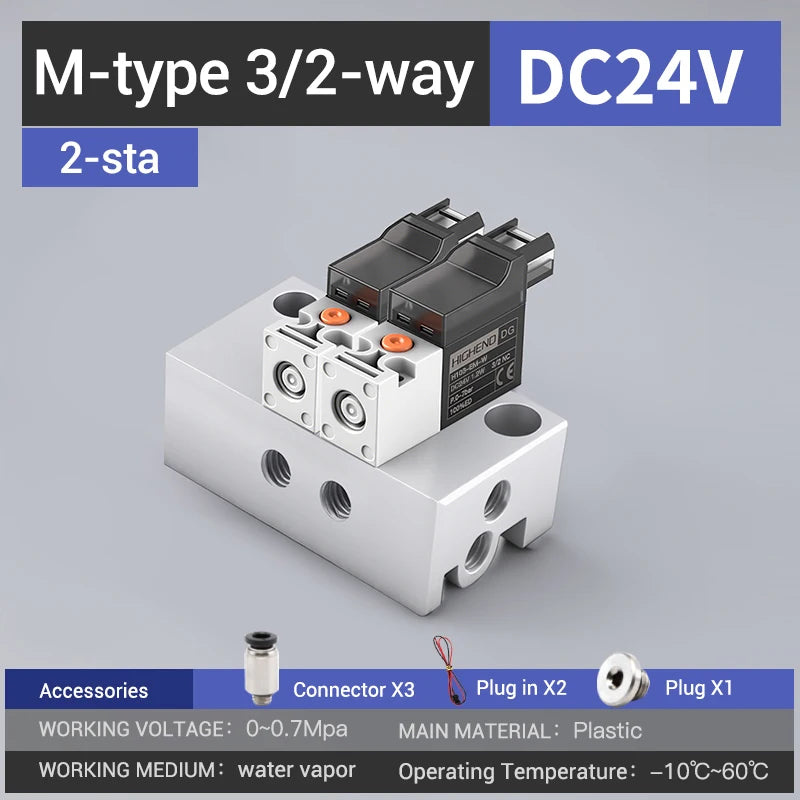

Q: Can I install multiple valves together to realize one-in multi-out?

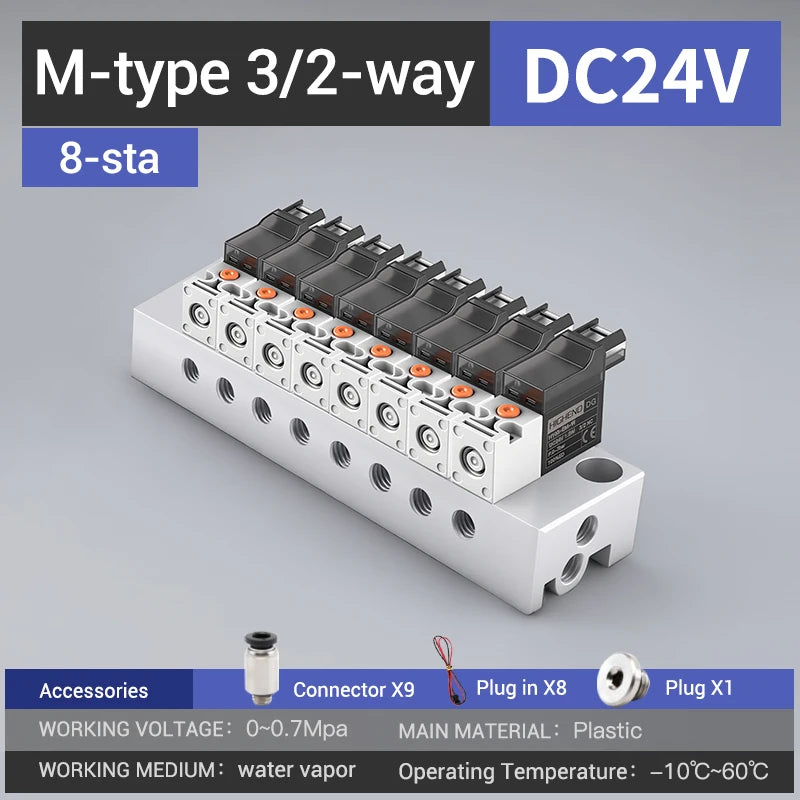

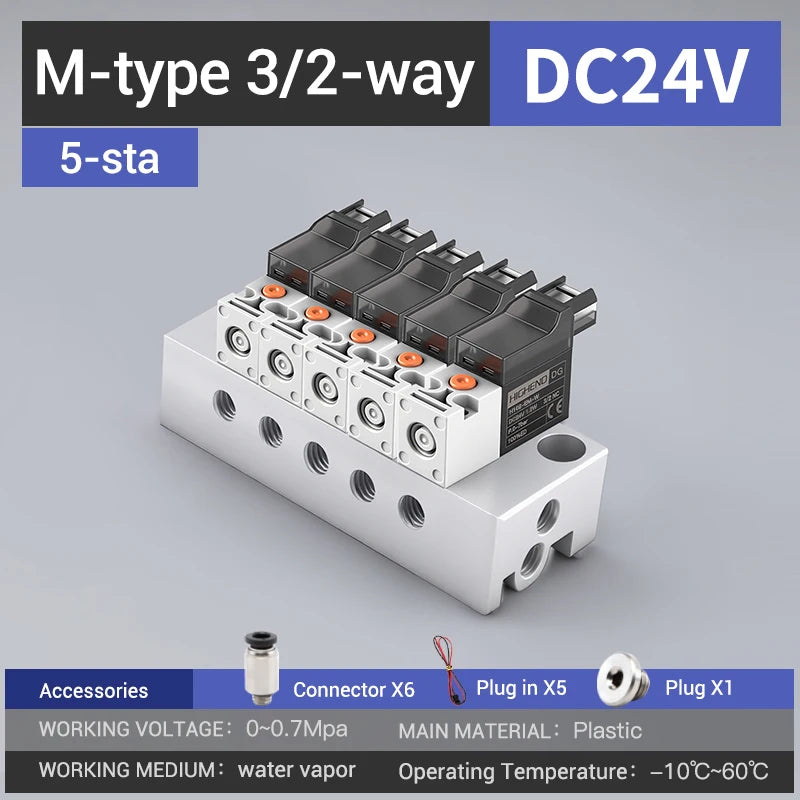

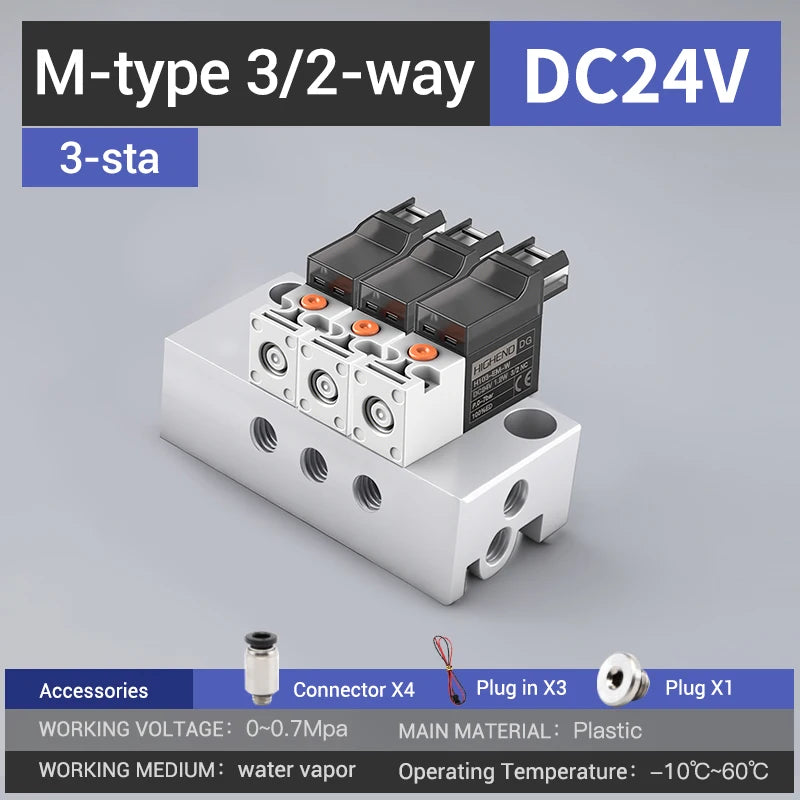

A: Sure. The valve must be matched with dedicated manifold base, modular combination supports one inlet and multiple outlets integrated installation.

Q: What are the valve types you supply?

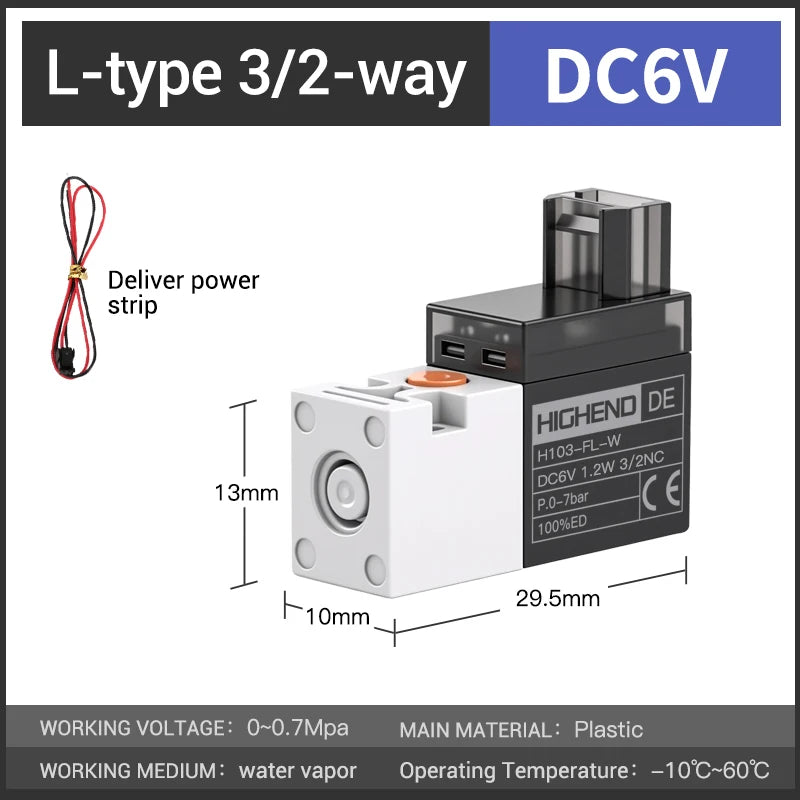

A: Two main types for selection: 2 position 2 way and 2 position 3 way miniature pneumatic solenoid valves.

Q: How long is the service life of this high frequency valve?

A: Adopting wear-resistant sealing and stainless steel spring, its service life can reach more than 100 million switching cycles.

Q: Is this valve interchangeable with SMC type micro solenoid valves?

A: It adopts equivalent size and mounting standard of SMC high frequency micro valve, direct replacement without changing installation structure.

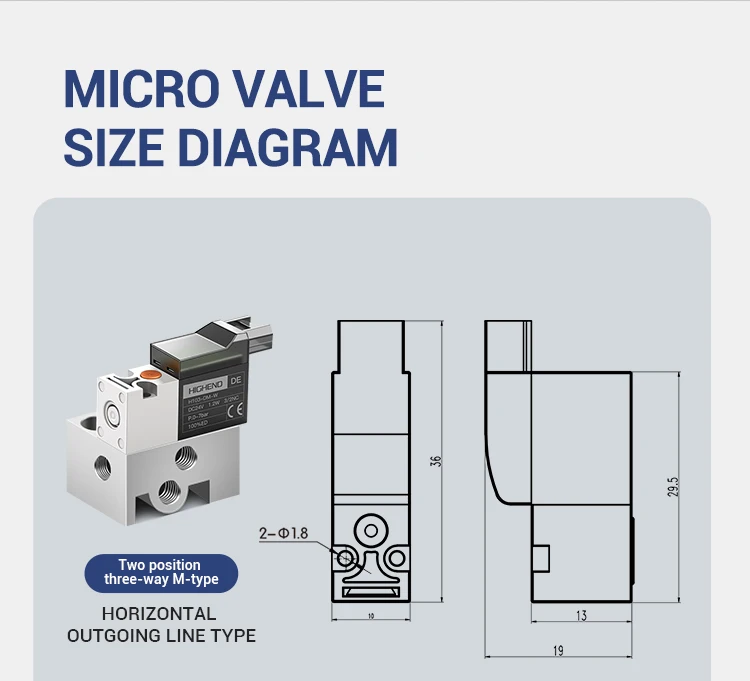

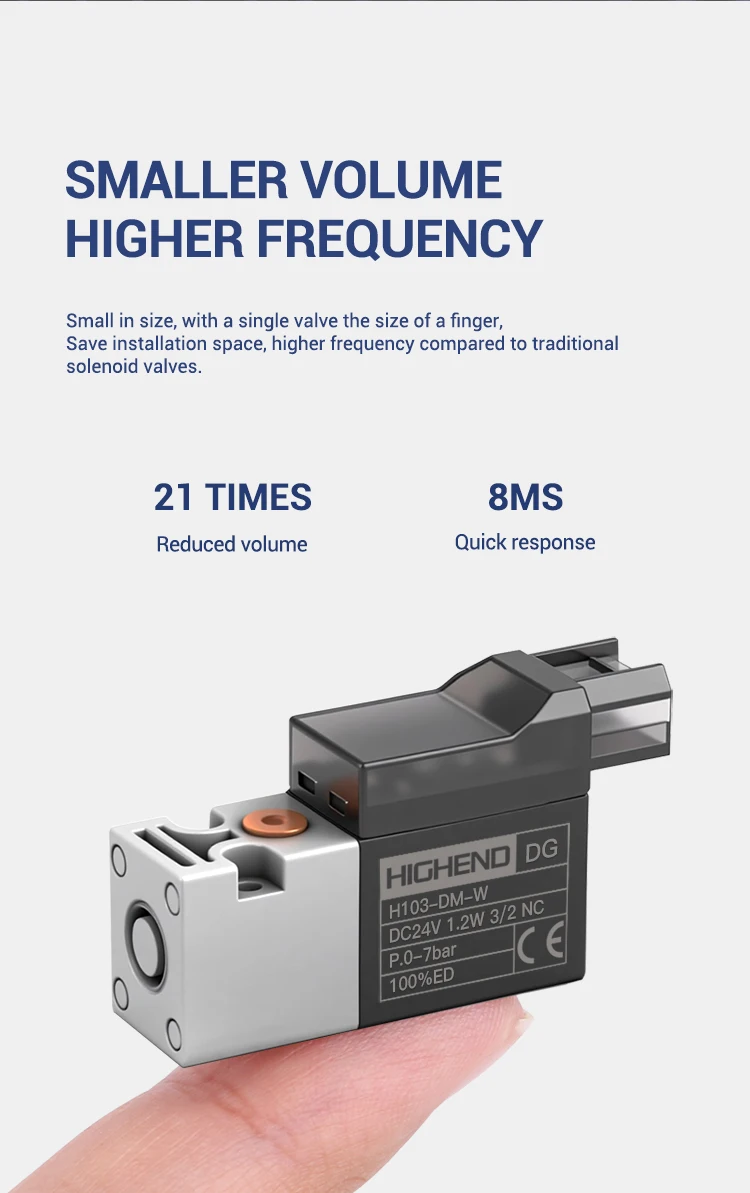

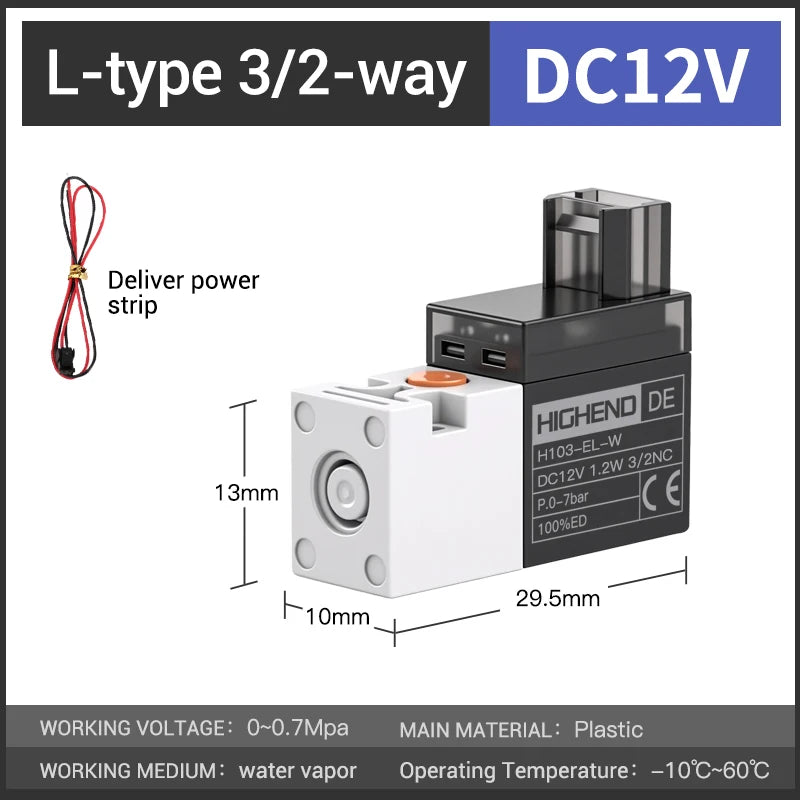

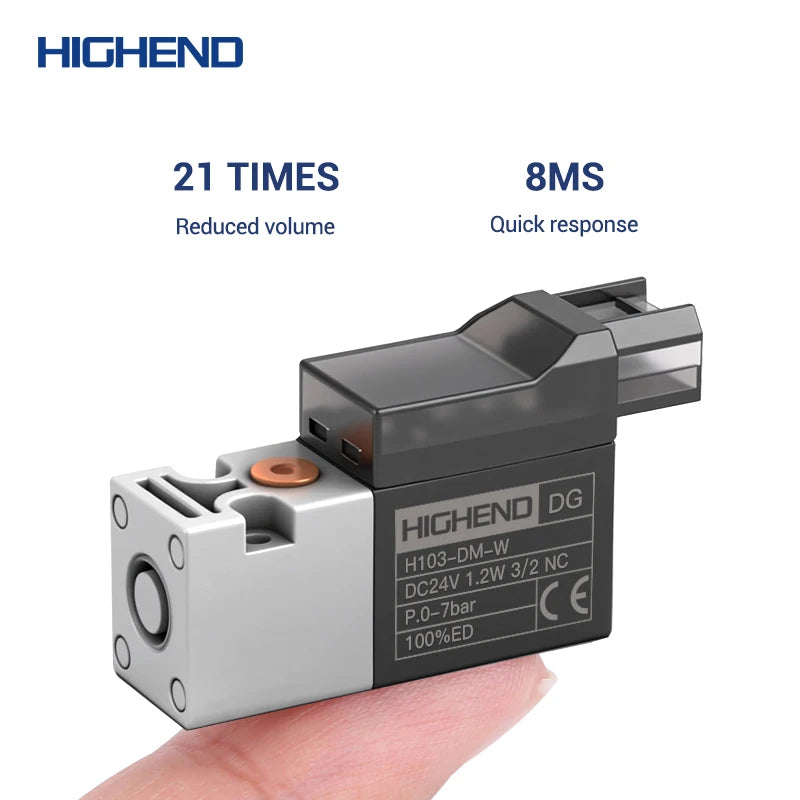

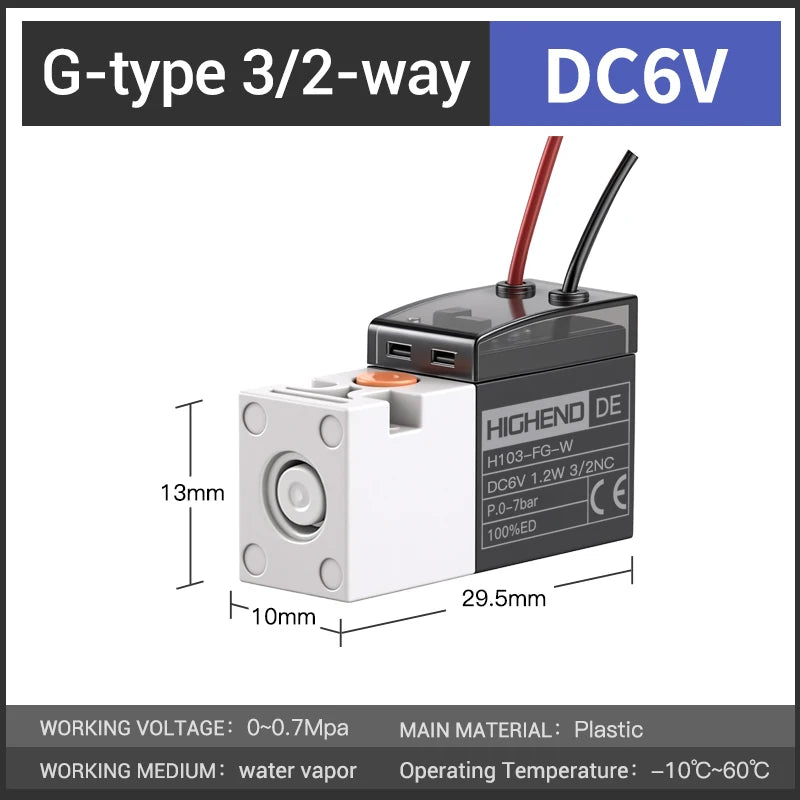

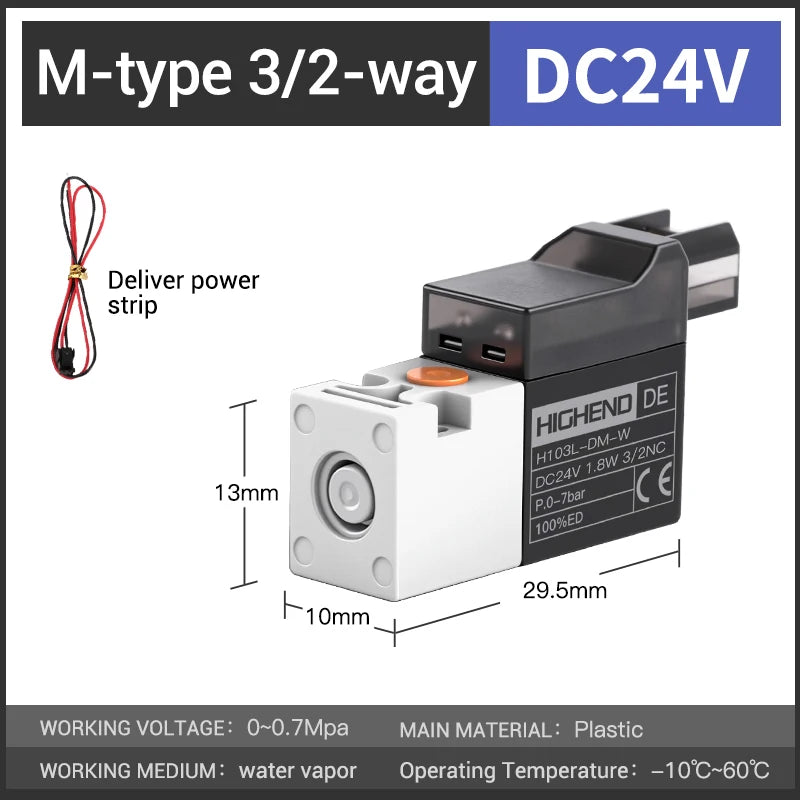

Q: What are the advantages of this 10mm mini solenoid valve?

A: Compact 10mm size saves mounting space, high frequency switching, large air flow, low power consumption and energy saving.

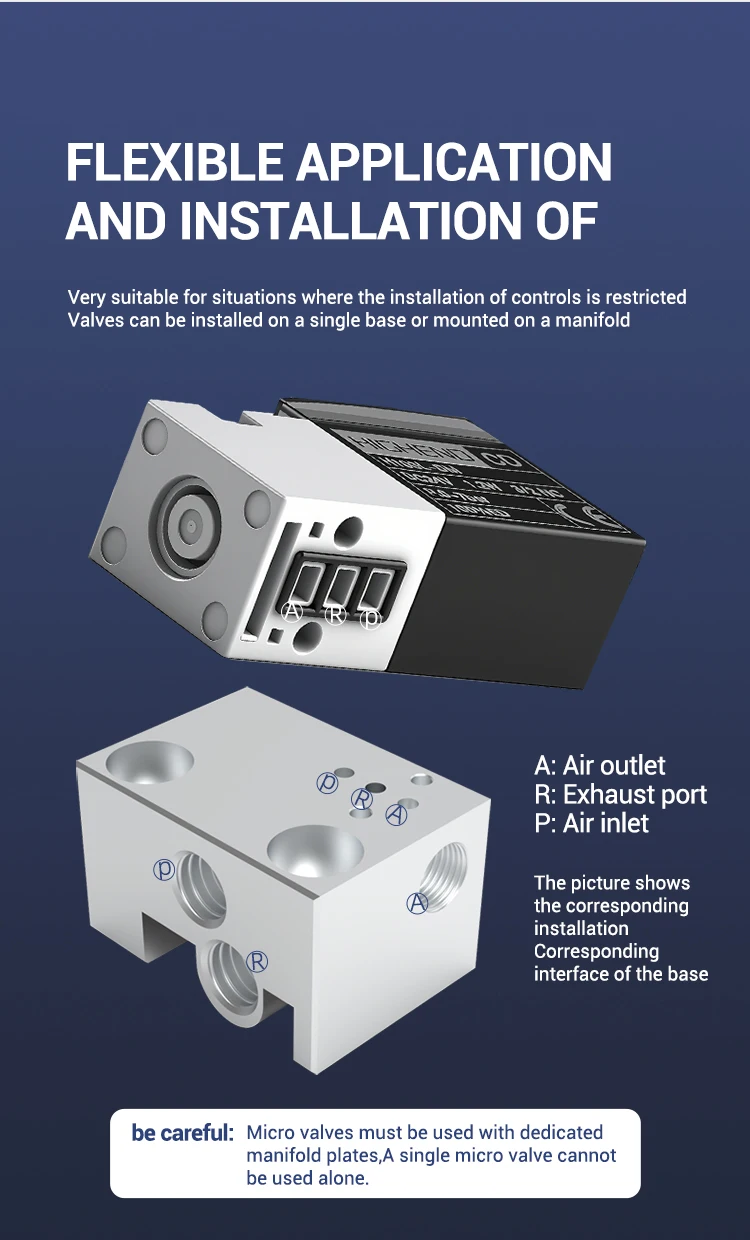

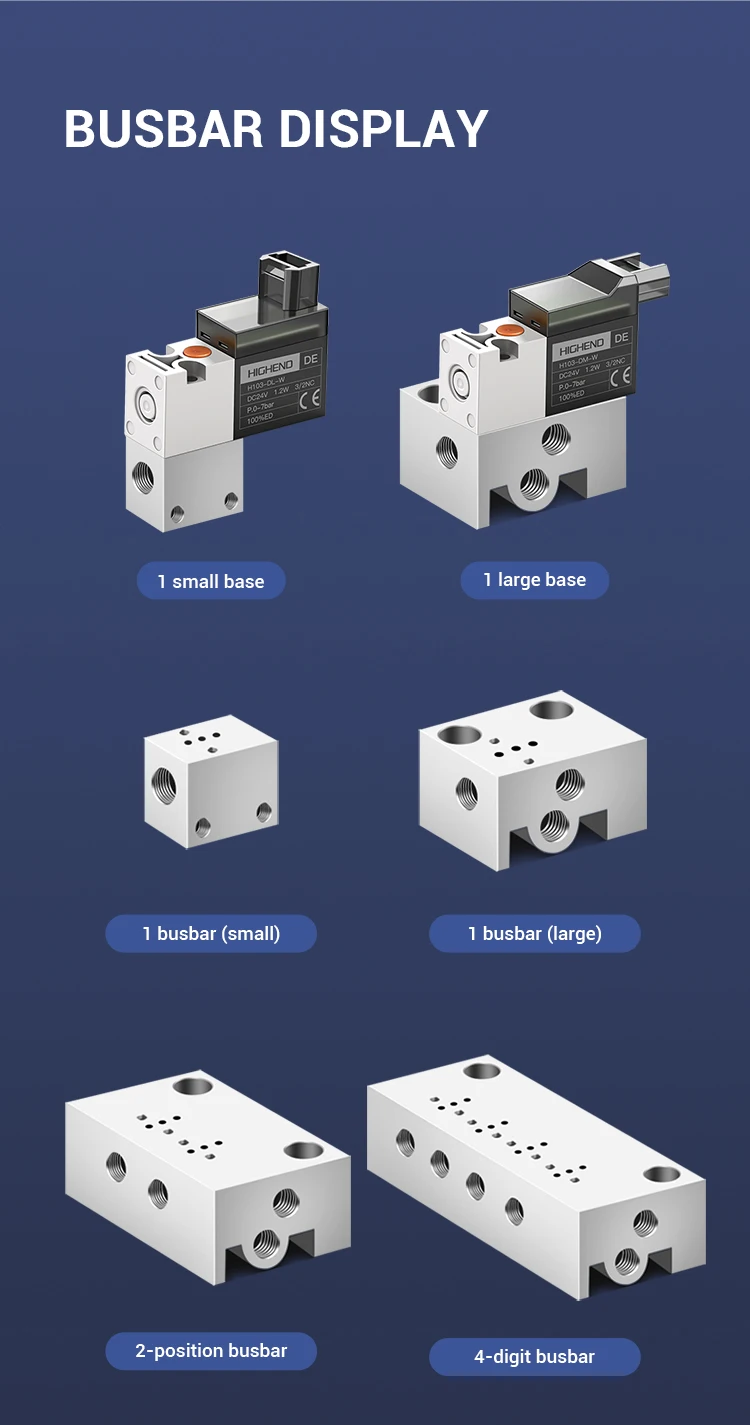

Q: Is the manifold base included together with the valve?

A: The valve and manifold base are sold separately. We can provide matched integrated base according to your required quantity of combined valves.
