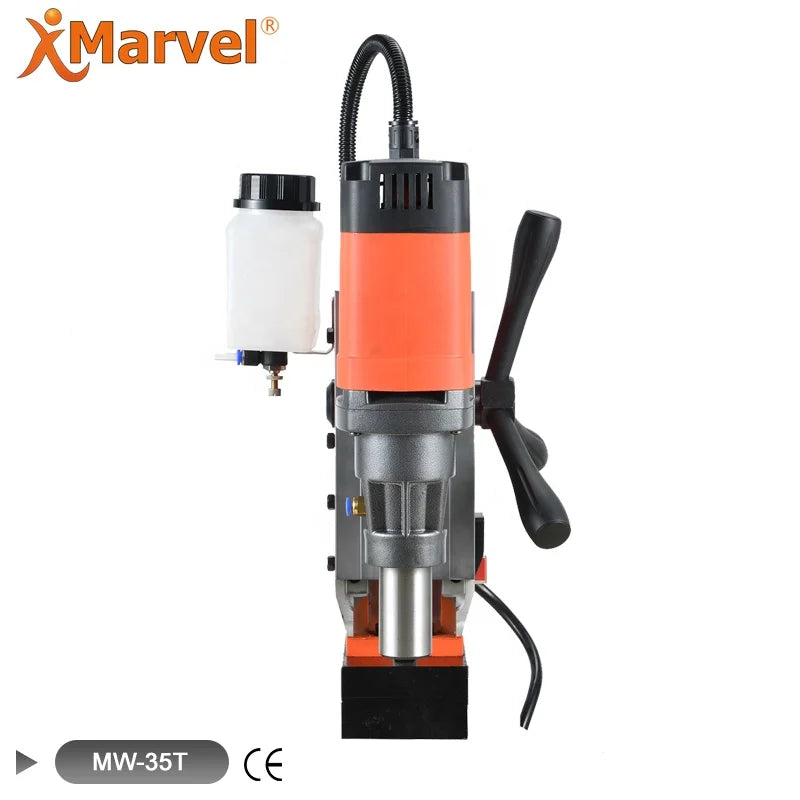

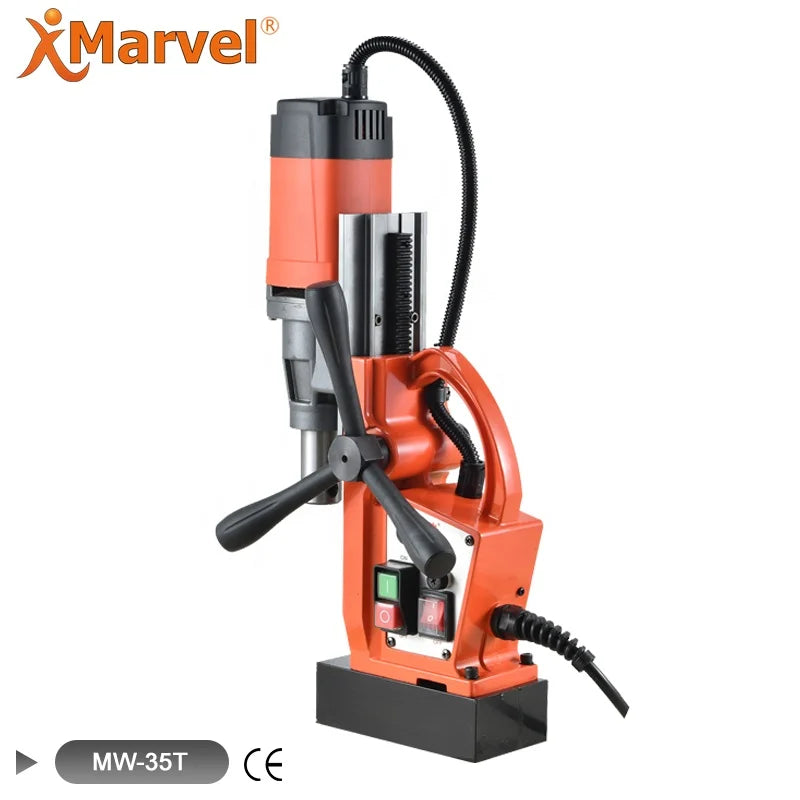

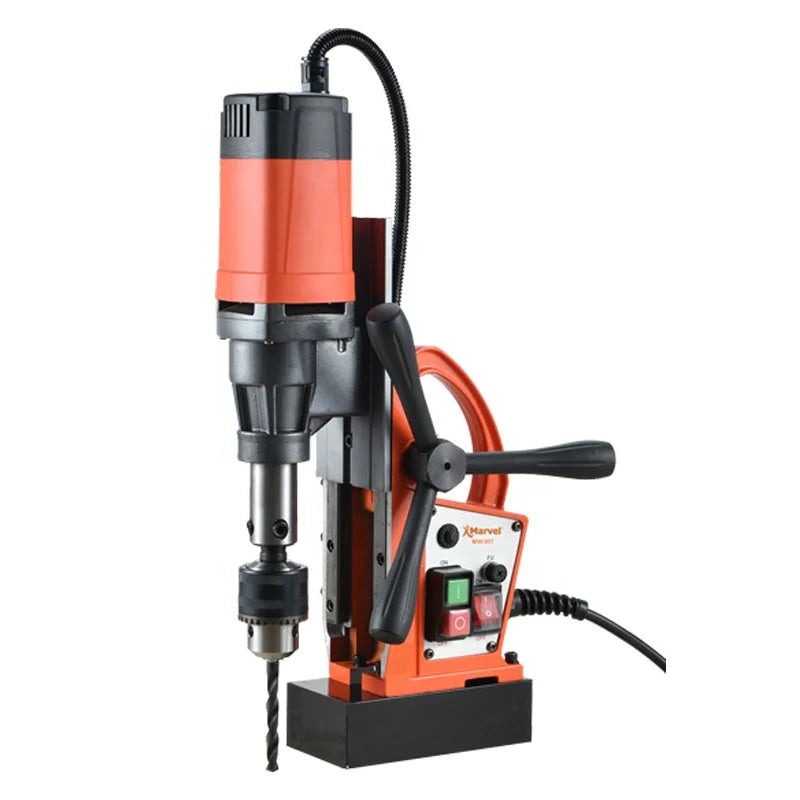

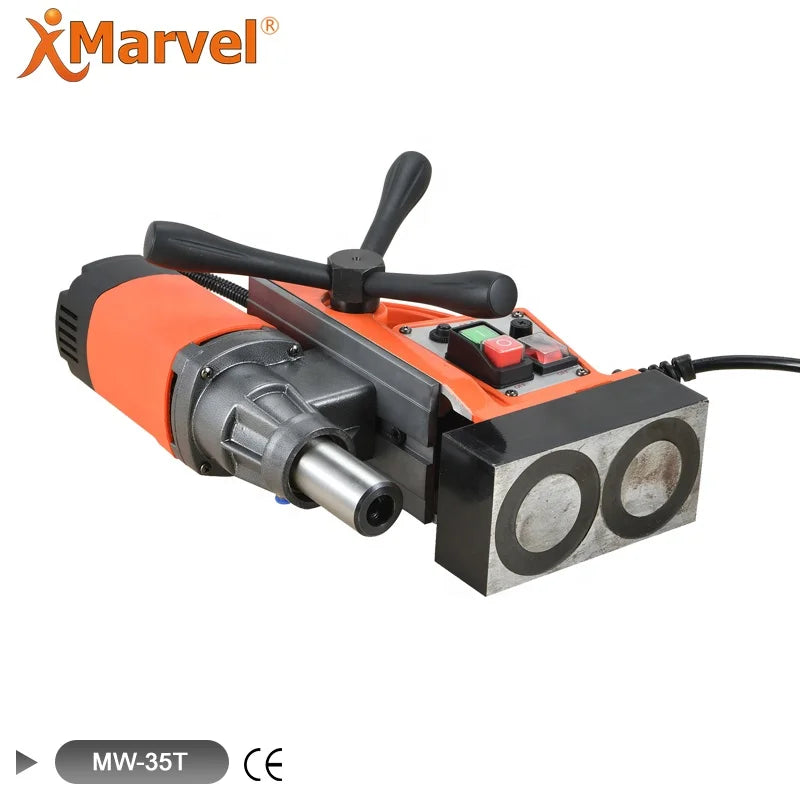

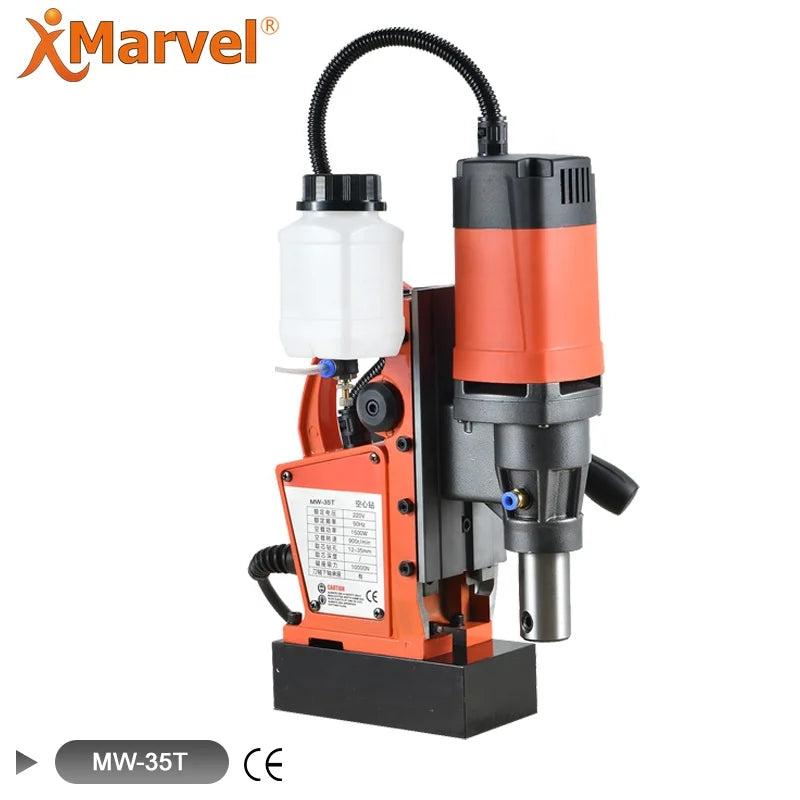

High Quality MW-40RC 1.38'' Dia Drill Press Tool 1700W 650rpm 15500N Magnetic Core Drill Machine

CFA110,401 XOF

~~CFA0 XOF~~ CFA110,401 XOF

Sale Produits stock

Shipping calculated at checkout.

voltage 110V/220V

color Orange

SPECIFICATIONS

Adhesion: 15500N

Chuck Size: 16mm

Chuck type: Industrial

Drill Type: Magnetic Drill

Frequency: 50Hz/60Hz

Max. Drilling Diameter: 40mm annular cutter

Maximum Speed: 750rpm

No-Load Speed: 0-690r/min

Number Of Speeds: Variable Speed

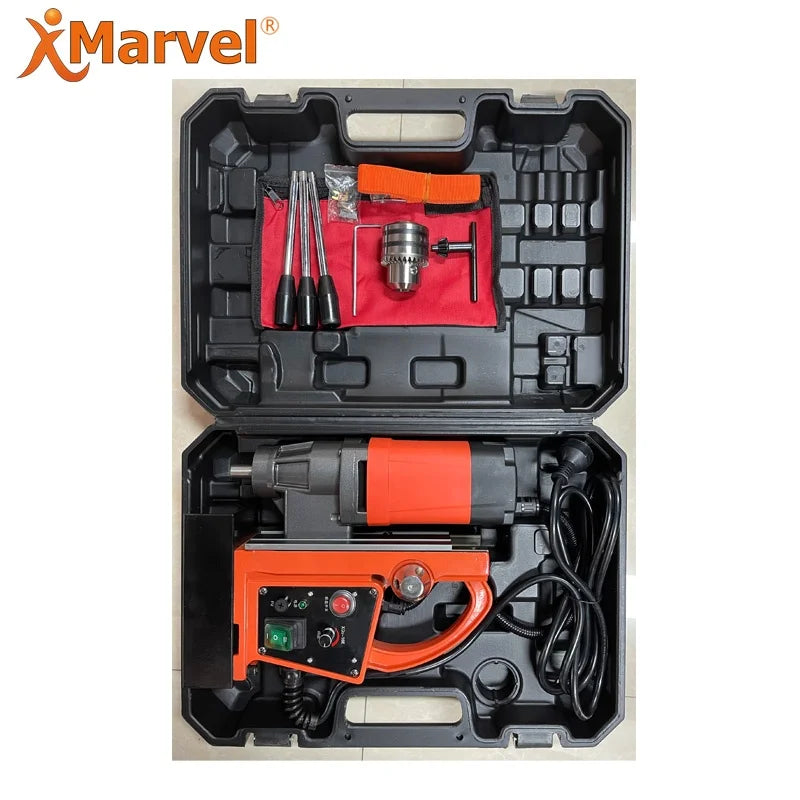

Packing: Plastic Box + Carton Box

Rated Input Power: 1700W,1700W

Rated Voltage: 110/220V

Speed Type: Variable Speed

Spindle holder: MC2-19.05mm(3/4")welden

brand name: MARVEL

customized support: OEM

dimensions: 59*41*19CM

drill type: Magnetic Drill

grade: Industrial

max. drilling diameter: 35mm annular cutter,16mm drill bit

model number: MW-40RC

motor type: Brush Motor

no-load speed: 650rpm

place of origin: Shanghai, China

power source: Electricity

warranty: 1 Year

weight: 16KGS

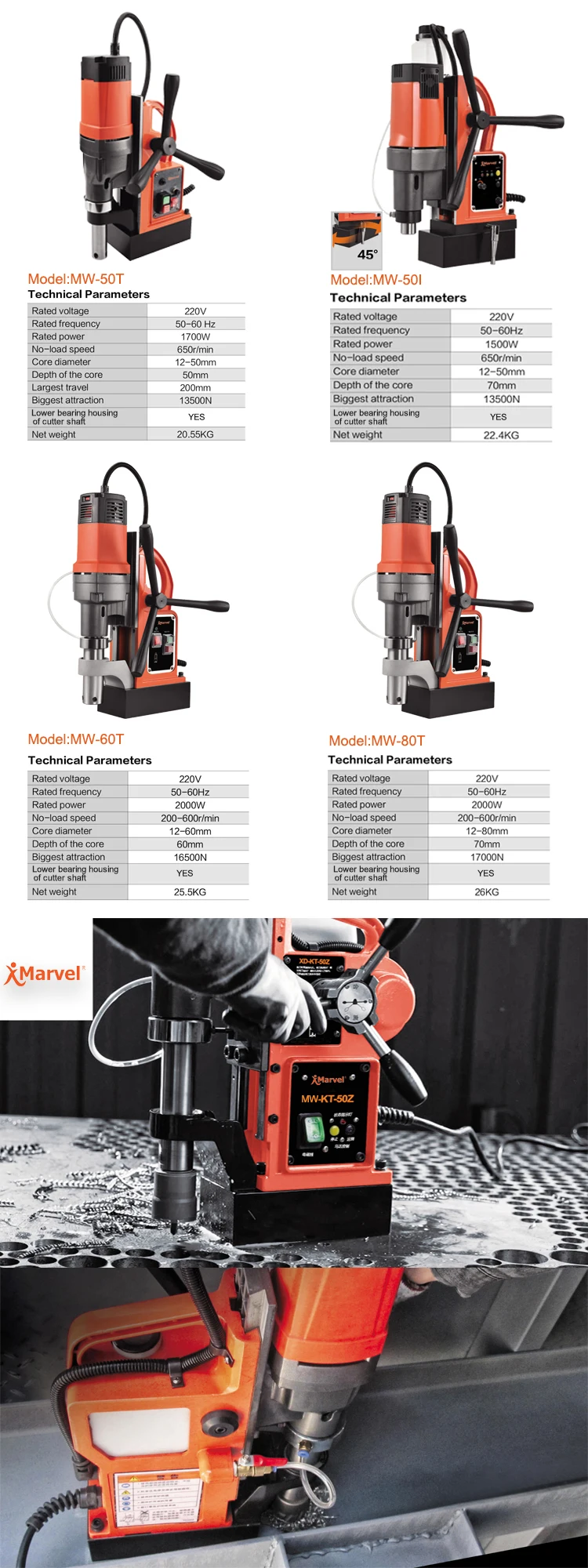

High Quality MW-50T 1.38'' Dia Drill Press Tool 1700W 650rpm 14800N Magnetic Core Drill Machine

Product Detail -M

Product Description of magnetic drill price :

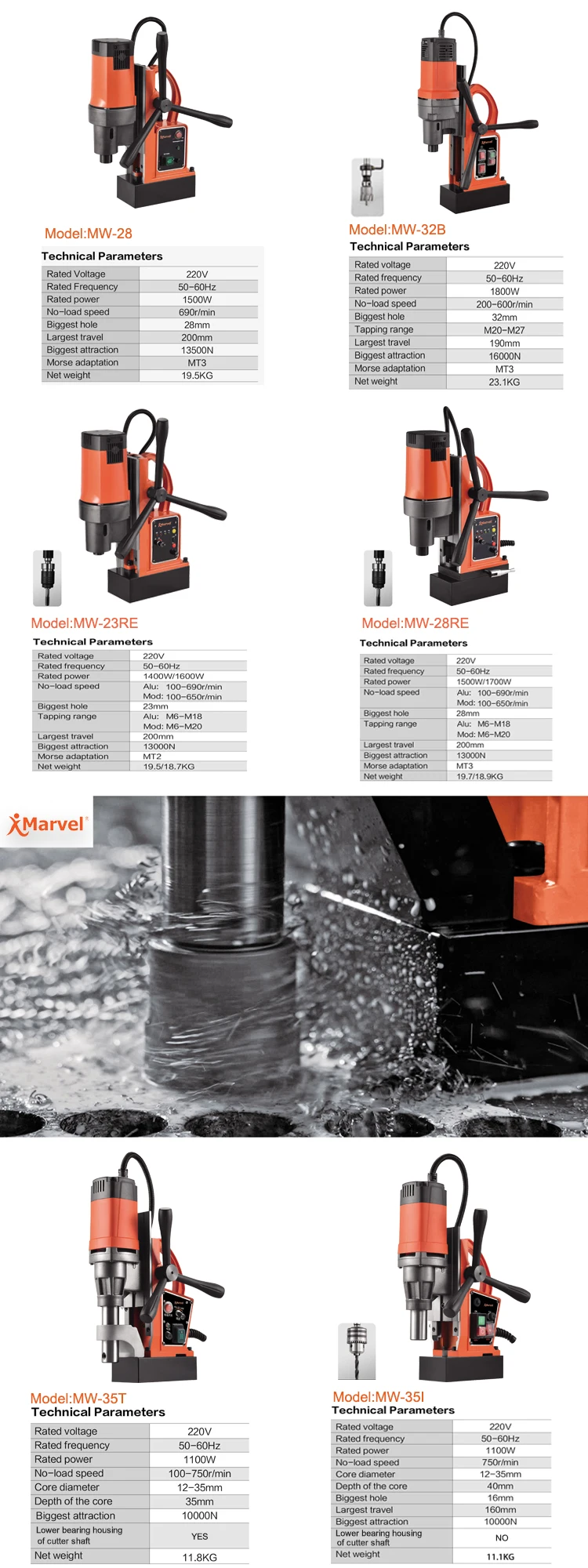

ITEM NO	MW-16RE	MW-23	MW-28	MW-32B	MW-23RE	MW-28RE	MW-35T	MW-35I	MW-50T	MW-50I	MW-60T
Drillling range	16mm twist bit	23mm twist bit	28mm twist bit	32mm Twist bit	23mm twist bit 50mm annular cutter M18 tapping	28mm twist bit 50mm annular cutter M18 tapping	35mm annular	16mm twist bit 35mm annular cutter	50mm annular cutter	50mm annular cutter	60mm annular cutter
Magnetic Adhesion(N)	9000	13000	13500	16000	13000	13000	10000	10000	13500	13500	16500
Rated input Power(W)	1000	1400	1500	1800	1600	1700	1100	1100	1700	1500	2000
No-load speed(r/min)	100-750	690	690	200-600	100-690	100-650	100-750	750	650	650	200-600
