Model: JT5241015
Body Material: Brass
Working Medium: Air
Drive Mode: Direct Acting
Type: Normal Closed
Flow bore: 15mm
Pipe Size: G1/2''
Working Pressure: 1-50Bar
Max Pressure: 50Bar
Working Temperature: -5 to 80'C degree
Voltage: AC220V , DC24V
Size: 75 x 52 x 106
PDG ibma

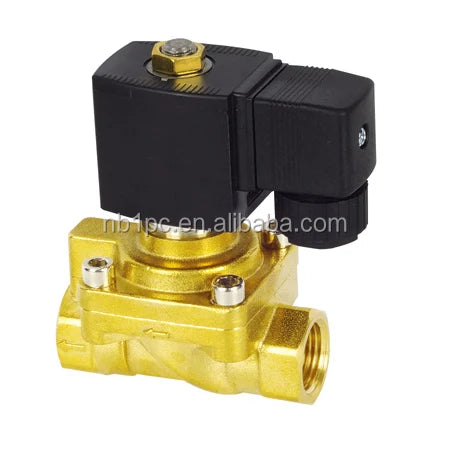

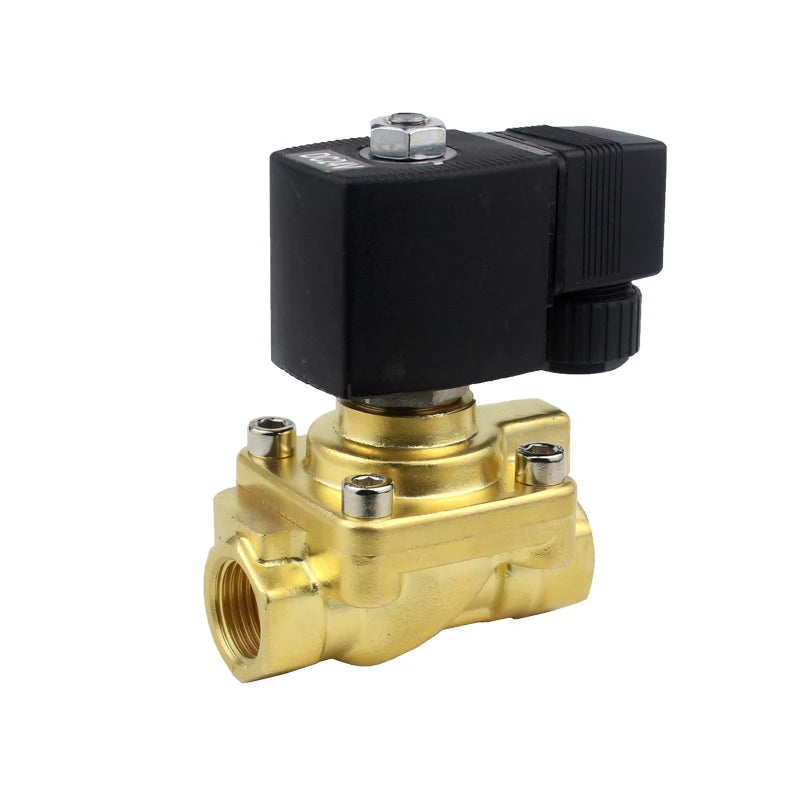

G1/2'' High Pressure 50Bar Brass Bottle Blowing Solenoid Valve JT5241015 AC220V for High Temperature Gas Pilot Structure
G1/2'' High Pressure 50Bar Brass Bottle Blowing Solenoid Valve JT5241015 AC220V for High Temperature Gas Pilot Structure
Regular price
CFA9,702 XOF
Regular price
CFA0 XOF
Sale price
CFA9,702 XOF
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Body Material: Brass
Coil Material: Copper
Function: 2/2 Way
Standard or Nonstandard: Standard
Supply Voltage: 12~240V AC/DC
application: General
brand name: EPSolid
customized support: OEM,ODM,OBM,Software Reengineering
media: Gas
model number: JT5241015
place of origin: Zhejiang, China
port size: 1/2''
power: Solenoid
structure: Pilot
temperature of media: High Temperature
type: BALL VALVES,Washing Machine Valves,Stop & Waste Valves,Gate Valves,Water Heater Service Valves,Gas Appliance Isolation Shut-Off Valves,Kitchen Gas Shut-Off Valves,Emergency Shut-Off Valves,Truck Shut-Off Valves,Instrument Manifold Valves,Axial Valves,Metal Check Valves,Plastic Check Valves,Backwater Valves,Pressure Vacuum Breaker
warranty: 1 years
Product Description
Title goes here.
Title goes here.
Model 5231002 5231002S 5404-04 5404-06 5404-08
Working Medium Air, Water, Oil, Gas
Motion Pattern Direct Acting Type Guide Type
Function Type Normal Close
Way Type 2/2
Aperture of flow Rate 2mm 2mm 12mm 20mm 25mm
KVÂ Value 0.2 0.2 2.0 5.0 10.0
Joint Pipe Bore G1/4’’ G1/4’’ G1/2’’ G3/4’’ G1’’
Working Pressure(Bar) 0~50 3~50
Max. Pressure Resistance 50kgf/cm2
Voltage Range 10%up and down
Operation Temp Range -10~+150'C degree (185’c degree allow)
Insulation & Protection Class F Class IP65
Material of Body Brass (S: Stainless Steel)
Material of oil seal FKM,PTFE
Title goes here.
Model 5404-02K 5404-03K 5404-04K 5404-06K 5404-08K
Working Medium Air, Water, Oil, Gas
Motion Pattern Guide Type
Function Type Normal Open
WayType 2/2
Aperture of flow Rate 12mm 20mm 25mm
KVÂ Value 2.0 5.0 10.0
Joint Pipe Bore G1/4’’ G3/8’’ G1/2’’ G3/4’’ G1’’
Working Pressure(Bar) 3~30
Max. Pressure Resistance 35kgf/cm2
Voltage Range 10%up and down
Operation Temp Range -10~+150'C degree (185’c degree allow)
Insulation & Protection Class F Class IP65
Material of Body Brass
Material of oil seal FKM,PTFE

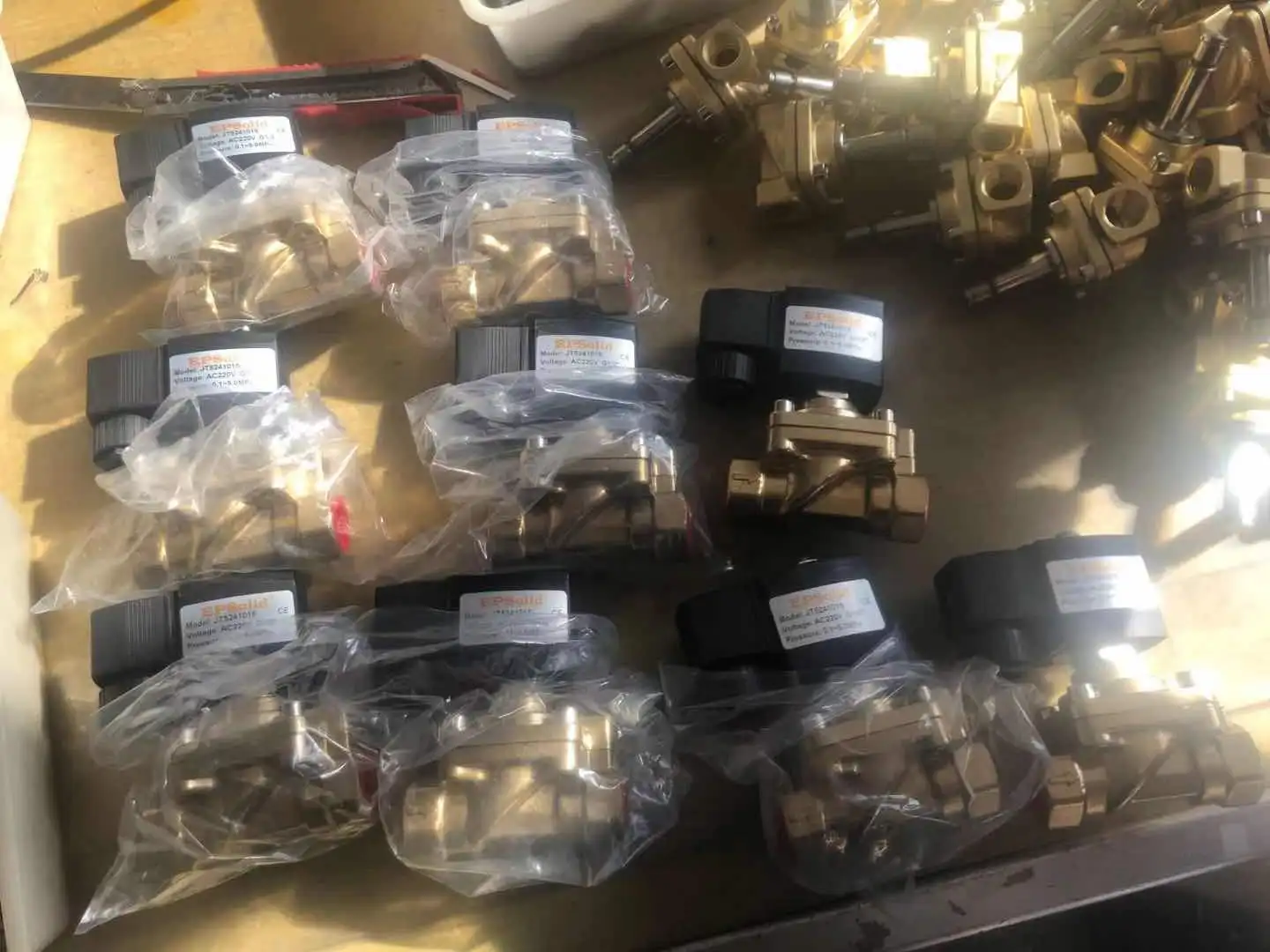

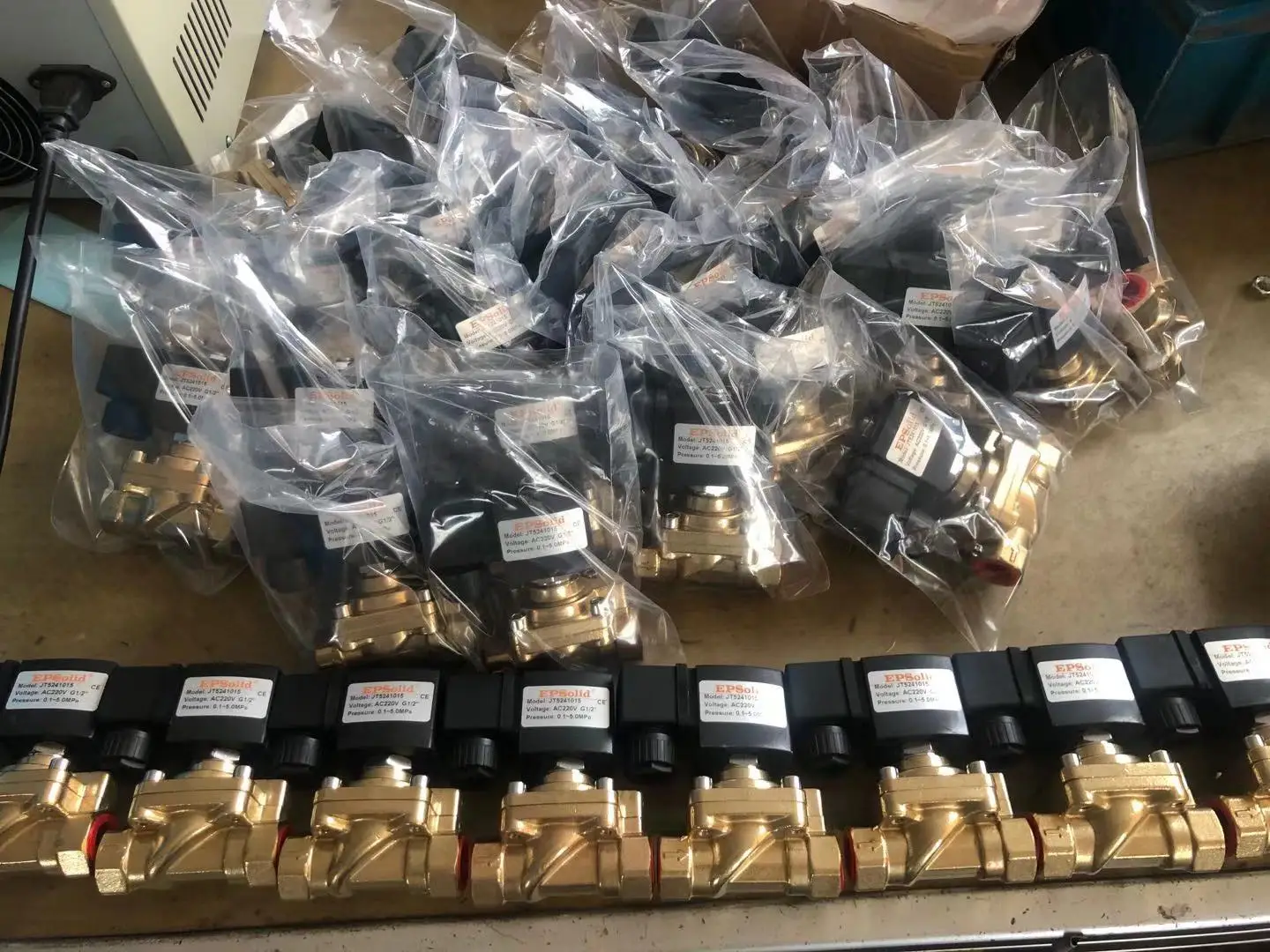

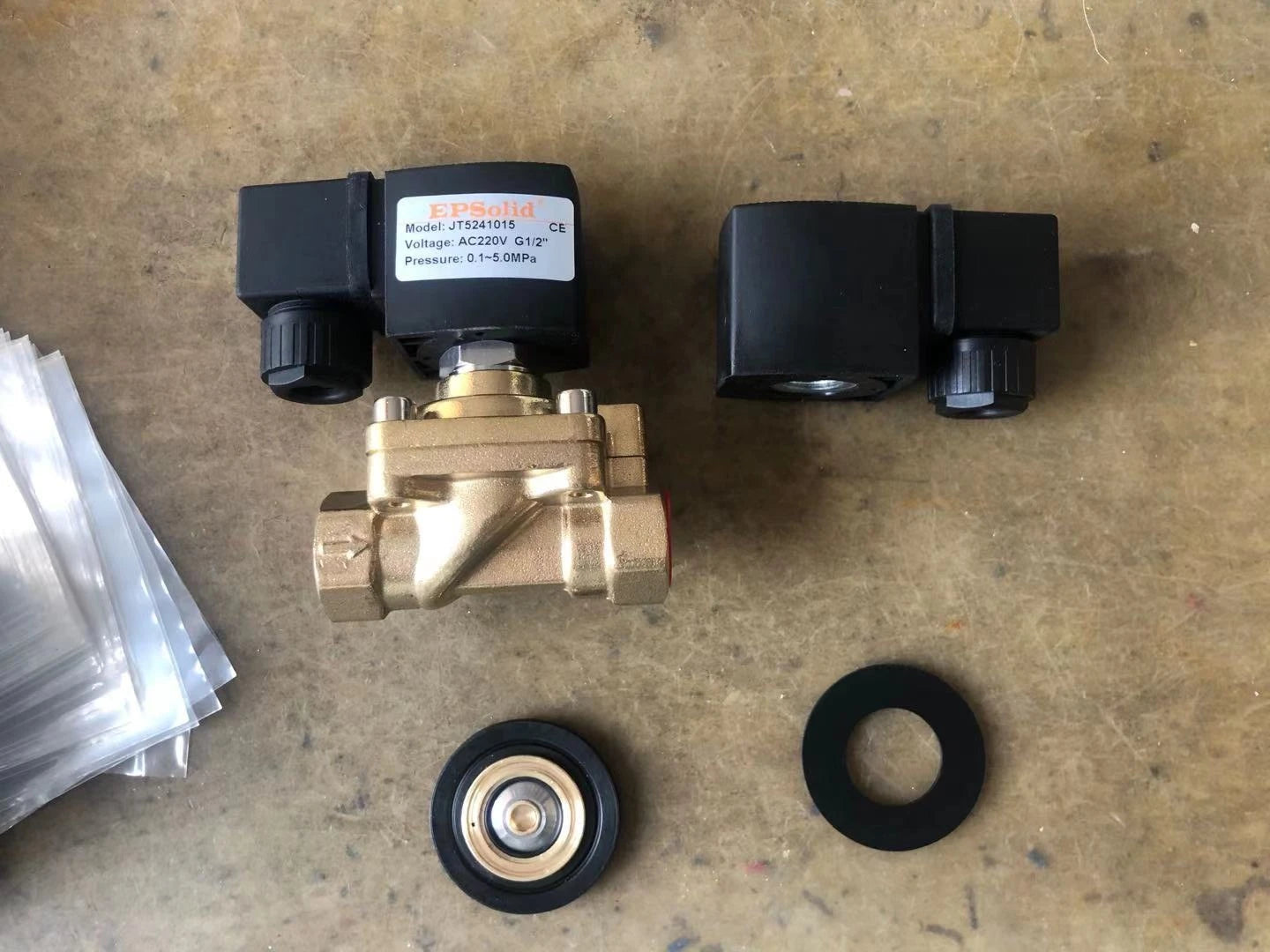

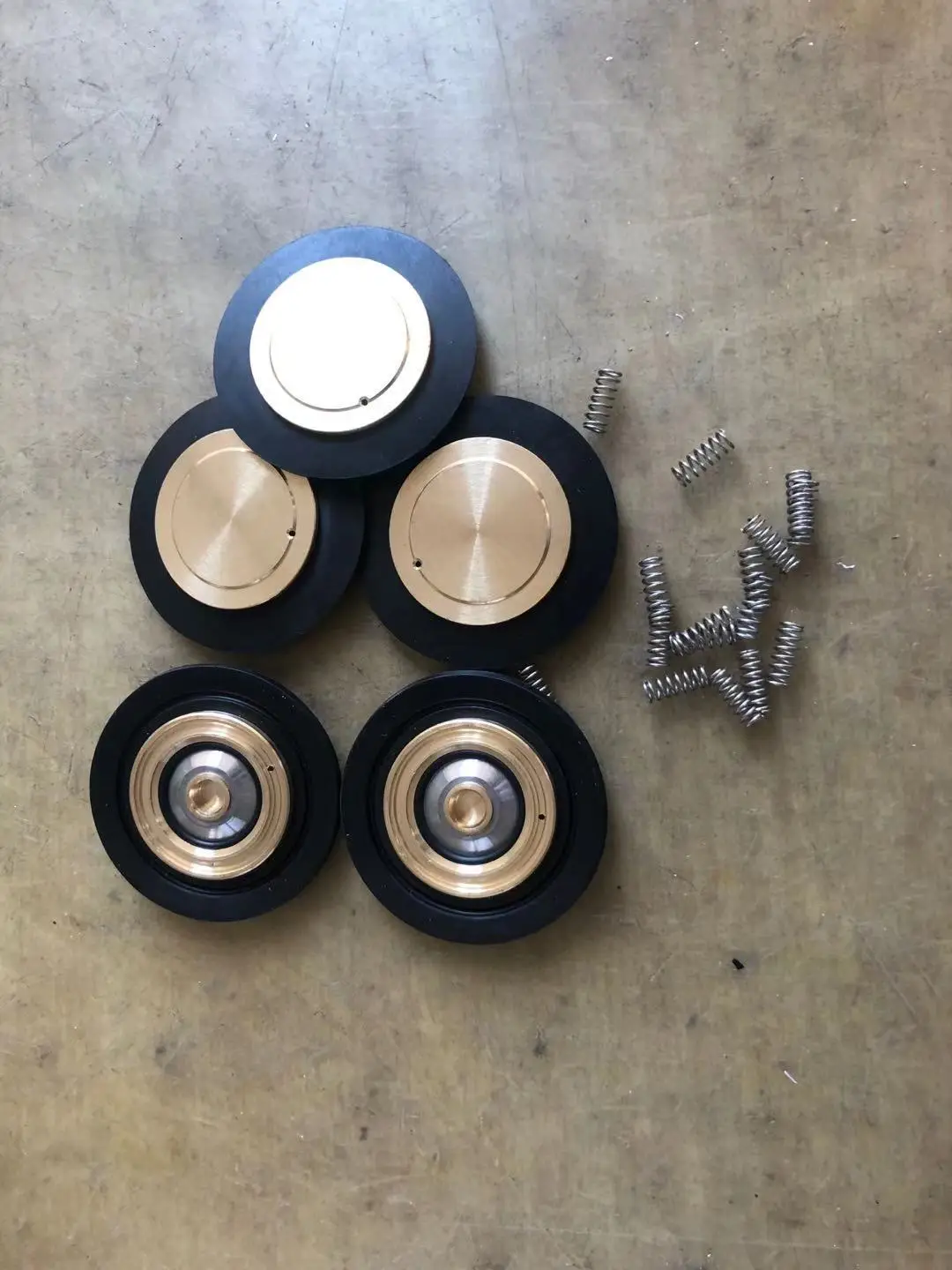

Detailed Images
Title goes here.
Description:
Two position, two way, normal close switch, magnetic solenoid water valve.
Should be installed in the horizontal tube keep upward.
Used to control automatically the liquid and gas in the pipeline
