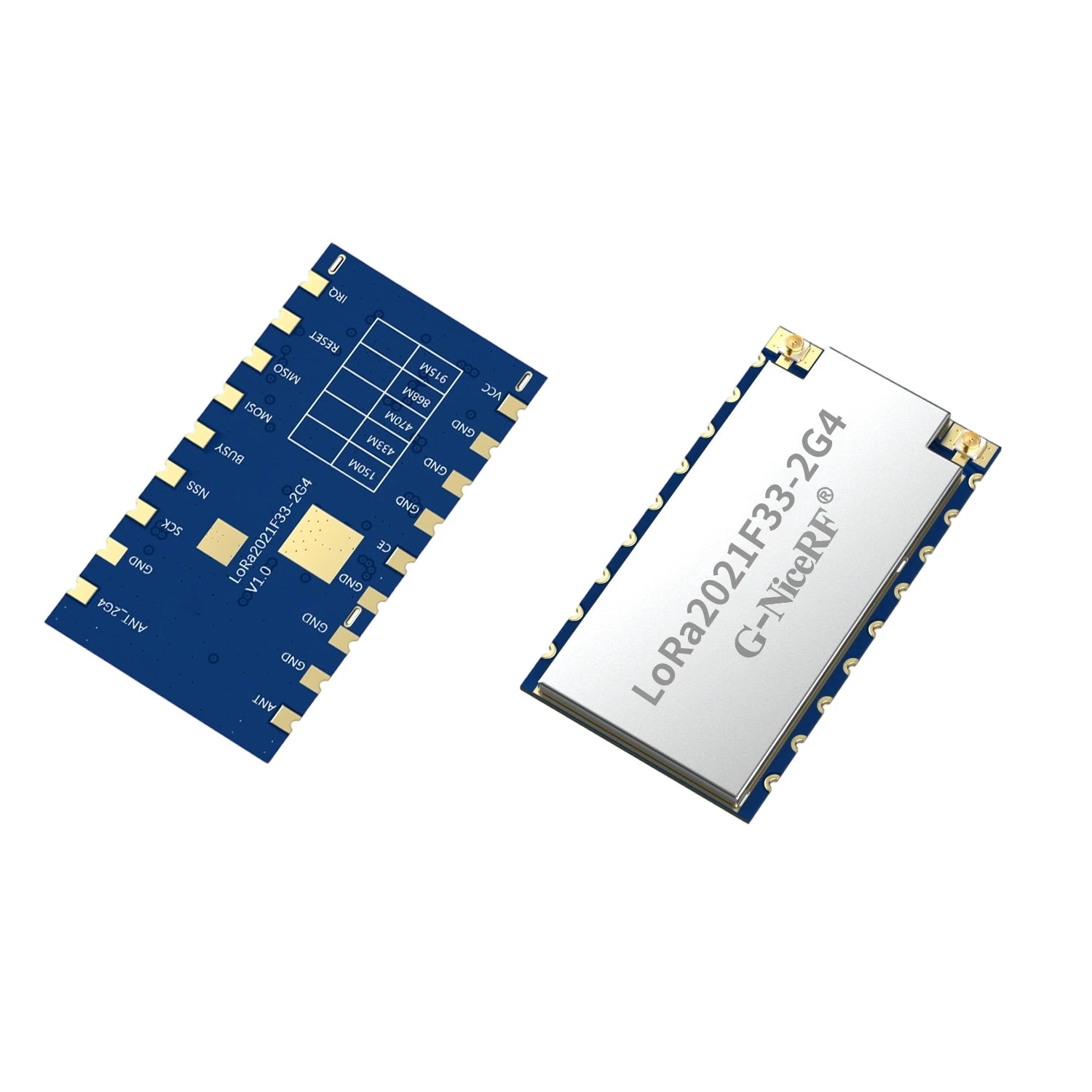

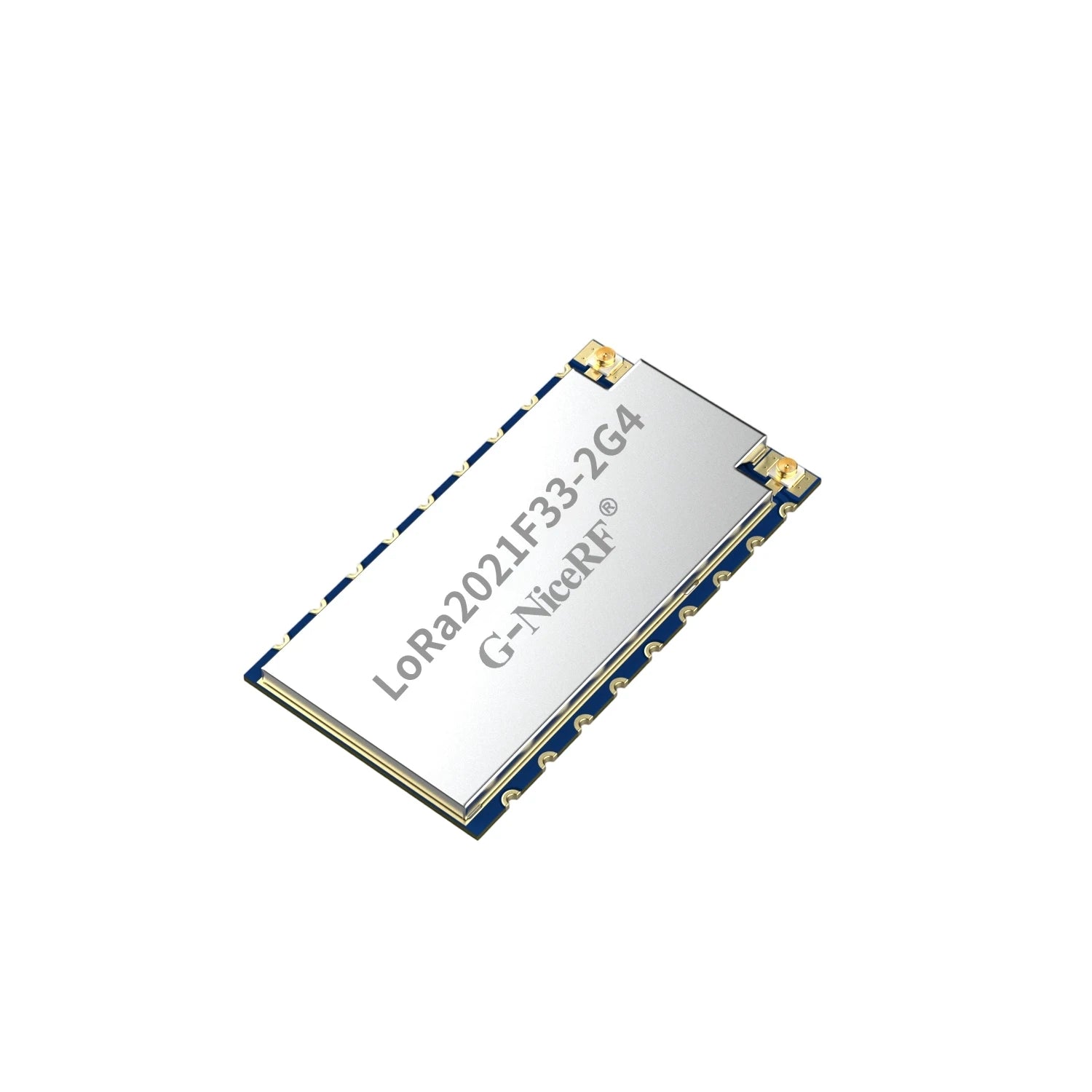

G-NiceRF | 2PCS LoRa2021F33-2G4 2W High Power LoRa Module FLRC up to 2.6Mbps, Sub-GHz Sensitivity up to -144dBm LR2021 Chipset

CFA21,358 XOF

~~CFA0 XOF~~ CFA21,358 XOF

Sale Produits stock

Shipping calculated at checkout.

Color 2G4 and 315 2G4 and 433 2G4 and 470 2G4 and 868 2G4 and 915

SPECIFICATIONS

2.4GHz band: 2400-2500MHz 1W

2.4GHz sensitivity: up to-136dBm@ BW=125KHz, SF=10

Brand Name: G-NiceRF

Chipset: SEMTECH's LR2021 chip

FLRC: modulation rate up to 2.6 Mbps

High-concerned chemical: None

Item Type: Lora Module

Model Number: LoRa2021F33-2G4

Origin: Mainland China

Sub-GHz Bands: 433/470MHz 2W,868/915MHz 1W

Sub-GHz sensitivity: up to -144dBm@BW=62.5 KHz, SF=12

Wireless Function: Yes

2PCS LoRa2021F33-2G4 Modules

Please Note: If you need other frequency, feel free to contact us to confirm before placing order.

Overview

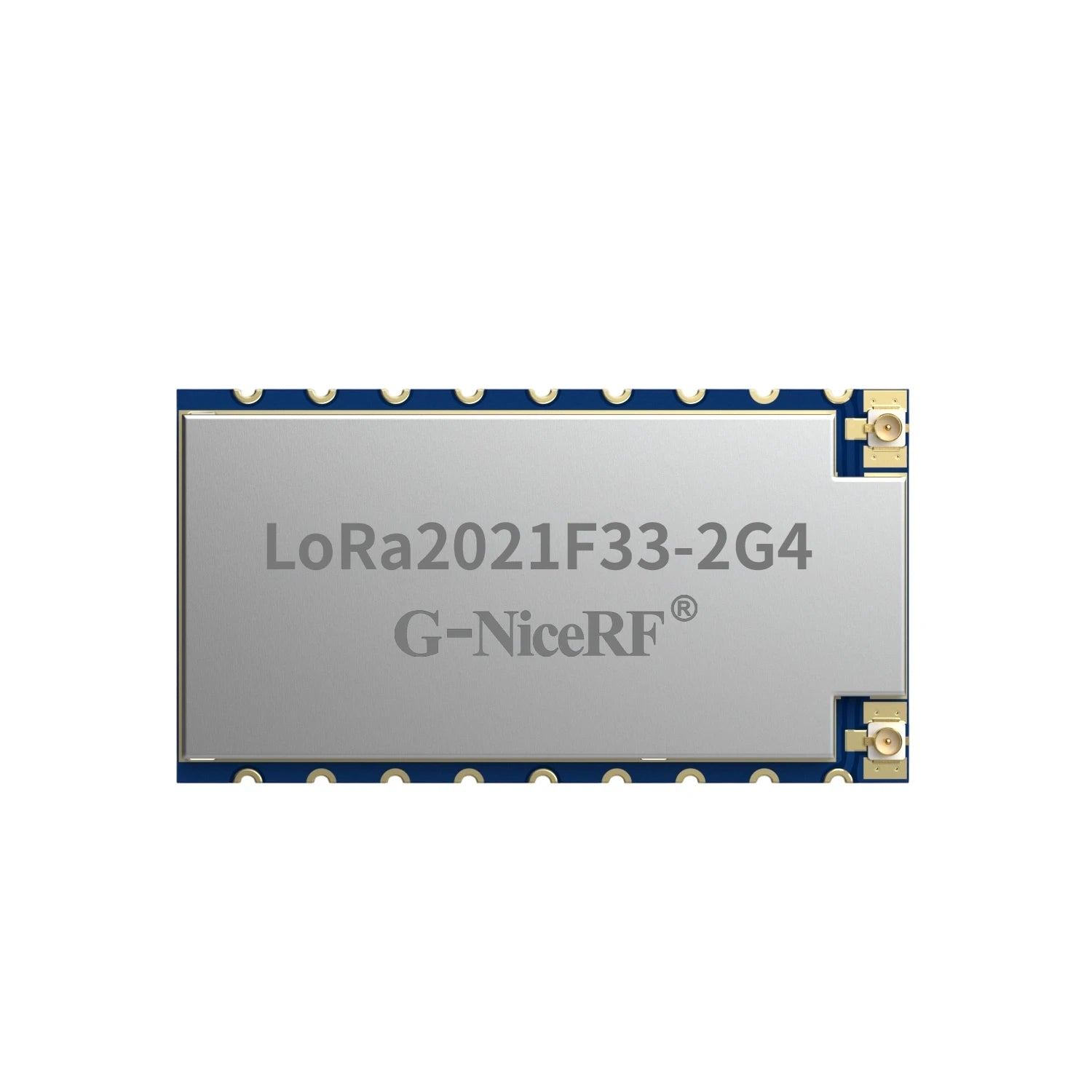

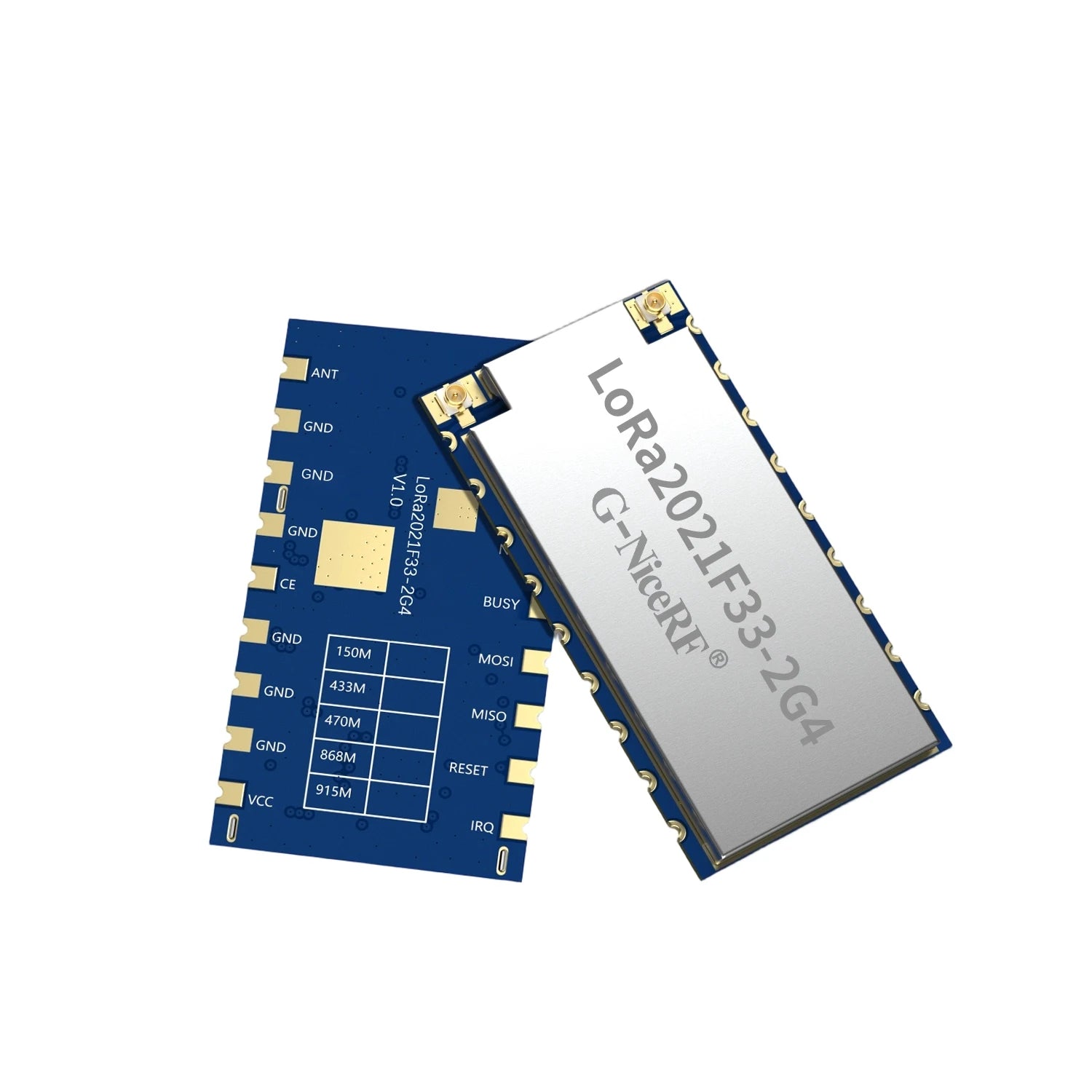

The LoRa2021F33-2G4 is a transceiver module based on SEMTECH's LR2021 chip, which
integrates the 4th-generation LoRa IP core and supports operation in the Sub-GHz and 1.9-2.5 GHz
frequency bands, the L-band, and licensed S-band frequencies, making it suitable for both terrestrial
and satellite communication (SATCOM) networks. In addition, the Lora2021F33-2G4 features extended
physical-layer modulation capabilities to support Fast Long-Range Communication (FLRC). When integrated
with third-party protocol stacks, it is compatible with a wide range of low-power wireless protocols, including
Amazon Sidewalk, Wireless M-BUS, Wi-SUN FSK, and Z-Wave.
The LoRa2021F33-2G4 is manufactured and tested using strictly lead-free processes and is fully compliant with RoHS and REACH standards.

Features

Sub-GHz Bands: 433/470MHz 2W
Sub-GHz Bands: 868/915MHz 1W
(Customizable range: 150~960 MHz)
1.9-2.5 GHz band: 1W
1.9-2.5 GHz sensitivity: up to-136dBm @ BW=125KHz, SF=10
Sub-GHz sensitivity: up to -144dBm @BW=62.5 KHz, SF=12
Built-in electrostatic protection circuit
Supports LR-FHSS
FLRC: modulation rate up to 2.6 Mbps
LoRa: modulation rate up to 125 kbps
4th Generation LoRa IP technology
Simultaneous detection of multiple spreading factors (SF)
Enhanced CAD (Channel Activity Detection)
Higher frequency offset tolerance (for harsh RF environments):
Supports multiple communication protocols:
LoRa / LoRaWAN® (Sub-GHz + 2.4GHz)
Bluetooth® LE 5.0
IEEE® 802.15.4 (Thread®/Zigbee™)
Wi-SUN, Wireless M-BUS, Z-Wave, etc.
Transmission distance: >10km at Sub-GHz in open area
Sleep current < 20µA

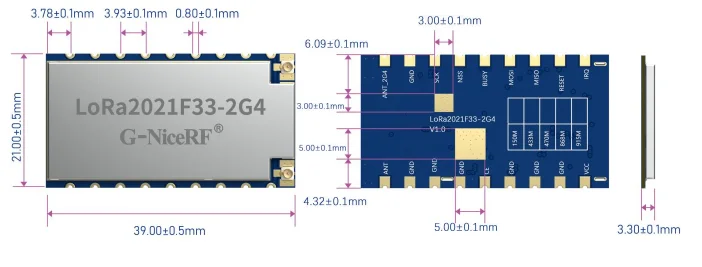

Small size, stamp hole design

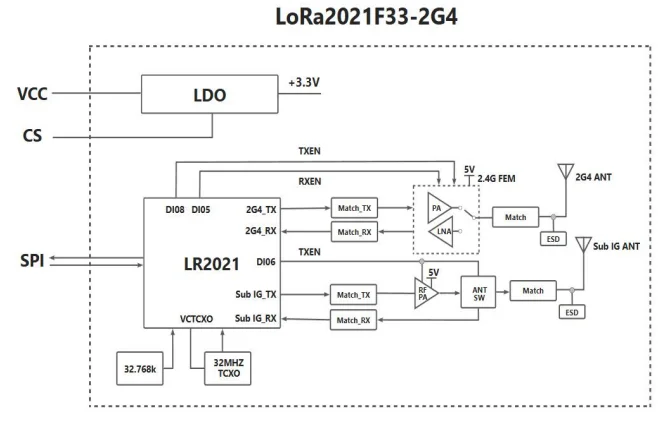

Block Diagram

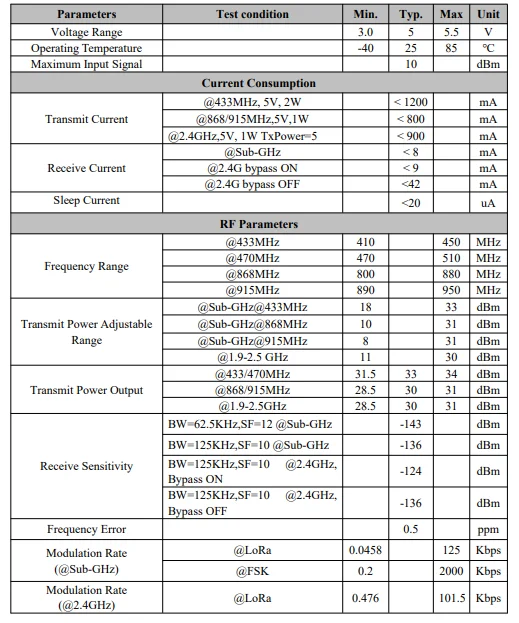

Electrical Characteristics

Note: For the 2.4GHz LNA (DIO5), it should normally be set to high level (Bypass OFF). If set to low
level, sensitivity will decrease by 12dB (Bypass ON).
