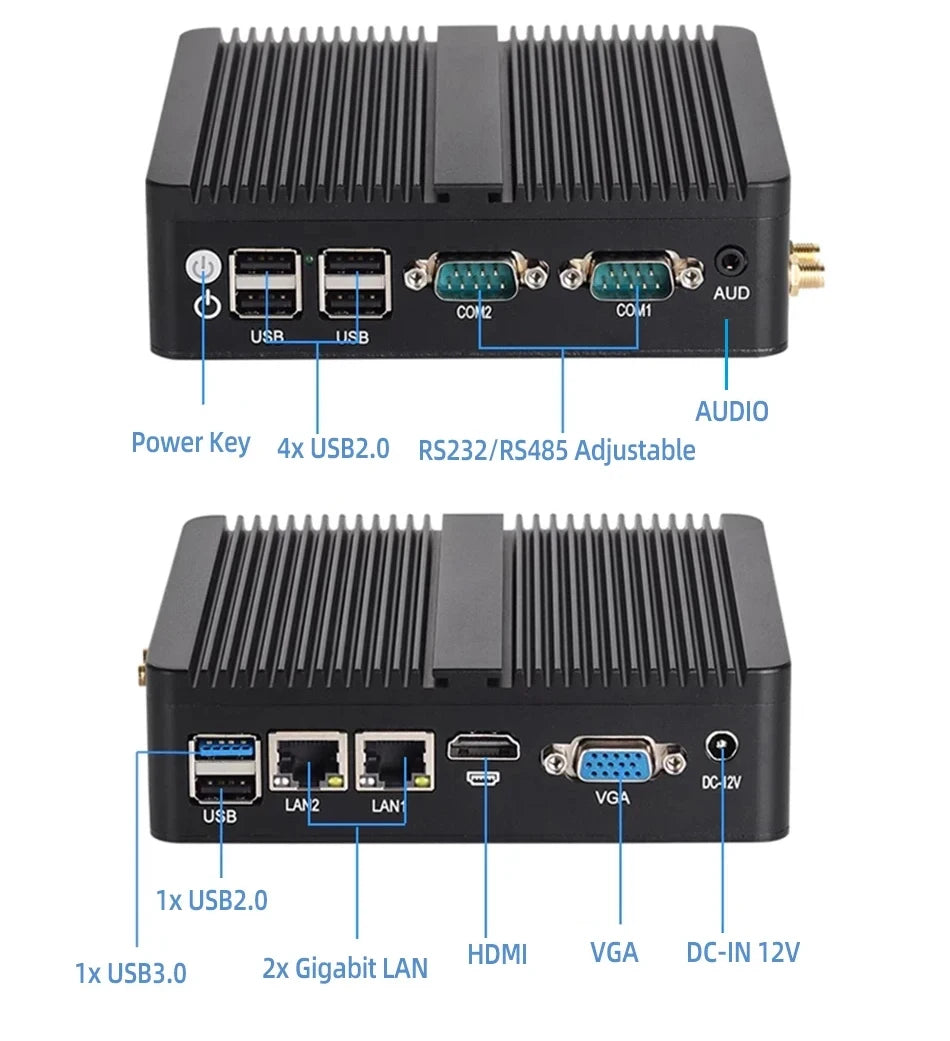

Fanless Mini PC IPC Intel J1900 J2900 I5-5200U 2xEthernet 2x COM DB9 HDMI VGA MPICE Expansion WiFi 4G LTE Support Windows Linux
Fanless Mini PC IPC Intel J1900 J2900 I5-5200U 2xEthernet 2x COM DB9 HDMI VGA MPICE Expansion WiFi 4G LTE Support Windows Linux
Couldn't load pickup availability
SPECIFICATIONS
Audio Output: Audio combo jack 3.5mm
Brand Name: YCSD
COM Ports: 2x RS232
Certification: CE,FCC,RoHS
Construction: Fanless aluminum case cooling
Dimension: 136x126x39mm
Graphics: Intel HD Graphics
Graphics Card Type: Integrated Card
Hard Drive Capacity: 120GB
High-concerned chemical: None
Memory Capacity: ≥ 4GB
Model Number: X30G
Network Interfaces: Realtek 8111H Gigabit Ethernet
Origin: Mainland China
Power Adapter: AC100-240V to DC12V-3A
Processor Brand: Intel
Processor Main Frequency: 2.0GHz
Processor Model: Celeron J1900, 2955U, Pentium J2900, i3-5005U, i5-52000U
RAM: SODIMM DDR3L,DDR4
Storage: mSATA SSD
Support OS: Windows 7, Windows 8, Windows 10, Linux, Ubuntu
Type: Mini Desktop,Mini PC
USB Ports: 2x USB3.0, 2x USB2.0
Use: Commercial
Video Output: HDMI, VGA
WiFi: 300Mbps
Processors |
Intel Pentium J2900, 4 cores 4 threads, 2.41GHz, up to 2.66GHz Intel Celeron 2955U, 2 cores 2 threads, 1.40GHz Intel Celeron N2840, 2 cores 2 threads, 2.16GHz, up to 2.58GHZ Intel Pentium 3805U, 2 cores 2 threads, 1.90GHz Intel Core i3-4005U, 2 cores 4 threads, 1.70GHz Intel Core i3-5005U, 2 cores 4 threads, 2.00GHz |
Memory Types |
use SODIMM DDR3L RAM 1333/1600MHz max support to 8GB |
Storage |
mSATA SSD, support extra 1x 2.5 inch SSD/HDD |
Graphics |
Intel HD Graphics |
Network Interfaces |
2x GbE RJ45 Realtek 8111H,supports wake on LAN,PXE |
Expansion |
1x Mini PCI-E for WiFi/Bluetooth/4G module J2900/J1900/N2840 has 1x SIM lot on motherboard, other CPUs without SIM slot |
OS Support |
Windows 7/8.1/10 Windows 10 ioT Windows 10 Embedded Linux, Ubuntu |
USB Ports |
J1900/J2900/N2840: 1xUSB3.0, 5x USB2.0 Other CPUs: 2x USB3.0 2x USB2.0 |
Wake on LAN |
Yes, support |
Restore AC power loss |
Yes, support |
Display Port |
1x VGA, 1x HDMI, support dual monitors independently video output |
COM Ports |
2x RS232 (J2900/N2840/J1900 two serial ports support RS232/485 adjustable ) |
Indicators |
1x HDD LED, 1x Power LED |
Audio Ports |
3.5mm combo audio jack |
Construction |
Fanless passive cooling |
Case |
Aluminum Case |
Dimension |
135x124x40mm |
Netweight |
0.8Kg |
OperatingTemperature |
-20℃ to +60℃ |
RH |
5%~90% @30℃，Non-condensing |
Power Adapter |
Input AC100-240V, Output DC12V-3A |
Package List |
1x Mini PC X30G 1x AC Adapter 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA cables 1x User manual |
- NOTE:1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need.
