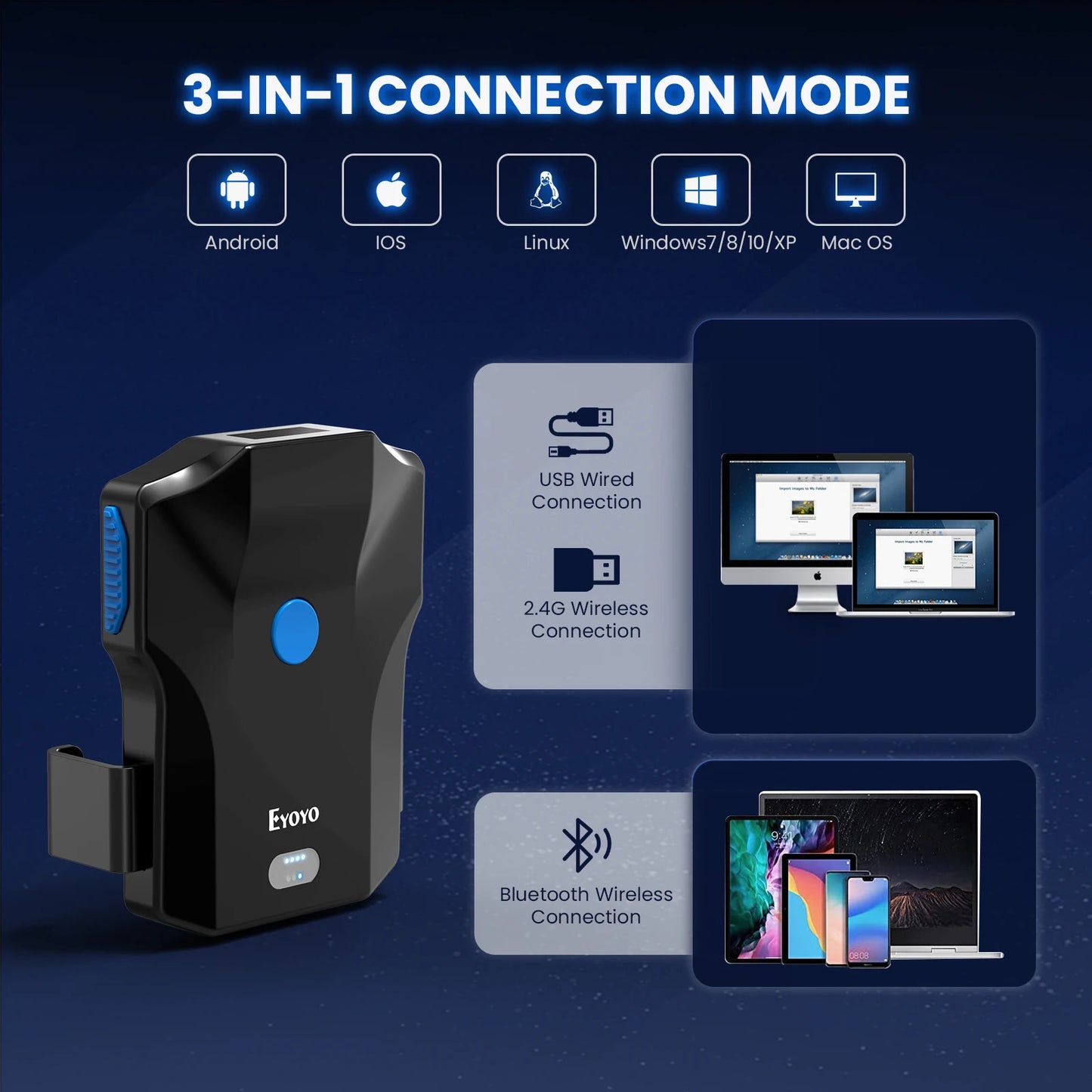

3-1 Connection Ways:

Bluetooth Connection: Press and hold the button for 8-10 seconds until the scanner beeps, and turn on your phone to connect to the Bluetooth of EY-032.

2.4G Connection: Before inserting the wireless receiver into the USB port of your computer, be sure to scan page 21 of the manual to scan the setup code into 2.4G mode. Otherwise, the pairing will not be successful and datas cannot be uploaded and displayed.

USB Wired Connection: Plug and play, it is easy to use.

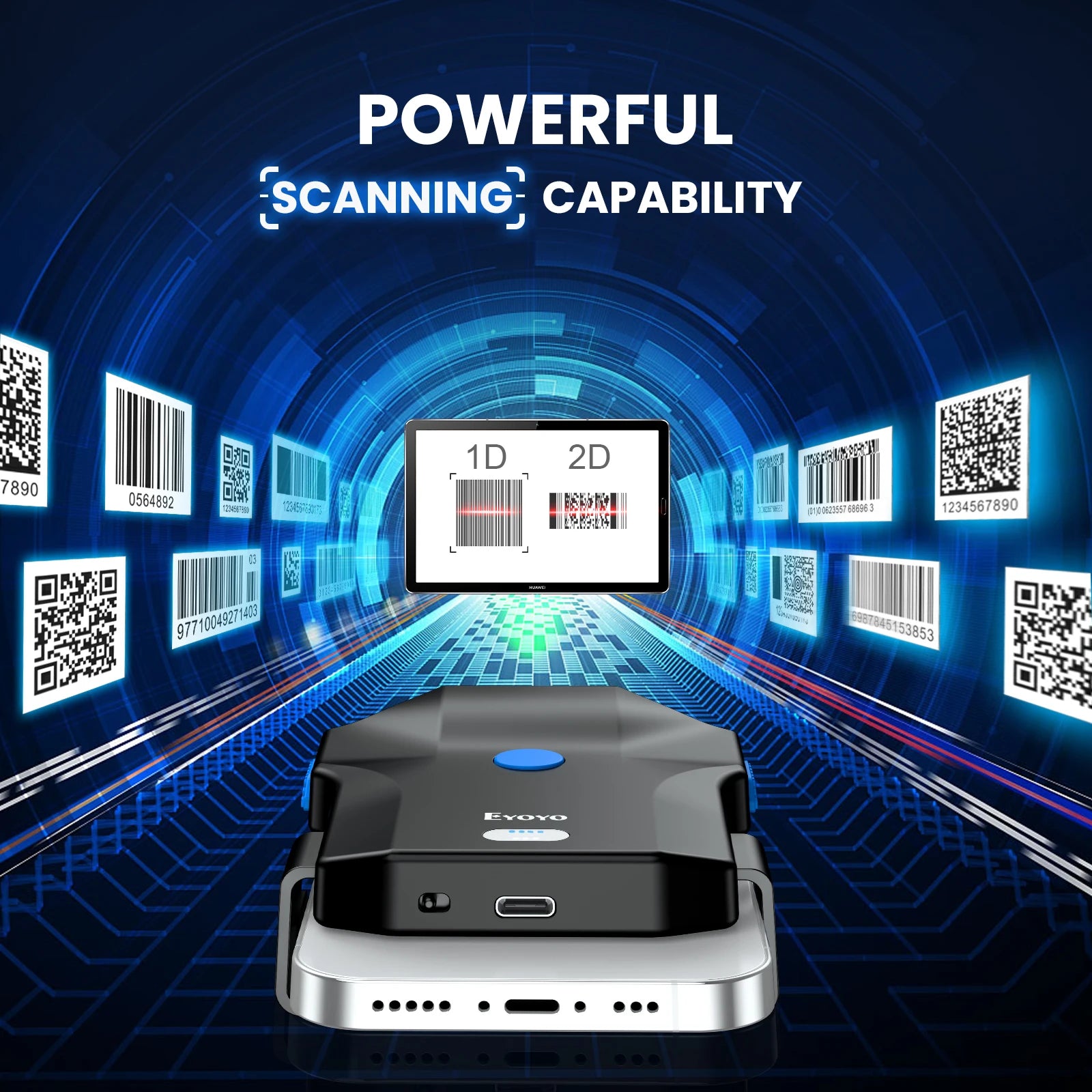

Supports Scan 1D/2D Barcodes From Screen and Paper:

* 1D CODE: Code128, EAN-8, EAN-13, ISBN, ISSN, UPC-E0, UPC-E1, UPC-A, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, IATA 2 of 5, Code 39, Code32, Code 39 Full ASCII, Codabar, Code 93, Code 11, MSI Plessey etc.

* 2D CODE: GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, PDF 417, QR Code, Micro QR, Data Matrix, Micro PDF417 etc.

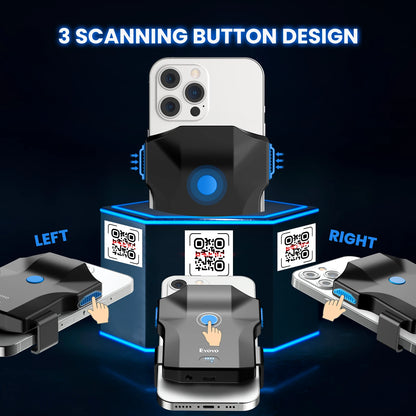

3 Scanning Modes:

* Manual Trigger Mode: You need press the trigger button to scaning the barcodes.(Most frequently-used method)

* Continuous Scan Mode: The scanning light is always on when the scanner is electrified.You can scanning barcode without pressing any trigger button.(Especially fits for the production line at factories)

* Auto-Sense mode: The scanning light is off until you put the barcode in front of the scaning window.Once the barcode is detected, the scanning light will turn on.You can also scanning barcode without pressing any trigger button.(Especially fits for retail stores, and inventory warehouses.)

Two Ways To Use:

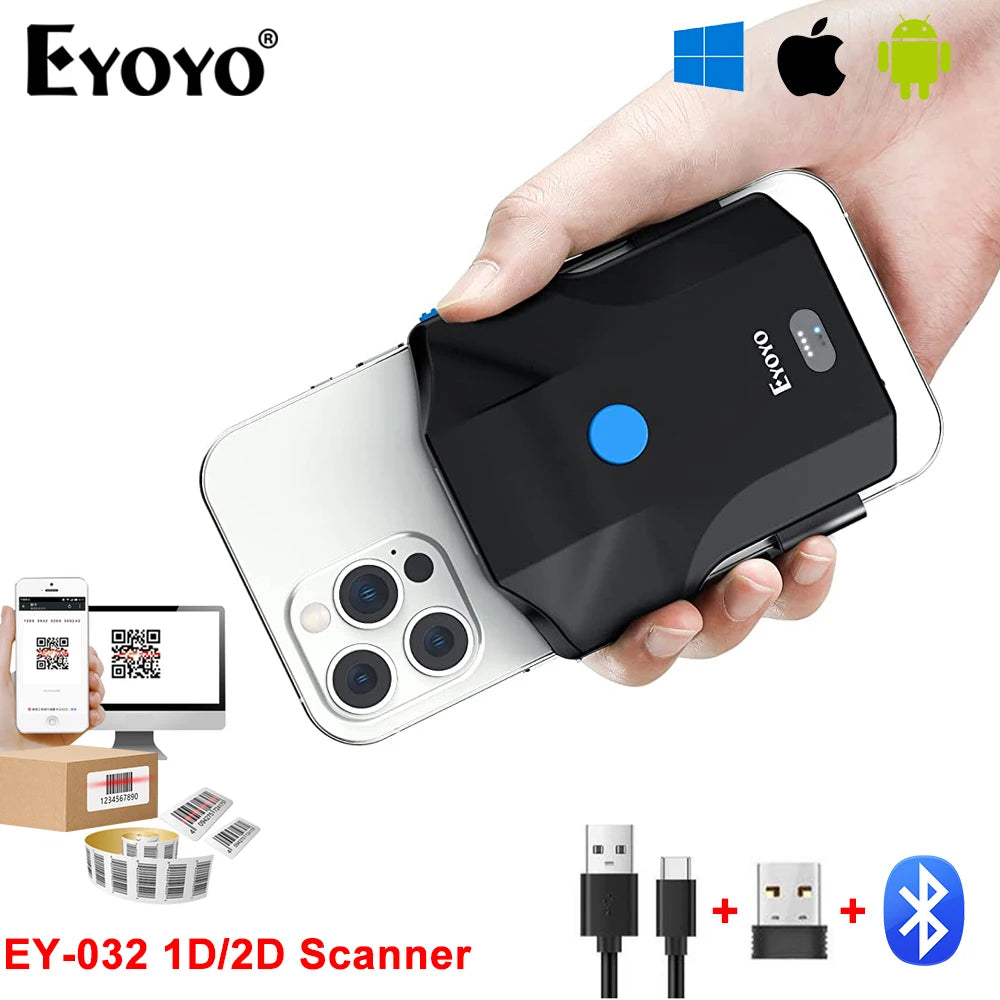

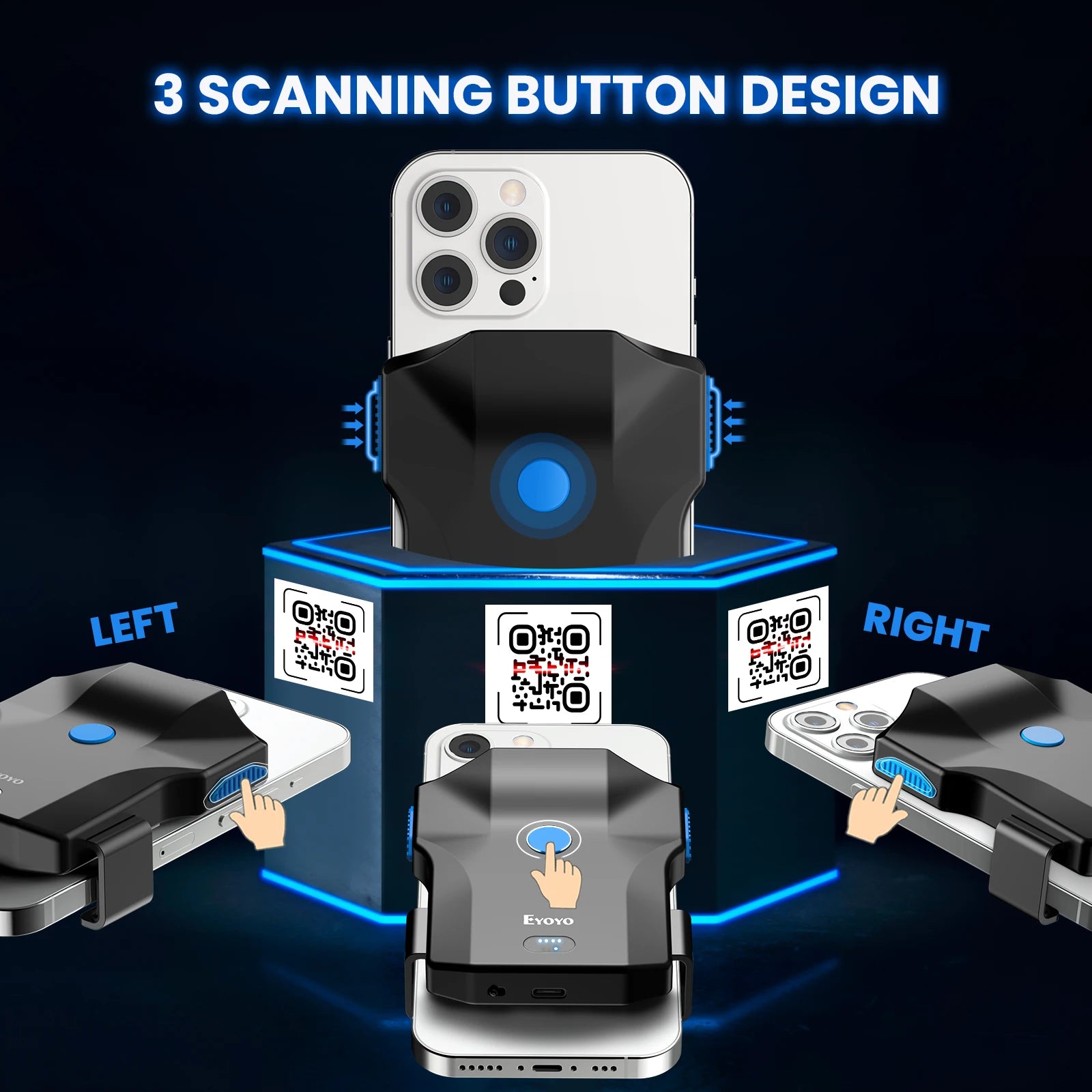

1. Back-clip on the phone, and use with phone.
2. Connect to bluetooth, use alone.

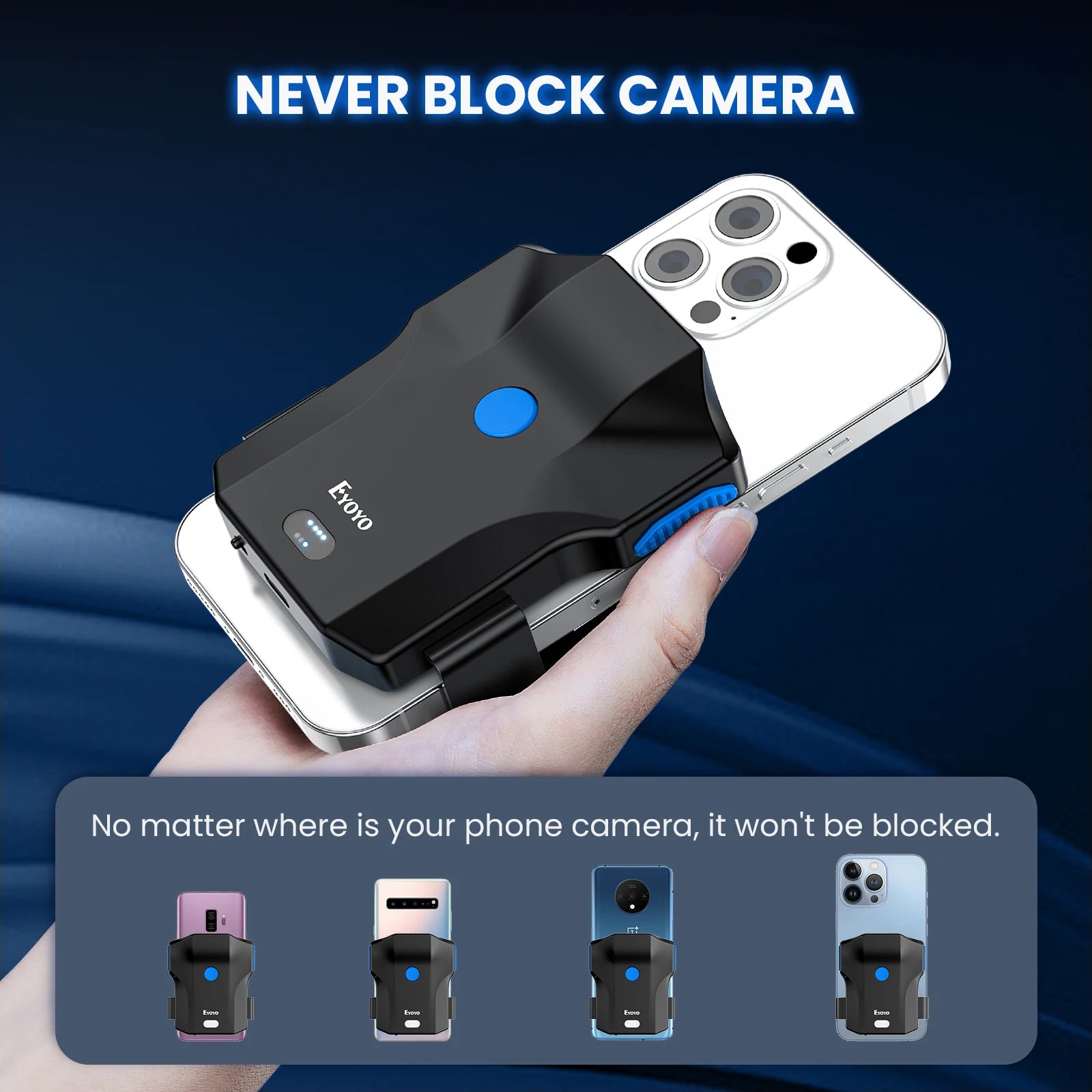

Never Block Camera:

4.7"-7.2" cell phones can be easily clamped and do not block any position of the camera. The wider clip arm can accommodate thick phones and thick phone cases.
What's more surprising is that both sides of the retractable clip arms are made of high hardness aircraft material, no longer easy to break.

Note:
1. Not compatible with Google Chrome OS.
2. Not compatible with the software that has its own custom scanner, such as Square POS, Amazon fire.

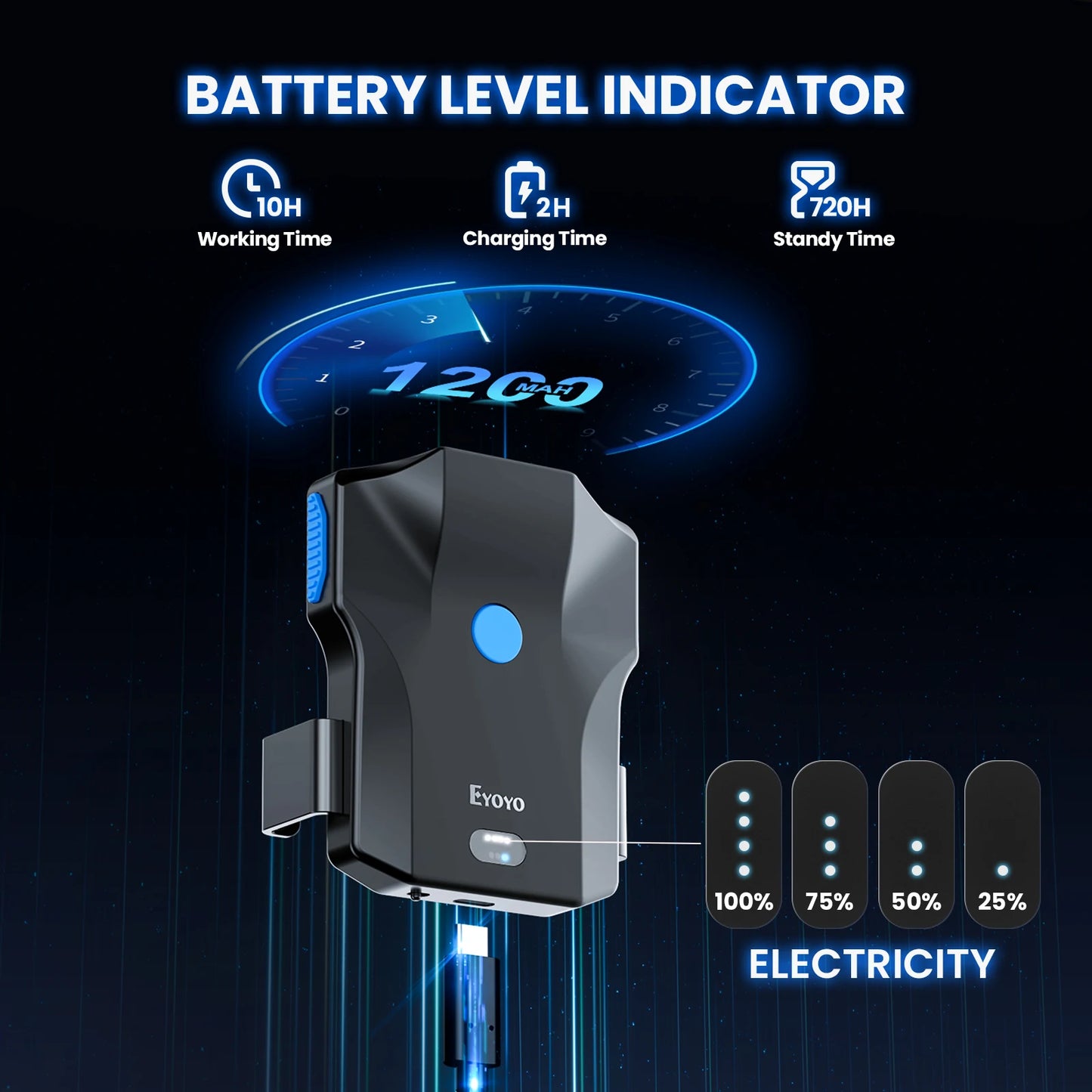

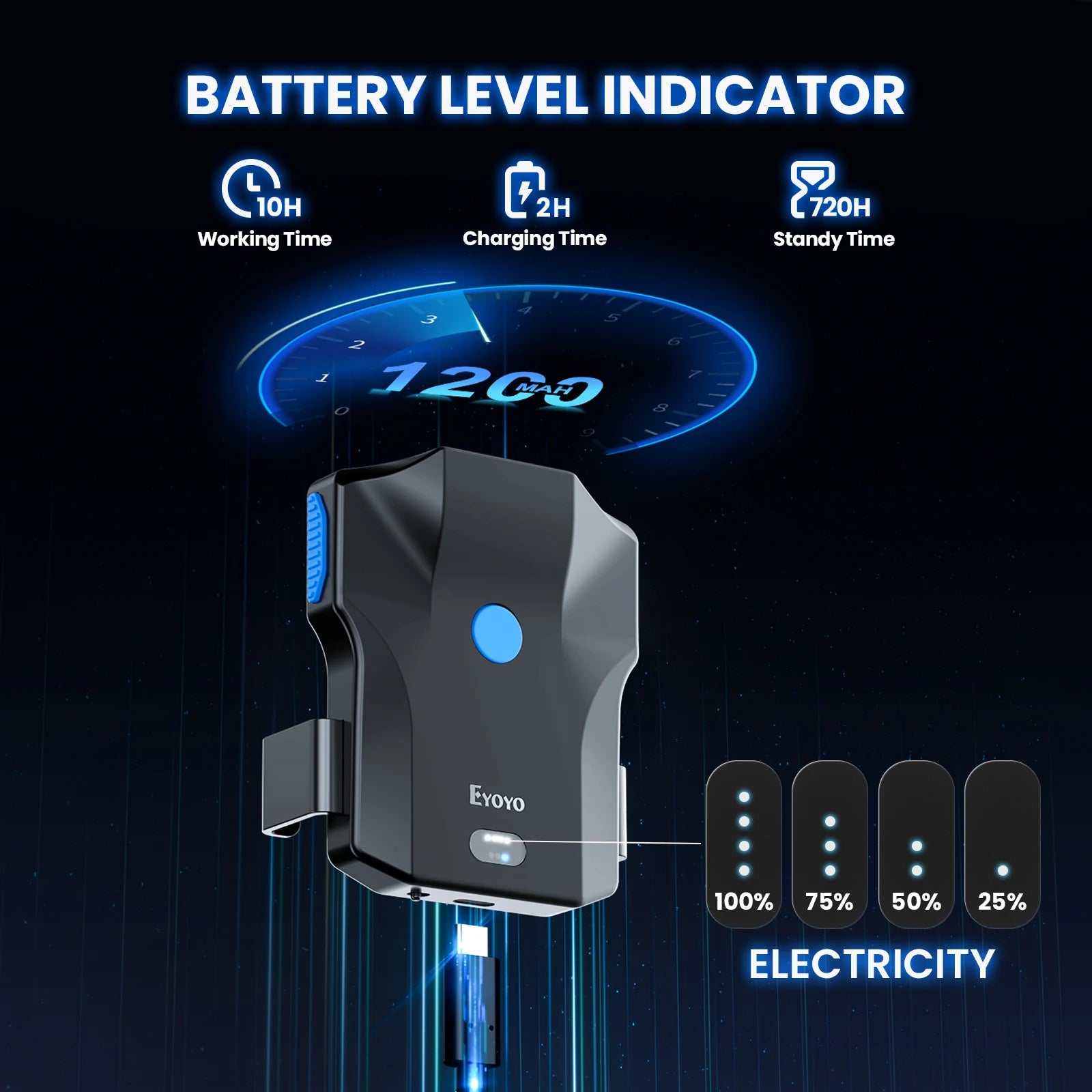

10H Long Working Time, With Battery Level Indicator:

The extraordinary low-power design makes you can work all day without worry about the battery. The Long battery life allows for extended use on a single charge.The 1200mAh rechargeable battery can support continuously work for 10 hours after fully charged. 2 hours charging time, 720 hours standy time.

More Function:

Add Prefix and Suffix: Support to add STX/EOT/Ctrl-]/Ctrl-\ and other control characters as prefix and suffix.

Hide Characters: Hide front and back characters 8 bits or more.

Storage modes: When the phone can't be at your side and you need to use the scanner alone, storage mode is suggested, there is no need to keep the Bluetooth connection when scanning, the scanned data will be stored in the internal memory, then upload datas at once after finishing scanning.

Sound & Vibration Set: Scan the setup code on page 28 of the manual to turn on and off the sound/vibration and adjust the volume.

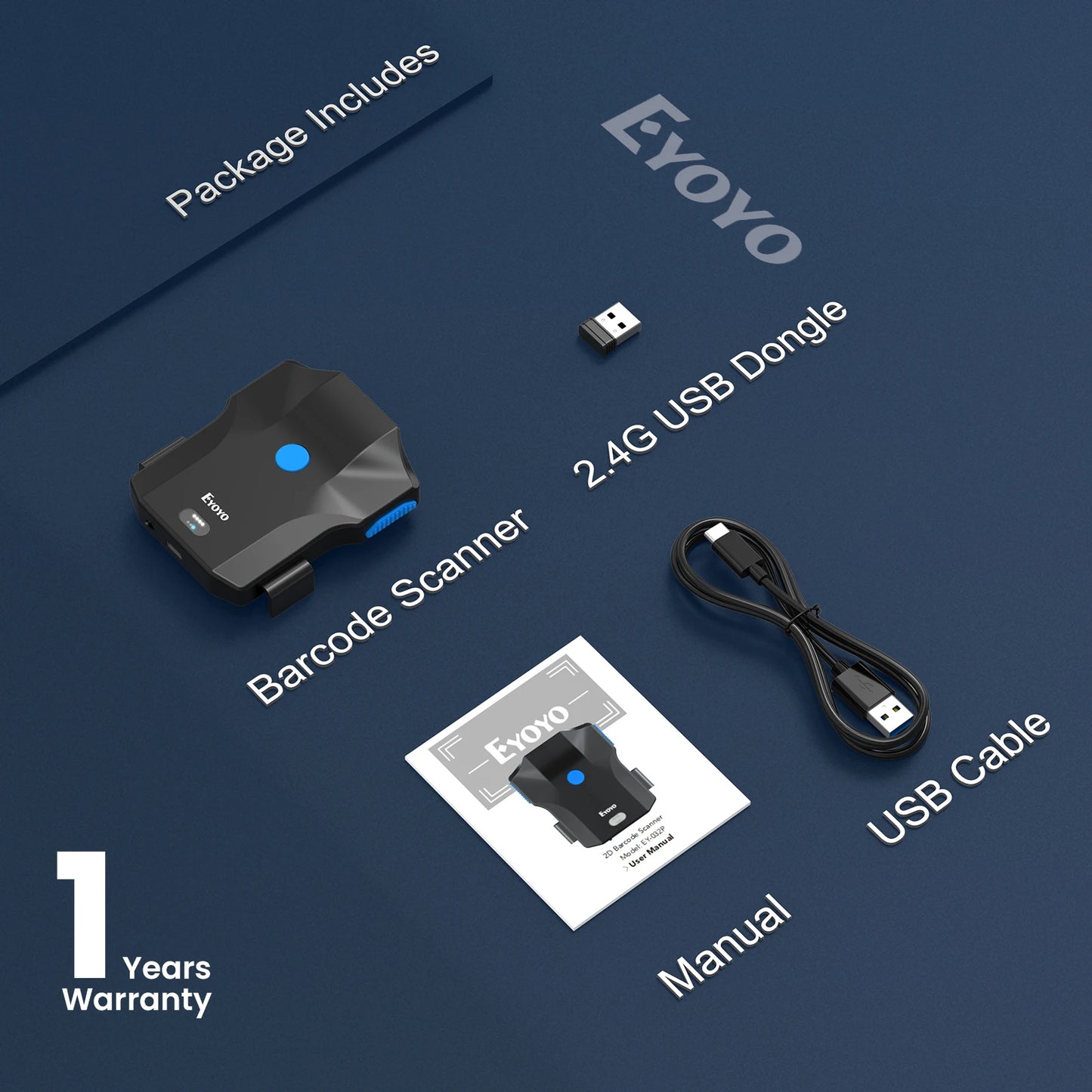

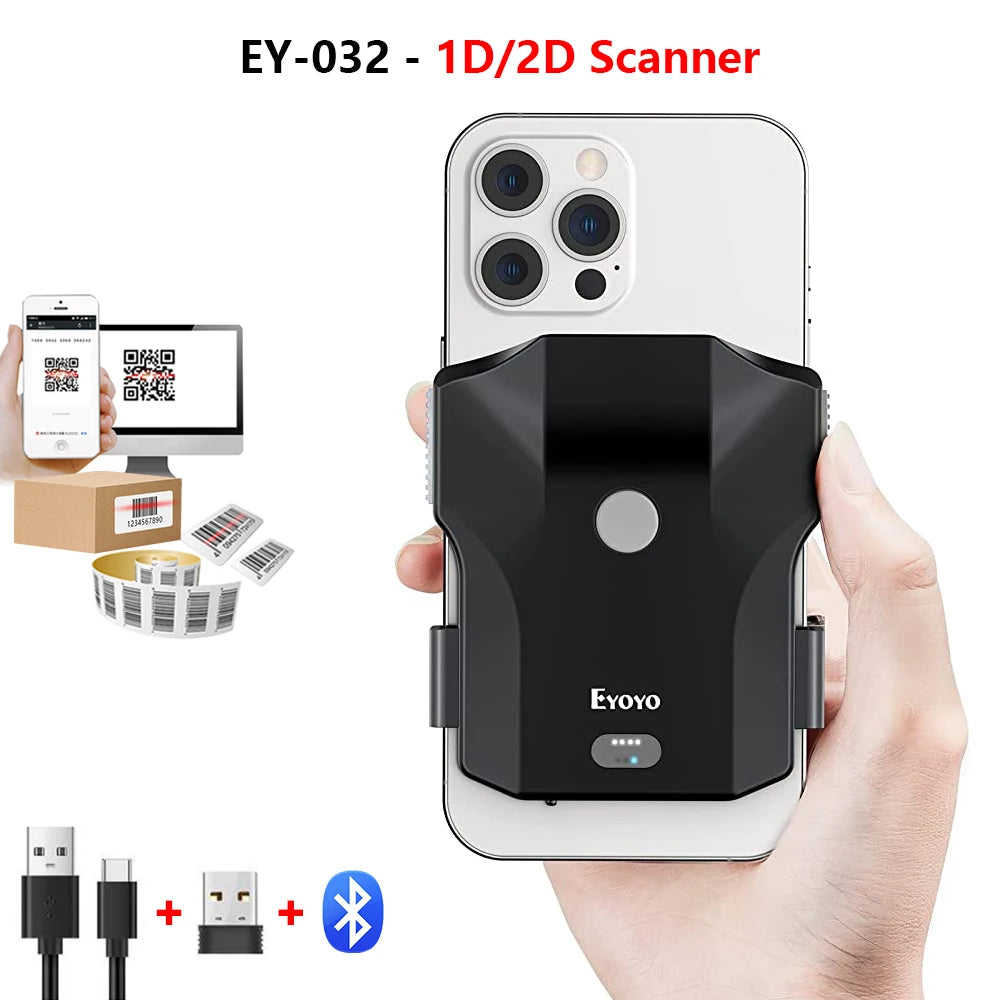

Package Included:

1 * Eyoyo 1D / 2D Scanner(optional)
1 * 2.4G USB Dongle
1 * USB Cable
1 * User Manual
