ELP 3MP H.264 WDR Usb Camera Manufacturers with Infrared LED Board for Day and Night Building Entrance Monitoring
ELP 3MP H.264 WDR Usb Camera Manufacturers with Infrared LED Board for Day and Night Building Entrance Monitoring
Couldn't load pickup availability
3MP H.264 WDR usb camera manufacturers with infrare LED board for day and night building Entrance monitoring
Features:
* 3MP WDR night vision USB Camera module with 3.6mm lens & 12PCS IR LEDs Board
* 1/3” Aptina AR0331 sensor for high quality image
* Dynamic Range up to 100 dB
* With 3.6mm M12 lens
* With microphone for audio recording
* With IR CUT & IR LED for no color distortion image day & night
* H.264/MJPEG/YUY2 dual video format optional
* Mini size 38x38mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
Specification:
|
Model |
ELP-USB3MP01H-RL36 |
|
Sensor |
AR0331 |
|
Lens Size |
1/3 inches |
|
Pixel Size |
2.2um X2.2um |
|
Max. Resolution |
2048X1536 |
|
Compression format |
H.264 /MJPEG / YUV2(YUYV) |
|
Resolution & frame |
H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps |
|
S/N Ratio |
39dB |
|
Dynamic Range |
Up to 100 dB |
|
Sensitivity |
2.0V/lux-sec@550nm |
|
Mini illumination |
0. 05lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class(UVC) |
|
Support OTG Protocol |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
|
Lens Parameter |
Standard 3.6mm lens (2.8/6/8/12MM lens Optional) |
|
Digital audio |
High quality digital MIC, support single, dual channel |
|
IR CUT Connector |
Support 2P-1.25mm socket |
|
LED board power connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm socket |
|
Operating Voltage |
DC5V |
|
Working current |
140mA~200mA |
|
Working temperature |
-10~70℃ |
|
Storage temperature |
-20~85℃ |
|
Board size /Weight |
38X38mm / about 30g |
|
Cable |
Standard 1M / 2M,3M,5M optional |
|
Operating system request |
Win7 Win8 Win10 Win11 |

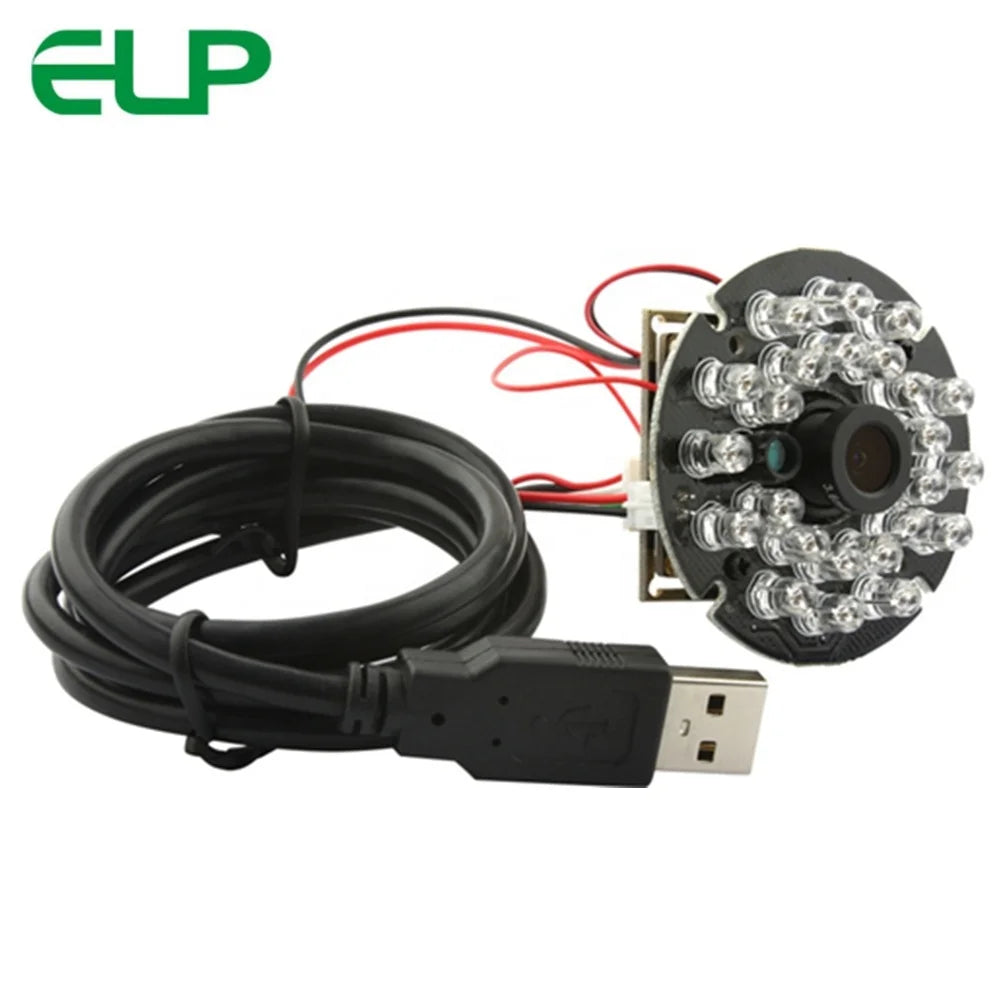

Products Picture:
Application:
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 15years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
