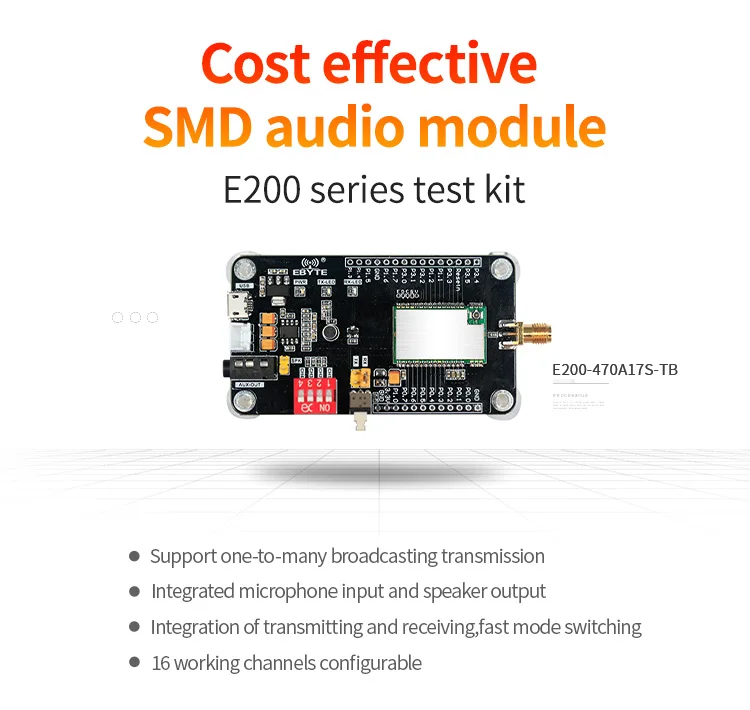

E200-470A17S Long Range Real Time Intercom Mobile Communication Wireless Audio Module USB Interface Test Board Kits With Antenna
E200-470A17S Long Range Real Time Intercom Mobile Communication Wireless Audio Module USB Interface Test Board Kits With Antenna
Regular price
CFA5,153 XOF
Regular price
CFA0 XOF
Sale price
CFA5,153 XOF
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
Specification
Main Parameters |
Performance |
Remarks |
||
Min. |
Max |
|||
voltage(V) |
0 |
5.5 |
Voltage over 5.5V will cause permanent damageto module |
|
I/O Voltage |
-0.3 |
3.6 |
Voltage over 3.6V will cause permanent damageto module I/O |
|
Blocking power(dBm) |
- |
15 |
It is less likely to burn when used at close range |
|
Operating temperature(℃) |
-40 |
+85 |
Industrial grade |
|
Main Parameters |
Performance |
Remarks |
||||
Min. |
Type |
Max |
||||
Operating voltage(V) |
2.3 |
3.3 |
5.5 |
≥5.0 V ensures output power |
||
Communication level(V) |
-0.3 |
3.3 |
3.6 |
For 5V TTL, it may be at risk of burning down |
||
Operating temperature(℃) |
-40 |
- |
+85 |
Industrial design |
||
Operating frequency(MHz) |
470.033 |
- |
512.273 |
Support ISM band |
||
TX Current(mA) |
98 |
100 |
102 |
Instantaneous power consumption, averagecurrent: 35mA |
||
RX current(mA) |
44 |
45 |
46 |

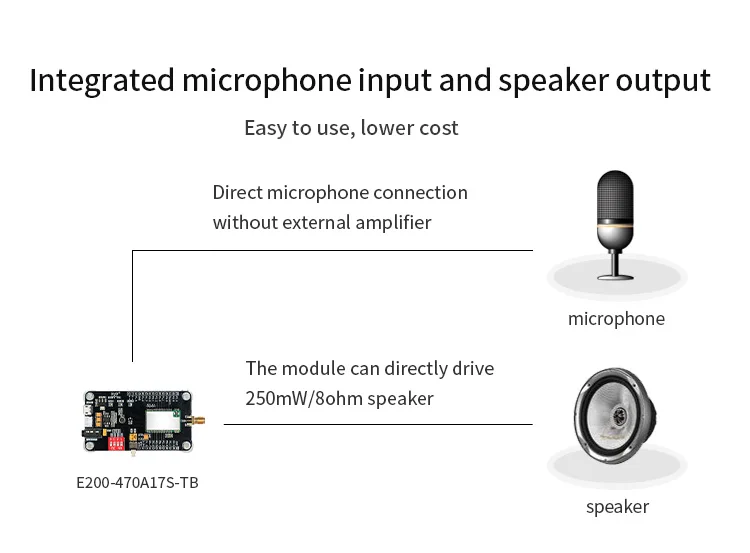

The output is connected to 8ohm, 250mW speaker, the maximum volume is 185mA |
||
Max TX power(dBm) |
16.5 |
17 |
17.5 |
- |
||
Receiving sensitivity(dBm) |
- |
-98 |
- |
Air data rate 500kbps |
||
Main parameter |
Description |
Remarks |

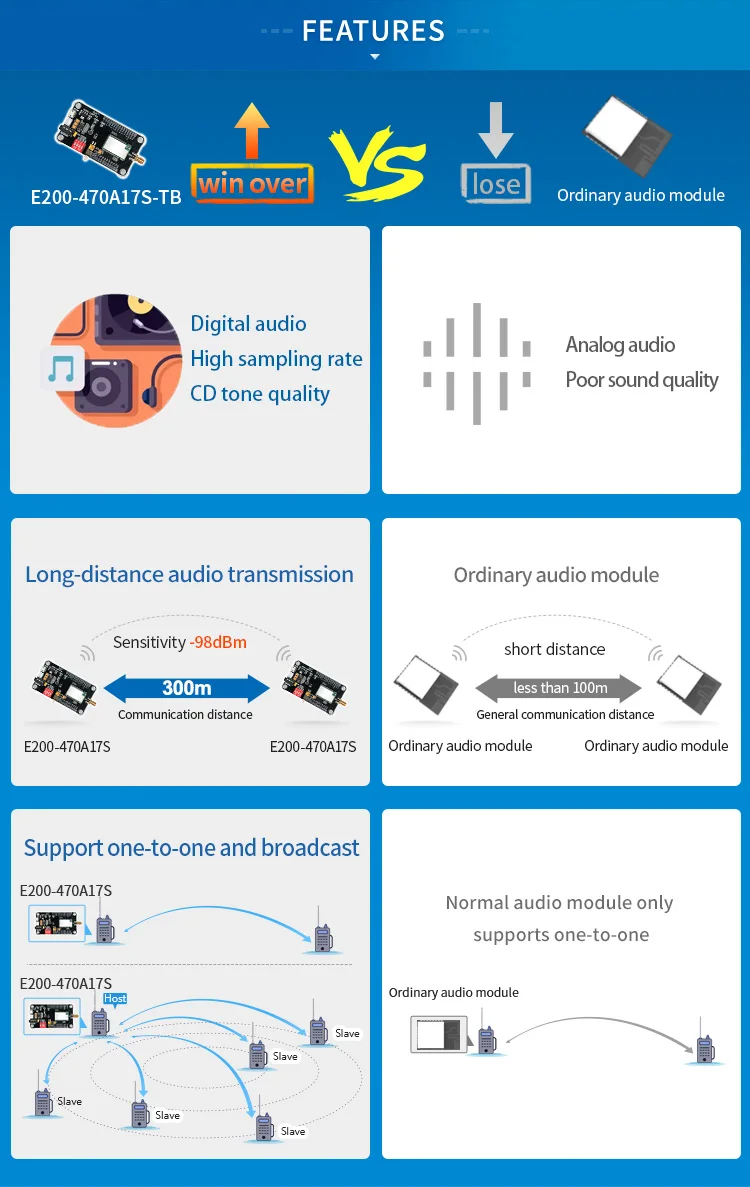

Reference distance |
300m |
Test condition:clear and open area, antenna gain: 5dBi, antennaheight: 2.5 m,air data rate: 500 kbps |
Modulation |
FSK |
Modulation technology |
Communication Interface |
UART serial |
TTL level (reserved unused) |
Package |
SMD |
- |
Interface |
1.27mm |
- |
size |
16*26 mm |
- |
RF Interface |
UFL/Stamp hole |
50 ohm impedance |
