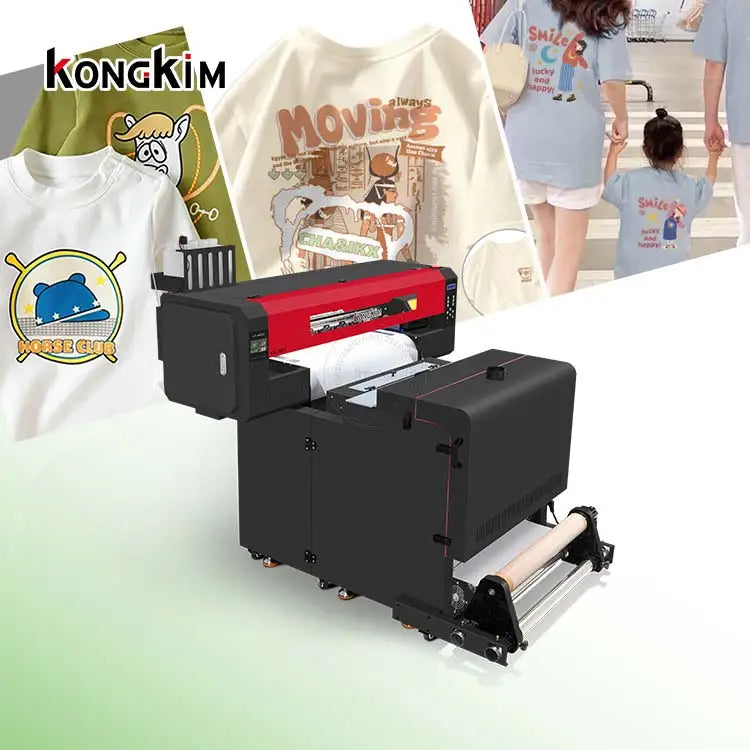

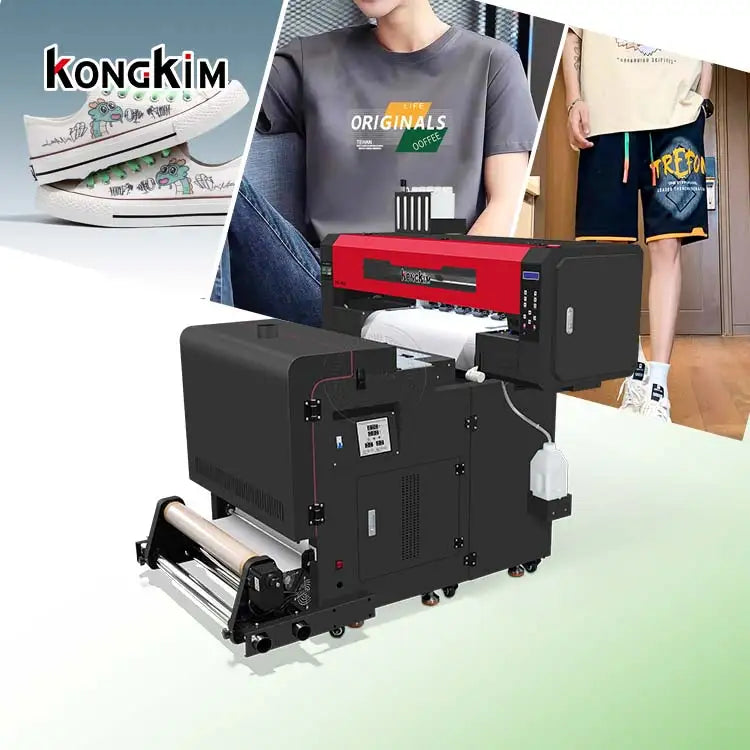

KONGKIM KK-700A all in one DTF printer digital t-shirt printing machine
PDG ibma
Dtf Printer All in One A2 A3 40cm 60cm 3200/xp600 Head t Shirt Printer Dtf Printing Machine
Dtf Printer All in One A2 A3 40cm 60cm 3200/xp600 Head t Shirt Printer Dtf Printing Machine
Regular price
CFA1,676,642 XOF
Regular price
CFA0 XOF
Sale price
CFA1,676,642 XOF
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Application: T-shirts;Clothes; Jeans; Shoes;Hats;Bags;Home Textiles ...
Colour fastness: LV5
Compatible brand of print head: Epson,Konica Minolta
Data Port: Ethernet Port
Ink Colors: CMYK+W [Fluorescent option]
Machine Model: KK-700A
Material: Stainless Steel,Plastic,Wood,Acrylic,Silicone,Carbon Steel,Steel
Plate Type: Screen Printer,Roll-To-Roll Printer,DTF printer
Print Head: XP600*2 / I1600*2 / I3200HD optionals
Printing Resolution: 720x1800 / 720x1080
Printing Speed: 113pcs t-shirt / Hour
RIP Software: MainTop / FLEXI / CADLink
Special Function: Printing and curing all in one
automatic grade: Full-Automatic
brand name: KONGKIM
color & page: Multicolor
condition: New
dimensions(l*w*h): 1430 *1520mm *1465mm
ink type: Pigment Ink,Textile Ink
place of origin: Guangdong, China
warranty: 1 Year
weight: 170
Recommended Products
Machine Parameters
Printer Parameters |
||||||
Model |
* KK-700A |
KK-3545U |
||||
Print Head |
* XP600*2pcs | i3200* 2pcs | i3200HD + i1600 | i1600*2pcs |
DX6 (XP600) / 4720 print head |
||||
Print Size |
Maximum print width 650mm |
(350mm x 450mm) ±1mm |
||||
Color combination |
CMYK + White / CMYK + White + Fluorescence |
|||||
Printing Speed
(Number of A4 size
t-shirts printed per hour)
|
XP600 * 2H |
i3200* 2H |
i3200HD + i1600 |
|||
96pcs
[Speed mode]
|
256pcs [Speed mode] |
160pcs [Speed mode] |
||||
80pcs [Normal mode] |
192pcs [Normal mode] |
113pcs [Normal mode] |
||||
48pcs [Quality mode] |
128pcs [Quality mode] |
80pcs [Quality mode] |
||||
Supports custom fluorescent colors |
170 pcs |
210 pcs |
||||
Control system |
Dual servo motor HOSON control system |
Glass , Stone materials , Leather , Wood materials , PVC , ABS ,
TPU , Phone case , Bottles , T-shirts ... etc
|
||||
Print Software |
MainTop RIP / FLEXI / CADLink |
1mm -100mm |
||||
Application |
T-shirts; Clothes; Jeans; Shoes; Hats Bags; Home Textiles ... |
Intelligent operation |
||||
Ink Supply |
Ink deficiency alarm system * Automatic white ink circulation and mixing system |
MainTop 6.0 UV RIP / PhotoPRINT 12 |
||||
Electric Require |
Tempreture : 18 ℃ ~ 28℃ ; Humidity : 35%RH ~ 65%RH |
|||||
Power Supply [Printer] Power Supply [Curing machine]
|
AC 110V/220V 50/60HZ ; Peak power : 1.3 KW AC 110V/220V 50/60HZ ; Peak power : 4.2 KW
|
Tempreture : 15 ℃ ~ 28℃ ; Humidity : 40%RH ~ 70%RH |
||||
Package Size [Printer] Package Size [Curing machine] |
1565mm *735mm *670mm ; 100KG 1297mm *980mm *904mm ; 150KG
|
|||||
Min space requirement |
[L*W*H] 3430mm * 3460mm * 1700mm |
|||||
Machine Description
* Size
Net Size: L*W*H 1430mm x 1520mm x1465mm ; Net Weight: 170KG
Package Size: L*W*H 1565mm x 17150mm x 904mm ; Packing weight: 215KG
Rated power [Printer + Curing machine] : 5.5KW / 25A [AC220V]
* For any kinds of cotton fabric
T-shirts;Clothes; Jeans; Shoes;Hats;Bags;Home Textiles ...
* All-In-One
Printing and curing in one, the ultimate space saving
* 2pcs XP600 print-heads
2pcs i3200 / i3200HD+ i1600 / 2pcs i1600
multiple combinations are available
Optional 2/4 color fluorescent color, CMYK+ROGB +W 9 colors combination
* Ink circulation + mixing system
Full function configuration, with all the functions that DTF printers should have
* Wide printing platform
17cm wide effective print width! ! Print quality guaranteed
* High-precision carriage
All aluminum alloy manufacturing, rich functions, to ensure the printing accuracy at the same time can maximize the protection of the printing head safety
* * Upgraded big press wheel
The innovative press wheel process makes the step of PET film more accurate,
and the problem of inaccurate single-side light PET film step does not exist
* Dual servo motor
HOSON control system, DTF dedicated waveform file,
Makes the pattern darker areas more vivid, light areas more smooth transition
Machine Details
* Ink-stack
The success rate of automatic cleaning is very high
* Key-panel
The human-computer interaction is very easy
* Beam
The integral beam was widened and thickened
* Intelligent control panel
Integrated platform suction, heating, LED lights
* Main drying tunnel
5pcs long life high efficiency quartz lamps
* Fully automatic
Curing machine is synchronized with the printer
* Exquisite appearance, fine workmanship

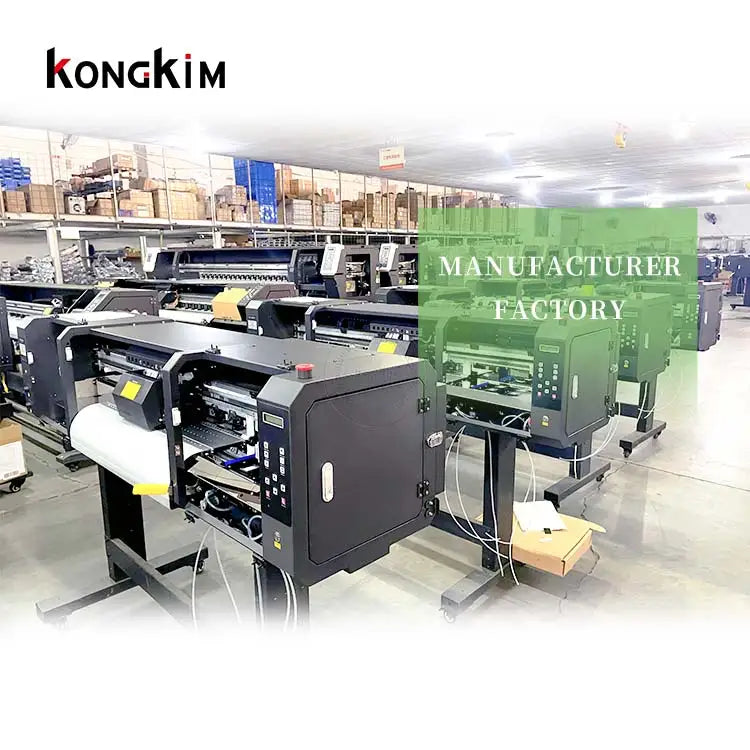

* Manufacturer factory
We are a direct factory with independent research and development
capabilities and production workshops
* Since 2006
We have focused on the digital printing industry for nearly 20 years
Cost Of Consumables
* Production cost
The cost of printing 1000pcs T-shirts with A4 size picture
Product Applications
About Our Factory
About Chenyang tech
CHENYANG TECHNOLOGY CO.,LIMITED is located in Huangpu district of Guangzhou City,Guangdong Province.
Chenyang tech is a professional digital printing manufacturers, owning one stop complete service system of printer machine, ink and process,mainly including DTG T-shirt printer,DTF(PET film) printer,UV printer, UV DTF printer,Sublimation printer,ECO-solvent printer,Textile printer and the matching ink and process.
Chenyang tech has an excelent research and development team,dedicatedly focusing on digital printing industry,having accumulated rich experience. We are gradually strengthening our brand advantage featured by high quality and efficient after-sales service and solid technology.
Chenyang tech embraces the enterprise spirit of "Quality, Intention service",sticks to the concept of development of [Quality Wins Customer,Creditability Creates Benefit.
We will provide digital printing solutions to our customers with first class products,outstanding creditability and meritorious service,in order to stand out in market through our perseverant efforts.
Our products have got the international certification of quality and sold to worldwide. We have built a long term business relationship with the customers .
KONGKIM DTF printer machine
Our Service
About Service : Product with good quality is very important,but after sales sevice also very important:
1.We have professional engineers who have more than 6years, is very patient to support you if you have any questions;
2.We can support you 24hous for online training and guide you step by step;
3.If you need to support you in your local shop, our engineers have passport, we can support you for overseas training.
4.We have showroom in Guangzhou, welcome to learn more here, we can discuss and guide face by face.
2.We can support you 24hous for online training and guide you step by step;
3.If you need to support you in your local shop, our engineers have passport, we can support you for overseas training.
4.We have showroom in Guangzhou, welcome to learn more here, we can discuss and guide face by face.
FAQ
1. Who are we?
We are KONGKIM, located in Guangzhou, China, in the printing industry for more than 15 years, our printers are sold to South America (30.00%), Africa (30.00%), Southeast Asia (15.00%), Eastern Europe (15.00%), North America (10.00%). There are about 51-100 people in our office.
2.How do we guarantee quality?
All our machines are customized and manufactured according to the needs of our customers Always pre-production samples before mass production; All machines are tested before leaving the factory to ensure the quality of the machine Always carry out final inspection before shipment
3. What can you buy from us?
Sublimation printer, eco solvent printer, DTF printer, UV DTF printer, UV flatbed printer, printing ink, DTF film, shake powder, printing consumables one-stop service.
4.Why choose us?
Guangzhou Chenyang Digital Technology Co., Ltd. is a strength printer factory, providing one-stop printing service, 24 hours online service, professional technical operation service, is your best partner to carry out a new business, we will answer the most professional questions for you.
5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF, EXW, DDP, DDU; Accepted payment currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF; Payment types accepted: T/T, MoneyGram, Credit card, Western Union; Languages: English, Chinese, Spanish, Portuguese, Arabic, Russian, Italian
