DS7-1M Marine Incandescent Outdoor Waterproof Pendant Light Work Light
DS7-1M Marine Incandescent Outdoor Waterproof Pendant Light Work Light
Couldn't load pickup availability

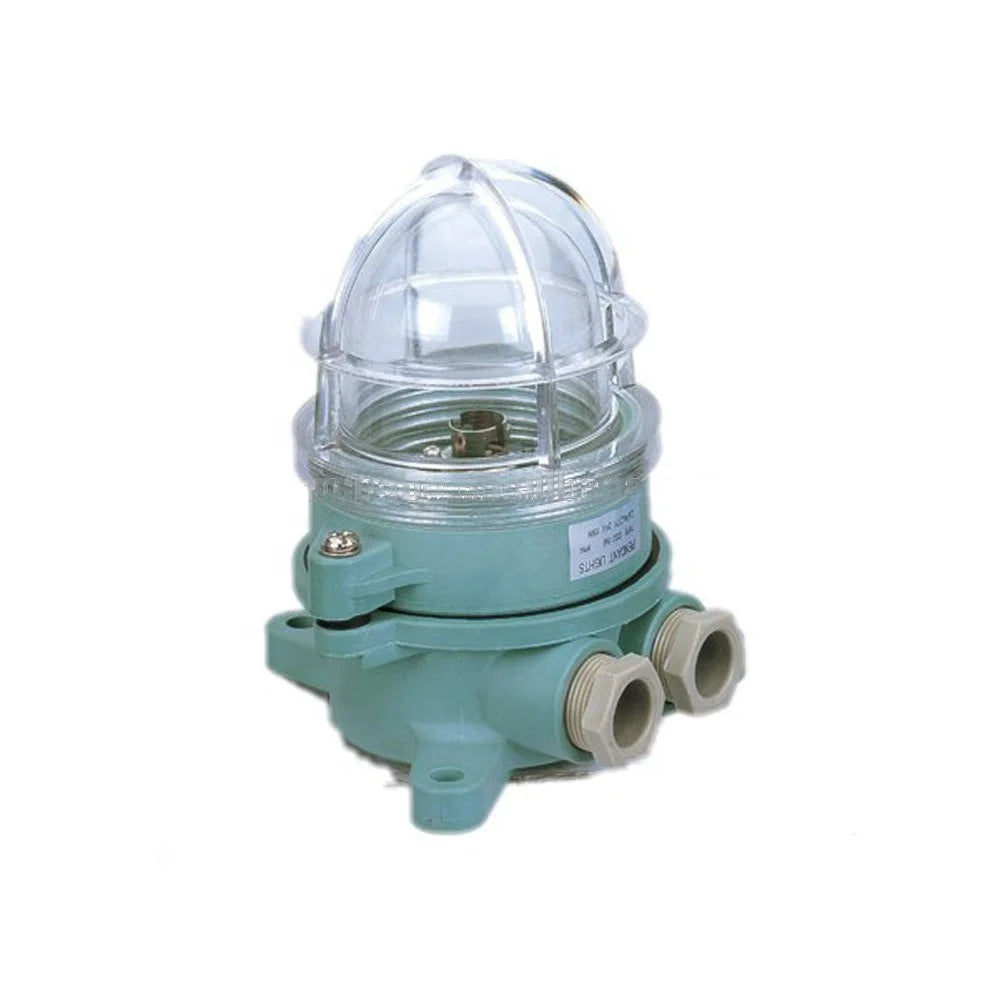

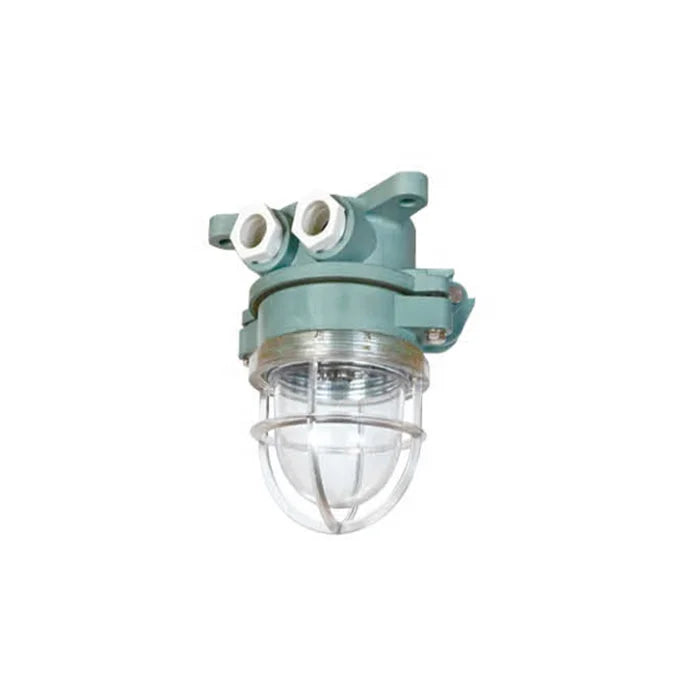

DS7-1M Marine incandescent outdoor waterproof pendant light work light
The scope of application
This series lights fit for the ships with water dripping, water spattering, water coagulating and weather place, such as oven cabin room, dry cabin, tunnel, pipeline and weather deck.
Products characteristic
The lampshade is bolt blocking device, and convenient to connect, ceiling-type installation.
Production authentication
1. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
2. Passed the authentication of CE.
3. Adopt the Japanese standard JISF8414-2003.
4. Conform to<GRADE ENTRY NORMS FOR STEEL SHIPS>.
Specifications
| Name(Type) | Power | Voltage | Lamp holder | Material |
Cable outside diameter |
Color |
Protection class |
Weight |
|
DS7-1M WORK LIGHT |
15W | 24V | FE12, FE14 | Synthetic resin | φ12-φ16 | Transparent, Red Green, Yellow Blue | IP56 | 1.1kg |
|
DS7-1M WORK LIGHT |
FB15 | |||||||
|
DS7-2M WORK LIGHT |
60W | 220V | FE26 | 1.2kg | ||||
|
DS7-2M WORK LIGHT |
FB22 | |||||||
|
DS7-2M-B WORK LIGHT |
60W | 220V | FB26 | 1.2kg | ||||
|
DS7-2M-A WORK LIGHT |
60W | 220V | FE26 | Aluminium | 2.0kg | |||
|
DS7-3M WORK LIGHT |
100W | 220V | FE26 | Synthetic resin | 2.5kg | |||
|
DS7-3M WORK LIGHT |
FE26 | |||||||
|
DS7-4M WORK LIGHT |
200W | 220V | FE26 | 3.0kg | ||||
|
W WORK LIGHT |
60W | 220V | FE26 | Transparent | 2.7kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
