SPECIFICATIONS

Insulation resistance: >100MΩ

Medium temperature: ≤100℃

Output Signal: NPN

Output pulse high level: >DC 4.5 V (input voltage DC 5V)

Output pulse low level:

Water pressure resistance: ≤1.75MPa

Working voltage range: DC3.5~24V

application: General

brand name: Acarps

customized support: OEM,ODM,OBM

media: Water

model number: YF-B

place of origin: Guangdong, China

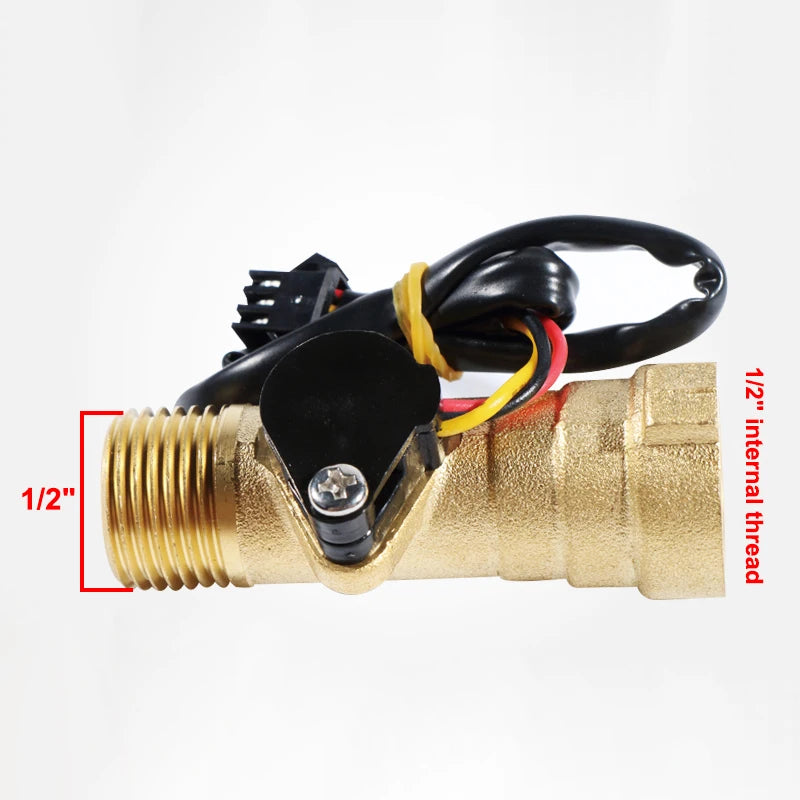

port size: 1/2 inch

power: Solenoid

structure: water flow sensor

temperature of media: Normal Temperature

warranty: 1 year

Product Description

About this item

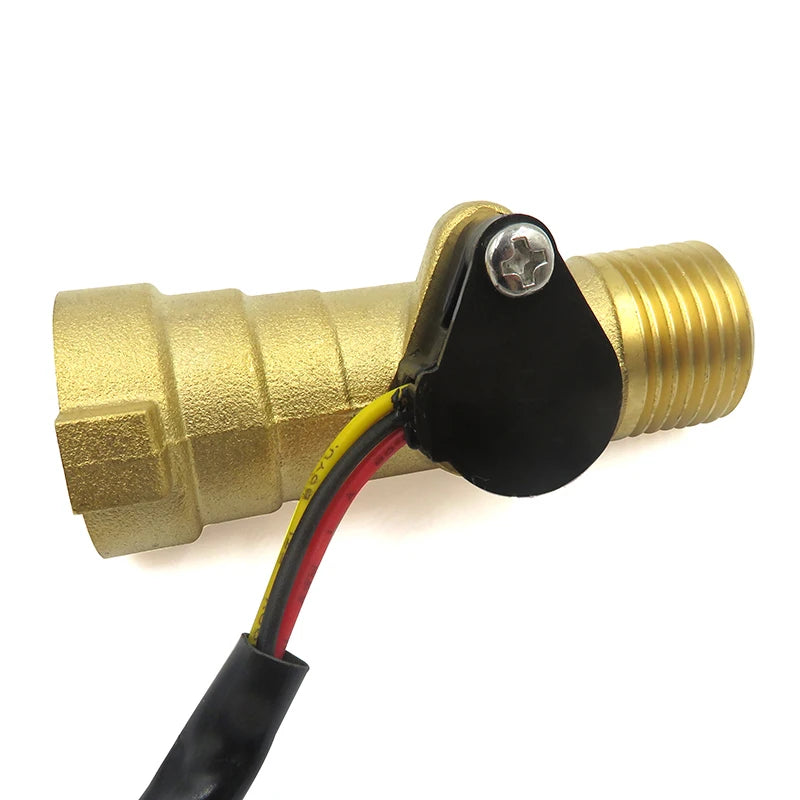

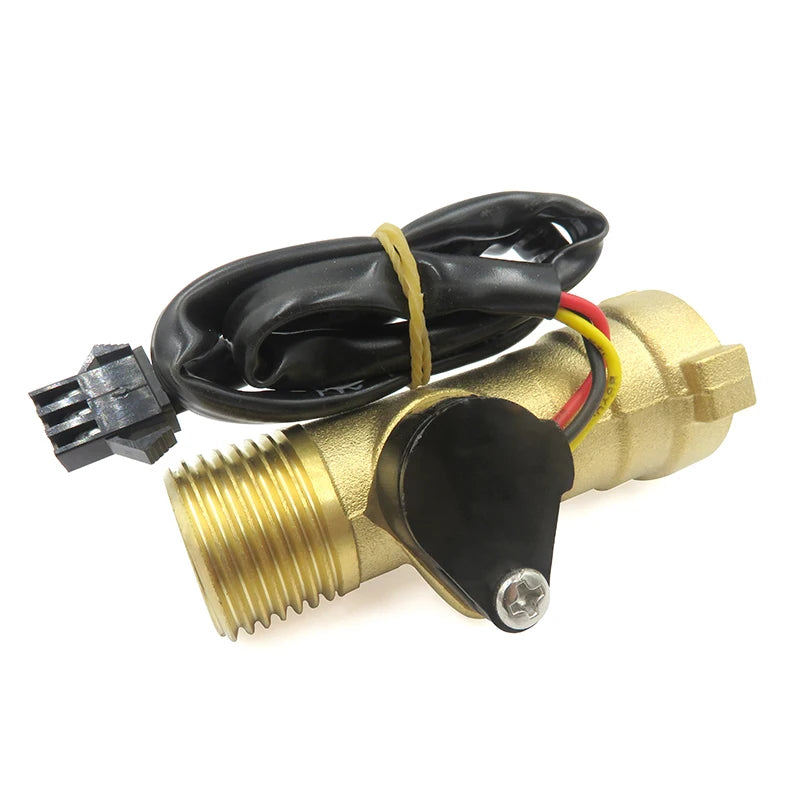

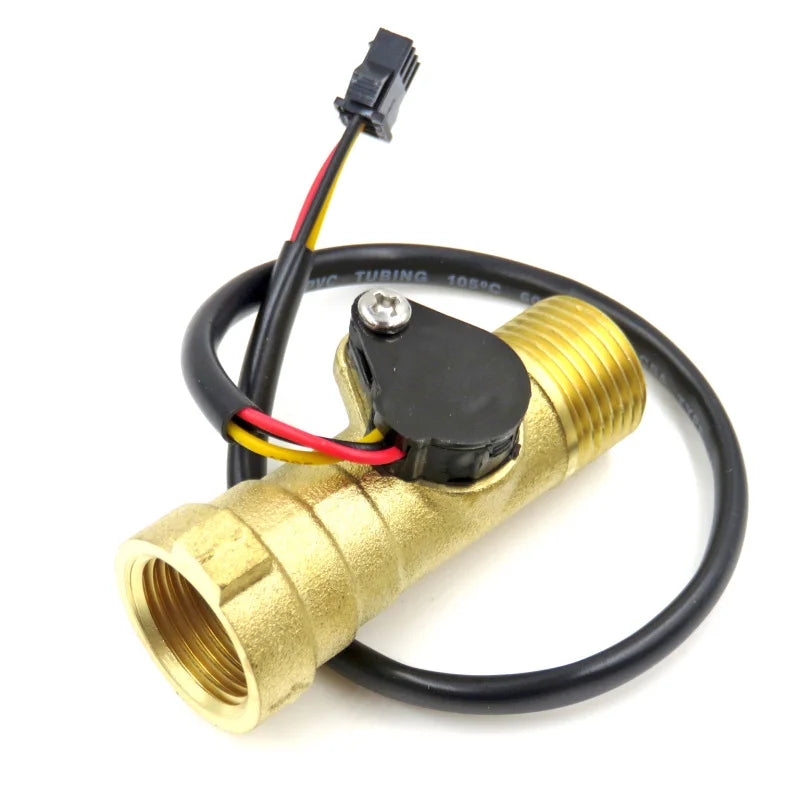

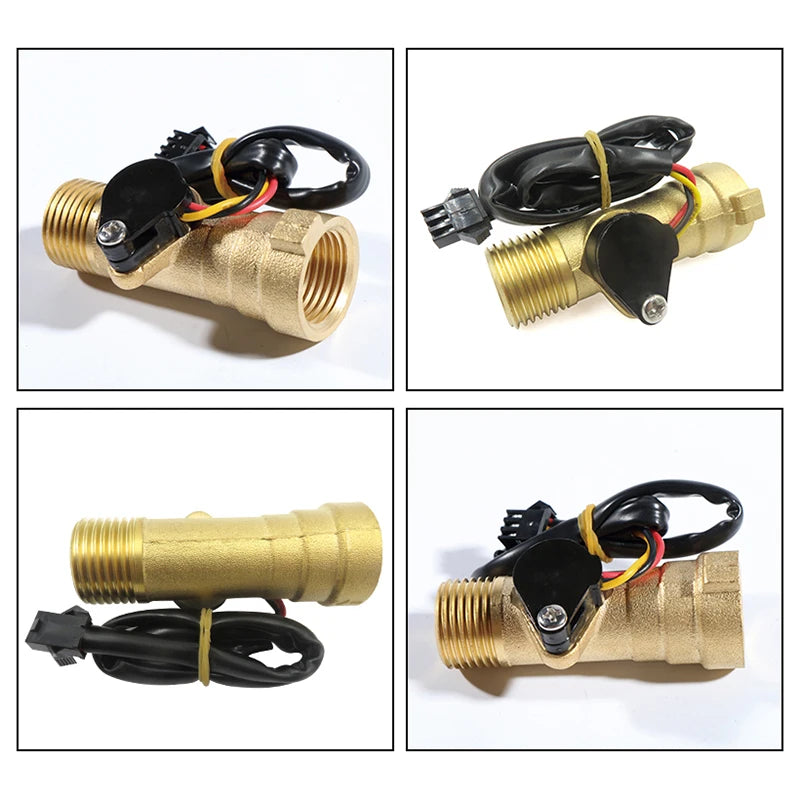

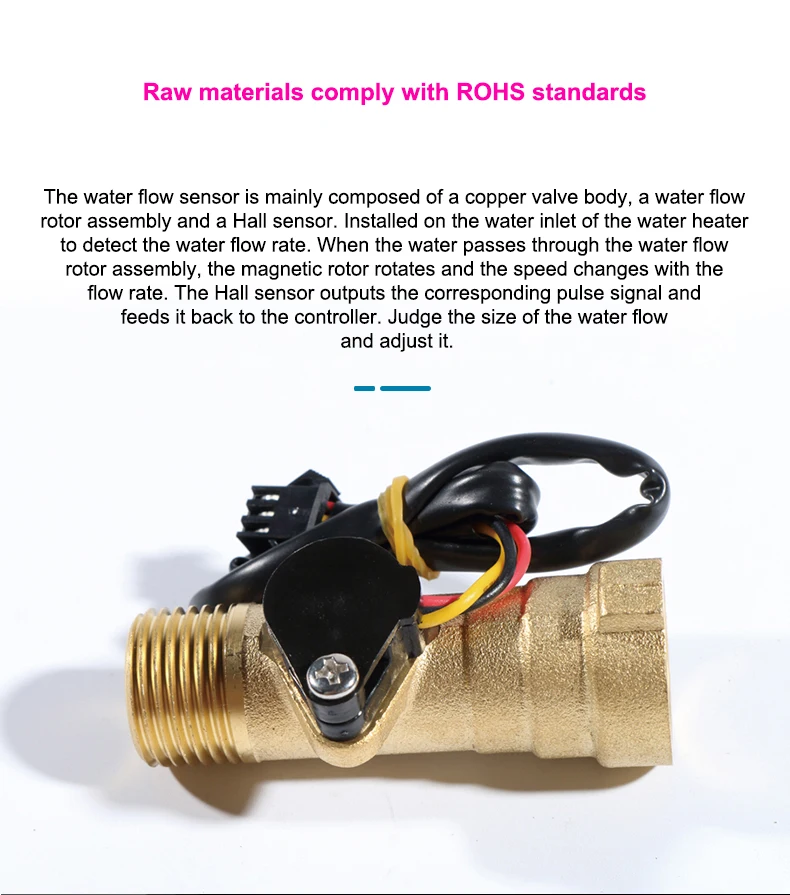

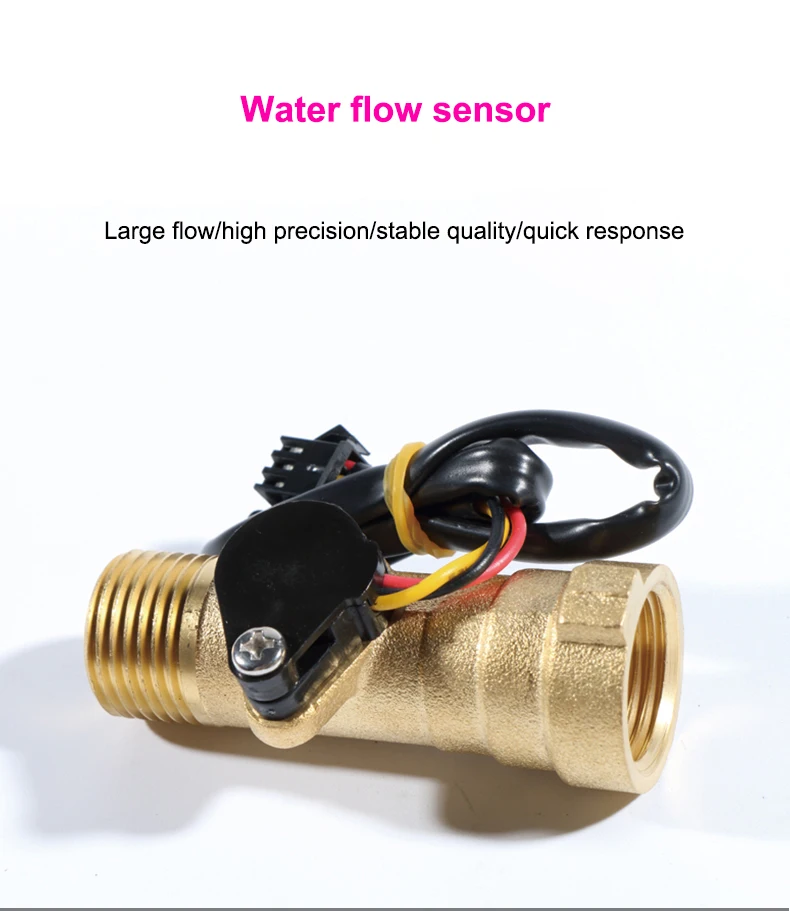

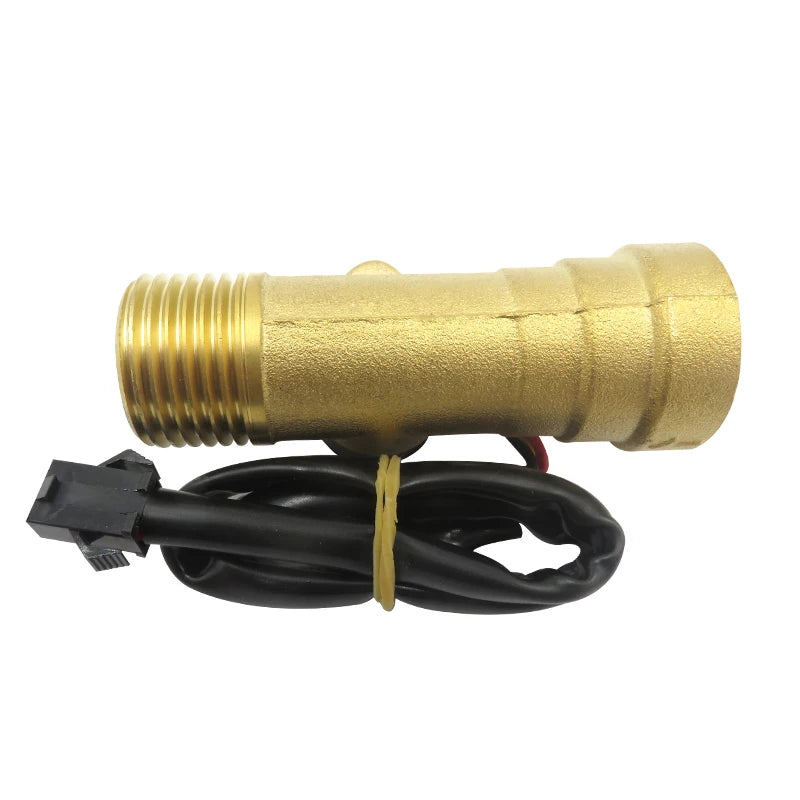

The water flow sensor is mainly composed of a brass valve body, a water flow rotor assembly, a steady flow assembly and a Hall element. It is installed at the water inlet end of the water heater to detect the flow rate of the inlet water. When the water passes through the water flow rotor assembly, the magnetic rotor rotates, and the speed changes linearly with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The controller judges the size of the water flow and regulates it.

Technical Specifications

Interface size: 1/2"(DN15) Working voltage range: DC3.5～24V Material: Brass Medium temperature: ≤120℃ Output pulse high level: >DC 4.5V (input voltage DC 5V). Output pulse low level: ＞100MΩ Flow range: 1/2"(1~25 L/min ± 3%) Flow pulse characteristics: 1/2" F=(11*Q)±3% Q = L/Min Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation.
