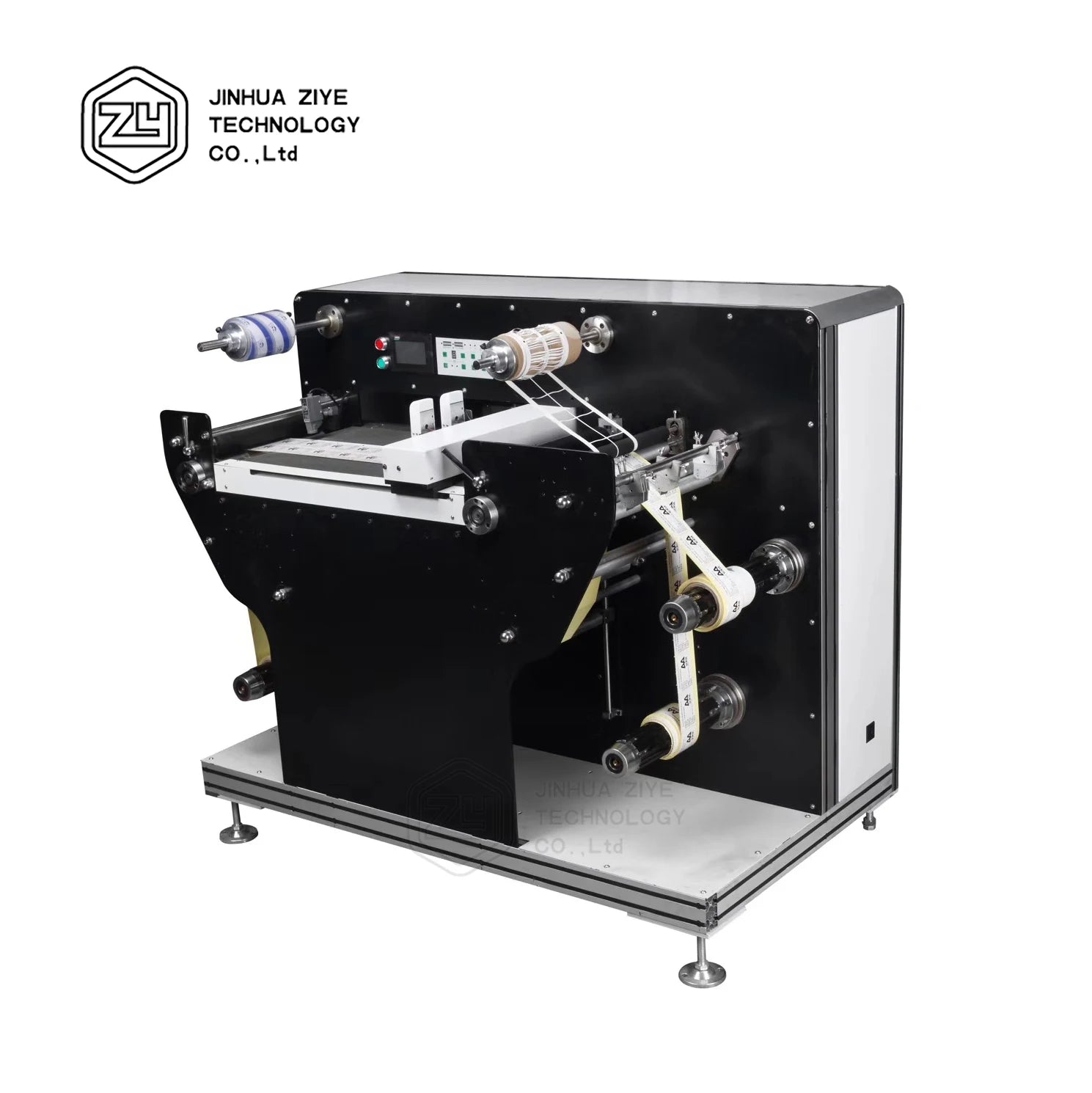

DIG320 Automatic Digital Roll to Roll Customized Label Die Cutting Machine

CFA6,481,901 XOF

~~CFA0 XOF~~ CFA6,481,901 XOF

Sale Produits stock

Shipping calculated at checkout.

power(w) 0.75kw

model number IM-320

Product Description

DIG320 Automatic Digital Roll To Roll Customized Label Die Cutting Machine

DES320B slitting machine with rotary die-cutting function is a new product, it equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.

Feature&Configuration:
1. One die cutting station + one slitting station.
2. With 1pc 3’’ unwinding shaft, 2pcs 1.5’’ rewinding shafts + 1pc 3” rewinding air shaft
3. With meter/number counter.
4. With Two Photoelectric Eyes---Web Guide System
5. With 8 pcs rotary slitting knife.
6. 1 Set magnetic brake & clutach.
7. 1 Set Blower. Machine has blower fan to blow away the trimmed sides.
8. With Turret Rewind

9. 2 Set Automatic Constant Tension Controller

-1 Set Automatic Constant Tension Controller for unwinder.
-1 Set Automatic Constant Taper Tension Controller For rewinder.

10. 1pc Synchronous Motor
11. Frequency Converter

Samples

Product Paramenters

Machine Model	DES320B	DES550B
Slitting Speed	100m/min	100 m/min
Die Cutting Speed	100m/min	100 m/min
Max. Web Width	320mm	550mm
Max. Unwinding Diameter	700mm	700mm
Max. Rewinding diameter for big roll	600mm	600mm
Max. Rewinding diameter for small roll	200mm	200mm
Length of Die Cutting	178-470 mm	178-470 mm
Dimensions	180011001800 mm	132015001520 mm
Main motor	3 KW	3 KW
Voltage	220V/380V	220V/380V
Min. Slitting width	15mm	15mm
Machine weight	1200 kgs	2000 kgs

Details Images

Slitting Unit

1-Set Slitting Unit comes with 8 Sets Rotary Knives in Standard Configuration.

Die Cutting Unit

Cooperate With Magnetic Cylinder and Flexible Dies

Unwind Unit

With 1 pc 3" Air Expanding Shaft.

Can accept max diameter 600mm material jumbo roll. (can be customized)

Rewind Unit

With 2pcs 1.5” Air shaft, (Turret Rewind), can accept 200mm diameter roll.

With 1 pc 3" Air Expanding Shaft., can accept 500mm diameter roll.

Magnetic Brake and Clutch

With One 25 N.M Magnetic Brake, One 50 N.M Magnetic Clutch

Machine Drive By Synchronous Belt. Low Noise and Stable Operation

Auto Constant Tension Controller

With 2 Set ZXT Auto Constant Tension Controller For Unwind and Rewind

Blower Fan

Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.

Counter

Machine can count with meter or quantity.

Company Profile

Jinhua Ziye

professionally research and manufacture flexo printing machine, label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national
brand’ as development strategy, to make company as the leader in after printing machinery line.

Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

Why Choose Us

Professional Team

For slitting machine, we can provide you in 5-20days.
Factory Monthly Output is 50 sets.
Because we have professional production team over 50 persons. Now let me introduce our Professional Team to you:

Product packaging

Title goes here.

Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
