SPECIFICATIONS

ARC FORCE: available

Brush/Hammer: Included

Connection Voltage: 1~230V(+-10%)

Earth Clamp: 200A Holder with 1.8m cable

Earth return cable: 2M Aluminium Cable

Electrode Diameter(MM): 1.6mm-4.0mm

Electrode Holder: 200A holder with 1.2m cable

Electroode welding Cable: 2M Aluminium Cable

Protection Class: IP21S

Rated Duty Cycle @40°C: 60%

VRD: Option

Welding Current: 18-160A

Welding Mask: Included

Welding Method: Manual,MMA

brand name: DECAPOWER

condition: New

dimensions: 36.5*16.5*28.5

electrode diameter mm: 2.0 mm

feature: Portable

input power cable m: 1.5 m

max. load power capacity: 5.3KVA

motor type: DC Motor

place of origin: Zhejiang, China

rated input voltage: 220 V

rated output voltage: 26.4V

usage: DIY/REPAIR/WORKSHOP

warranty: 1 Year

weight (kg): 2.75

welding current/voltage range: 18A/20.7V - 160A/26.4V

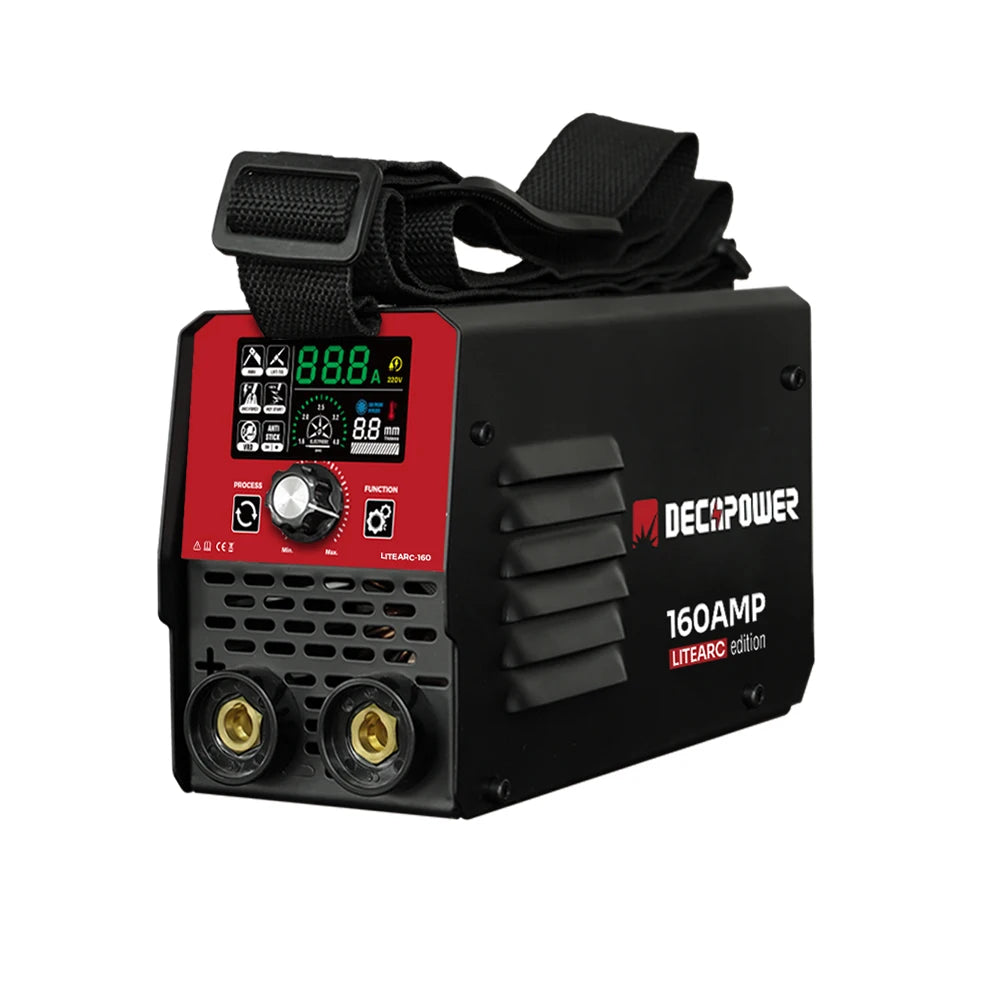

LITEARC-160

The LITEARC-160 is an ultra-compact MMA inverter arc welding machine. Lightweight and portable, it supports full metal welding for iron, stainless steel and carbon steel (not suitable for aluminum). It is perfect for DIY projects and household applications.

Its compact portable size makes handling and transportation easy, ideal for small welding jobs.
Intelligent fan system operates more quietly:

1. Fan stays off when powered on.

2. Fan activates during welding.

3. Fan enters
standby mode 8 minutes after welding stops.

Synergic functions allow welders to start working faster. As you adjust welding parameters, the display automatically recommends suitable electrode diameters and matching metal thicknesses. It is extremely user-friendly for beginners

Product Parameter

Model	LITEARC - 160
Type	IGBT
Rated Input Voltage (V)	220V
Rated input frequency (Hz)	50/60HZ
4.520%=200Rated input Power （KVA)	4.2KW
Output curent range (A)TIG	12A/10.5V - 160A/16.4V
Output curent range (A)MMA	18A/20.7V - 160A/26.4V
Rated Duty cycle (%)	40%
Class of Insulation	F
Shell protection grade	IP21S

Details Images

Company Profile

FAQ

Q: What types of welding rods can it use?

A: Compatible with common electrode types like E6013 and E7018, no special consumables required.

Q: Does it require regular maintenance?

A: No routine maintenance needed; clean air intake vents every three months to maintain cooling efficiency.

Q: Can it be used outdoors in winter?

A: Operates normally between -10°C and 40°C; extreme cold may affect startup—pre-warming indoors advised.

Q: Can a beginner use this welder without experience?

A: No professional skills required. Comes with manual and beginner video guides—usable within 30 minutes for first-timers.

Q: Will it work with my home power outlet?

A: Works with standard 16A household outlets; dedicated circuit recommended to avoid sharing with other high-power devices.

Q: Can it weld stainless steel or aluminum?

A: Does not support TIG or MIG; focused on MMA stick welding, better suited for metal repair and structural joins.

Q: Will it overheat and shut down during prolonged use?

A:Equipped with IGBT inverter + DSP digital control for stable arc performance and over 30% less spatter during high-intensity operation.

Q: Does this welder support dual voltage? Is it suitable for export use?

A:Yes, the welder s available in 230V, 110V/220V, CE versions,which can be selected according to your local market needs.

Q: What exactly does IP21S protection mean?

A: IP21S prevents objects >12.5mm from entering and protects against vertically dripping water—ideal for standard workshop environments.

Q:Which metals can it weld? Does it perform well on aluminum?

A: It can weld carbon steel, iron, and aluminum alloy-perfect for auto bodywork, farm equipment frames, and general metal repairs.
