SPECIFICATIONS

Application: Telecommunications

Battery Included: No

Brand Name: diymore

Certification: CE

Choice: yes

High-concerned chemical: None

Model Number: Uninterruptible Power Supply Box

Origin: Mainland China

Output Voltage: 5V 9V 12V

Phase: Three Phase

Protection: Unbalanced Loads

Type: Line Interactive

Weight: 286g

is_customized: Yes

Features

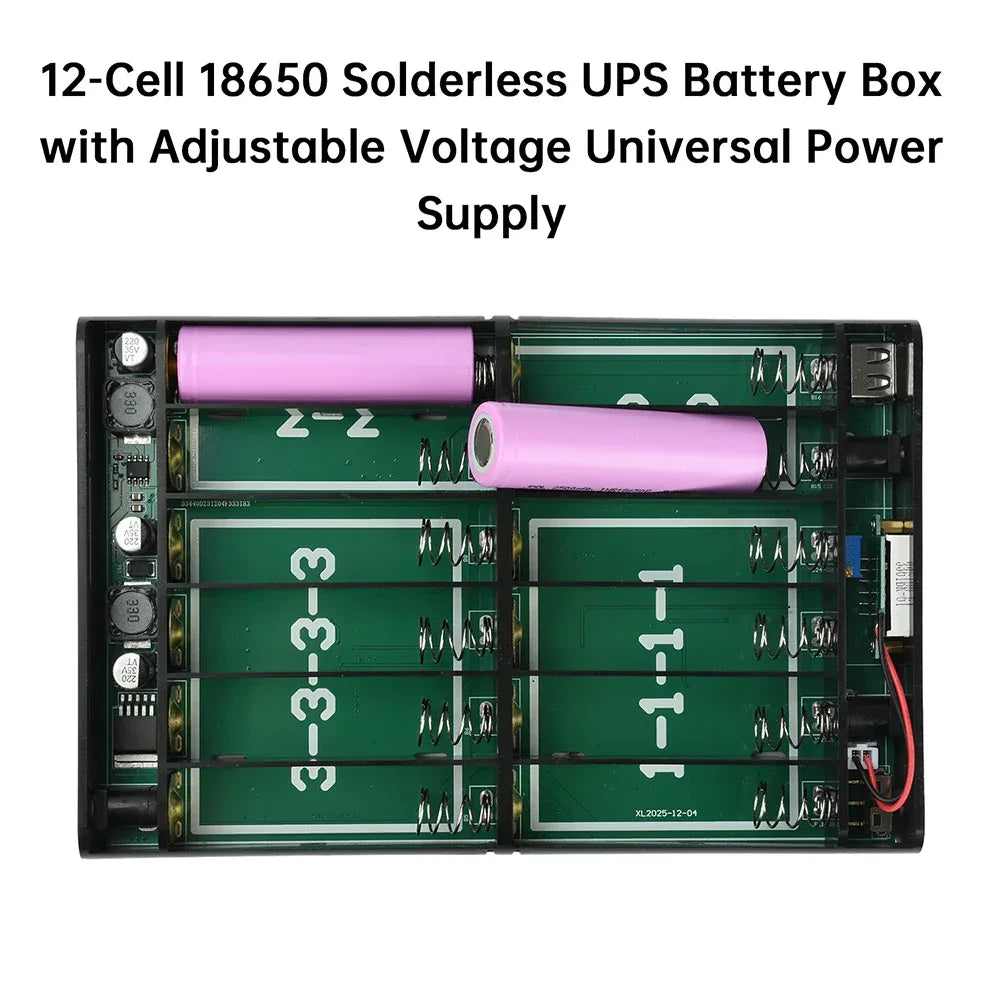

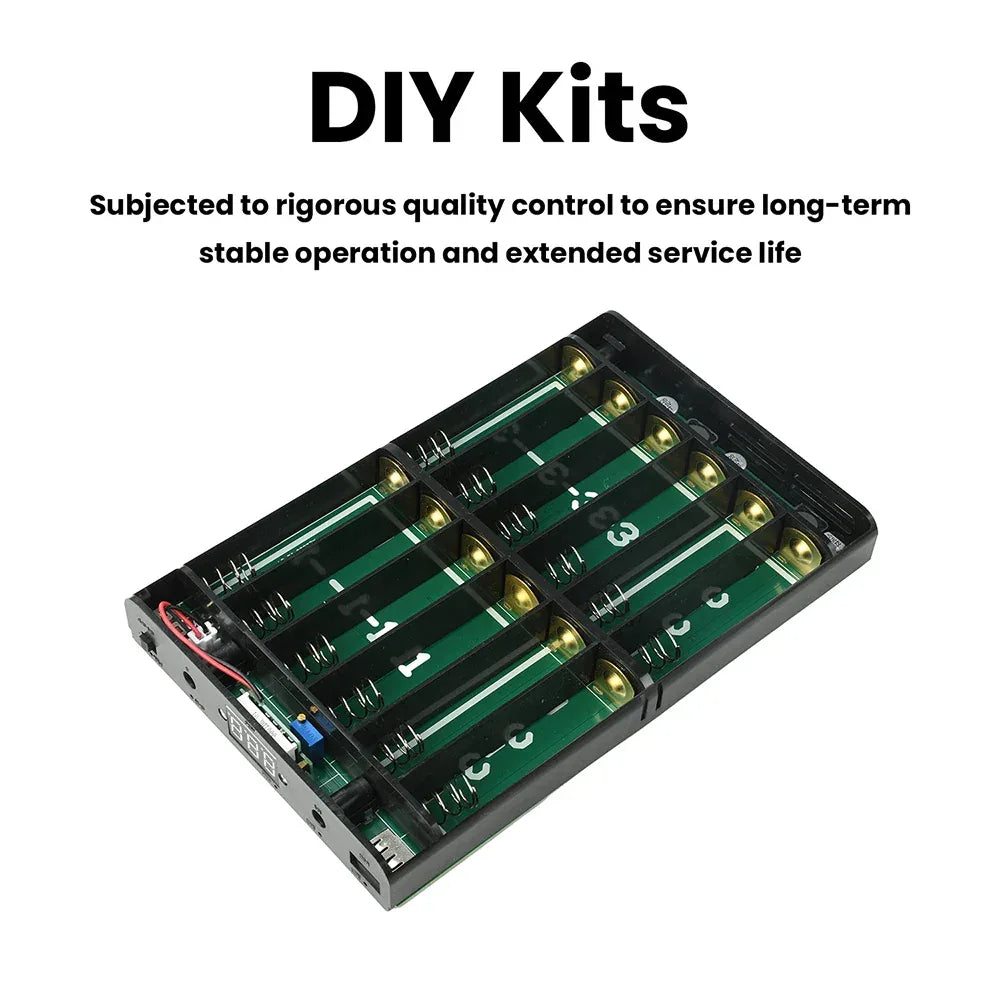

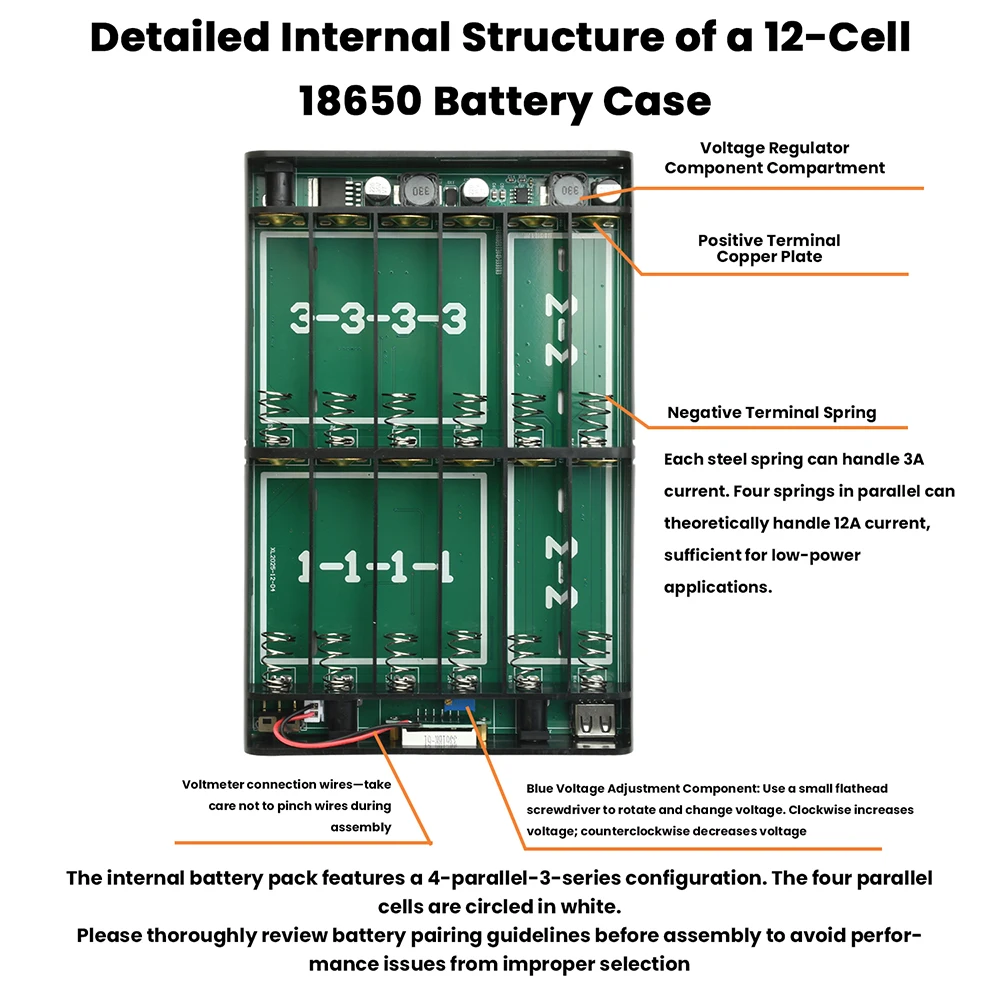

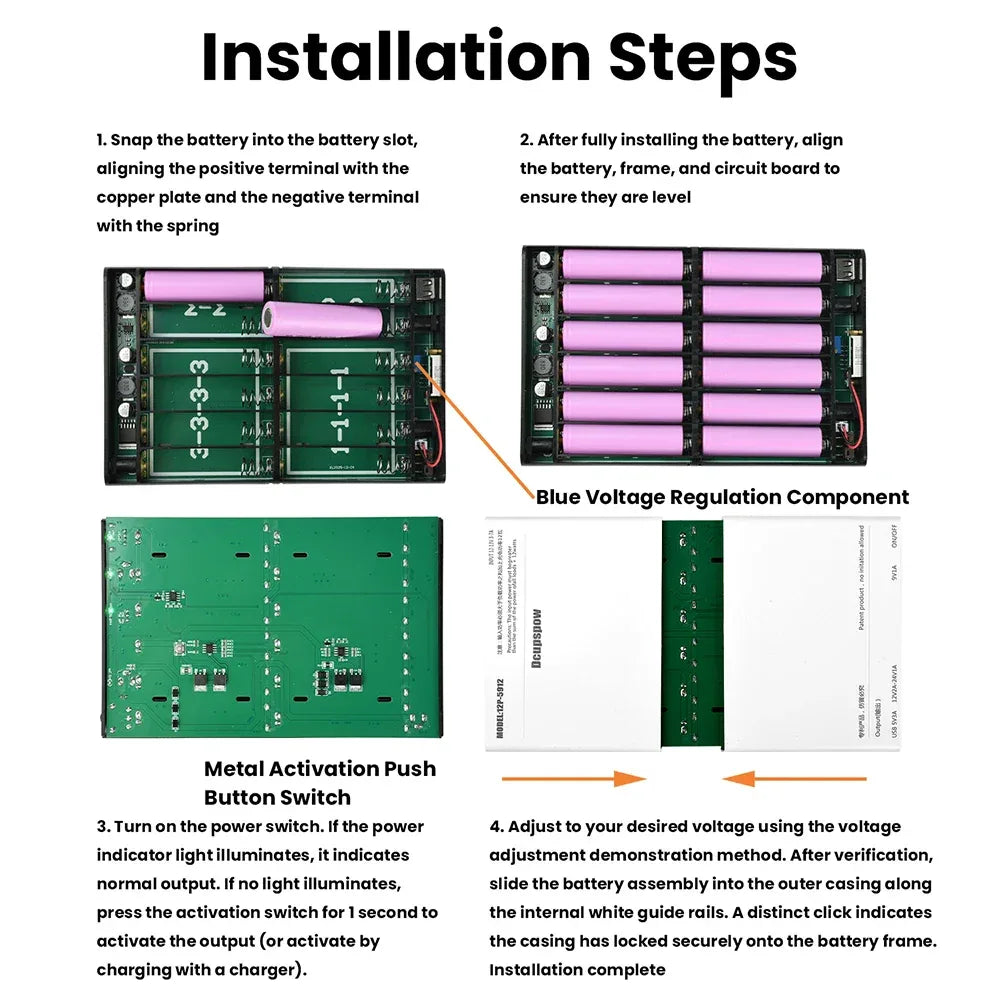

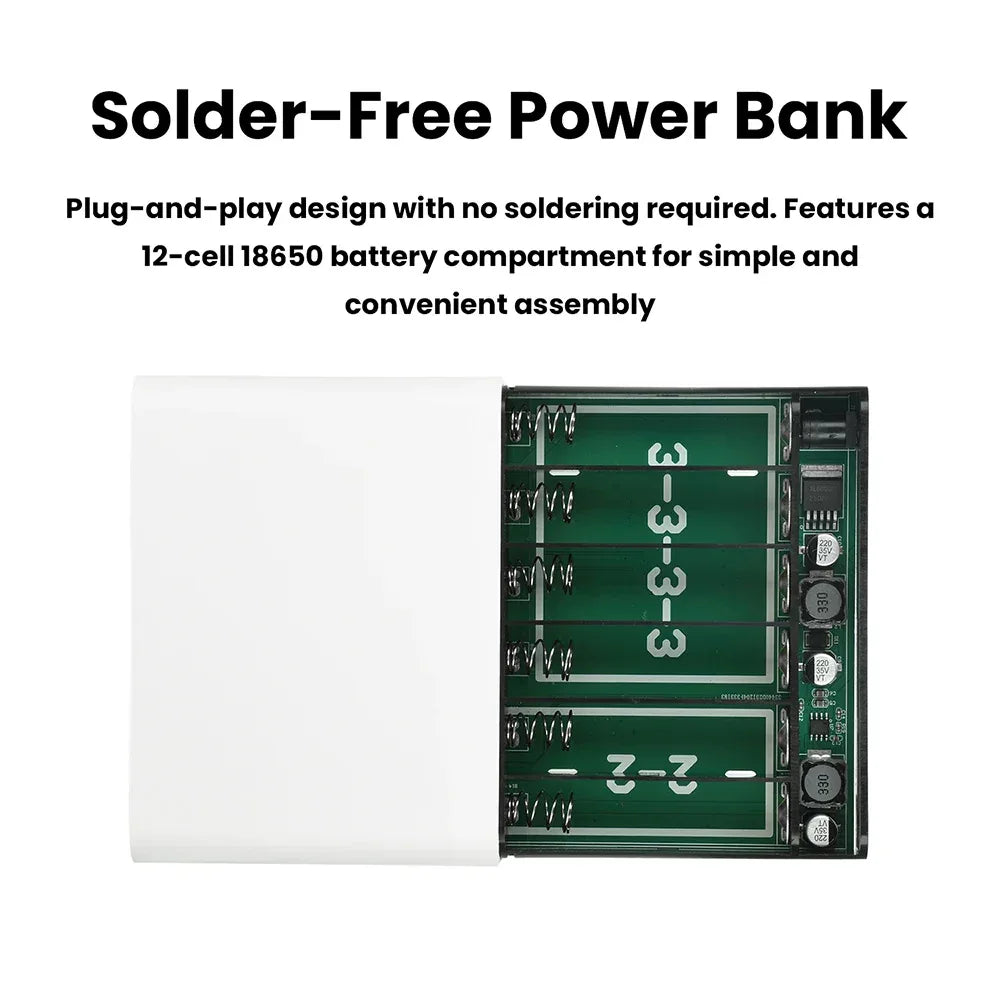

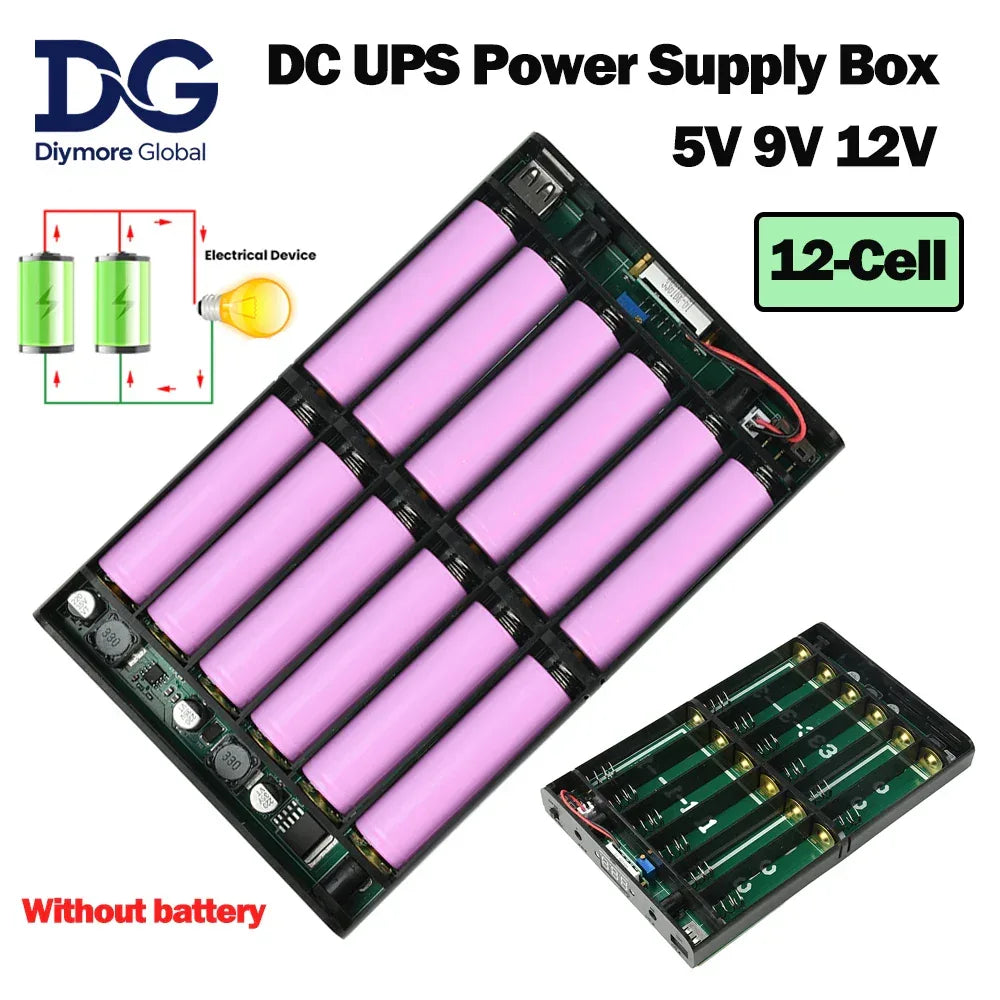

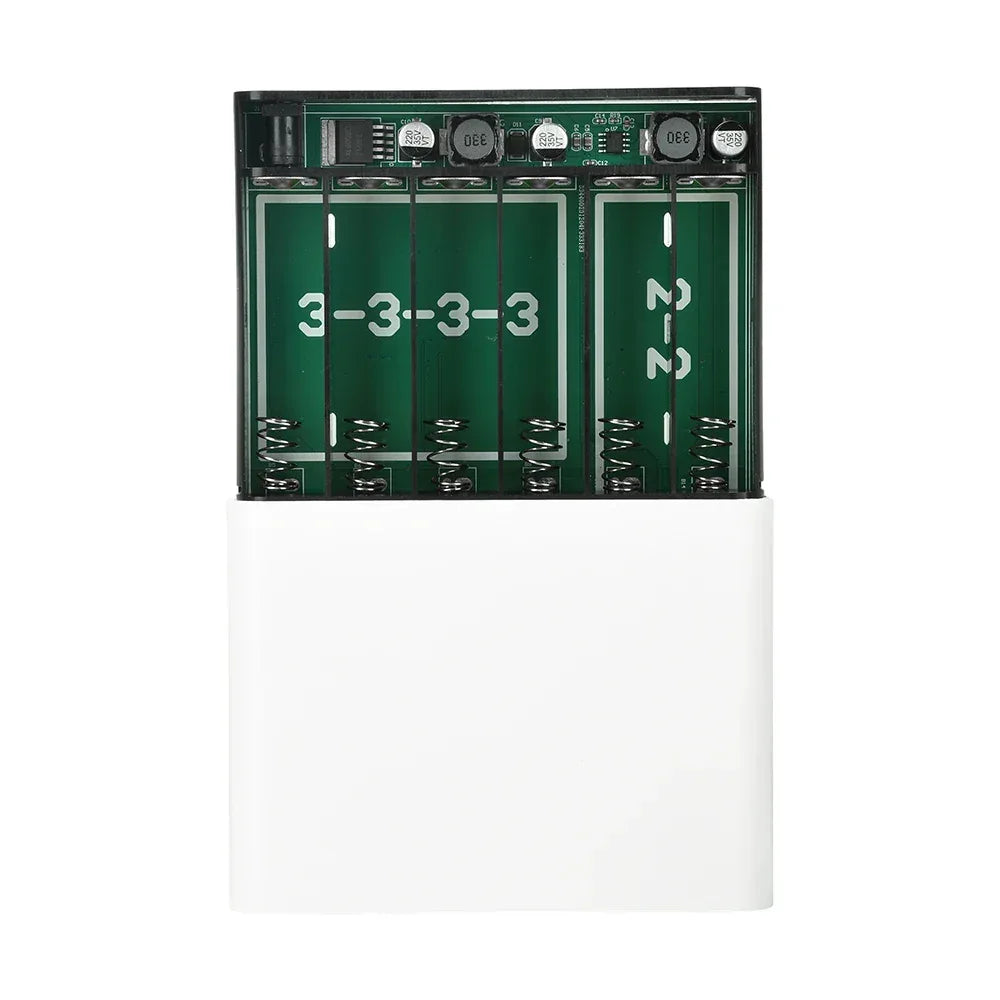

1. Solderless plug-and-play design with 12-cell 18650 battery compartment for simple assembly

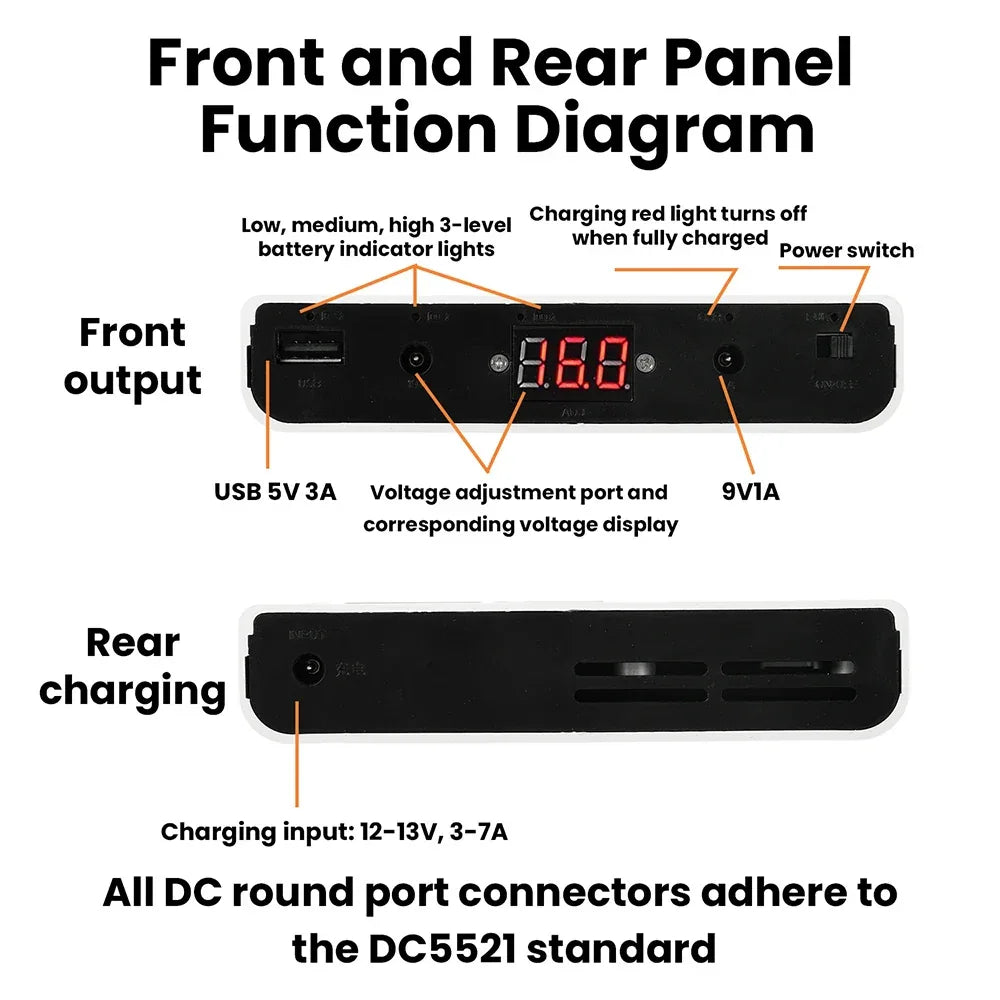

2. Three independent output ports: USB 5V3A, 9V1A, and 12-24V adjustable voltage
3. DC equal-voltage UPS function enables automatic charge/discharge management without manual intervention

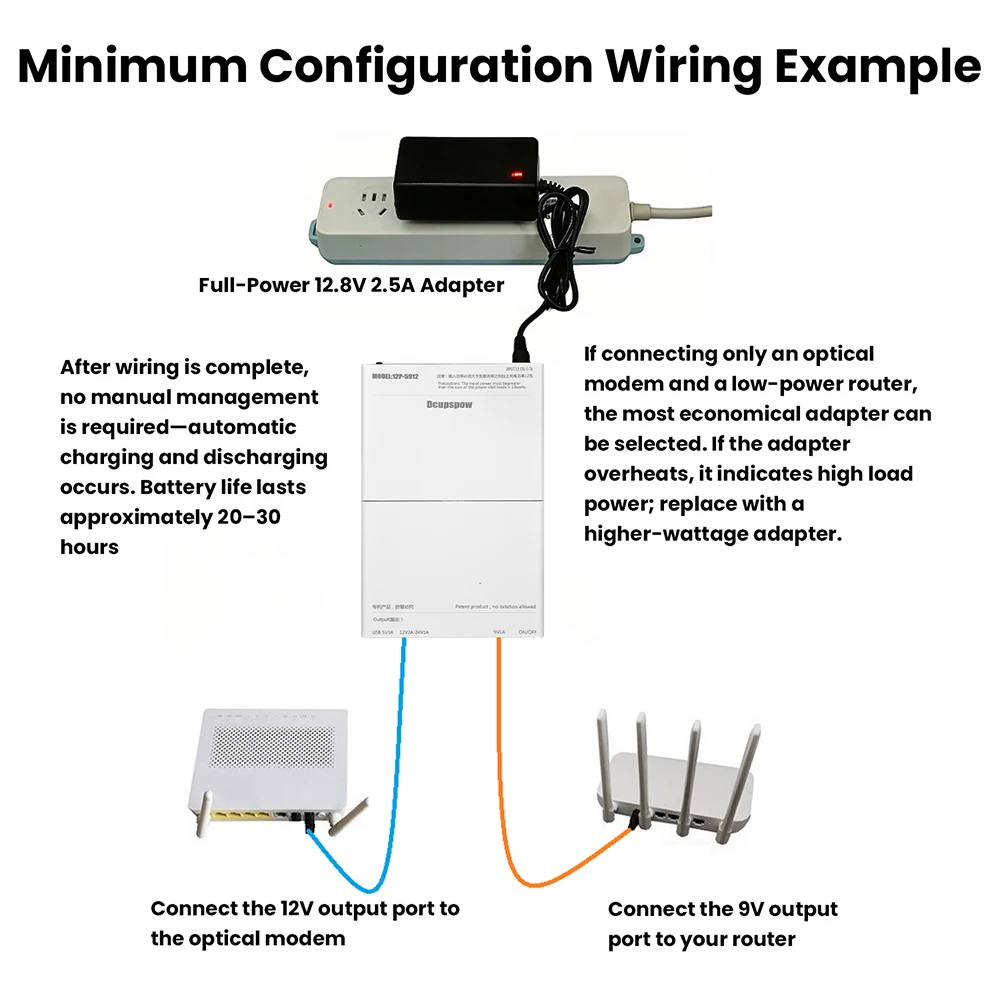

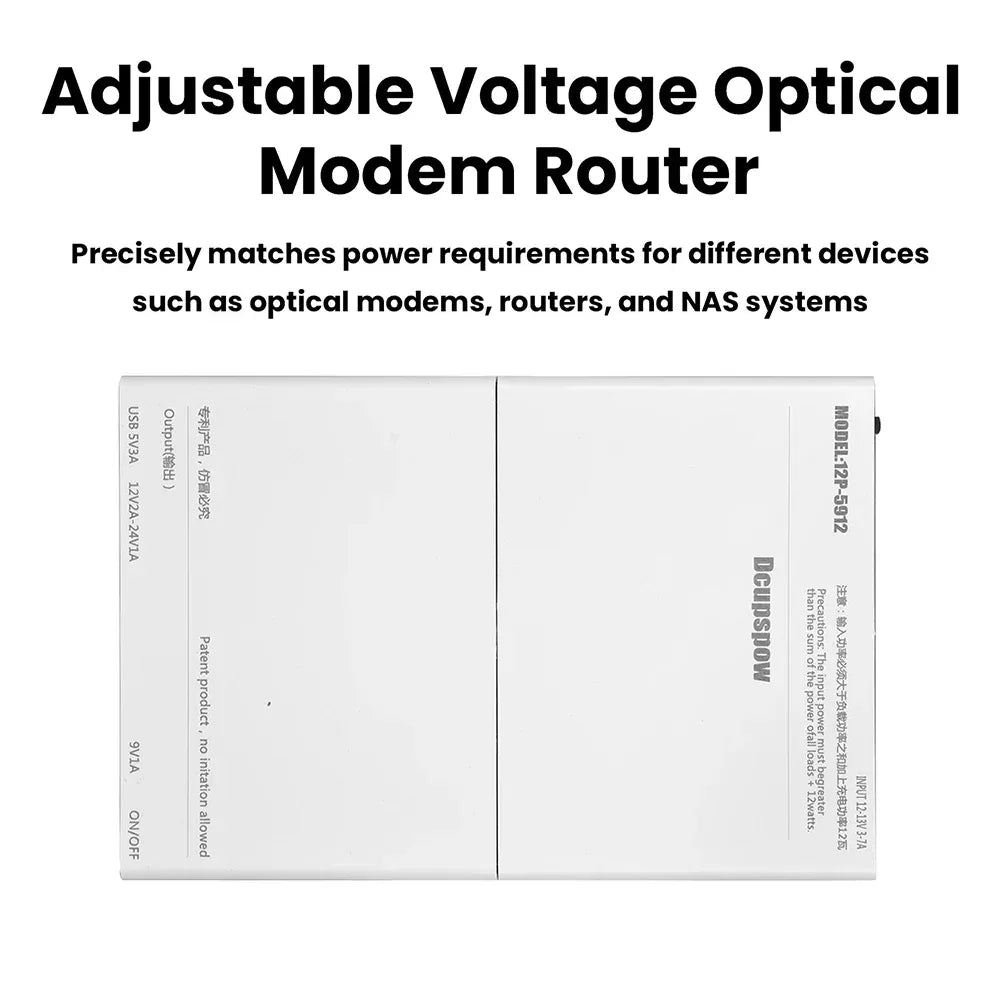

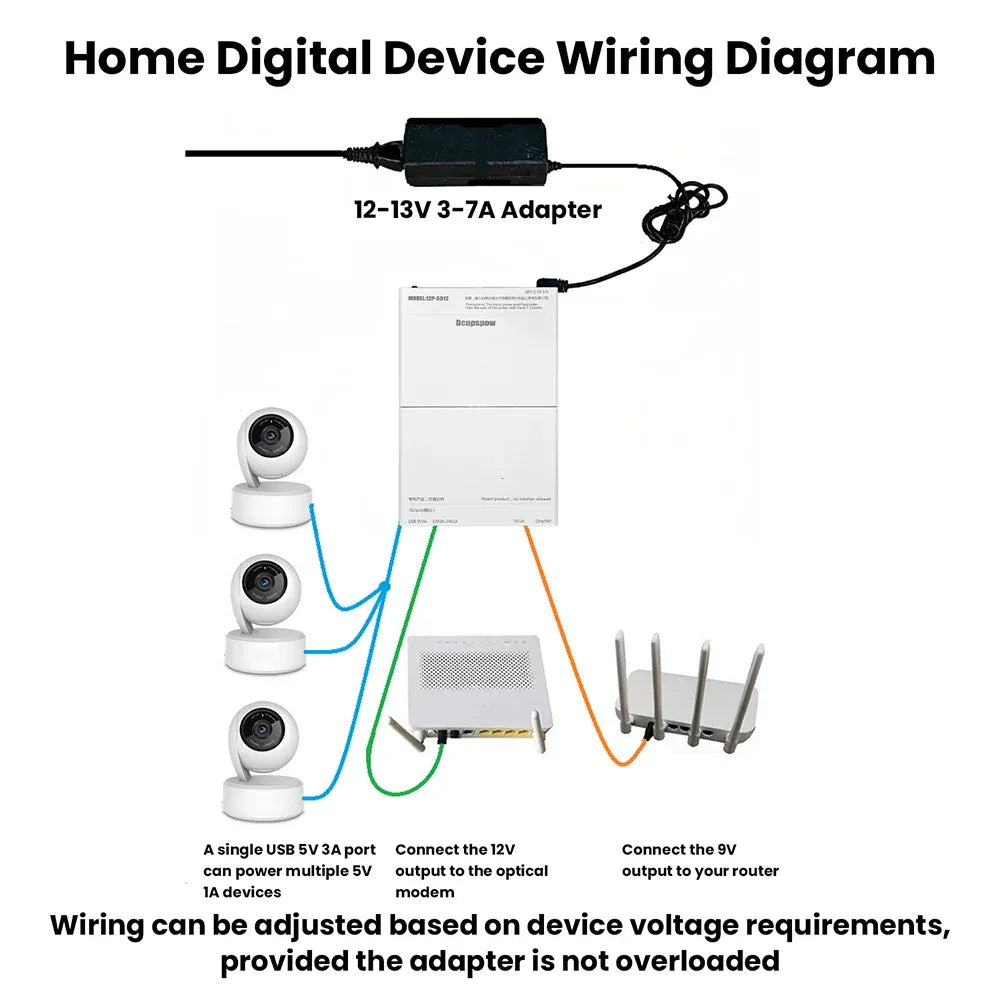

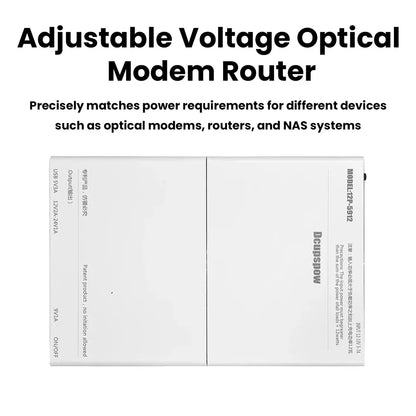

4. Precisely matches power requirements for optical modems, routers, NAS, and other devices
5. Rigorous quality control ensures long-term stable operation and extended service life

Parameter

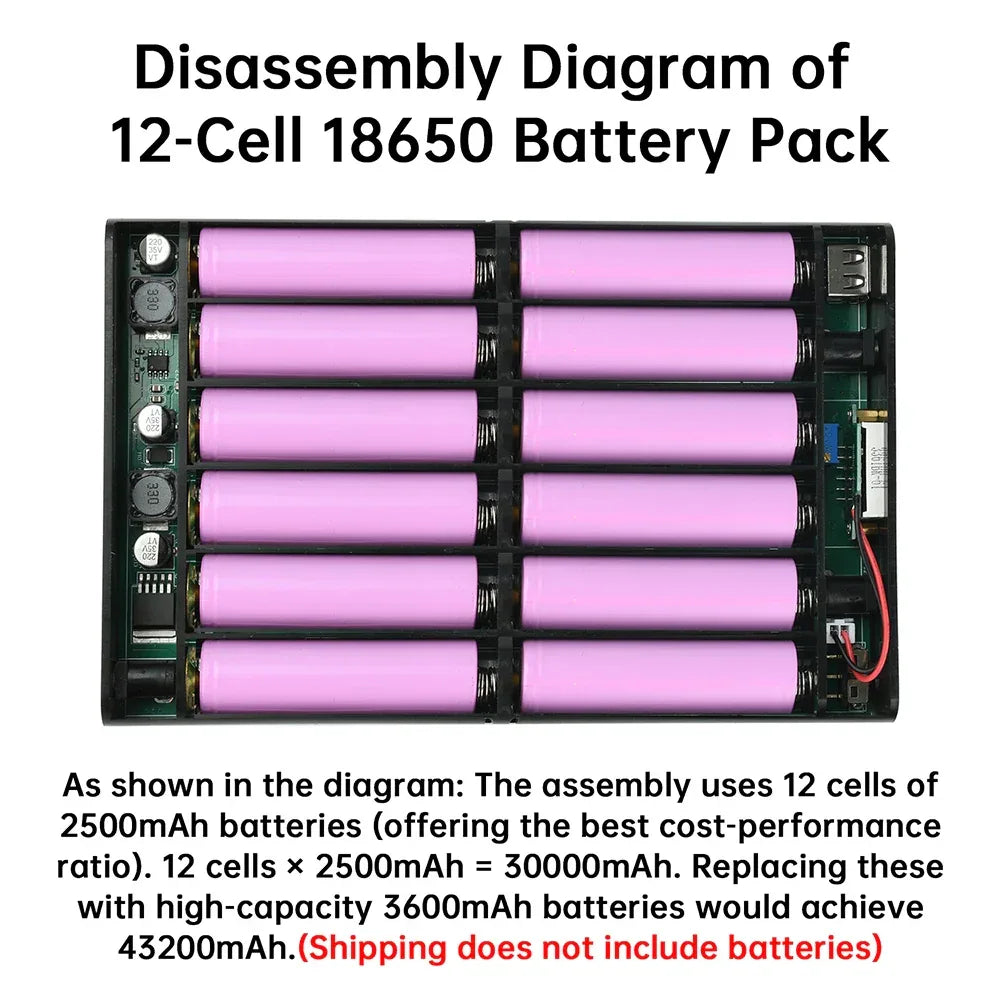

Capacity: User-supplied batteries, maximum configurable capacity: 3.7V*40000mAh=148Wh (user-supplied batteries)

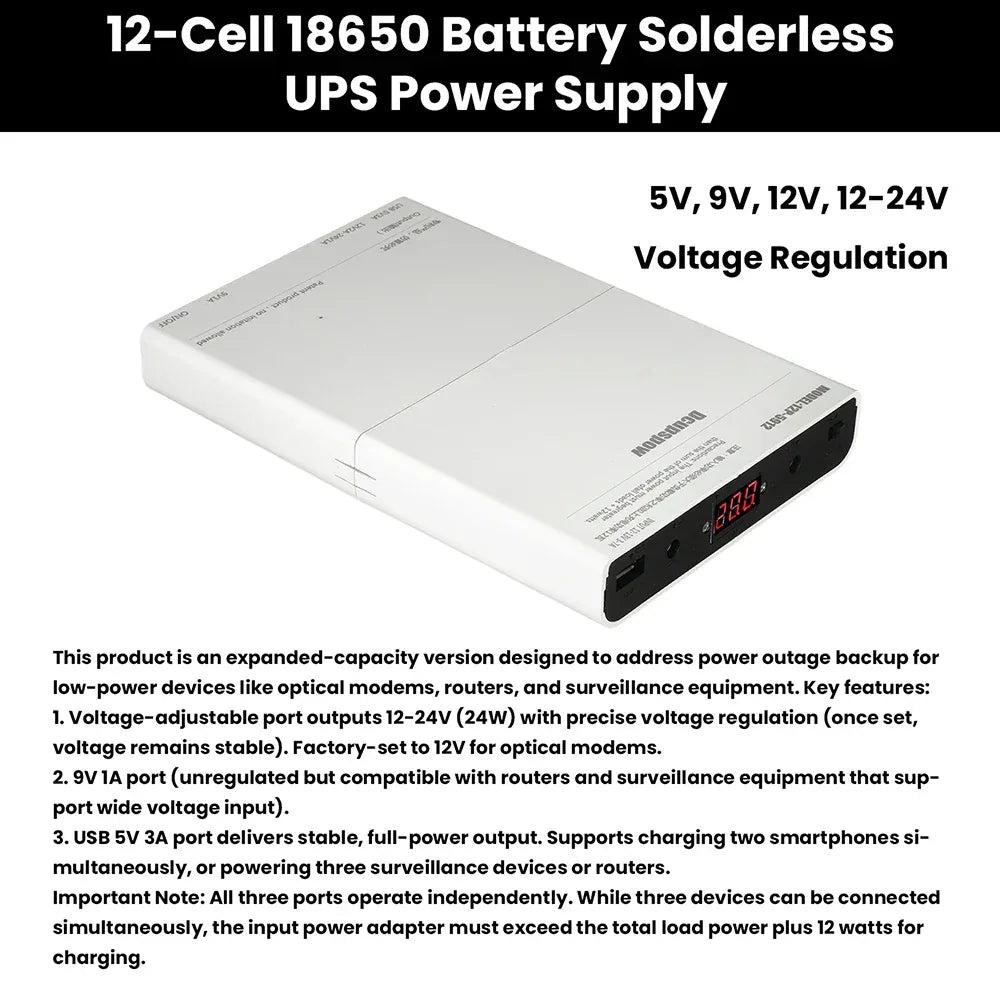

Output Power: 3 independent output ports: USB 5V 3A, 12-24V adjustable voltage 24W, 9V 1A

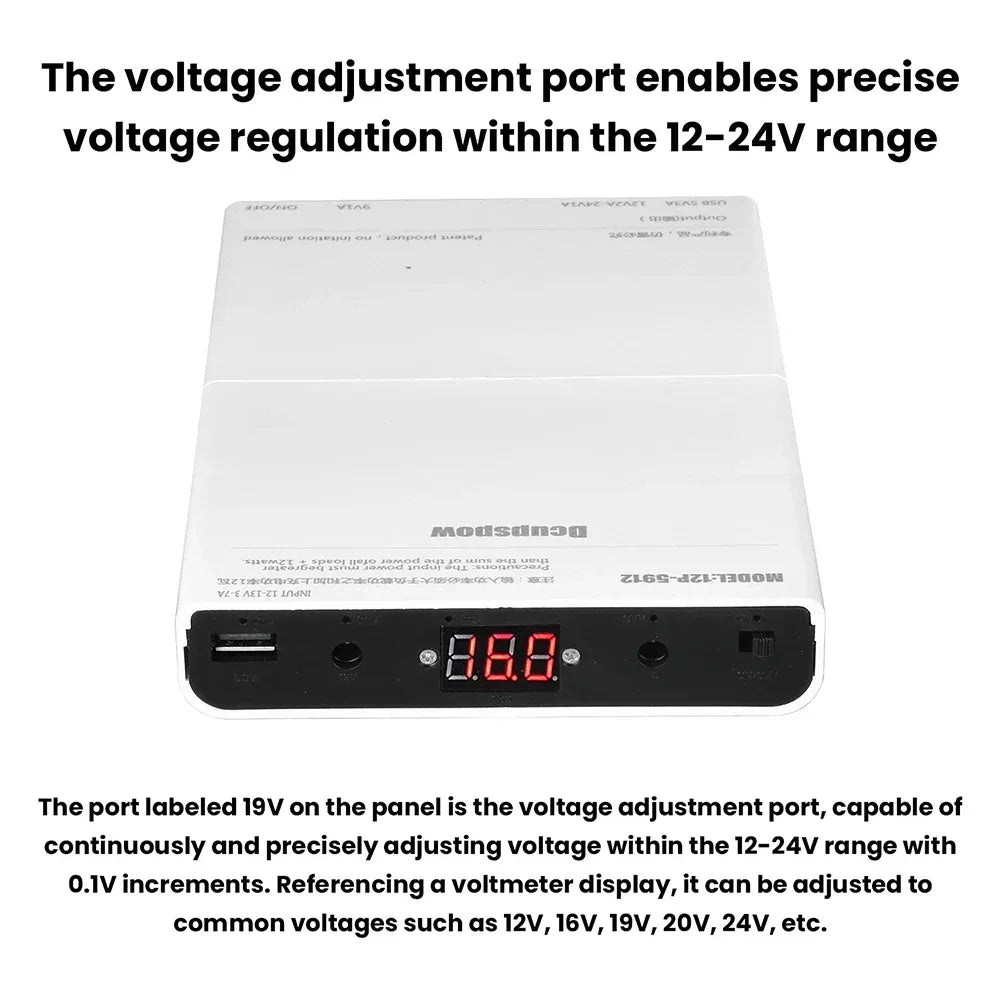

Stepless Voltage Regulation: 19V port offers continuous high-precision voltage adjustment within 12-24V range, with 0.1V regulation accuracy

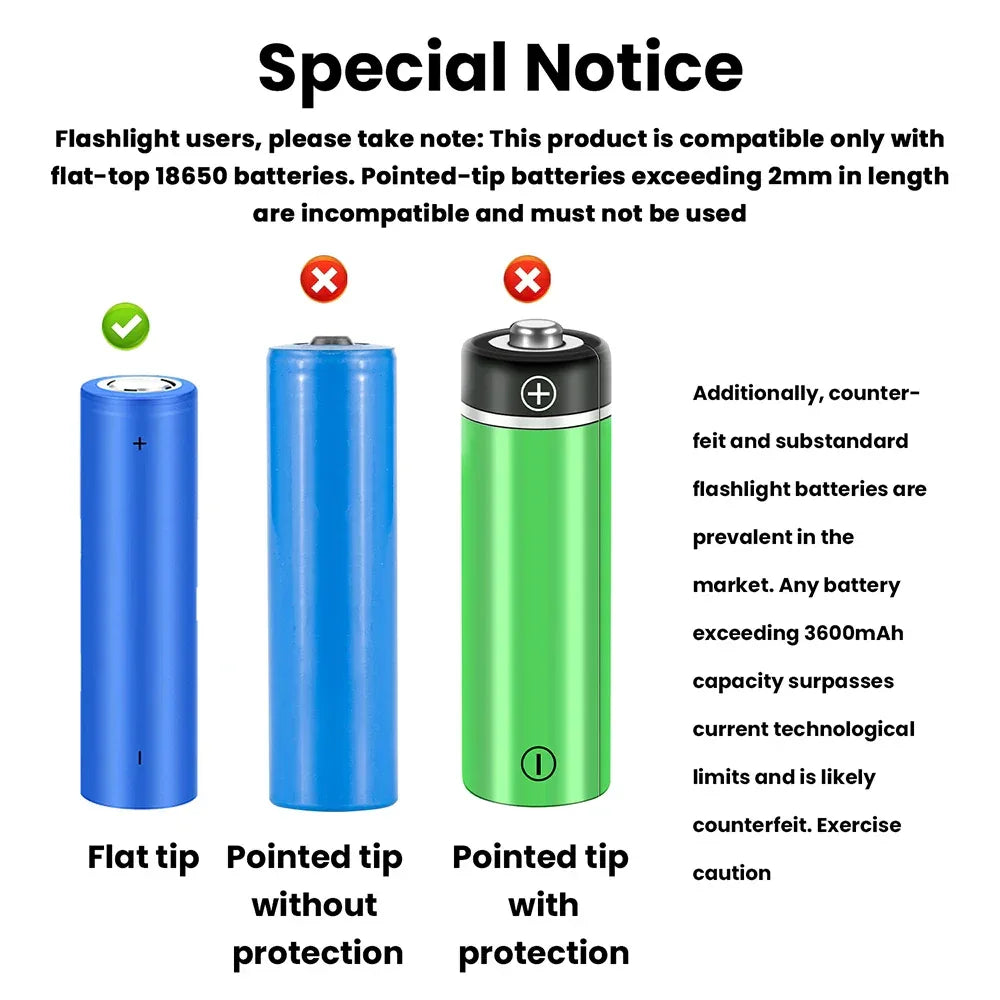

Voltage Regulation Method: High-precision stepless continuous voltage regulation, accuracy 0.1V. Voltage remains stable after adjustment, no need to reset each time. Battery Type: 18650 flat-top premium batteries
Battery Cycle Life: Use premium batteries (user-supplied)

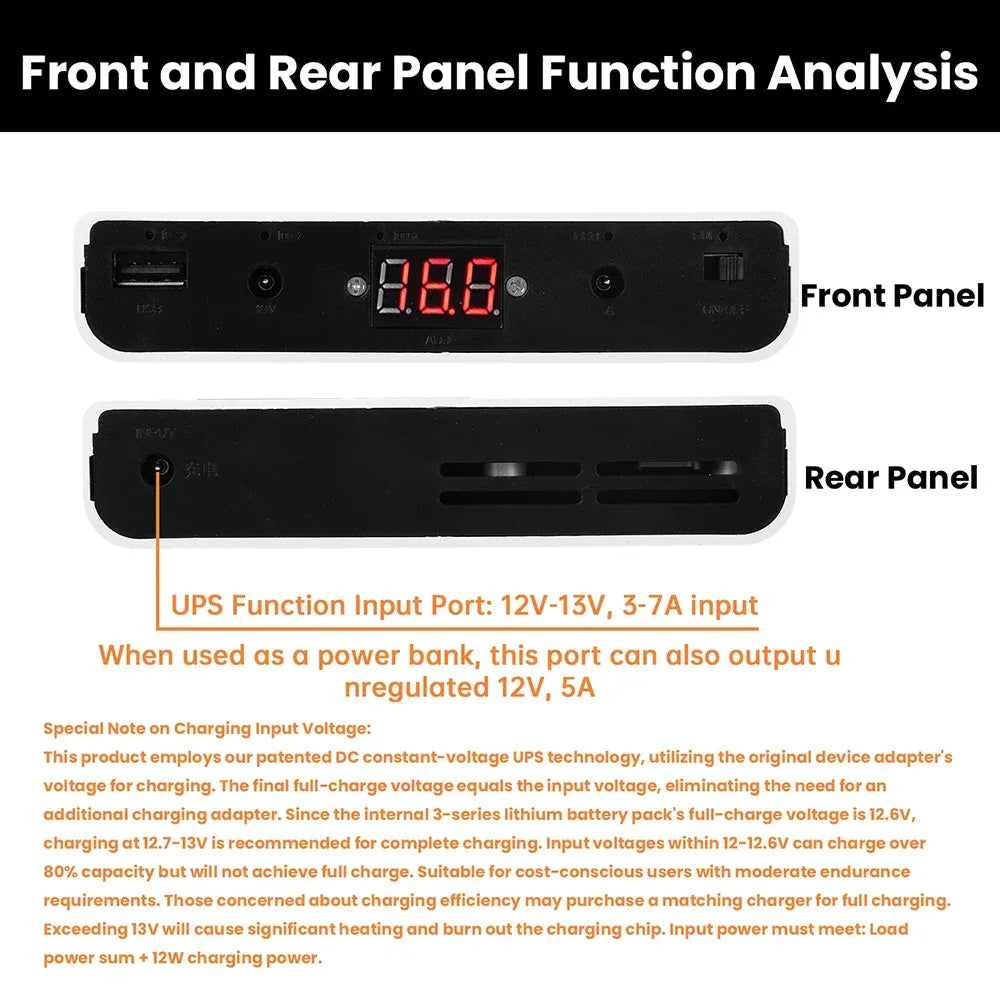

UPS Input Voltage: 12-13V, recommended 12.7-13V, must not exceed 13V
Input adapter power: Input power > (Load power + 12W charging power). Higher power ensures greater stability
Charging power: 10-12W
Operating temperature range: -20~60℃
DC connector standard: DC5.5, 2.1mm (positive inner, negative outer)

Package include
UPS power supply*1
DC5521-5525 cable*1
