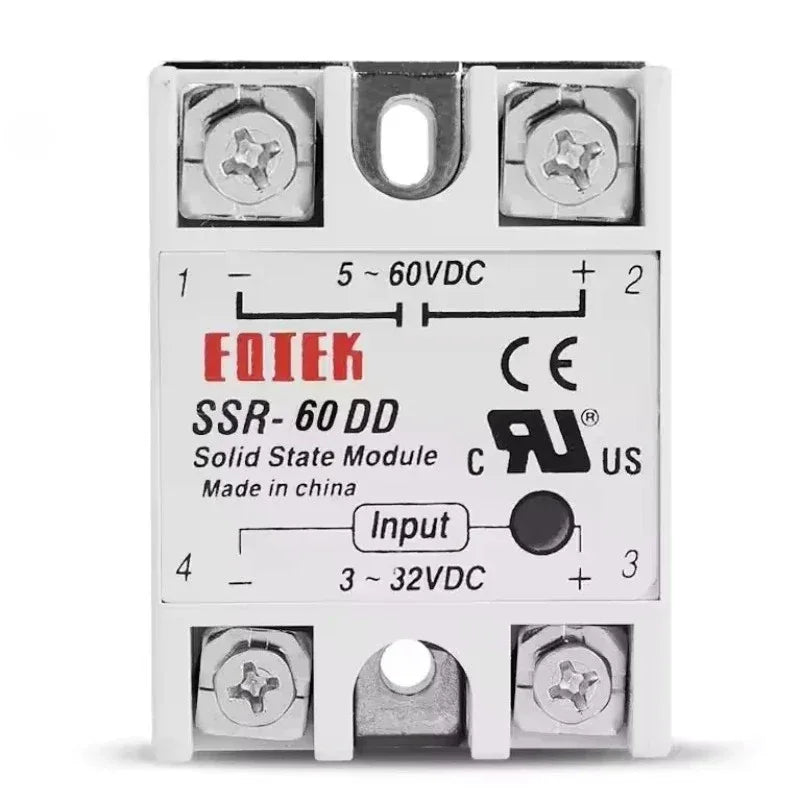

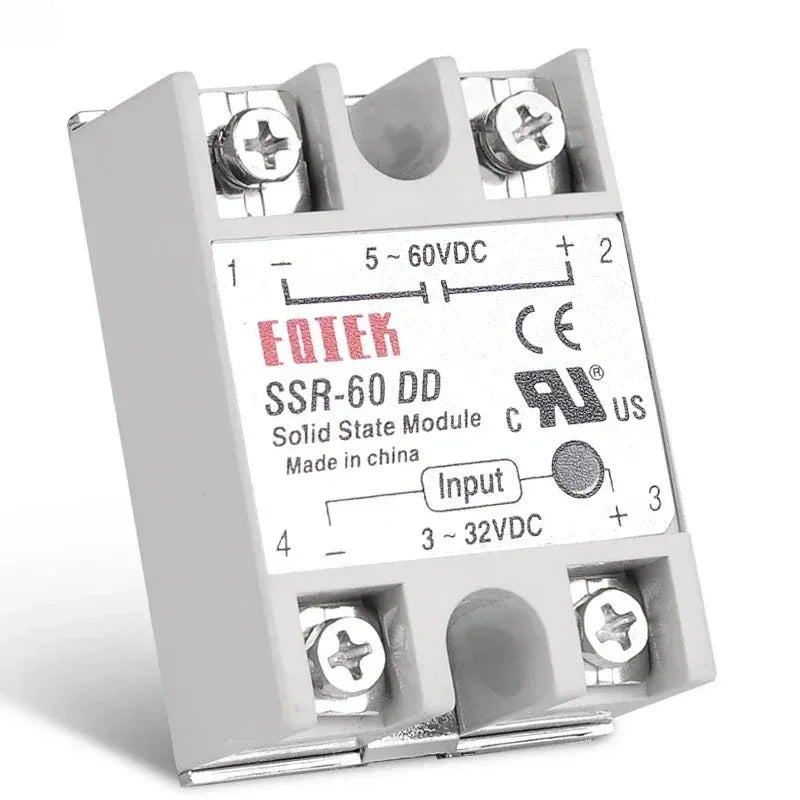

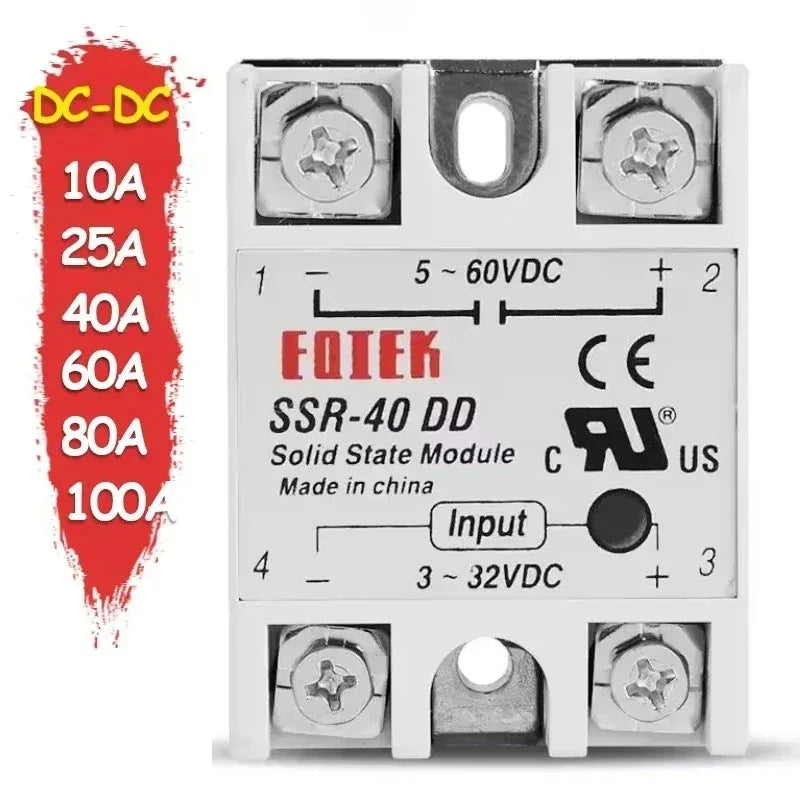

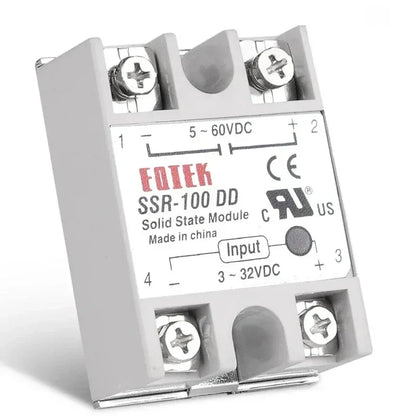

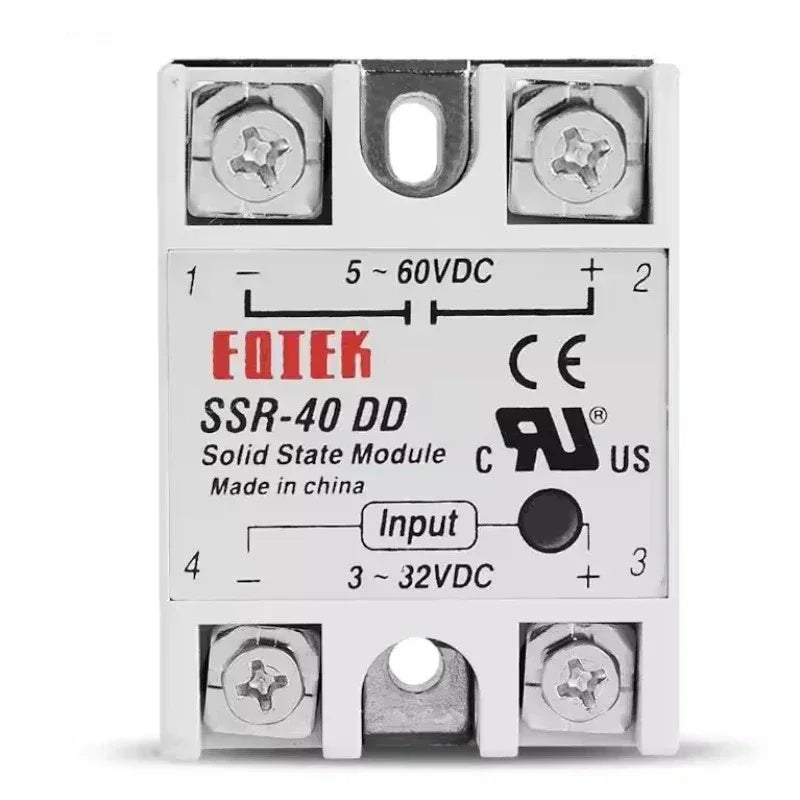

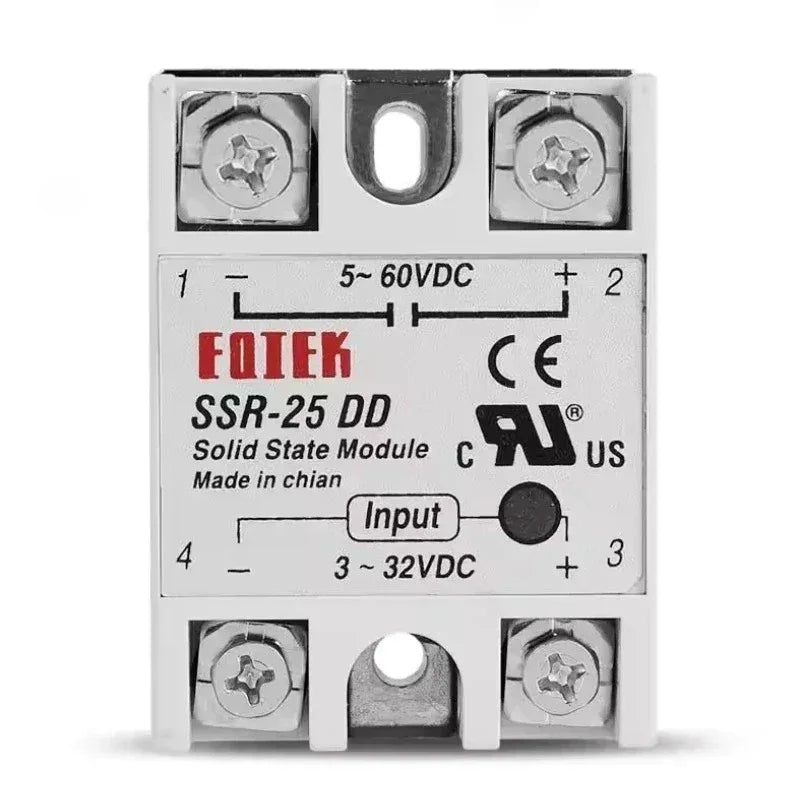

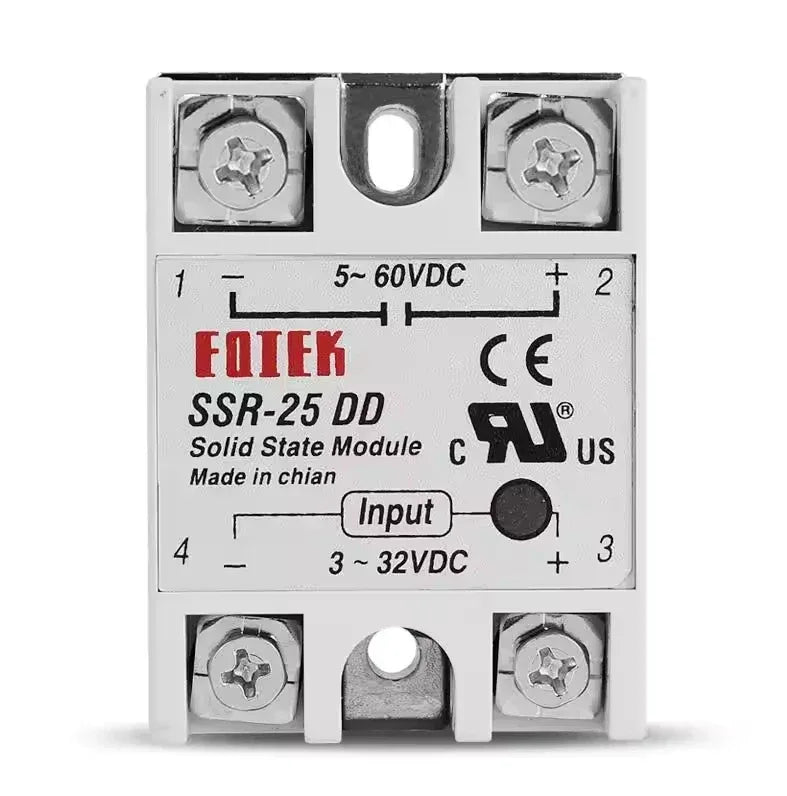

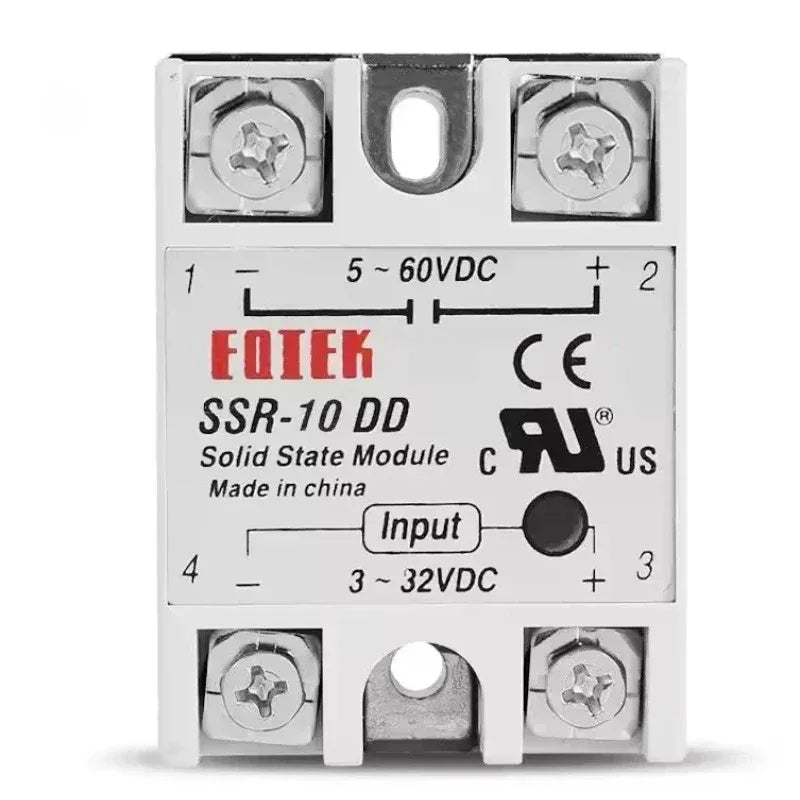

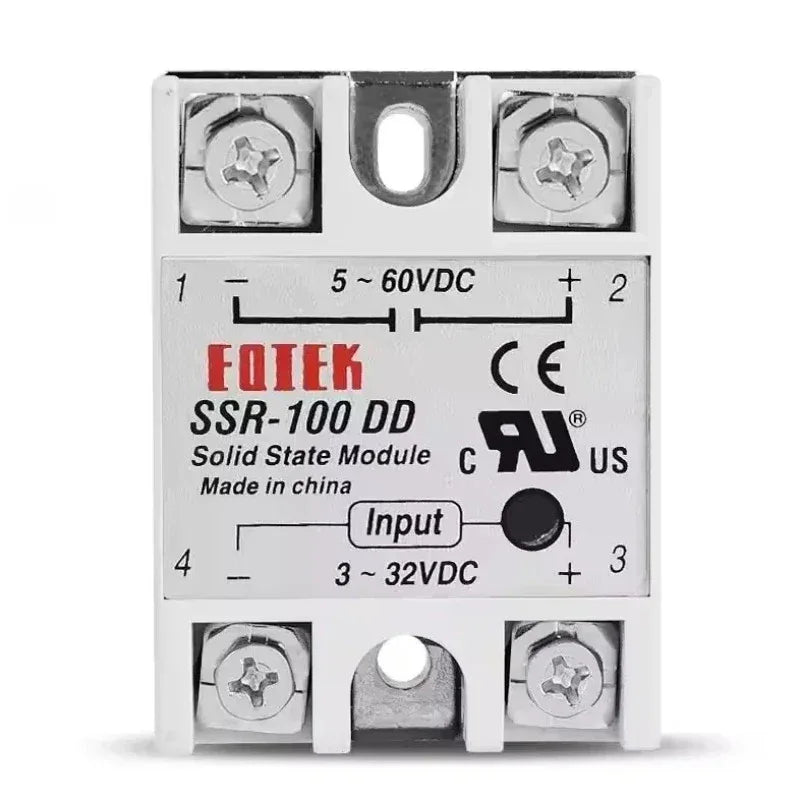

DC-DC Single Phase Solid State Relay SSR Module 10A 25A 40A 60A 80A 100A Input Voltage 3-32V 12V to 5-60V DC Output Load Relays

DC-DC Single Phase Solid State Relay SSR Module 10A 25A 40A 60A 80A 100A Input Voltage 3-32V 12V to 5-60V DC Output Load Relays

CFA2,632 XOF
CFA0 XOF CFA2,632 XOF
Sale Produits stock
Shipping calculated at checkout.
Size

SPECIFICATIONS

Applicable Object: Other

Brand Name: SINOTIMER

Certification: CE,RoHS

Contact Load: Low Power

High-concerned chemical: None

Input Voltage: 3-32V DC

Model Number: SSR10DD, SSR25DD, SSR40DD,SSR60DD, SSR80DD, SSR100DD

Origin: Mainland China

Output Control Load: 5-60V DC

Power Source: DC,DC

Protect Feature: Epoxy

Theory: Solid State Relay

Use: General Purpose

Voltage: 120V

is_customized: Yes

DC-DC Single Phase Solid State Relay DC DC SSR Module 10A 25A 40A 60A 80A DD Input Voltage 3-32V 12V DC TO 5-60V DC Output Load




You need choose the correct type (the current and the control Mode)
Also a suitable radiator (to dissipate heat of SSR)  is important.


Notice:

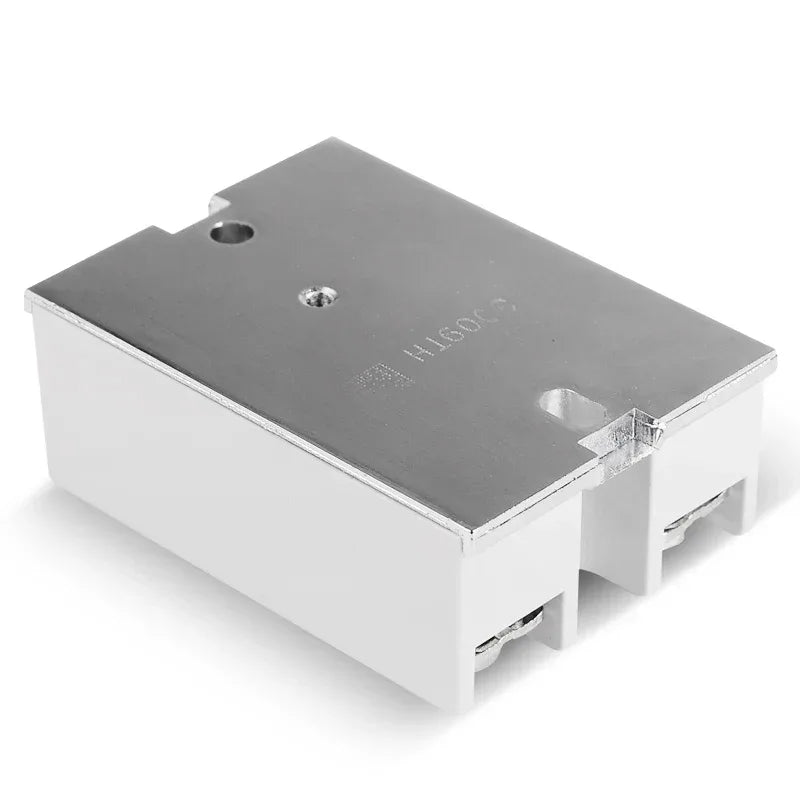

As the generate heat of SSR is too high, SSR must be loaded on Radiator when the current of load is over 10A.

And there are must put the thermal Grease Compound between SSR and Radiator.

In meanwhile, the cooling fan is necessary when the current is over 60A.

The Ratio depend on The kind of loading for your Equipment.

Restrictive load: 60%

Inductive load: 30%

Specification:

Input

3-32VDC 12mA&12V

Output

5-60VDC/5-200VAC (5-80Amp)

Control type

Isolated by photo couple

Response time

ON<10ms/OFF<20ms

Voltage with stand

Over 2.5Kvac/1 Min

Insulating strengh

Over 50m/500DC

Dimmension

63*45*23.2mm

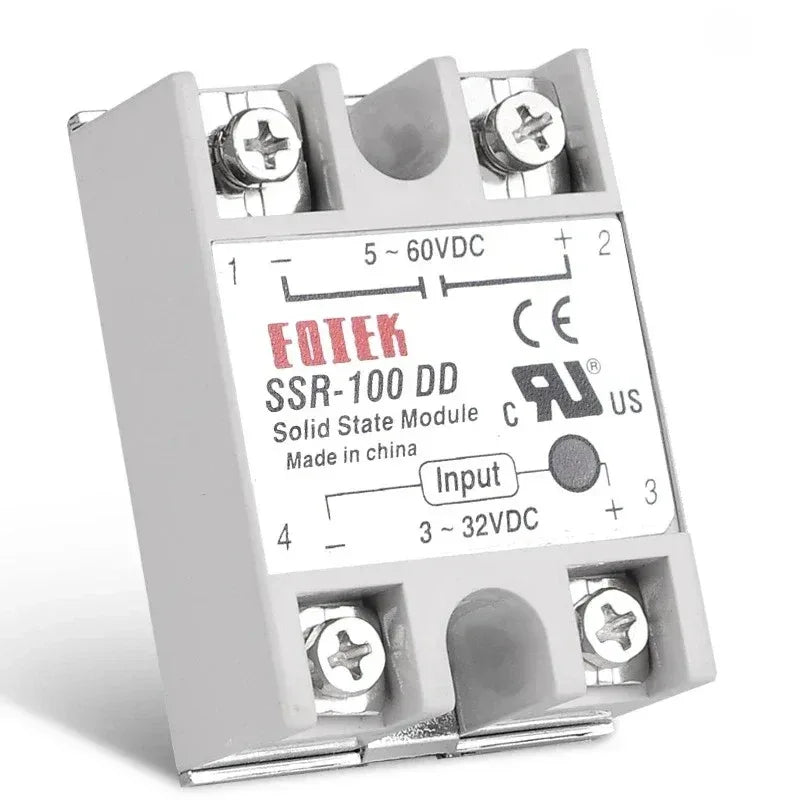

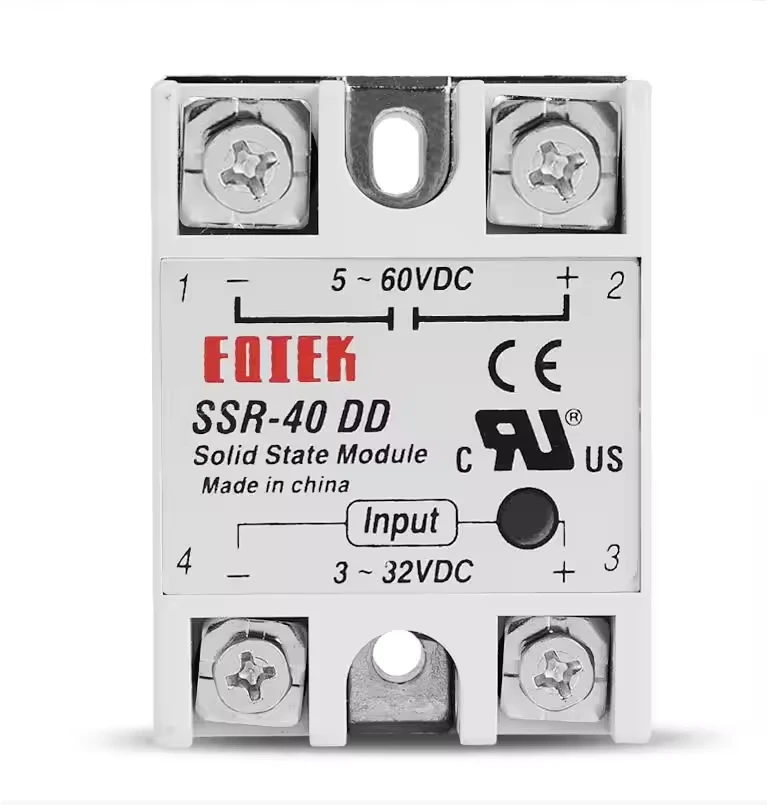

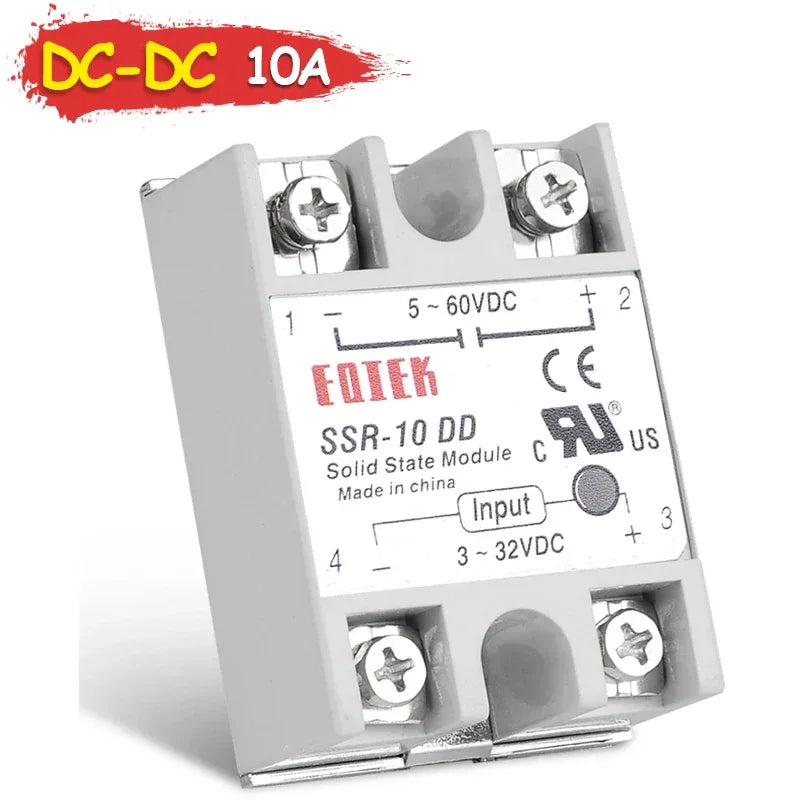

Basic type SSR-10DD/ SSR-25DD/ SSR-40DD/ SSR-60DD/ SSR-80DD/ SSR-100DD

Notice:

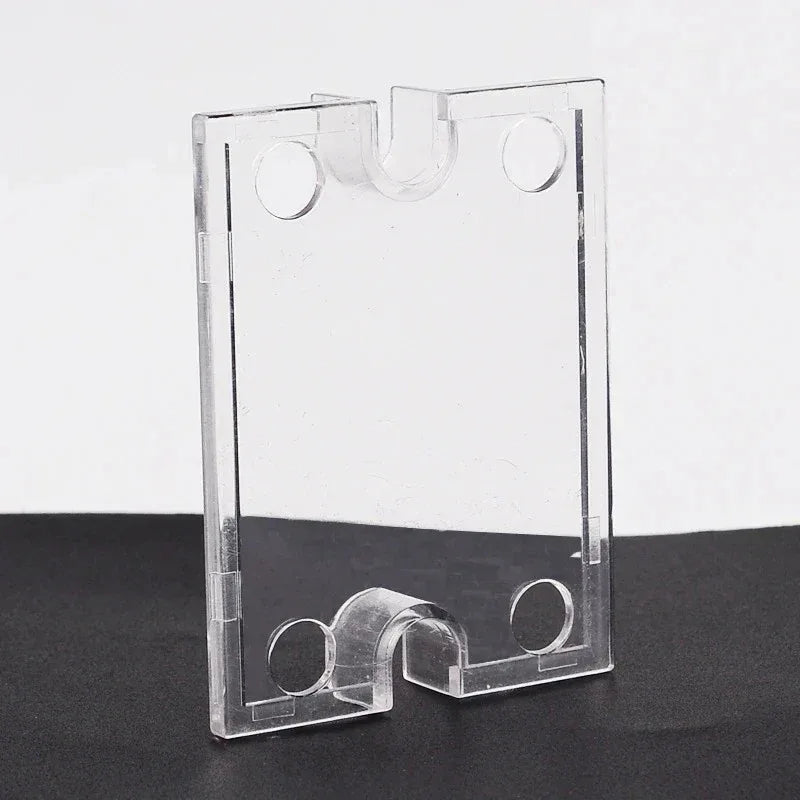

If you want this cover to protect the SSR, you can click the link . Plastic Cover
