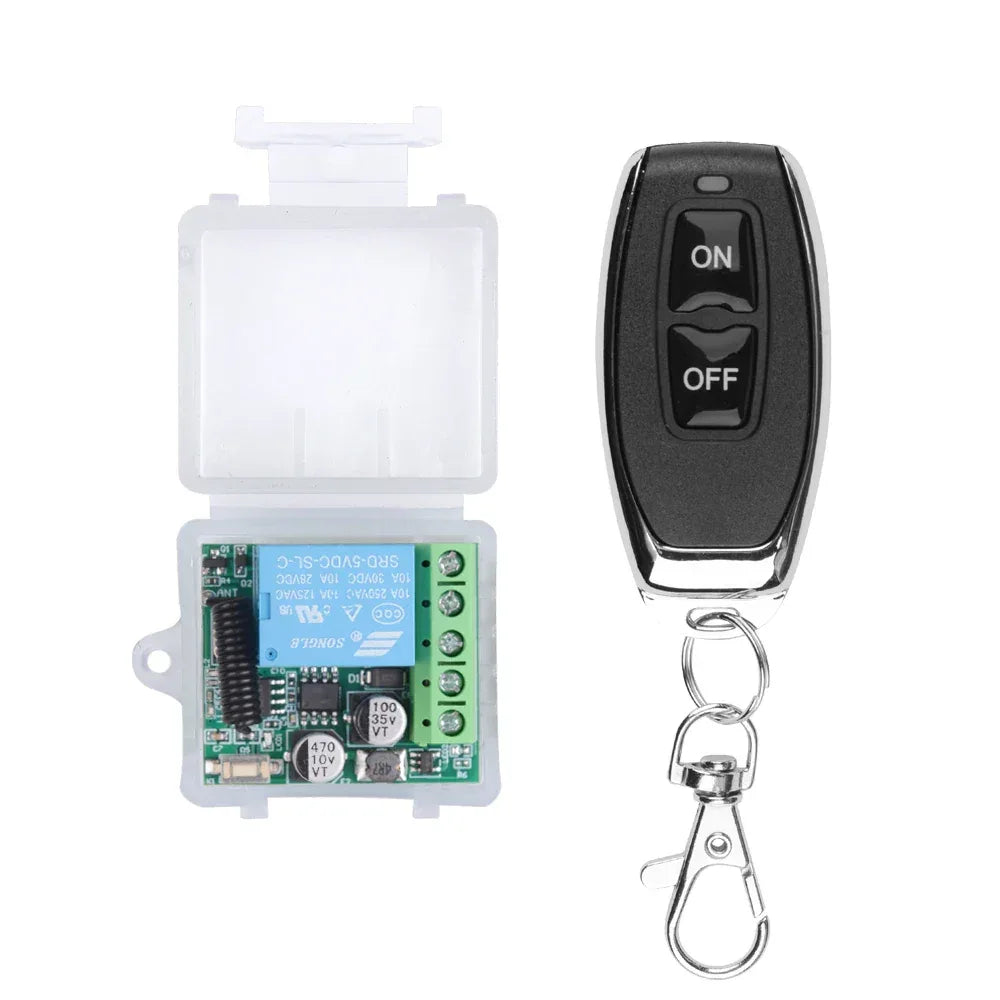

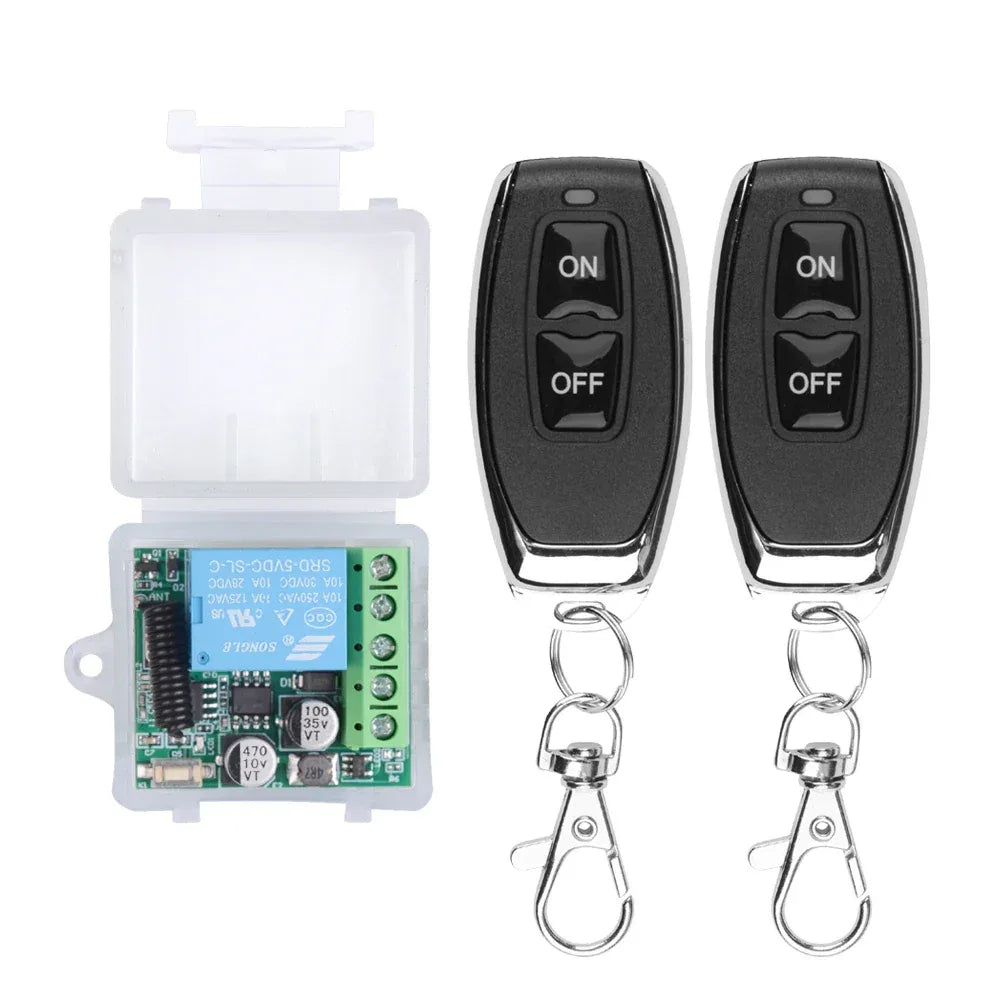

DC 12V 433 Mhz RF Wireless Remote Control Switch relay 433mhz 1CH Receiver Module For Learning code Transmitter remote DIY

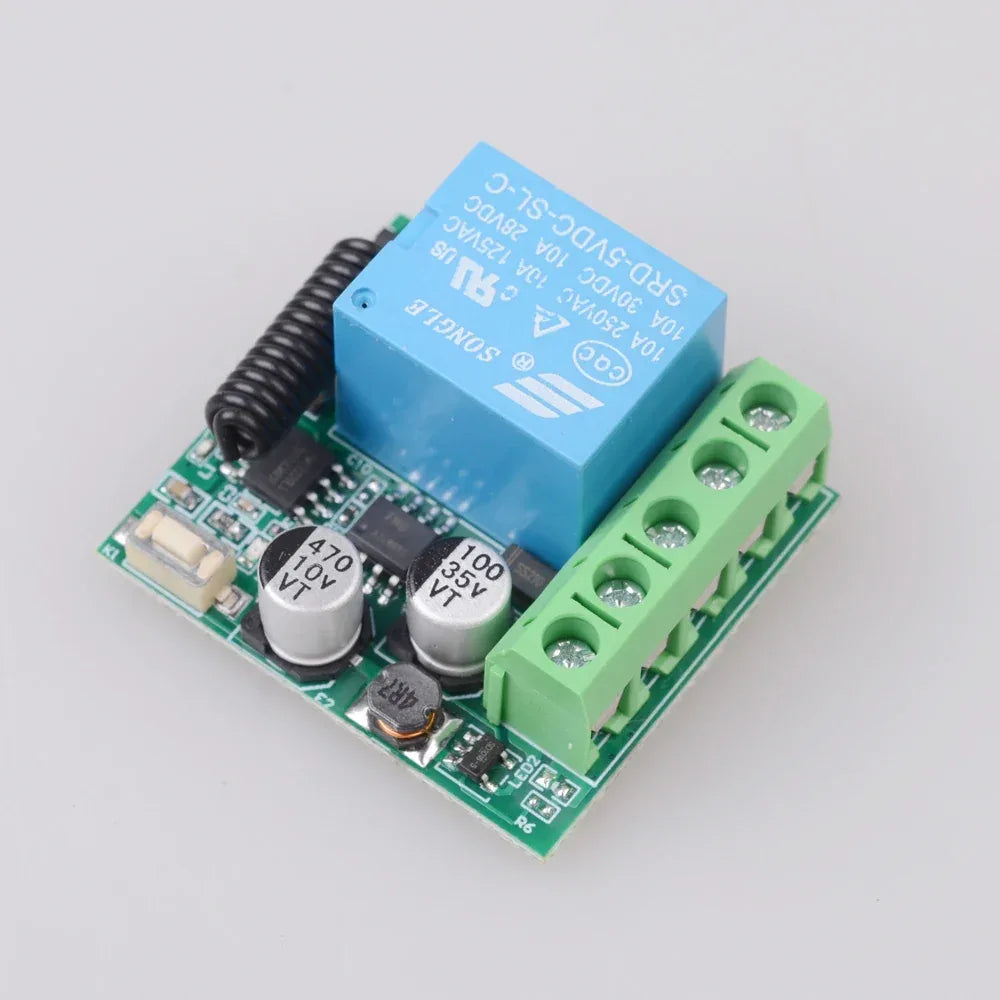

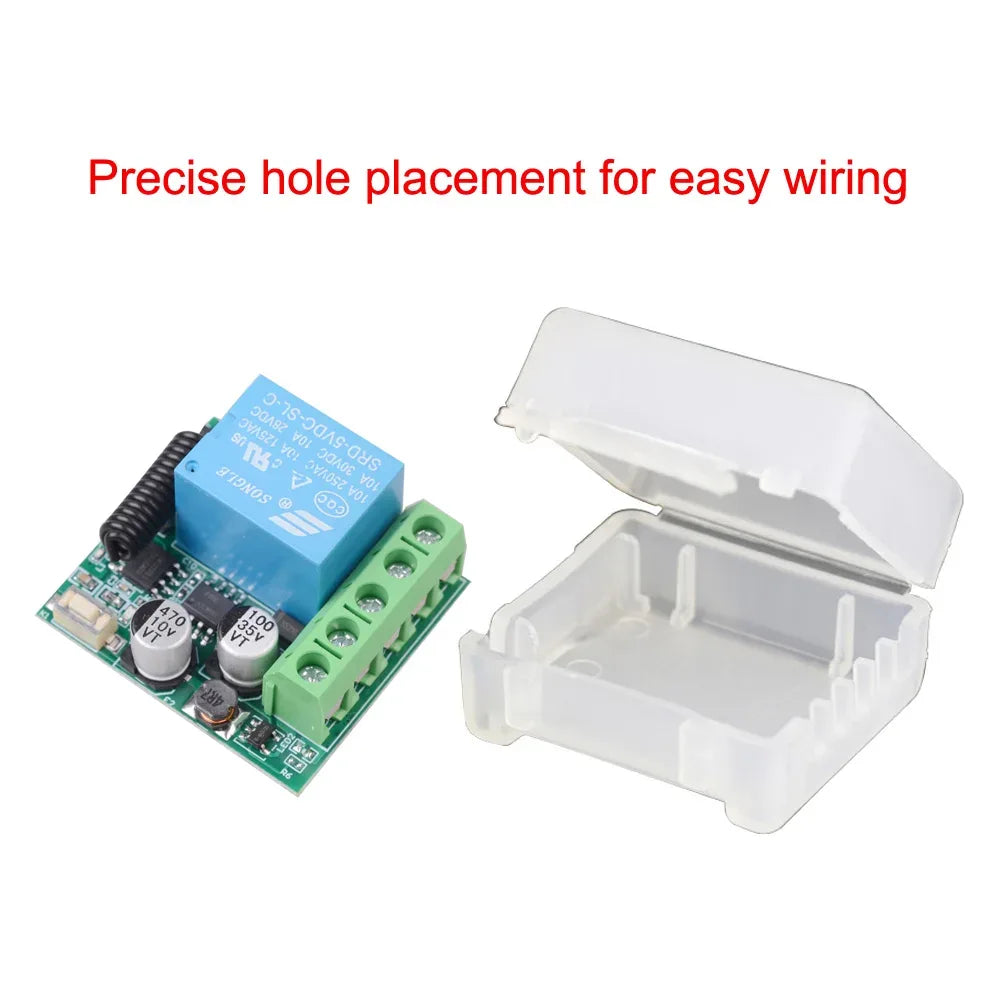

Specifications Of The Receiver:
Model Number : RYO-XPX-5P
RF Working Mode: Superheterodyne Reception
Modulation Mode: ASK
Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
Input Voltage: DC 5 ~ 30V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: >97dbm
Theoretical remote control distance:>80-100m(The actual distance has losses depending on the application method)

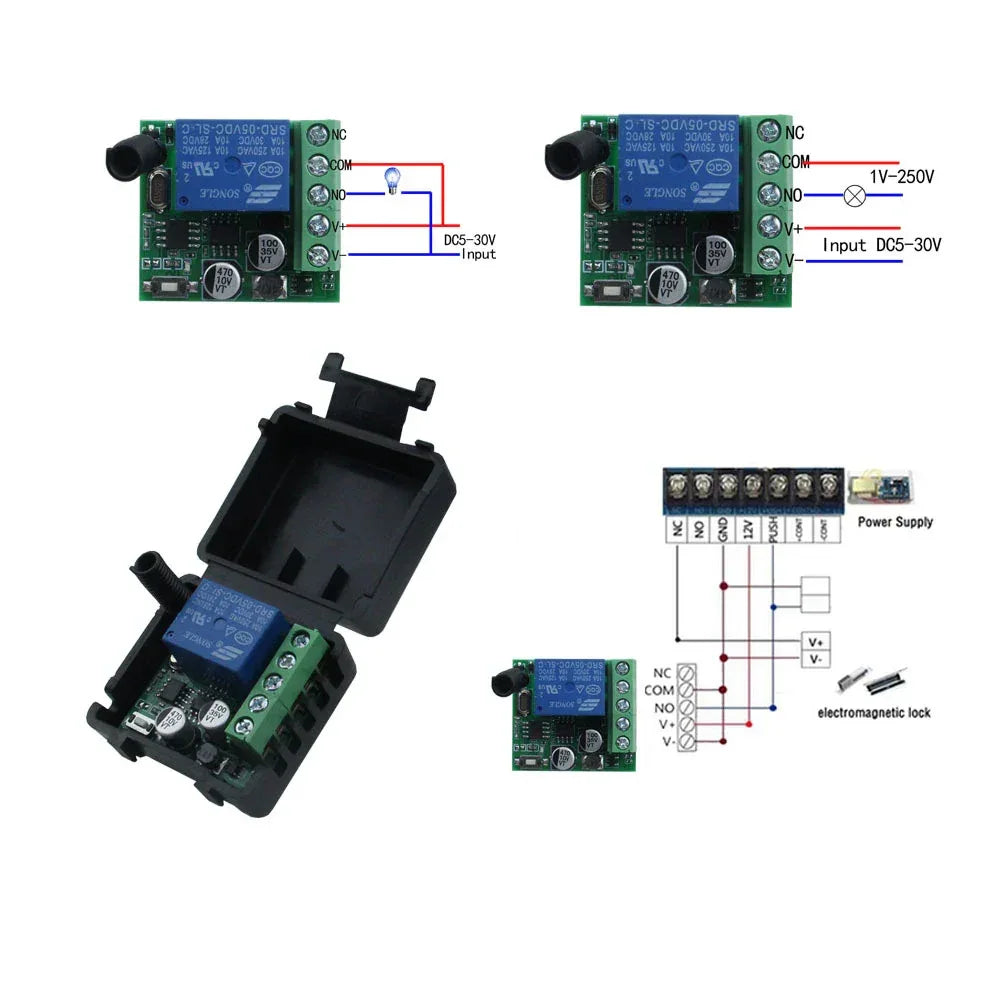

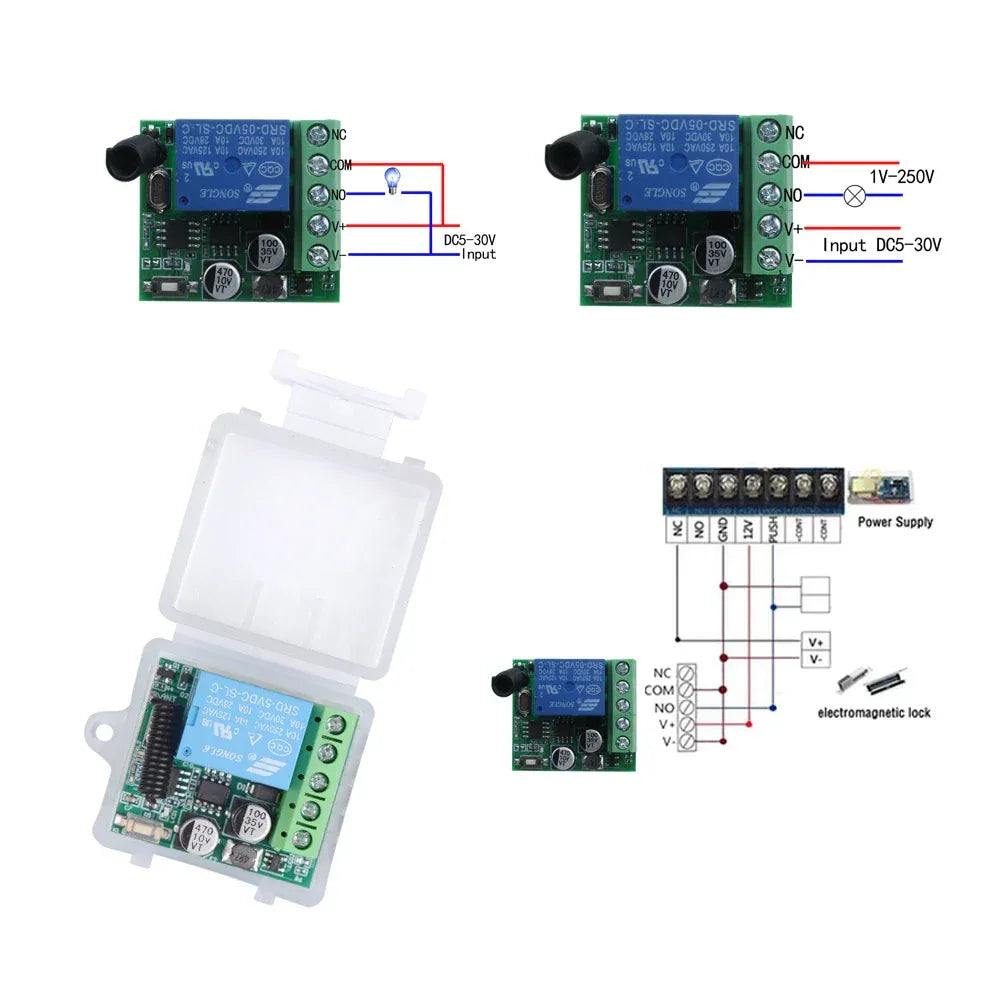

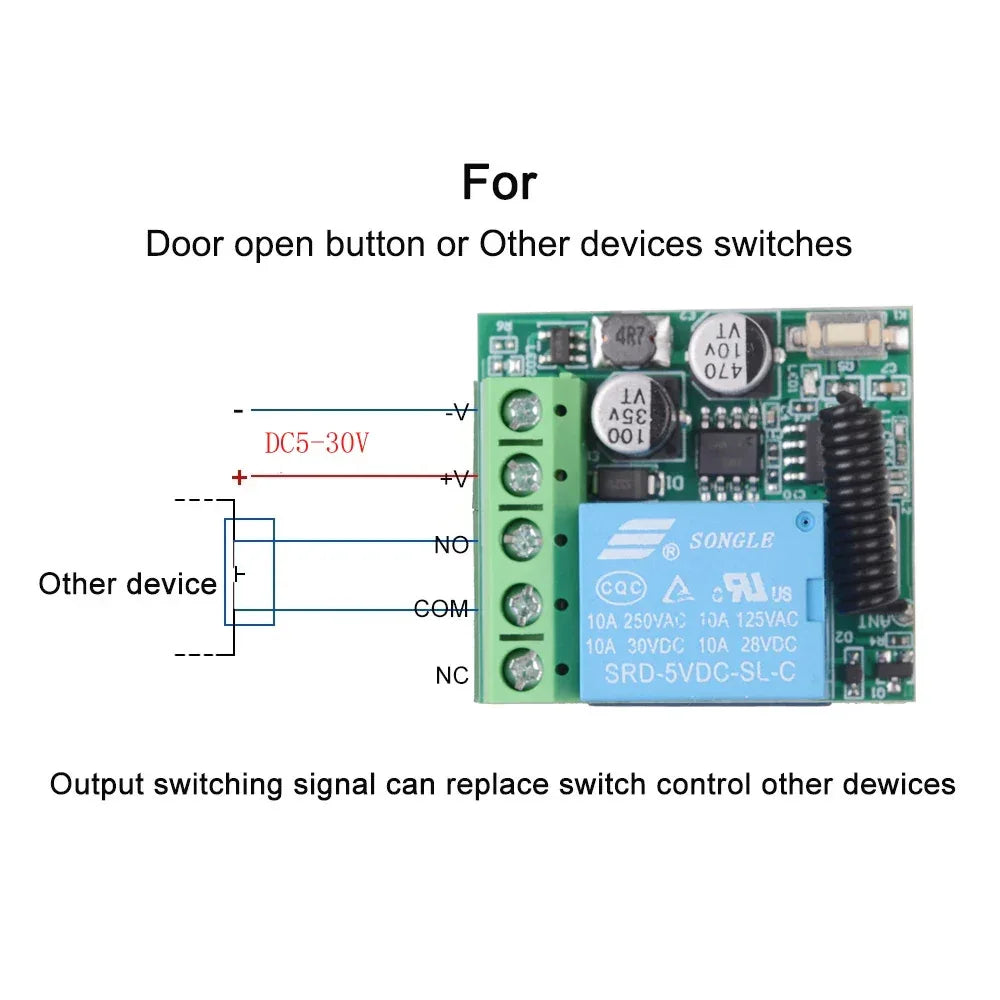

Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )

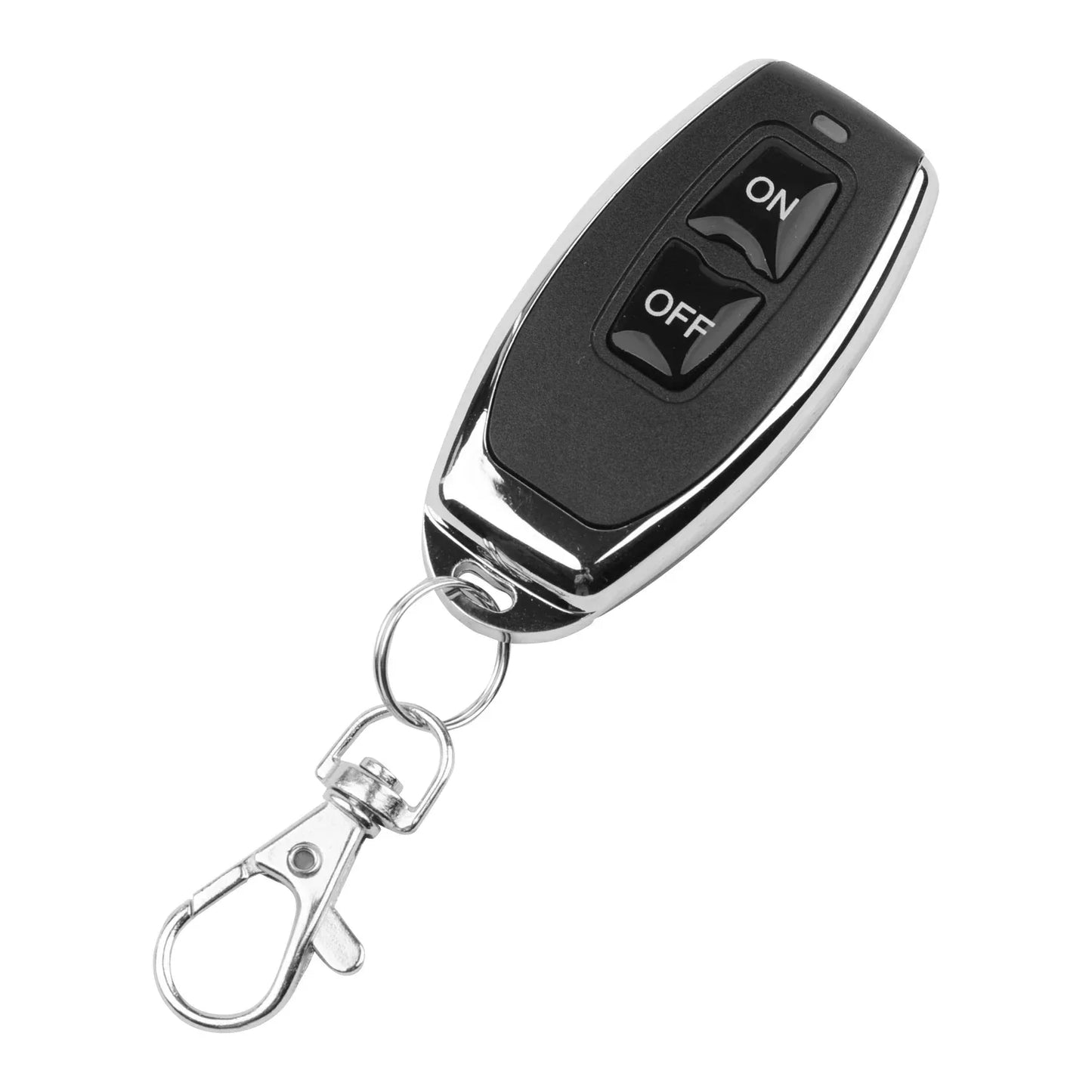

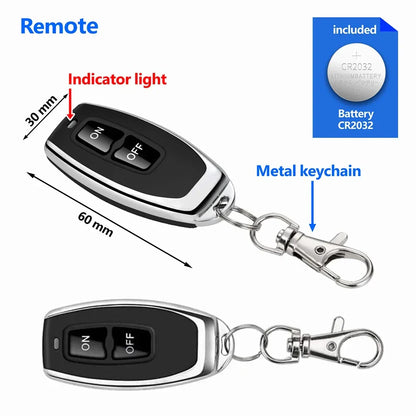

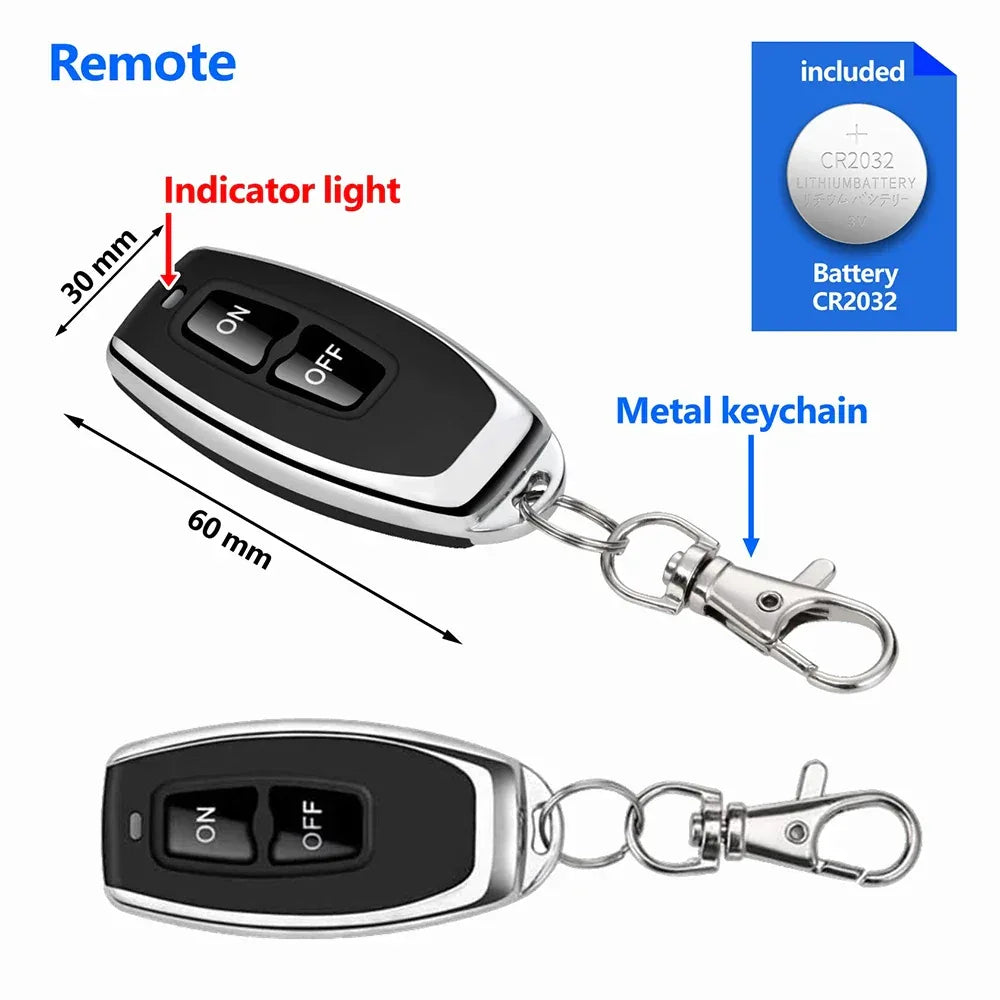

Specifications Of The Transmitter:

Model Number : J027
Operating Frequency: 433MHz
Power by 3V Coin Cell Button Battery (Battery included )
Material: PVC
Button: 2 Buttons
Size: 59mm x 28mm x 8mm
Operating Voltage: 3V
Operating Current: 12mA
Transmitting Power: 10mw
Modulation Mode: ASK (AM)
Encoding Type: Learning
Transfers Distance: 20-50 m

Operation Introduction:

About Working Mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.

Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.

Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s.


Clearing the Code:
Press the Learning Button on the receivers for 8 times, the codes will be cleaned.
After cleaning the code, all the remote control cannot work any more.

Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF .

Learning the Code :(Time Delay Mode)
Press the learning key on the receiver four times, the time delay for 5 seconds.
Press the learning key on the receiver five times, the time delay for 10 seconds.
Press the learning key on the receiver six times, the time delay for 15 seconds. The LED indicator will be off . Press the remote button, LED flashes and off.
After 3 seconds, the LED indicator will be on again, means learning successfully.

Power-on function learning method:
Continuously press the control panel code button 8 times, the LED indicator along with the blinking 1 time, and so the LED indicator light up and press the remote control button that needs to code, the control panel LED indicator flashes 3 times, code successfully. (Note 1: This function is the power on the relay automatically absorbed also known as the incoming call to turn on the light function) (Note 2: Learned ;power on; function such as changing the other operating modes must be implemented to clear the code)
