SPECIFICATIONS

After-sales Service Provided: After-sales Service Provided

Capacity: 12kg to 120kg

Certification: CE Certification / ISO 9001

Function: Drying Fabric

Heating: Electric Steam Gas/lpg Heating Laundry

Machine Type: Dryer Laundry drying Machine

Material: Stainless steel/coating, all metal design

Product name: Industrial and commercial tumble dryer

Used for: Hotel.factory .laundry Hospital

Voltage: 220V/380V/415V/440V/480V

brand name: yinjie

cleaning process: Drum Heating

cleaning type: Clean-In-Place (CIP)

condition: New

feature: fast drying

fuel: Electric

machine type: Industrial Washer

material: Textile

place of origin: Shanghai, China

power(w): 2.2kw 0.75kw 0.55kw 1.1kw

warranty: 1 Year

weight (kg): 300 kg

Product Overview

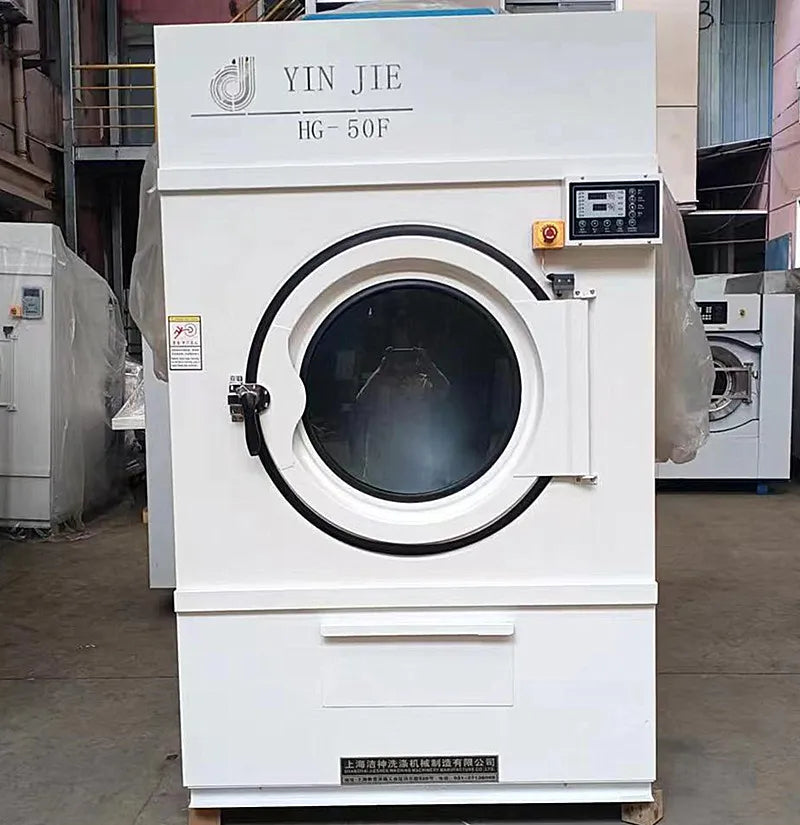

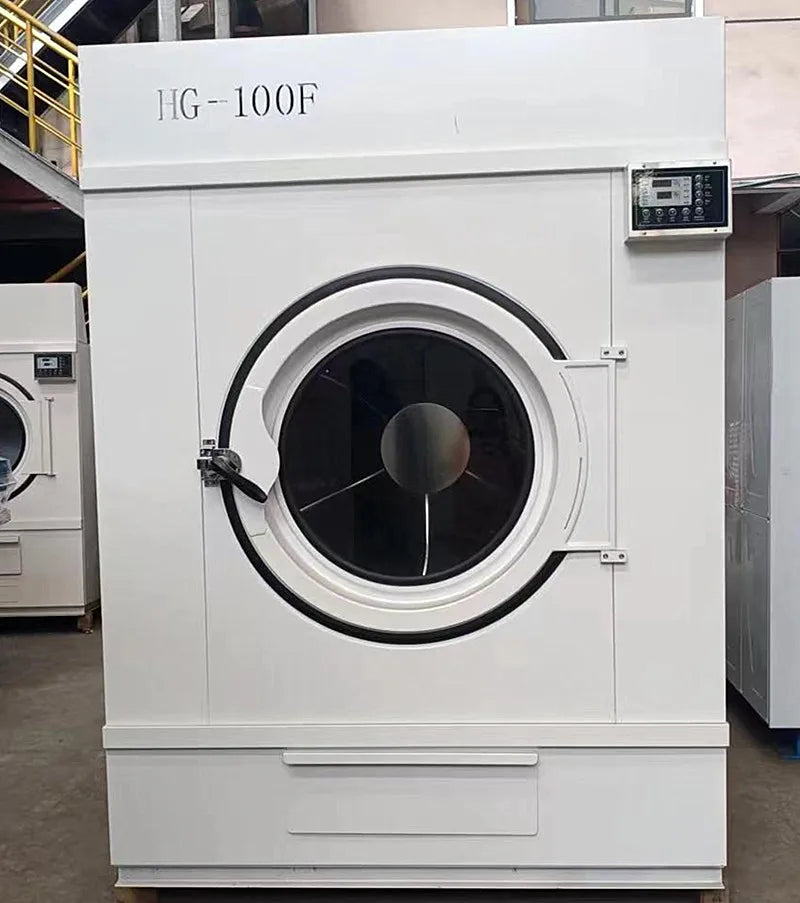

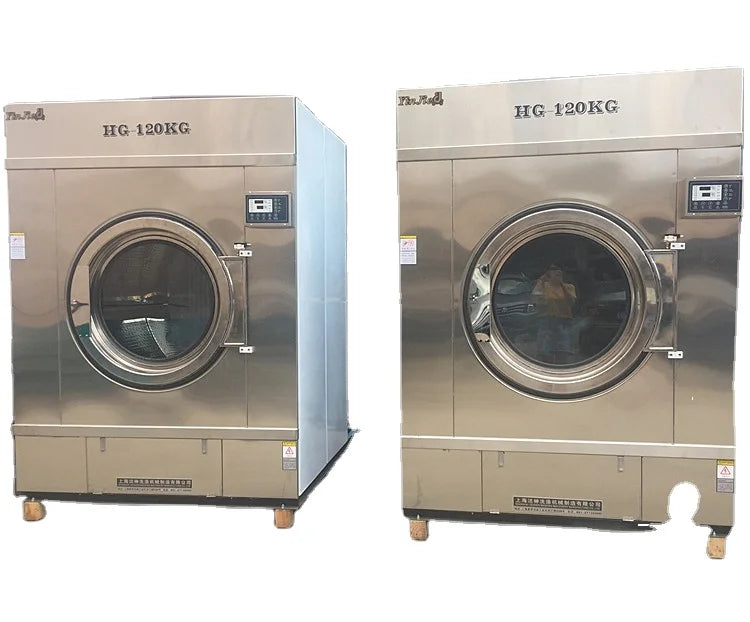

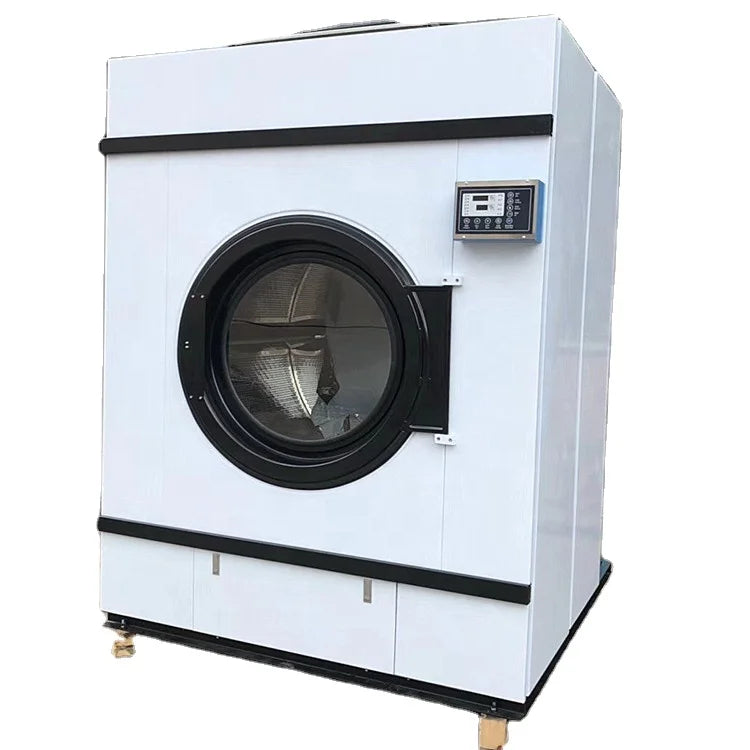

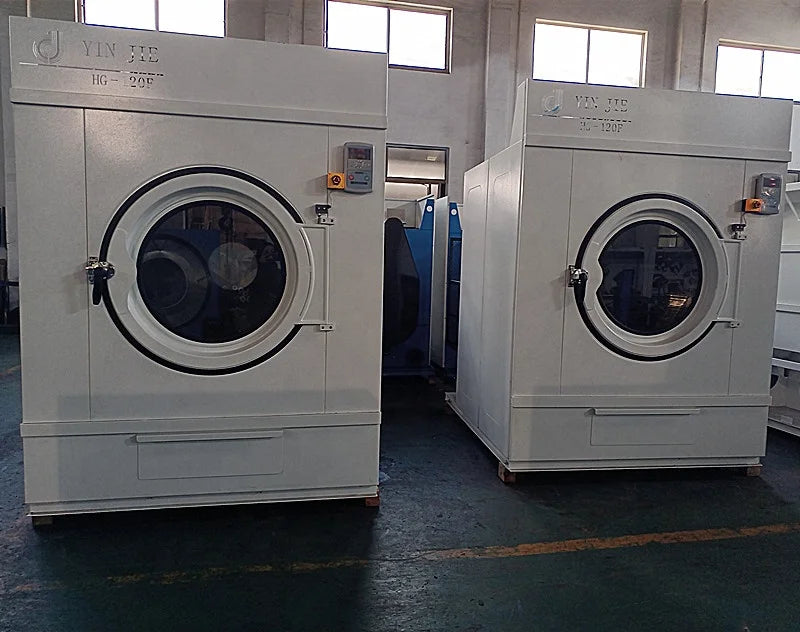

Laundry clothes dryer

We have 12kg to 120kg capacity you can choose freely.

And the heating method we have three type: electric heat, lpg gas heat, and steam heat

Drum always with high precision ss304 or ss316, CNC machining parts and polished drum hole.

Simple large touch screen for control, very easy to use it.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

EASY MAINTENANCE

Flexibility lint collector

EXTENDING UNDERCARRIAGE

Main key parts

Main key parts

Door lock

PRODUCT SPECIFICATIONS

Model/Capacity	HG15/15kg	HG25/25kg	HG35/35kg	HG50/50kg	HG100/100kg
Drum diameter/depth	750*670mm	970*650mm	970*900mm	1150*970mm	1450*1220mm
Motor/Fan Power	0.55/0.55kw	0.75/0.75kw	0.75/0.75kw	1.1/1.5kw	2.2/3kw
Electric heating power  KW	9/14(220/380)	24	32	39	78
Rated Voltage	220/380V	380V	380V	380V	380V
Dimension MM	840*1150*1560	1060*1150*1950	1060*1450*1950	1240*1600*2150	1625*1810*2510
Total power	10/15(220/380)	25.5	33.5	41.6	83.2
Net weight  KG	300kg	400kg	500kg	700kg	1350kg

PRODUCT CONFIGURATION

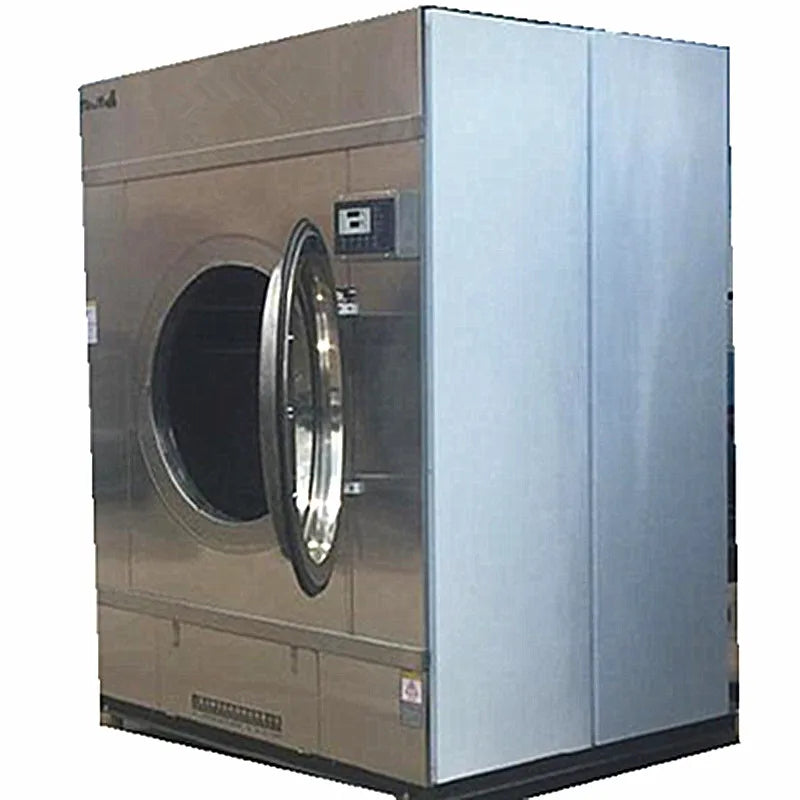

Large 180 degree opening door

We can custom the door left or right opening

Front loading, and unloading, easy to operate.

SALES AND SERVICE NETWORK

FAQ
