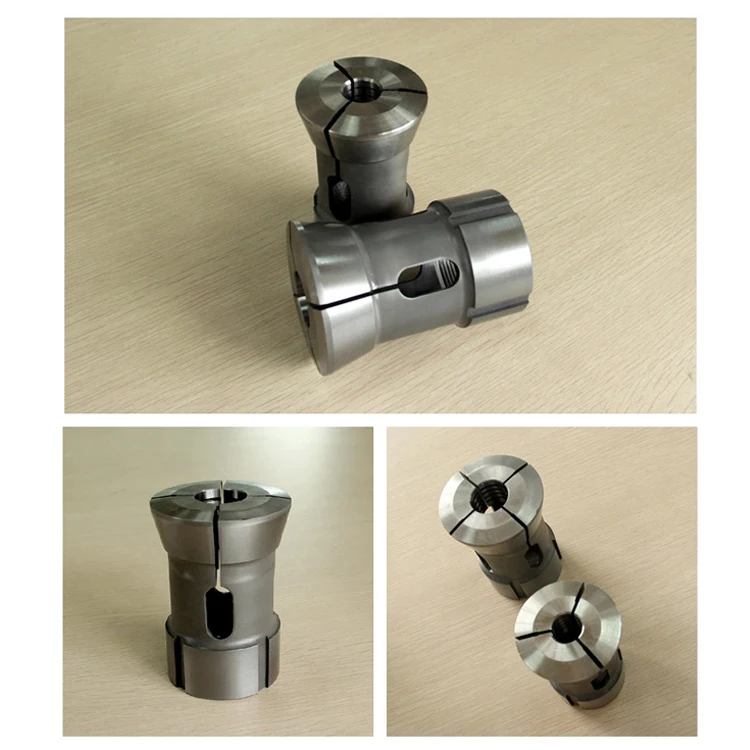

Collet Chuck for CNC Lathe Machine
Collet Chuck for CNC Lathe Machine
Couldn't load pickup availability
SPECIFICATIONS
Advantage: High Quantity Made
After-sales Service Provided: Online Support Video Technical Support
Application: Lathe Tool Holding Accessories
Keyword: Machine Acessory
MOQ: 1 Piece
Machine Type: turning machine
Package: Carton Boxes
Payment: TT / Credit Card
Products name: Collet Chuck
Size: Standard Size
Usage: Work Holding
brand name: DAS
machinery test report: Provided
place of origin: Guangdong, China
video outgoing-inspection: Provided
warranty: 6 Month
weight (kg): 8

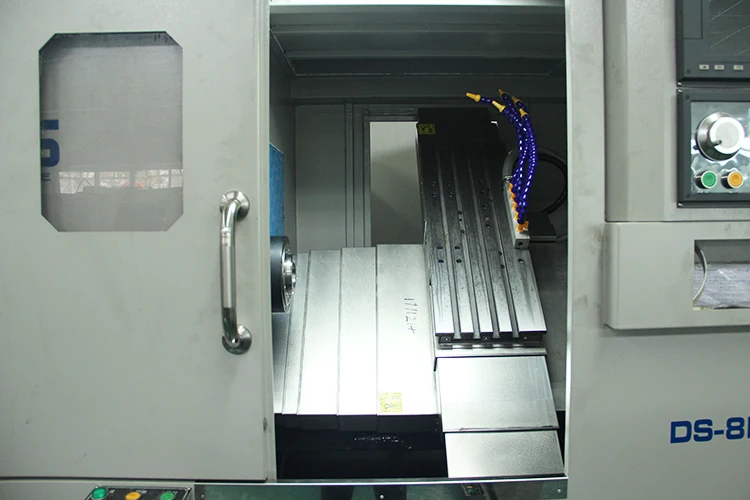

DS-A2-5-46 chuck to lathe machine(collects)
Also sale cnc lathe, professional produce cnc lathe machine
|
Name |
DS-8L |
DS-6L |
|
The style of installation tool |
Row knife |
Row knife |
|
Adjacent tool change time (s) |
0.3 |
0.3 |
|
Tool change style |
Random |
Random |
|
Square knife knife holder (mm) |
25X25 |
20X20 |
|
Round hole knife holder (mm) |
φ32 |
φ20 |
|
With chuck size |
8 Inch |
6 Inch |
|
Spindle speed (r/min) |
45-4500(maxi.6000-8000) |
45-4500(maxi.6000-8000) |
|
Spindle bore (mm) |
φ62 |
φ56 |
|
Center height (mm) |
56 |
56 |
|
The maximum diameter of rotation (mm) |
400 |
380 |
|
Spindle motor power (KW) |
5.5/7.5 |
7.5 |
|
Minimum system Resolution |
0.001 |
0.001 |
|
X/Z Axis stroke (mm) |
1040/250 |
1040/250 |
|
X/Z axis fast moving speed (m/min) |
26(Factory setting) |
26(Factory setting) |
|
X/Z axis Repetitive positioning accuracy (mm) |
±0.003 |
±0.003 |
|
Taper (mm) |
≤0.003/100 |
≤0.003/100 |
|
Card position size (mm) |
≤0.003 |
≤0.003 |
|
X servo-motor (KW) |
1.3/2.6 |
1.3 |
|
Z servo-motor (KW) |
1.3/2.6 |
1.3 |
|
Hydraulic station (KW) |
0.75 |
0.75 |
|
Water tank motor power (KW) |
150W |
150W |
|
Cooling water tank capacity (L) |
60 |
60 |
|
Bar feeder center height (mm) |
1120 |
1140 |
|
Weight (KG) |
2800 |
2850 |
|
Size (L*W*H mm) |
2090x1320x1760 |
2250x1500x1950 |
|
Power (KW) |
15 |
11 |

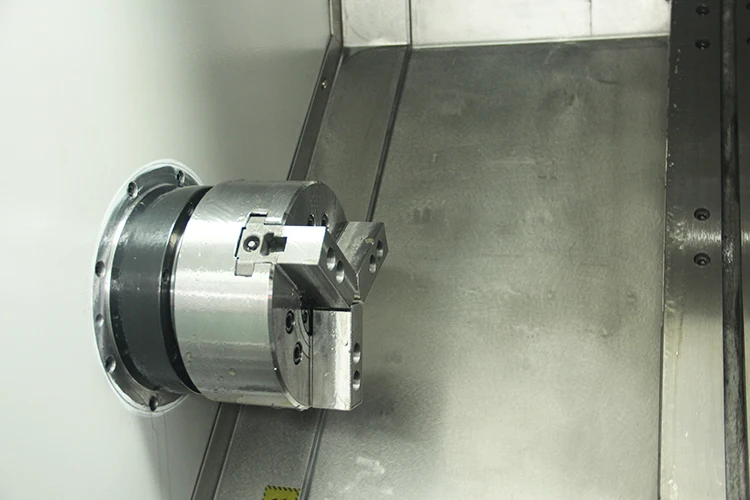

Hydraulic chuck

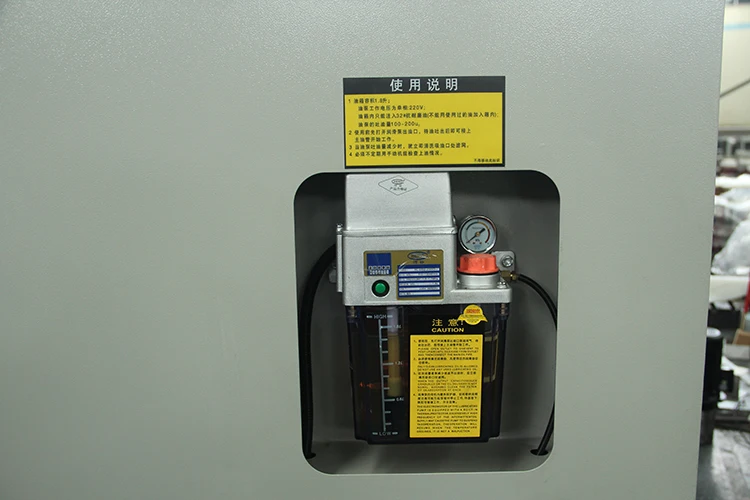

Oil tank
1. Dear: How do I pay for my purchase order?
Trasa: T/T , Western Union , Escrow , Paypal , Alipay.
2. Dear: How can I visit your company?
Trasa: A: You can take underground to South of Station Guangzhou,then we will pick you up to our company. Just one hour from Baiyun airport to our company.Warmly welcome you to visit our company.
3. Dear: What is the MOQ?
Trasa: One set.
4. Dear: Can I have my own order customized products?
Trasa: Yes, your customized requirements for color , logo , design , package , carton mark , ect. are very welcome.
5. Dear: Do you have quality control?
Trasa: Yes, we attach great important to quality problem accurs.
6. Dear: How about the waranty?
Trasa: 1 years, more detail pls feedback us.
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District, Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team.
