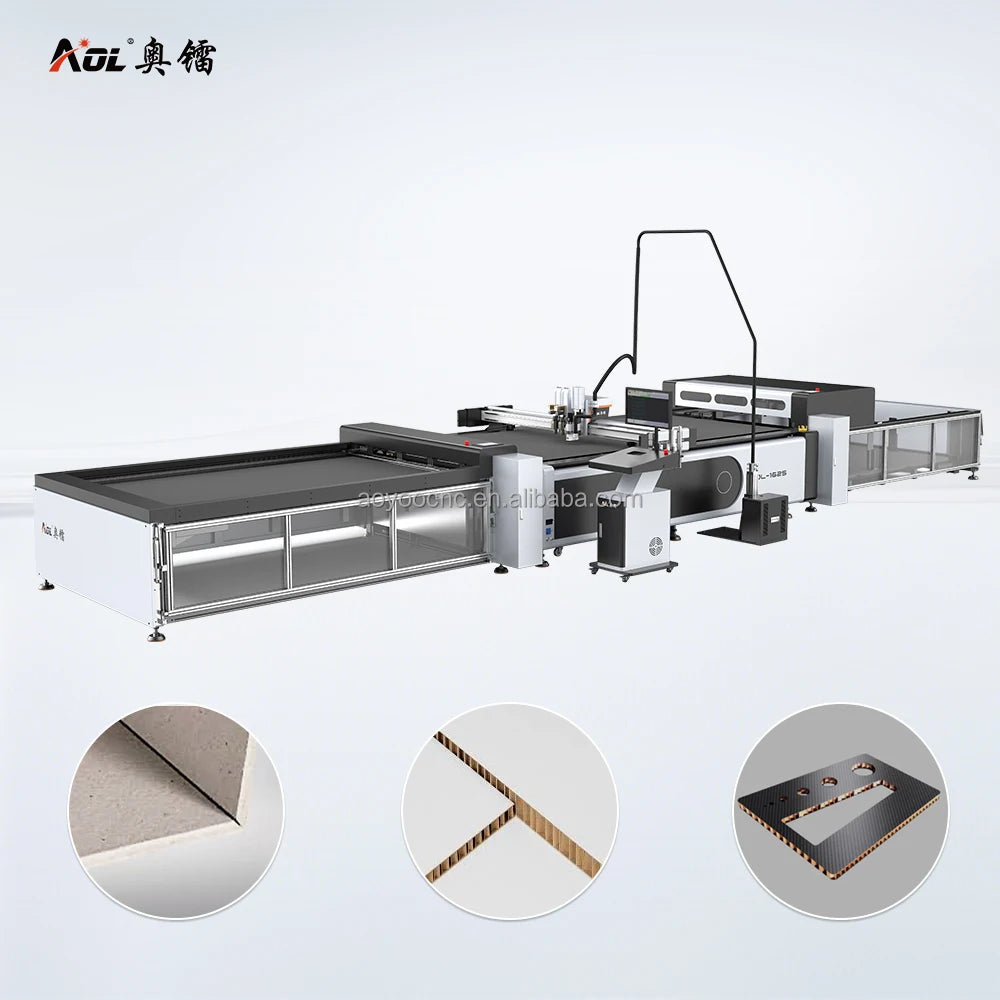

Carton Box Cutting Machine Corrugated Cardboard Cutter Machine
Carton Box Cutting Machine Corrugated Cardboard Cutter Machine
Regular price
CFA8,426,472 XOF
Regular price
CFA0 XOF
Sale price
CFA8,426,472 XOF
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
carton box cutting machine corrugated cutter machine
Contact us for more details, super high quality, ultra low price, click here.
product description of Personalized customization fully automatic carton box corrugated box cutting machine
1. Reduce labor: Automated equipment can effectively reduce labor and become the first choice for enterprise upgrade and transformation.
2. Improve efficiency: The working efficiency of automated equipment is an artificial geometric multiple. The manual cutting speed.
is about 2-3 meters per minute. Moreover, the automatic cutting equipment can also eliminate the need for trimming again, reducing the time during the sewing process, reducing the sewing process and increasing the production efficiency.
3. Reduce labor intensity: automatic cutting and spreading system, relying on equipment to operate, liberating labor, greatly reducing the intensity of labor.
4. Reduce waste: Accurate typesetting requires equipment support to achieve, thereby increasing the utilization of fabrics and greatly reducing the waste of fabrics after manual errors.
2. Improve efficiency: The working efficiency of automated equipment is an artificial geometric multiple. The manual cutting speed.
is about 2-3 meters per minute. Moreover, the automatic cutting equipment can also eliminate the need for trimming again, reducing the time during the sewing process, reducing the sewing process and increasing the production efficiency.
3. Reduce labor intensity: automatic cutting and spreading system, relying on equipment to operate, liberating labor, greatly reducing the intensity of labor.
4. Reduce waste: Accurate typesetting requires equipment support to achieve, thereby increasing the utilization of fabrics and greatly reducing the waste of fabrics after manual errors.
Personalized customization fully automatic carton box corrugated box cutting machine of product parameters.
Technical parameters / model |
AOYOO-1625 |
Effective working area |
1600x2500mm |
Multi-function tool |

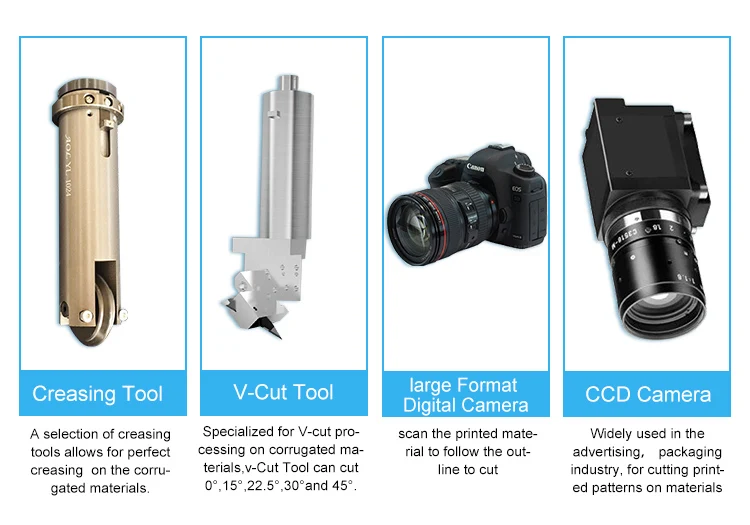

Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife |
safety devices |
Safety devices use infrared sensing, safe and reliable |
Cutting speed |
200-2000mm/s |
Cutting thickness |
≤50mm Other thicknesses can be customized according to the material |
Applicable materials |
Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material |
Material fixing method |
Vacuum partition adsorption |
Transmission port |
Network port |
Transmission system |

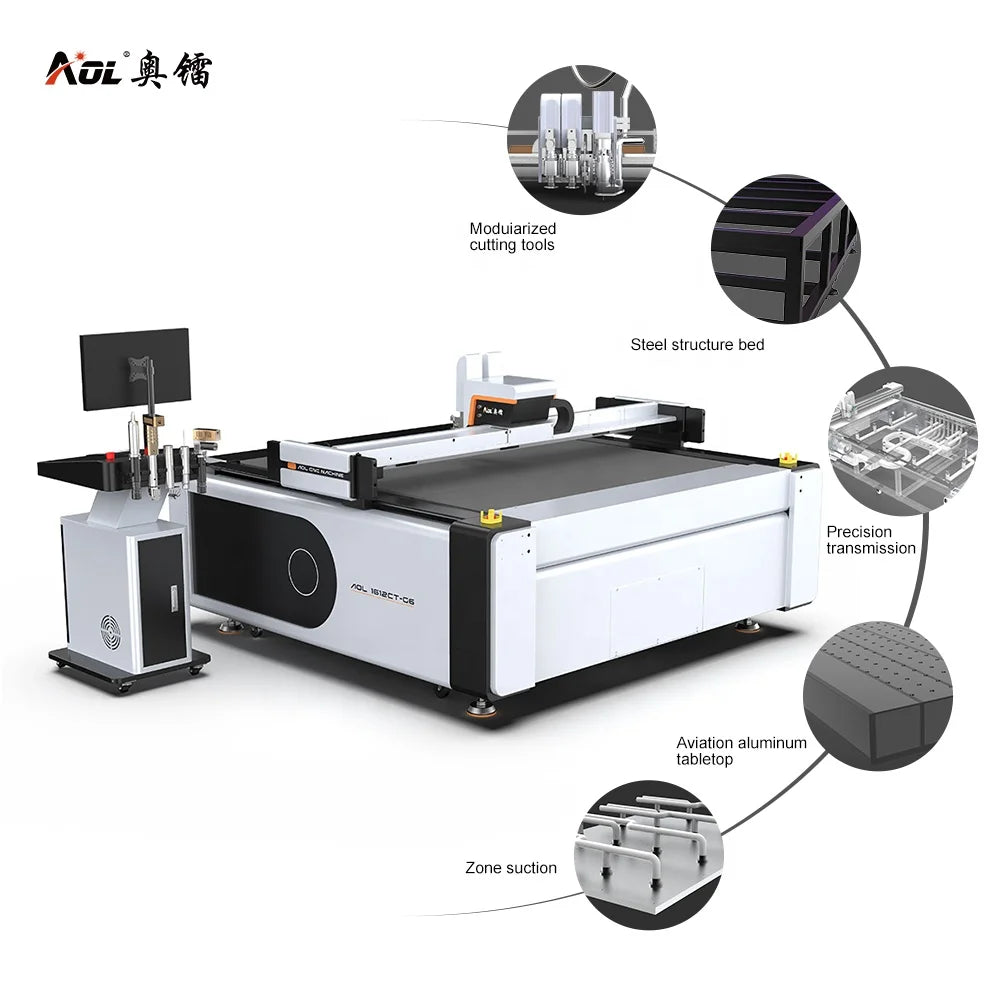

servo motor, linear linear guide, timing belt, lead screw |
rated power |
11kw |
Rated voltage |
380V±10%/220V±10% Optional |
Control System |
Chinese and English LCD touch screen |
Operating environment |
Operating environment Temperature 0-40°C Humidity 20%-80%RH |
Support file format |
AI,PLT,DXF,CDRetc |
Overall size |
2300*3560*1221mm |
Personalized customization fully automatic carton box corrugated box cutting machine of Application industry

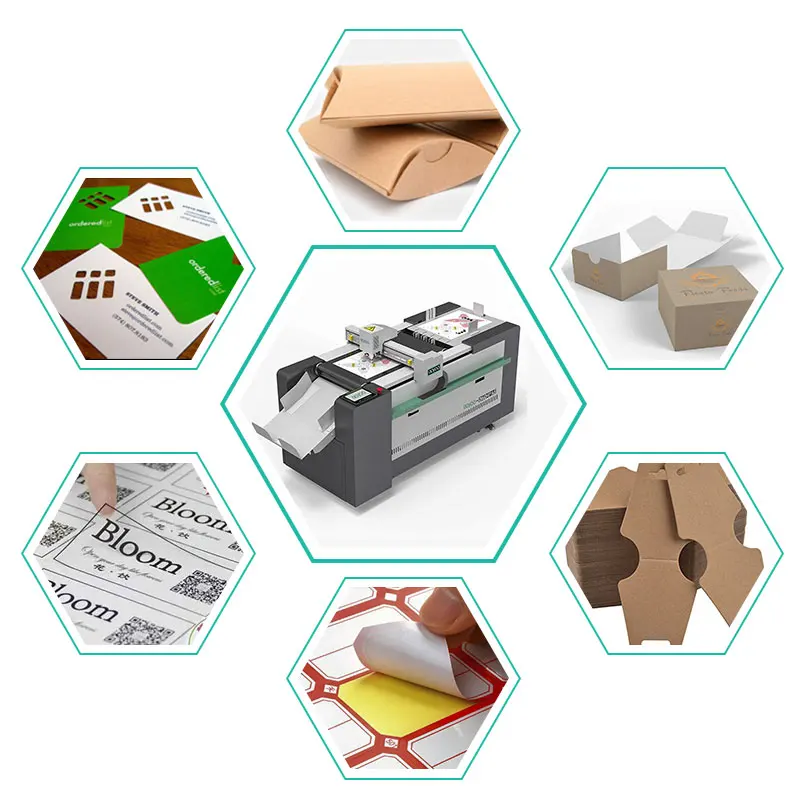

Advertising packaging: AOYOO system cutting provides a complete solution for the advertising industry, especially suitable for PP paper, KT board, Chevron board, self-adhesive, corrugated paper, honeycomb paper and other materials processing, and can be equipped with high-speed milling cutter for acrylic Processing of hard paper materialsLeather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam boardrubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.
Packaging Details of Personalized customization fully automatic carton box corrugated box cutting machine
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
FAQ Of Personalized customization fully automatic carton box corrugated box cutting machine
1. Are you a trading company or a factory?
We are manufacturers.
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service
We are manufacturers.
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service
