Please NOTE: The AHD signal format only support with AHD monitors, please check whether your car monitor support AHD signal. If not support AHD signal, please For Switch to CVBS signal

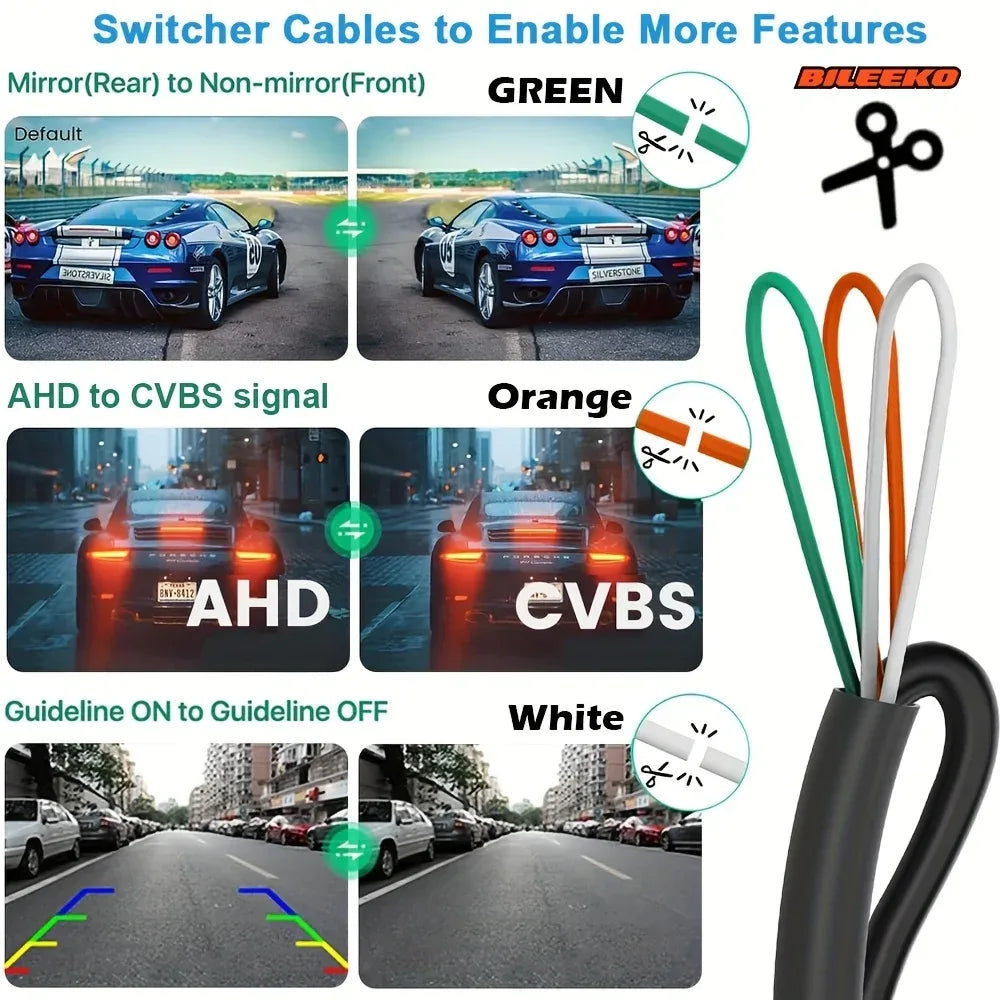

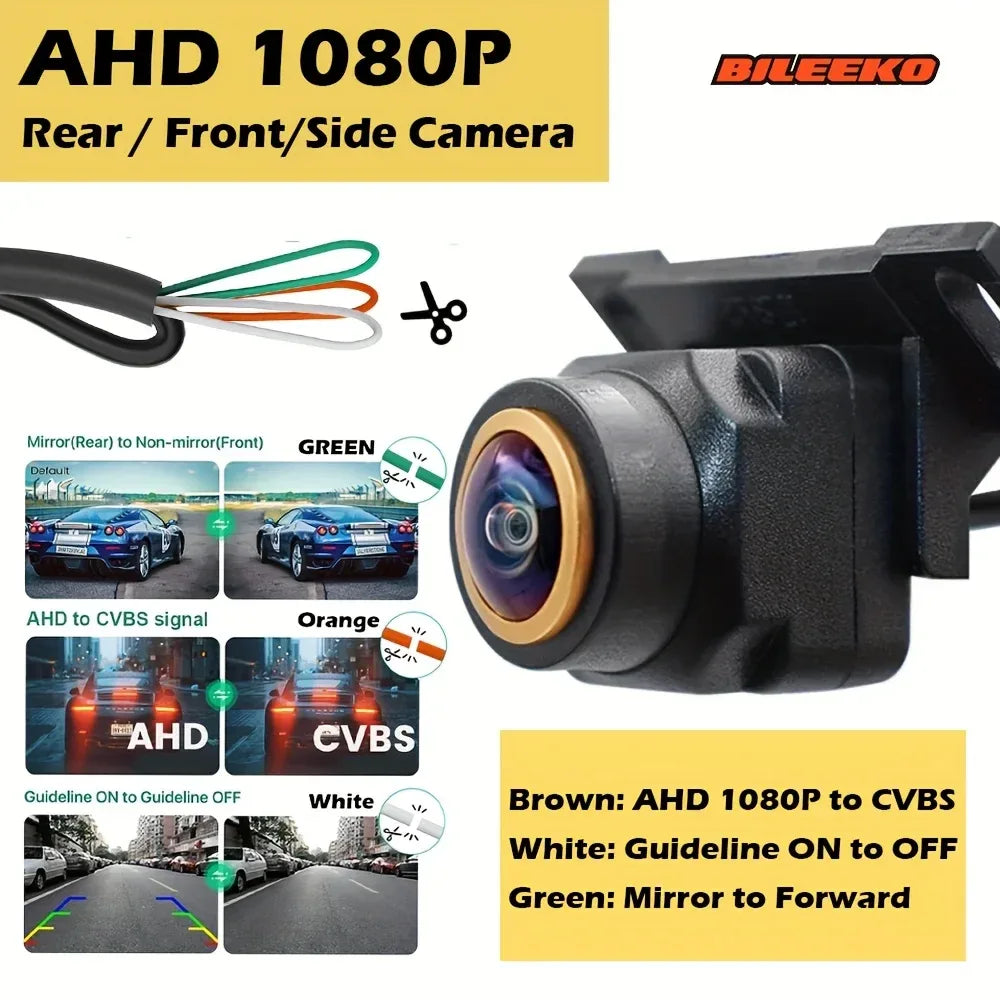

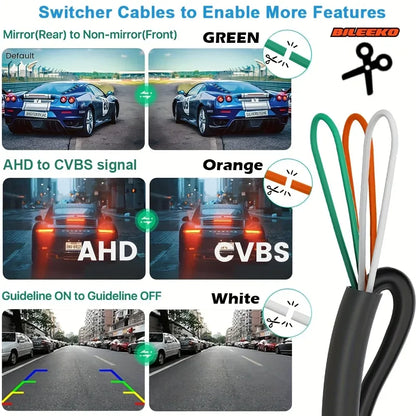

The 3 cable controlled features

Orange cable: AHD signal (default) For Switch to CVBS signal (cut)

Green cable: Mirror (default) For Switch to Front (cut)

White: Guideline ON (default) For Switch to guideline OFF(cut)

FAQ:
After connecting the rear view camera, the screen shows no signal, black screen and no picture, what should I do?

A) Please check your signal format (AHD/CVBS), choose right signal to run the camera.
B) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.

D) Choose wrong signal standard(such as PAL/NTSC) will cause the screen to be black and white. Please select the right signal standard to run the camera and restart the camera power. CVBS camera is NTSC standard, AHD1080P camera is PAL standard.
