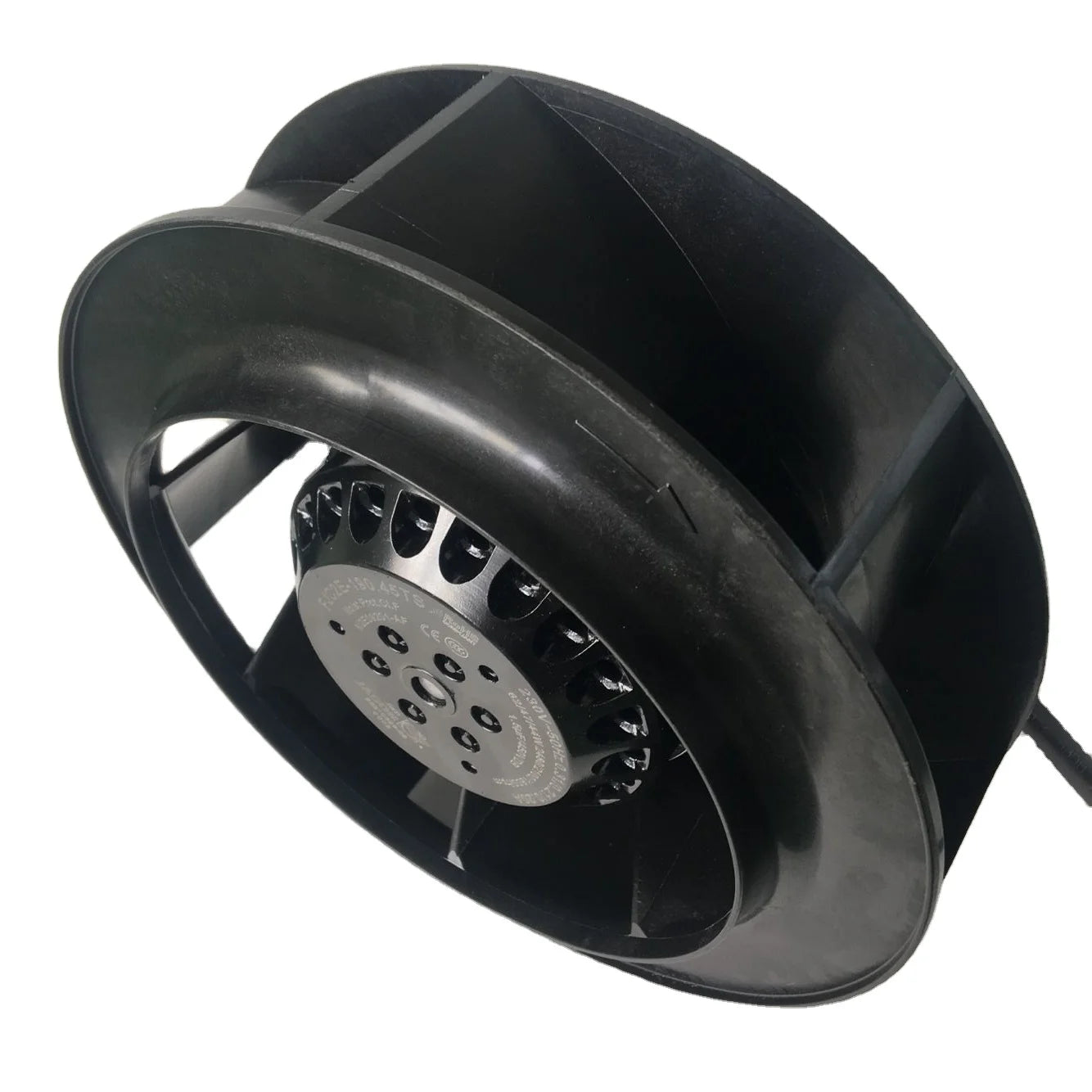

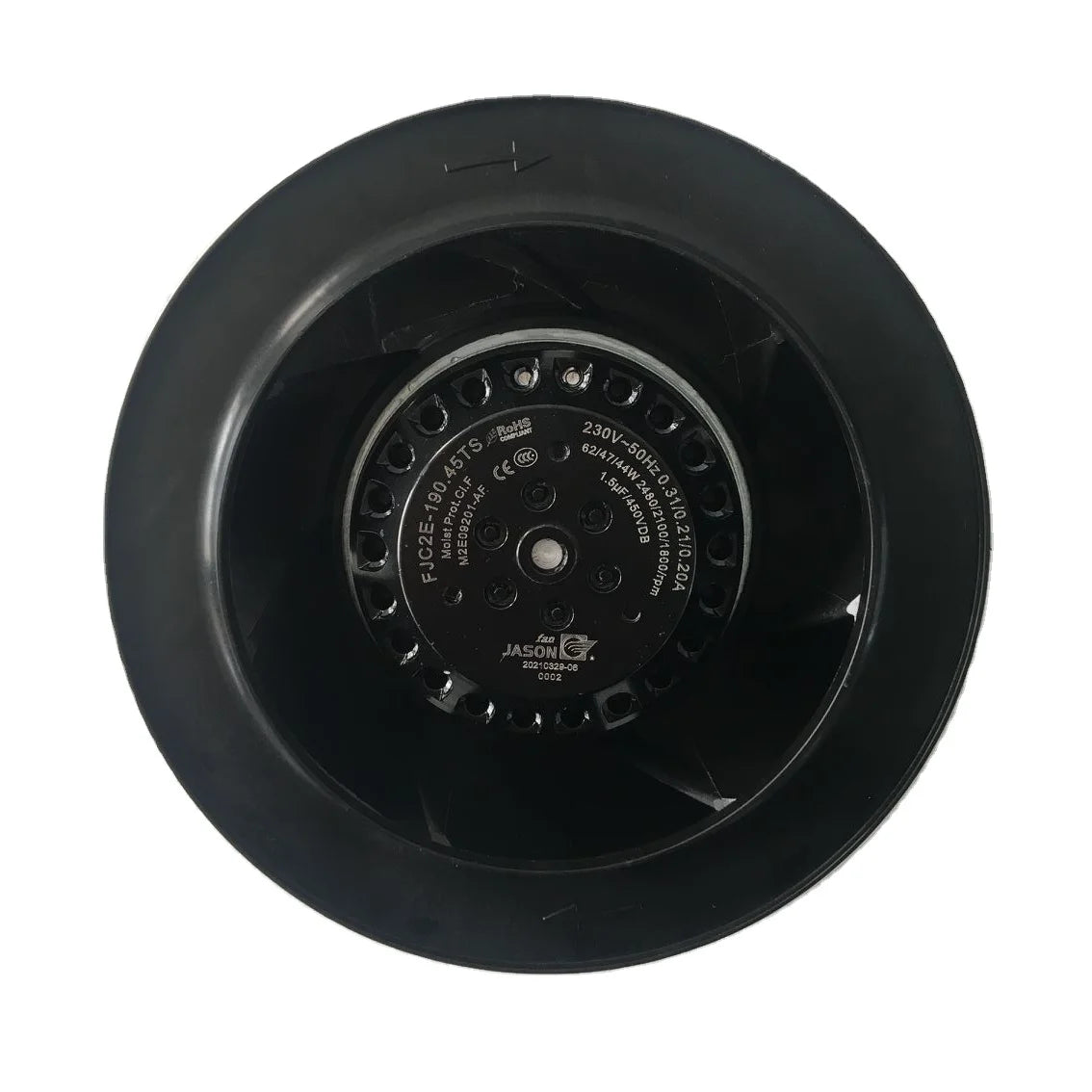

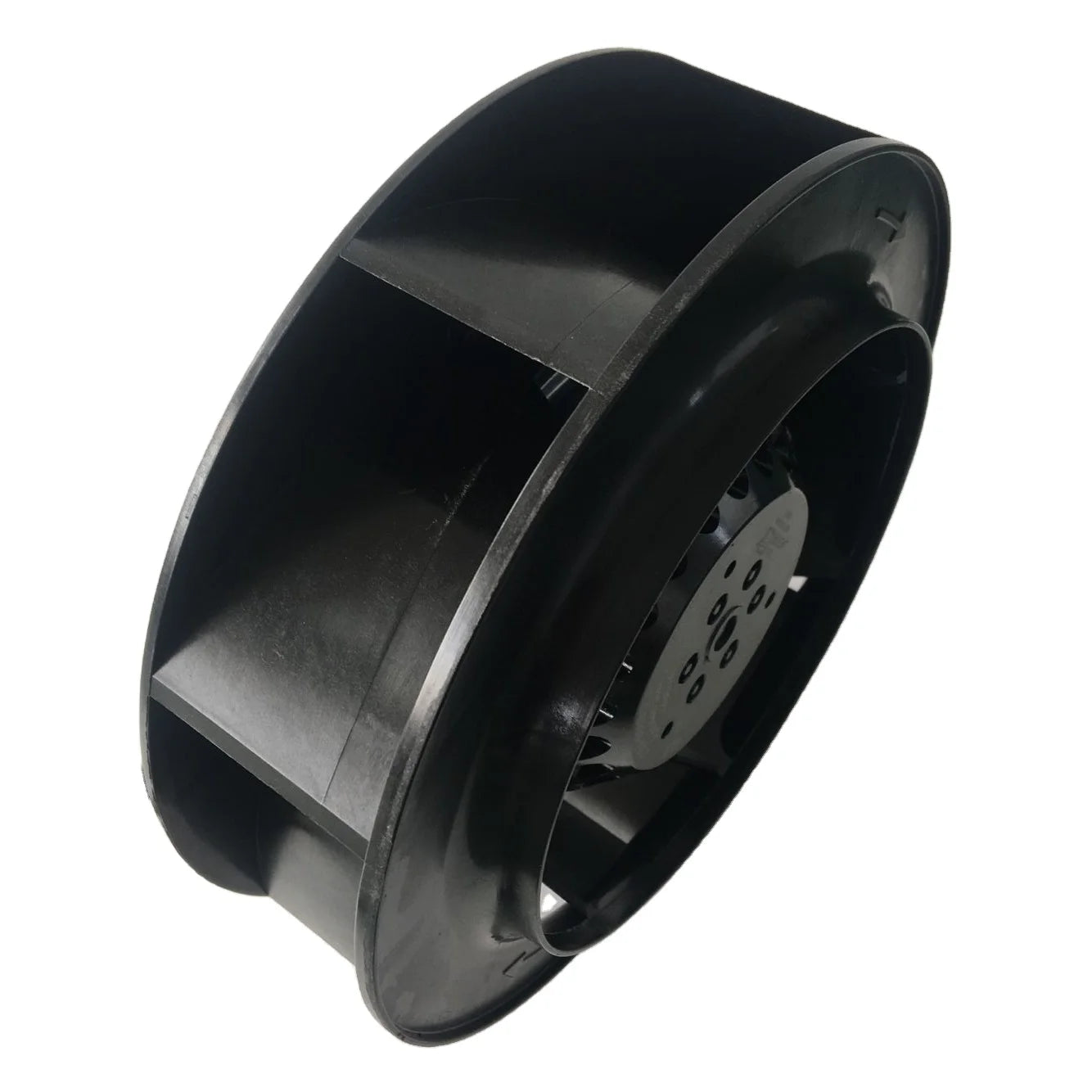

C2E-190.45TS 190mm Three Speed EC AC Different air Flow Plastic Backward Curved Centrifugal Cooling Fan for Kitchen and Bathroom
C2E-190.45TS 190mm Three Speed EC AC Different air Flow Plastic Backward Curved Centrifugal Cooling Fan for Kitchen and Bathroom
Couldn't load pickup availability
SPECIFICATIONS
After-sales Service Provided: Online support
Application: Kitchen, air purifer,panel control
Bearing Type: ball bearing
Blade Material: Plastic
Material: ABS
Motor Type: AC Motor
Noise Level: 59/61dB
Power source type: Corded Electric
Product name: Backward Curved Centrifugal Fan
Size: 190mmx70mm
Voltage: 220 V
Weight: 1.27KG
brand name: Jasonfan
customized support: OEM,ODM,OBM
model number: FJC2E-190.45TS
mounting: Duct Fan
place of origin: Zhejiang, China
speed: 2500 RPM
warranty: 4 Years
Specification:
- Motor Structure: Cage type capacitor structure external rotor motor with automatic recovery thermal protector
- Blades: Made by injection mould with black plastic PBT+30% glass fiber + VO class of anti-flaming liquid.
- Bearing Type: Maintain-free ball bearing
- Insulation Isolation Grade:Â F Â Â Â Â Â Protection Grade: IP44
- Dielectric Withstand Voltage: AC 1800V, at 0.5mA, 50/60Hz
- Allowable Ambient Temperature: -40 to +80 Centigrade degree (ball bearings) & (Under unconcretionary)Â Â Â Â Â Â Â Â Â Â Â Â Â
- Noise Lever: 58-59dB at normal operation
- Life: 50,000hours
- Connection way: UL3266-18 Terminal block connectionÂ
- Unit weight: 1.27kg
- Certificates: UL E476782,CE,CCC
|
Specifications |
|
|
Category |
Backward Curved Centrifugal Fan |
| Type | FJC2E-190.45TS |
| Rated Voltage |
230V |
|
Frequency |
50Hz |
|
Current |
0.31/0.21/0.20A |
|
Input Power |
62/47/44W |
|
Speed |
2480/2100/1800RPM |
|
Max Air Flow |
560/478/400m3/h |
|
StaticPressure |
330/280/230Pa |
|
Noise |
62/56/52dB |
|
Weight |
1.27KG |
| Color | Black |
