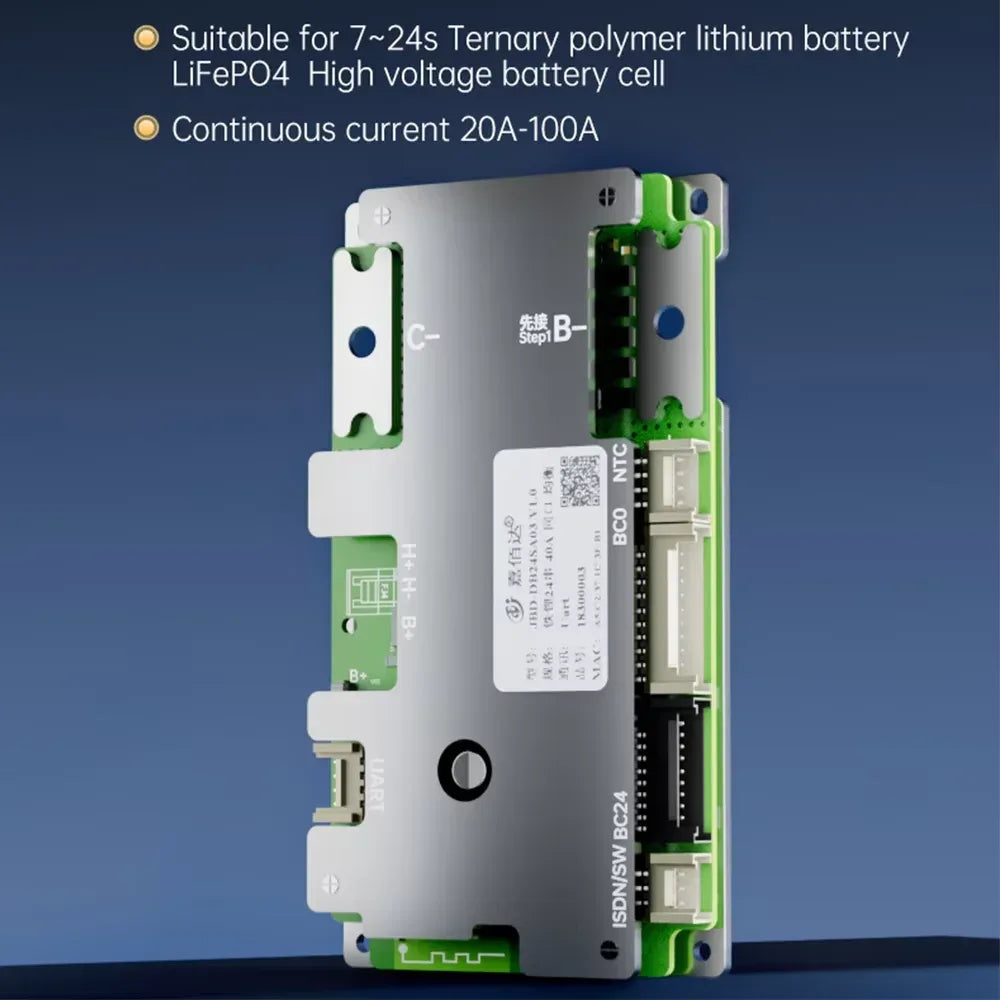

Build-in BT JBD Smart BMS Automatic Identify 7S-24S 8S 9S 10S 11S 12S 13S 14S 16S 20S 21S 22S 40A 50A 60A 80A LFP NMC Battery
Build-in BT JBD Smart BMS Automatic Identify 7S-24S 8S 9S 10S 11S 12S 13S 14S 16S 20S 21S 22S 40A 50A 60A 80A LFP NMC Battery
Couldn't load pickup availability
SPECIFICATIONS
Accessory Type: Battery Accessories
Application field: Electric motorcycles,tricycles,small four-wheelers
BMS Applicable Battery Type: 3.2V Lifepo4/3.7V Li-ion

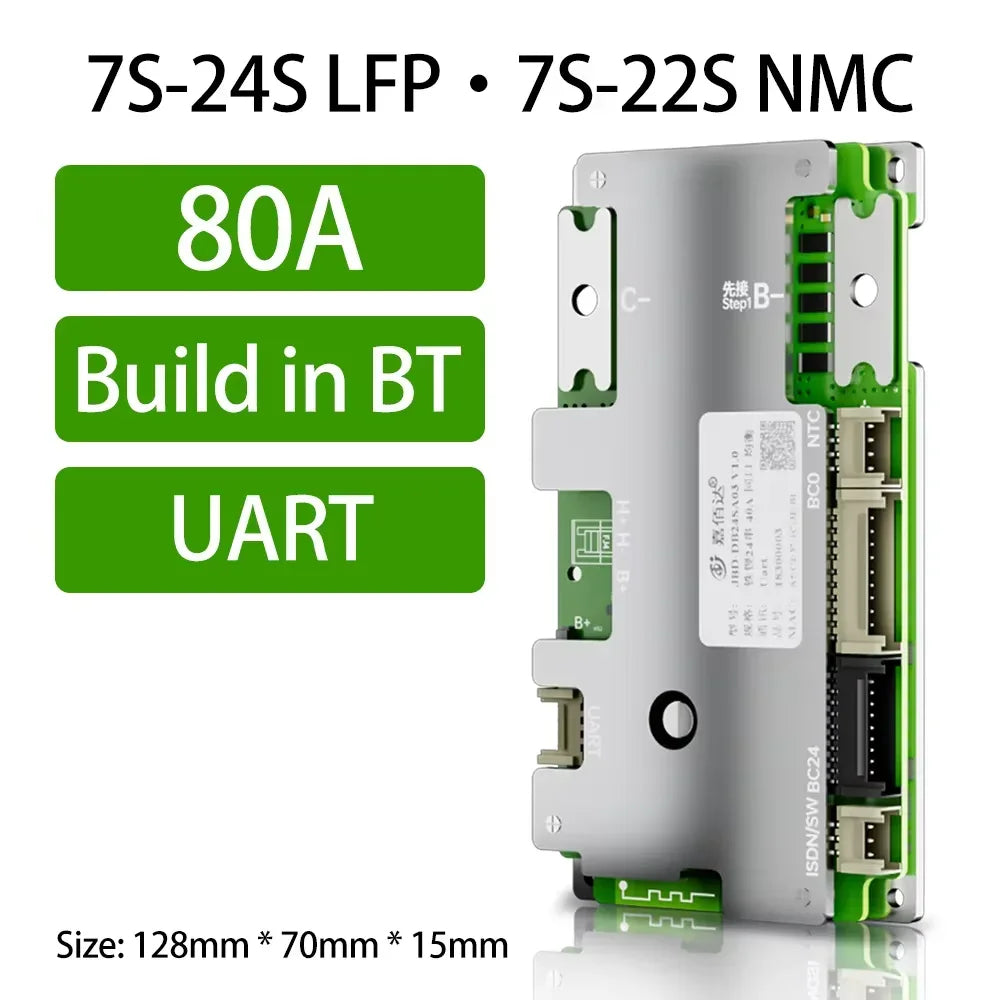

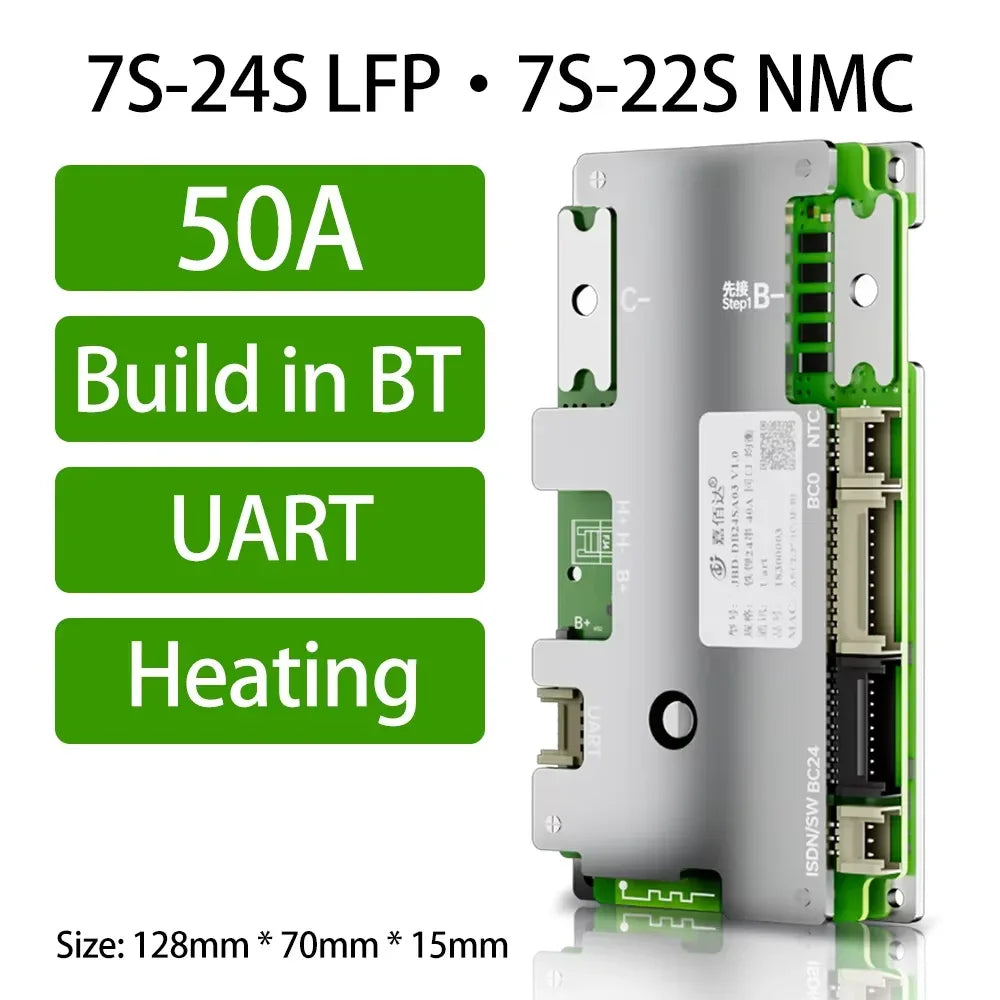

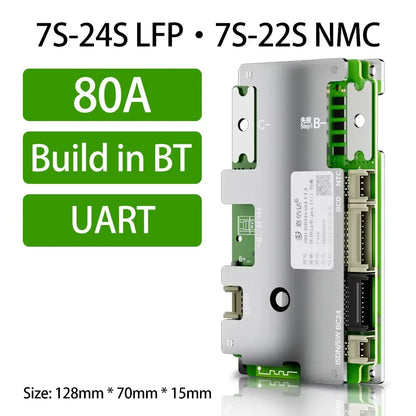

BMS Size: 128*70*15mm
BMS Support Strings: 7s 8s 9s 10s 11s 12s 13s 14s 15s 16s 17s 18s 19s 20s 21s 22s 23s 24s
Balance Current: 30-150mA
Balance Function: Same Port with Balance

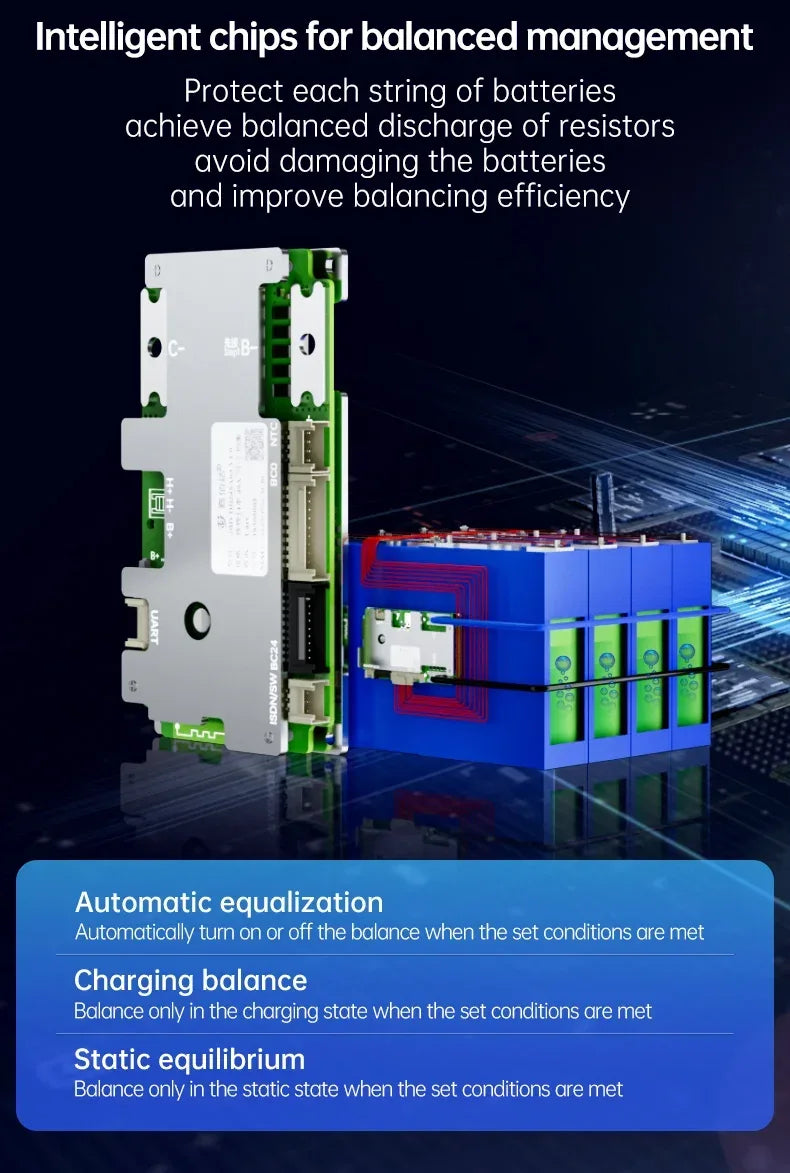

Balance Model: Idle Balance/Charging Balance
Balance Wires: Yes and Free
Battery Included: No
Bluetooth Function: Integrated BT
Brand Name: JBDBMS
Certification: CE,FCC,RoHS
Charger included: N
Choice: yes
Communication Function: UART
Continuous Current: 40A 50A 60A 80A
Feature 1: jbd smart bms
Feature 2: bms 13s
Feature 3: bms lifepo4 16s

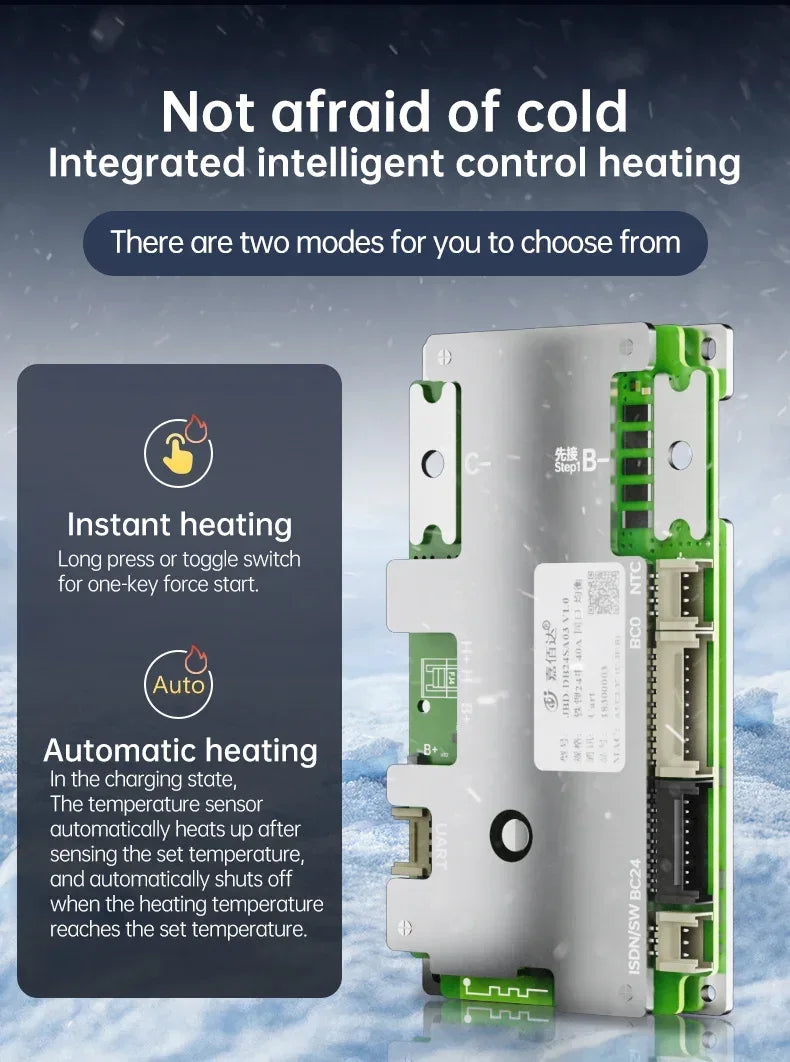

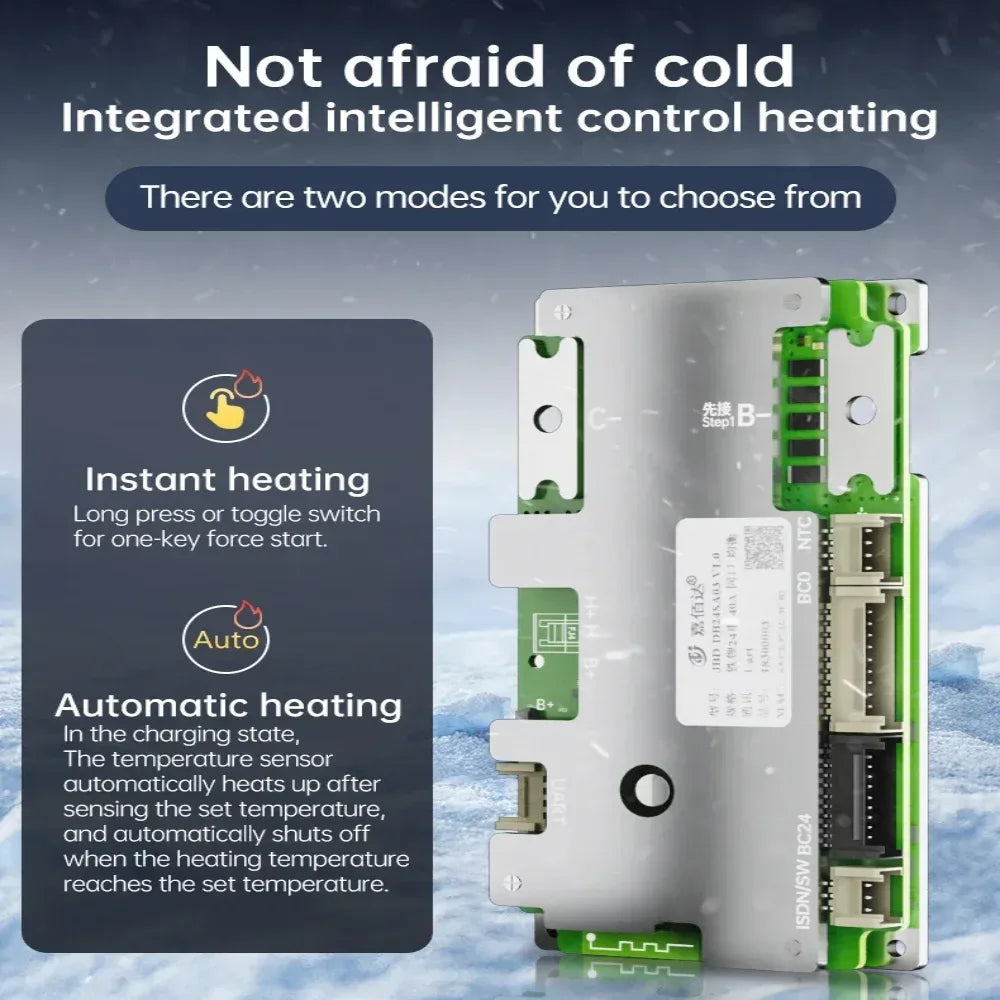

Heat Function: optional,no heating film
High-concerned chemical: None

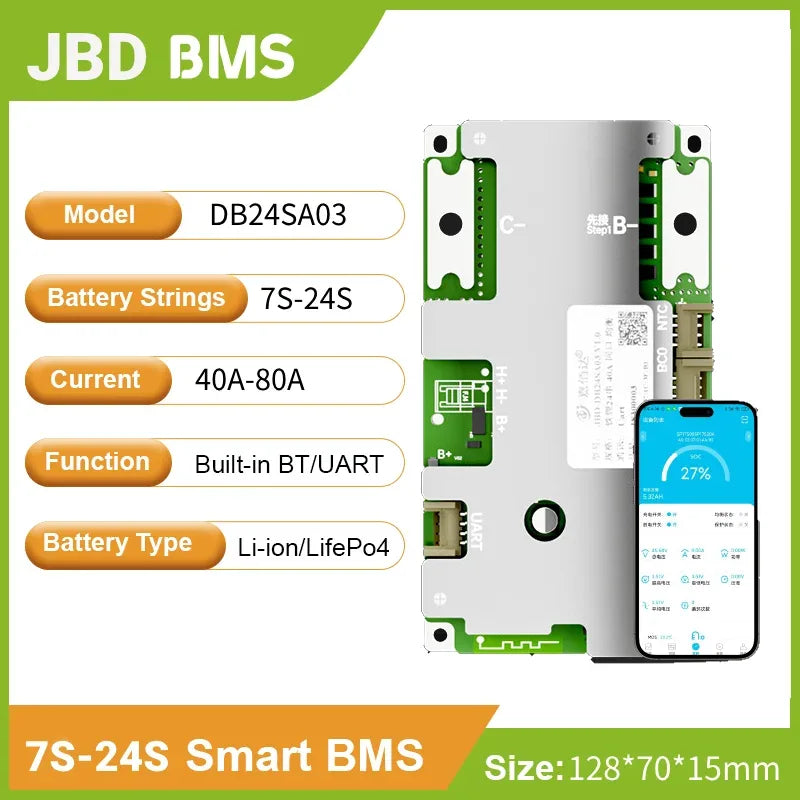

Model Number: DB24SA03
Origin: Mainland China
Peak Current: Continuous*3
Six Protection functions: Yes

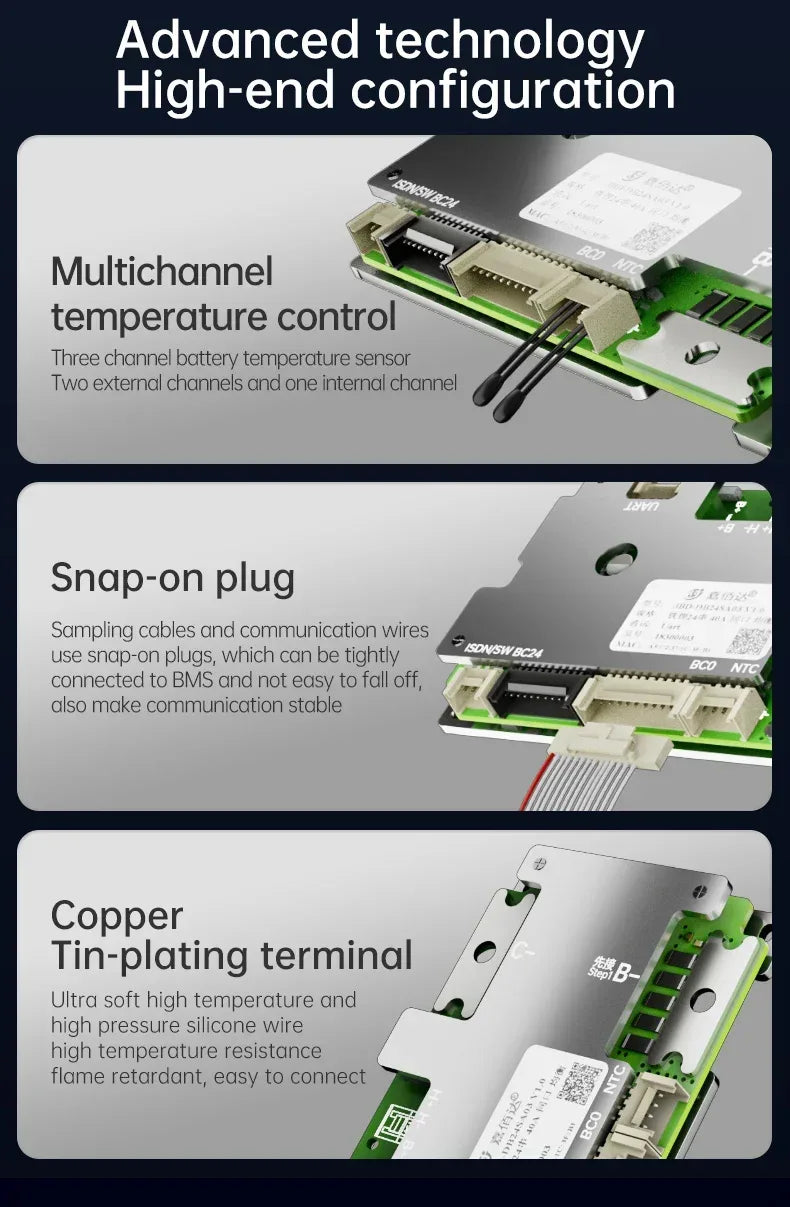

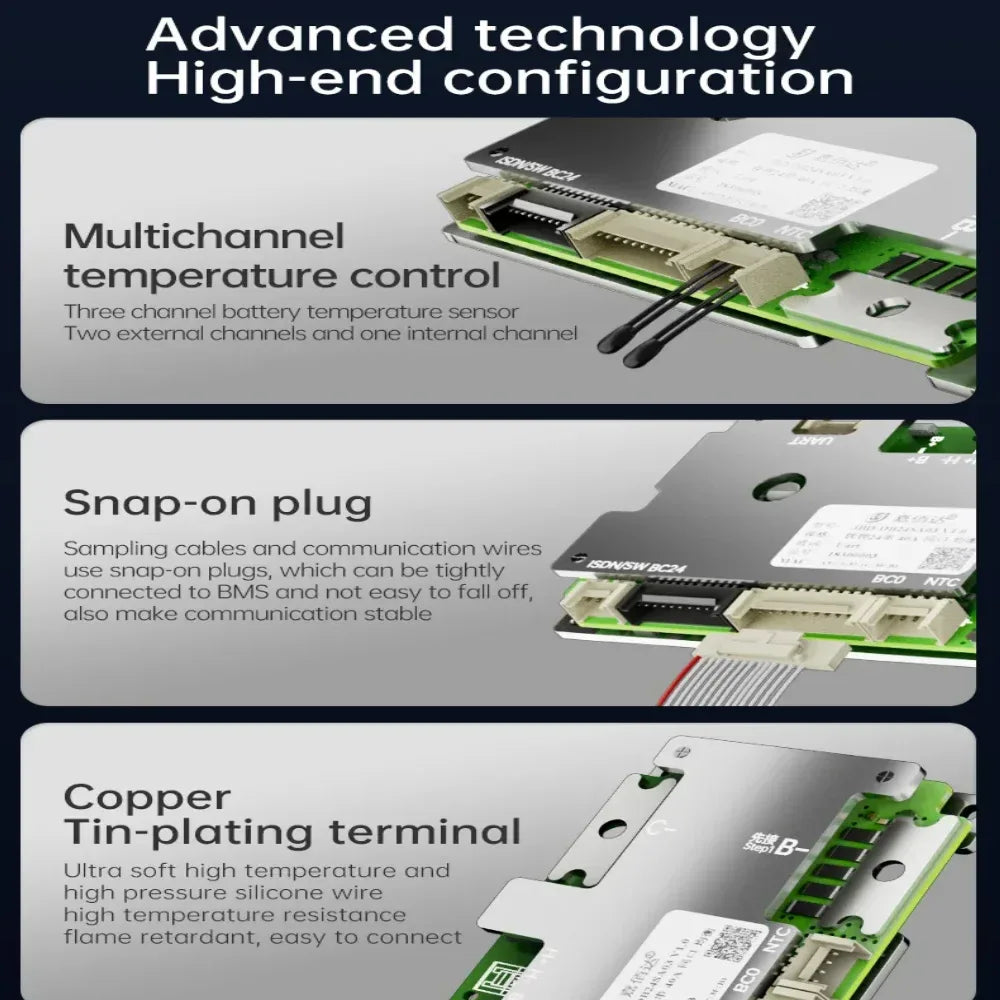

Temp Sensor: 1pc internal,2pcs external
Voltage: 24V 36V 48V 52V 60V 72V 80V
semi_Choice: yes
(1)BT-APP in Phone
xiaoxiangElectric App:
http://www.jiabaida.com/appdown/index.html
Support Both IOS and Android version,can monitor and set parameters(need to be within the specified range)
(2)UART-JBD PC Tool Box:can Monitor and Set parameters on PC.
PC Tool Software: https://jbdtools.oss-cn-beijing.aliyuncs.com/packfile/JBDTools.zip
(3)UART LCD Displayer:Can monitor parameters on LCD displayer.

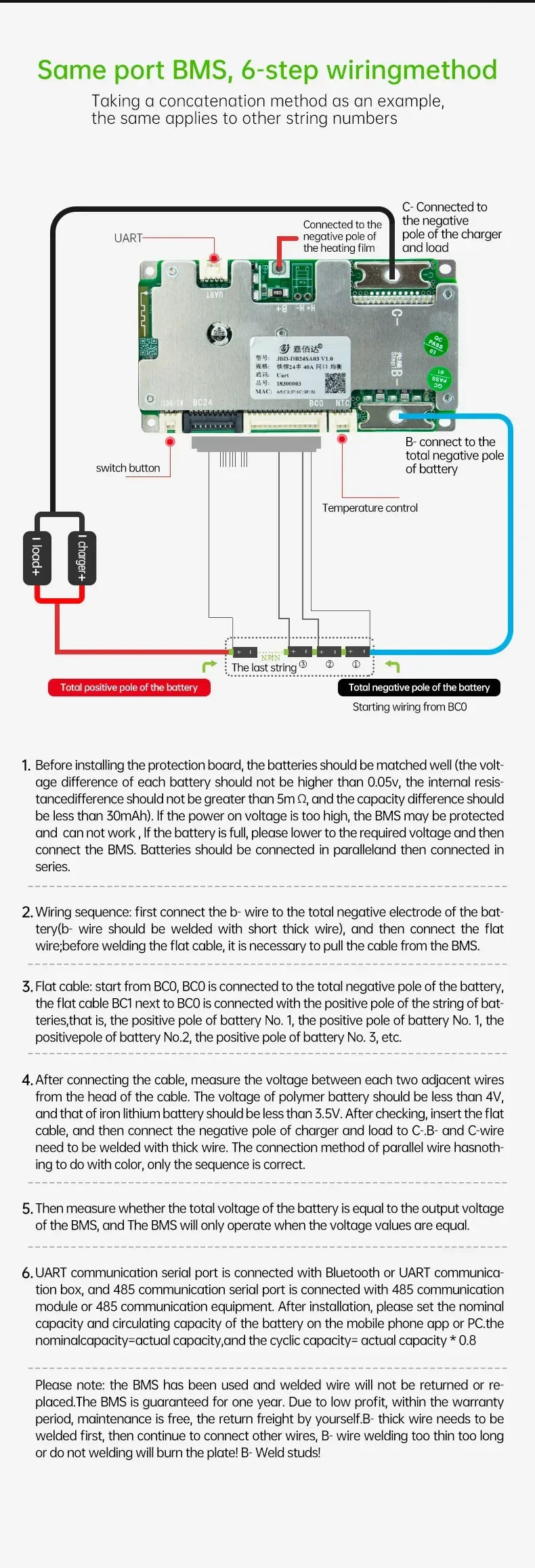

Wiring Diagram
