SPECIFICATIONS

Brand Name: BSIDE

Certification: CE,FCC,RoHS

High-concerned chemical: None

Model Number: SH7

Origin: Mainland China

Note:

For PCB circuit board inspection, it is recommended to buy the version containing a macro lens.

Features:

BISDE SH9

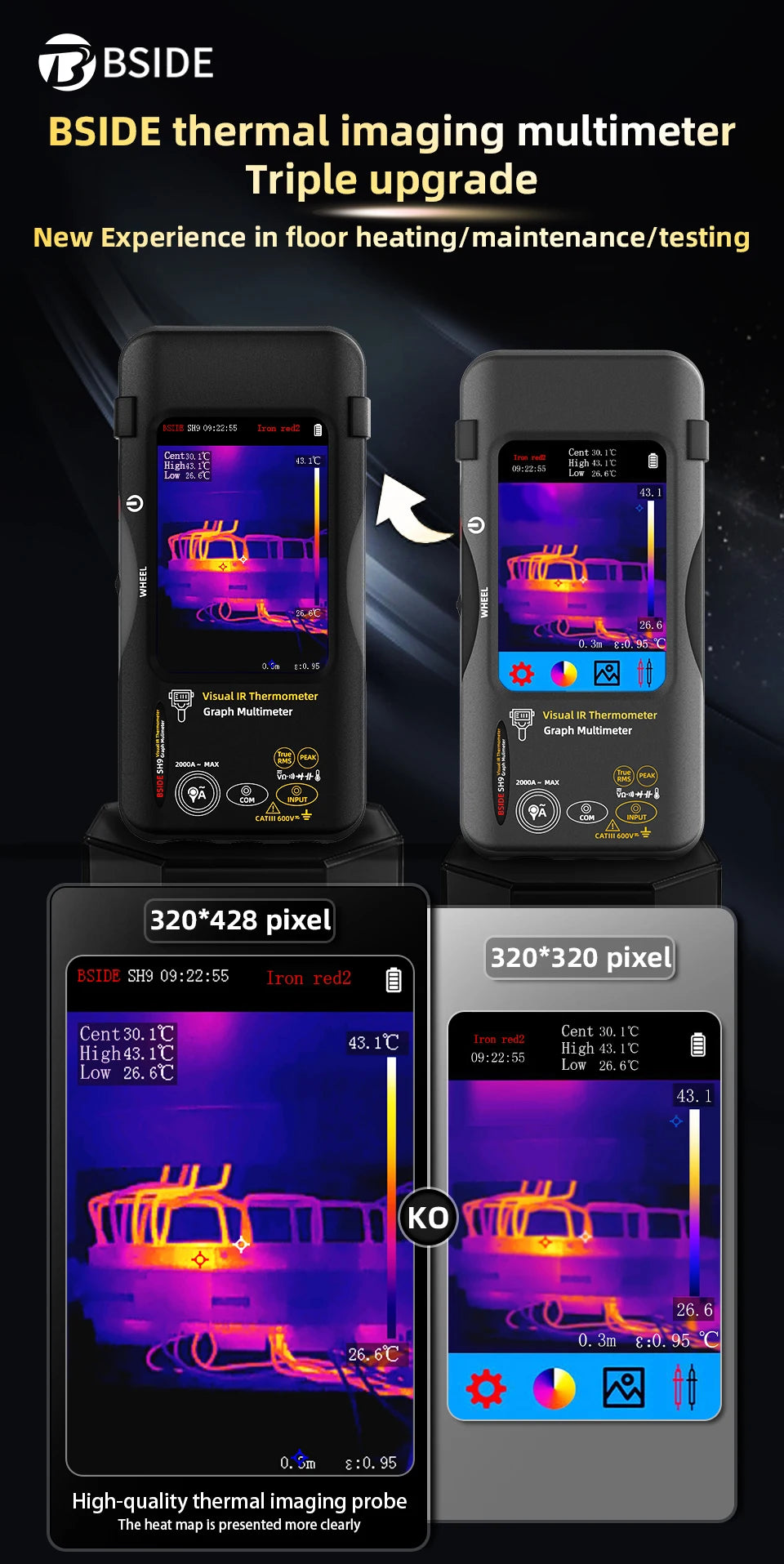

Screen size resolution :320*480px

The display resolution of the thermal imaging screen is 320*428pX

Sensor resolution: It is 256*192px

This can display 320*428px because of super-resolution.

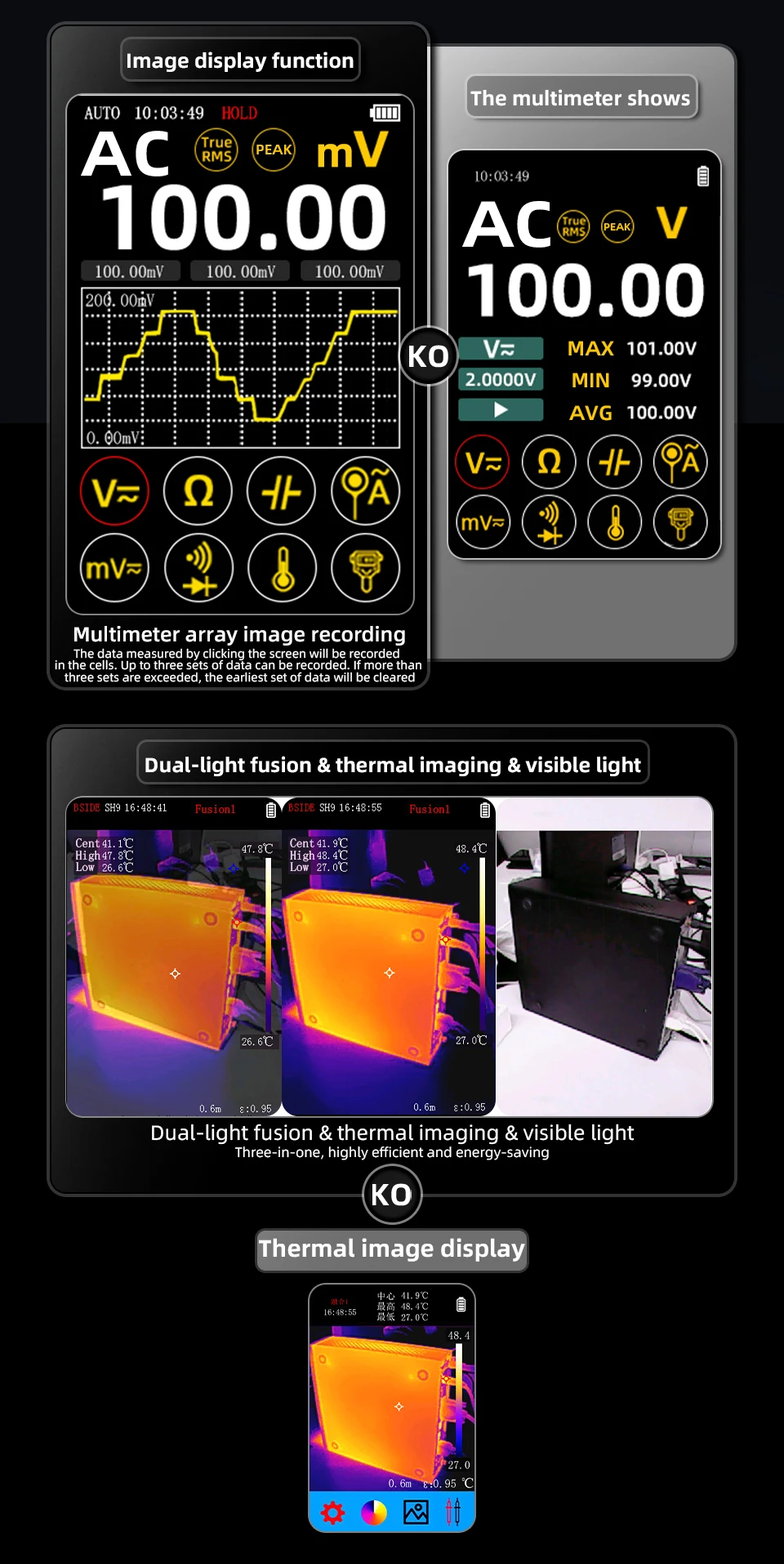

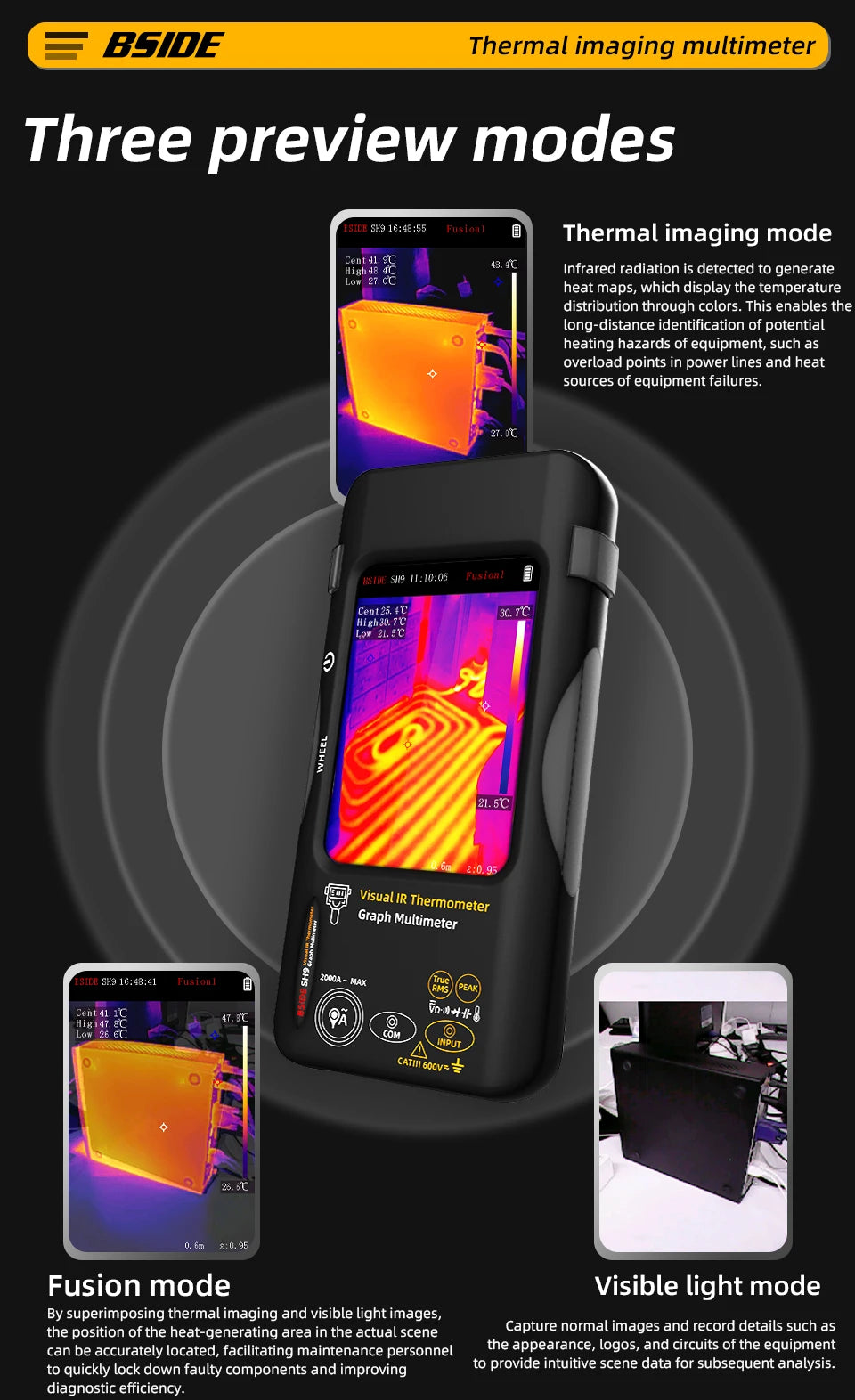

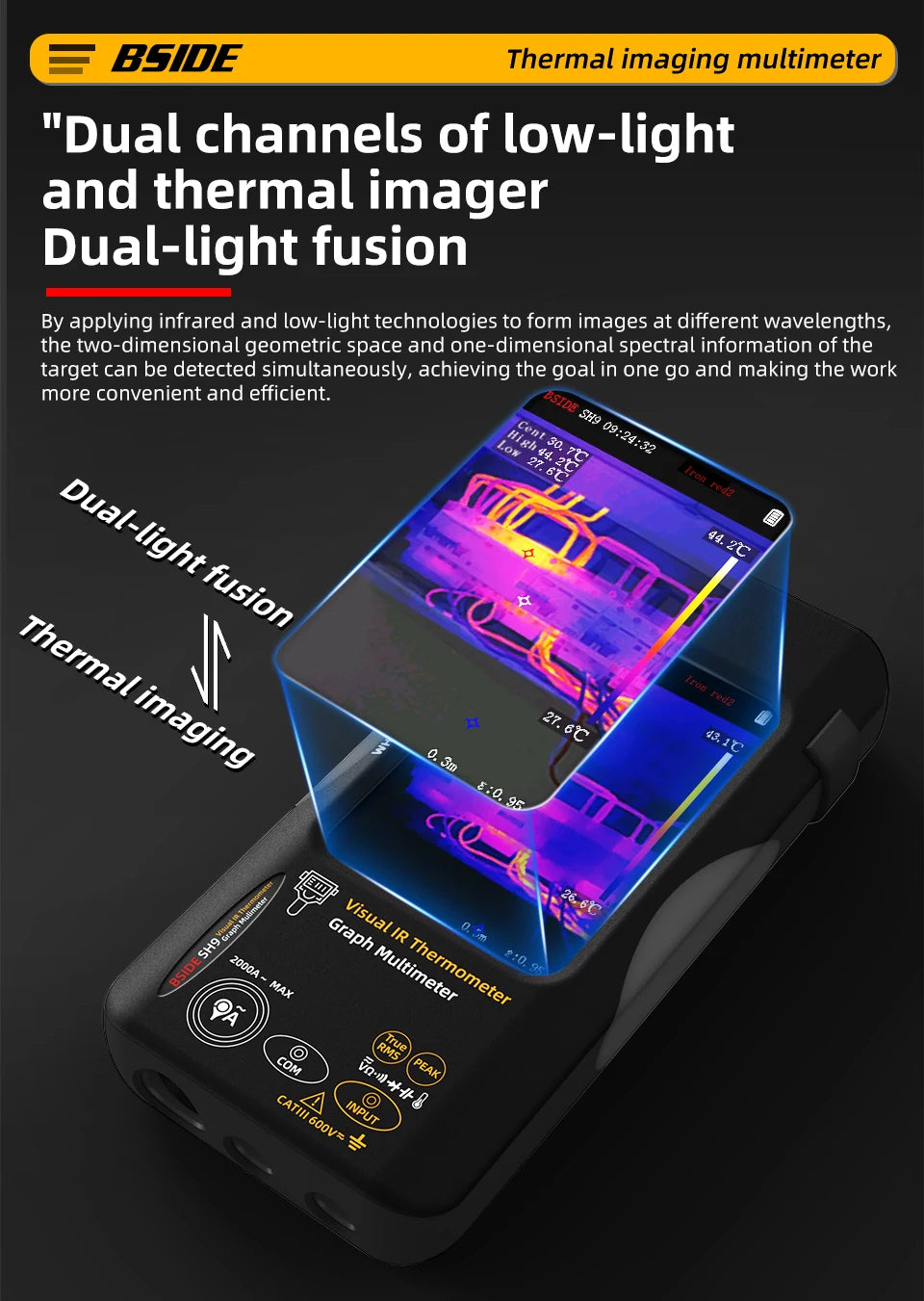

With dual-light fusionVisible light

Differences:

The SH9 requires a flexible coil to measure currents up to 2000A.

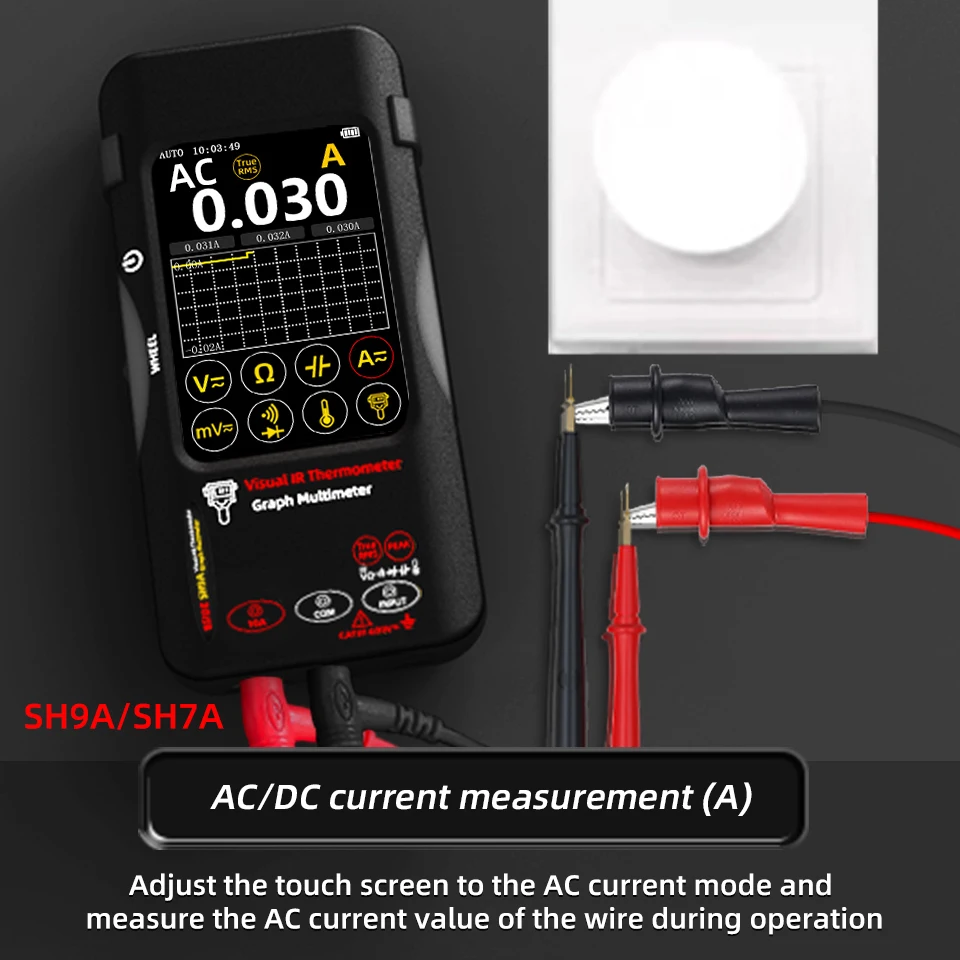

The SH9A measures currents up to 10A directly with a multimeter probe.

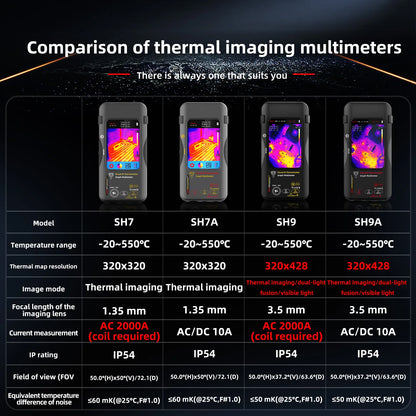

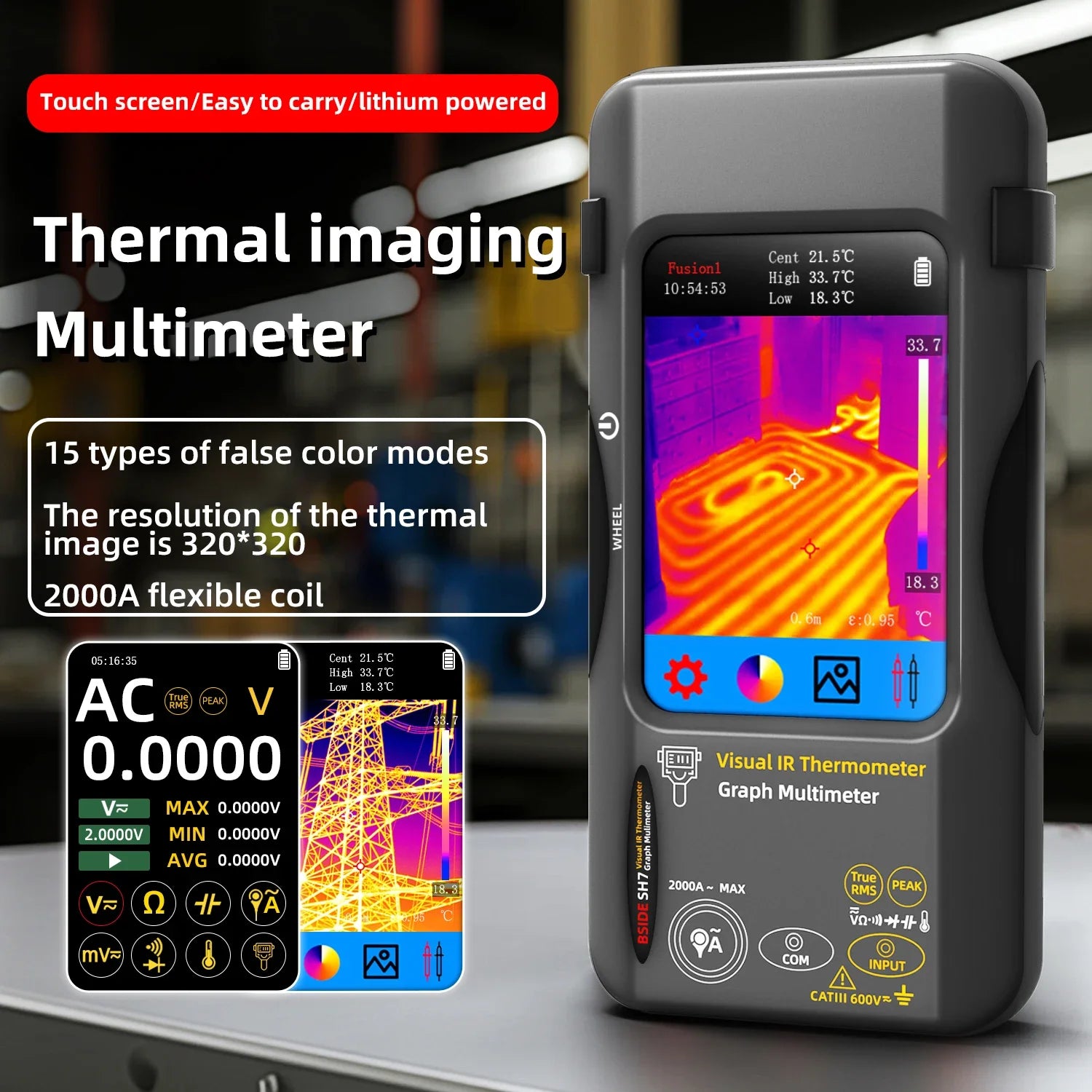

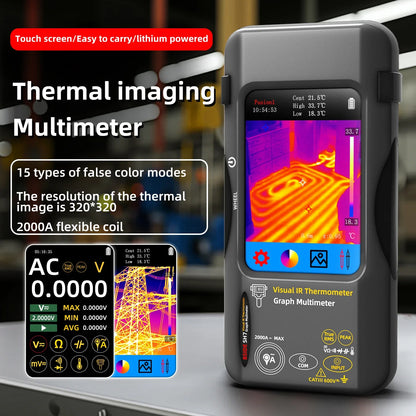

BISDE SH7

Screen size resolution :320*480px

The display resolution of the thermal imaging screen is 320*320px

Sensor resolution: It is 96*96px

This can display 320*320px because of super-resolution.

Differences:

The SH7 requires a flexible coil to measure currents up to 2000A.

The SH7A measures currents up to 10A directly with a multimeter probe.

Industrial-grade Thermal Camera

25Hz thermal imaging sensor

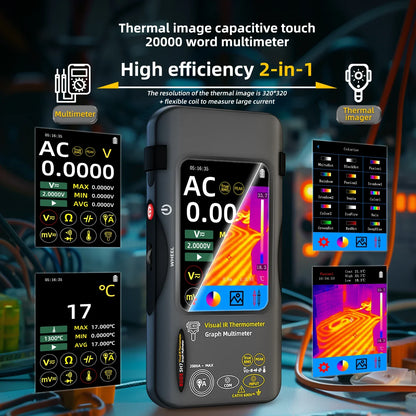

- 2-In-1 Thermal imaging&Multimeter.

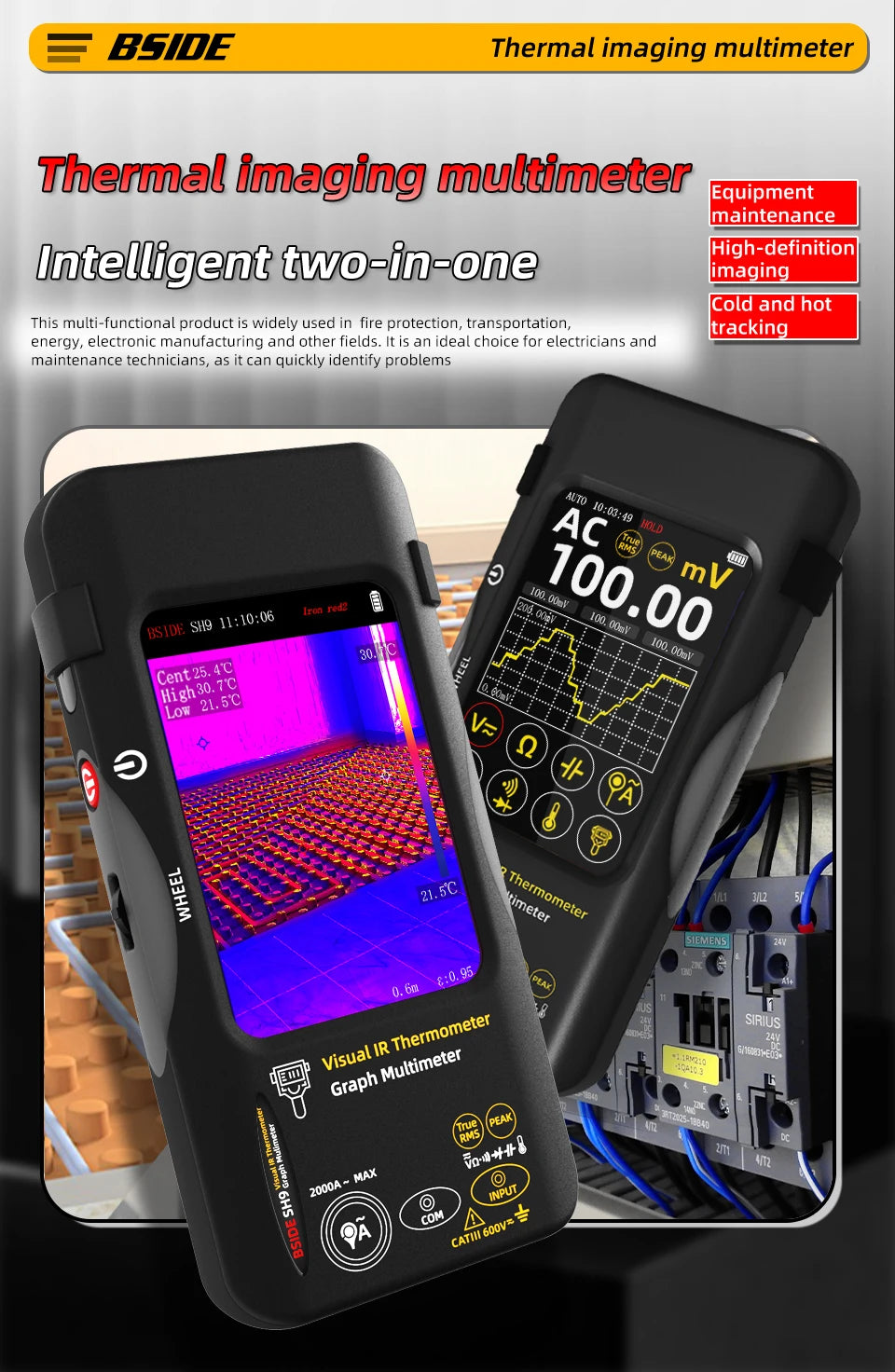

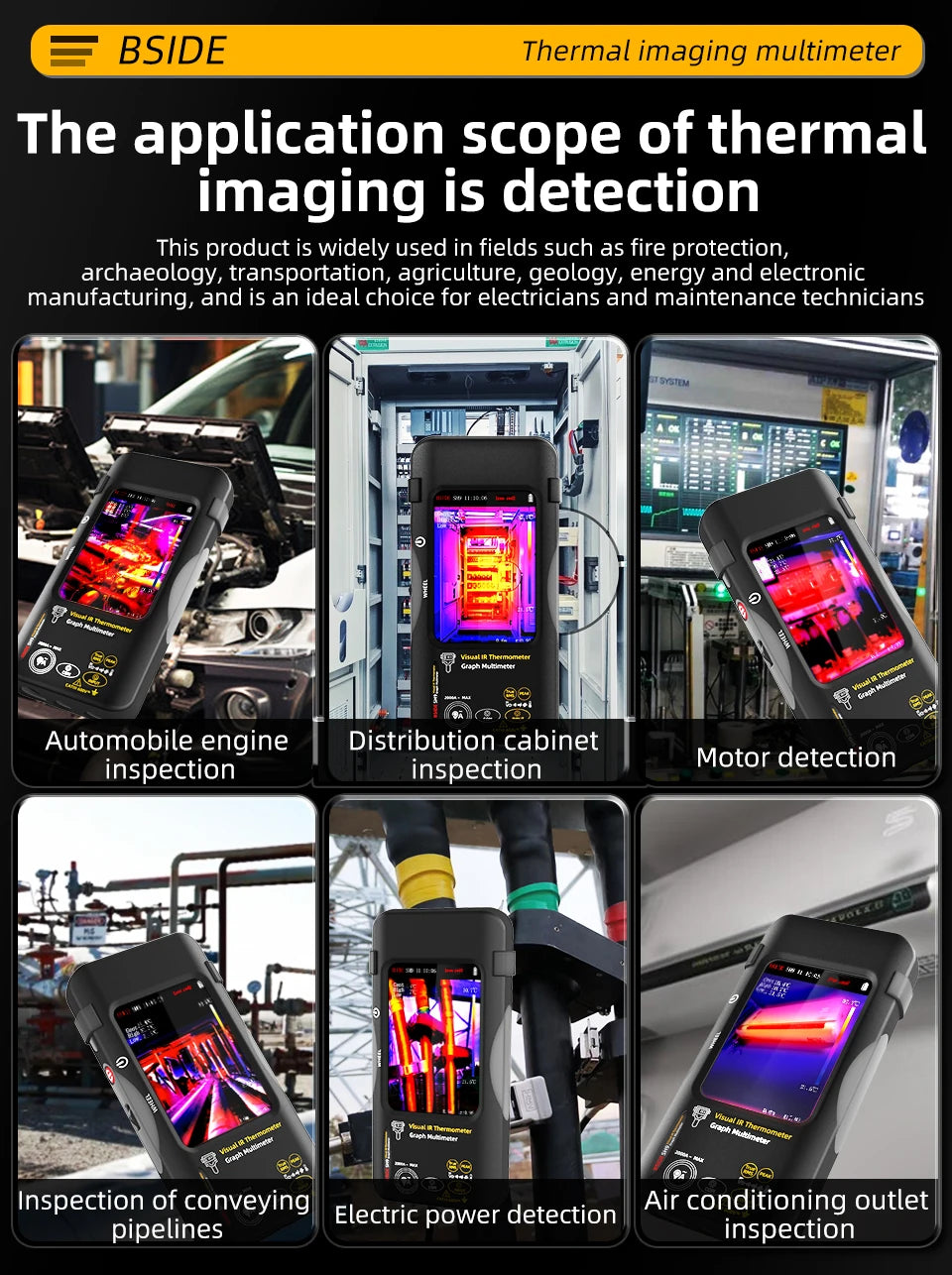

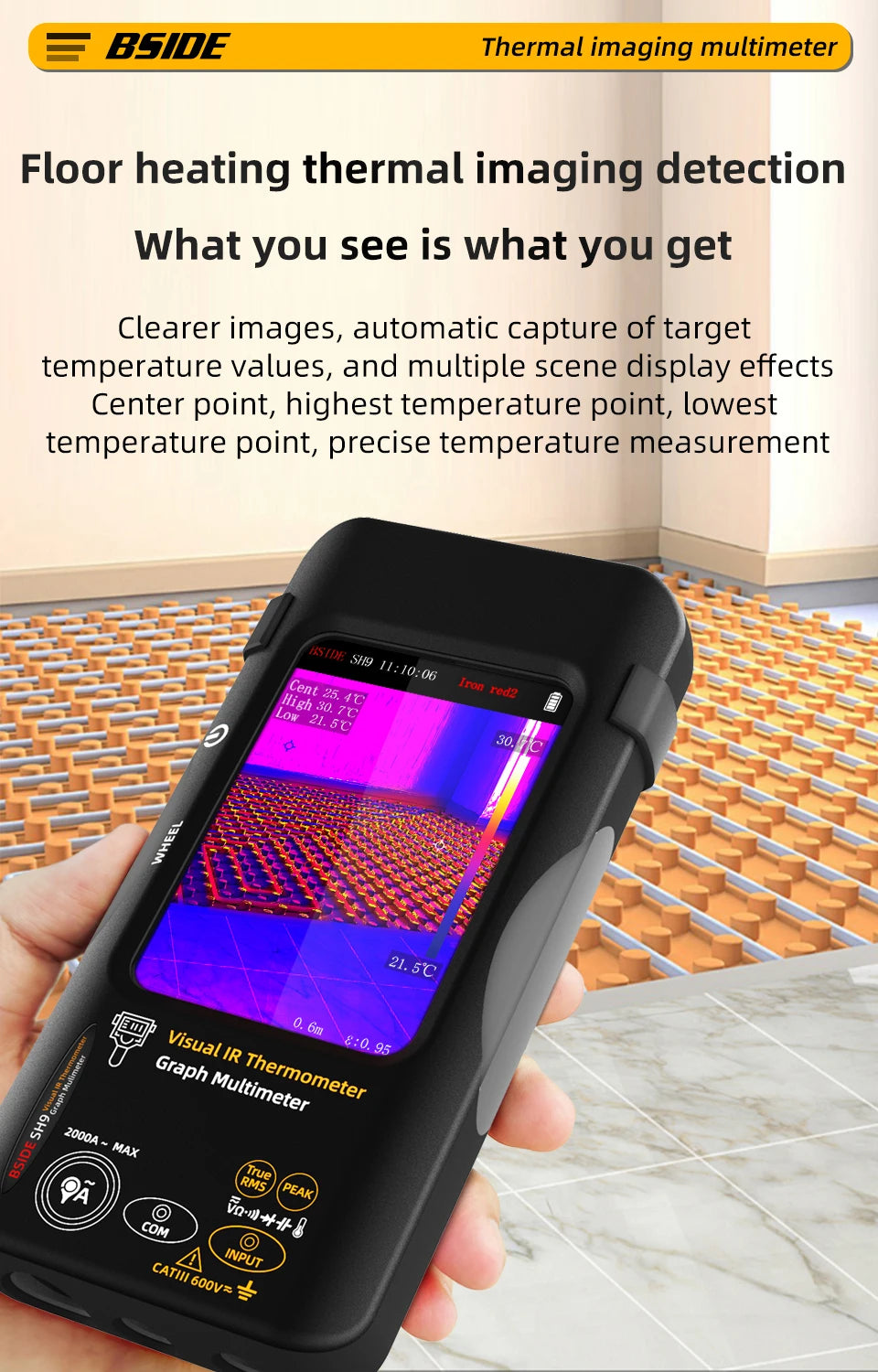

- suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect.

High-Precision Multimeter with 20000counts

- manual and automatic range options

- Maximum input DC voltage up to 1000V

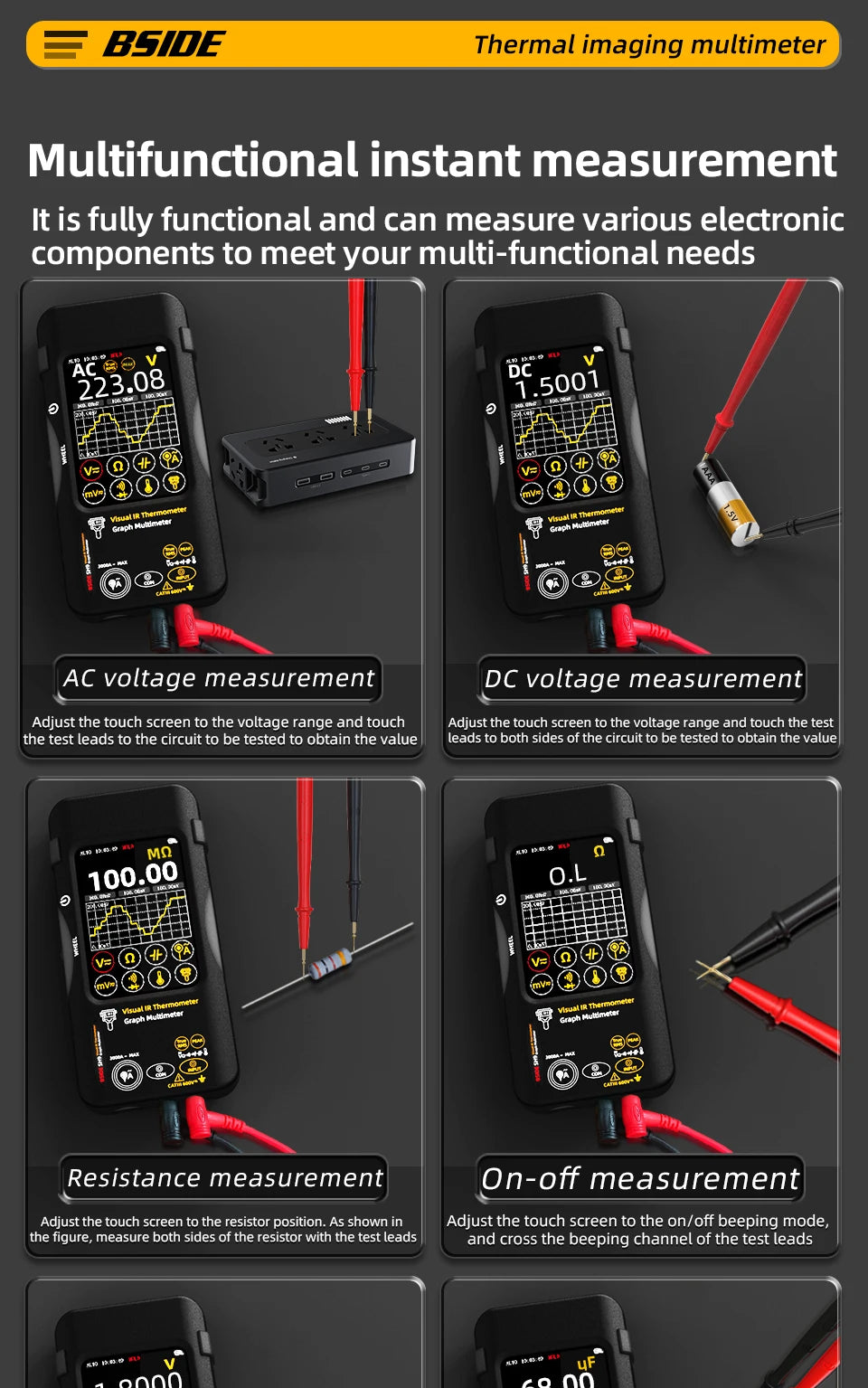

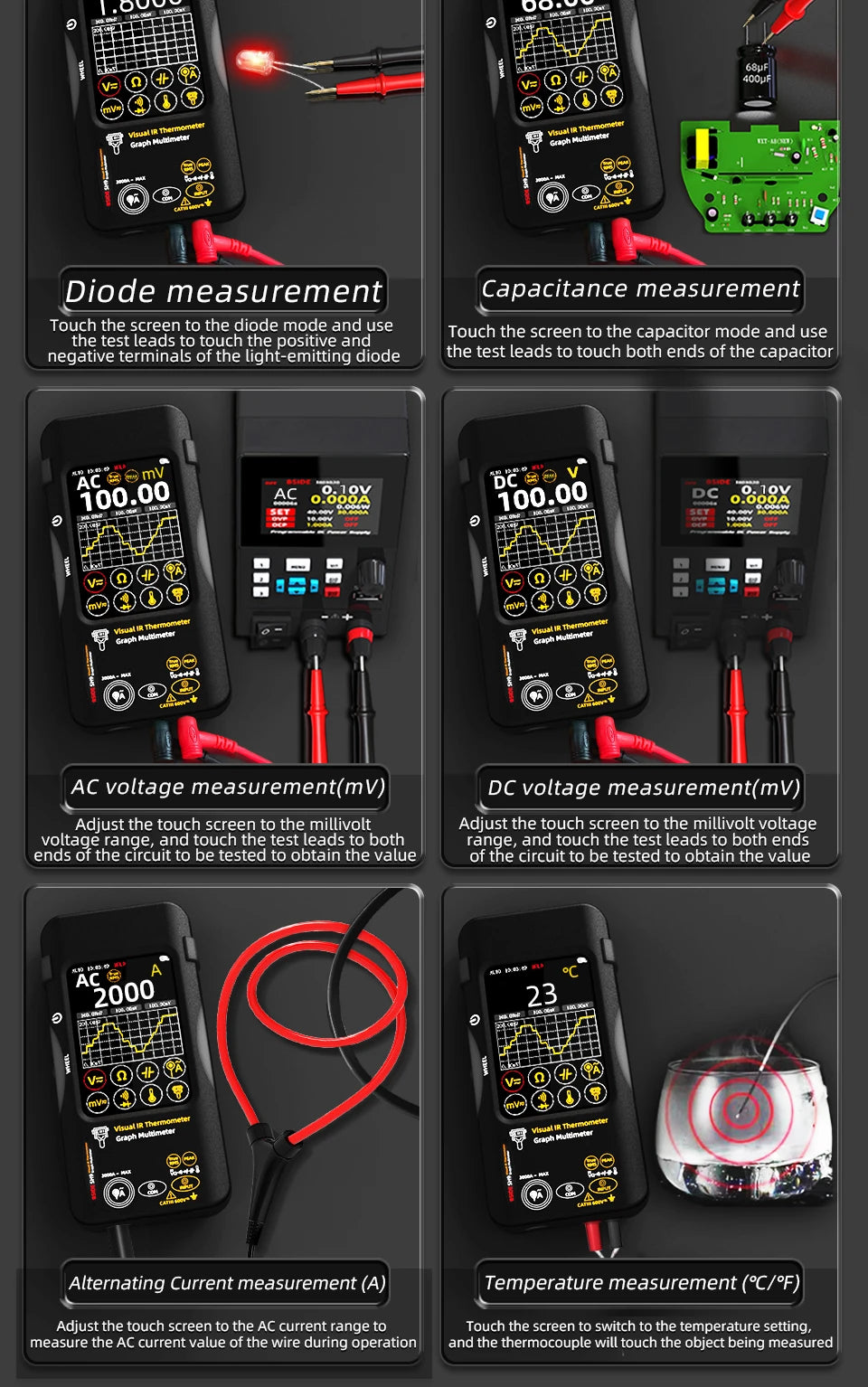

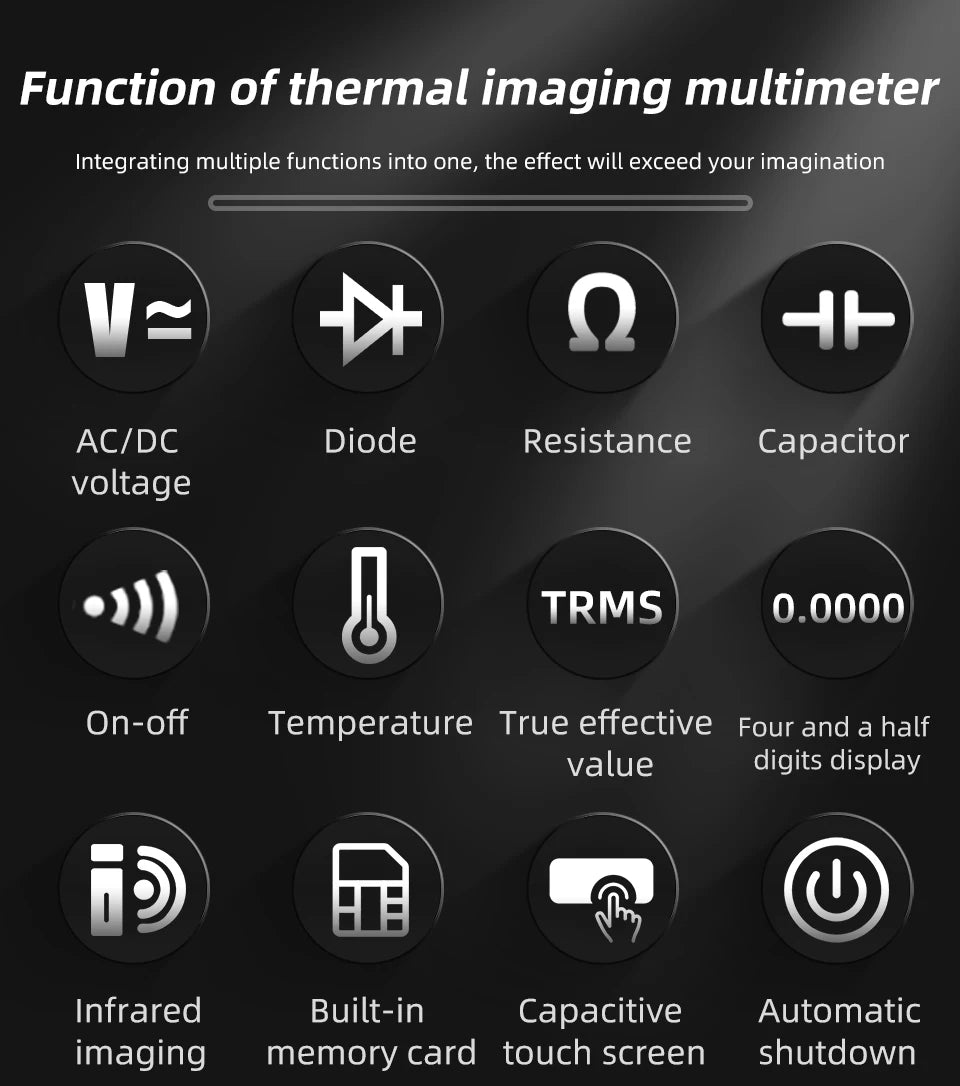

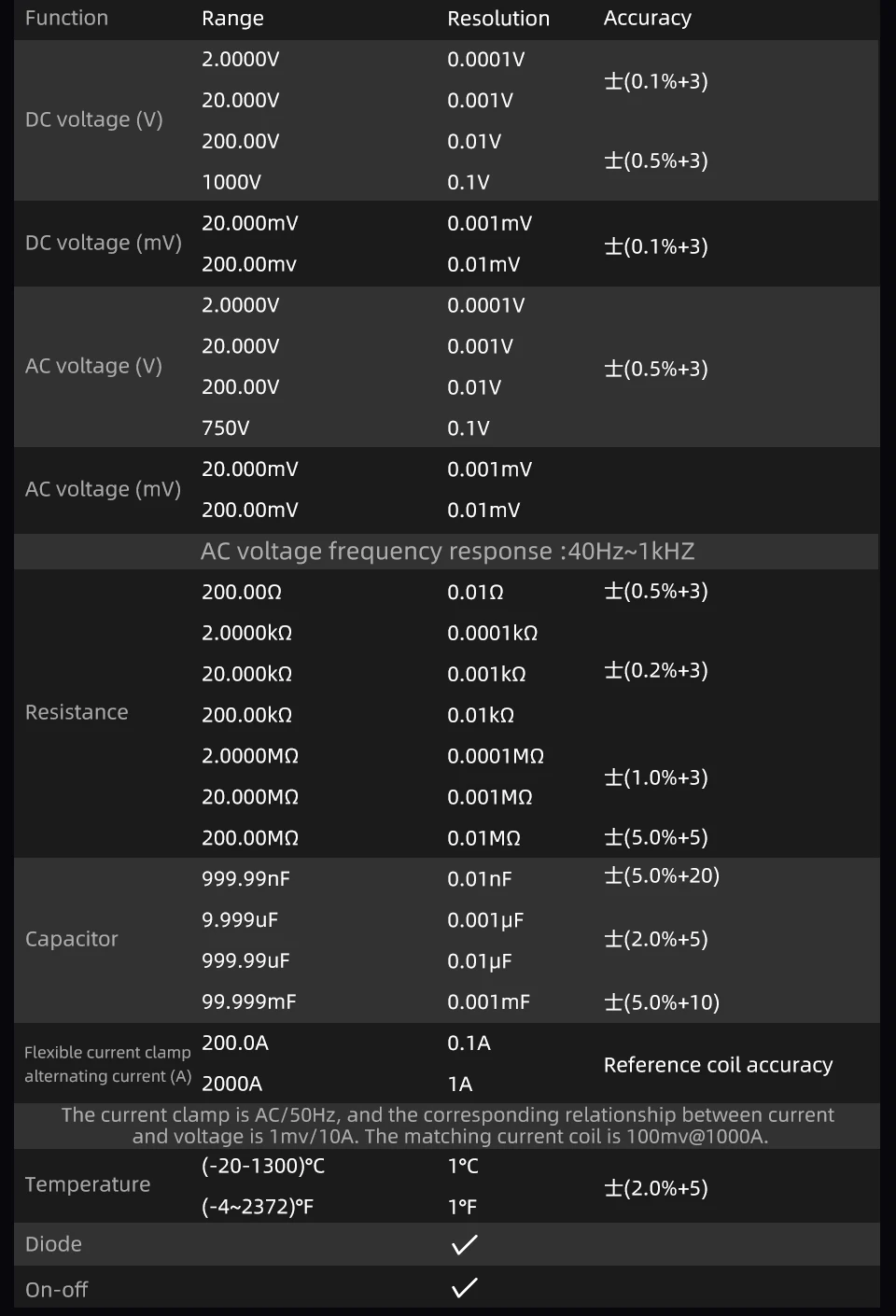

DC/AC voltage, current, resistance, capacitance, diode, frequency, NCV

temperature measurements.

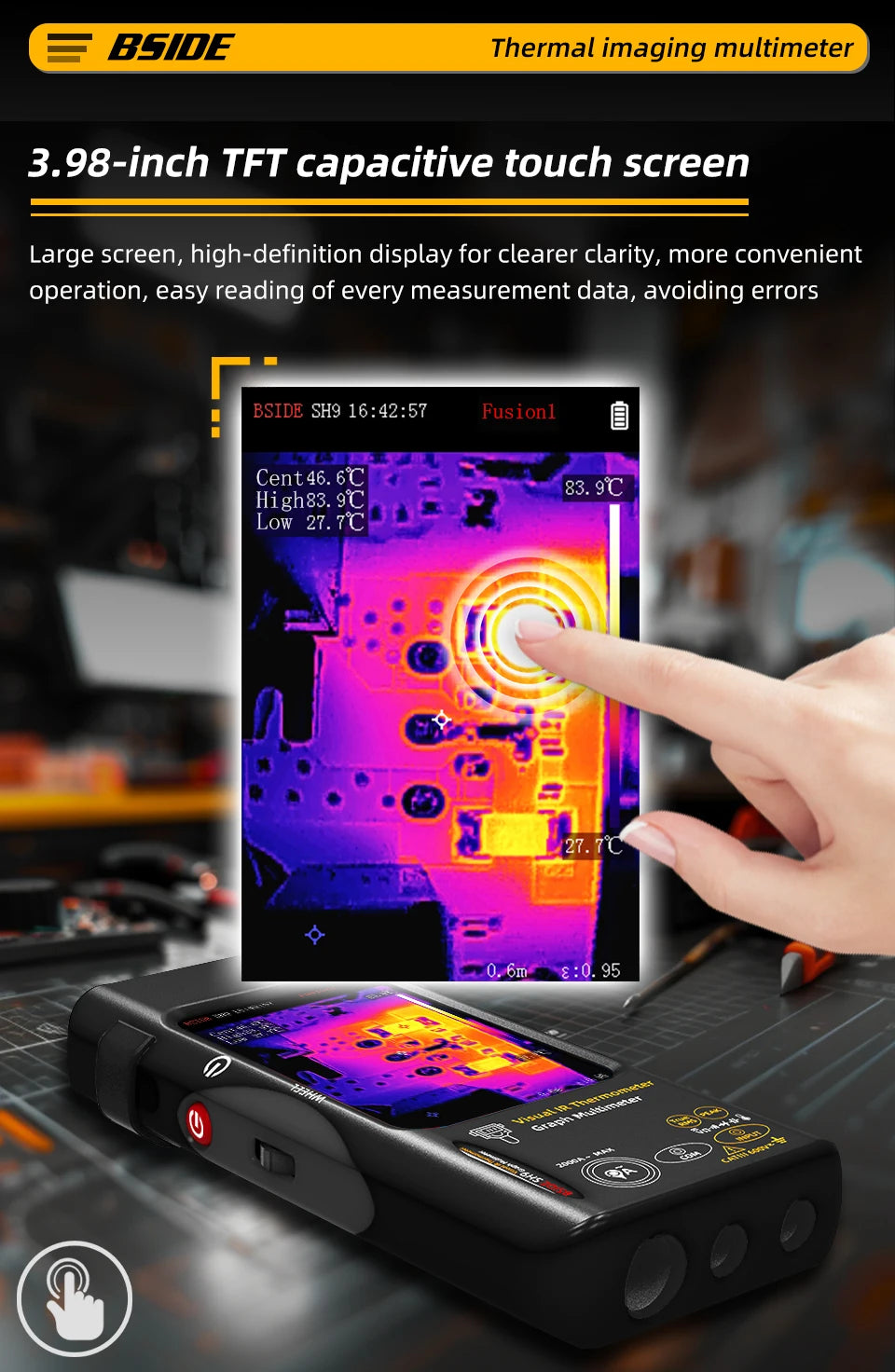

Clear Display with Rich Color Options

- 3.98 inches TFT Capacitive touch screen with a resolution of 320x480

- 15 selectable color palettes, easily switching by long pressing the side button

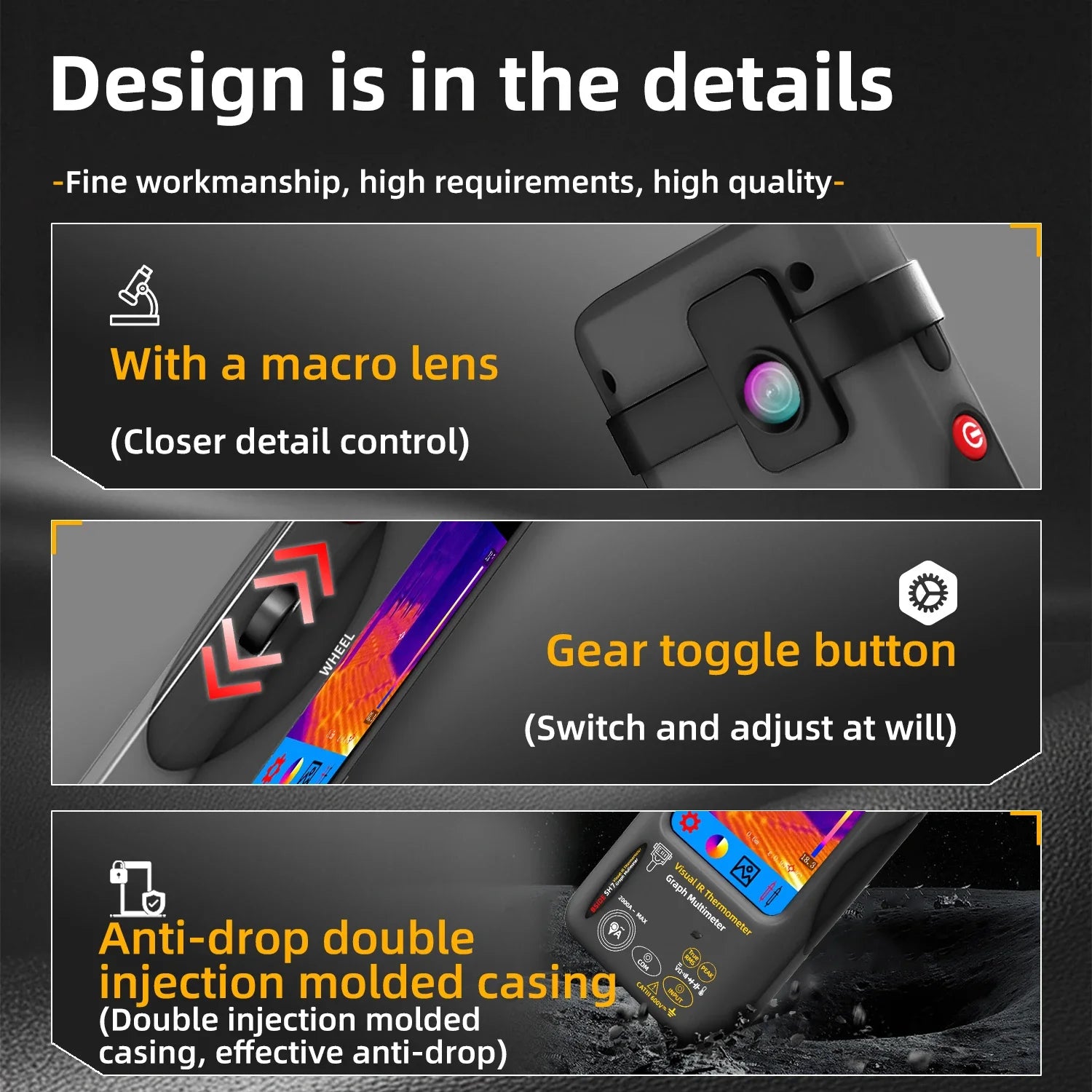

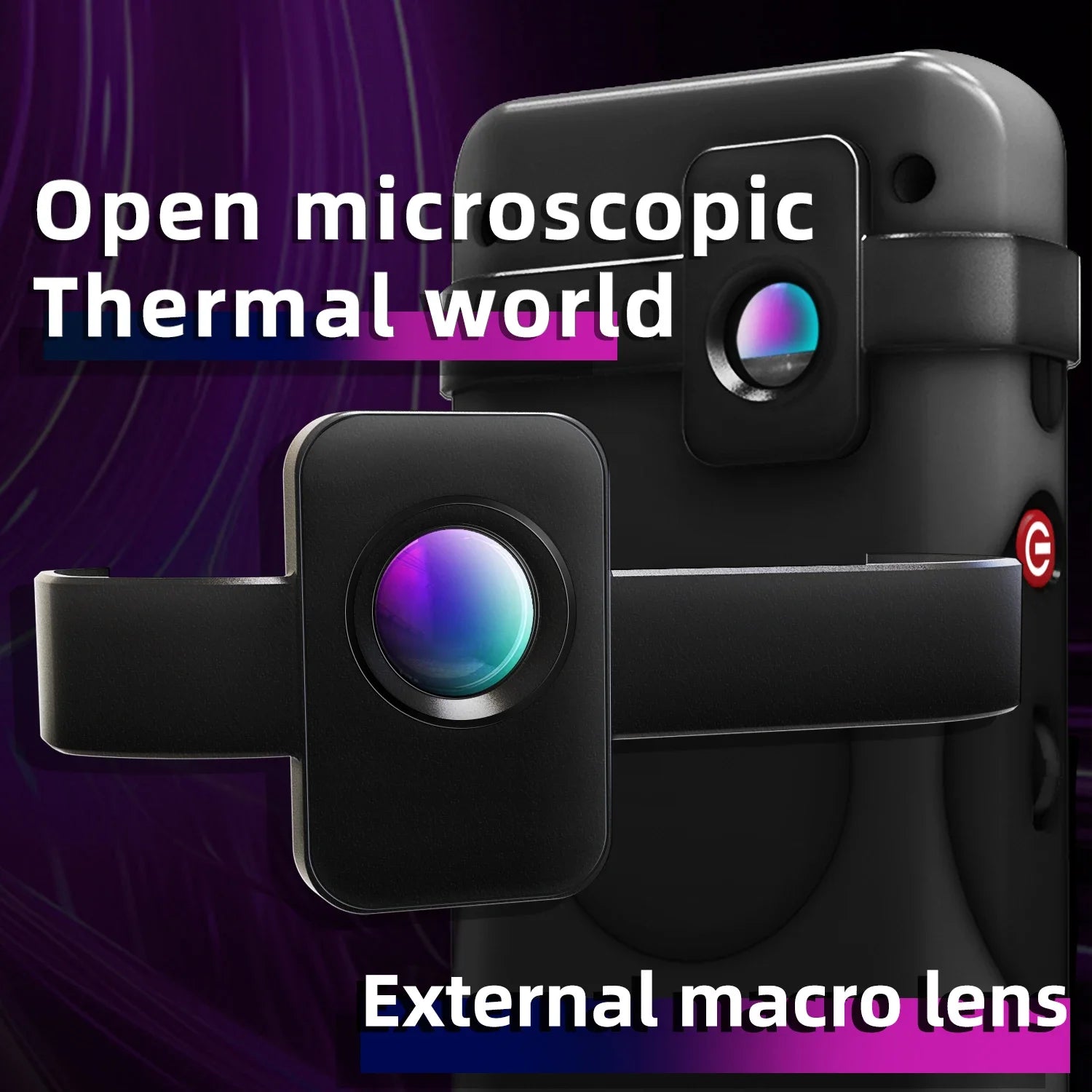

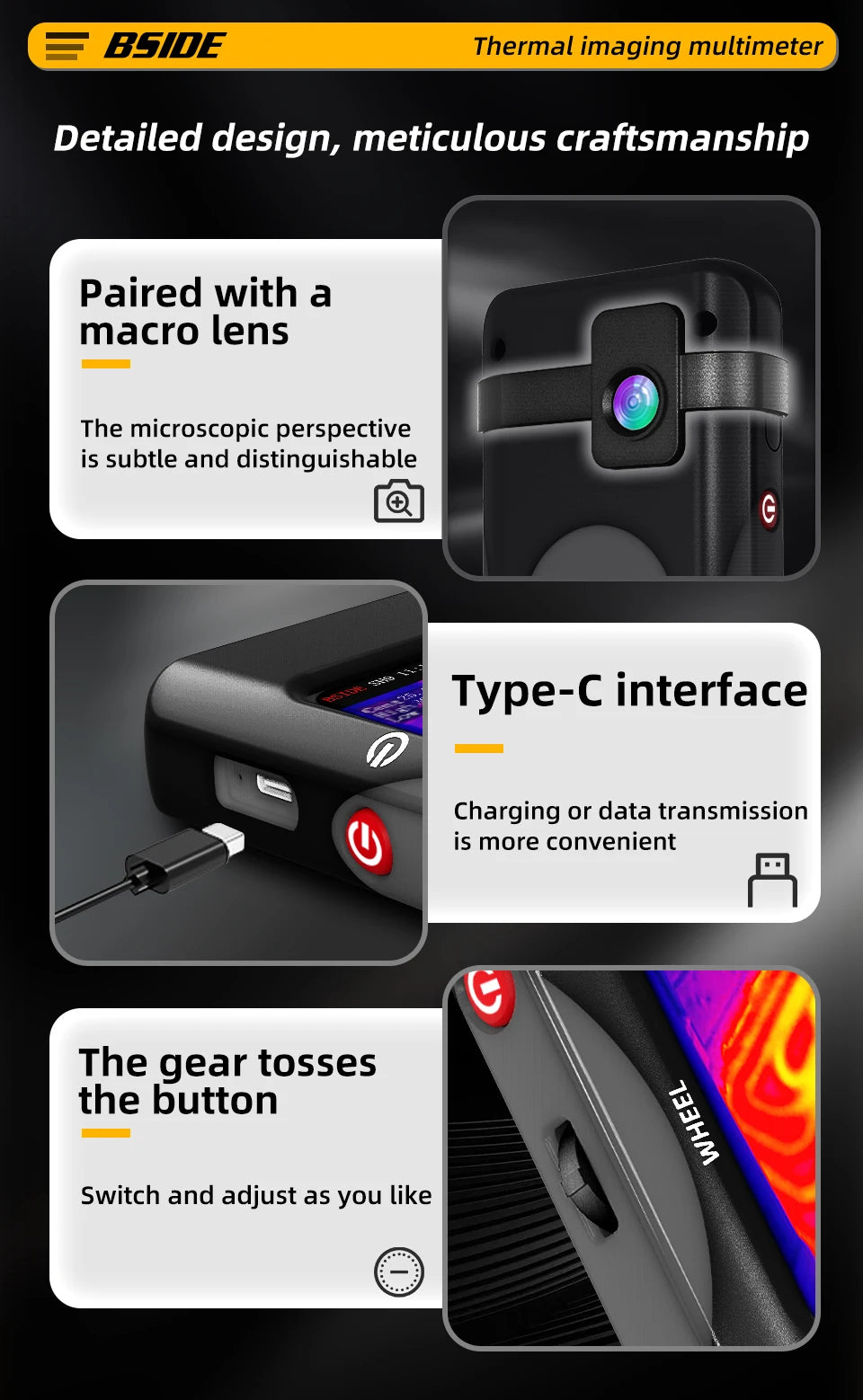

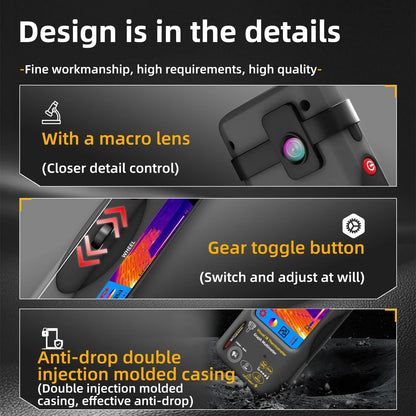

Optional Macro Lens

captures small details as clear as 1mm x 1mm, ideal for smartphone repairs and PCB mainboard inspections.

Available in 7 languages

Including English, German, French, Spanish, Portuguese,Japanese, Italian, and Chinese, catering to global users.

Strong Battery Life and Convenient Charging

Powered by lithium battery with a runtime of up to 8 hours, reliable USB charging.

PC Software Support

Can transfer and analysis the multimeter data chart and thermal image

Specifications:

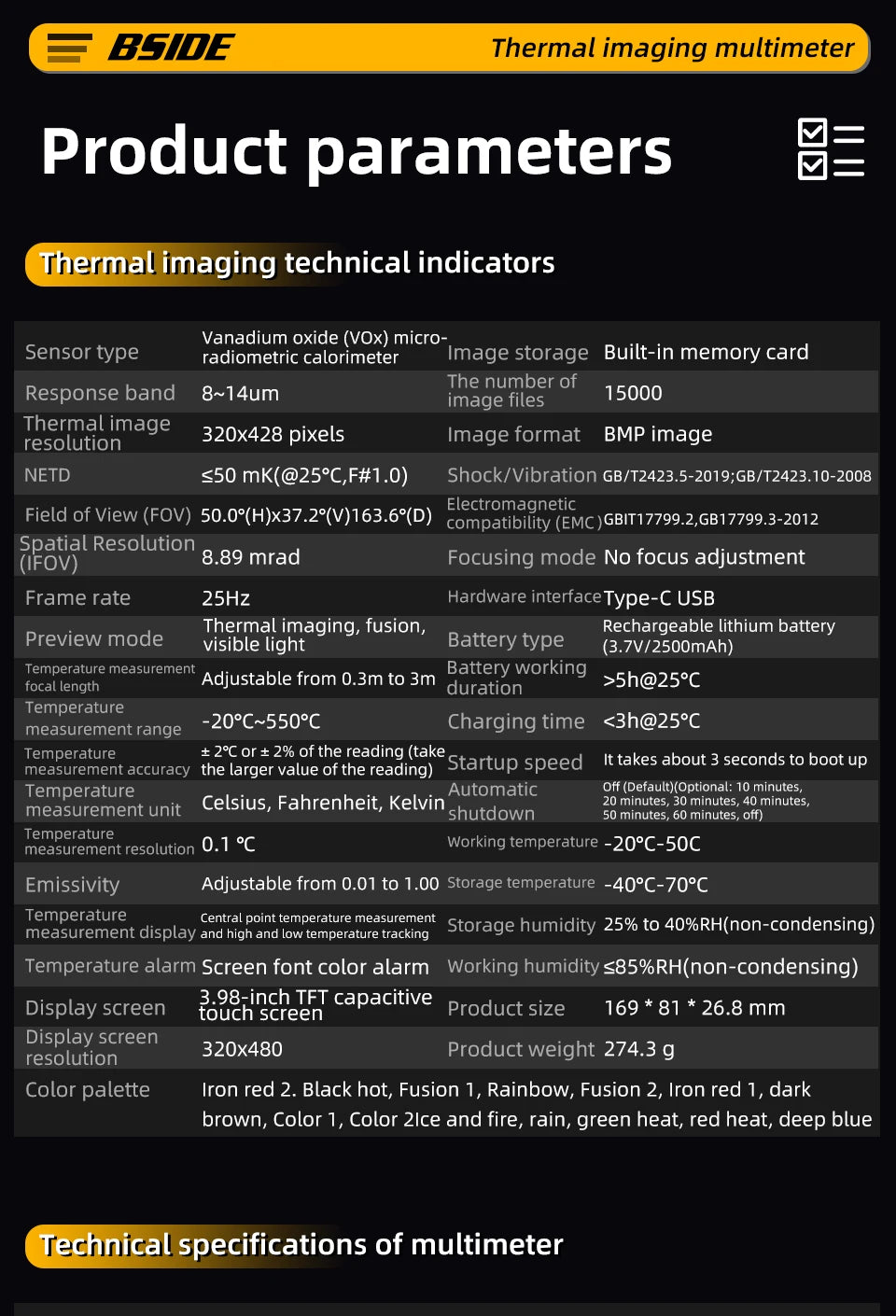

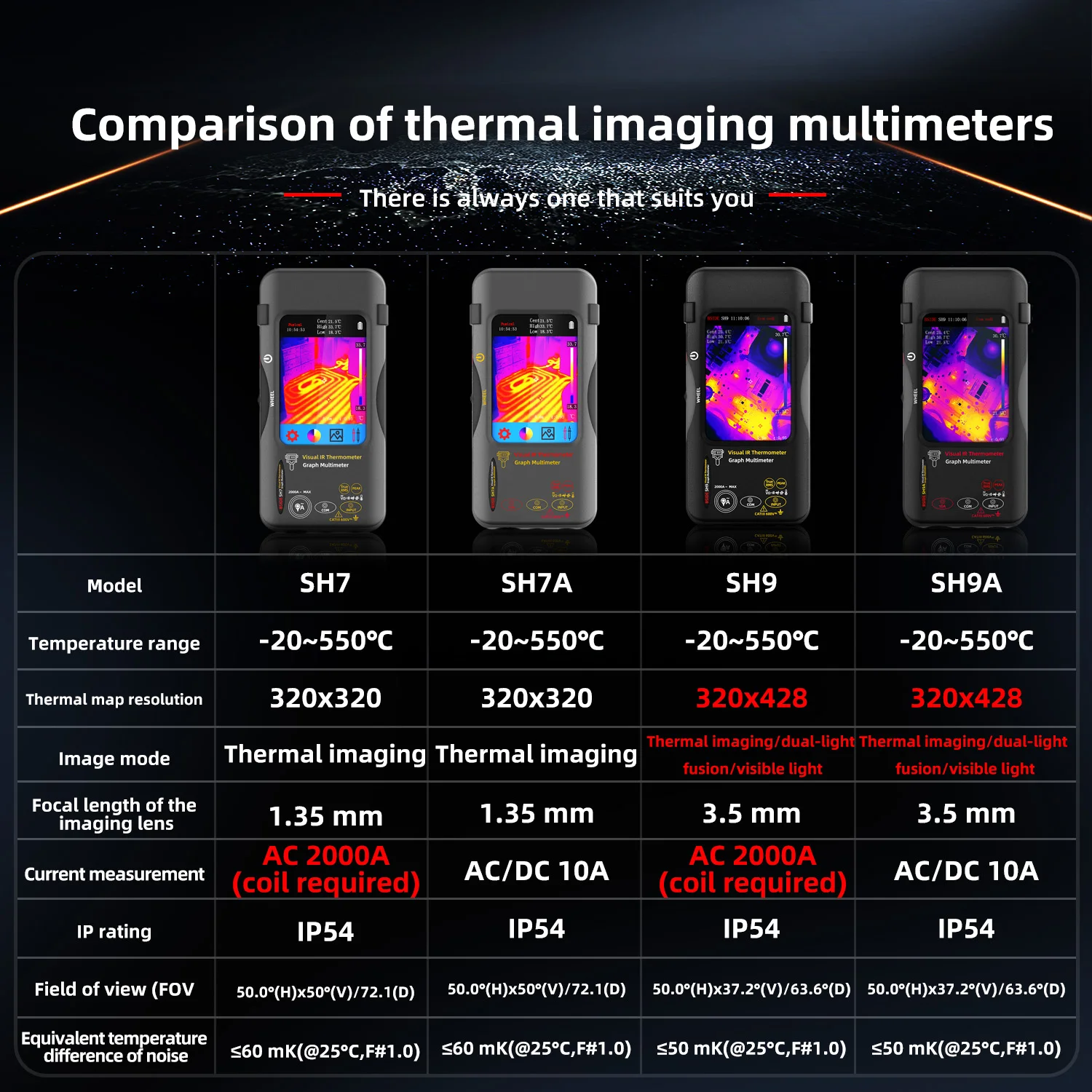

Thermal imaging parameters

Sensor: Vanadium oxide (VOx)

Image capture frequency:25Hz

SH9/SH9A Display image resolution:320 x 428

SH7/SH7A Display image resolution:320 x 320

SH9/SH9A Field of View (FOV):50.0°(H) × 37.2°(V)/63.6°(D)

SH7/SH7A Field of View (FOV):50.0°(H) × 50.0°(V)/72.1°(D)

SH9/SH9A lens focal length：3.5mm

SH7/SH7A lens focal length：1.35mm

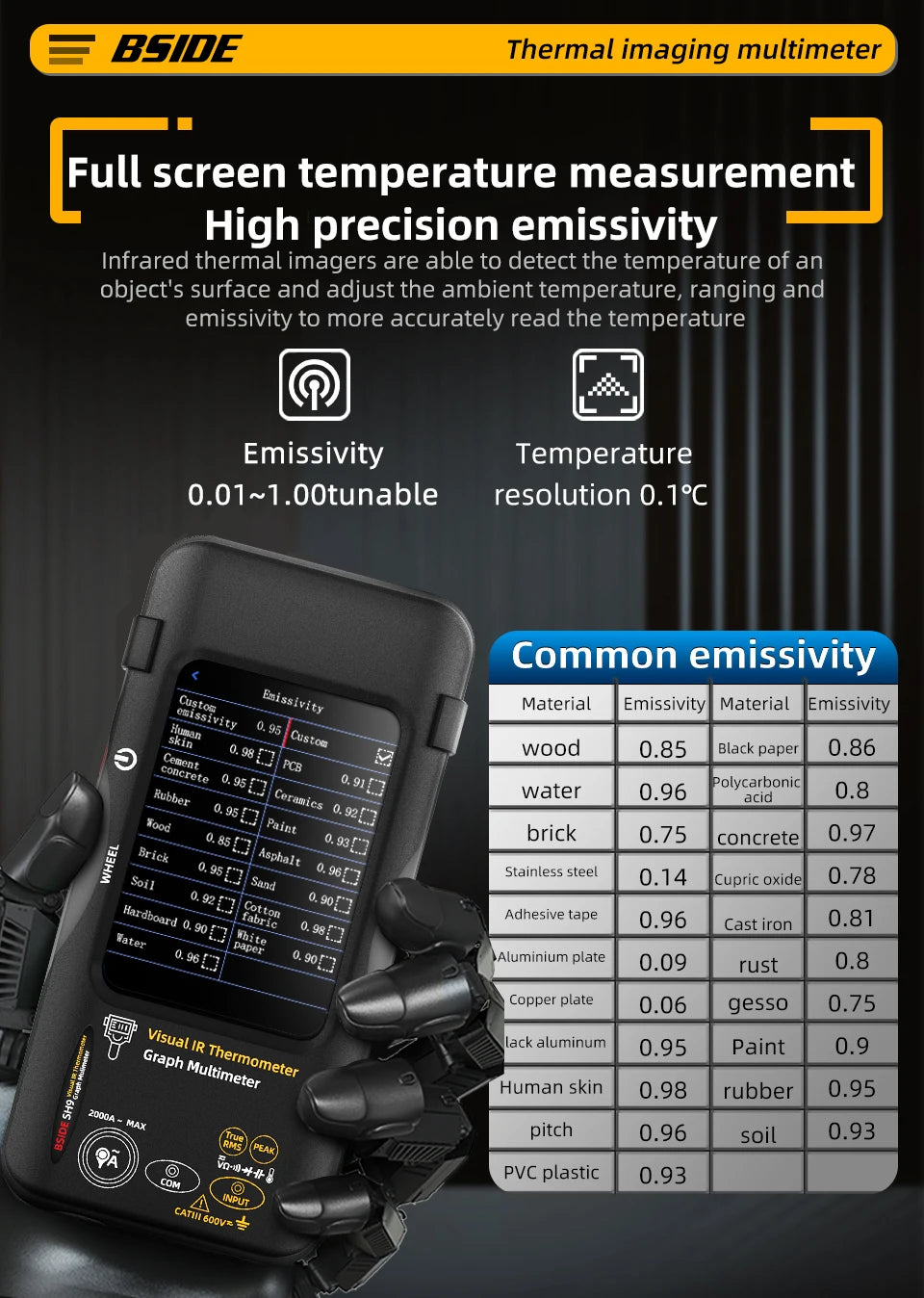

Emissivity:0.1 – 0.99 adjustable,(0.95 by default)

Temperature range:-20℃ ~ +550℃

Gain mode: Auto Gain

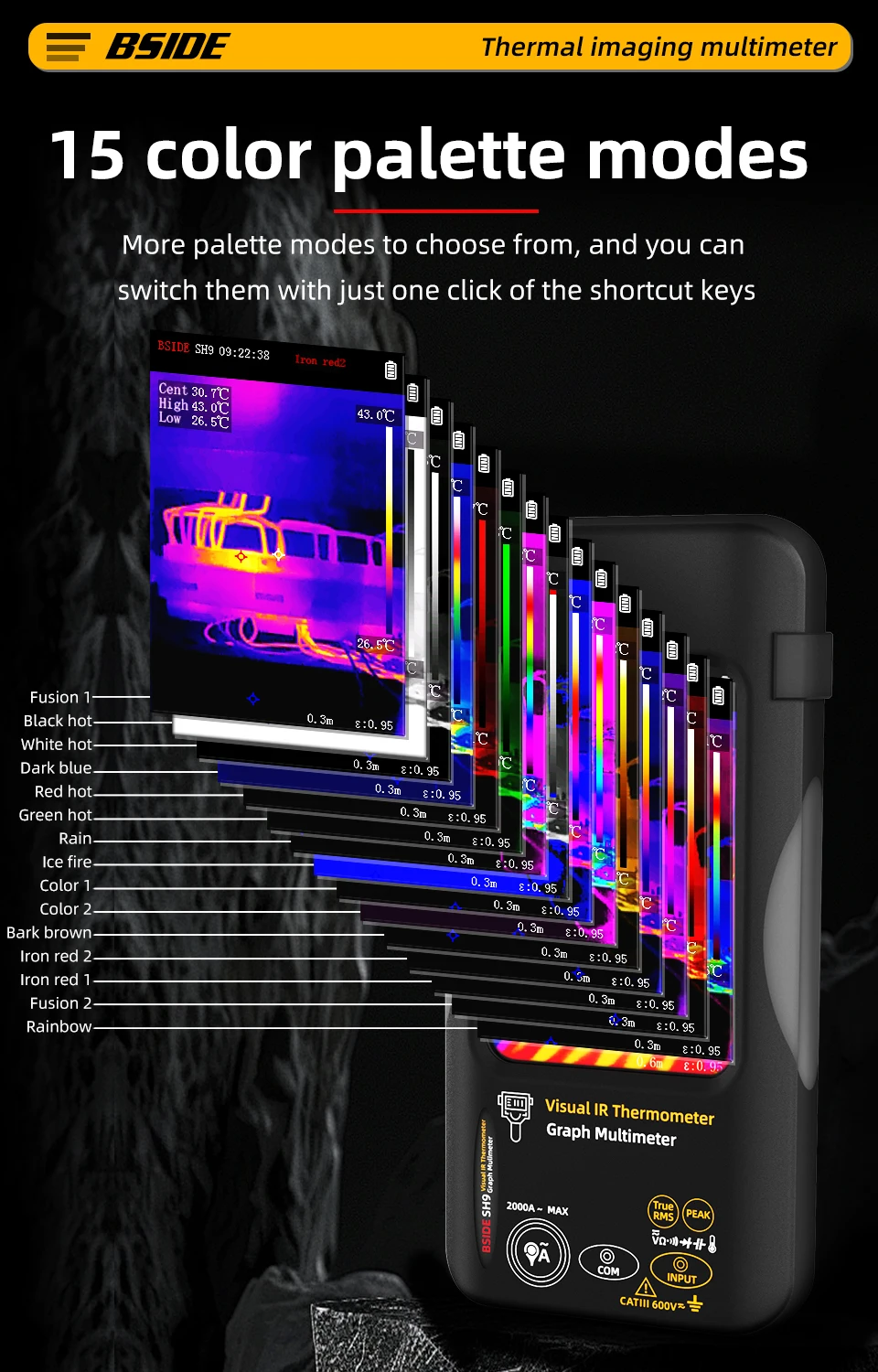

Color palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep Blue

Accuracy:±2℃or±2%

Measurement resolution:0.1℃/0.1℉

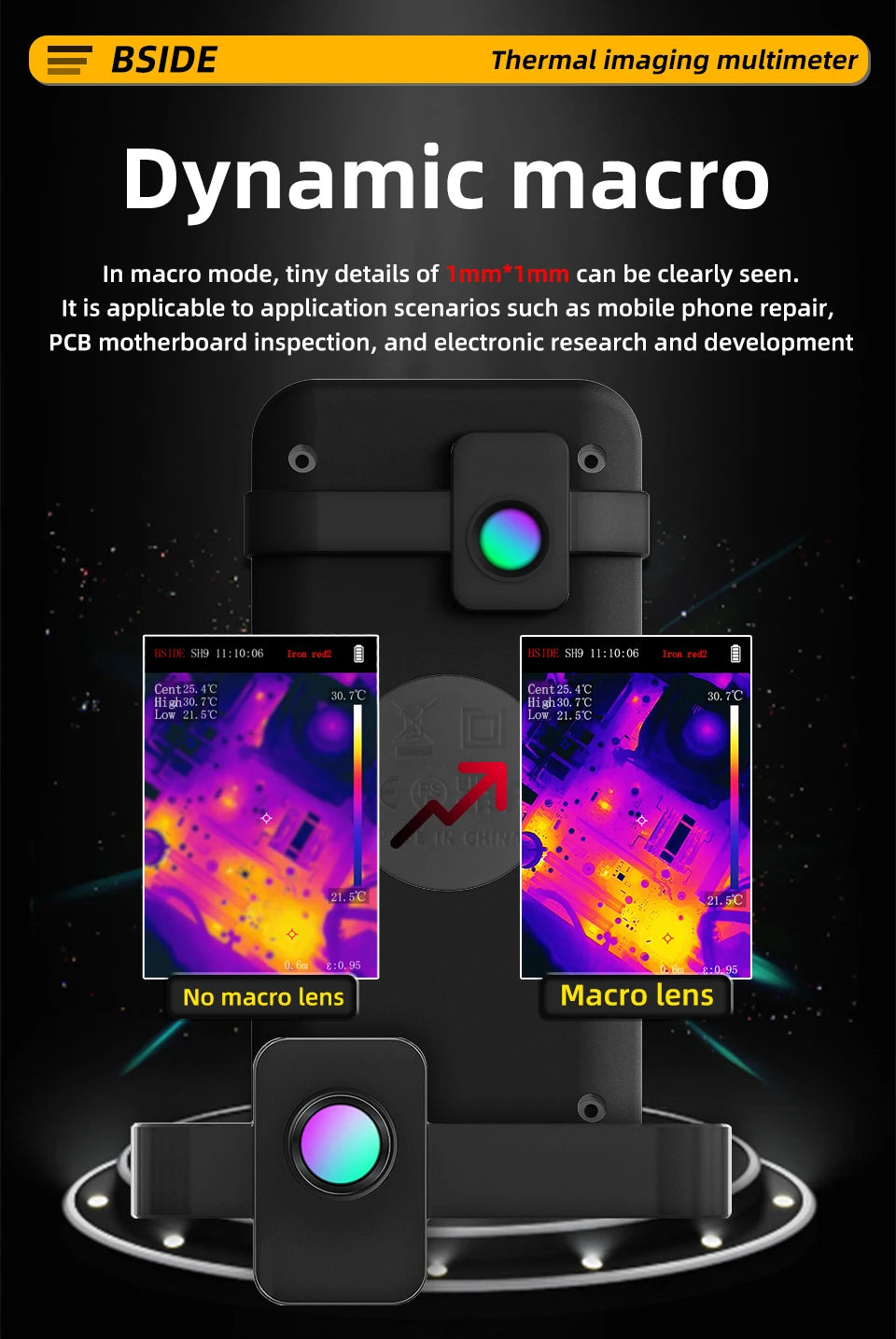

Macro Lens: Optional, no need to install, move the macro lens left and right during use.

Macro lens working distance: about 3~5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)

Other parameters of the equipment

Display type:3.98-inch 320 * 480 resolution

USB interface: Type-C USB

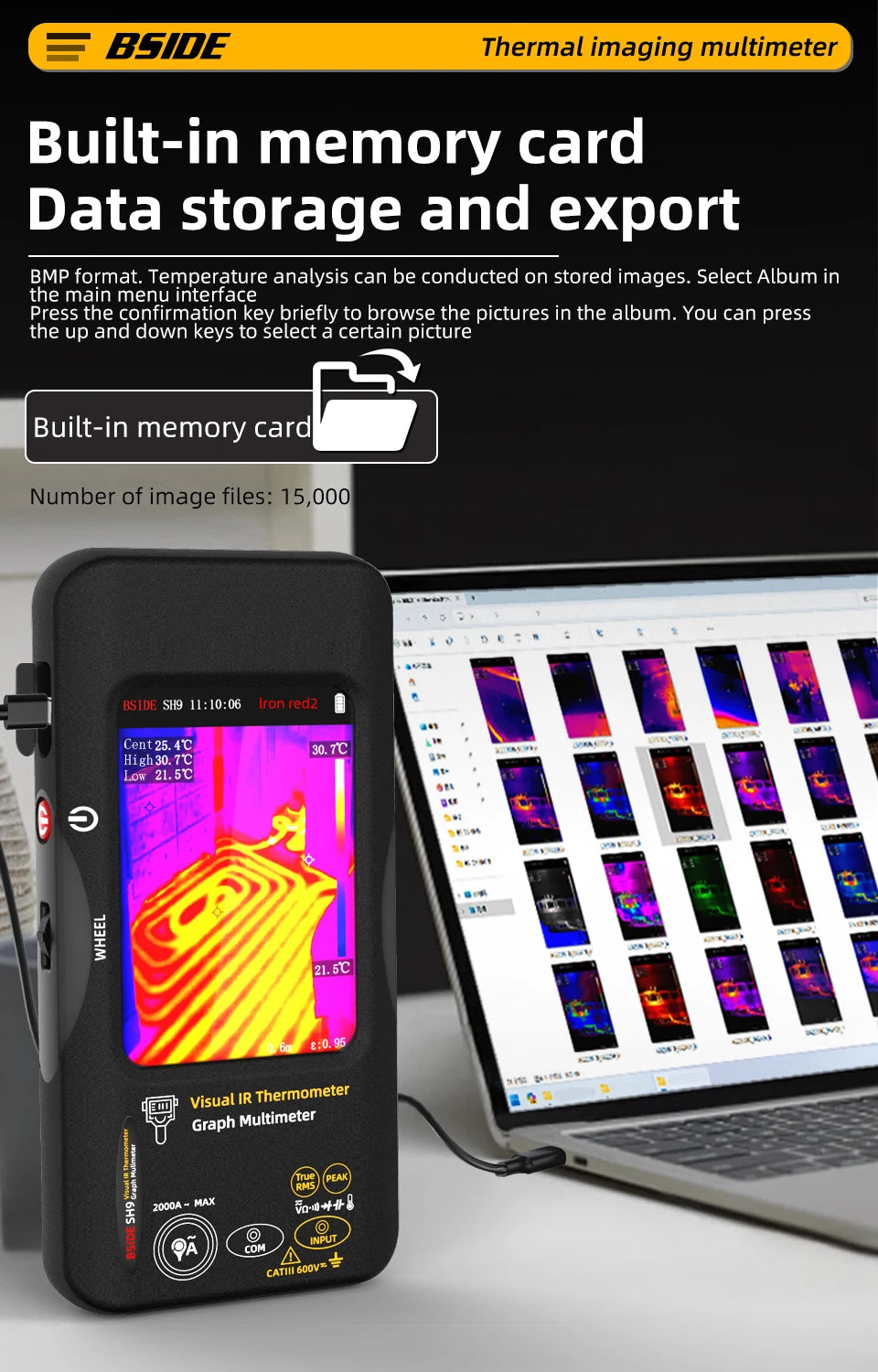

Storage capacity: includes a 4G TF card (Included).

Battery Type: Included Lithium-ion battery

Storage temperature:-20～60℃（-4～140℉）

Operating temperature:0～50℃（32～122℉）

Operating Humidity:＜85%RH （ non-condensing ）

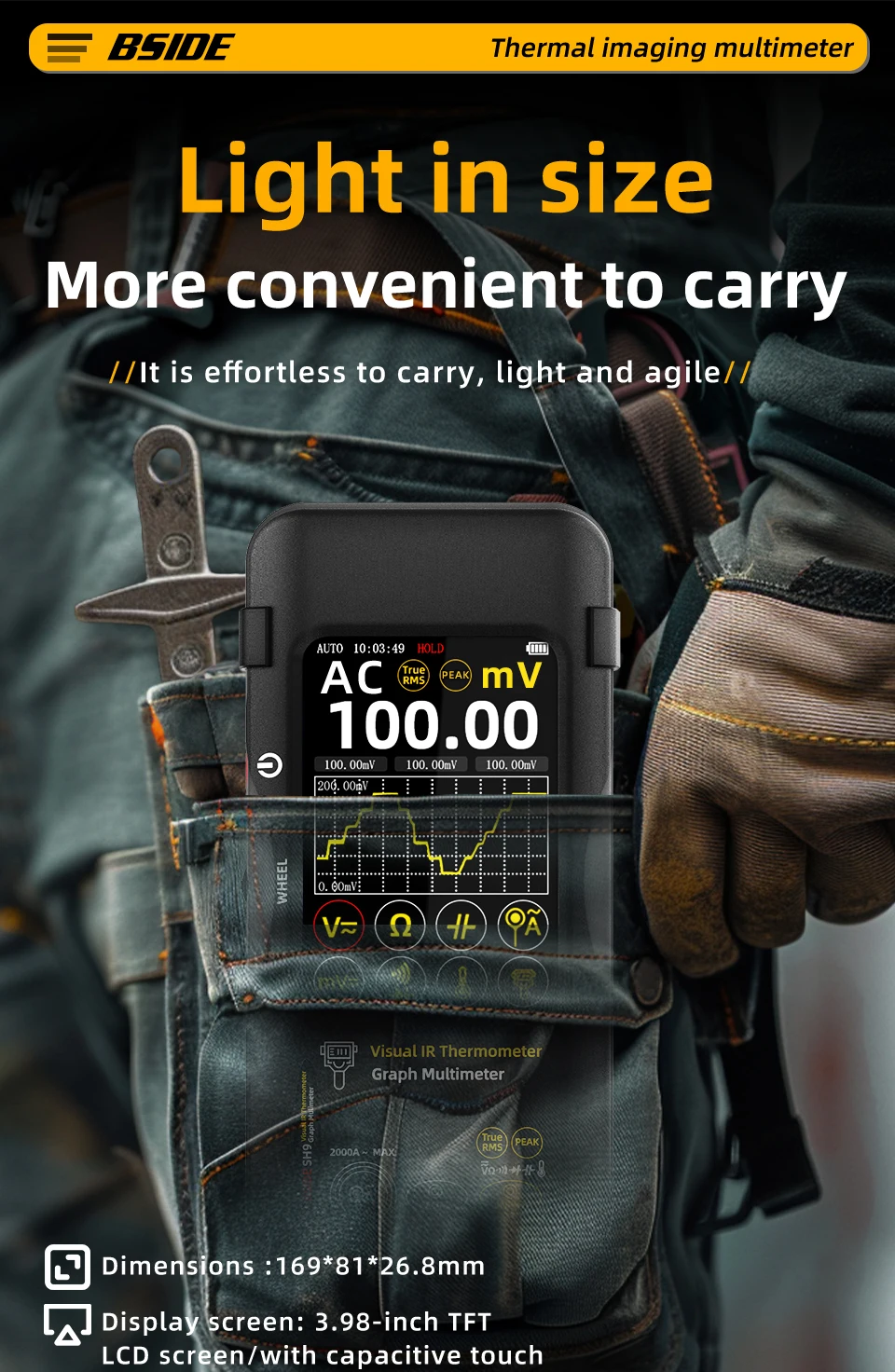

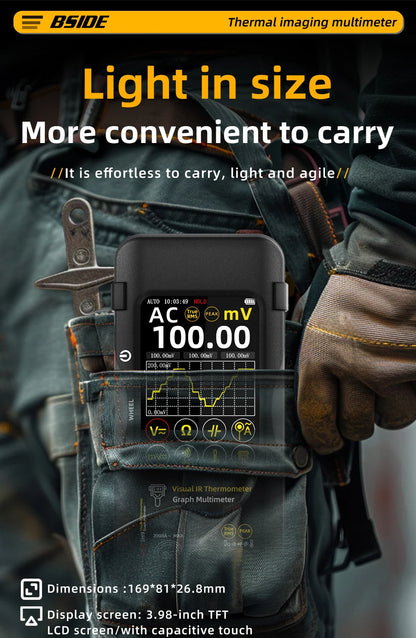

Size: 169*81*26.8mm

Weight: Host weight: 271g (including battery), packaging weight: 500g

Package List:

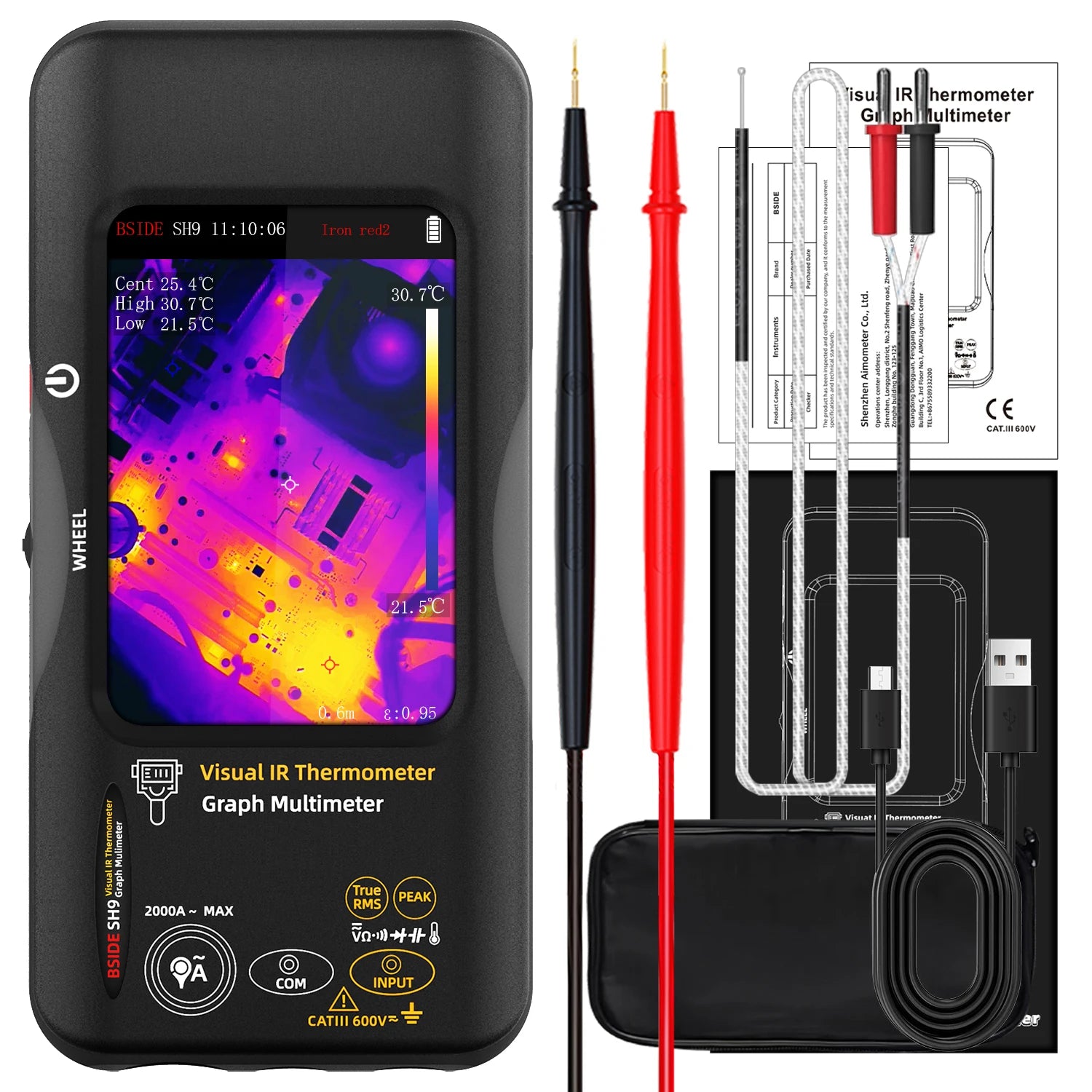

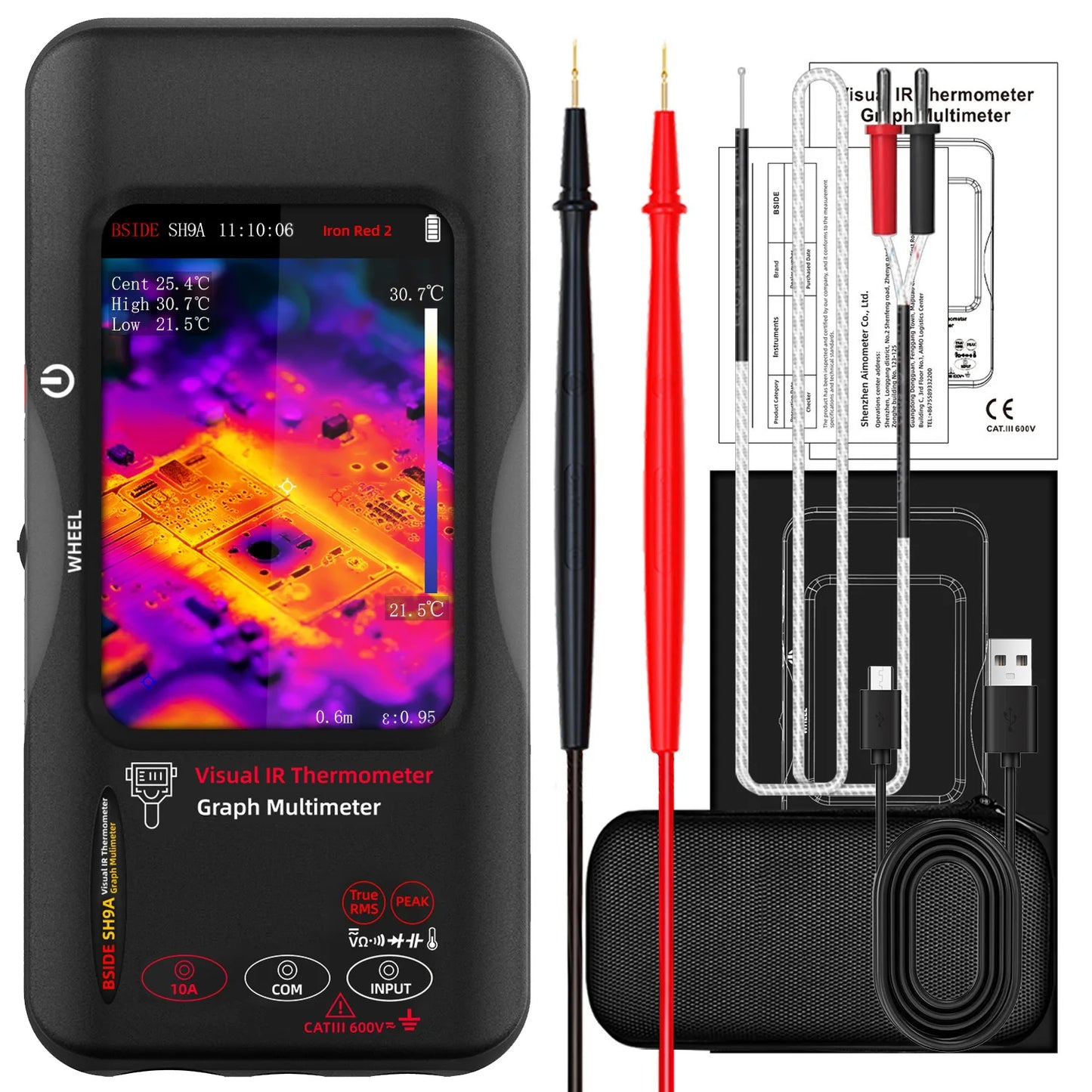

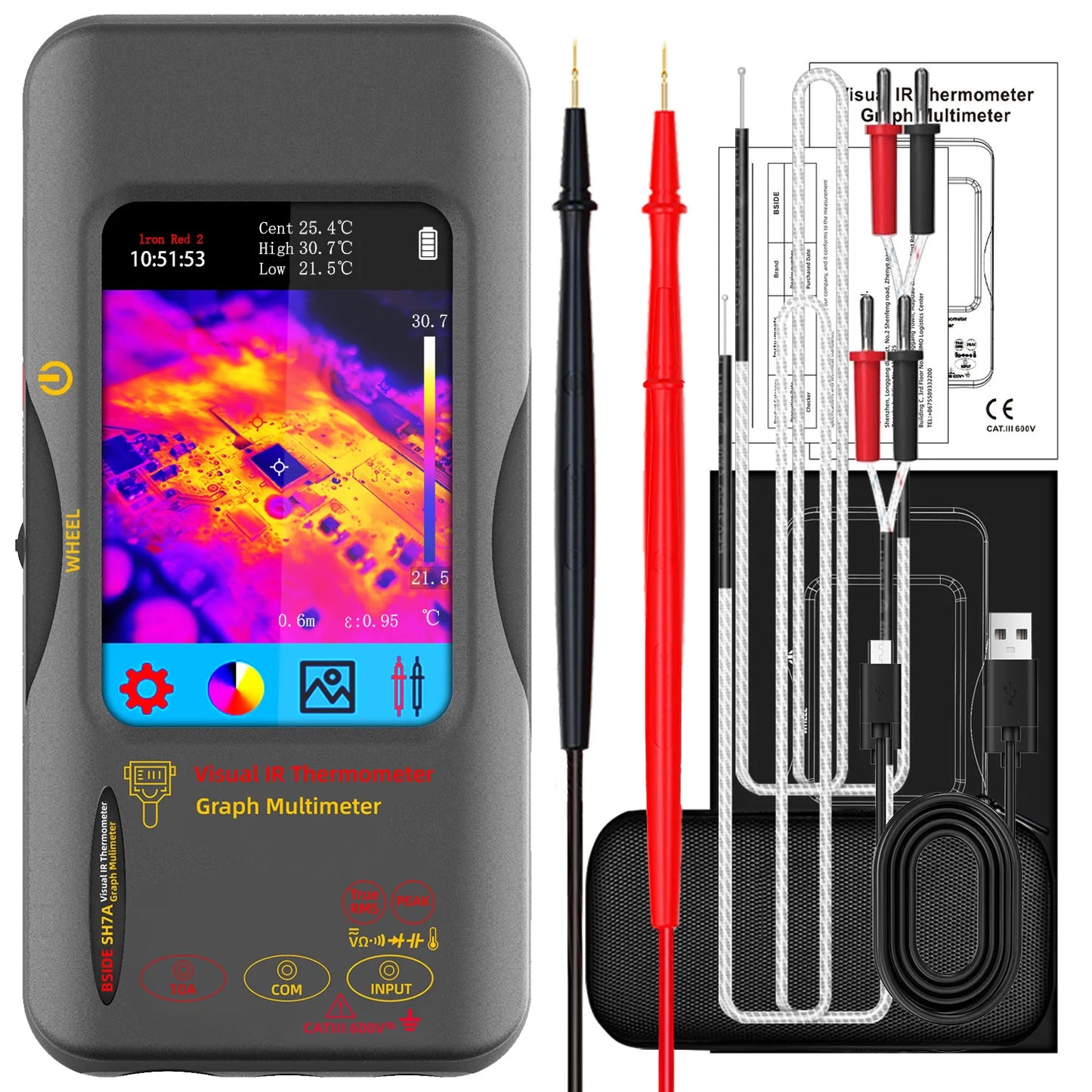

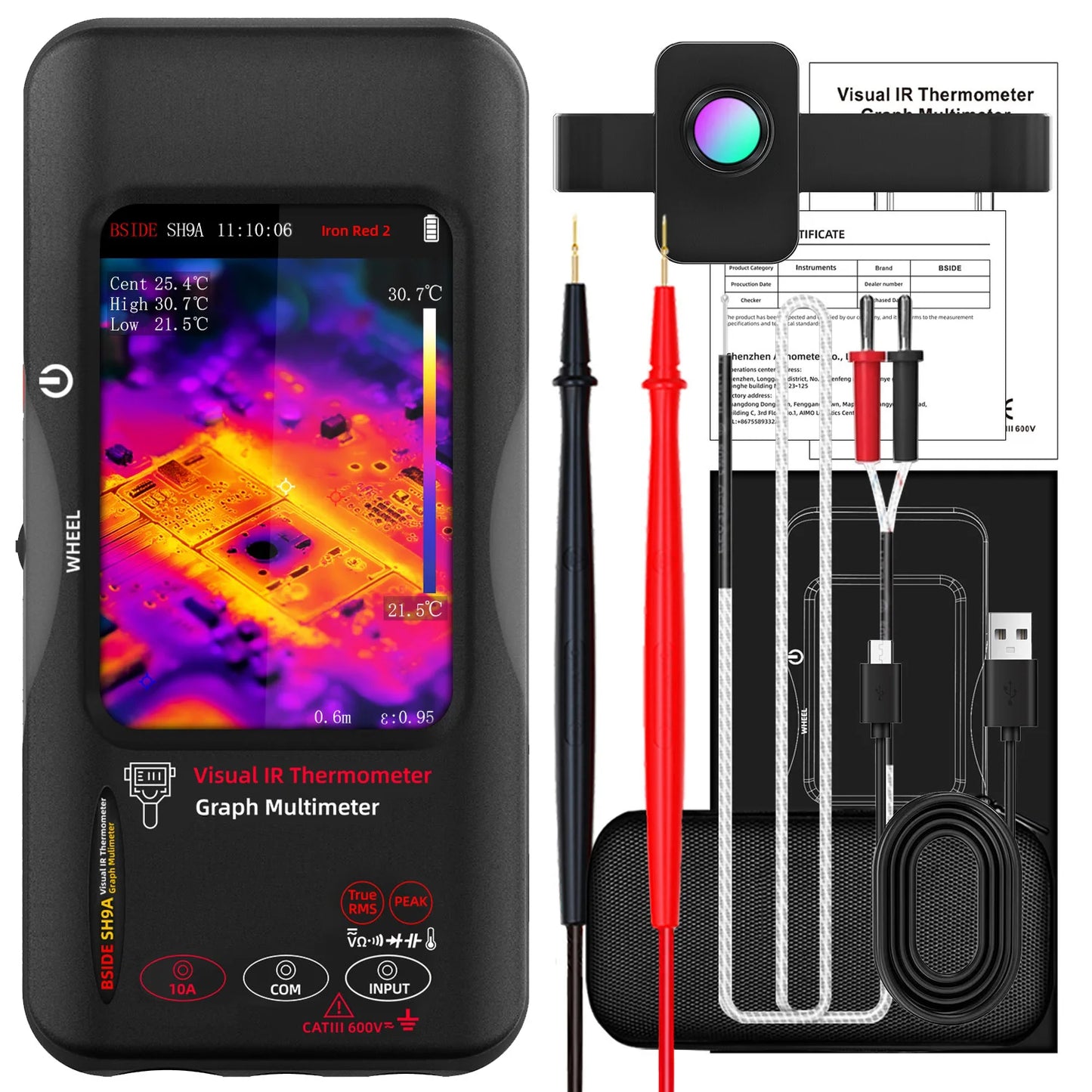

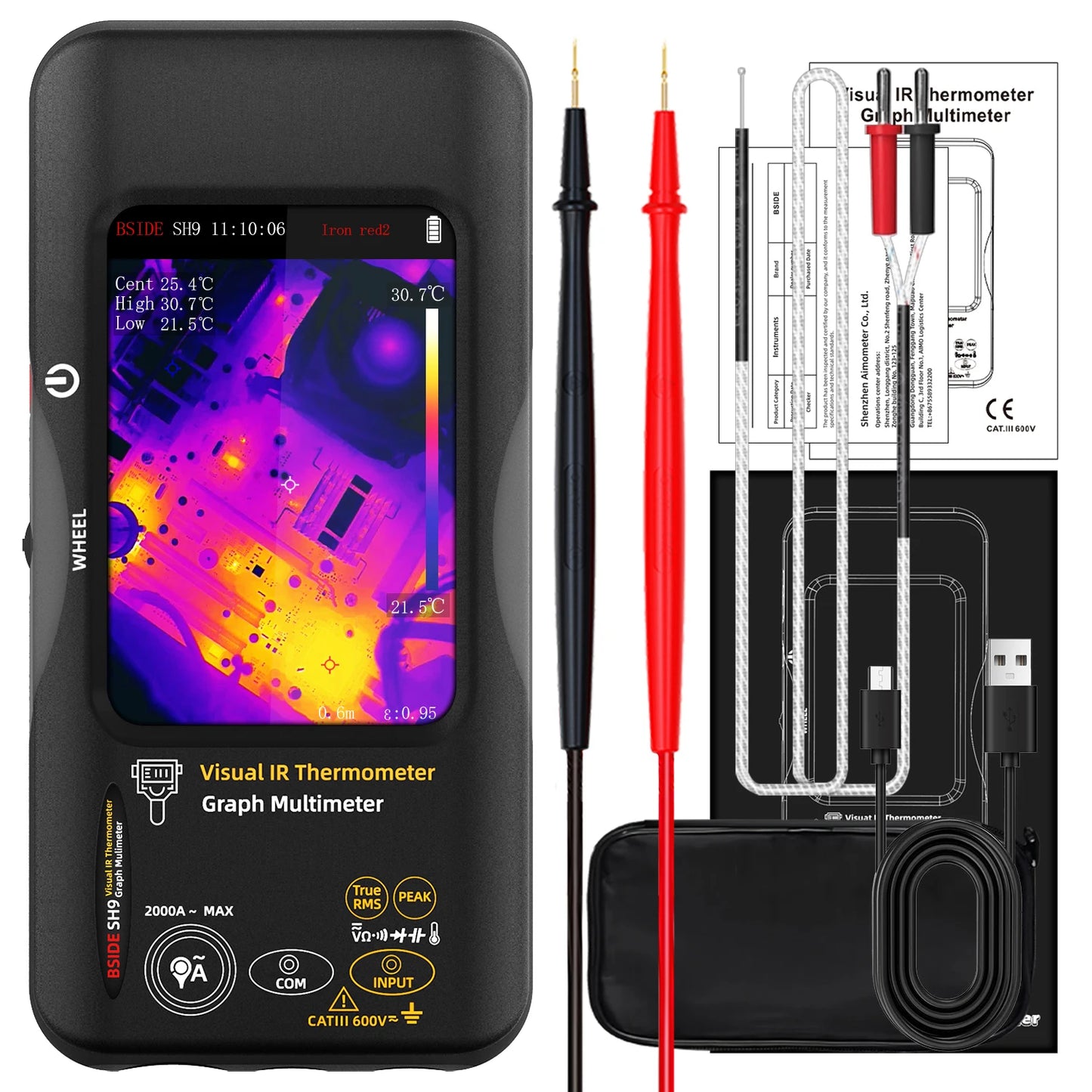

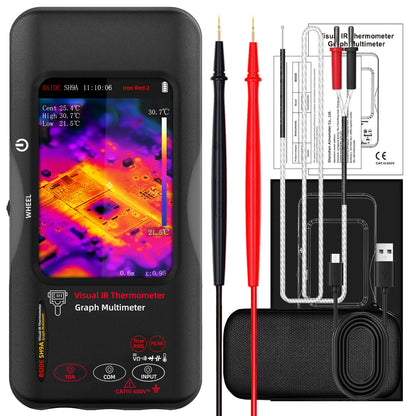

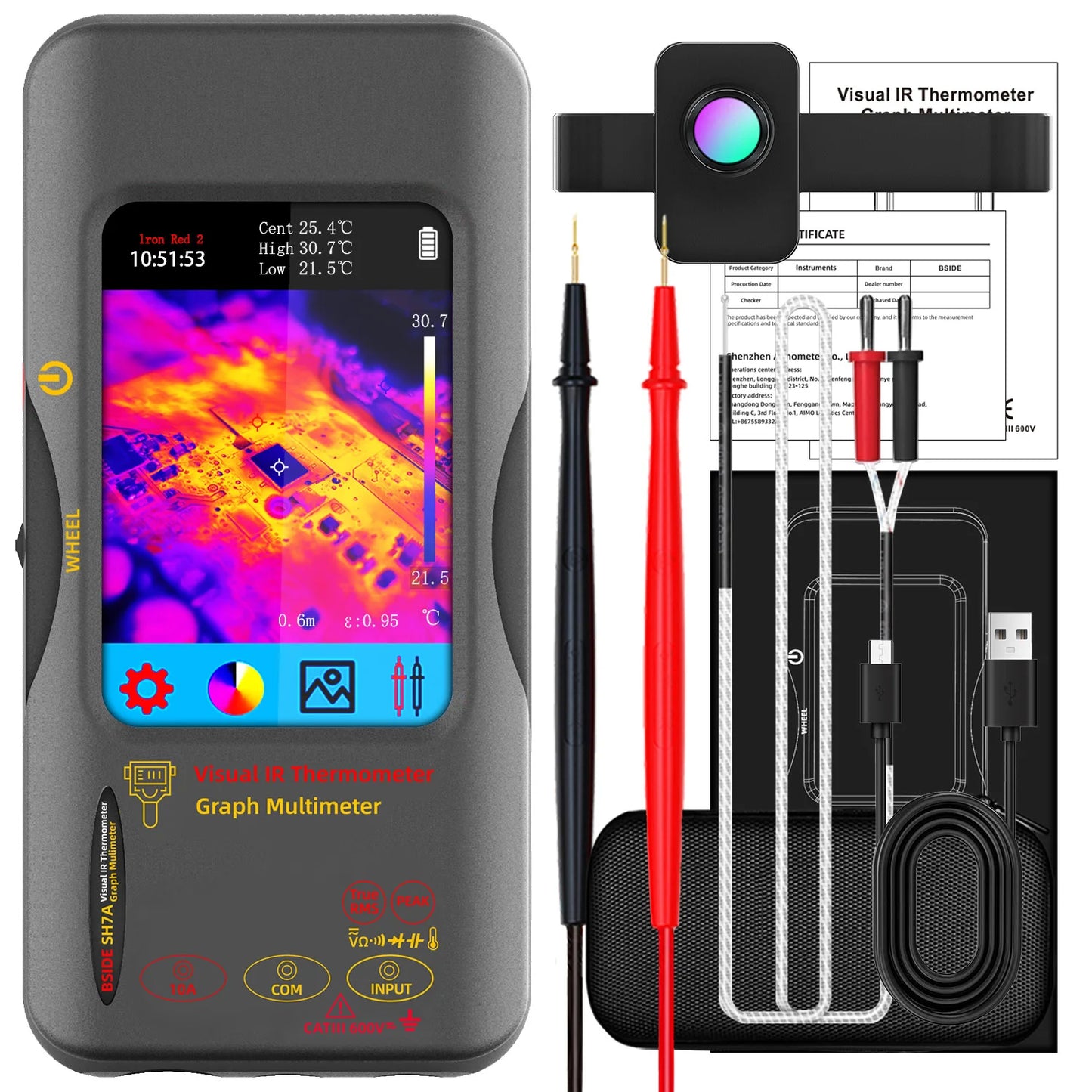

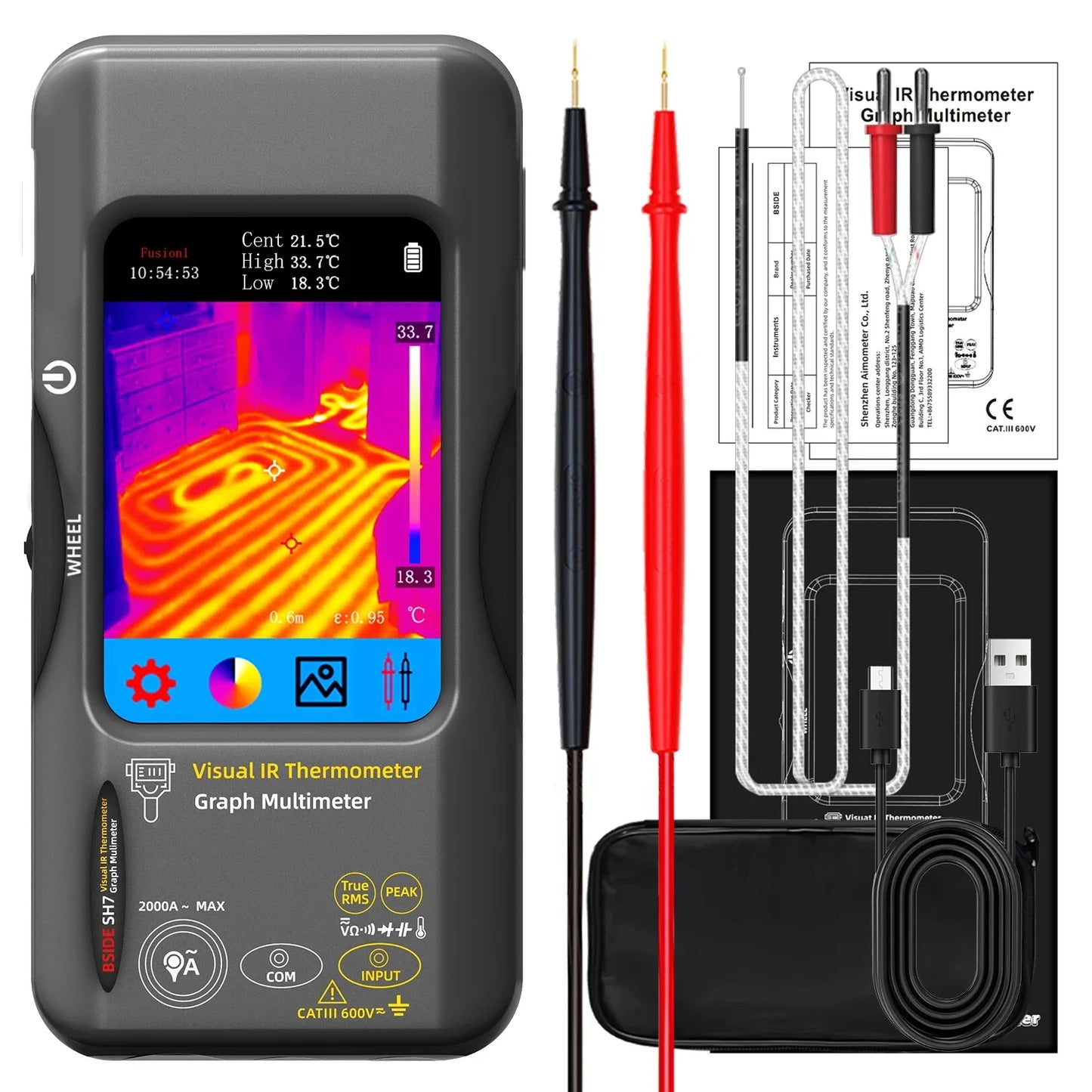

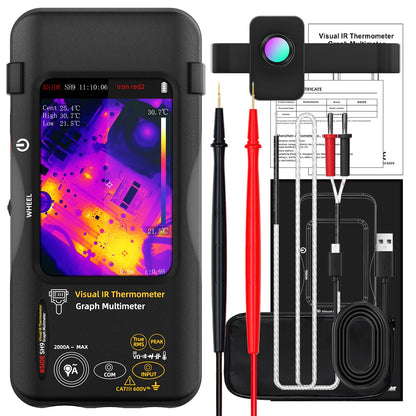

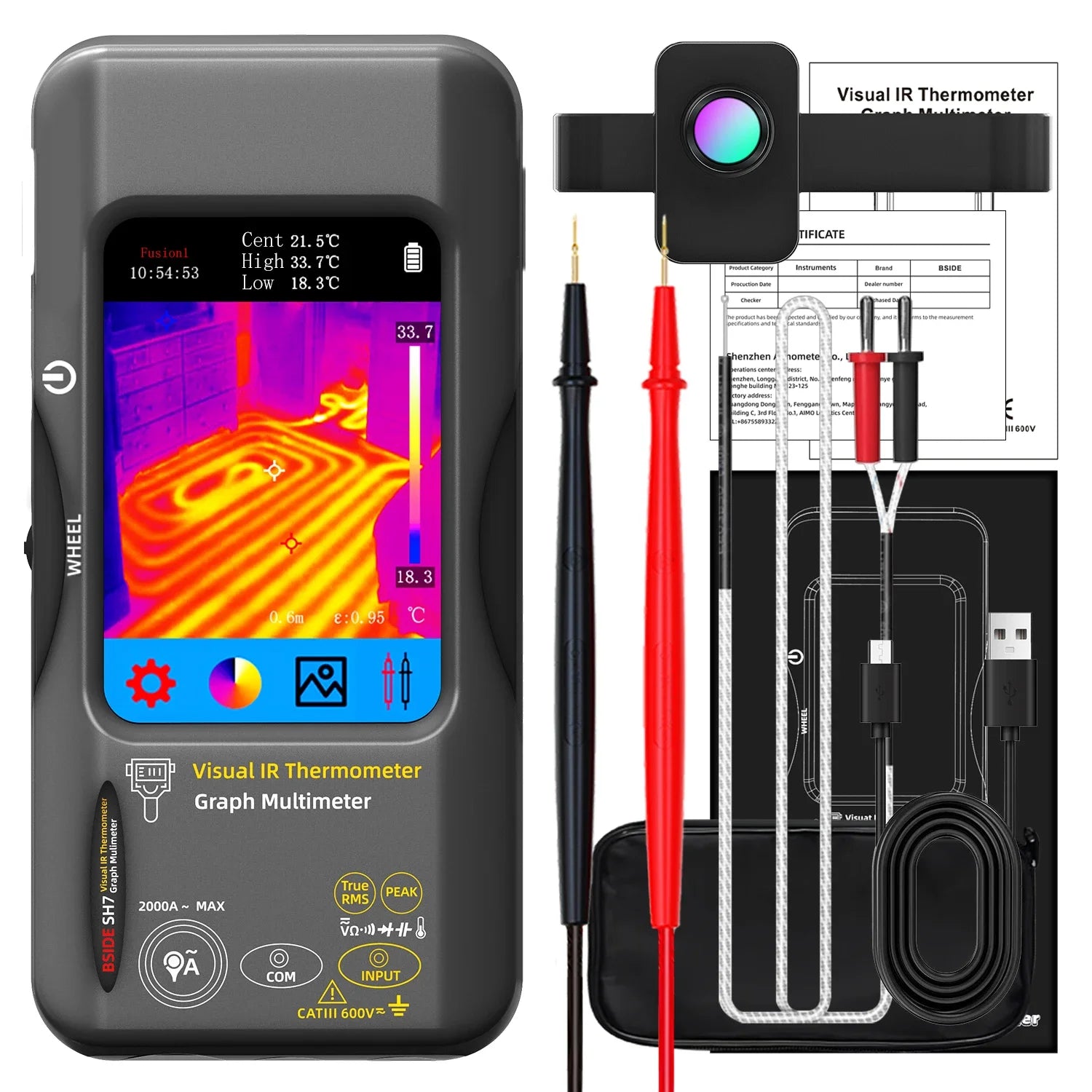

1 x BSIDE Thermal Camera Multimeter

1 x USB Cable

1 x English Manual

1 x storage bag

1 x multimeter probe

1 x Type K thermocouples

1 x 12-month warranty card

1 x Macro Lens (Optional)
