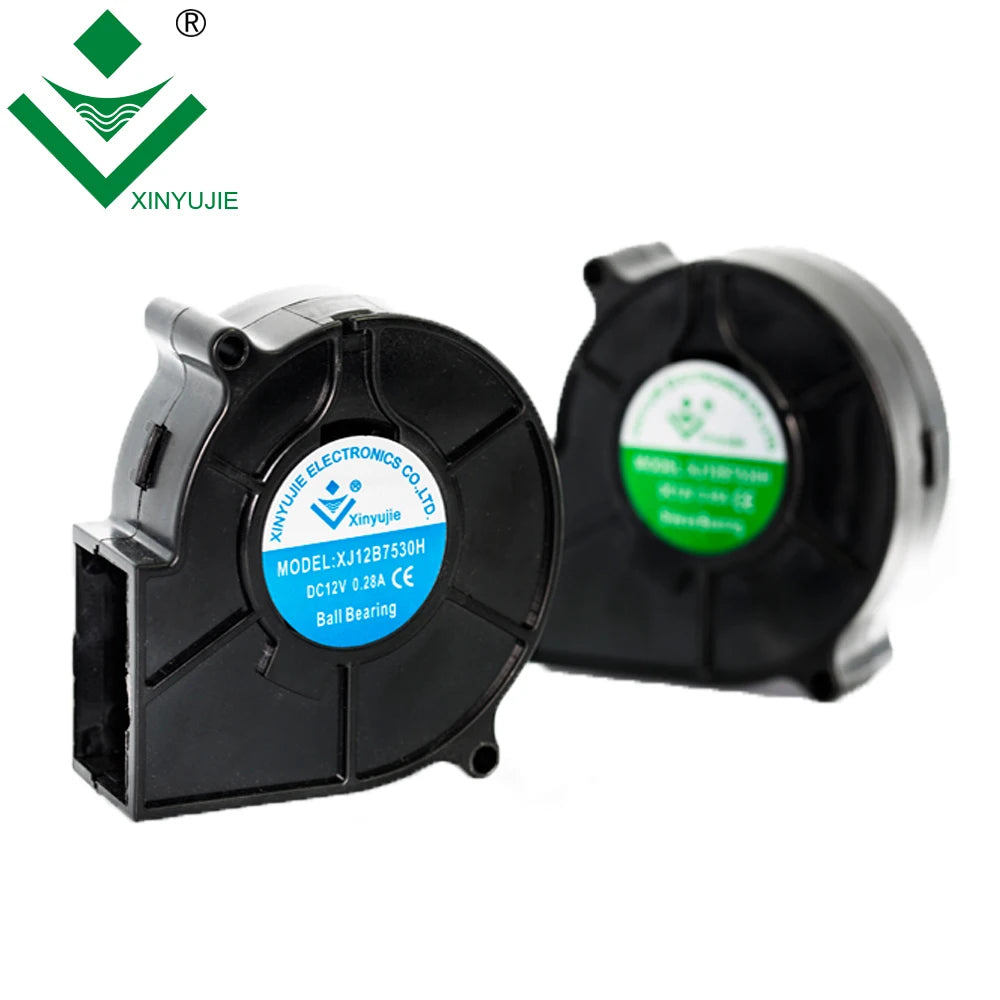

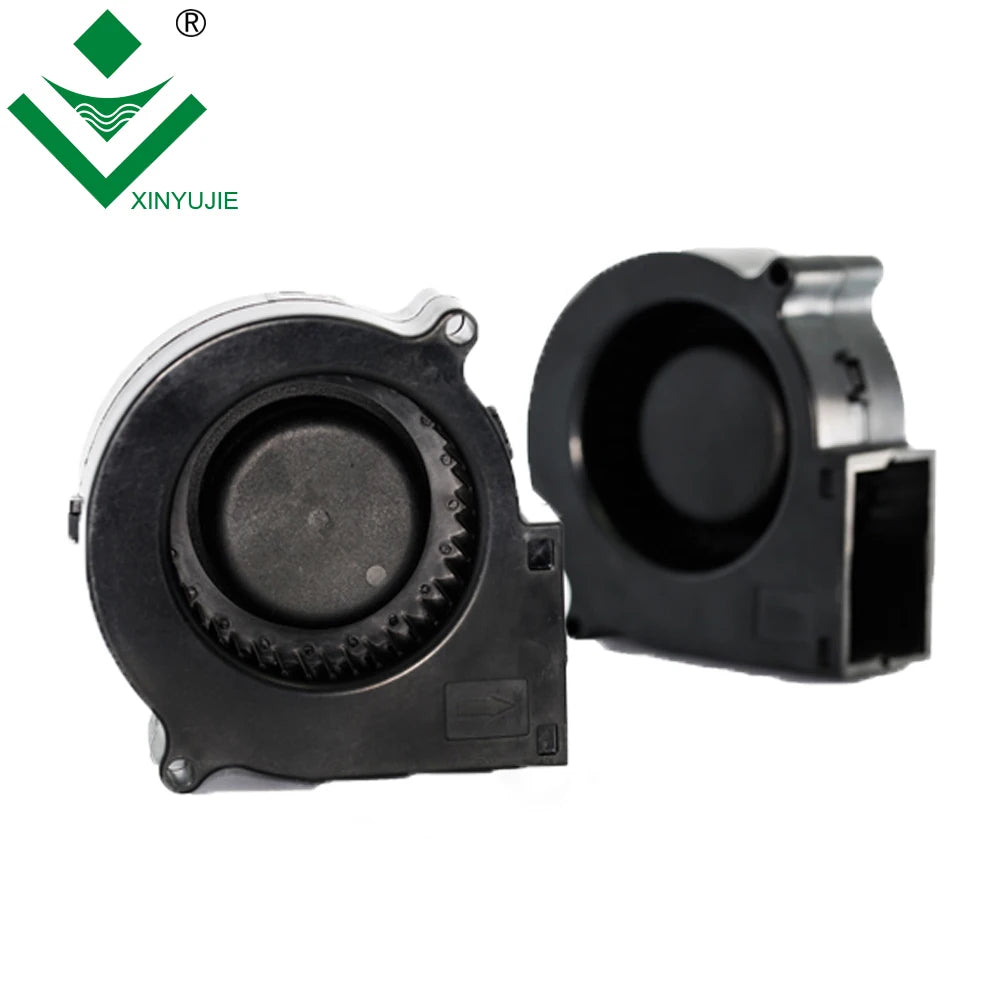

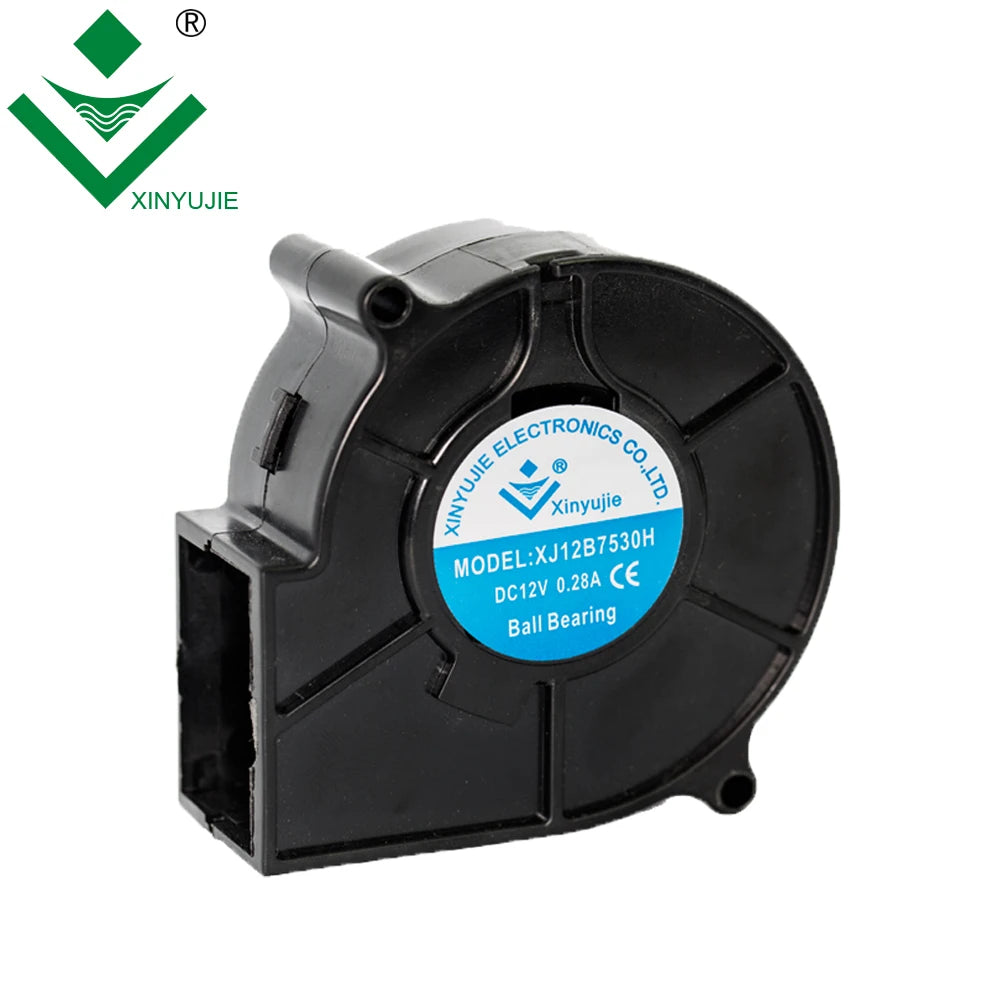

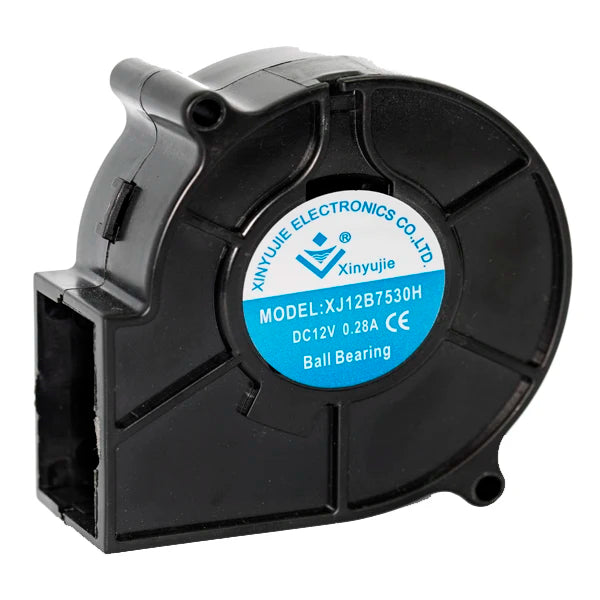

75X74X29.5MM Dc Brushless Fan Blower 12v 24v 5v Cpap Blower Car Seat 75mm air Dc Blower Fan
75X74X29.5MM Dc Brushless Fan Blower 12v 24v 5v Cpap Blower Car Seat 75mm air Dc Blower Fan
Couldn't load pickup availability
SPECIFICATIONS
After-sales Service Provided: No overseas service provided
Air flow: 12.35CFM
Brang name: XINYUJIE
Current Amp: 0.23A
Material: Plastic
Noise Level: 44d-BA
Power Source: Electric
Rated Voltage: 24V
Speed: 3500RPM
Startup Voltage: 12V
Type: Duct Axial Fan,Axial Flow Fan
Voltage: 24V
Weight: 77.00g
after-sales service provided: Video Technical Support
bearing type: Ball Bearing
blade material: Plastic
brand name: XINYUJIE
customized support: OEM,ODM
model number: XYJ24S7530H
mounting type: Other
place of origin: Guangdong, China
speed: 4500 RPM
warranty: 1 Year
75X74X29.5MM dc brushless fan blower 12v 24v 5v cpap blower car seat 75mm air dc blower fan

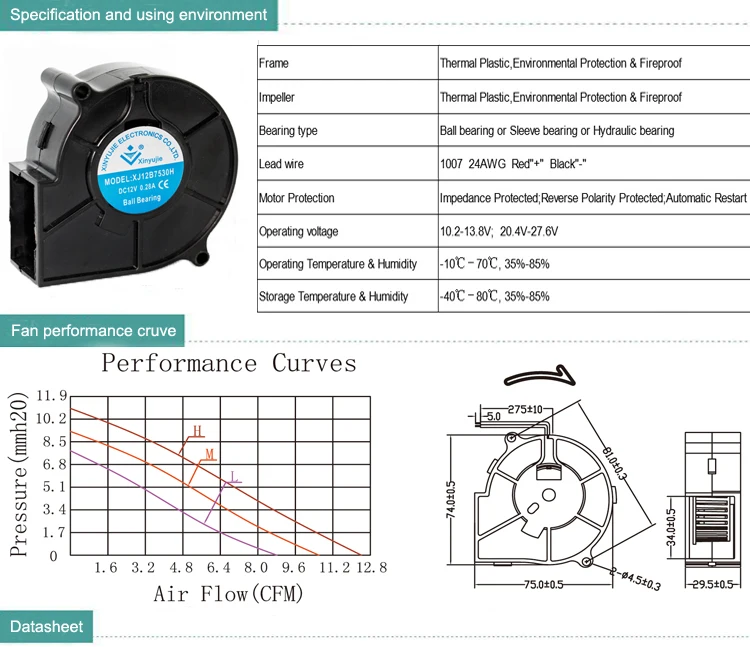

| Model | Dimension(MM) | Rated voltage(V) | Startup voltage(V) | Current Amp(A) | Speed(RPM) | Air flow(CFM) | Static Pressure(mmH2O) | Noise level(dBA) | Weight(g) |
| XYJ12B7530H | 75X74X29.5MM | 12 | 6 | 0.45 | 3500 | 12.35 | 11.00 | 44 | 77.00 |
| XYJ12B7530M | 12 | 6 | 0.30 | 3000 | 11.56 | 9.30 | 39 | 77.00 | |
| XYJ12B7530L | 12 | 6 | 0.18 | 2500 | 9.80 | 7.88 | 34 | 77.00 | |
| XYJ24B7530H | 24 | 12 | 0.23 | 3500 | 12.35 | 11.00 | 44 | 77.00 | |
| XYJ24B7530M | 24 | 12 | 0.16 | 3000 | 11.56 | 9.30 | 39 | 77.00 | |
| XYJ24B7530L | 24 | 12 | 0.10 | 2500 | 9.80 | 7.88 | 34 | 77.00 |




Â
1. What’s the difference between the sleeve and ball bearing fan?
The ball bearing brand was NSK bearing imported from Japan.
The warranty for ball bearing fan is 30,000 hours but sleeve bearing just 10,000 hours.
Ball bearing has 5-8 years lifetime,sleeve bearing has 2-3 years lifetime.
Ball bearing fan noise level won’t change for a long time term,but sleeve bearing fan noise level will grown as time goes on.
Sleeve bearing is cheaper than ball bearing fans.
Â
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stppage Alarm,Waterproof(IP55-IP68 optional), PWM function ,Temperature control etc.
Â
3. How long can your wire length be ?
The wire length and terminal could be customized as your request. We just need the picture of connector and rank of wires for confirm.(Default wire length is 200mm)
Â
4. What’s your MOQ and delivery date ?
MOQ200PCS
Sample lead time:5 working days
Mass production:15 working days
Waterproof fans need 1 more week
Â
 5. What’s your payment terms ?
We accept Payment by T/T,Western Union, Paypal ,L/C,and we advocate Credit Insurance Payment on Alibaba
100% payment for sample orders ,30% prepayment and Balance 70% before shipment.
Â
6.What kind of transportation can we choose ?
Express:DHL,EMS,Fedex,UPS,IATA,TNT,China AIR Express,Iceland express etc.
Sea transportation as you request.
Â
7. What’s your packaging?
Knife card packing,carton package
normal carton size 43X28X43CM,different model will lead to carton size different.
75X74X29.5MM dc brushless fan blower 12v 24v 5v cpap blower car seat 75mm air dc blower fan
