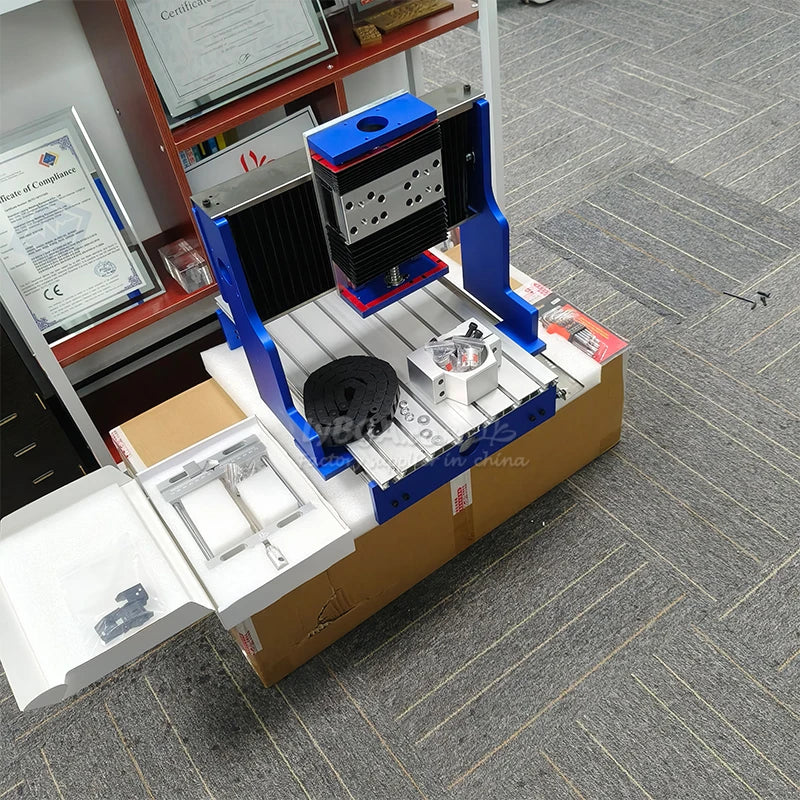

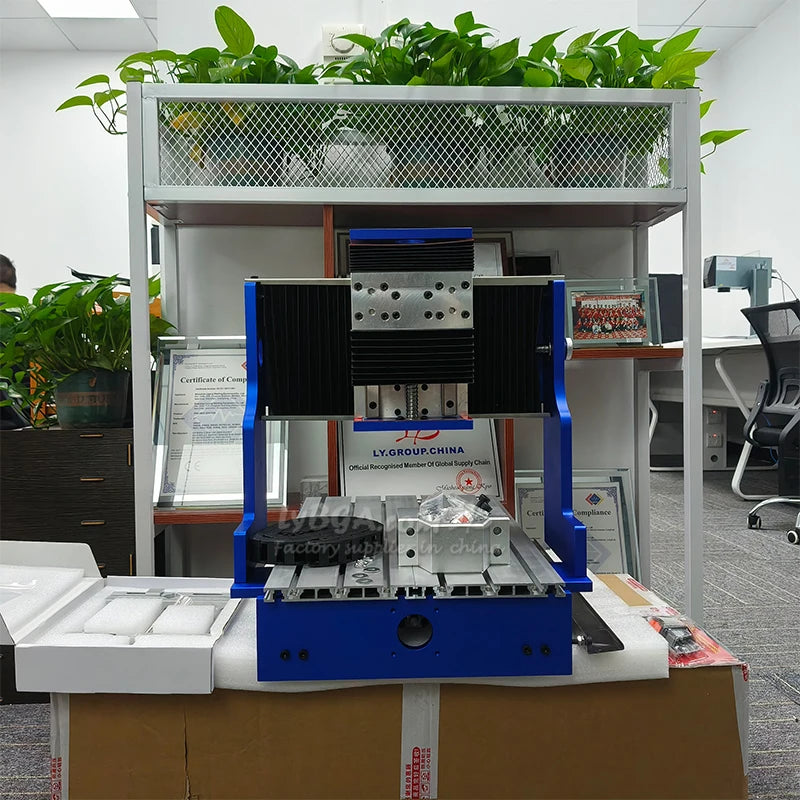

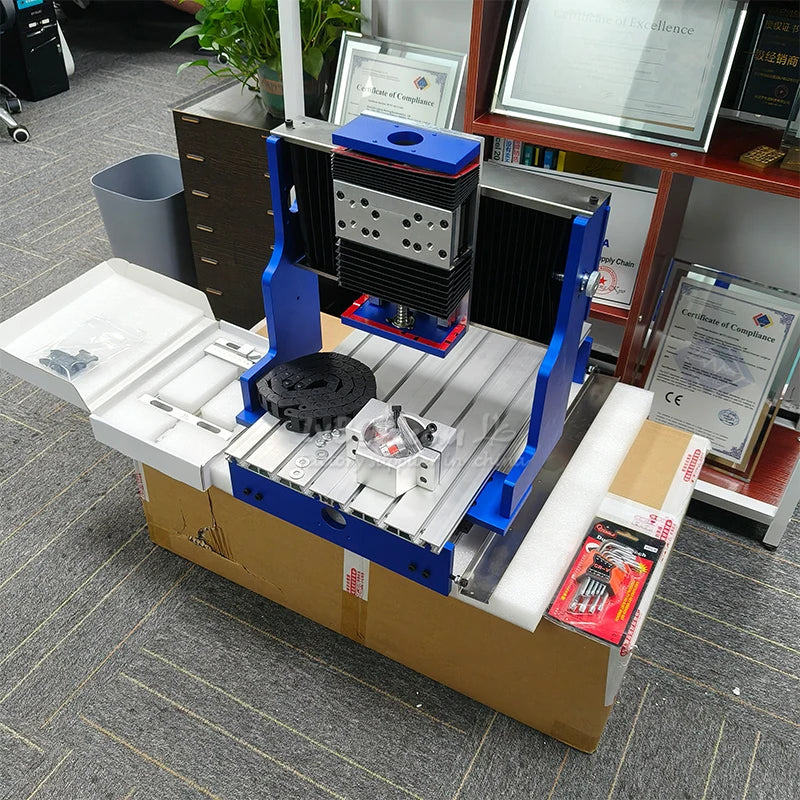

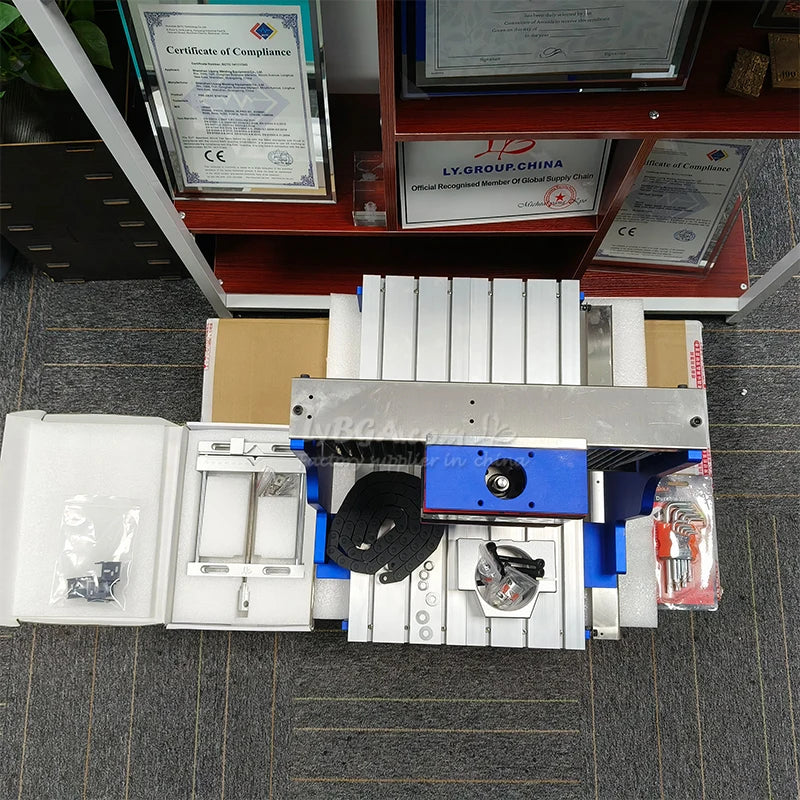

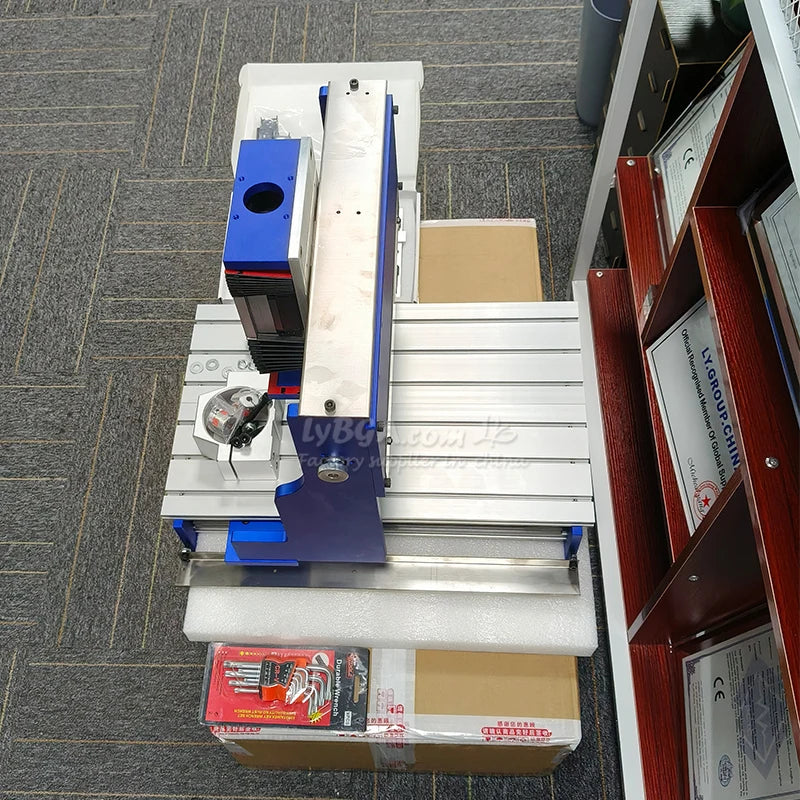

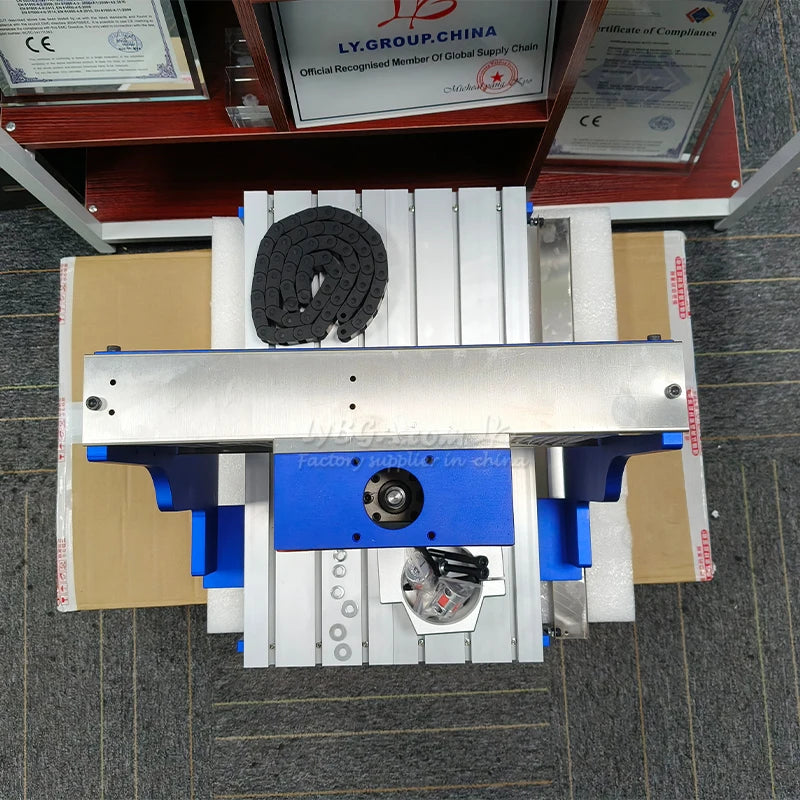

6040L CNC Frame Assembly Square Linear Guide Rail Ball Screw DIY Milling Machine Base With Dust Shield for Woodworking Cutting
6040L CNC Frame Assembly Square Linear Guide Rail Ball Screw DIY Milling Machine Base With Dust Shield for Woodworking Cutting
Couldn't load pickup availability
SPECIFICATIONS
Power(W): 150
Voltage: 220 V
Weight (kg): 48
brand name: LY
core components: Motor,Bearing
machinery test report: Provided
place of origin: Guangdong, China
video outgoing-inspection: Provided
warranty: 1 Year
LY CNC Square Rail Linear Guides CNC Milling Machine Frame Kit Tools 6040L Ball Screw Wood Router Lathe Bed with Dust Cover
Â
|

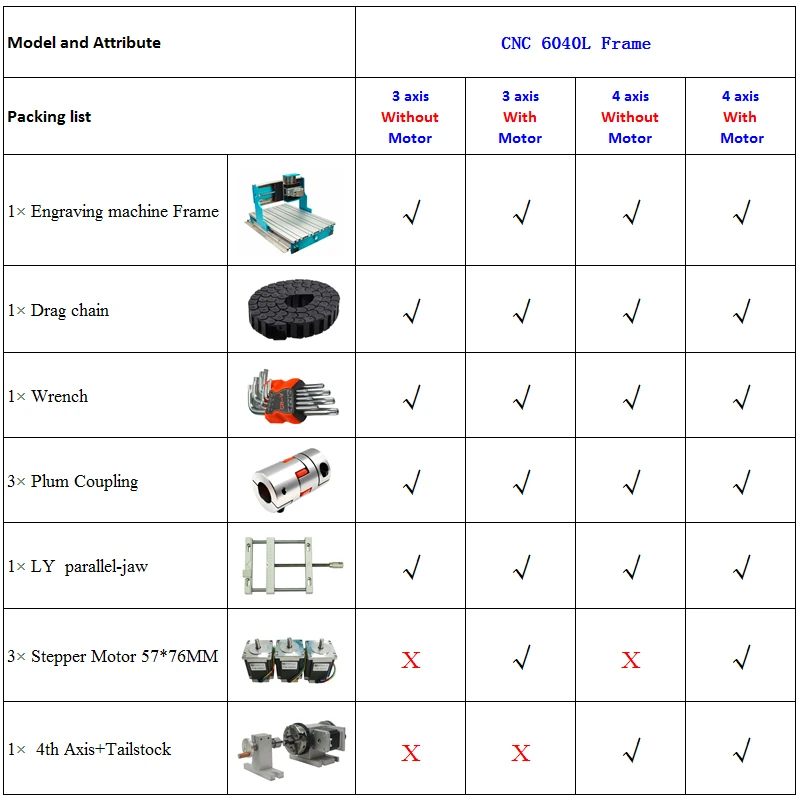

MODELÂ Â Â Â Â Â Â Â |
CNC Frame 3040L 6040L |
|||
|
Attribute |
3axis No Stepper |
3axis With Stepper |
4axis No Stepper |
4axis With Stepper |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Have stepper motor? |
No |
Yes |
No |
Yes |
|
Have 4th axis? |
No |
No |
Yes |
Yes |
|
Weight |
30 |
34 |
33 |
37 |
|

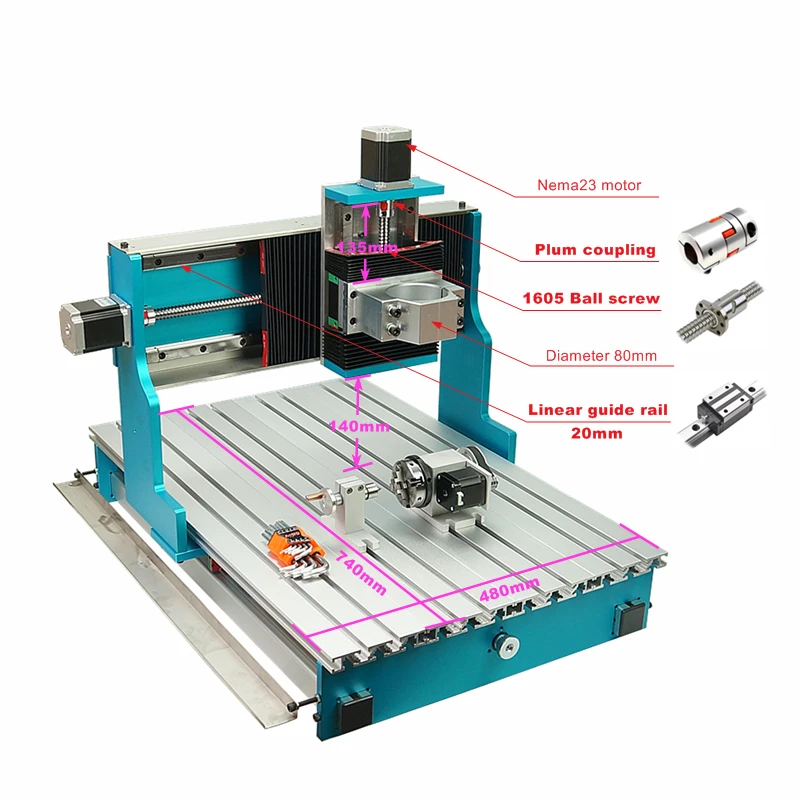

Rack material: |
6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
|||
|
Table material: |
3040 Model =320 * 520mm , 6040 Model = 740x480mm (20mm aluminum alloy T table) |
|||
|
Engraving area: |
3040 Model =260*380*110mm , 6040 Model = 360*570*120mm |
|||
|
Z-Axis Stroke: |
3040 Model = 110mm, 6040 Model = 120mm ,Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
3040 Model ≤ 135mm , 6040 Model ≤ 140mm |
|||
|

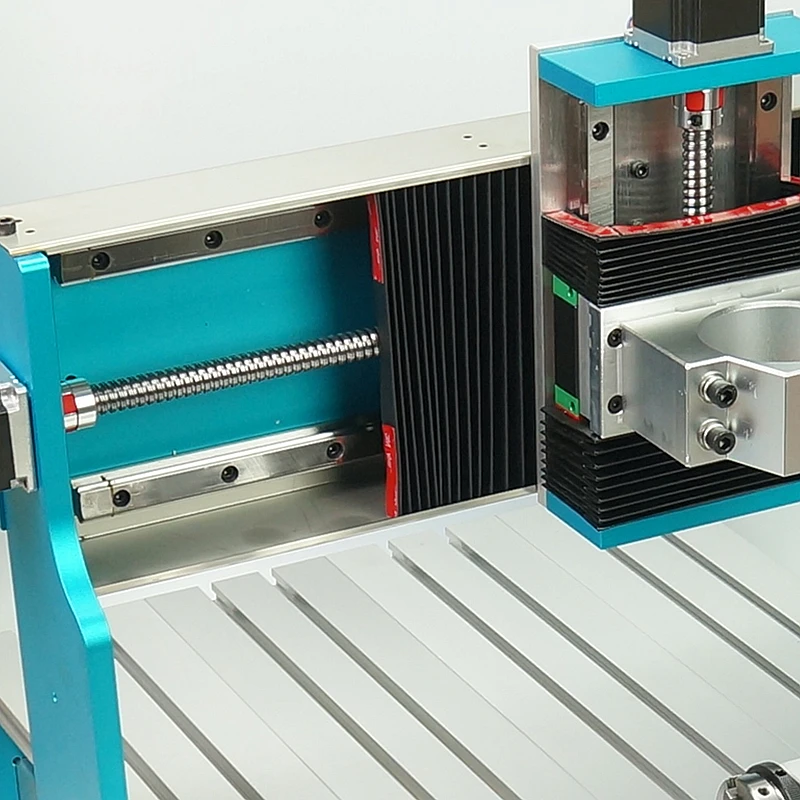

Rail type: |
Square line rail track, three-axis is 20 mm square wire track, high precision, high strength, top configuration. |
|||
|
Type of screw: |
Ball screw 1605 |
|||
|

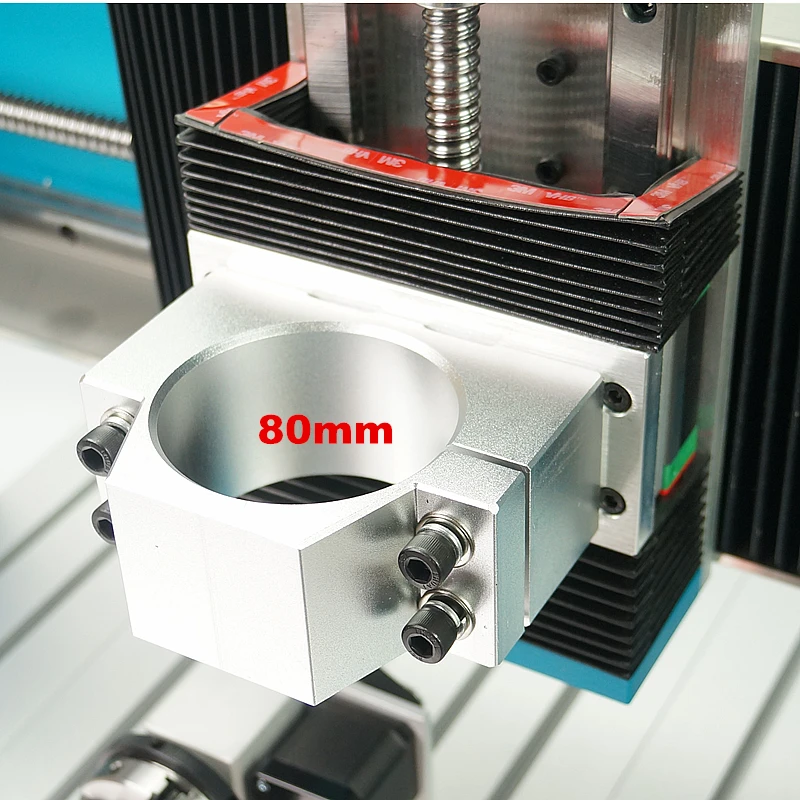

Diameter of Spindle motor: |
80mm |
|||
|

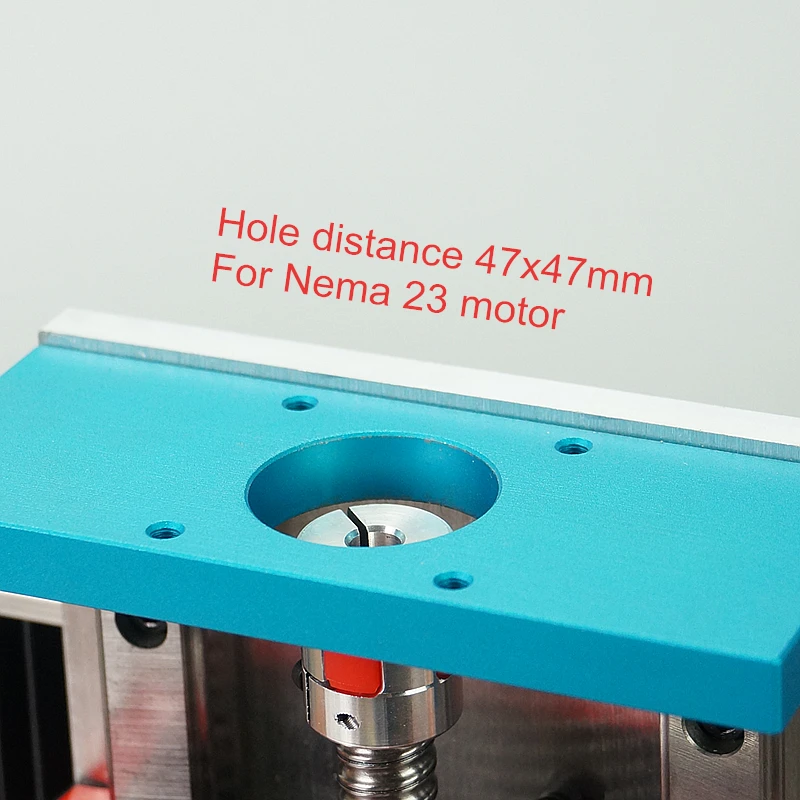

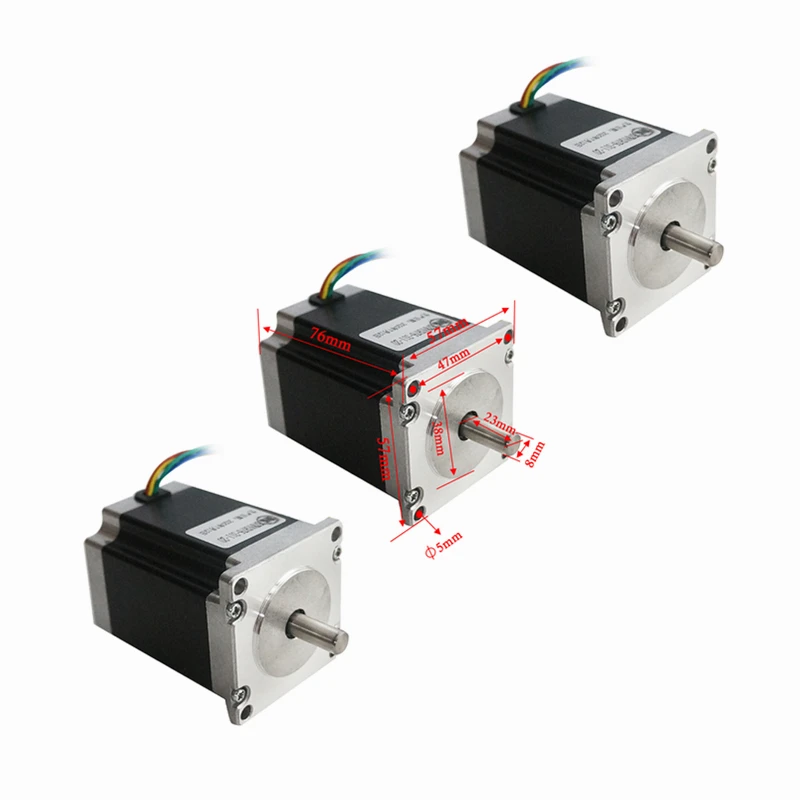

Motor |
Nema 23 (57*76mm) |
|||
|
Rotation Axis (4th Axis) optinal Description: |
Chuck: 65MM 4-jaw chuck Center height: 54MM Speed reducing ratio: 4:1 Stepper motor: Two phase 42 stepper motor |
|||
