- The digital image transmission system and visual perception of DJI FPV flying glasses are the evolution of the FPV industry. At the same time, the simulated FPV system represented by Fatshark also has a very large market base and inventory.

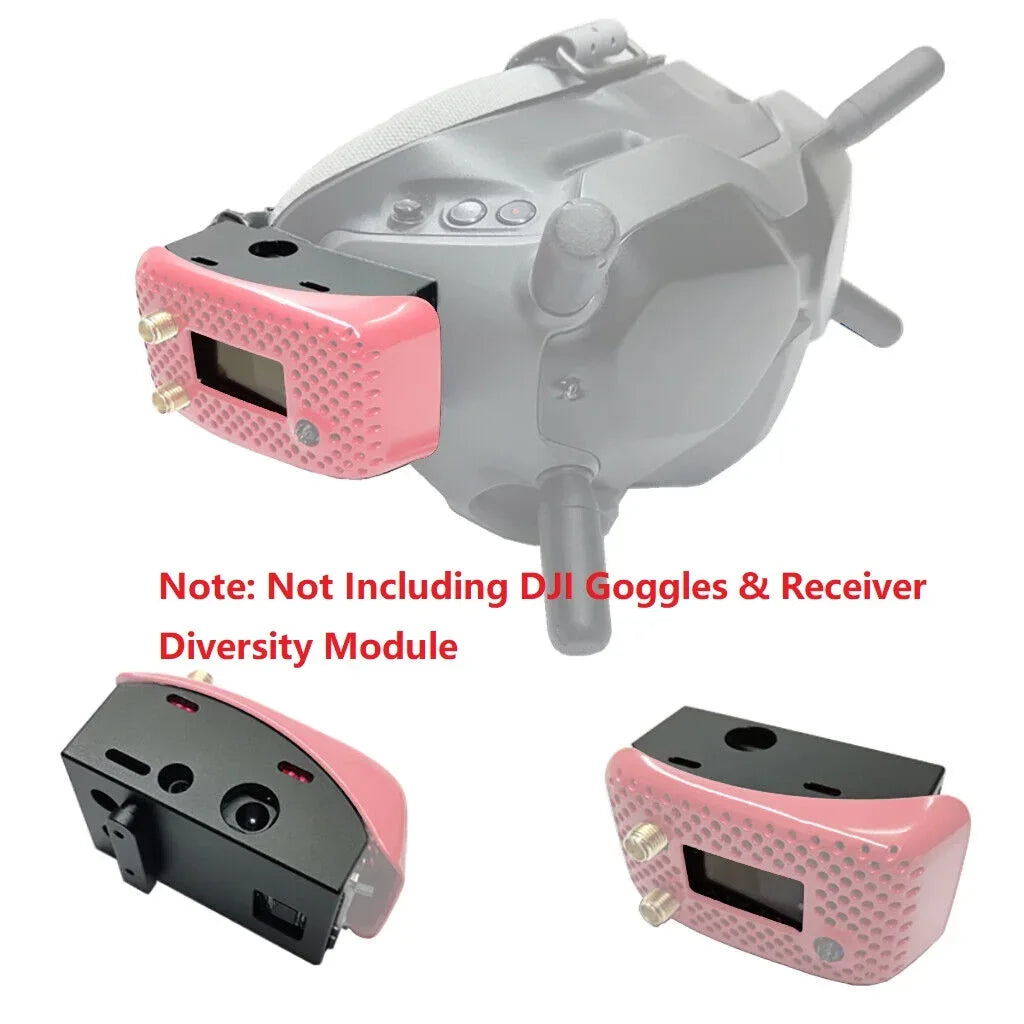

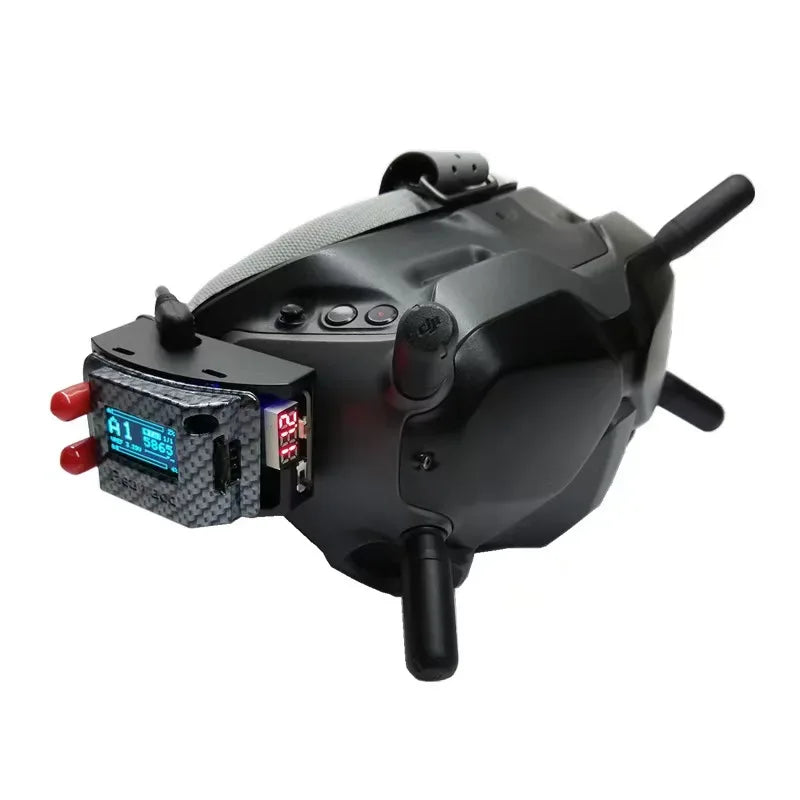

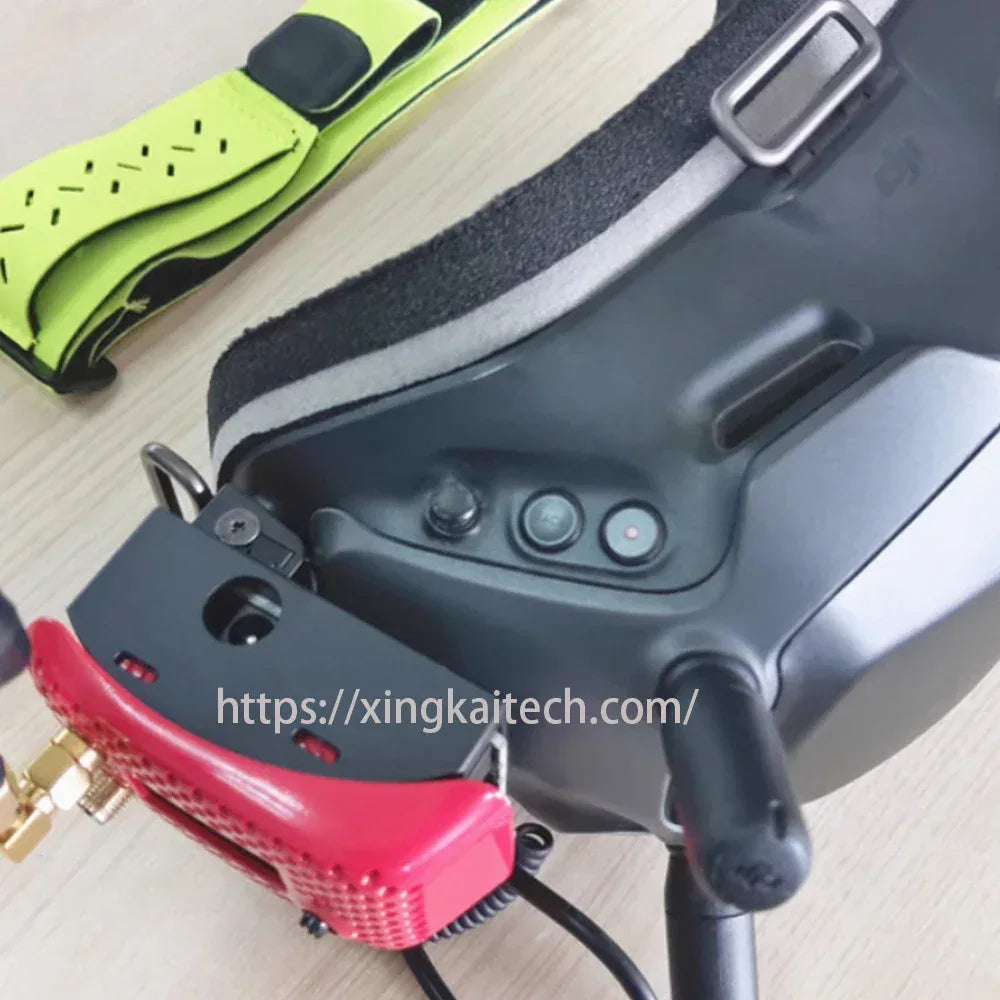

- The design of 1.2G 1.3G 5.8G RX PORT 3.0 PLUS is fixed with the screw of DJI flying glasses headband ring and is completely non-destructive installed on the side of DJI flying glasses. This allows you to easily transfer video and audio signals to the high-quality screen of DJI FPV flying glasses for viewing or recording.

- 1.2G 1.3G 5.8G RX PORT 3.0 PLUS is small, lightweight, portable, and versatile, and will be popular with players who have both analog and digital FPV flight equipment.

Specification:

- Item name:receiver module

- Power input:2S-4S(DC 5.5*2.1)

- Internal voltage:5V 3A(output with welded pad)

- Power output:2S-4S(DC 5.5*2.1)

- Signal input:standard Fatshark receiver interface(include third party receiver:Reaxacc Furious Rapid Fire)

- Signal output:standard audio/video, support external connecting DVR module, with voltage display and low voltage alarm

- Size:55x28x12mm

- Weight:13g(NOT include adapter cable)

- Used for DJI FPV V1 V2 Goggles

Lastest Condition:

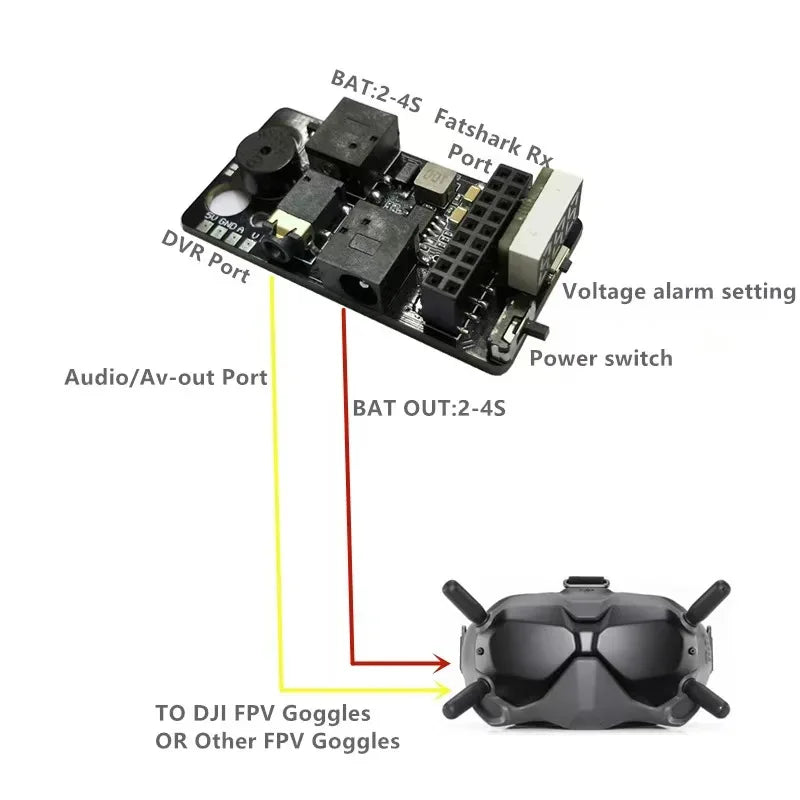

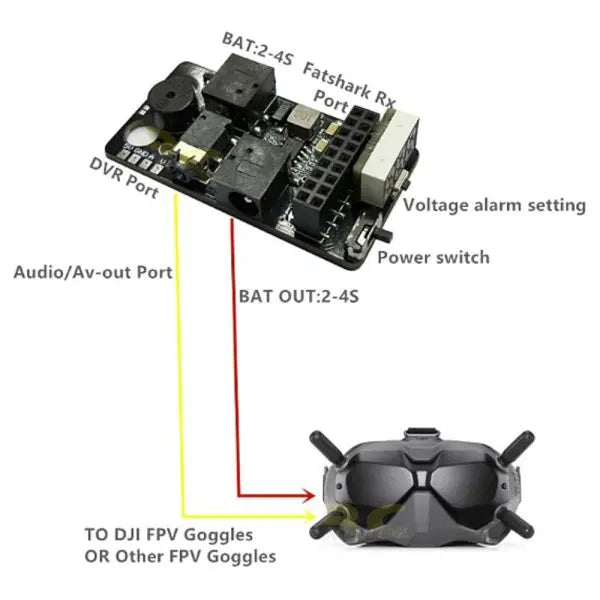

1.Add Backpack function interface,add a power switch and a standard DVR interface (the interface of the video module). The DJI FPV Glasses 0200 version now opens the function of DVR recording, but it cannot record sound. We have reserved a standard DVR interface, which allows guests with this need to connect to their own DVR to record images and sounds.

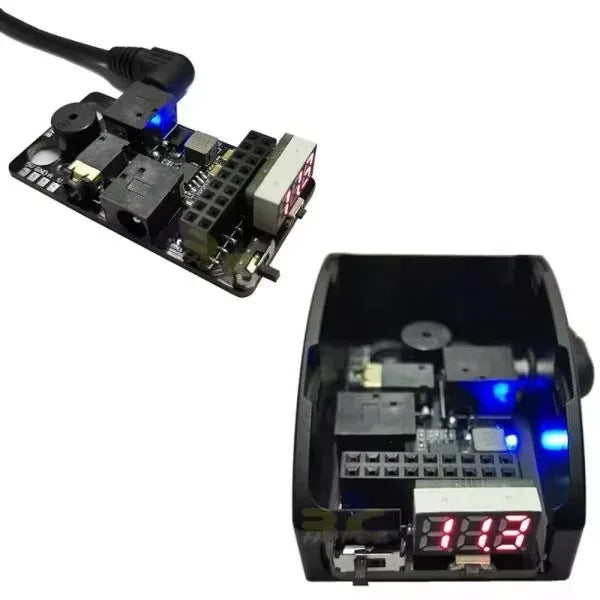

2.Add a Nixie tube, which can display the battery voltage in real time and set low voltage alarm. It can be used as a 1.2G 1.3G 5.8G receiving base station to modify various FPV flying glasses and 1.2G 1.3G 5.8G monitoring screen.

Note:

1.The goggles and others will not include.

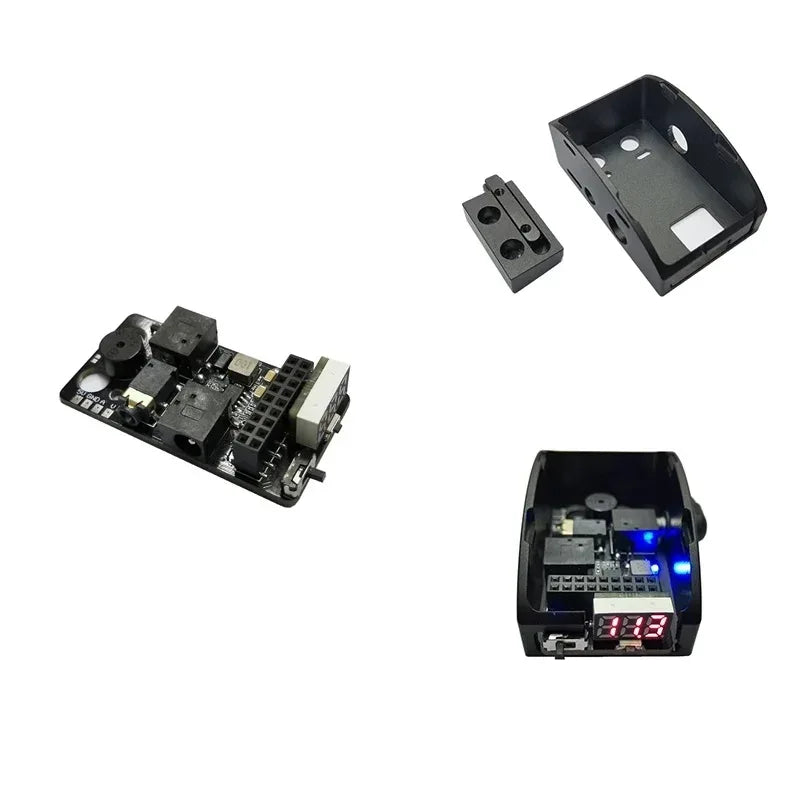

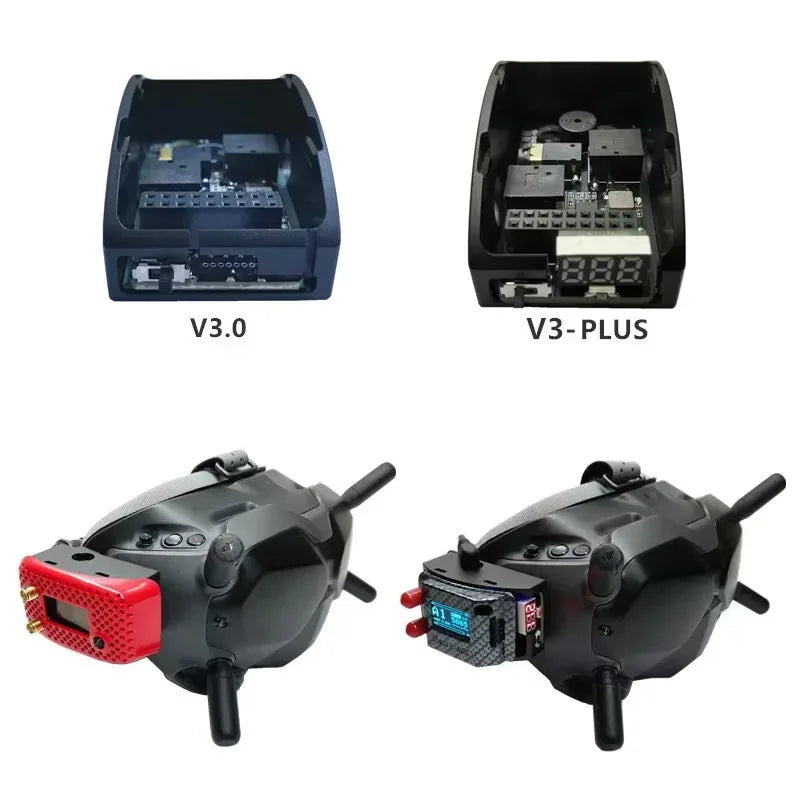

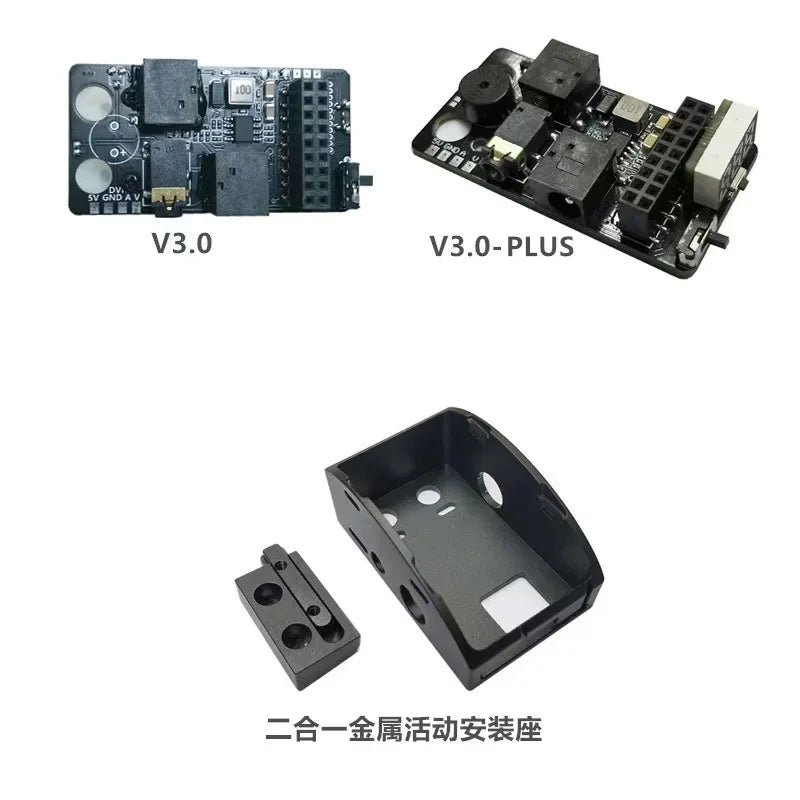

2.This metal bin can be used for both 3.0 and 3.0 plus version.

When used for 3.0 plus version, need to gently break the front

end of the casing with small pointed pliers to expose the digital

display screen.

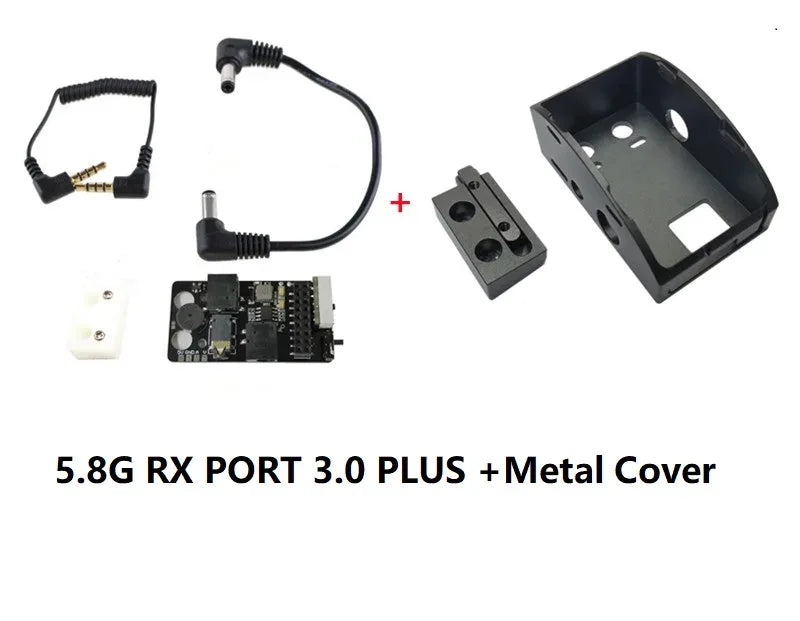

Package included:

1 set x Adapter mounting block and screws

1 x Audio and video cable

1 x Power cable

1 x URUAV 1.2G 1.3G 5.8G RX PORT 3.0-PLUS Receiver Board

1 * Metal Adapter
