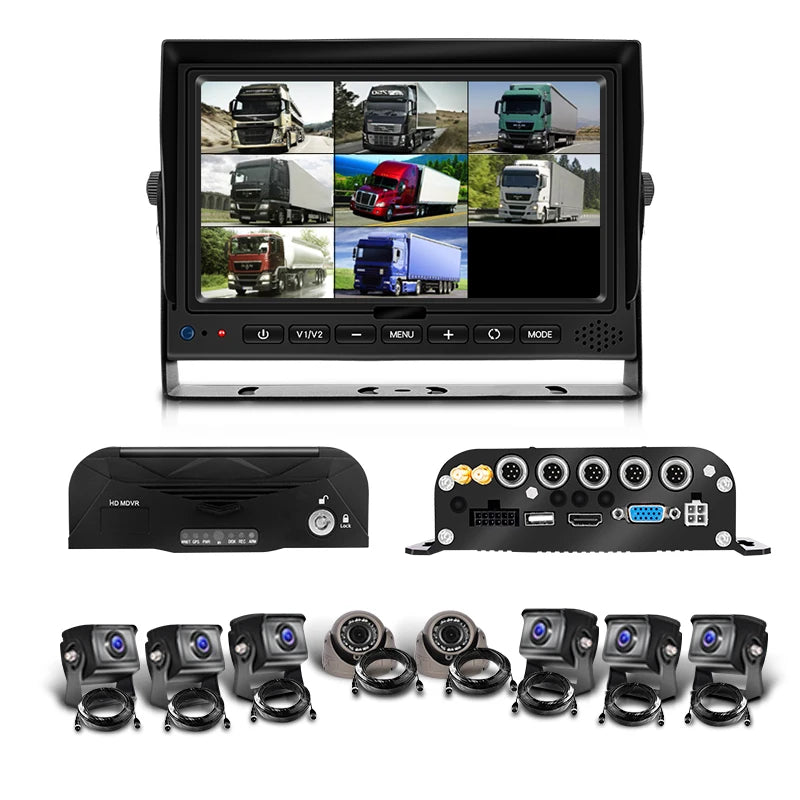

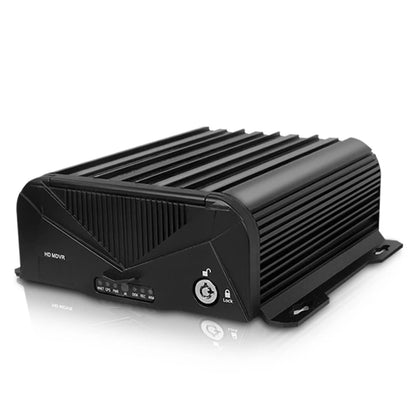

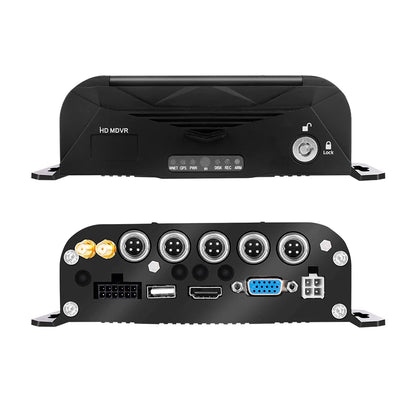

4CH 8CH 720P 1080P Mobile DVR Support / Optional 3G 4G WiFi GPS MDVR with Car/Bus/Truck/Vehicles Camera Recorder Waterproof
4CH 8CH 720P 1080P Mobile DVR Support / Optional 3G 4G WiFi GPS MDVR with Car/Bus/Truck/Vehicles Camera Recorder Waterproof
Couldn't load pickup availability
4CH 8CH 720P 1080P Mobile DVR Support 3G 4G WiFi GPS MDVR with Car/Bus/Truck/Vehicles Camera Recorder Waterproof

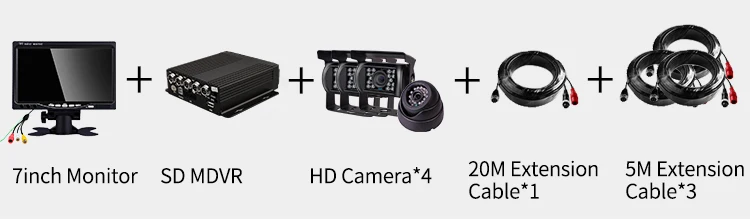

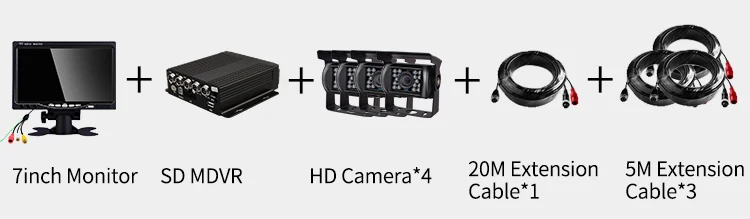

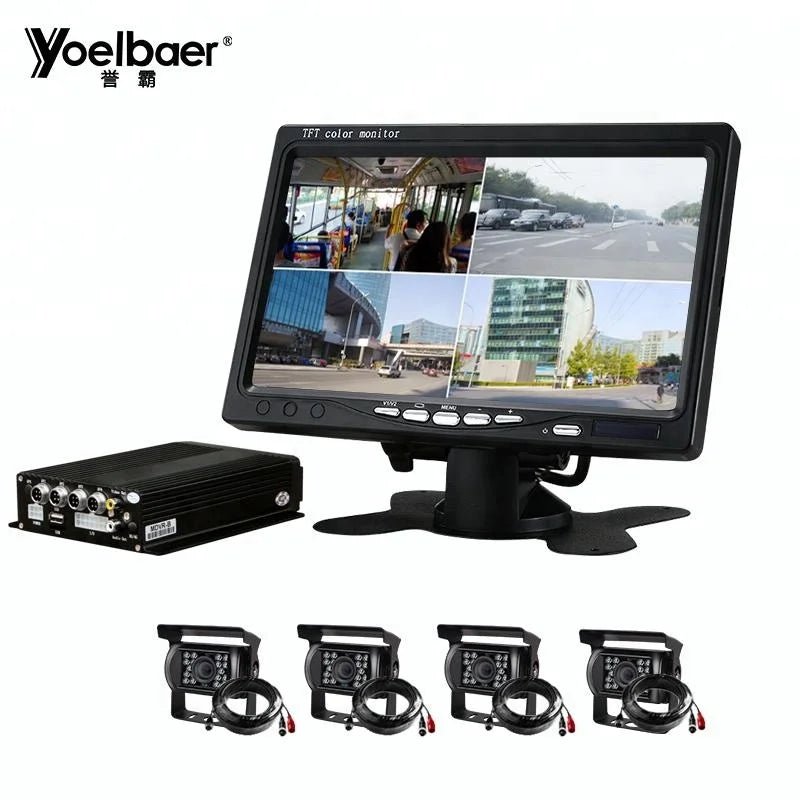

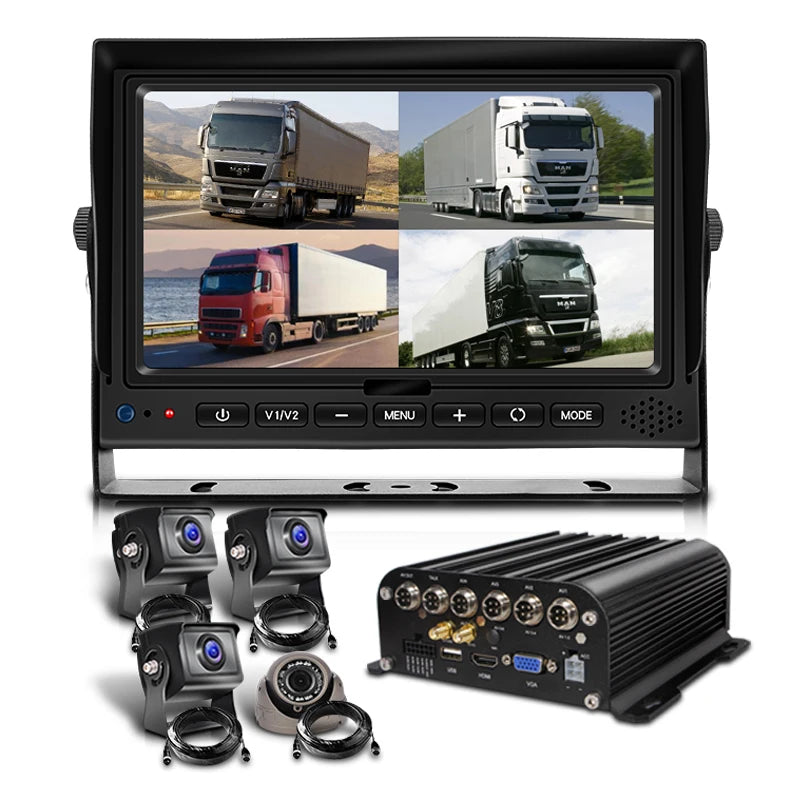

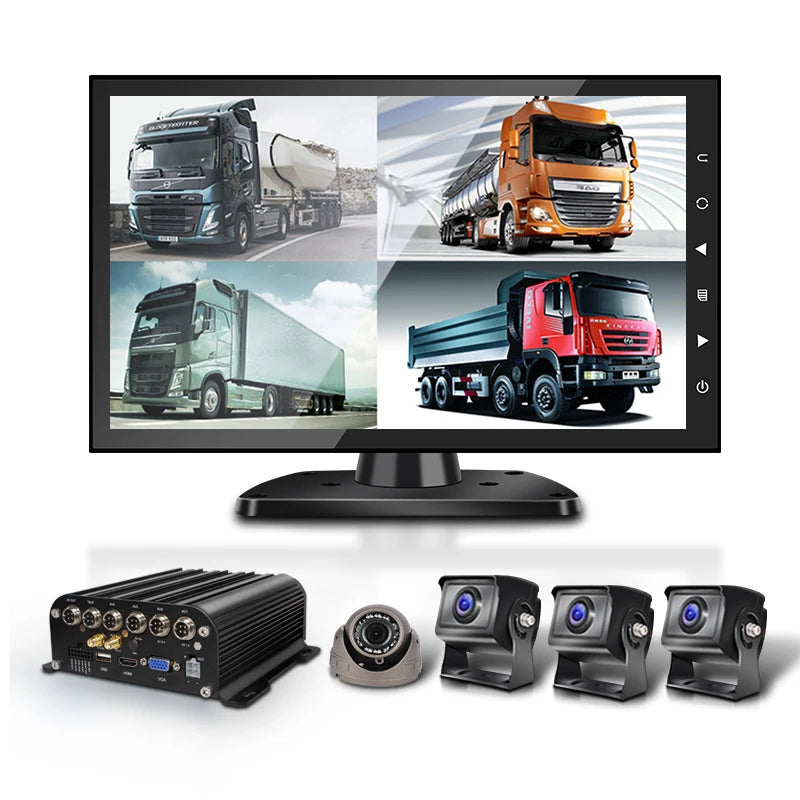

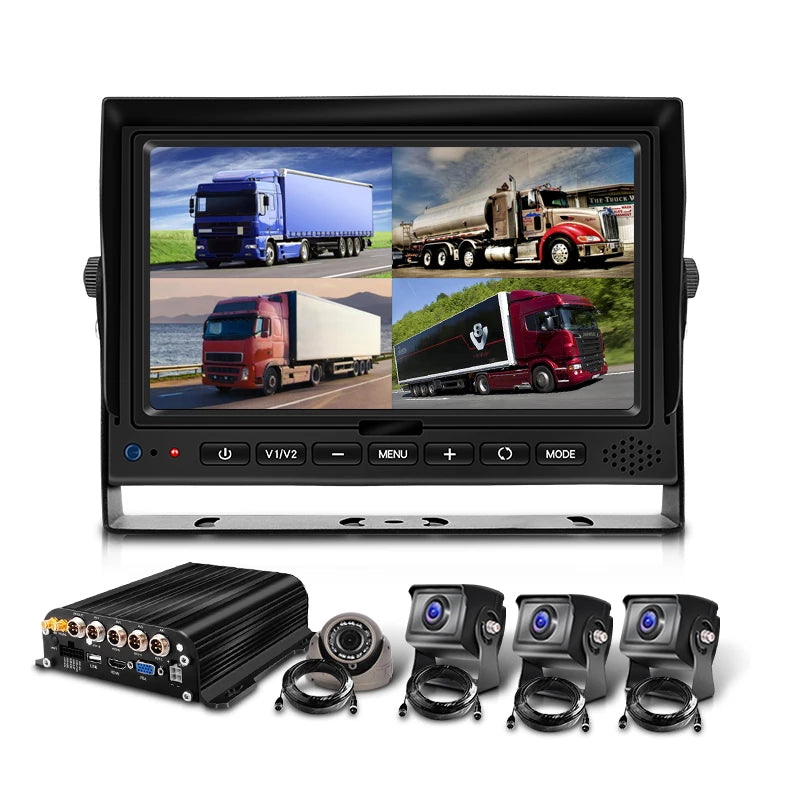

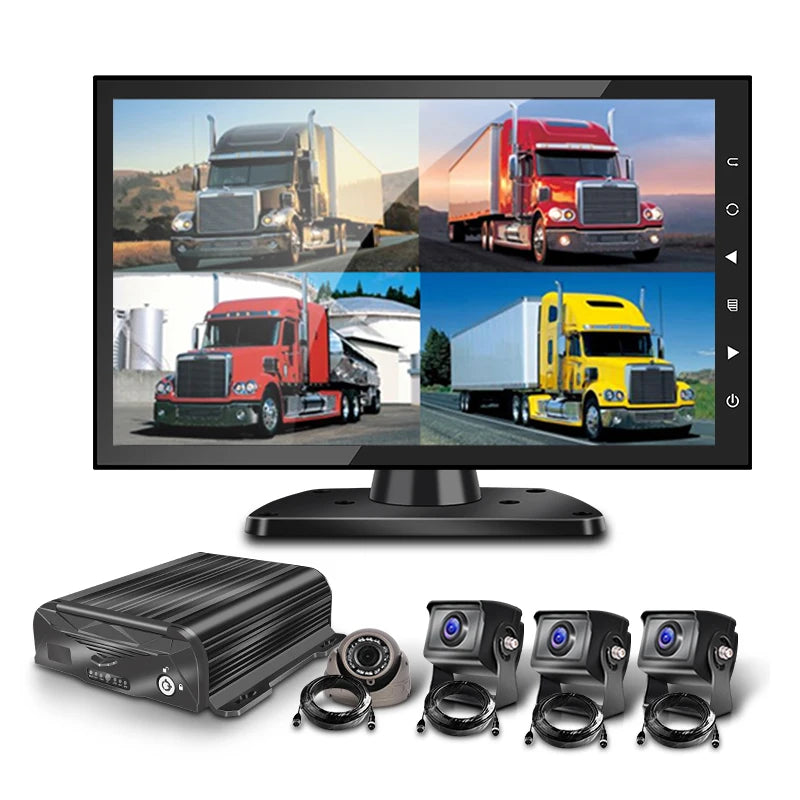

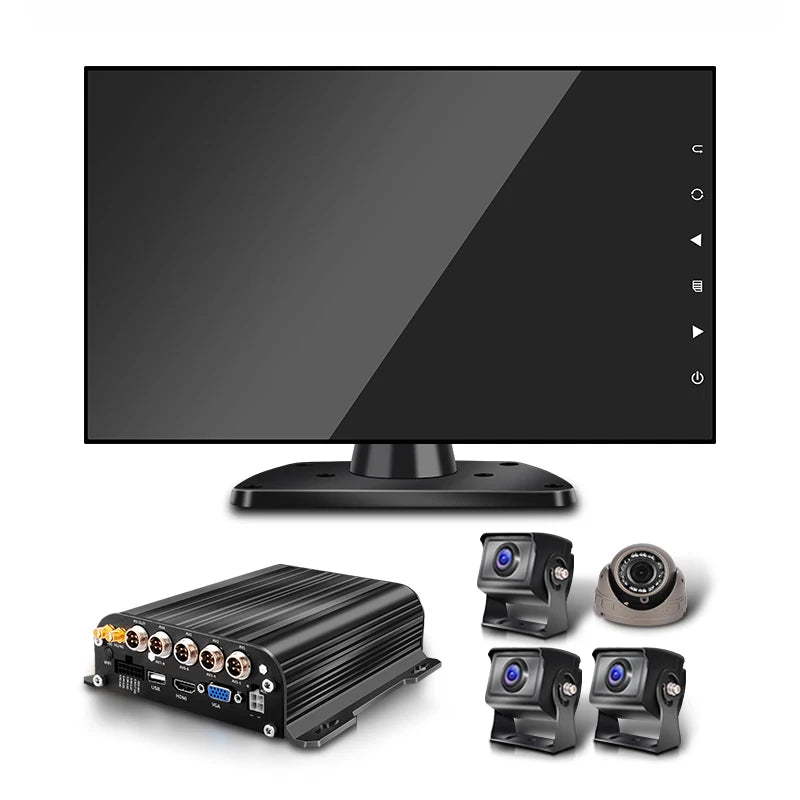

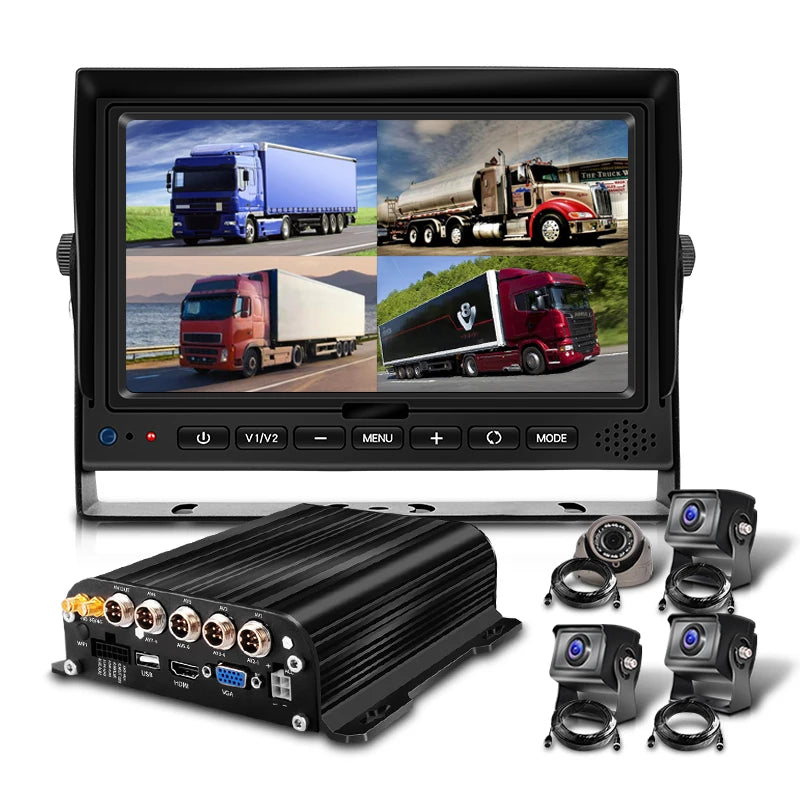

Standard package include :
4CH SD/HDD MDVR *1 pc
10 INCH /7inch VGA/AV Car monitor *1 pc

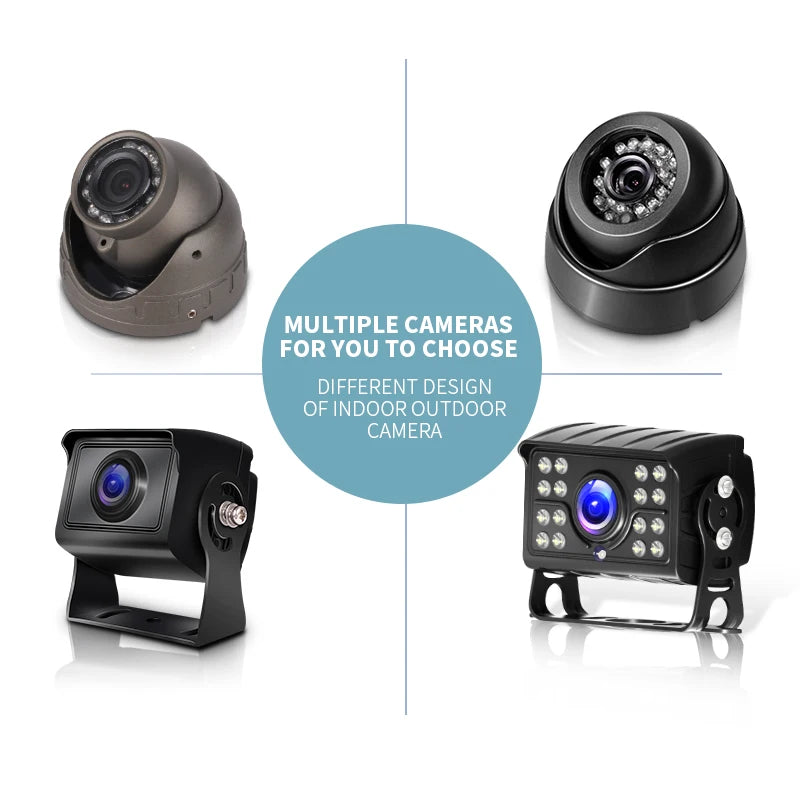

AHD Indoor Camera * 1PC
AHD Outdoor Camera* 3PCS
5M Aviation plug extension cable *3pcs
15M Aviation plug extension cable *1pc .
The above price not include SD memory card or Hard disk , if you need to buy , please contact with us .

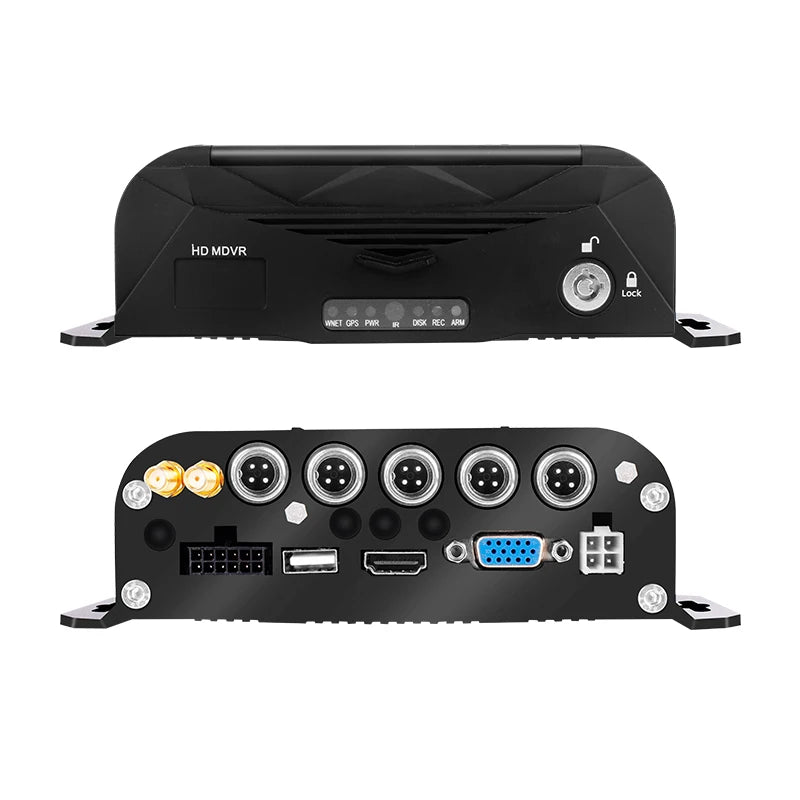

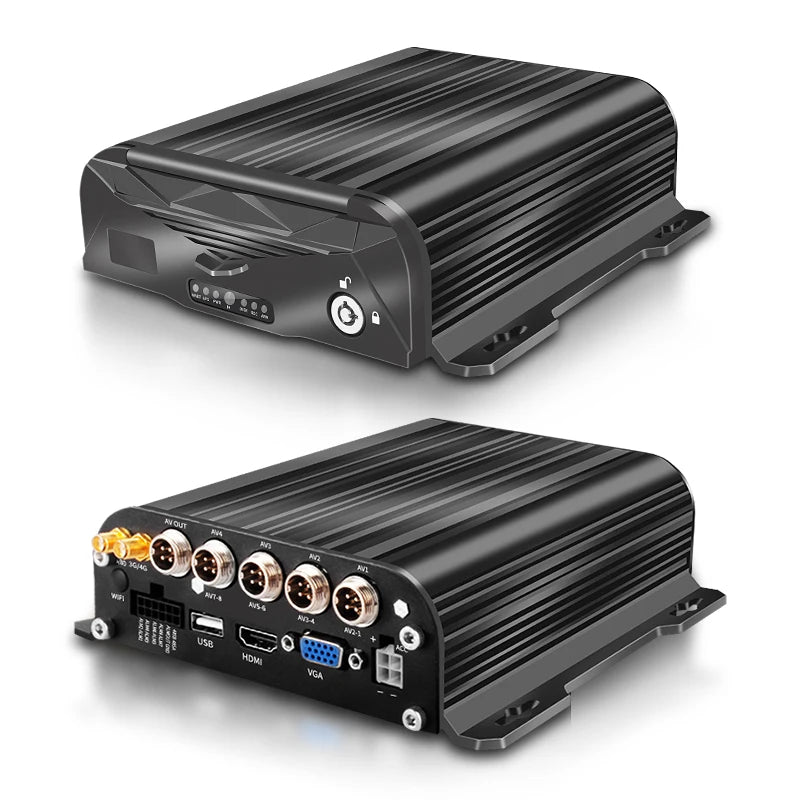

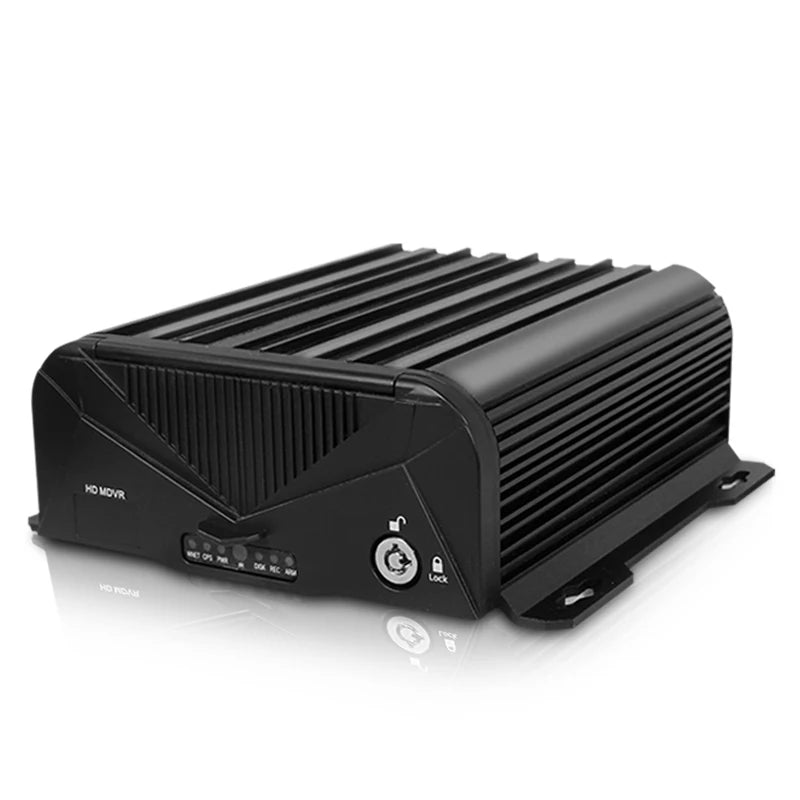

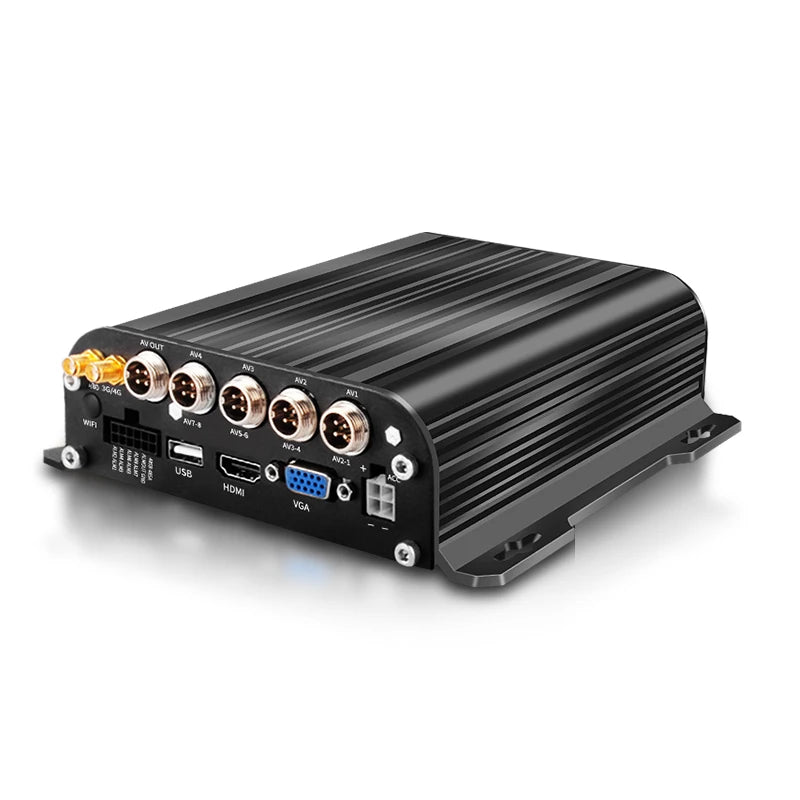

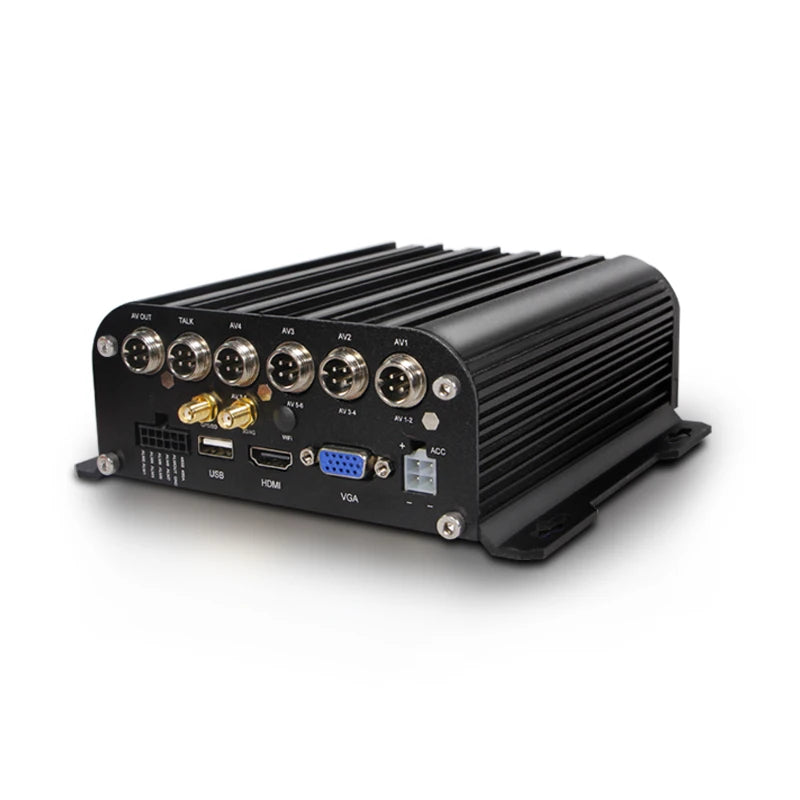

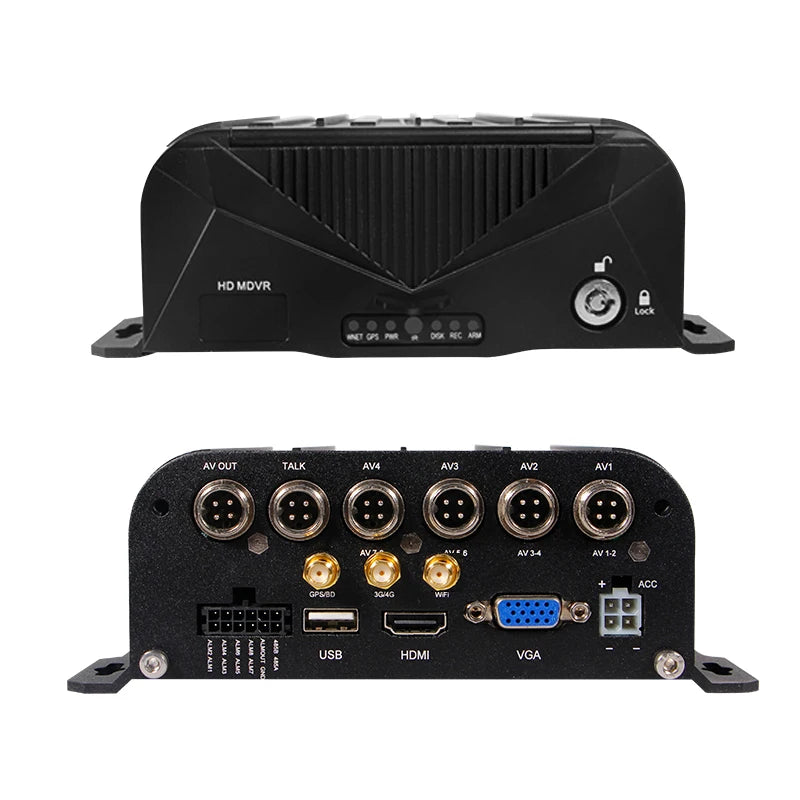

SD MDVR Parameters:
| Device Parameter | Performance |
| Video compression standard | H.264/MJPEG. H.265 |
| Audio compression standard | G.711 |
| Audio output code rate | 64Kbps |
| Picture Resolution | 1024*600 |
| Standard | PAL/NTSC |
| Working Temperature | -10℃~65℃ |
| Working Humidity | <85%RH |
| Power | DC12V |
| Power consumption | <5W |
| Signal Standard | Digital / analog |
| Operating Language | Chinese/English |
| Operating Interface | GUI/Support Mouse |
| Password Security | Admin/user password |
| Image resolution | 1080P/720p/960h/D1/CIF |
| Playback resolution | 1080P/720p/960h/D1/CIF |
| Compound Mode | 4CH 720P/4CH960H/2CH720P+2CH960H |
| 4CH SD MDVR NW. | 0.65KG |

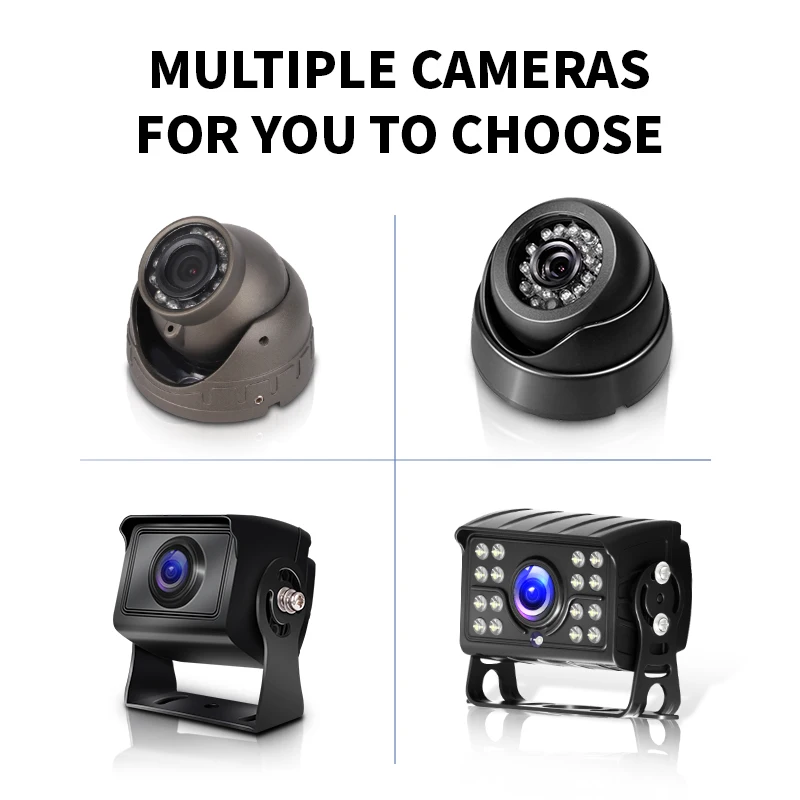

| Bus LED/IR Camera | HD CDD Chip ,720*540 Pixels,120-170° View Angle |

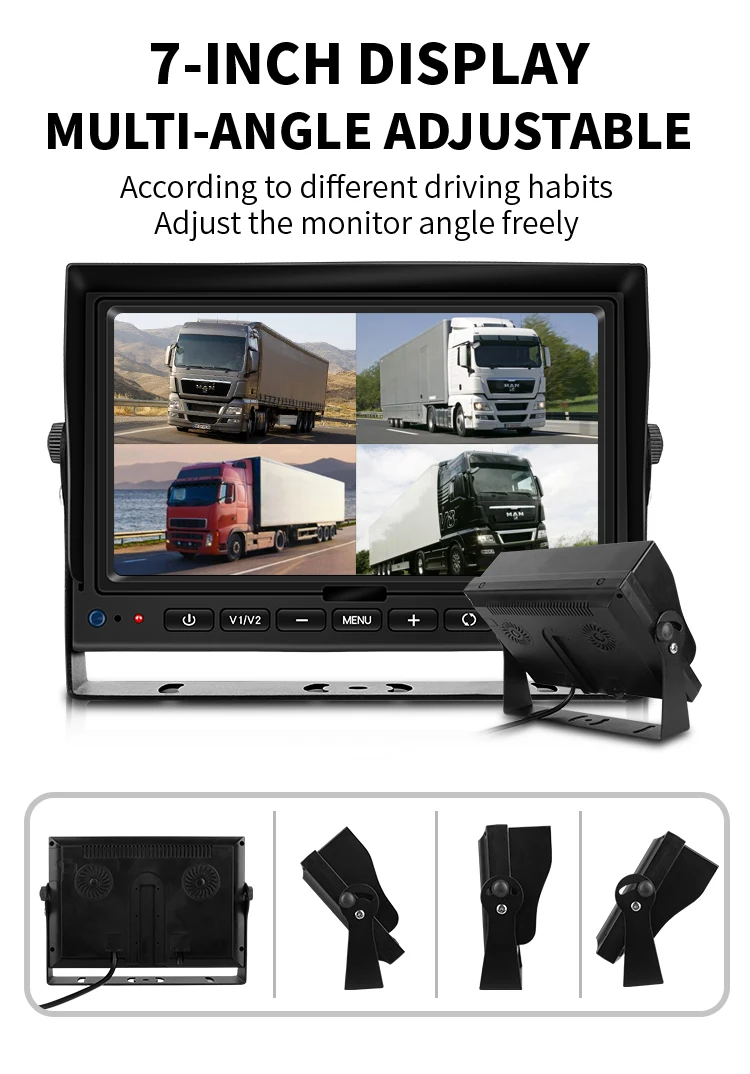

| 7 inch Car Monitor | 1024*600/800*480 resolution, AV/Aviation plug |
| Aviation Plug Extension Cable | 15M*1+5M*3 ( We have 5M,10M,15M,20M extension cable ) |
Specification :
|
Main |
Sub-Item |
Instructions |
|
Recording Sub-System |
Video Channel |
4Channel video + 4Channel Audio recording synchronously; |
|
Resolution |
Support 4*720P(1280*720),4*D1(704*576),4*HD1(704*288), 4*CIF(352*288);Each channel is individually adjustable. |
|
|
Image Quality |
0-7 levels, 0 is the highest level. |
|
|
OSD |
Overlays information such as date time and vehicle ID |
|
|
Loop Rec |
Support SD card loop recording, loop cover previous video |
|
|
Record Mode |
Timed recording, alarm trigger recording and manual recording |
|
|
Preview |
Support 1 channel and 4 channels preview. Support enlarge video image when alarm trigger and video rear view trigger; |
|
|
Disk overwritten |
Space pre-allocated Support disks overwritten function. |
|
|
Playback System |
Video Search |
Search video files anytime per day, type(n/a) |
|
Playback |
Support 1 to 4 channels playback. |
|
|
Support forward and backward play at the speed of: x2 ,x4,x8,x16. |
||
|
Support alarm spot search and time search. |
||
|

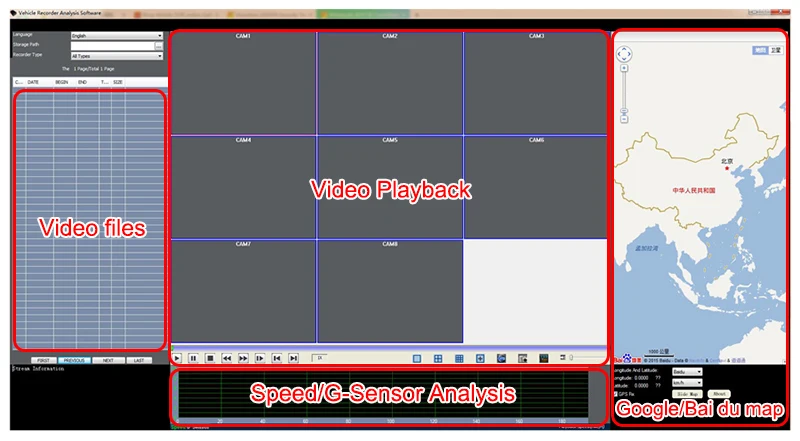

GUI |
Graphical User Interface |
Setup system parameters with the remote control. |
|
Alarm |
Input |
4 channels electrical level alarm input for optional |
|
Alarm linkage recording\Active request the intercom\One-key phone calling functions,etc. |
||
|
Output |
Max support 2ch level output |
|
|
Optional functions |
GPS Positioning |
Built-in GPS/BD module: can sync record GPS information, trace replay. |
|
PTZ Control |
Support Pelco-D protocol 485 PTZ remote/local control,preset. |
|
|
Serial Expand |
Support LED Advertisement Panel\Oil Sensor\POS\Bus Station Broadcaster\Car OBD,ect.external devices. |
|
|
G-Sensor |
G-sensor,Record vehicle real-time status. |
|
|
TTS Voice Broadcast |
Support TTS voice broadcast function. |
|
|
Network |
Can expand WIFI module,support 801.2b/g/n, 801.2a/c |
|
|
Built-in EVDO/WCDMA/TD-LTE/FDD-LTE,etc, 3G/4G module. |
||
|
Others |
ON/OFF |
System delay-time power on/off; |
|
File System |
DVR special file recording System Technology,Exclusive car record file system,space pre-allocate,4ch single file Record,cyclic covering;To avoid the storage of the media causes file fragments, with high reliability and high stability; |

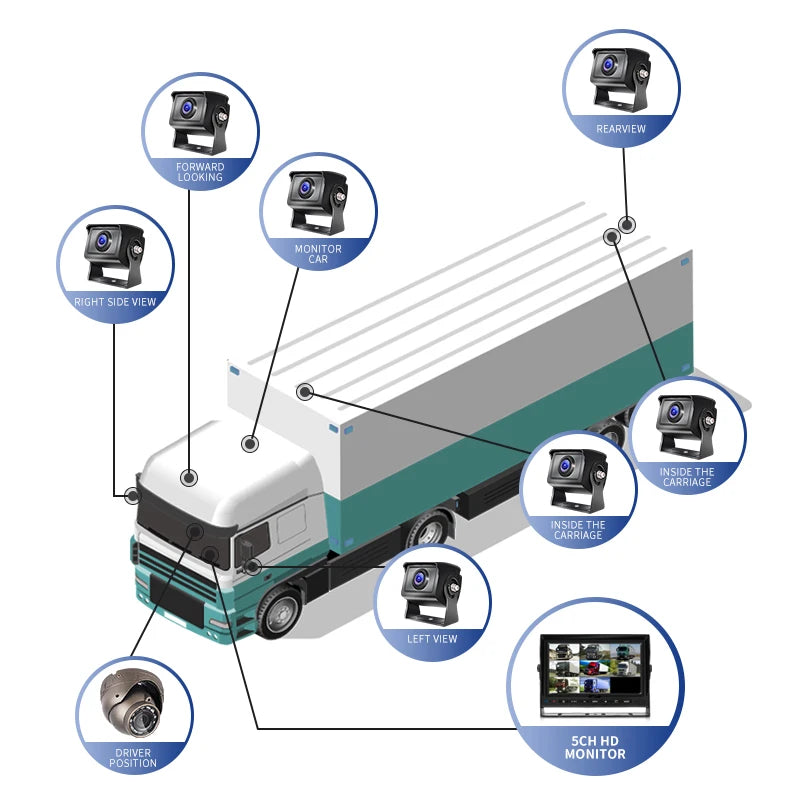

MDVR CCTV MONITORING SYSTEM 1
MDVR CCTV MONITORING SYSTEM 2

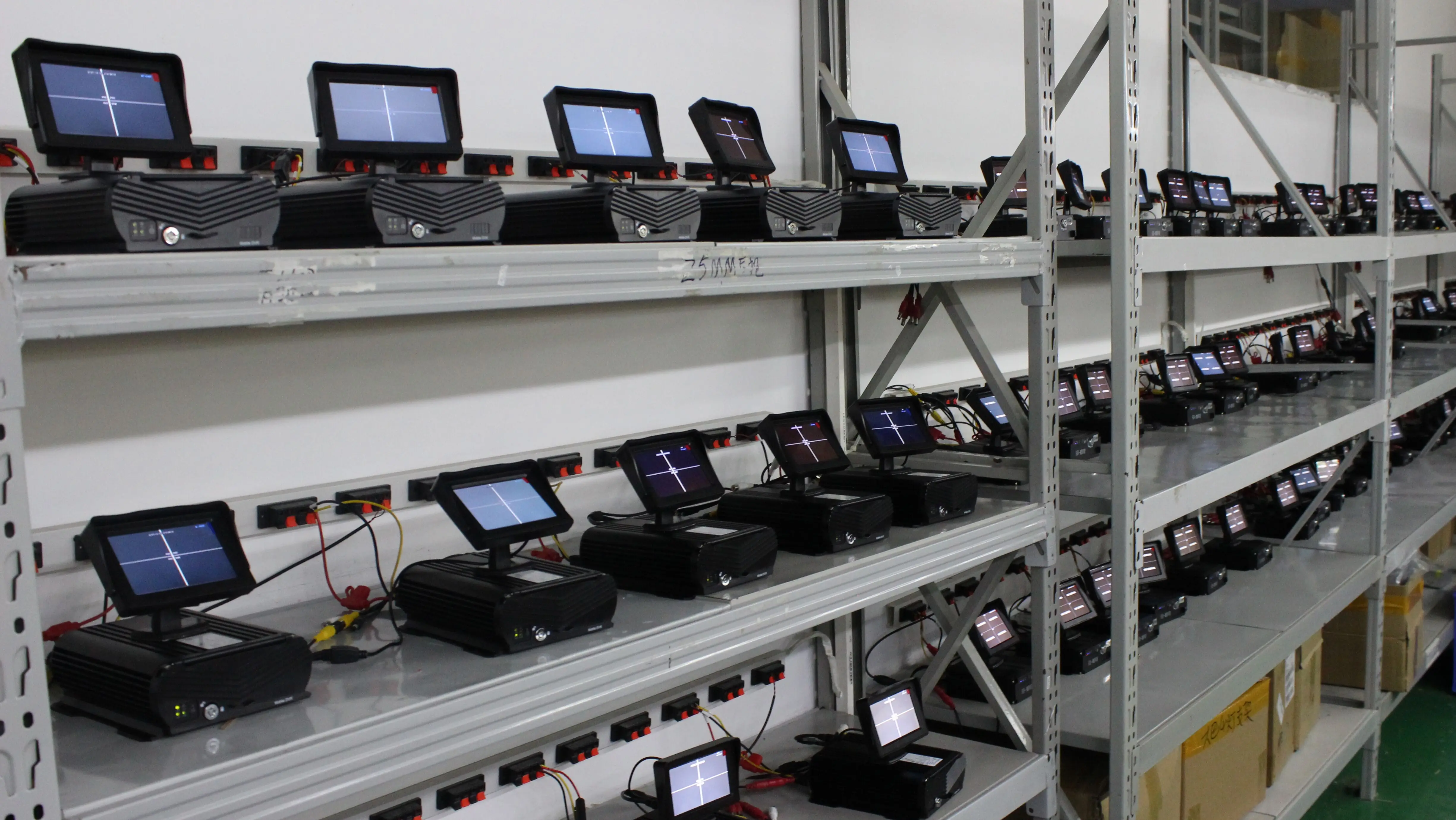

72 Hours Aging Test
