SPECIFICATIONS

Brand Name: CENTURY AOKE

Channel: 1

Frequency: 433 MHz

High-concerned chemical: None

Model Number: WT-02-AC+AK1000-2F

Origin: Mainland China

Use: Universal,Lighting,Electric Door,Automated curtains,Switch

Wireless Communication: RF

433MHz AC 220V 380V RF Remote Control Switch 30A Relay 2 Buttons Long Range Remote for Water Pump Home Outdoor Light Fish Pond Oxygenation Control

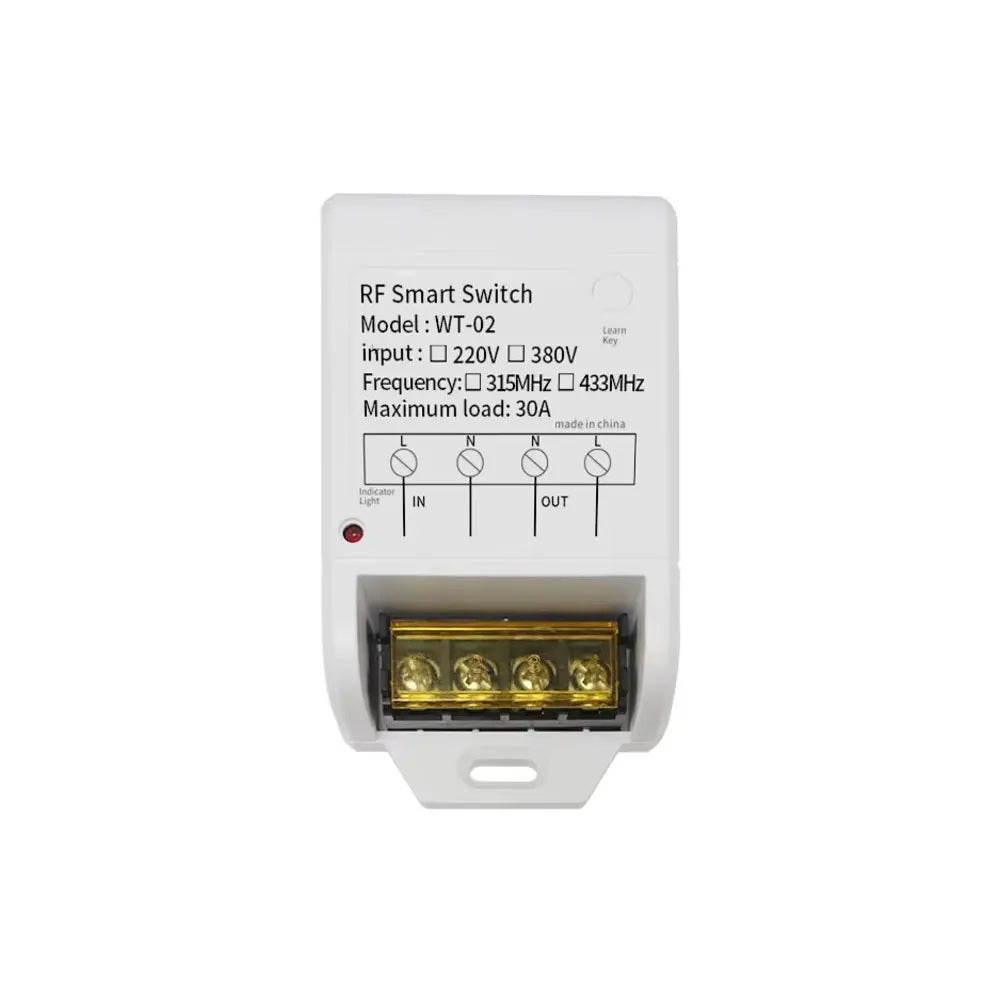

Receiver

Controller Model: WT-02
Working voltage: AC220V / AC380V
Working frequency: 433MHz
Receiving sensitivity: -105dBm
Standby current: ≦9mA
Maximum power: ≤3000W
Modulation mode: AKS
Size: 83*50*22mm
Weight: 70.3g (board)

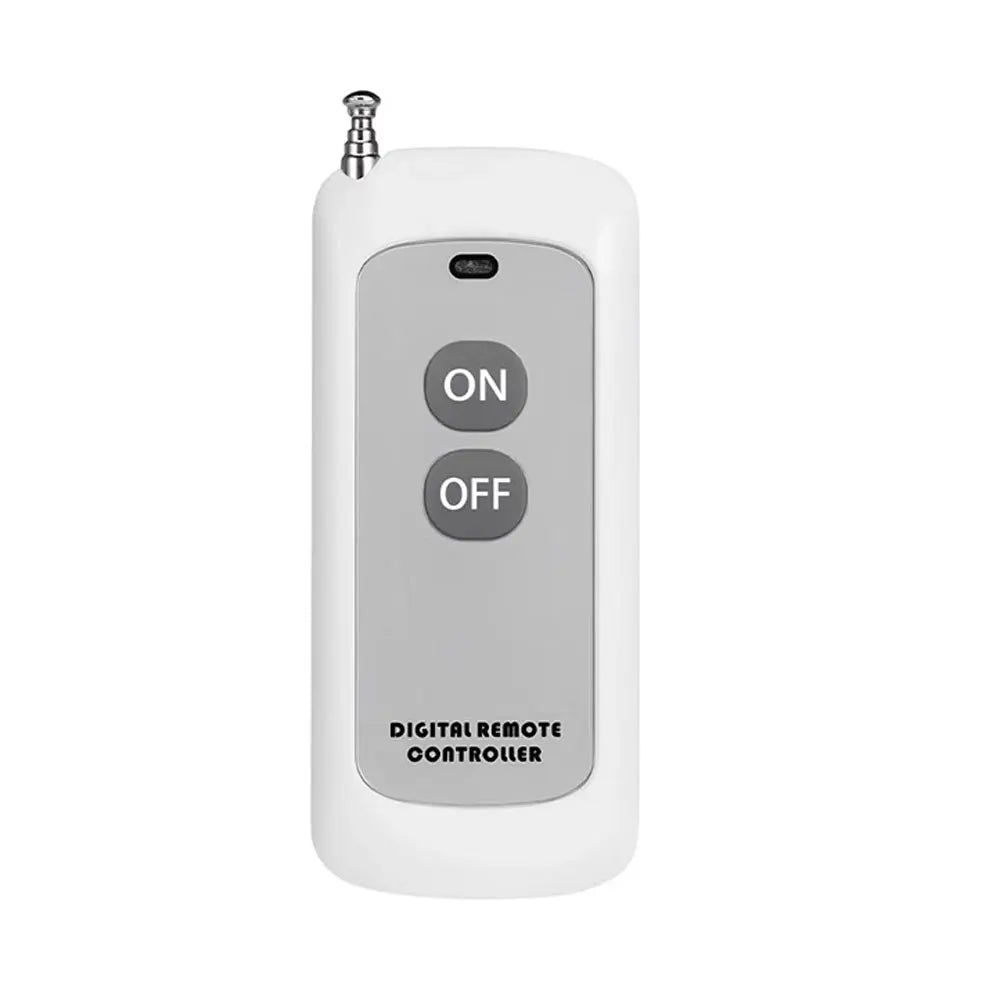

Transmitter (Remote Control)

Model: AK-1000-2F
Operating voltage: 12V
Transmit power: 12dBm
Control distance: 1000 metres (open area)
Working Frequency: 433MHz
Coding format: Learning Code
Receiver sensitivity: -110dBm
Size: 91*39.5*15mm
Weight: 29.5g

Feature:

WT-02 AC single circuit water pump remote control switch adopts 40A sufficient relay, the load power is large long time operation is more stable, built-in RXB59 receiver module, the communication sensitivity hits -105dBm, has the super signal anti-jamming ability, according to the actual application with the glue stick antenna or suction cup antenna, so as to achieve a better signal reception range.


Application Field:

Used in home lighting control Pump control Outdoor lighting control Fish pond oxygenation and other applications.

Operation Introduction: About Working Mode

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.



Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.



Latching: Press the remote button ON, the relay connects, press the remote button OFF, the relay disconnect.



Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5S,10S,15S Or 20S.





Clearing the Code:

Press the Learning Button on the receivers for 8 times, the codes will be cleaned.

After cleaning the code, all the remote control cannot work any more.



Learning the Code:(Momentary)

Press the learning key on the receiver once time, it comes into momentary setting mode.

Wait for a moment, the LED will be off , it comes into learning state.

Push the remote button, LED indicator on the receiver board will flash then come off.

After 3 seconds, the LED indicator will be on again, learning successfully.



Learning the Code: (Toggle)

Press the learning key on the receiver twice time, it comes into toggle setting mode.

Wait for a moment, the LED will be off , it comes into learning state.

Press the remote button, LED indicator on the receiver board will flash then come off.

After 3 seconds, the LED indicator will be on again, learning successfully.



Learning the Code:( Latched)

Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.

For example: Button A = ON, Button B = OFF

Press the learning key on the receiver triple time, it comes into latching mode .

Wait for a moment, the LED indicator on the receiver board will flash then come off.

Press the remote button A. LED flash for 5 times.

Press the remote button B. LED flash for 5 times

After 3 seconds, the LED indicator will be on again, learning successfully.

A = ON, B = OFF .



Learning the Code :(Time Delay Mode)

Press the learning key on the receiver 4 times, the time delay for 5 seconds.

Press the learning key on the receiver 5 times, the time delay for 10 seconds.

Press the learning key on the receiver 6 times, the time delay for 15 seconds. The LED indicator will be off . Press the remote button, LED flashes and off.

Press the learning key on the receiver 7 times, the time delay for 15 seconds. The LED indicator will be off . Press the remote button, LED flashes and off.

After 3 seconds, the LED indicator will be on again, means learning successfully.



Power-on function learning method:

Continuously press the control panel code button 8 times, the LED indicator along with the blinking 1 time, and so the LED indicator light up and press the remote control button that needs to code, the control panel LED indicator flashes 3 times, code successfully. (Note 1: This function is the power on the relay automatically absorbed also known as the incoming call to turn on the light function) (Note 2: Learned ;power on; function such as changing the other operating modes must be implemented to clear the code)

Wide Range of Uses

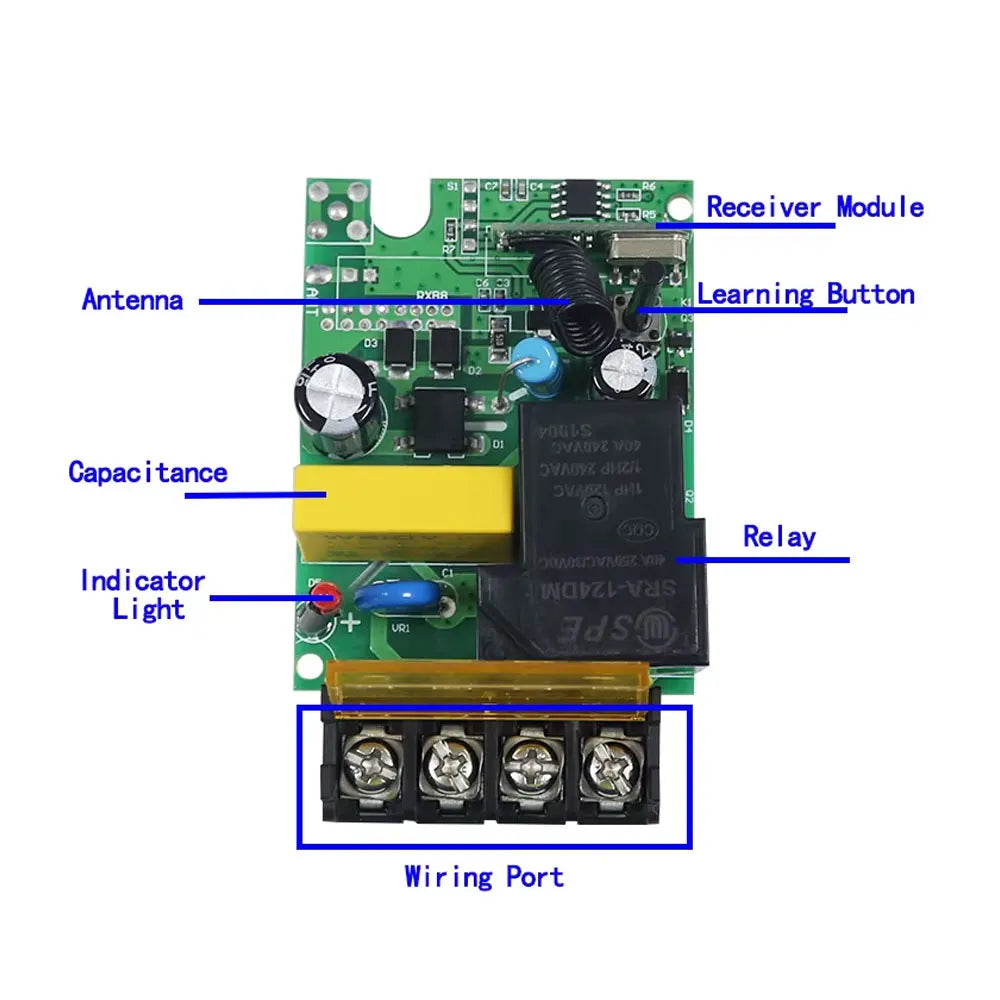

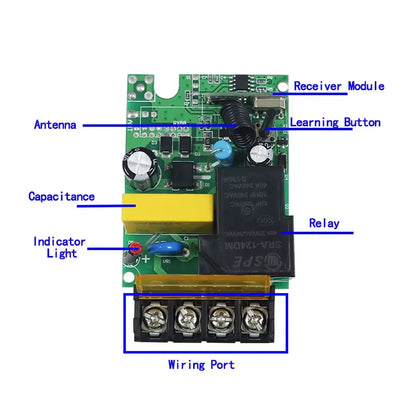

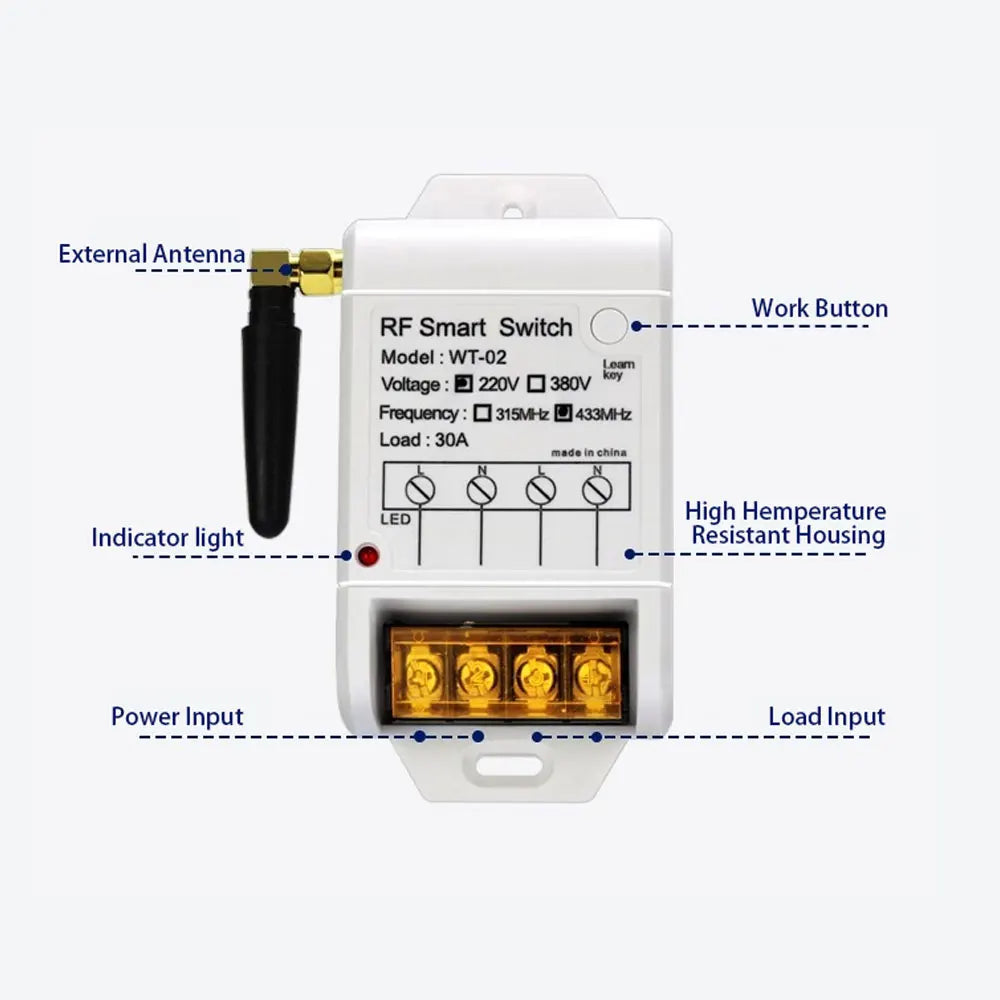

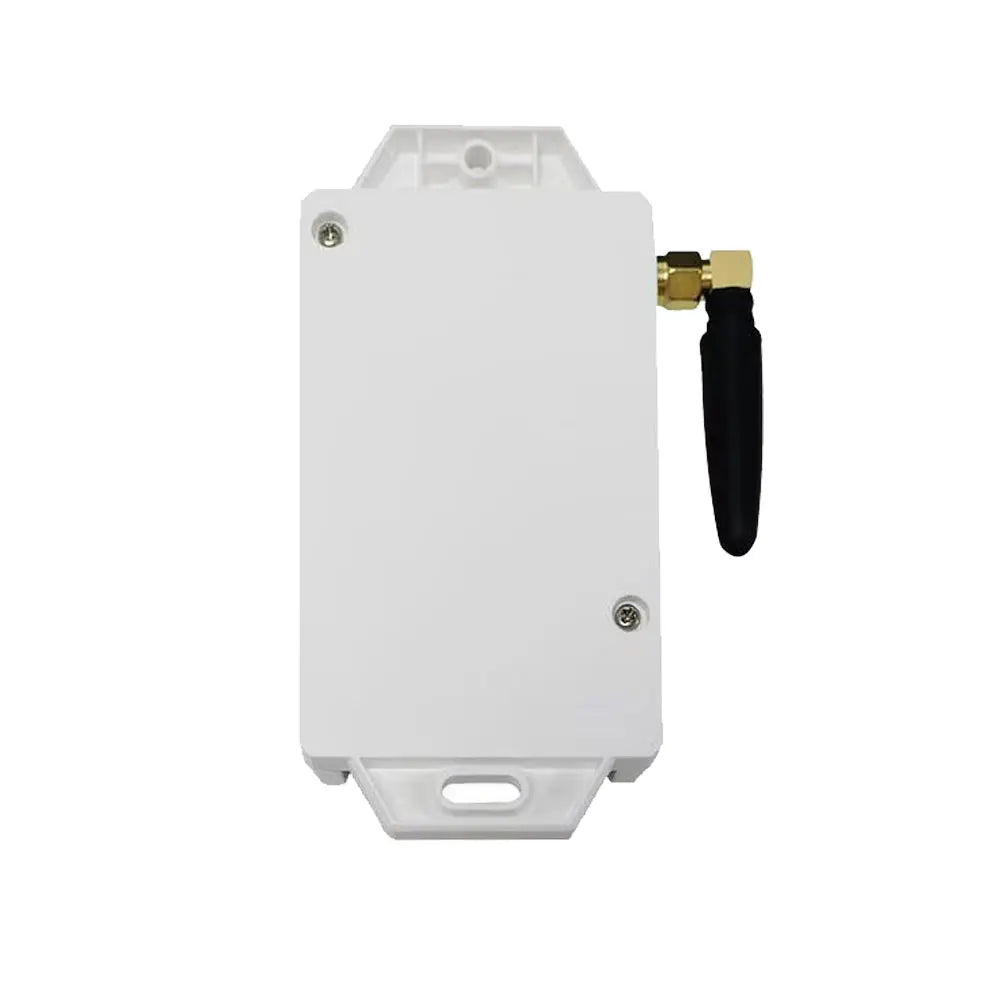

Product Details

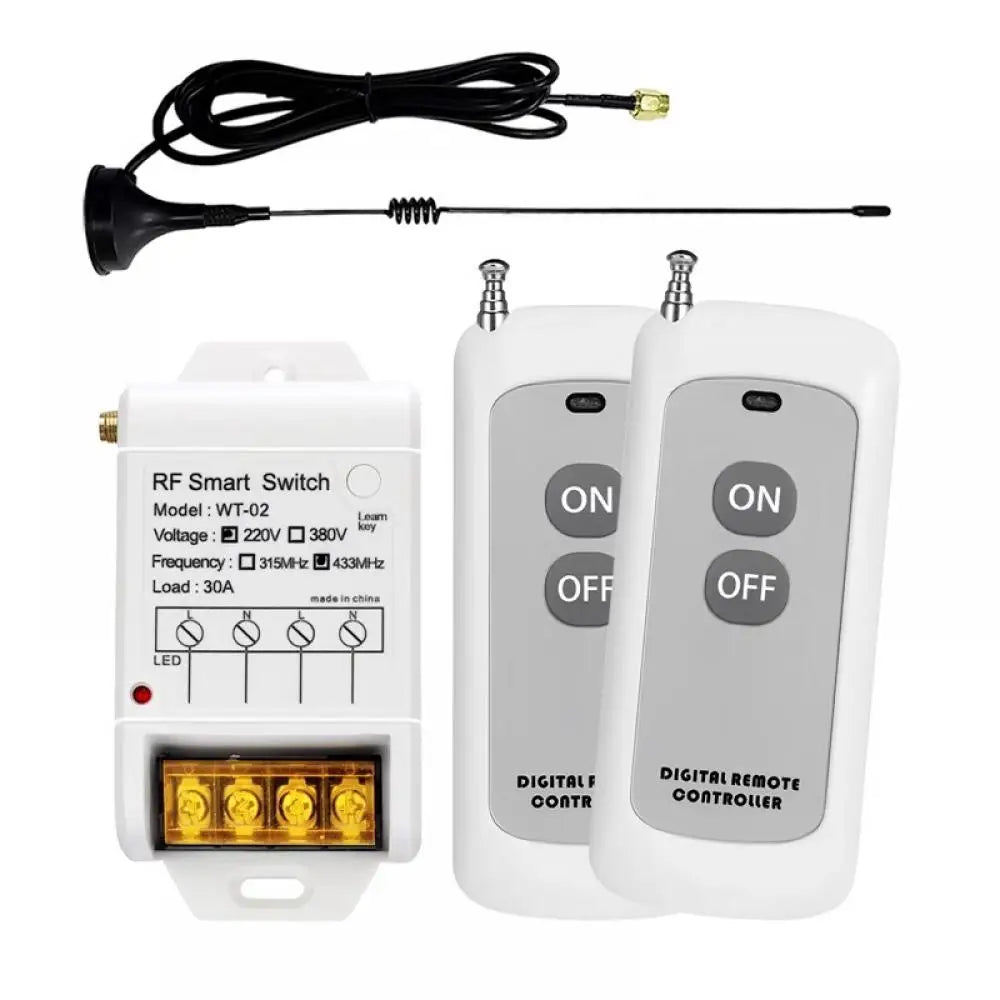

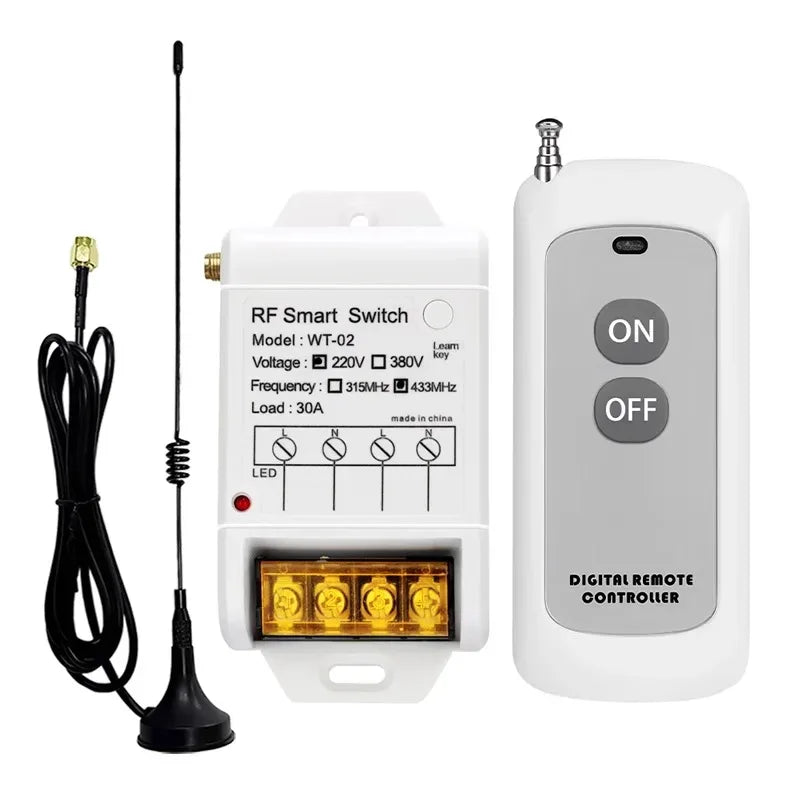

Package include
(Receiver*1 + Remote control with batteries*1 + Glue stick antenna*1 + Suction cup antenna*1)

(Receiver*1 + Remote control with batteries*2 + Glue stick antenna*1 + Suction cup antenna*1)

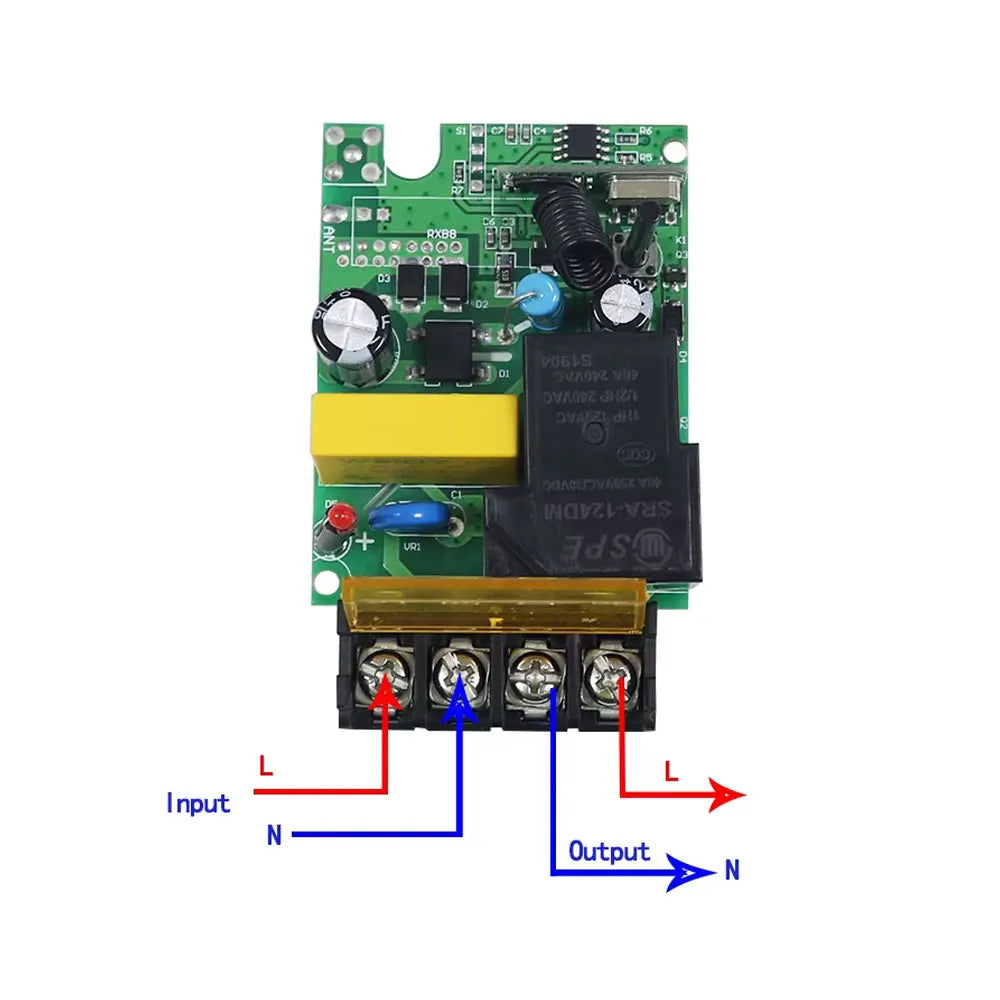

Wiring Diagram
