SPECIFICATIONS

Applicable Area: 210-260㎡

Applicable temperature: 3-45℃

Atomizing plate: 60PCS

Battery Properties: Without Battery

Drain Type: Pump Drain

Fog particle: 1~10μm

Humidification Method: Ultrasonic

Humidifier Tank Capacity: Tap water

Humidifying Type: Ultrasonic Mist

Humidifying capacity: 42L/H

Humidity Settings: Automatic

Machinery Test Report: Provided

Power: 1500

Power Source: Electric

Special Feature: Digital Display,Timer

Video outgoing-inspection: Provided

Warranty: 1 Year

Water Tank Material: Stainless Steel

brand name: Chuangzhan

condition: New

dimension(l*w*h): 78*59*49

place of origin: Guangdong, China

voltage: AC 110V-240V

warranty: 1 Year

weight: 40

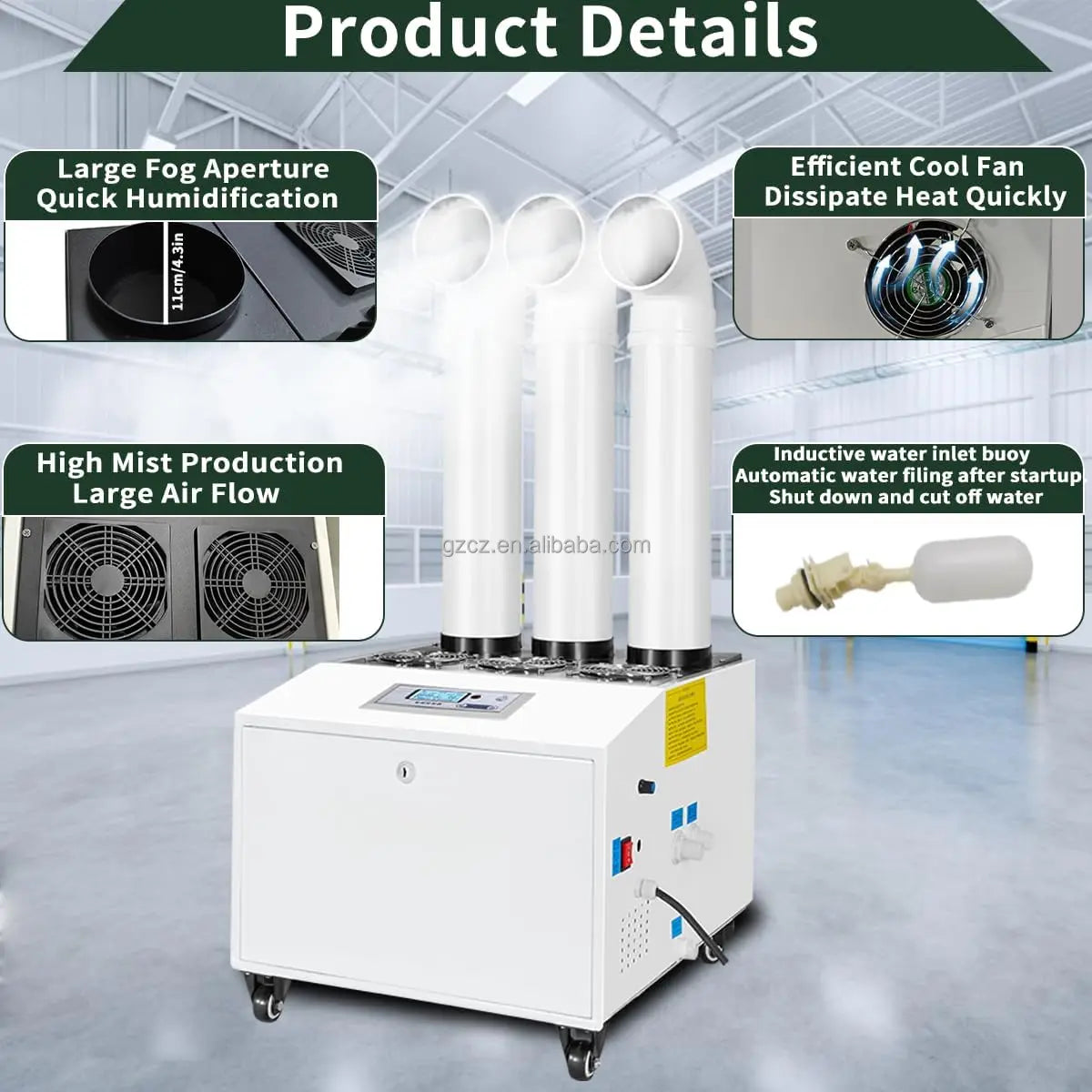

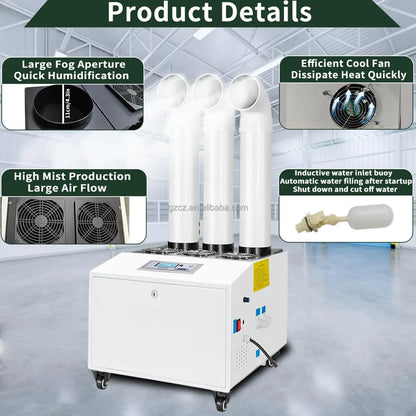

Features:
1. Stainless steel body: clean, reliable, durable and long service life.
2. Adopting waterproof fan & waterproof transformers to prevent short circuits, keeping machine long service life.
3. Adopting integrated mist module inside: the chip is replaceable and the machine is easy to maintain.
4. Boasting high humidification efficiency: diameter of fog output is only 1-10u.
5. Intelligent control, accurate humidity control: the range of humidity control is 1%RH~99%RH.
6. Timing humidification: customers can control the humidifier turned on or off according to the time required.

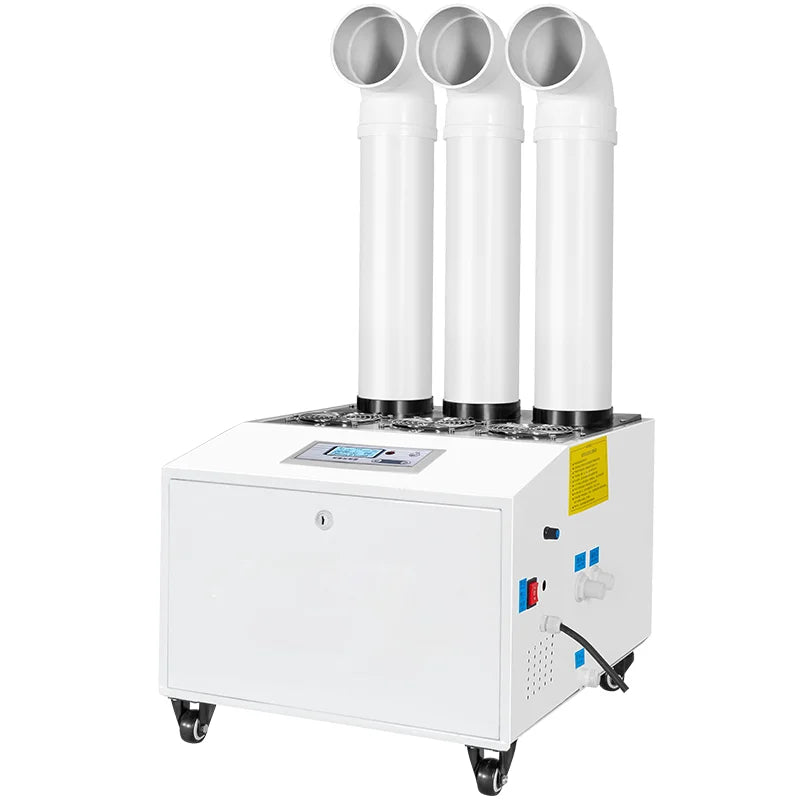

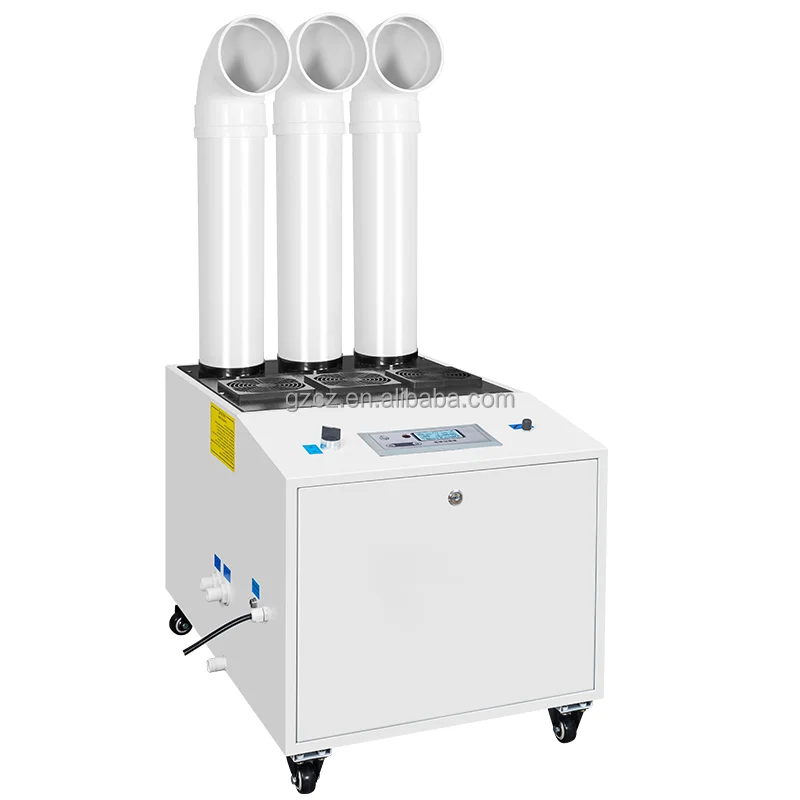

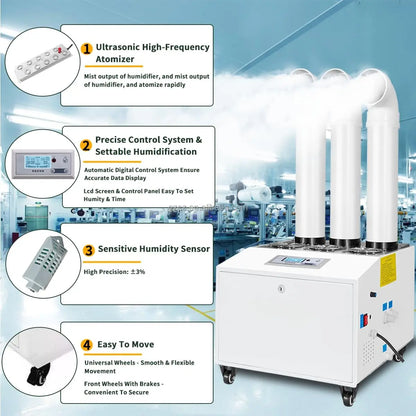

Equipment picture			Parameter
	Model		CZ-06
	Product Name		Industrial humidifier
	Humidifying capacity		42KG/h

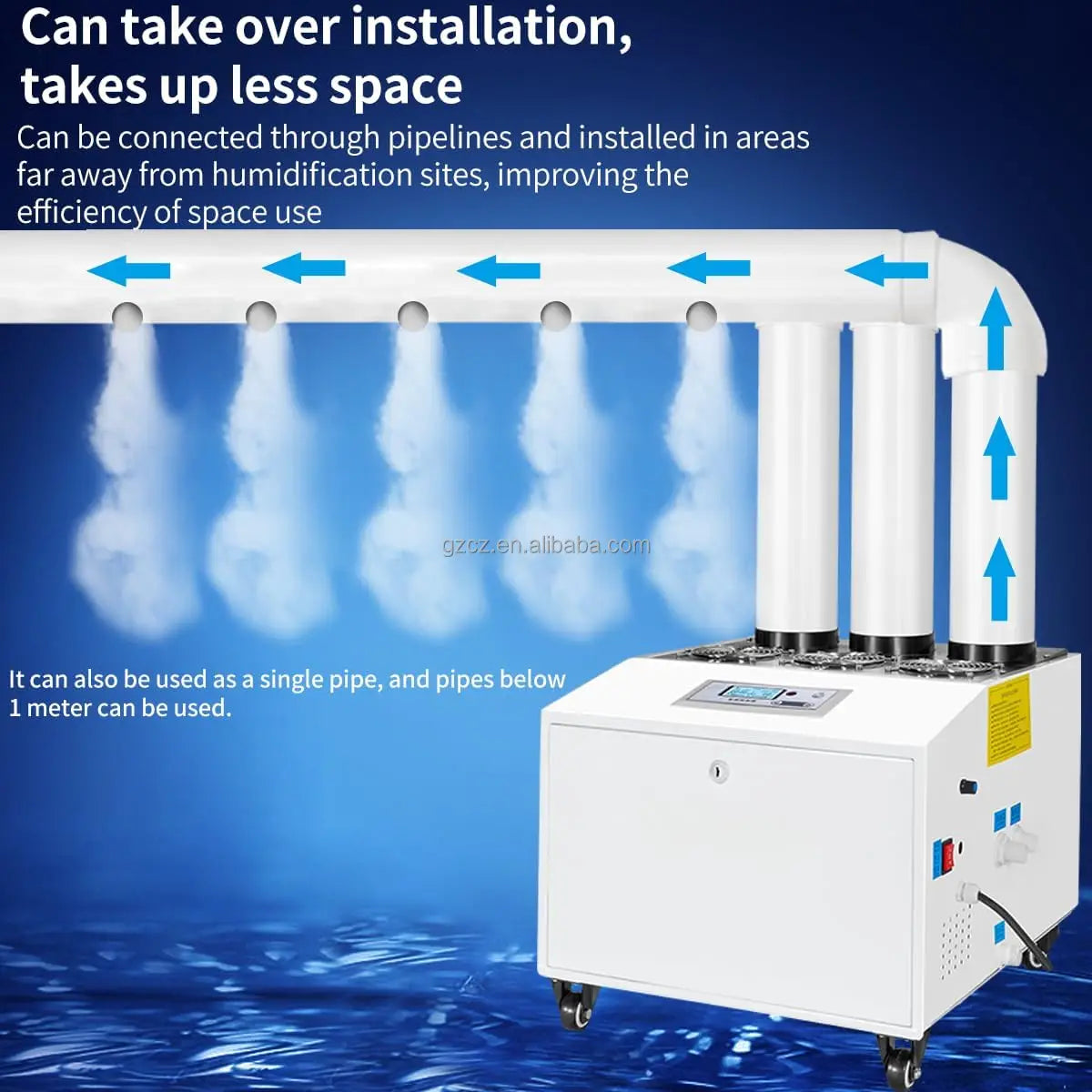

	Fog outlet		110mm*3
	Power		2400
	Voltage		220V.50HZ
	Atomizing plate		60
	Fog particle		1~10μm
	Applicable temperature		3-40℃
	Applicable Area		210-260 Square meter
	Size		780*590*490
	Temperature control accuracy		±3%

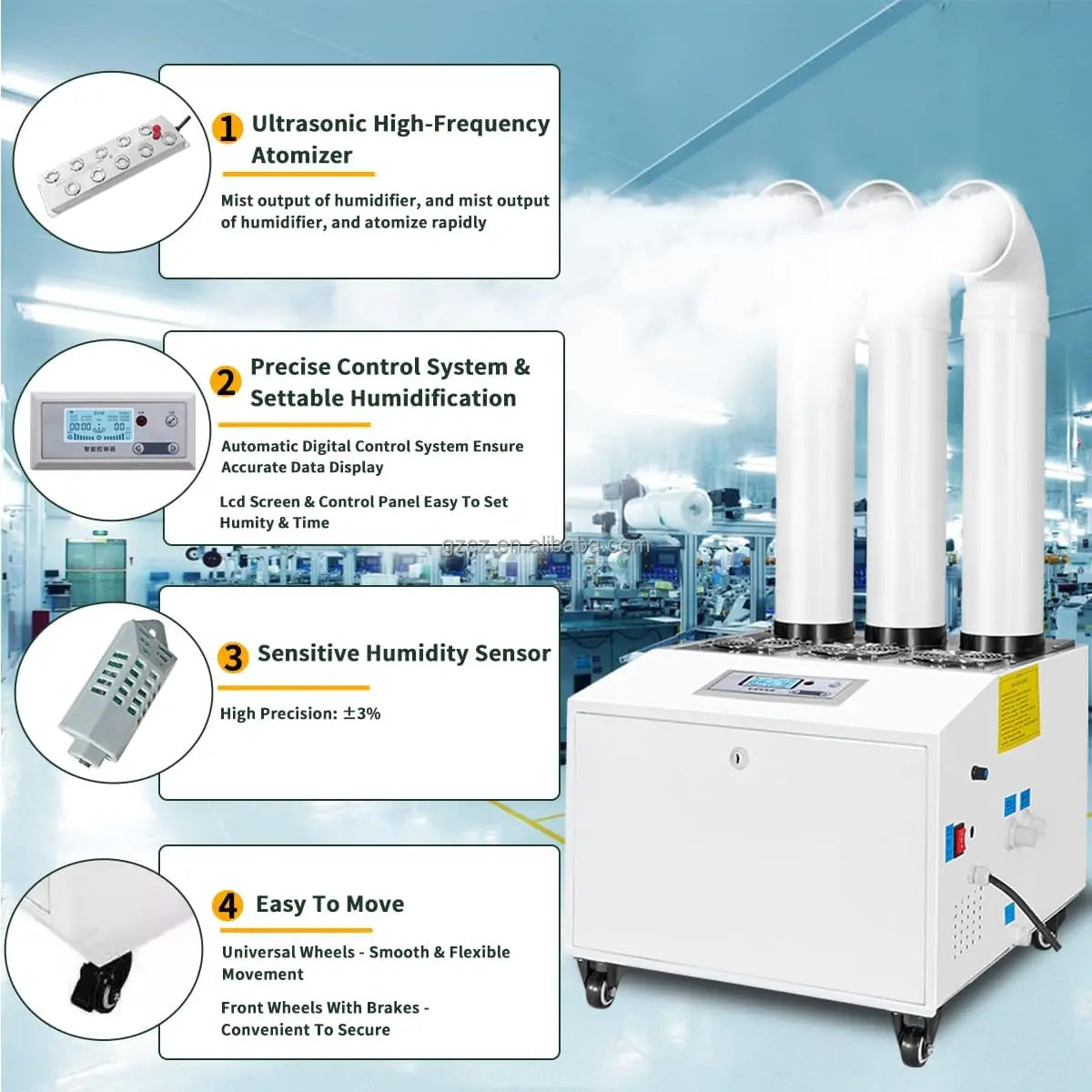

Product configuration		Product Function
Atomizing plate	60 PCS		Fan delay protection	Prevent fog reflux and protect electronic components
Air blower	Industrial grade waterproof fan		Timing function	Set timing switch, no personnel on duty
Electromotor	Fully enclosed copper motor		Manual control	The screen is not displayed, start continuous humidification
Transformer	Double mode high waterproof transformer		Automatic control	After setting the humidity, the humidification starts automatically
Temperature sensor	Japan Zenei chip		Custom temperature control	Humidity is adjustable from 10%-99%
Filter configuration	Air intake filtration, water filtration		Memory function	Restore the previous state after power failure
Nozzle setting	Overflow port, intake port, drain port		Fault self-diagnosis	Fault information indicates the corresponding code
Control panel	Manual,Microcomputer intelligent touch control		Water intake system	Automatically replenishes water when the water level is too low
Power line length	1.5m		Water level monitoring	Physical float, water level detection
Travelling wheel	Universal wheel		Power supply protection	Power overload protection
