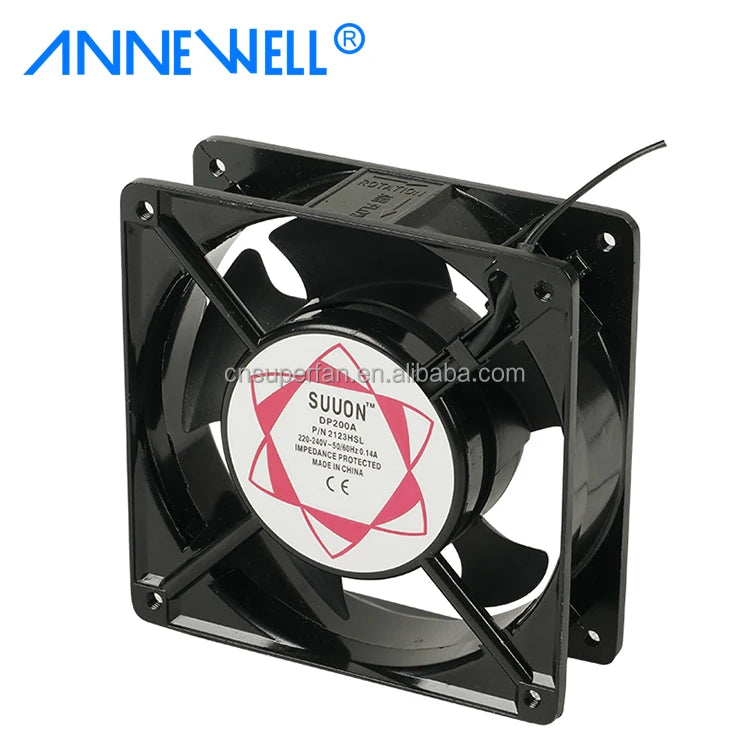

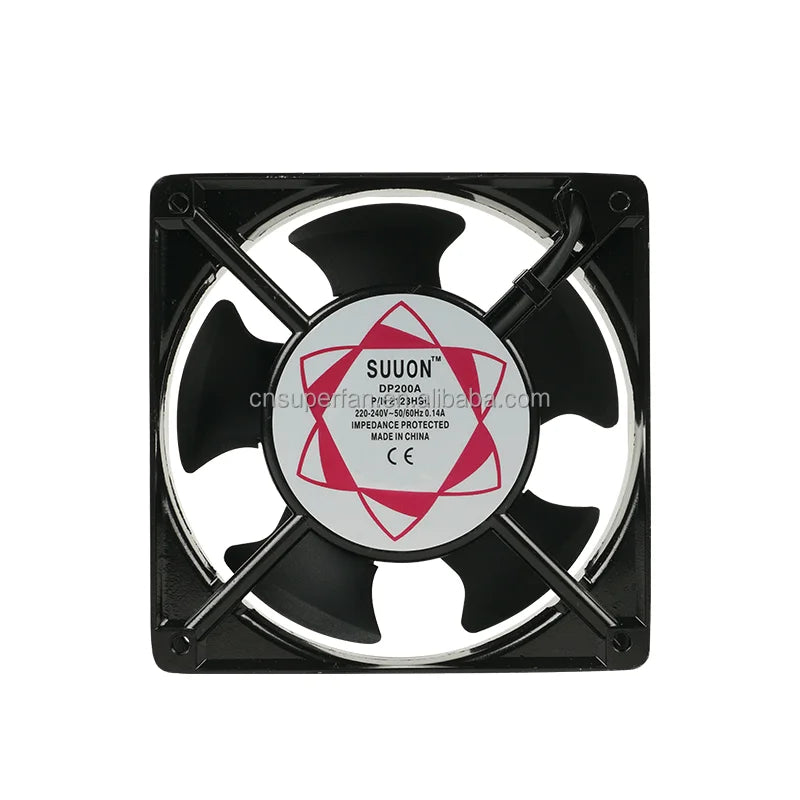

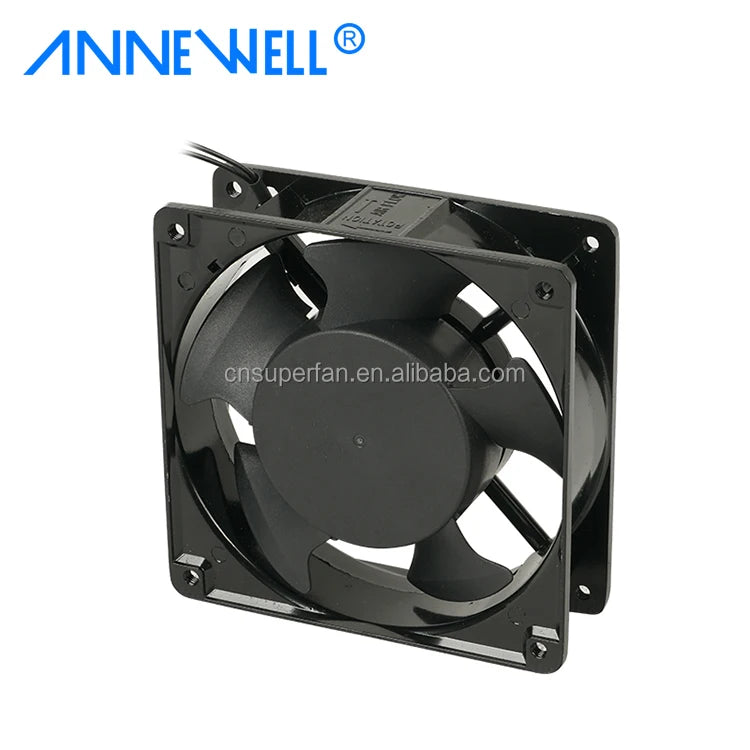

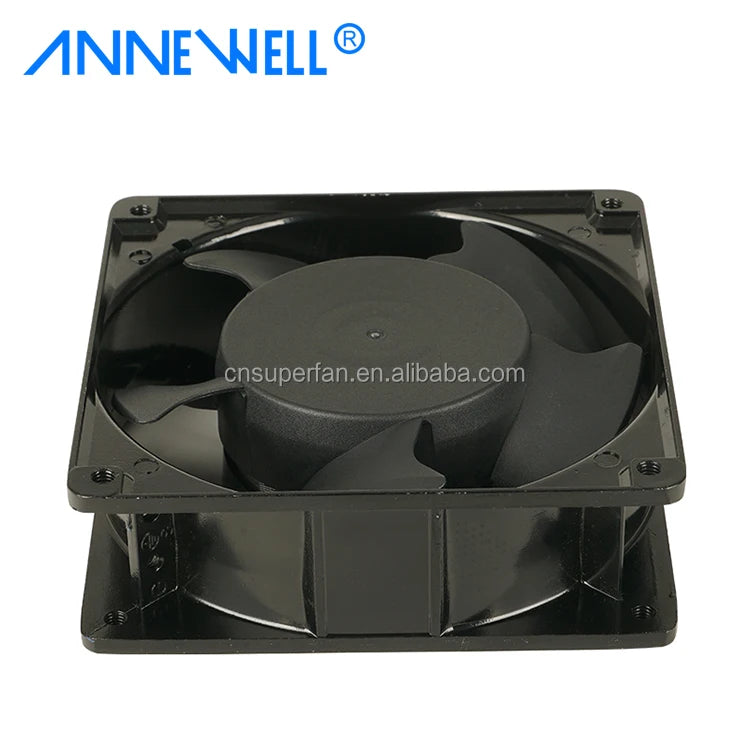

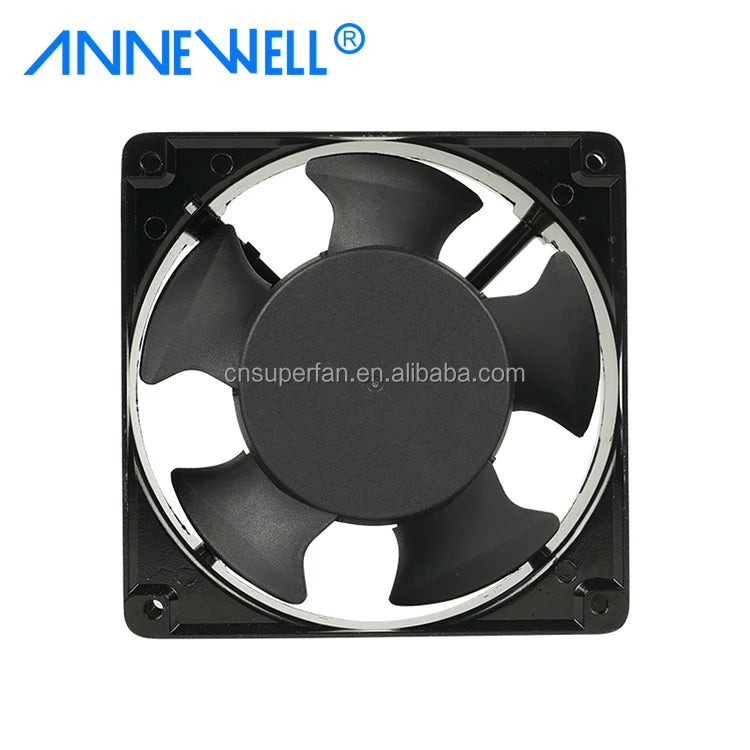

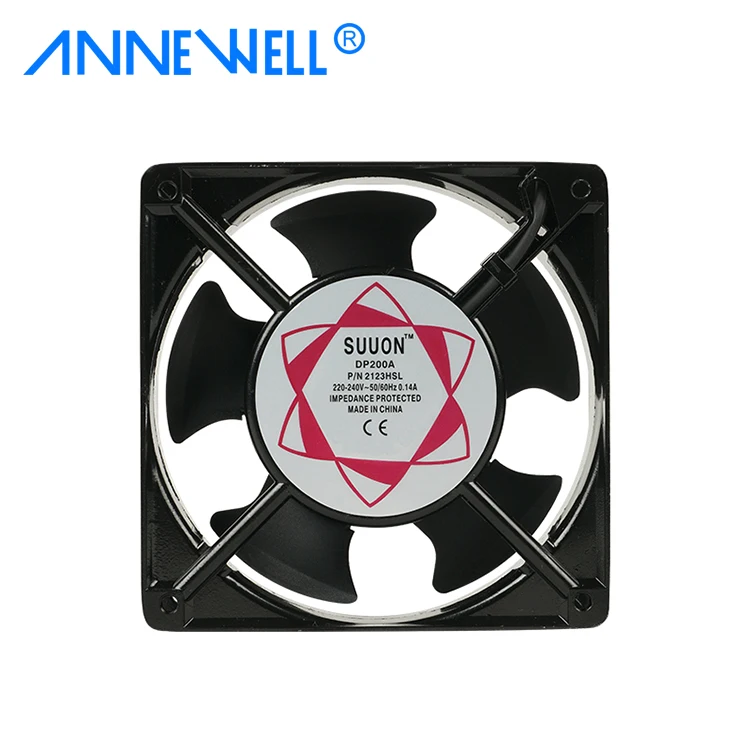

4 Inch Cheap Price 120x120x38 Cabinet AC Cooling Fan for Egg Incubator DP200A P/N2123XSL 12cm 12038 220V 0.14A Axial Cooling Fan

4 Inch Cheap Price 120x120x38 Cabinet AC Cooling Fan for Egg Incubator DP200A P/N2123XSL 12cm 12038 220V 0.14A Axial Cooling Fan

CFA747 XOF
CFA0 XOF CFA747 XOF
Sale Produits stock
Shipping calculated at checkout.
electric current type
air volume
power

SPECIFICATIONS

Application: Industrial Equipment,Control Penel,Electrical Cabinet,Welding Machine

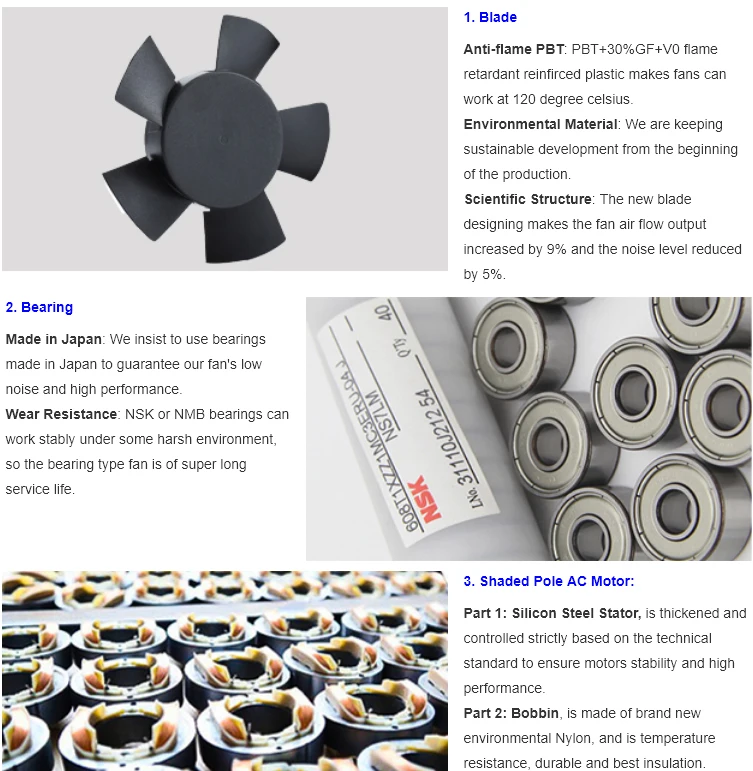

Bearing: Sleeve Bearing

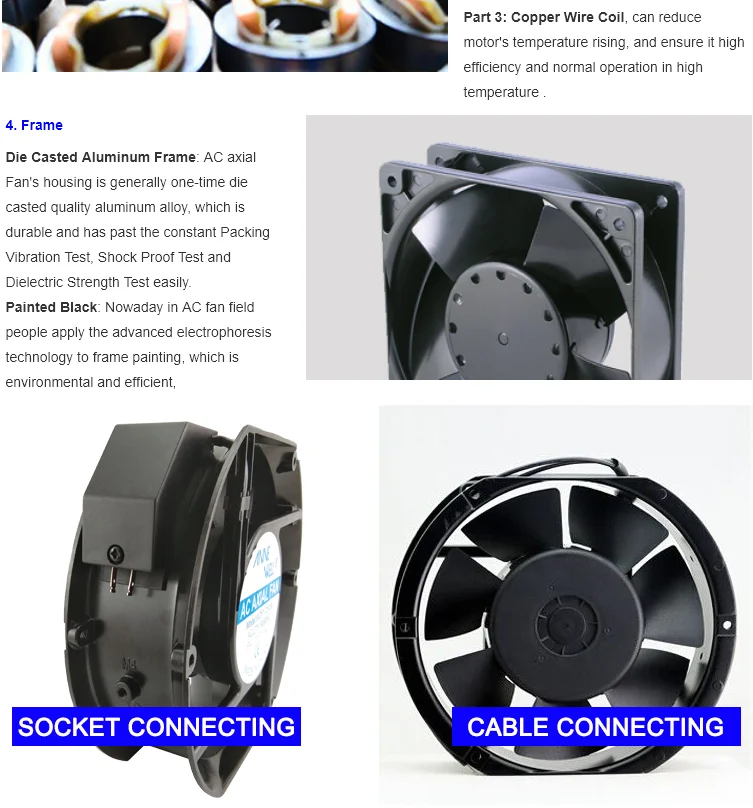

Frame Material: Aluminum Alloy

Free Sample: Available

MOQ: 1 pcs

Material: Plastic

Minimum Packing Quantity: 40 pcs/carton

Motor Type: AC Aluminium Motor

Power Source: Electric

Product Name: AC Brushless Axial Cooling Fan

Safety Approval: CCC, CE, ROHS

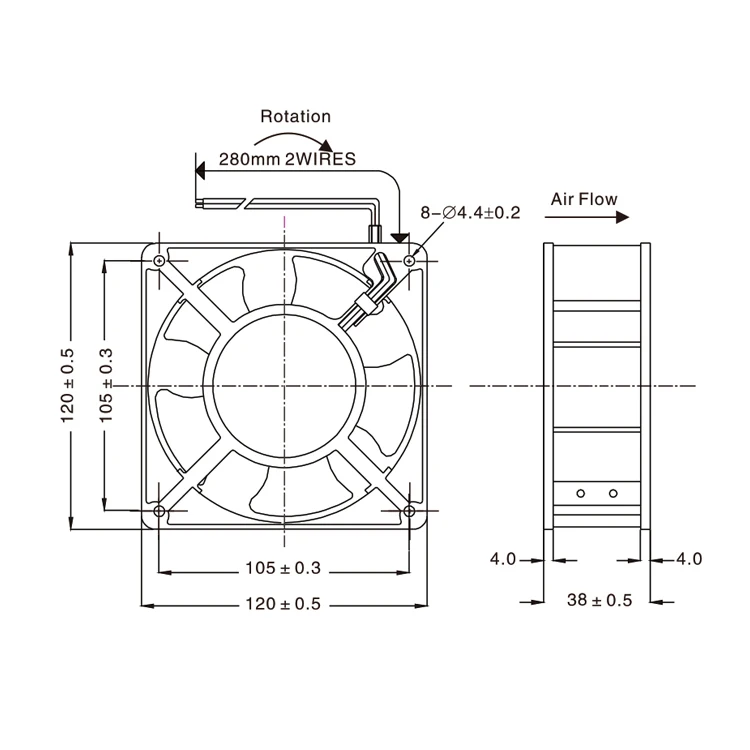

Size: 120x120x38 mm

Type: High-Temperature Axial Fan

Voltage: AC 220 V

bearing type: Sleeve Bearing

blade material: Plastic

brand name: ANNEWELL

customized support: OEM,ODM,OBM

model number: WDF12038SL220V 6310

mounting type: Screw Fixing

place of origin: Henan, China

speed: 2100 RPM

4 Inch Cheap Price 120x120x38 Cabinet AC Cooling Fan for Egg Incubator DP200A P/N2123XSL 12cm 12038 220V 0.14A Axial Cooling Fan





Listed Model

 Bearing System Voltage (VAC) Freq. (HZ) Current (A) Power (W) Speed (RPM) Air Flow   (CFM) Air Pressure (mm-H2O) Noise (dBA) Weight (G)
WDF12038H Ball 380~420 50/60 0.07/0.05 23/20 2550/2900 82/95 6.7/8.5 40/43 340
WDF12038M 380~420 0.05/0.04 15/14 2400/2700 75/85 5.2/6.3 39/42
WDF12038H 220~240 0.16/0.15 15/14 2400/2700 75/85 5.2/6.3 39/42
WDF12038M 220~240 0.11/0.10 10/9 2000/2400 65/75 3.0/4.1 34/39
WDF12038H 100~125 0.25/0.24 15/14 2400/2700 75/85 5.2/6.3 39/42
WDF12038M 100~125 0.20/0.19 10/9 2000/2400 65/75 3.0/4.1 34/39
WDF12038H Sleeve 380~420 50/60 0.07/0.05 23/20 2550/2900 82/95 6.7/8.5 40/43
WDF12038M 380~420 0.05/0.04 15/14 2400/2700 75/85 5.2/6.3 39/42
WDF12038H 220~240 0.16/0.15 15/14 2400/2700 75/85 5.2/6.3 39/42
WDF12038M 220~240 0.11/0.10 10/9 2000/2400 65/75 3.0/4.1 34/39
WDF12038H 100~125 0.25/0.24 15/14 2400/2700 75/85 5.2/6.3 39/42
WDF12038M 100~125 0.20/0.19 10/9 2000/2400 65/75 3.0/4.1 34/39



















   FAQ



1. What is a DC Axial Fan?

A DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. DC motor runs from the attract and repel of the permanent magnet inside the motor. It blows air along the axis of the fan, or parallel to the track of the blade axis to create changeable and not stable air-flow. Standard DC axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm, 120mm, 140mm, 150mm, 172mm, 200mm and 254mm.



2. How to choose an DC fan?

You should consider the points of blow:

-Size(MM)

-Rated voltage(V)

-Speed(RPM)

-Airflow(CFM)

-Noise level(dBA)

-Current(A)

-Connector

-Lead wire:3pin, 3pin, 4pin, RD, FG, PWM, etc.



3. What is a Bearing?

Fan bearing includes

-Sleeve Bearing Fan: life expectancy 30000 hours,

-Hydraulic Bearing Fan: life expectancy 40000 hours,

-Ball Bearing Fan: life expectancy 50000 hours or more.



4. Are you a factory?

Yes, we are a factory.

-Established Year: 2015

-The Number of total employees: 516

-No of R&D team member: 15

-No of QC team membe: 15

-Production & Test Facility: 39

-No of Production Line: 6

-Certification: UL, CUL, TUV, CE, CCC, SGS, ISO:9001-2008.



5. What is the delivery time?

Sample lead time: 3~5 business days.

Mass production delivery lead time: 3~22 business days,

Delivery Ways: FedEX, DHL, UPS, TNT Door to Door Express service, By Air, By Sea, etc.



6. Can you provide any sample? Is it free or extra?

Yes, we can offer the free samples for each model.





   Other Dimension
20*20*6mm 20*20*10mm 25*25*7mm 25*25*10mm 35*35*10mm 40*40*10mm
40*40*10mm 40*40*20mm 40*40*28mm 50*50*10mm 50*50*15mm 60*60*15mm
60*60*20mm 60*60*25mm 70*70*25mm 80*80*10mm 80*80*15mm 80*80*25mm
90*90*25mm 92*92*38mm 120*120*25mm 120*120*38mm 135*135*38mm 140*140*25mm
140*140*38mm 150*150*50mm 172*150*38mm 170*152*51.5mm 180*180*60mm 200*200*60mm
220*220*60mm 225*255*80mm 280*280*80mm
