SPECIFICATIONS

Auto Focus: Yes

Brand Name: BMAD

Cord length: 1.6 meters

Focusing method: Autofocus

Frame rate: 30FPS

High-concerned chemical: None

Interface Type: USB

Max. Resolution: 2592*1944

Origin: Mainland China

Package: Yes

Product Category: USB camera

Product name: PC webcam

Scope of use: Laptops, video conferencing, LCD monitors, security cameras, others Sensor pixels

Sensor pixels: 5 million

Whether a drive is needed: Driver-free

interface: USB 2.0

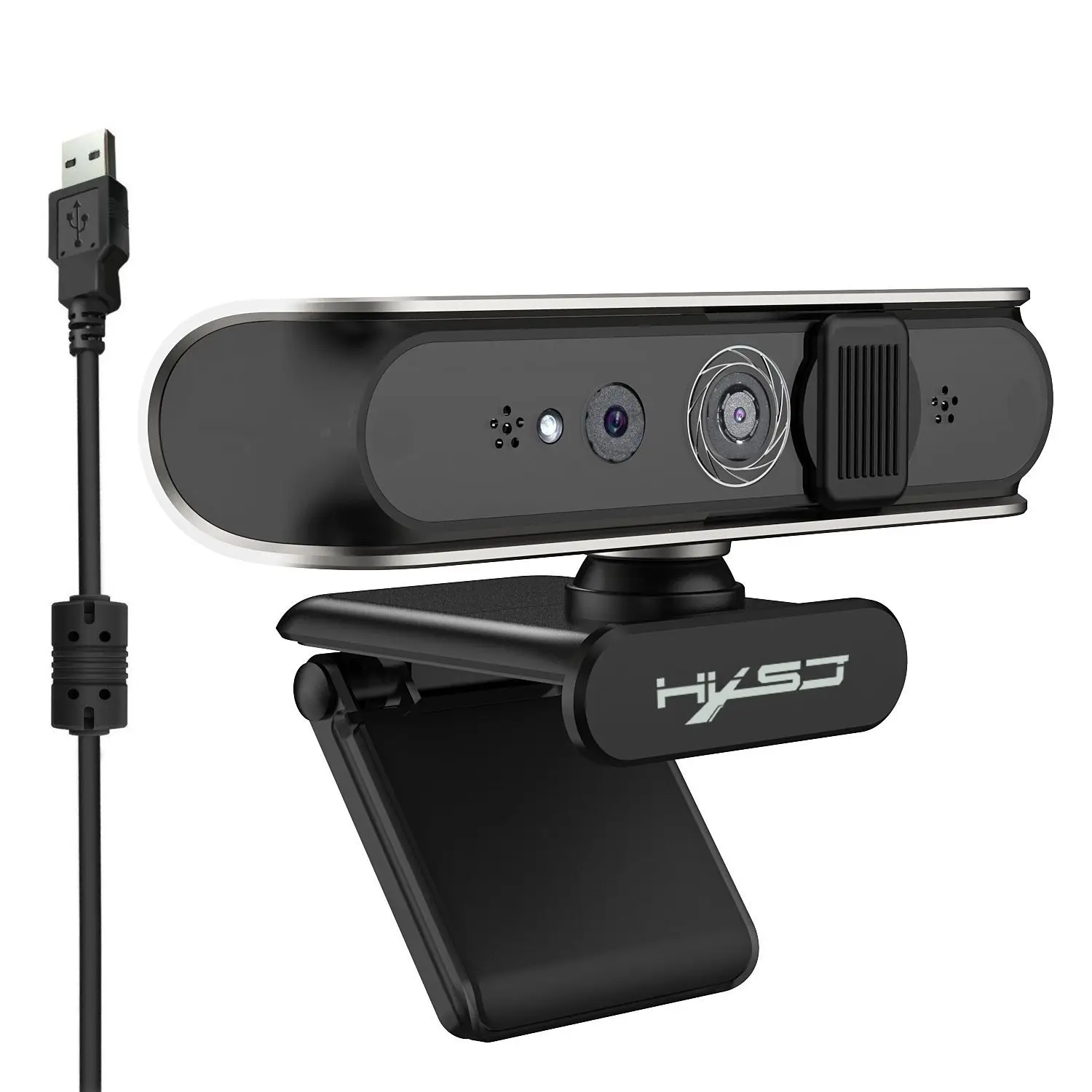

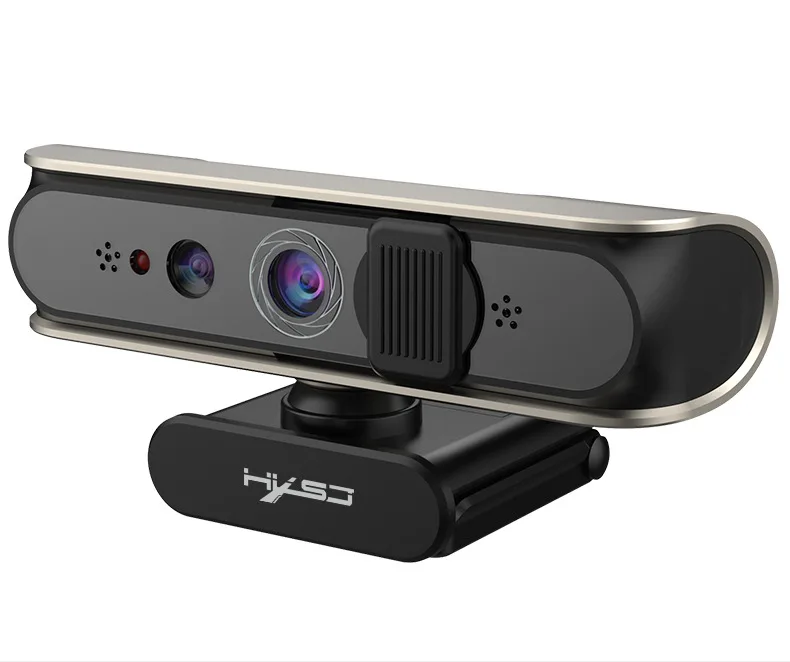

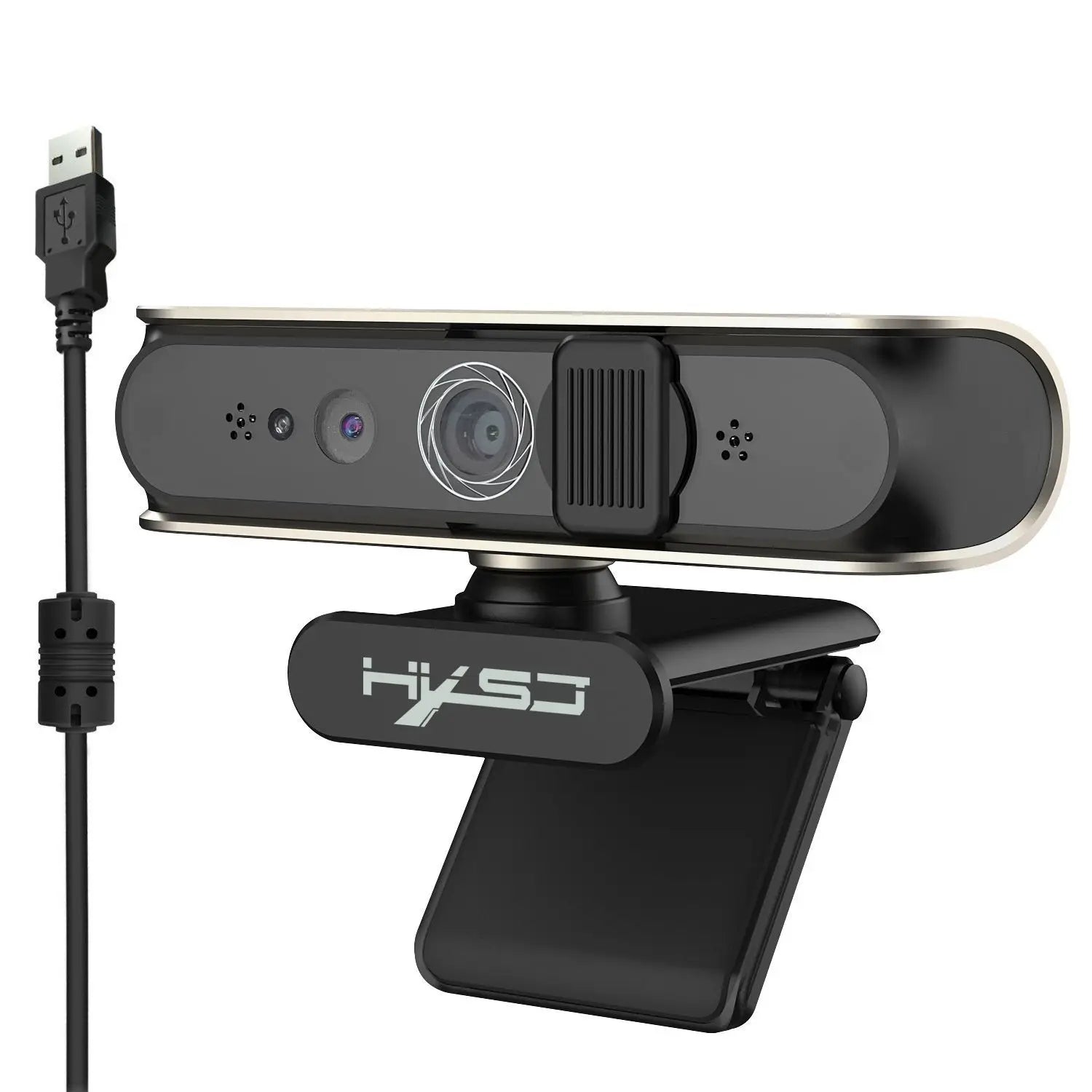

S6 Hello Camera

USB cable length: 1.55M

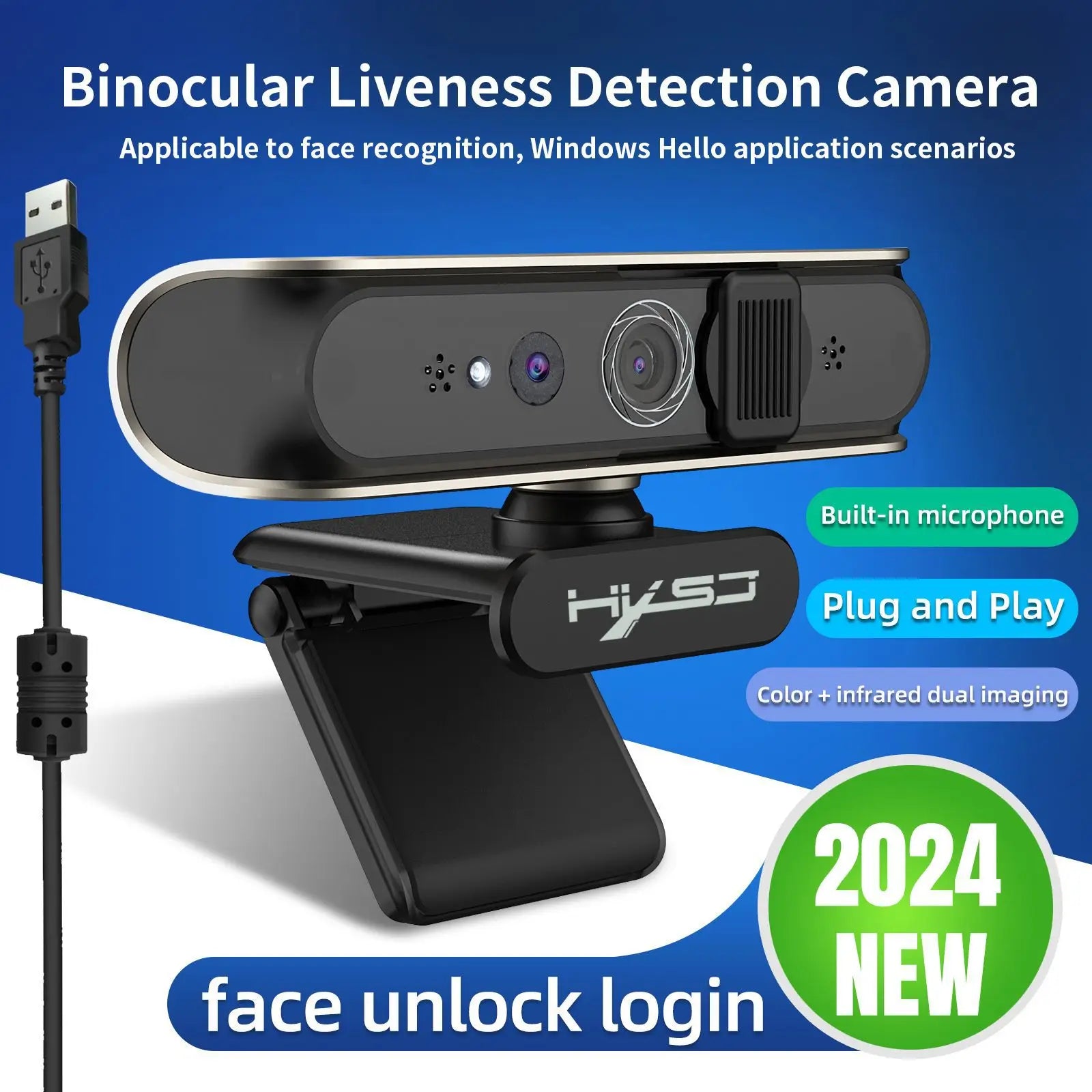

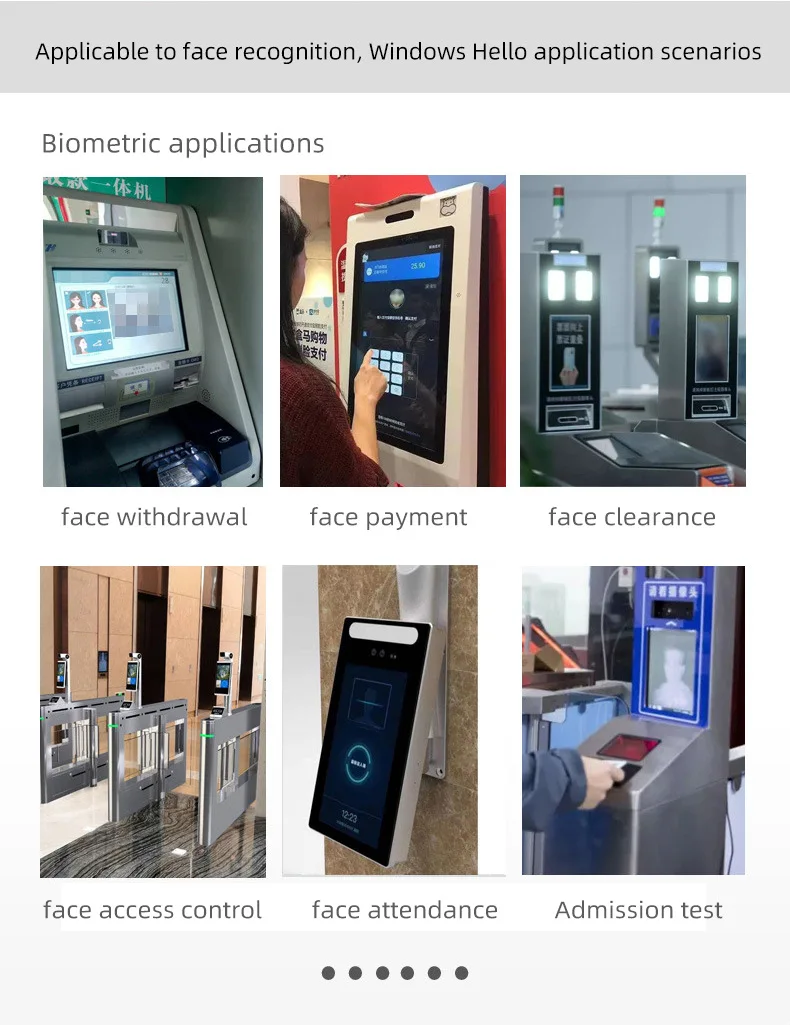

Application scenarios and selling points of Windows Hello camera:

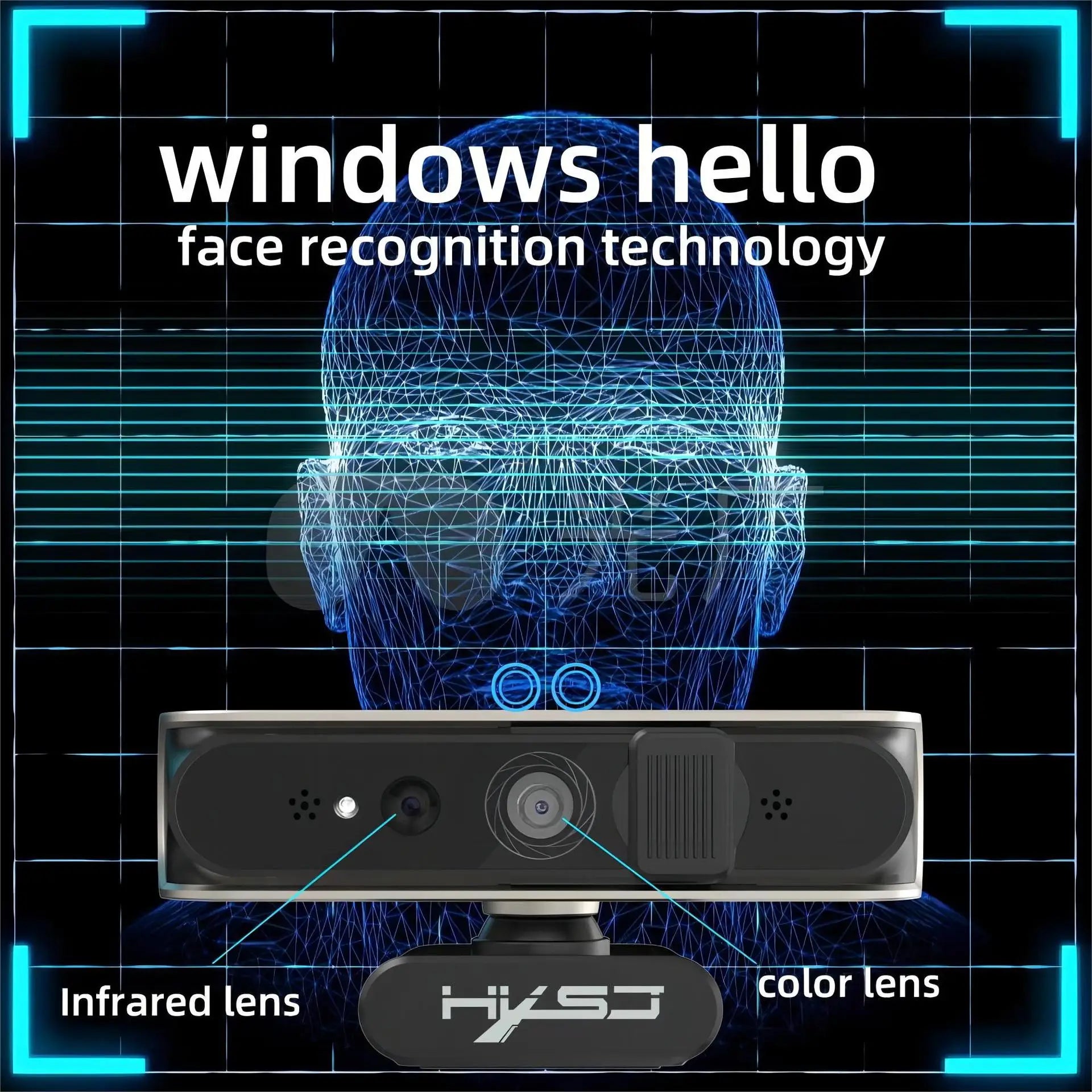

The Windows Hello camera is a type of camera that supports biometric technology, with its main function being to achieve user authentication through methods such as facial recognition. Its purpose is to enable quick and secure login to the Windows system without the need to enter a password, thereby enhancing the user's login experience and data security. The Windows Hello camera recognizes the user's facial features to ensure that only authorized users can access the system, while also supporting multi-person recognition and integration with third-party applications, providing a more convenient and secure means of identity verification.

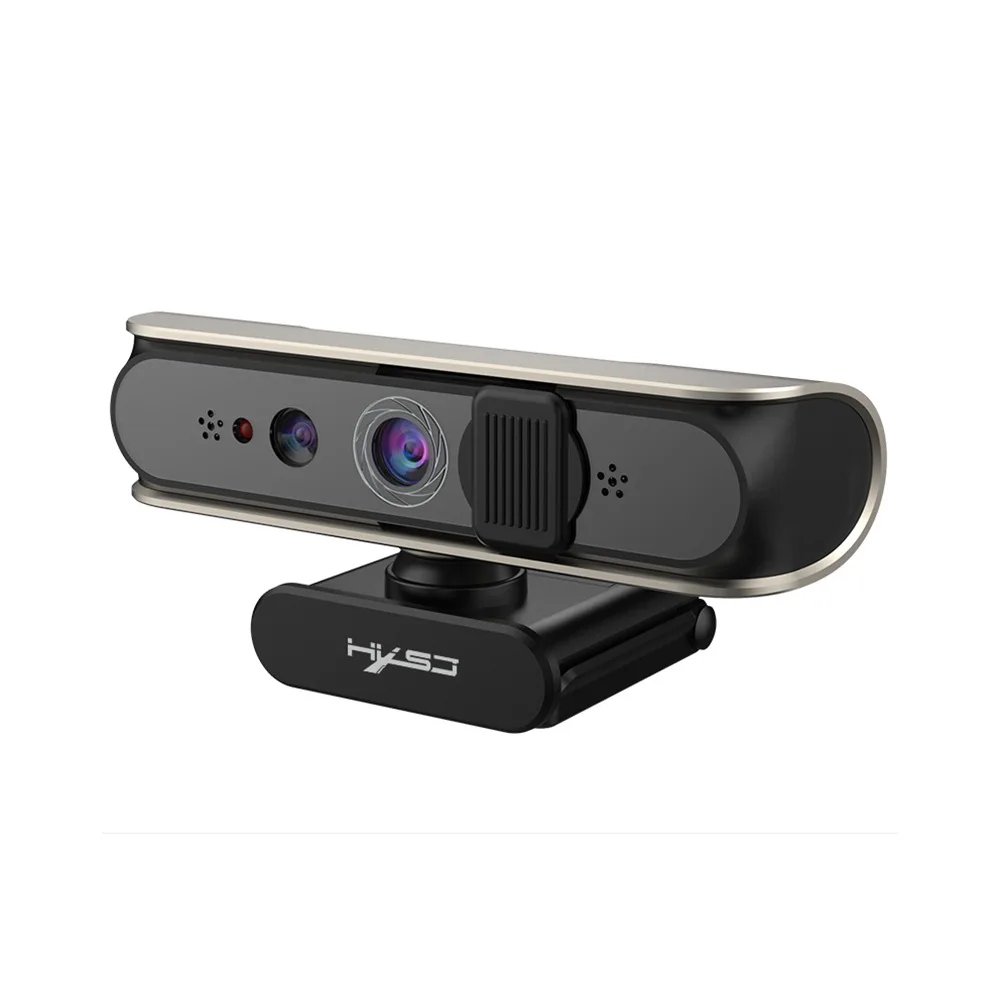

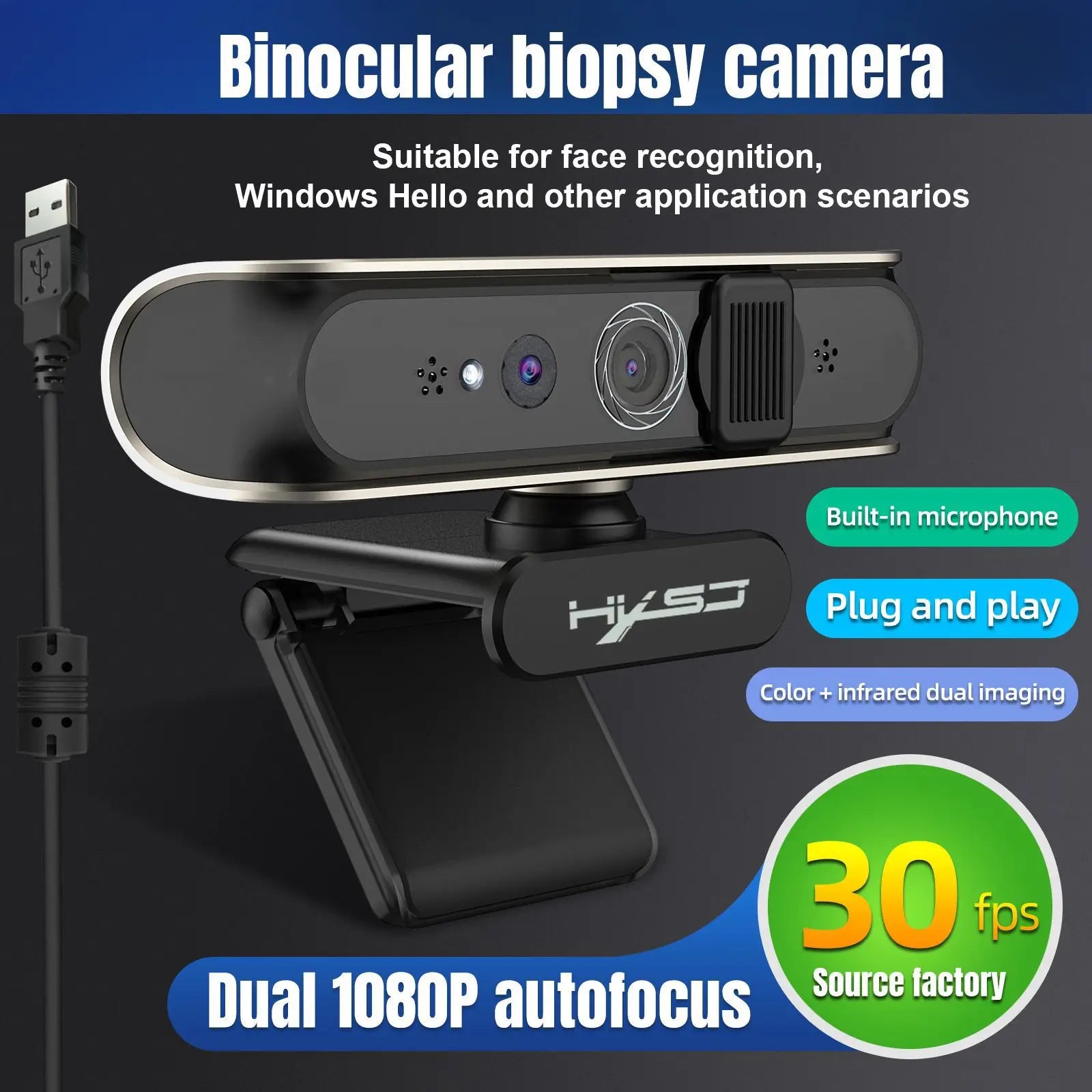

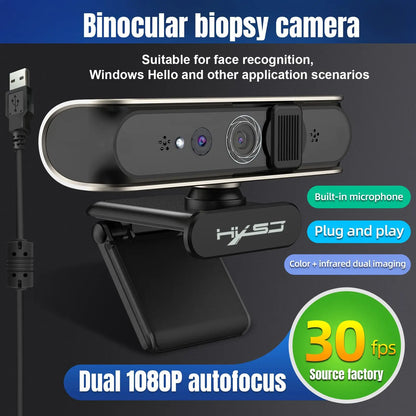

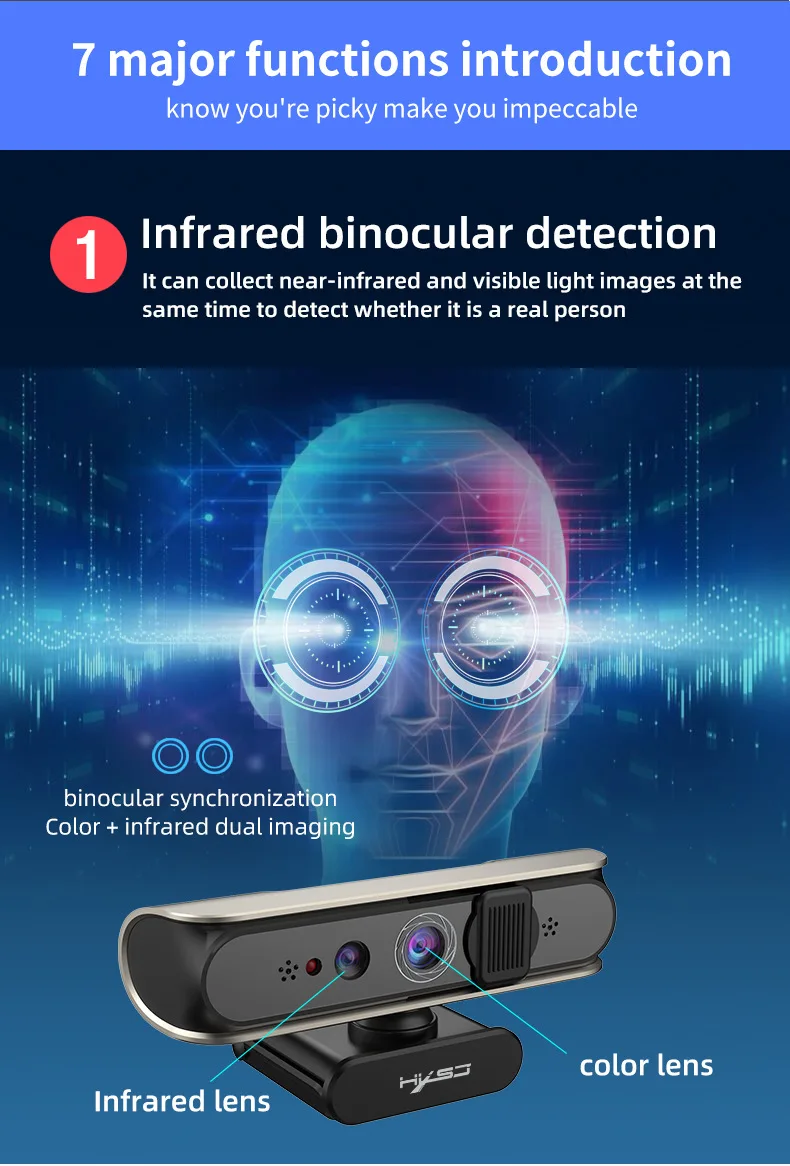

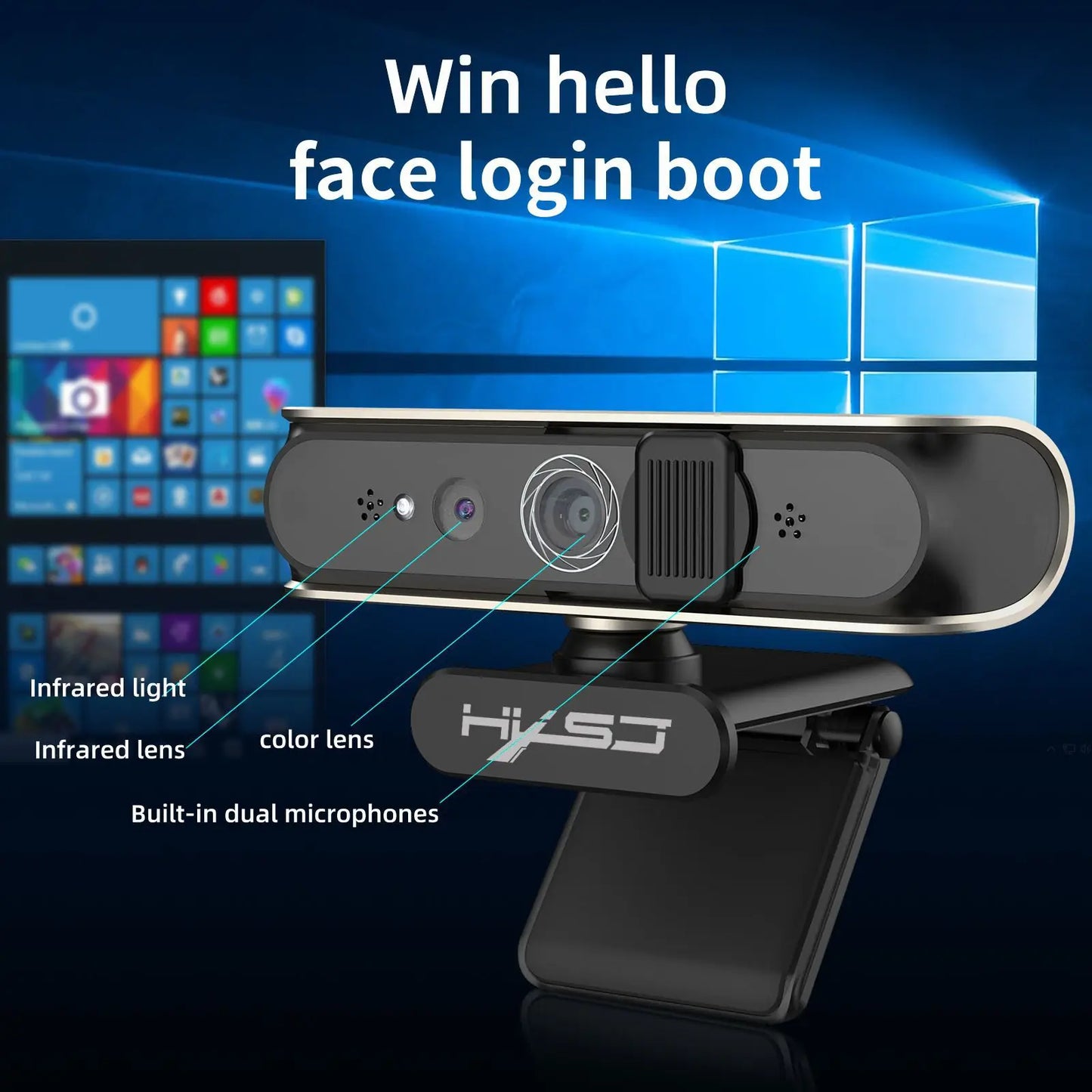

• 1. Dual Cameras with 1080P HD + Infrared Camera:

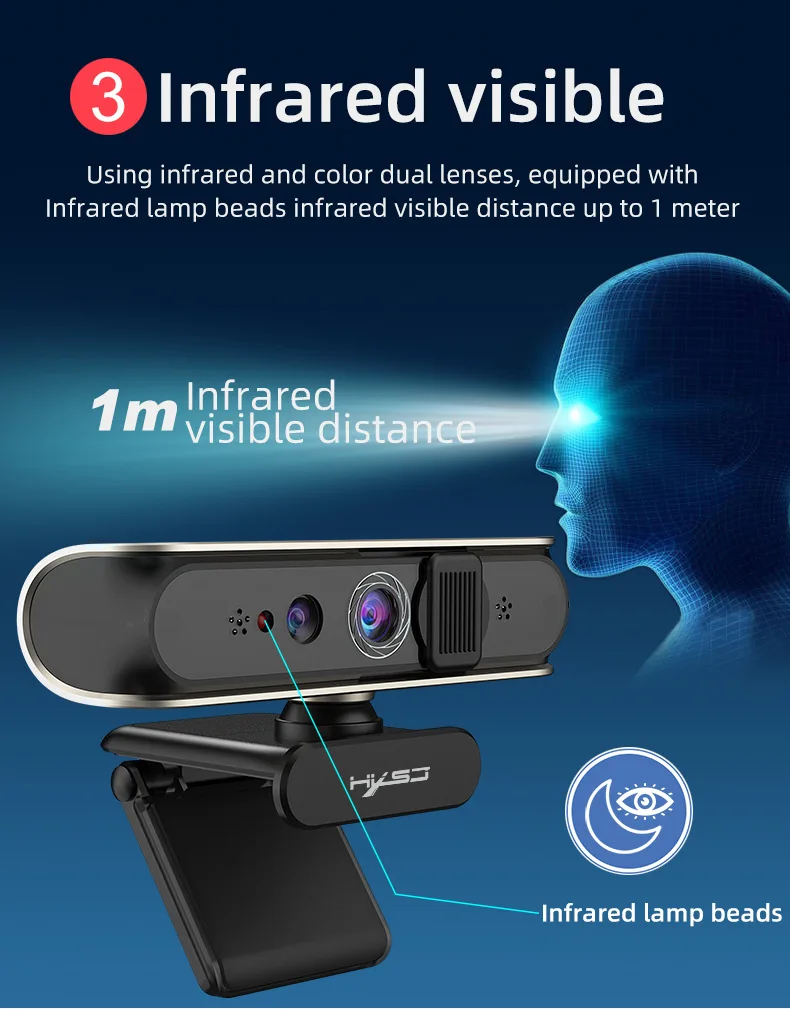

Equipped with dual cameras, supporting 1080P high-definition quality, and featuring an infrared camera function, it can achieve clear facial recognition in low-light environments, ensuring the accuracy and security of identity verification.

• 2. Dual Noise-Canceling Microphones:

Built-in dual noise-canceling microphones effectively reduce environmental noise interference, enhancing voice recognition and call quality for clearer and smoother communication.

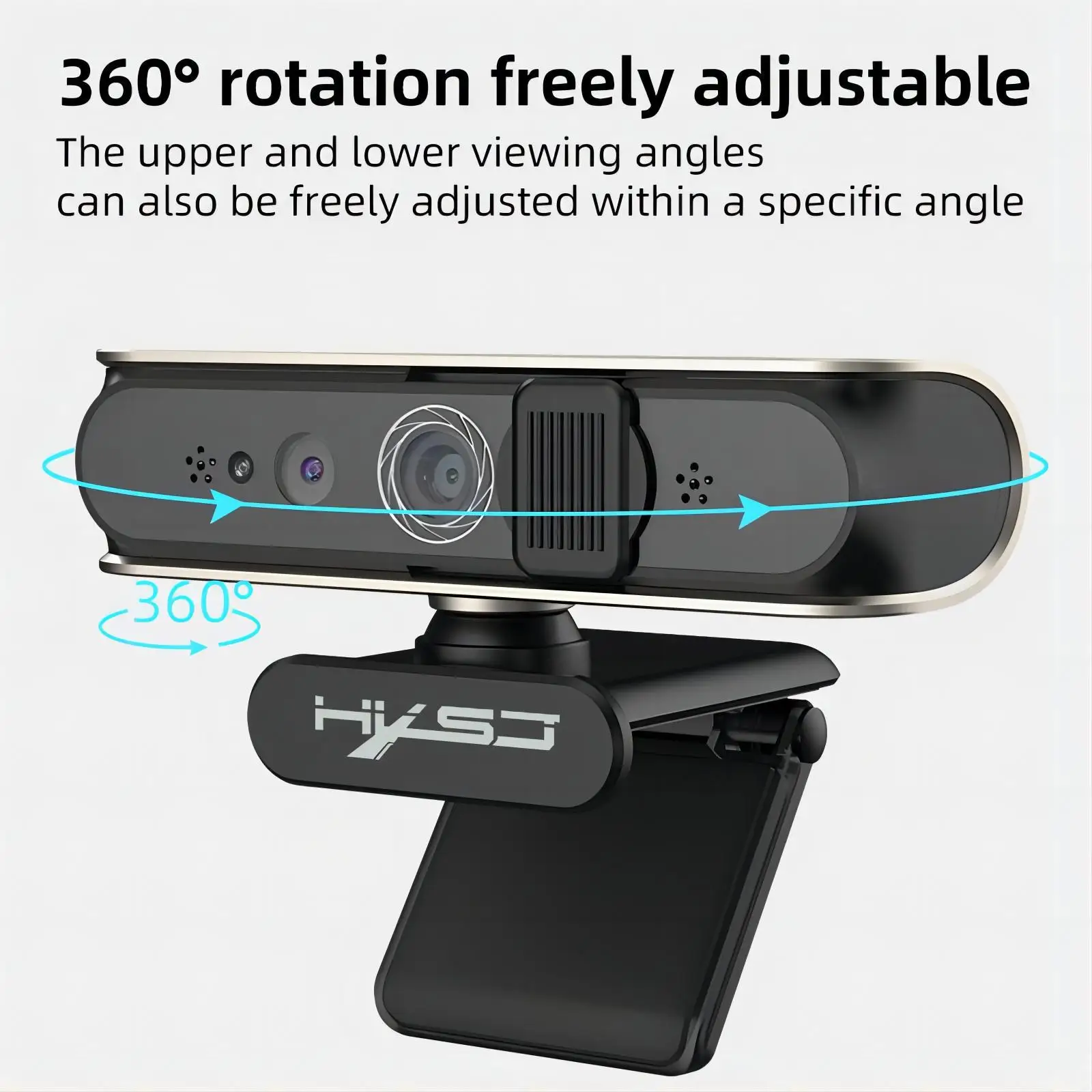

• 3. 360-Degree Rotatable Head:

Supports 360-degree free rotation of the head, allowing users to easily adjust the camera angle to meet the needs of different usage scenarios and ensure the best shooting angle.

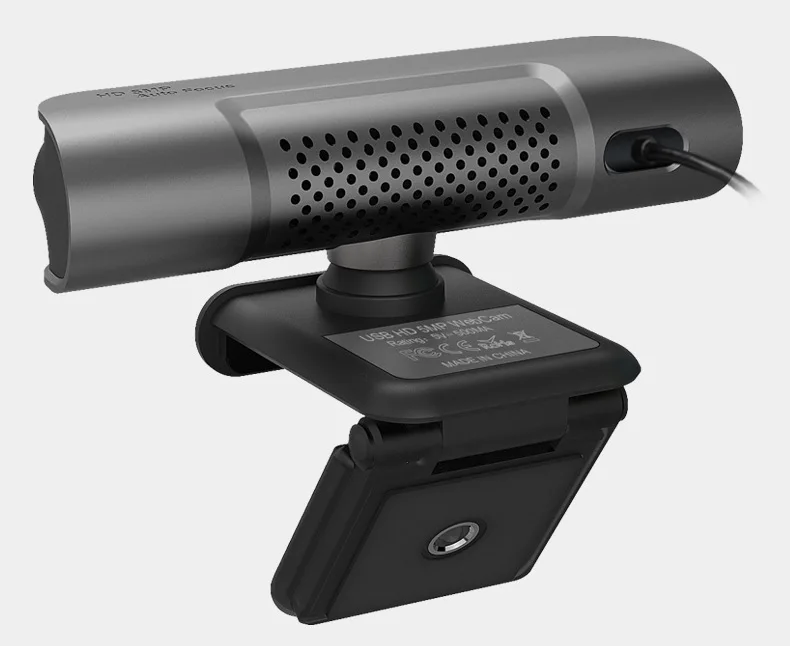

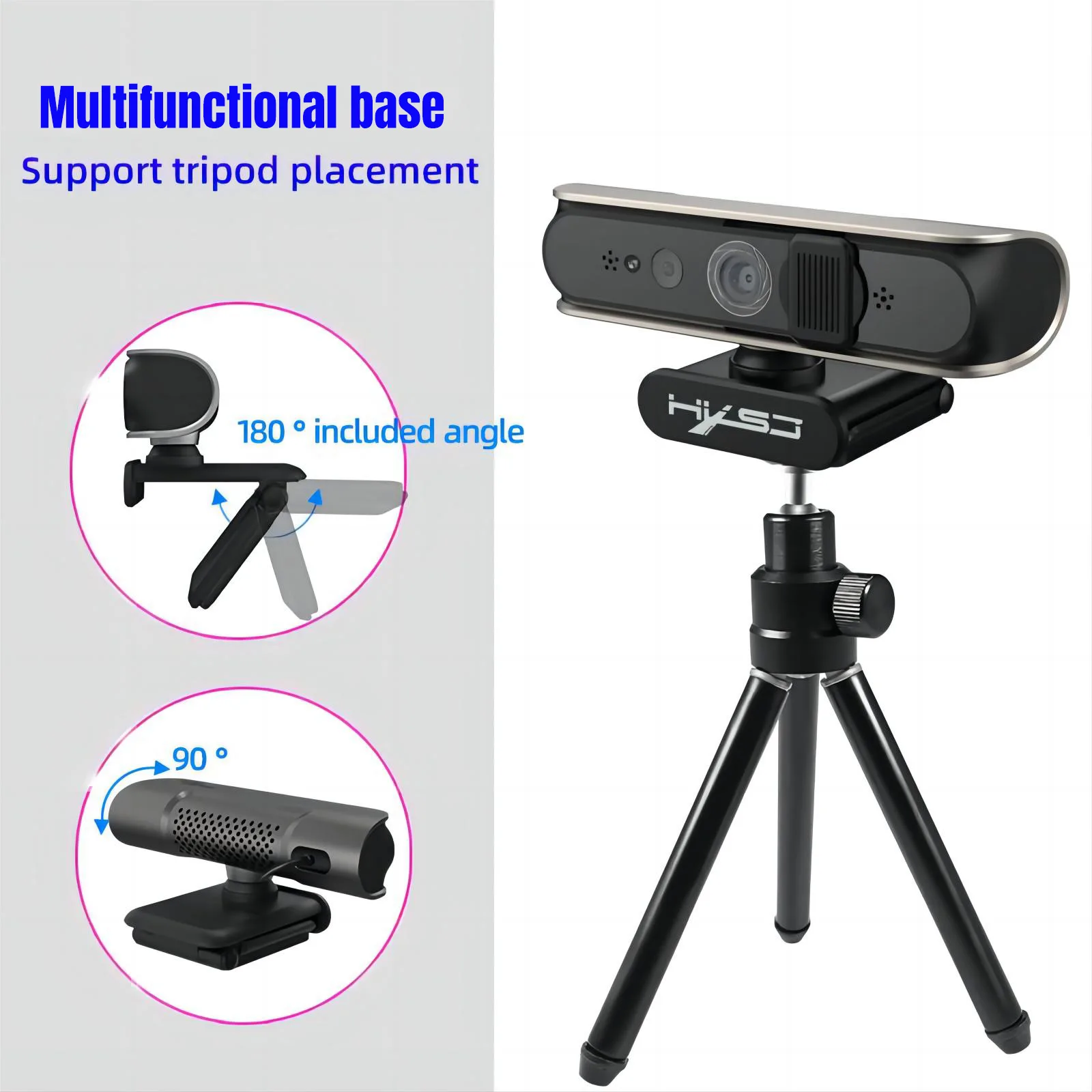

• 4. Base Compatible with Tripod Stand:

The flexible base design allows for the placement of a tripod stand, providing stable support for the camera to ensure stability and security, making it more convenient for users to position the camera.

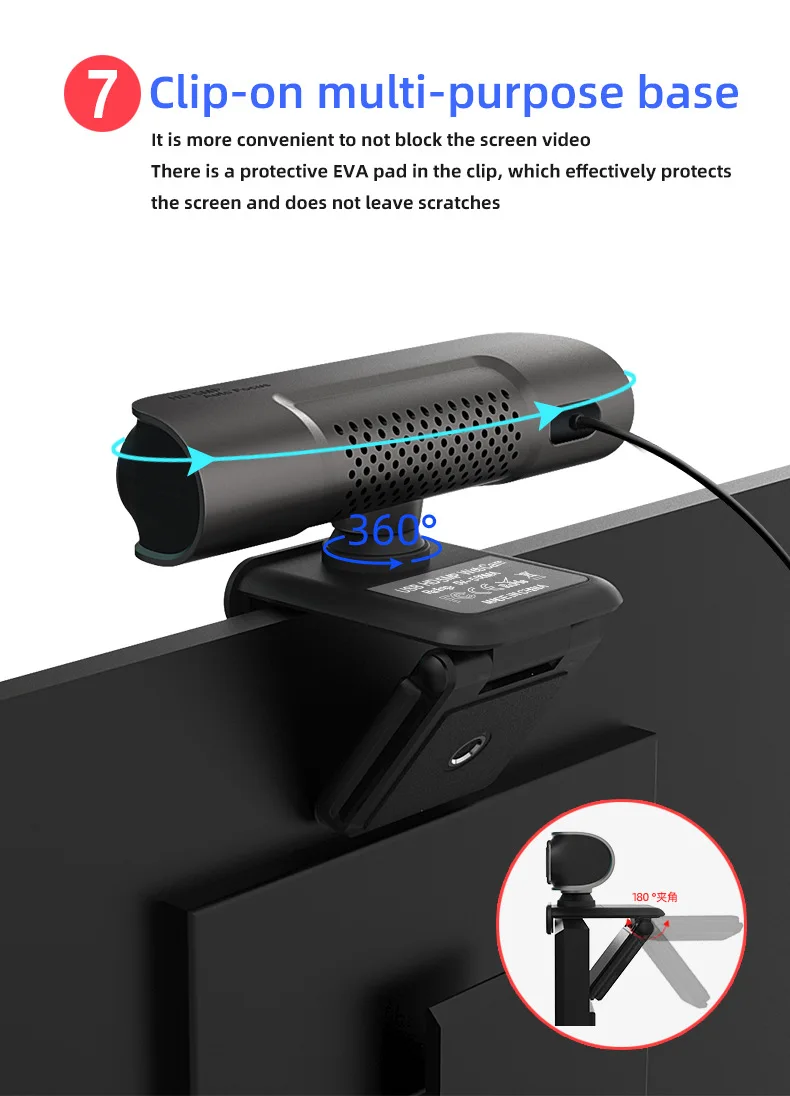

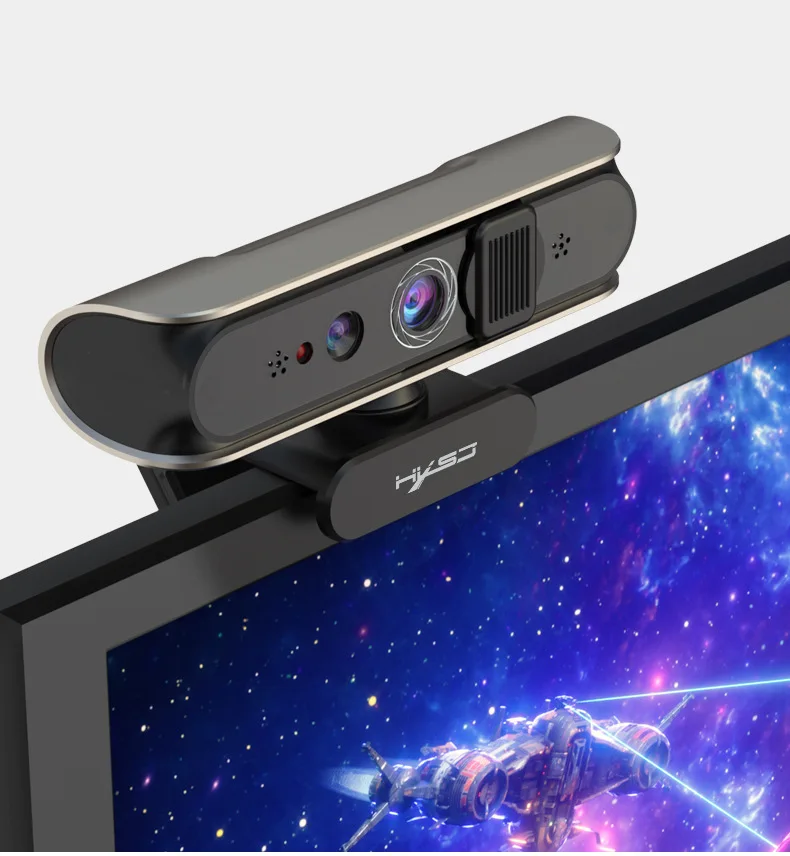

• 5. Multi-Functional Clamp Design:

The camera base is also designed with a clamp structure that can be attached to the computer display screen, saving space for placement, conserving desktop space, and usability.

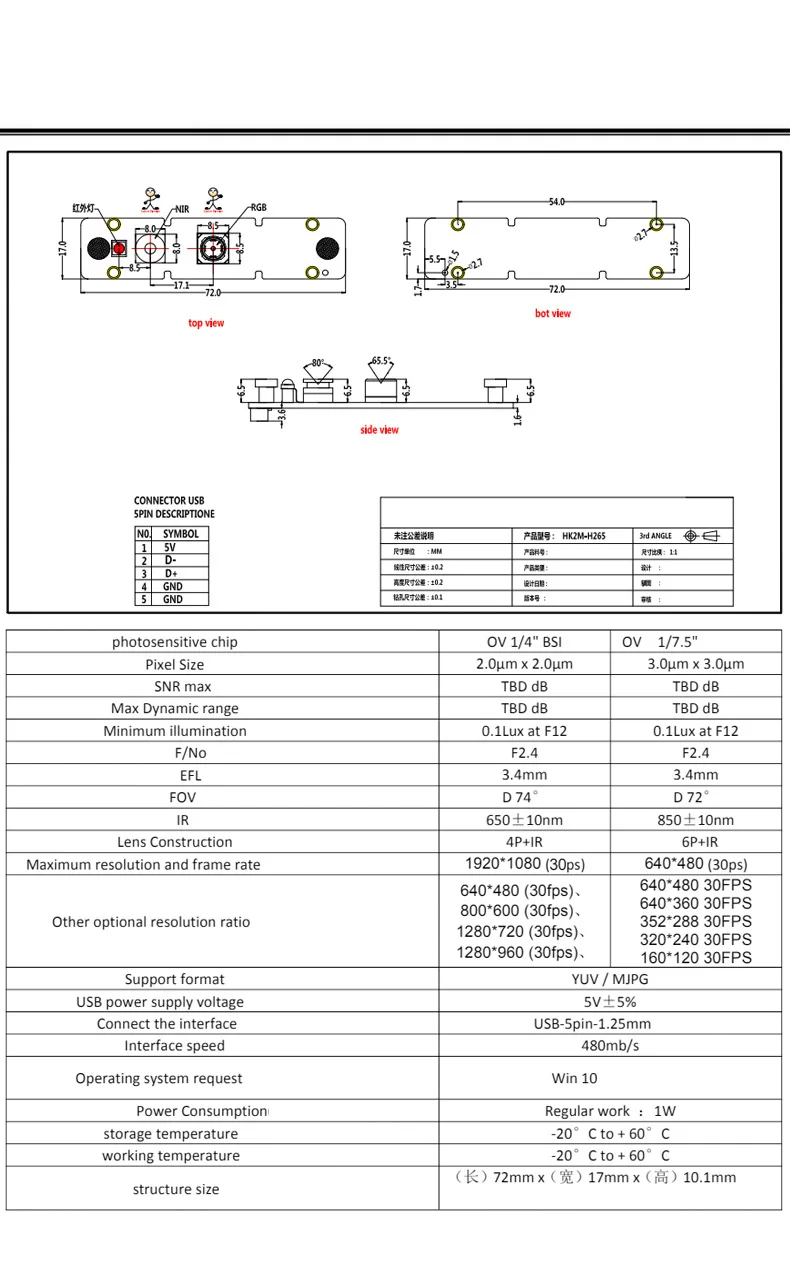

HD Camera Parameters:

photosensitive chip：OV 1/4" BSI

Pixel Size：2.0µm x 2.0µm

SNR max：TBD dB

Minimum illumination：0.1Lux at F12

F/No：F2.4

EFL：3.4mm

FOV：D 74°

IR：650±10nm

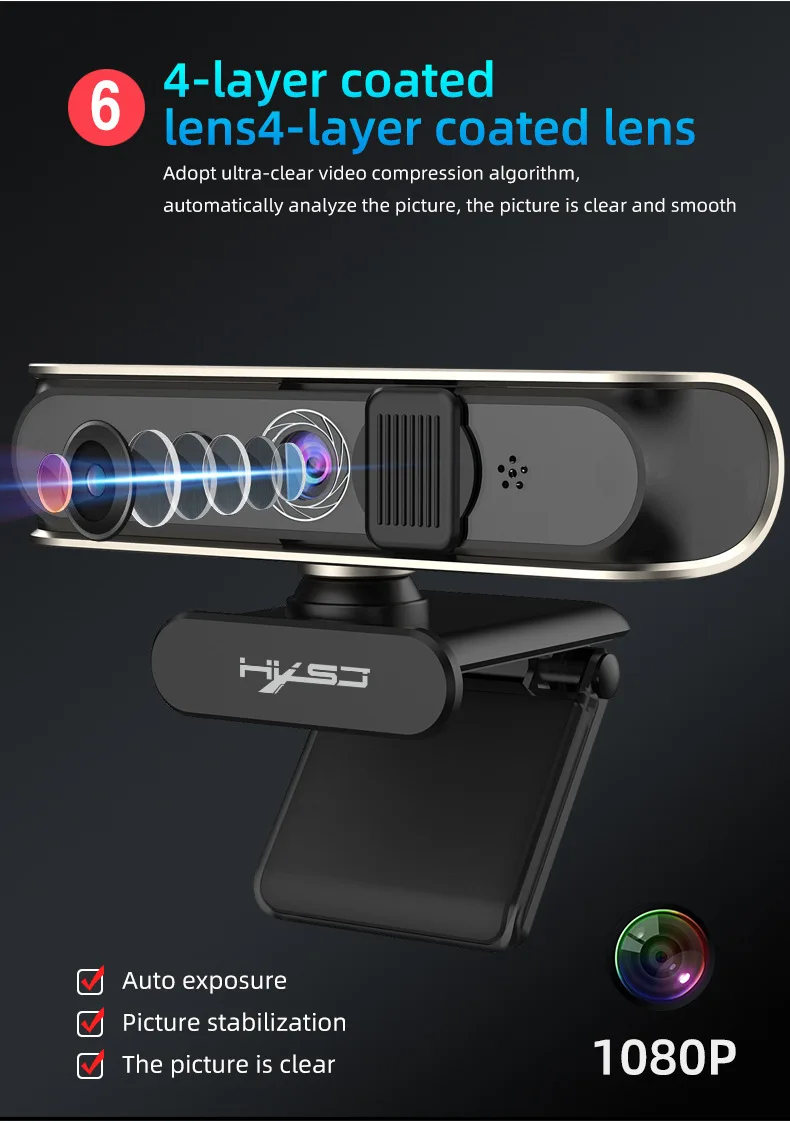

Lens Construction：6P+IR

Maximum resolution and frame rate：1920*1080 (30ps)

Other optional resolution ratio：640*480 (30fps)

800*600 (30fps)、 1280*720 (30fps)、1280*960 (30fps)

Infrared camera parameters:

Photosensitive chip：OV 1/7.5" Full light exposure

Pixel Size：3.0µm x 3.0µm

SNR max：TBD dB

Minimum illumination：0.1Lux at F12

F/No：F2.4

EFL：3.4mm

FOV：D 72°

IR：850±10nm

Lens Construction：6P+IR

Maximum resolution and frame rate：640*480 (30ps)

Other optional resolution ratio：640*360 (30fps)、352*288 (30fps)、 320*240 (30fps)、 160*120 (30fps)

Same parameters for both cameras:

Support format：YUV / MJPG

USB power supply voltage：5V

Connect the interface：USB-2.0-5pin-1.25mm ：Interface speed：480mb/s

Power Consumption Regular work ：1W

Working temperature ：-10°C to + 60°C

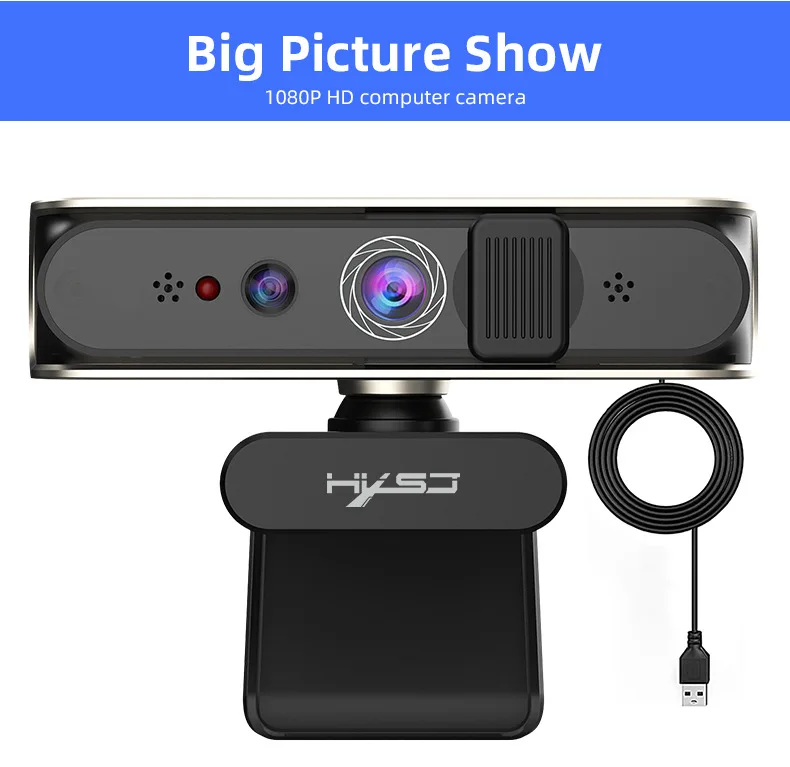

USB cable length: 1.55M

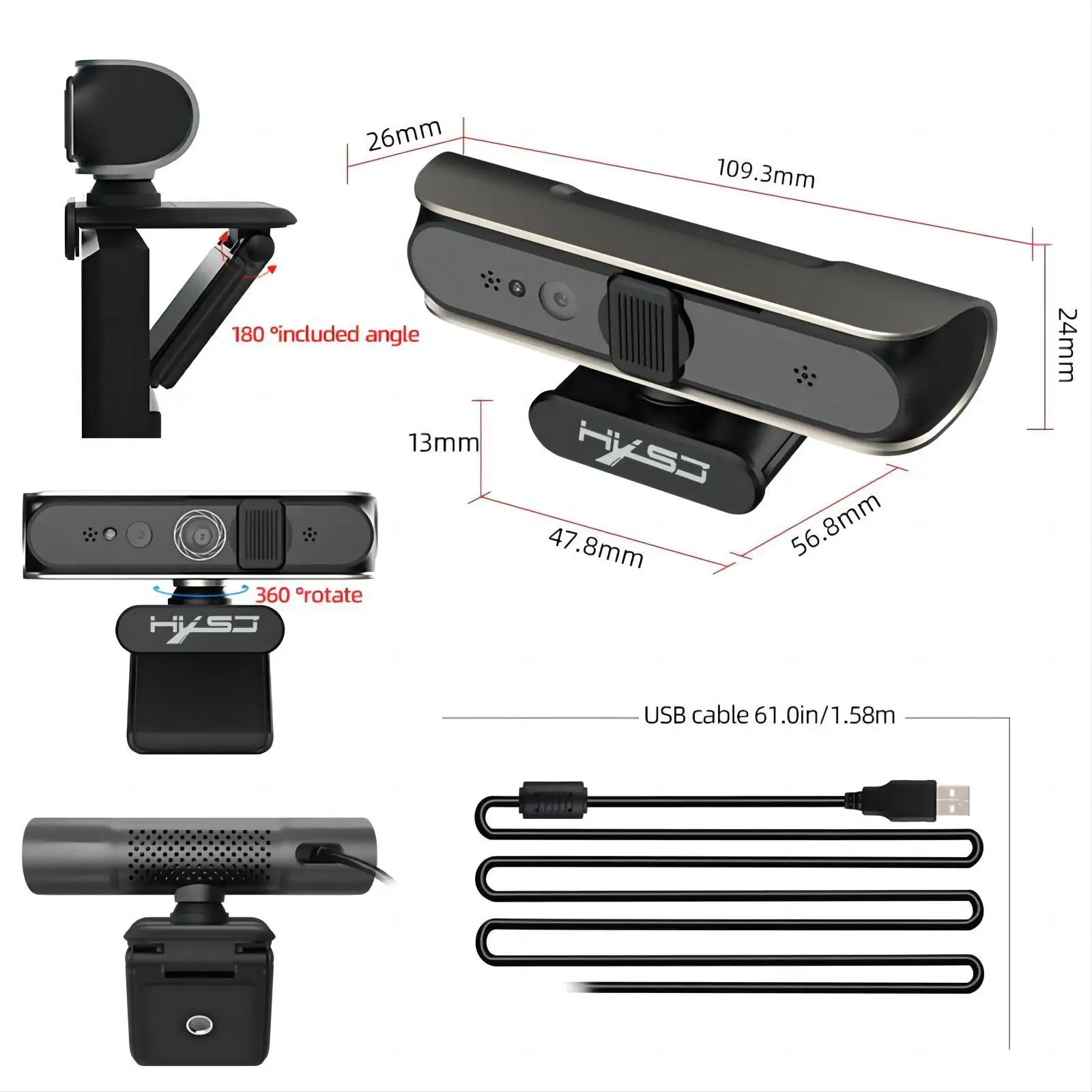

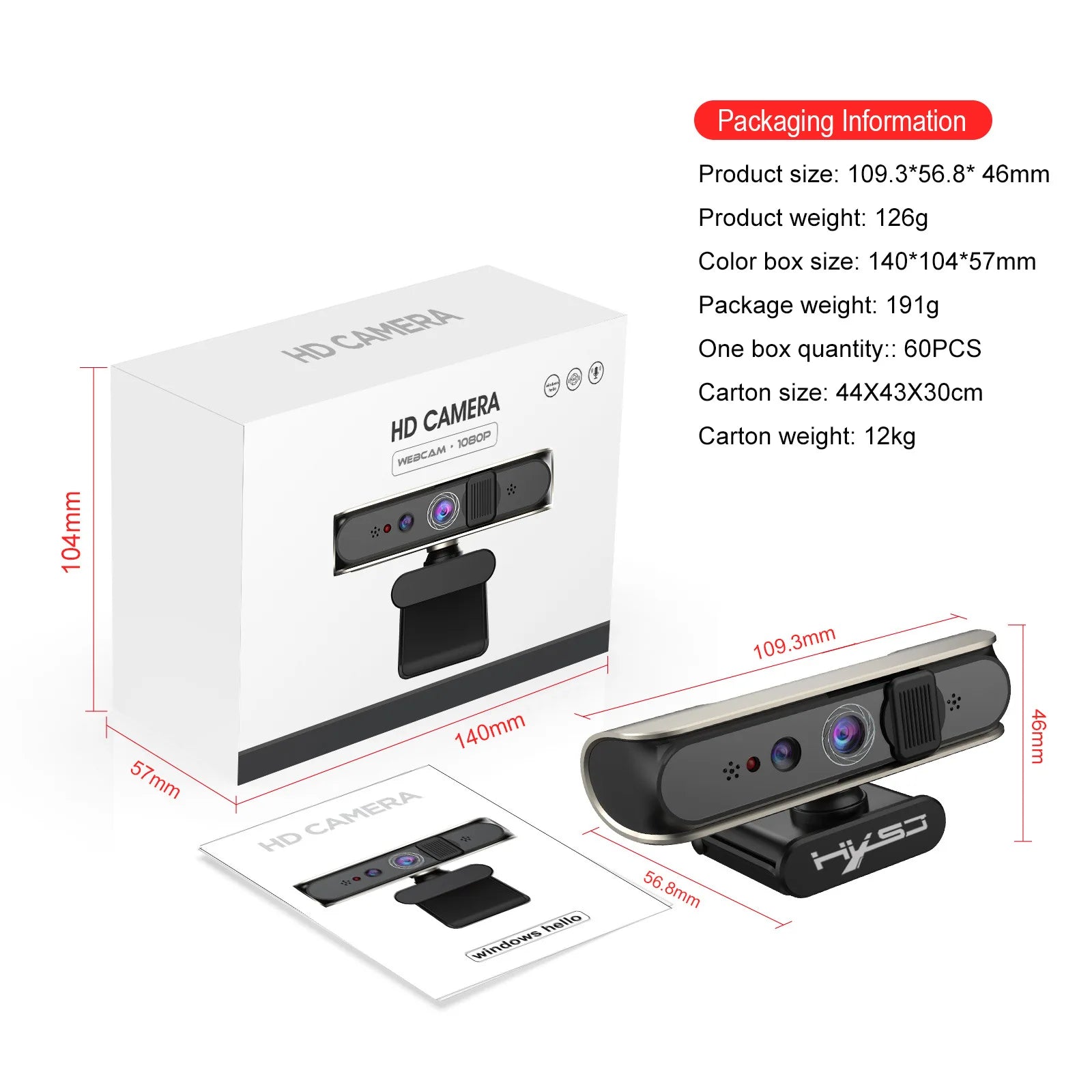

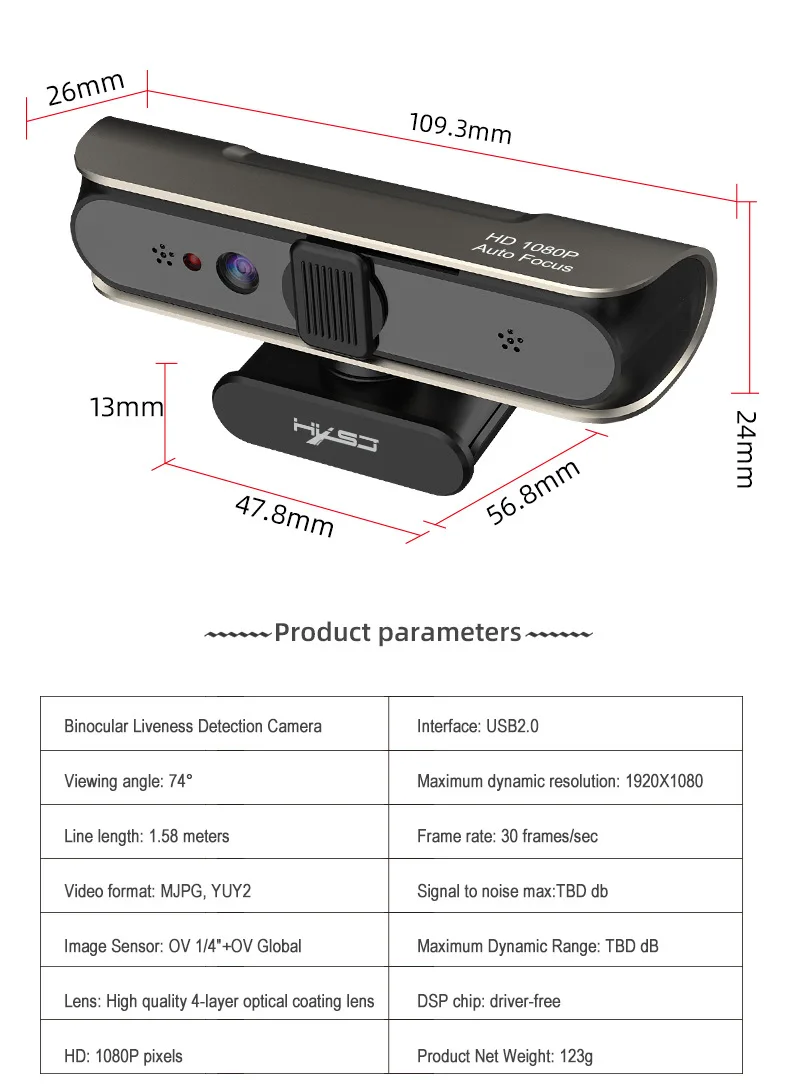

Product size: 109.3*56.8* 46mm

Product weight: 126g

Color box size: 140*104*57mm

Package weight: 191g

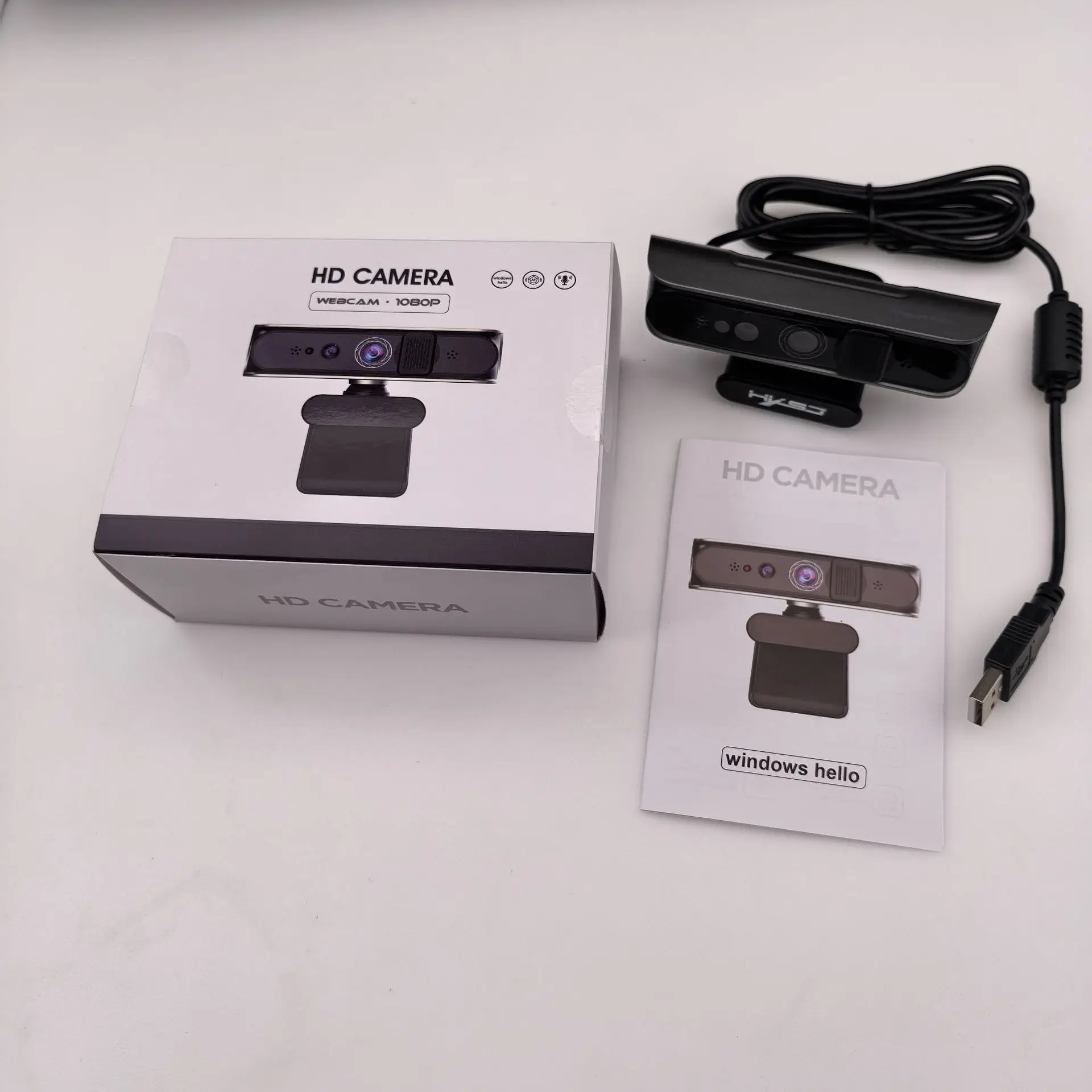

Products include:

1 * Windows Hello 1080P Camera

1 * English user manual

Operating system request：More than win10 version control system
