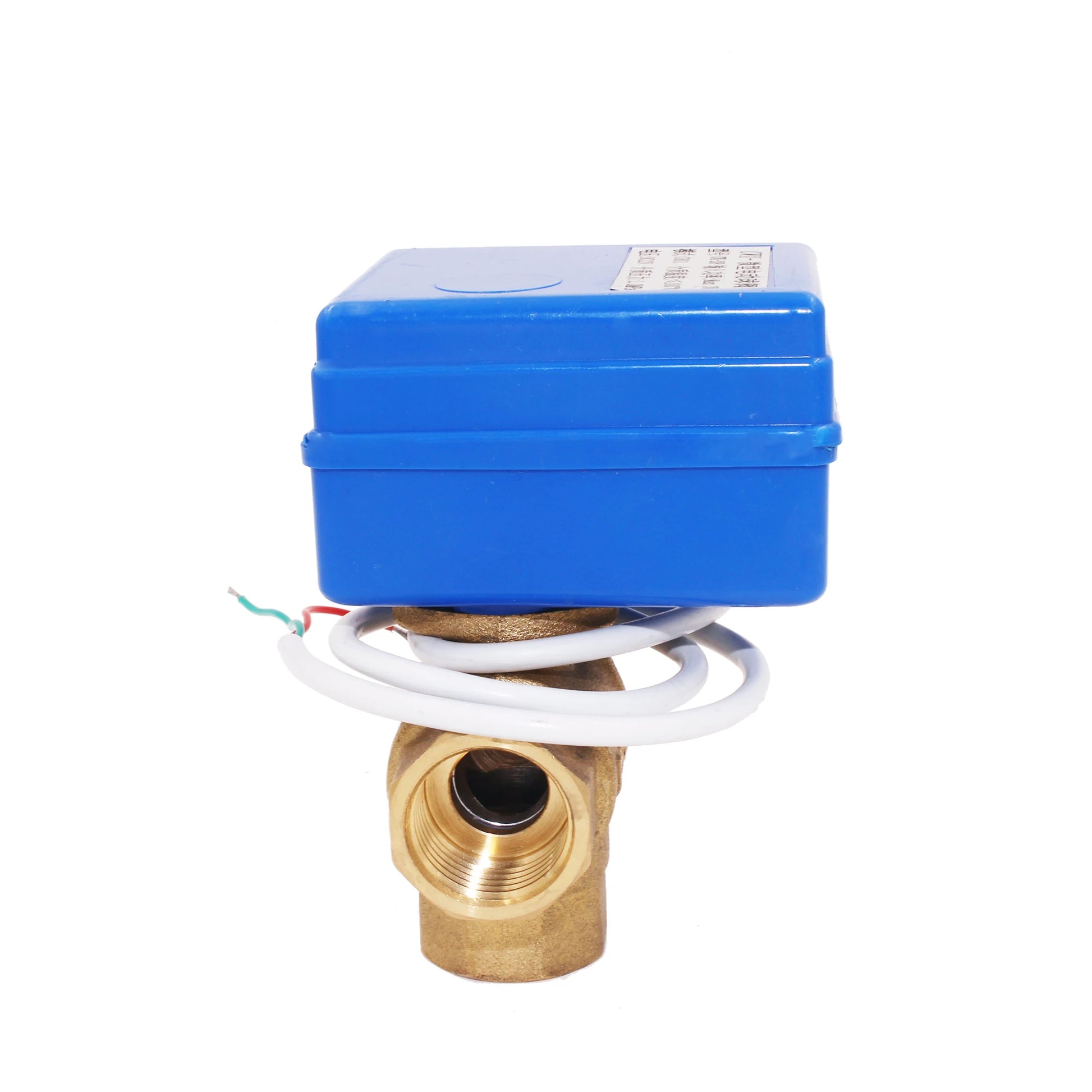

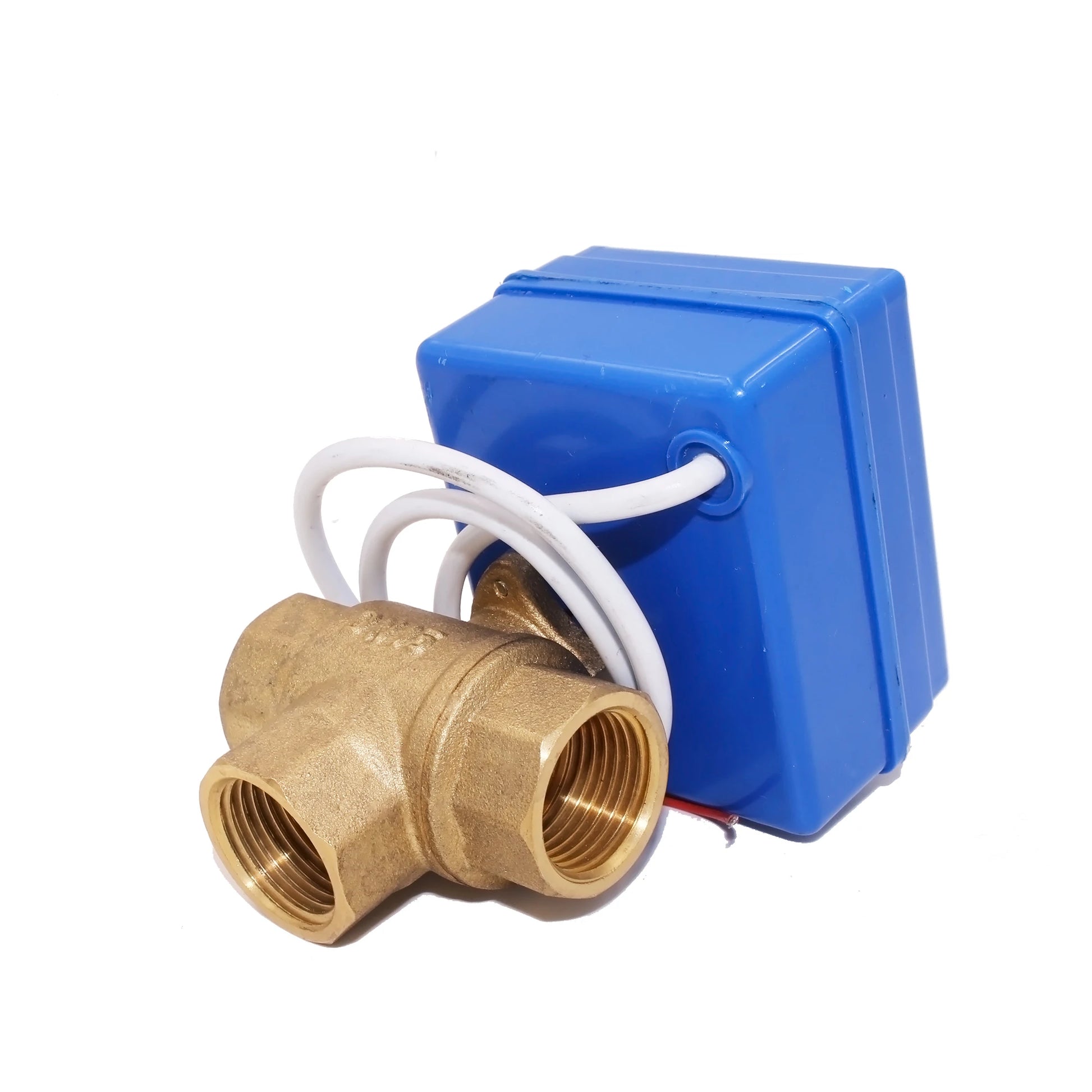

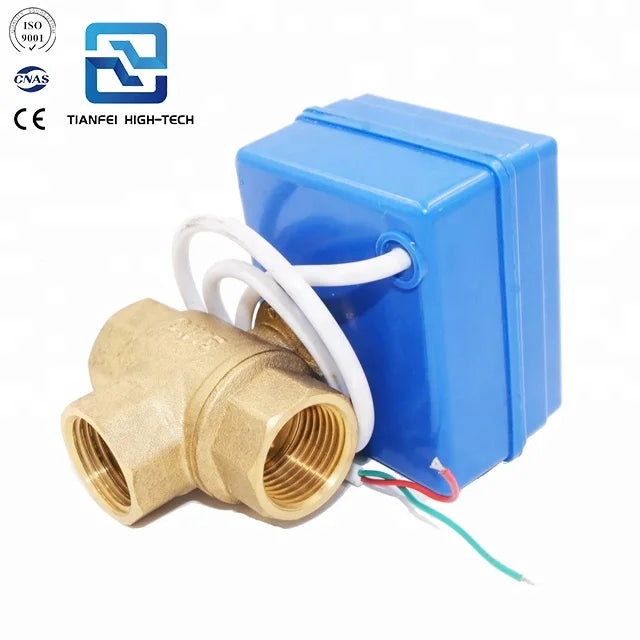

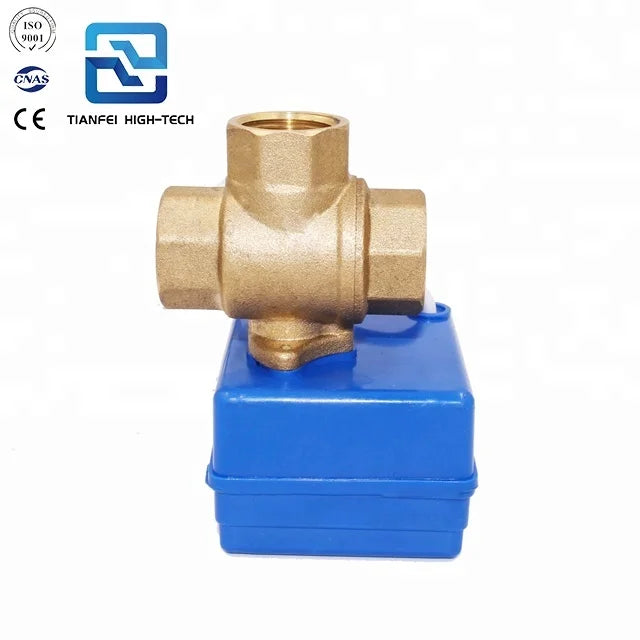

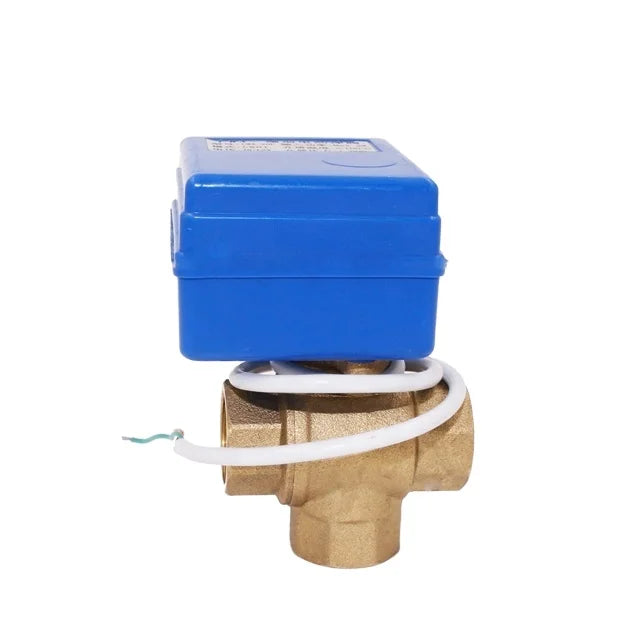

3 Way Valve CWX-20P T-type L-type Vertical Type Dn15 Dn20 Brass 3 Way Electric Actuated Ball Valve
3 Way Valve CWX-20P T-type L-type Vertical Type Dn15 Dn20 Brass 3 Way Electric Actuated Ball Valve
Couldn't load pickup availability
SPECIFICATIONS
Ball Material: brass
Certificate: ISO,CE
Connection: female-female ,BSP
Connection Type: Thread

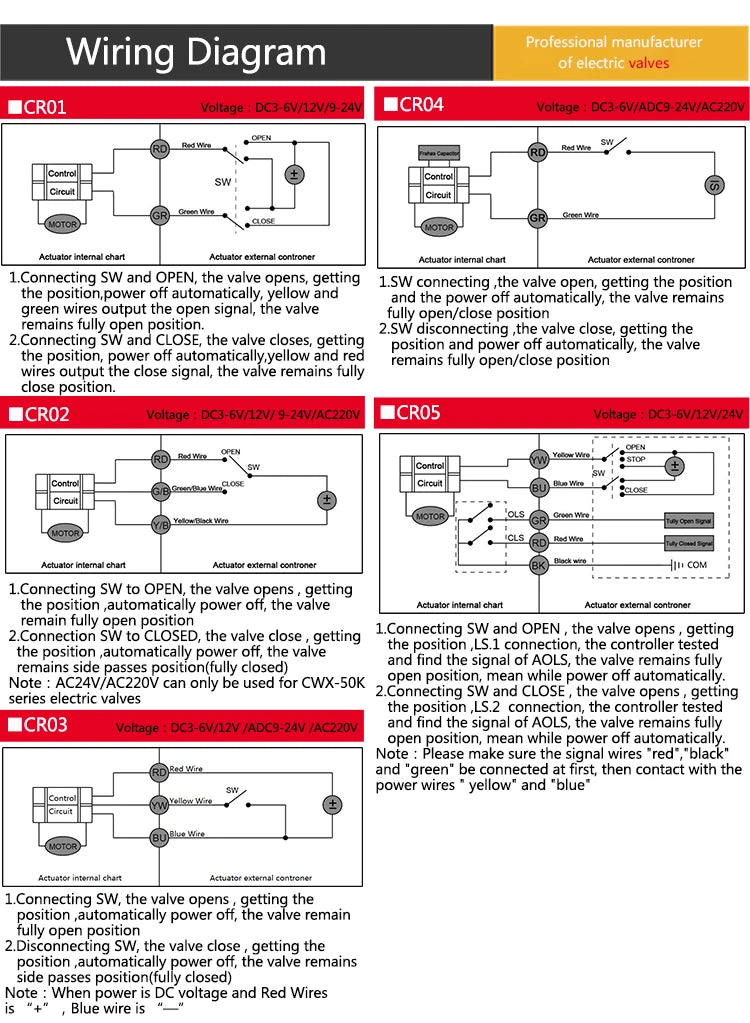

Control model: CR01 CR02 CR05
Current: Max80mA
Enclose: IP65
Medium: Water
Port Size: 1/2" 3/4"
Power: 2W
Product name: CWX-20P dn15 dn20 brass 3 way electric actuated ball valve
Torque: 2nm
Work Voltage: DC3.6-6V DC5V dc12v
application: General
brand name: CWX CWX-20P
customized support: OEM
media: Water
model number: CWX CWX-20P
place of origin: Tianjin, China
power: Electric
structure: Ball
temperature of media: Normal Temperature
warranty: 12months
| Brass | Connection | Sizes | d | L | H |
| Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
|
Vertica Three-Way |
DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
|
Female-male thread |
DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |

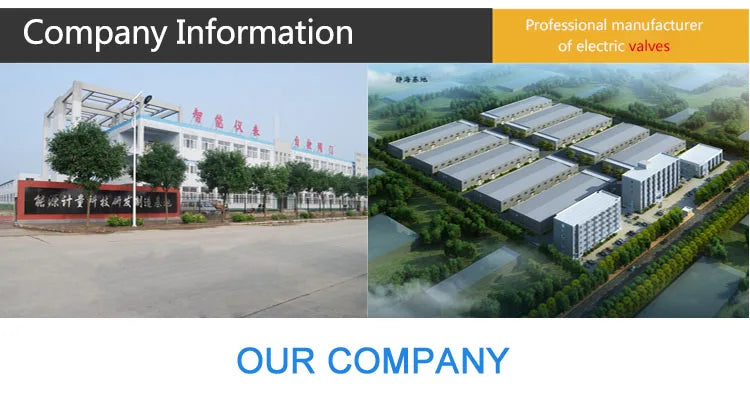

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional electric actuated ball valve 3 Way Valve CWX-20P T-type L-type Vertical Type Dn15 Dn20 Brass 3 Way Electric Actuated Ball Valve
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide. electric actuated ball valve
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice. actuated ball valve
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM. 3 Way Valve CWX-20P T-type L-type Vertical Type Dn15 Dn20 Brass 3 Way Electric Actuated Ball Valve
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
