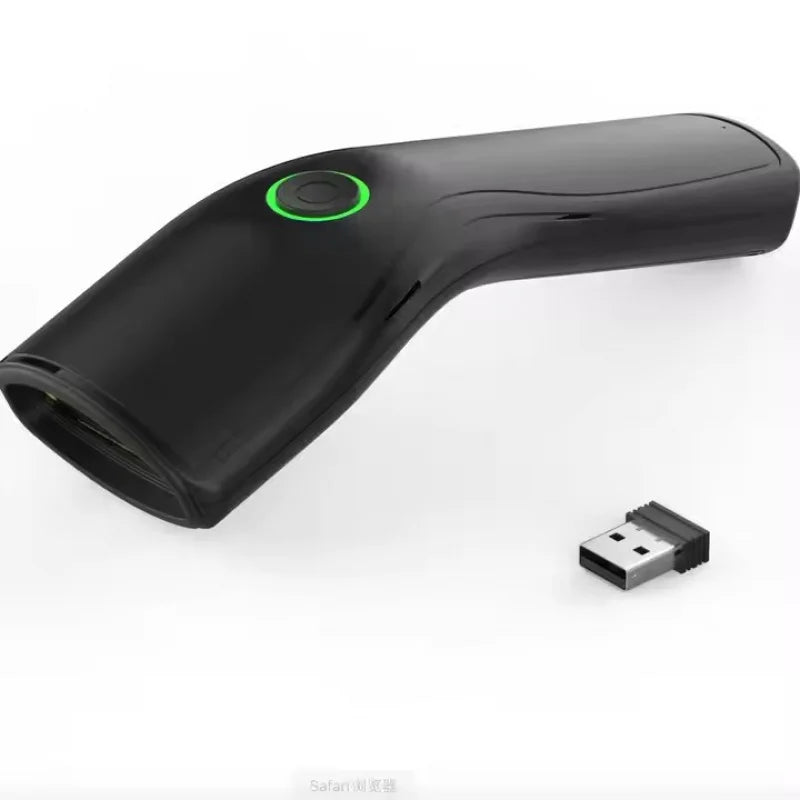

2D Wireless Barcode Scanner Cordless Automatic Scan Window Handheld Bar Code Reader for Retail Warehouse Inventory Tracking
2D Wireless Barcode Scanner Cordless Automatic Scan Window Handheld Bar Code Reader for Retail Warehouse Inventory Tracking
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ZYXRZYL
High-concerned chemical: None
Interface Type: USB
Model Number: 3500
Optical Resolution: 600*1200
Origin: Mainland China
Scan Breadth: A4
Scan Element Type: CMOS
Scan Speed: 200 scans/second
Signal Connection Type: Bluetooth,Wi-fi
Type: Barcode Scanner
Model: 3500 2D Wired Barcode Scanner
Product features:

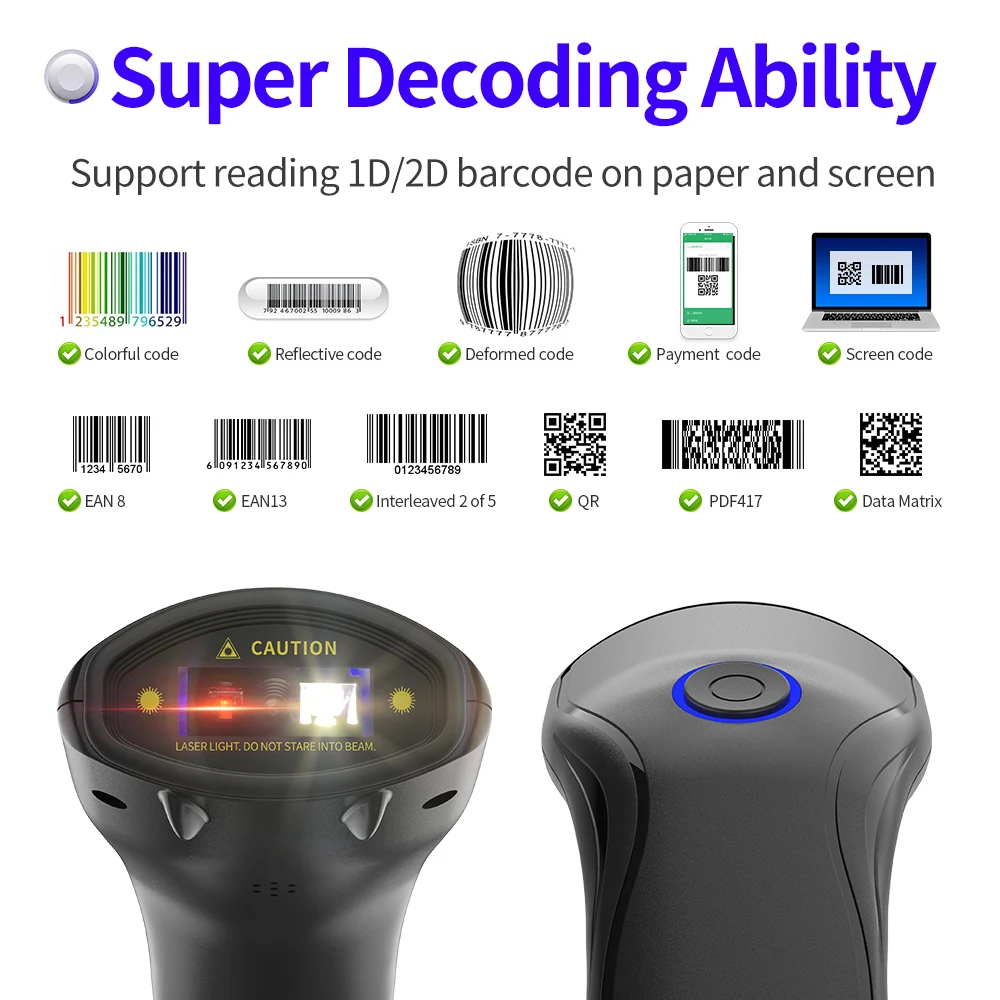

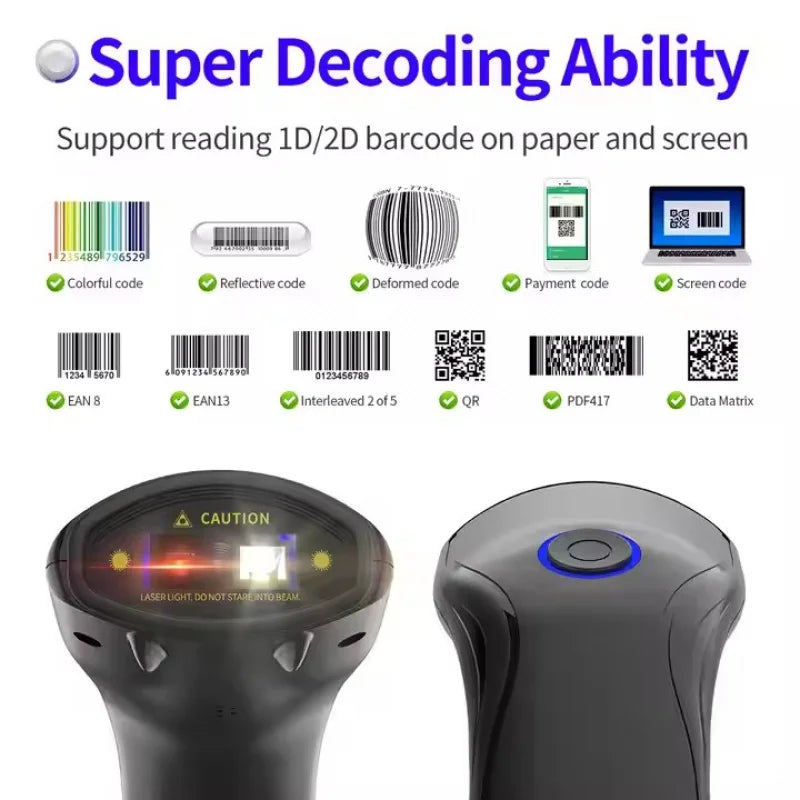

*Powerful CMOS image decoding capability, well and fastly read 1D and 2D barcode from paper and electronic screen
*Collecting thousands of hand holding data to optimize products, the handshake is light and comfortable, and the appearance is unique and novel.
*Type-C interface can be more compatible with devices and systems, plug and play.
*Support Bluetooth, 2.4G wireless and wired mode, suitable for all kinds of using application
*Support manual, auto-sensing,continuous scanning, can switch freely

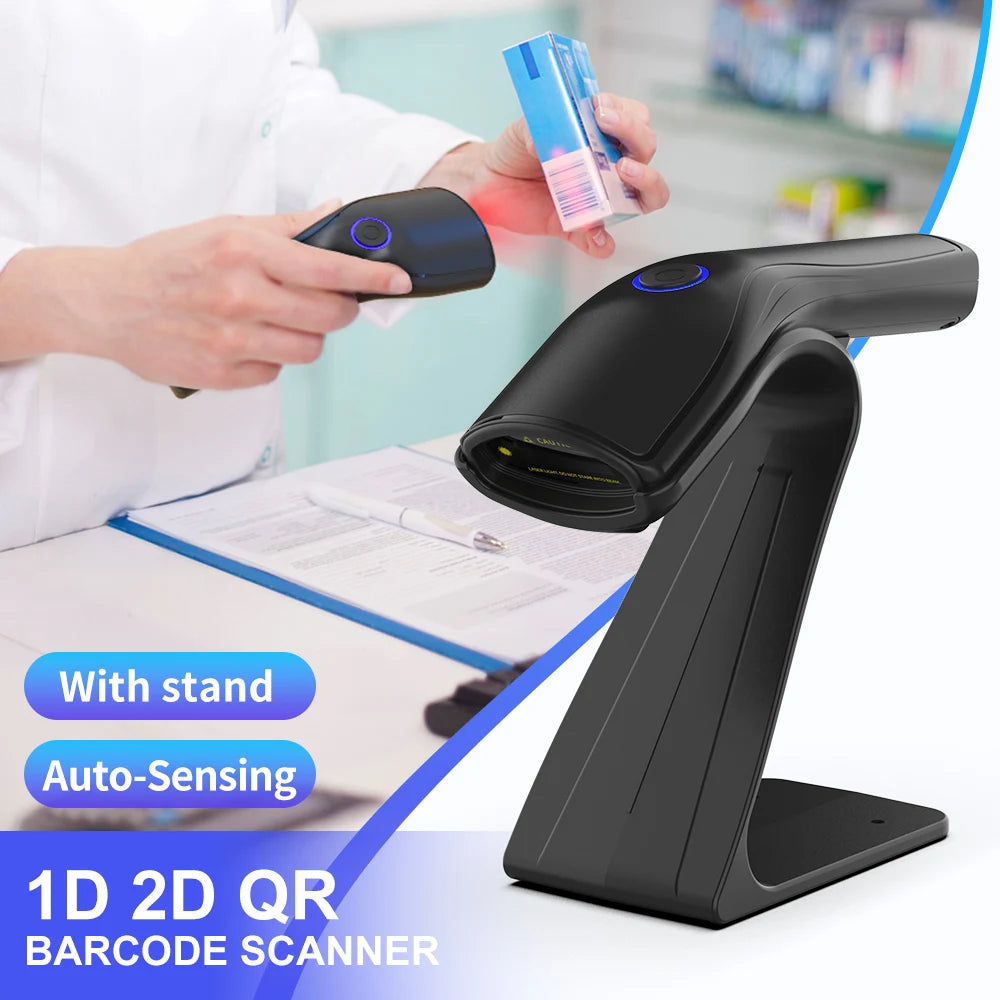

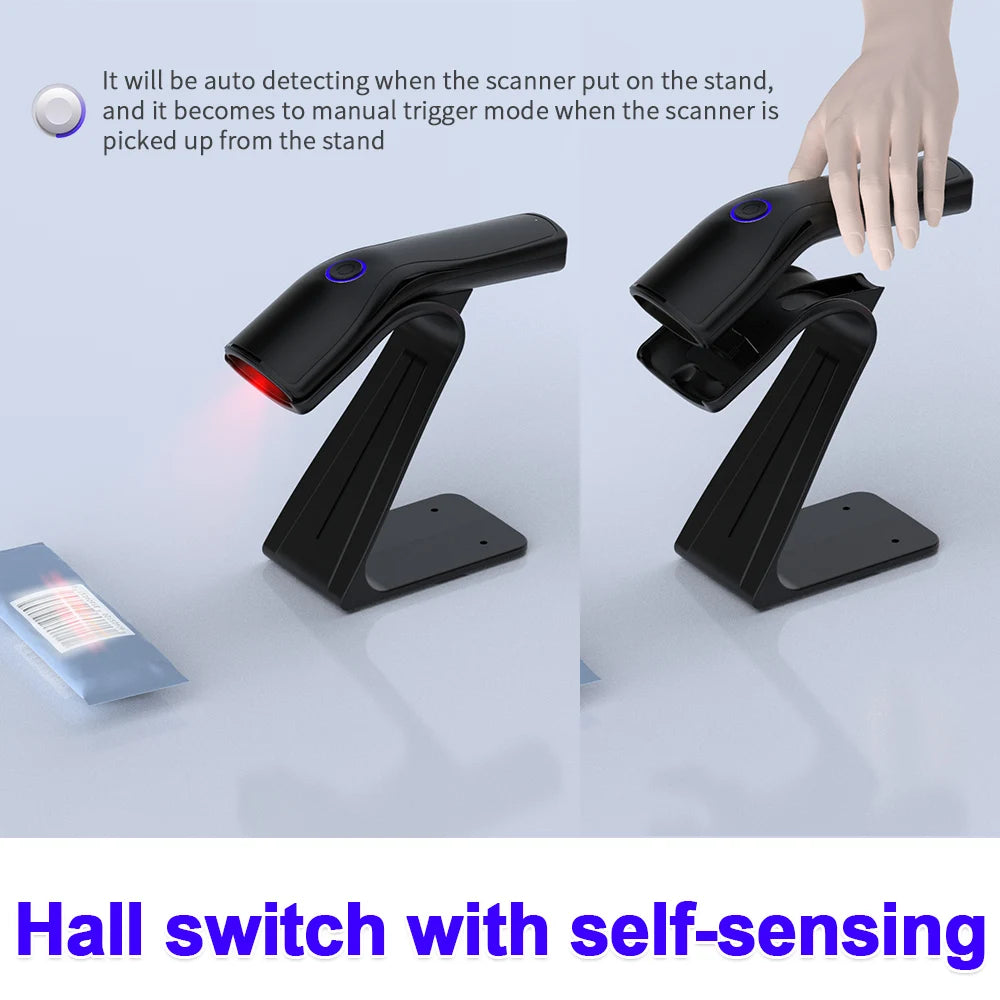

*Equipped with scanner bracket to automatic switching self-induction and manual scanning can be realized.
Decoding Capability:
1D Code:
*Interleaved 2 of 5 *ITF-6 *ITF-14 *ISBN
*Code 11 *UCC/EAN-128 *GS1 Databar *Matrix 2 of 5
*Industrial 2 of 5 *Code 128 *EAN-13 *EAN-8
*Code 39 *UPC-A *UPC-E *Codabar
*Standard 2 of 5 *Plessey *MSI-Plessey *Code 93
*GS1 composite code *Brazilian bank code
2D Code:
*PDF417 *Data Matrix *QR Code *HanXin
*AZTEC *Maxicode *Codablock F *Pharmacode One-Track
*Micro QR *Micro PDF417
* Support scanning screen barcode.
Applicable Place:
Tobacco code/fine code/fuzzy code/bottle code
Model |
3500 |
||||||
Item |
Wireless 2D Barcode Scanner |
||||||
Physical Parameter | |||||||
Material |
ABS + PC + TPU |
||||||
Power Supply |
Charge DC 5V ±5% ; Built-in 3.7V 800mA lithium Battery |
||||||
Power Consumption |
0.45W(Working); 0.25W(Stand by); 0.80W(Maximum) |
||||||
Weight |
108g±5g(Excluding wire) |
||||||

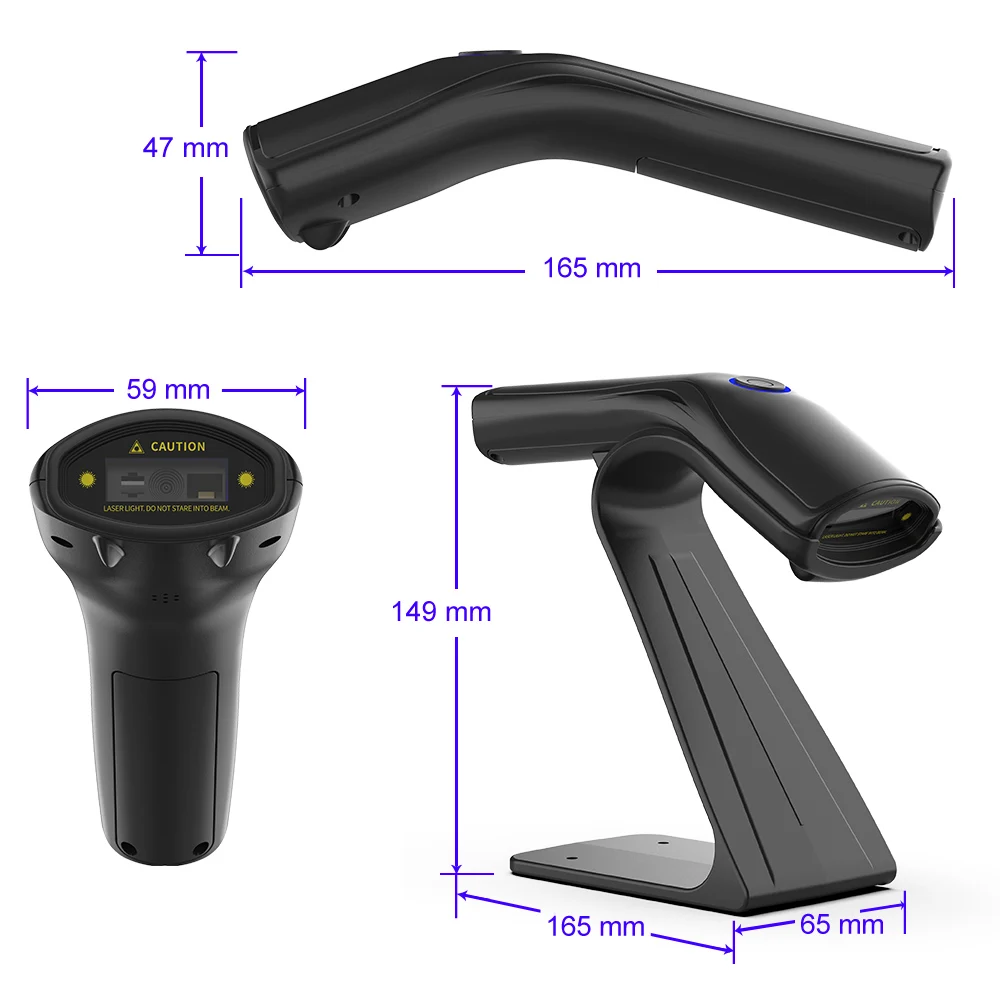

Size |
scanner |
L * W * H:165 * 47 * 59(Unit/mm) |
|||||
bracket |
L * W * H:136.70 * 126.20 * 64.95(Unit/mm) |
||||||
Color |
Black; White |
||||||
Button life |
>100000 |
||||||
Performance Parameter | |||||||
Interface |
USB;2.4G;Bluetooth |
||||||
System Supported |
Linux,Android,Windows XP,7,8,10,MAC |
||||||
Language Supported |
"English - US; French - Canada; Dutch - Netherlands; Spanish - International; Latin American - Argentina; Portuguese - Brazil; Danish - Denmark; English - UK; Italian - Italy 142; French - France; German - Germany; Portuguese - Portugal; Finnish - Finland; Turkish - F; Japanese; Russian - Russia; North Sami - Norway |
||||||
Sensor |
CMOS sensor 480 * 640 |
||||||
Processor |
32-bit ARM MCU |
||||||
Storage |
512 KB (customizable capacity) |
||||||
Light Source |
White LED illumination+red LED positioning |
||||||
Motion Tolerance |
Code128: 40cm/sec |
||||||

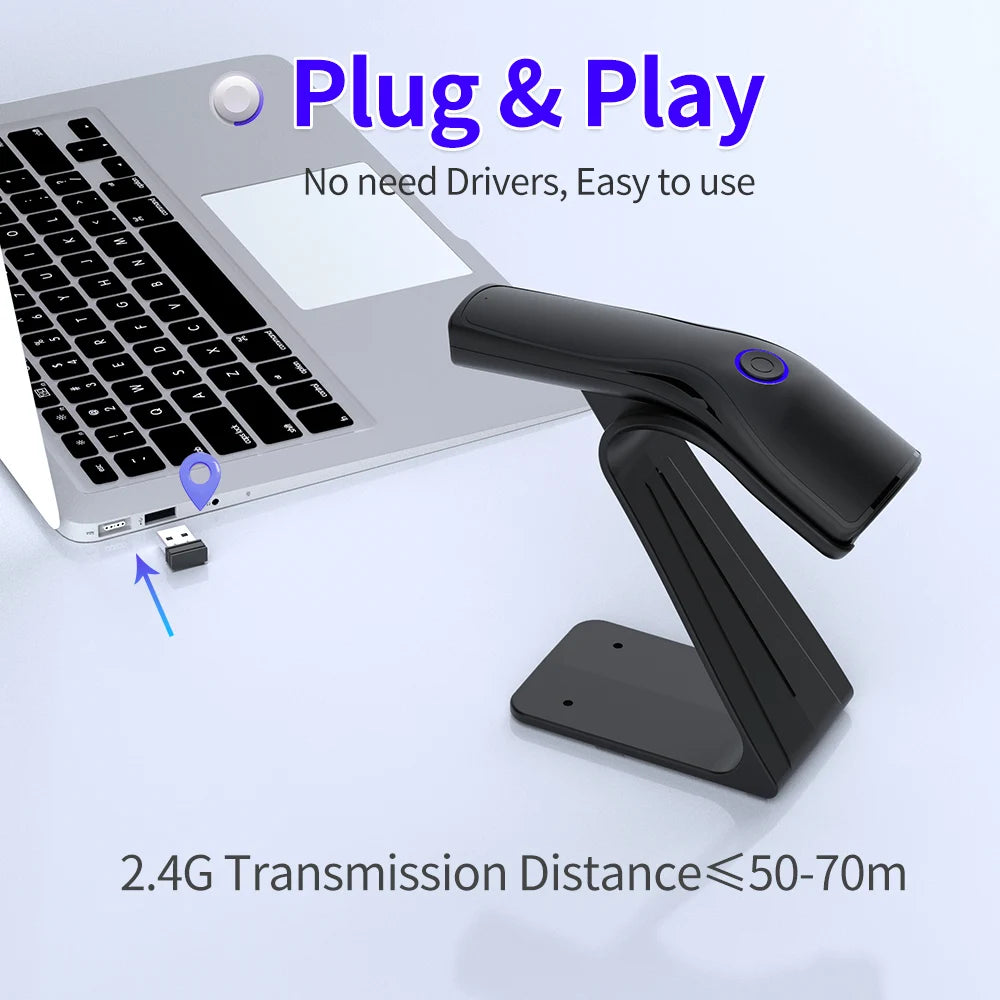

Wireless Transmission Distance |
2.4G≤90m(Visual range) |
||||||
Reading Mod |
Image |
||||||
Resolution |
≥4mil |
||||||
Bit error rate |
1/500 |
||||||
Trigger Mode |
Key triggering mode; Continuous scanning mode; Self sensing mode |
||||||
Prompt Mode |
Buzzer+indicator light+vibration (optional) |
||||||
Scaning Angle |
Tilt ± 55 °, deflect ± 55 °, rotate 360 ° |
||||||
Reading distance |
1cm-280cm |
||||||
Print Contrast |
≥25% |
||||||
Charging Time |
appr.2.5h |
||||||
Working Time |
appr.10h |
||||||
Decoding |
1D |
*Interleaved 2 of 5 *ITF-6 *ITF-14 *ISBN |
|||||
2D |
*PDF417 *Data Matrix *QR Code *HanXin |
||||||
Scanning Depth |
Code39 5.83mil(15 byte):5cm - 15cm |
||||||
Environment Parameter | |||||||
IP Grade |
IP52 |
||||||
Operating Temp. |
0 to 50℃ / 32 to 122℉ |
||||||
Storage Temp. |
0 to 50℃ / 32 to 122℉ |
||||||
Operating Humidity |
20% to 85%(No Condensation) |
||||||
Storage Humidity |
20% to 85%(No Condensation) |
||||||
ESD Protection |
15KV air discharge |
||||||
Shock Resistance |
Free Fall 1.5m(concrete surface) |
||||||
Ambient light |
0~100000LUX |
||||||
