SPECIFICATIONS

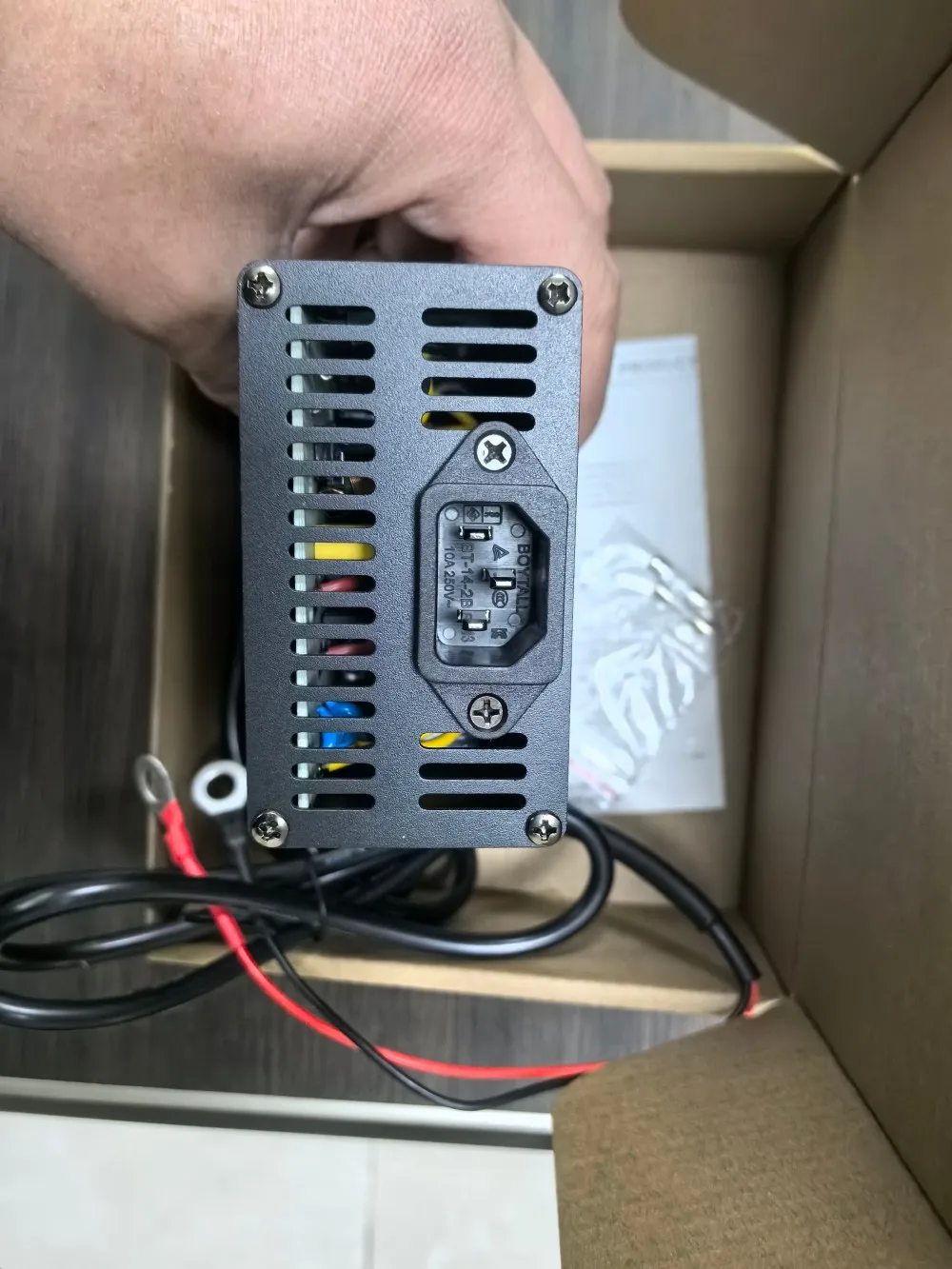

AC power cord: 1.2m long with IEC320-C14

Certification: FCC CE ROHS

Charging indicator: Charging in red, fully charged in green

Charging mode: CC/CV

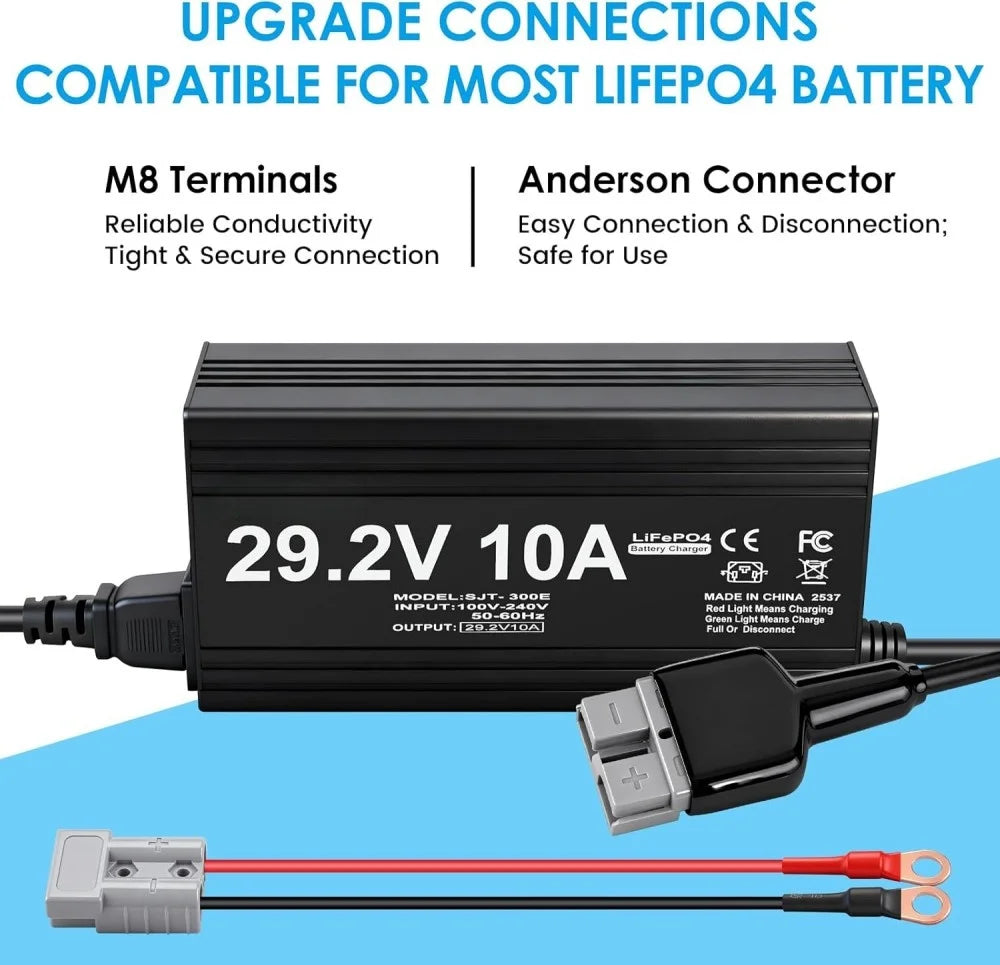

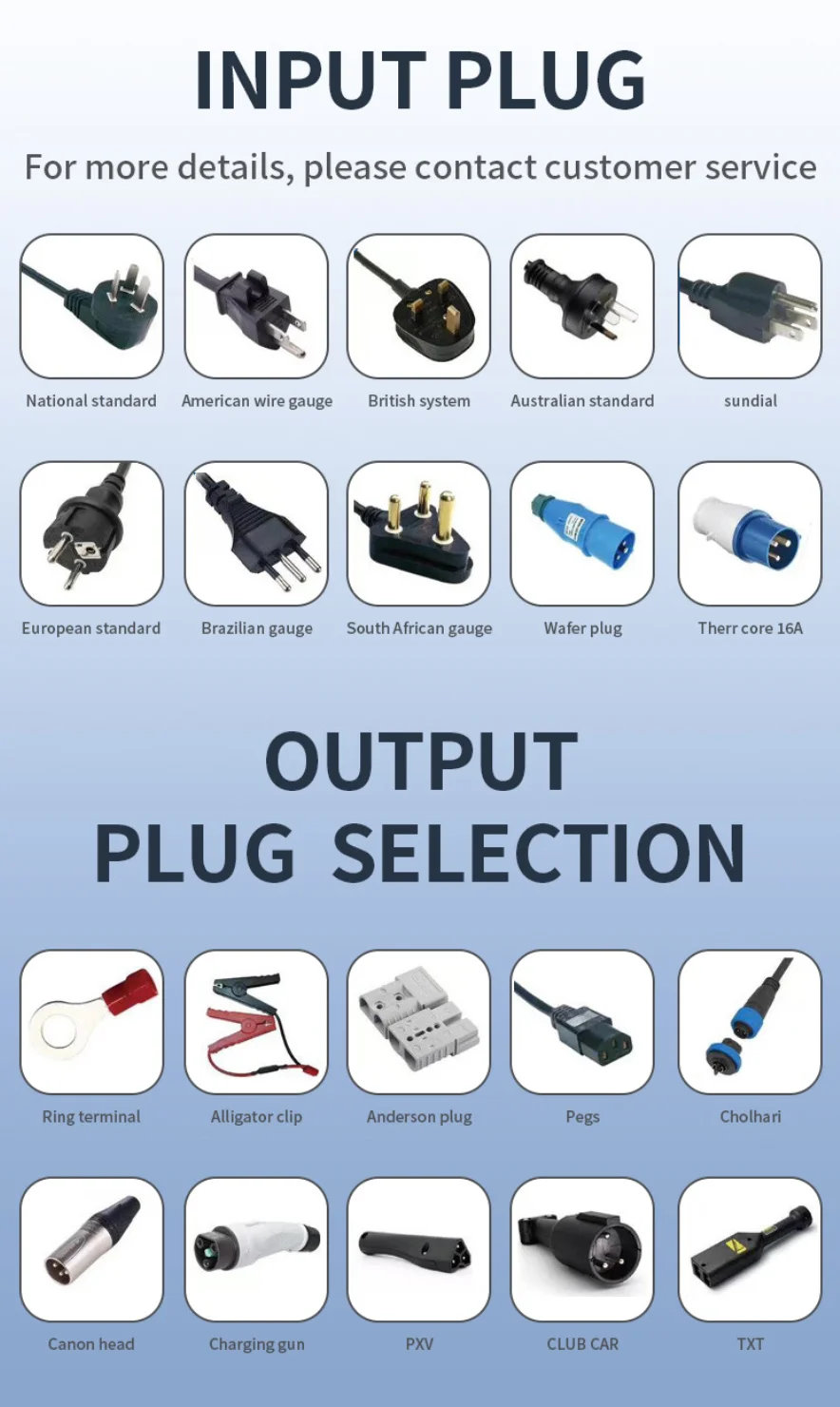

DC Connector: Crocodile chip, XLR, Air plug, TX40/60, Anderson or other

DC cable: 1.5m (optional)

Protection: OCP OVP OTP SCP

Size: L135xW90xH50 mm

Warranty: 24 months

Weight: 1.2KG

brand name: CHANGBAO

input: 100-240VAC/3A

is led lamp illumination: Yes

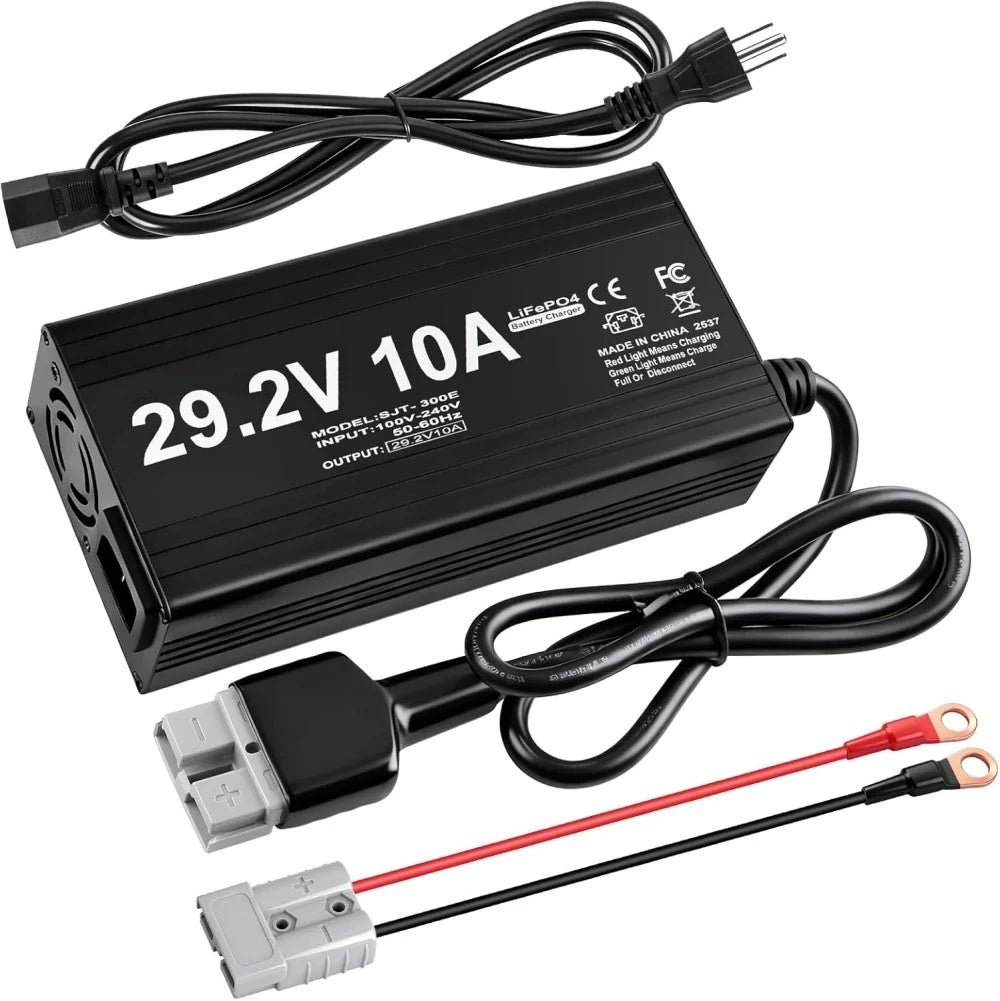

model number: CV-360W

output: 29.2V 10A

output power: 292W

place of origin: Guangdong, China

type: Desktop

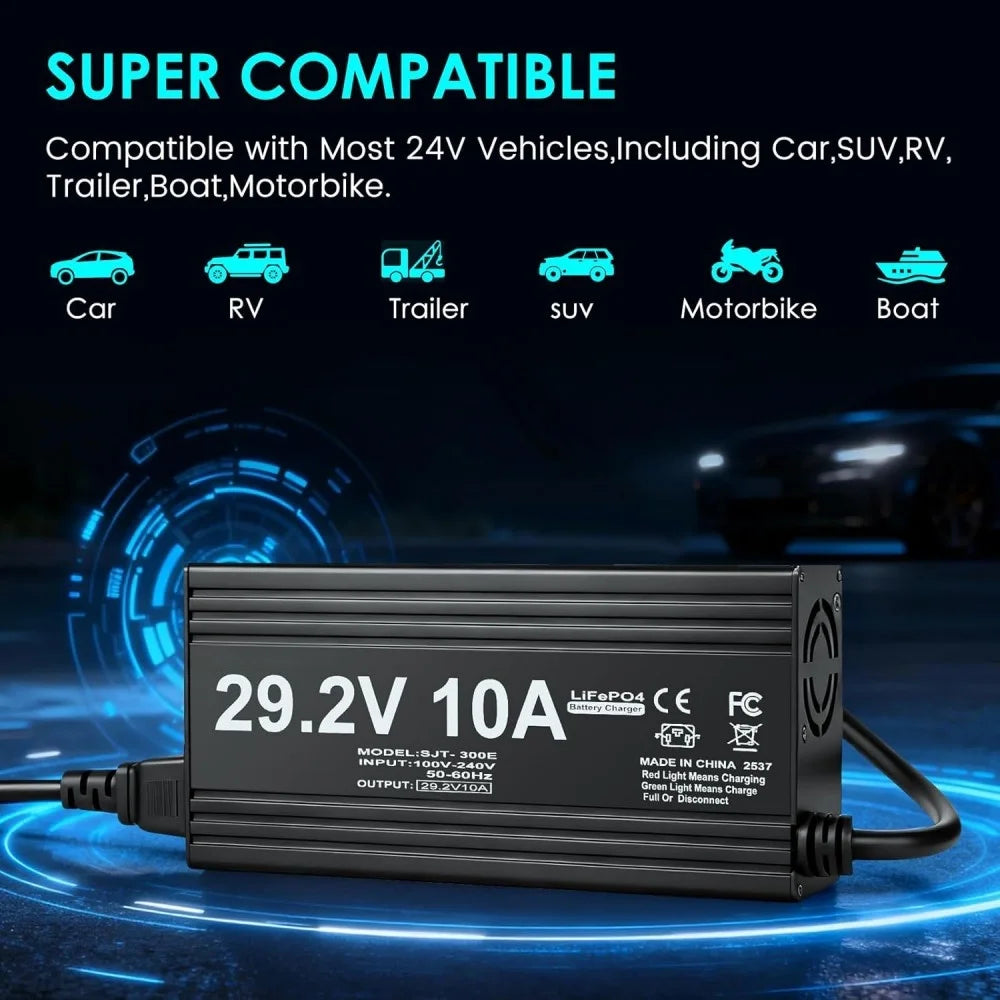

use: Standard Battery,electric car,electr bike,Scooter

Product Highlights

Complying with 8S 24V 25.6V Lipo Li-ion Lifepo4 Battery Charger

Wide compatibility: for Electric Car, Sightseeing Car, Electric bike, Scooter, Motorcycle, Patrol Car, forklift truck, Golf Cart, boat, Cleaner, Tourist Coach, Robot, Mobility Vehicle, Sightseeing bus, Sweeping Vehicle, Lift truck, Electric Floor Polisher Washer, Electric Yacht, Drone, Electric sweeper, Aerial work platform, Vehicle backup battery, Portable energy storage and more

Certification: ETL, FCC, CE, RoHS and more

Safety & Reliability: over current protection, over voltage protection, over temperature protection, short circuit protection (OCP, OVP, OTP, SCP)

High Quality Materials: Good quality material for electronics components, and make sure long-time durability life

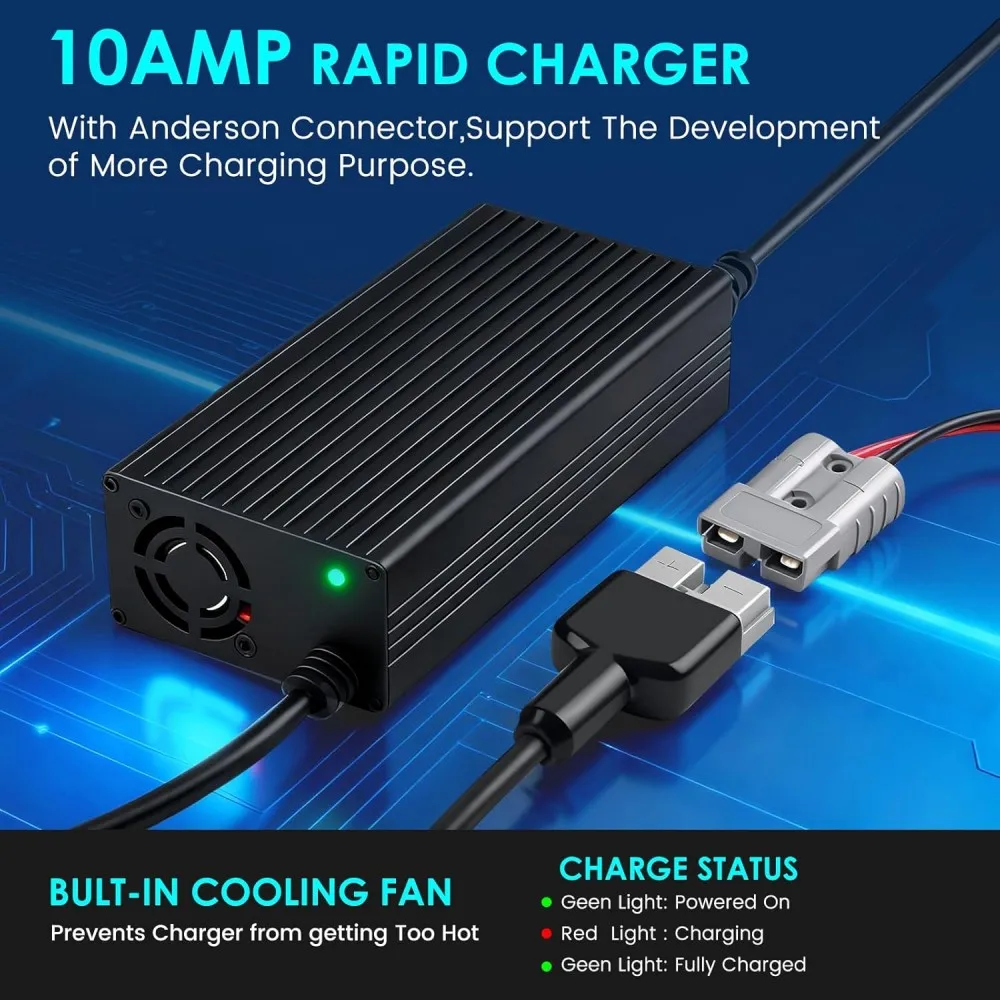

Efficient Cooling: Strong fan cooling method keeps good cooling during operation, and higher operating eifficiency

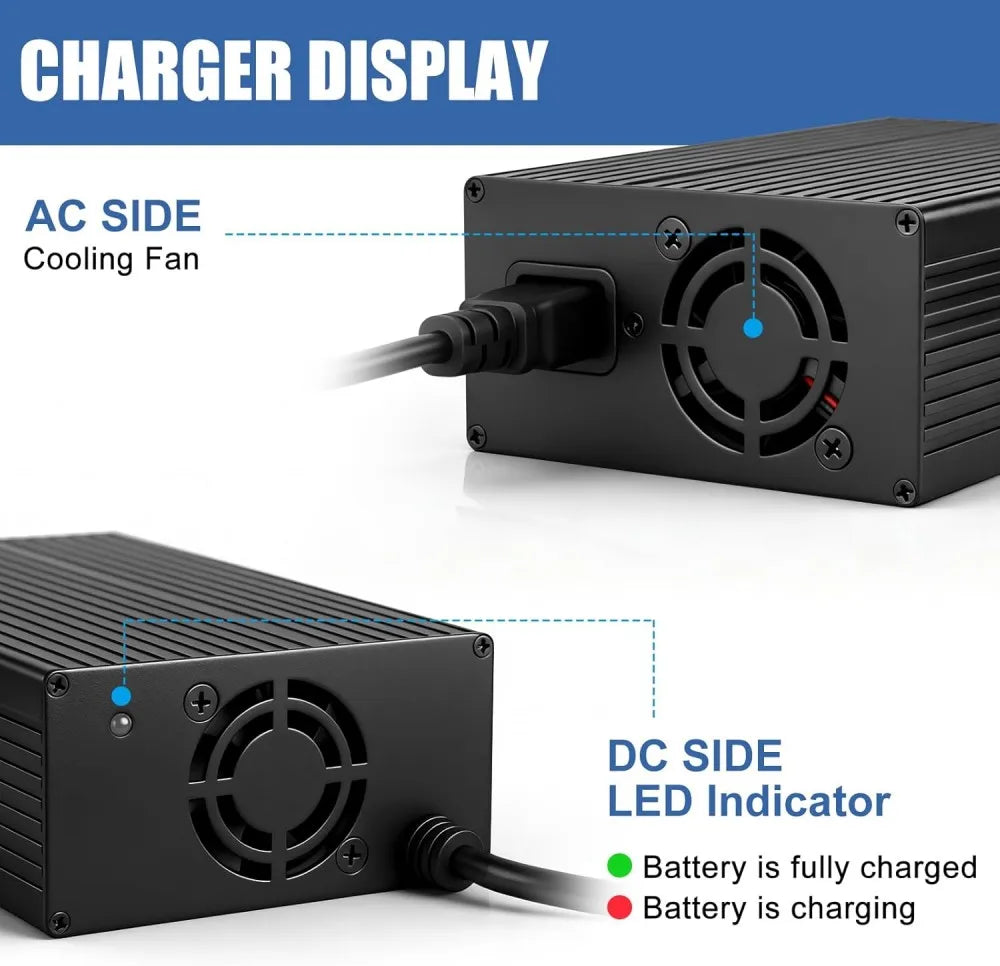

LED indication: charging in red, fully charged in green

FAQs

Q: The LED turns off while charging

A: This charger has a build-in thermal protection function. Battery charging is shut off when the charger temperature increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging will be resumed and LED turns on: charging in red, fully charged in green.

Q: LED color can changes to be in Yellow

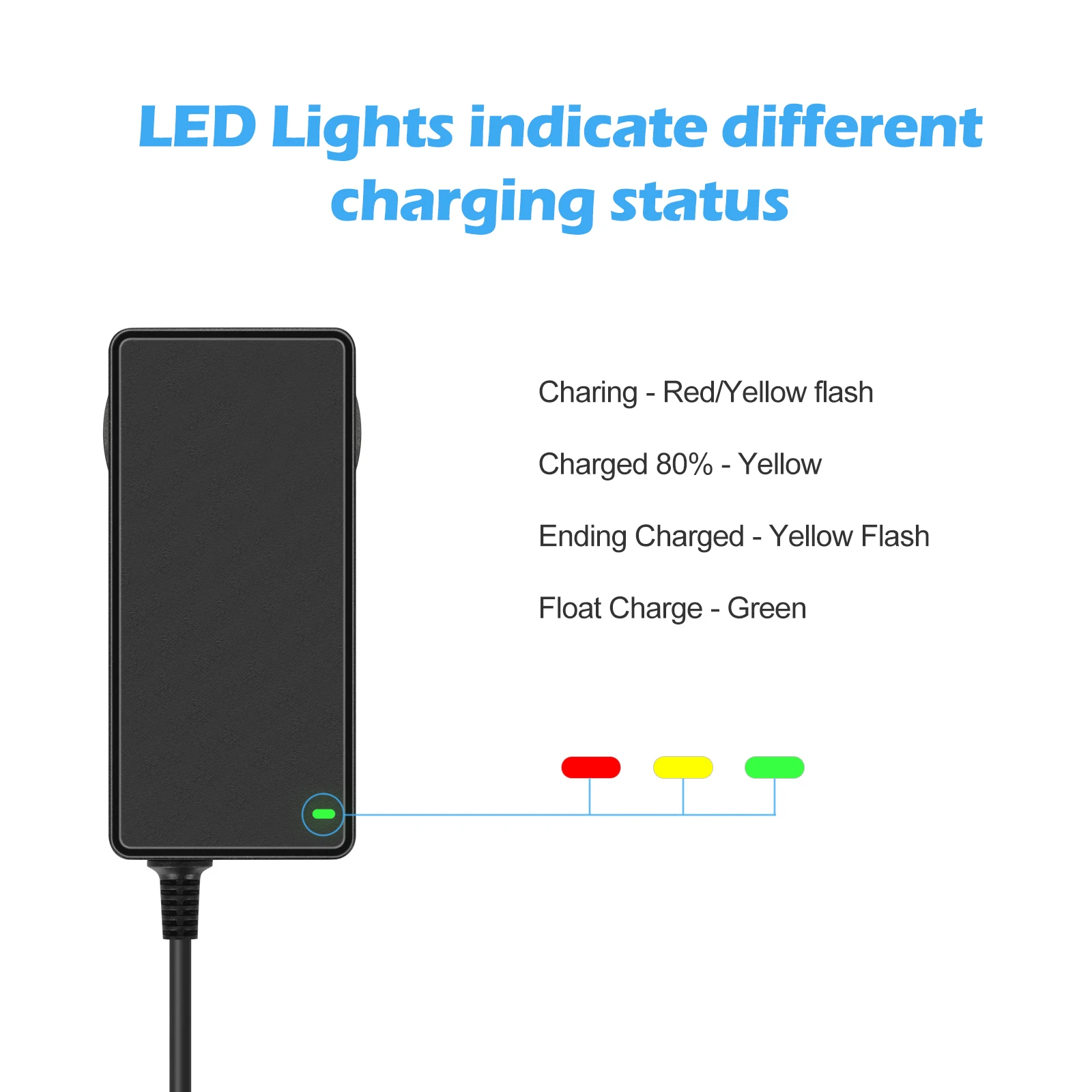

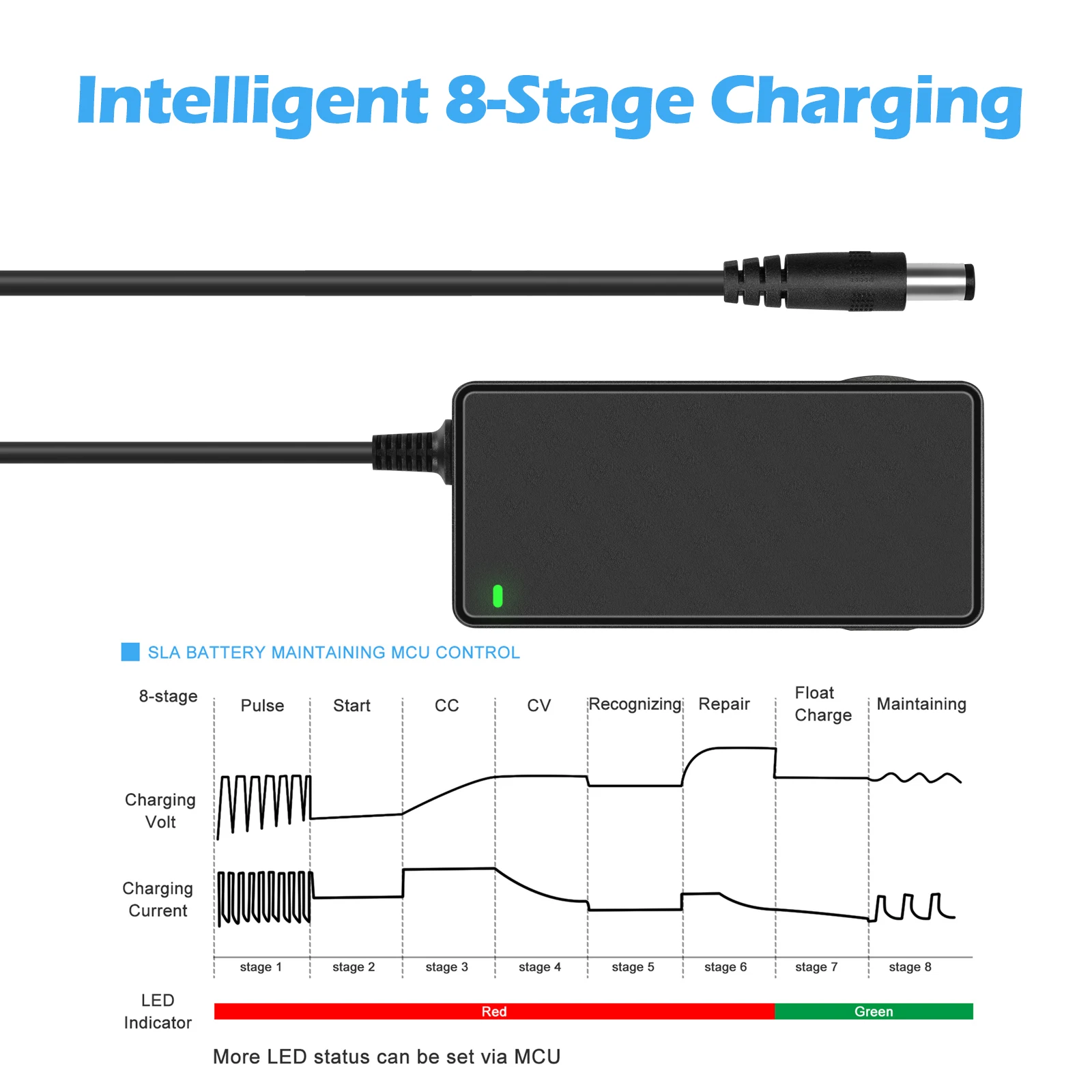

A: For chargers with MCU control inside, LED indicating sets 4 color's change: charging in red, 80% charging in yellow, fully charged in green, flash red under abnormal situation, or wrong DC connector connection, or for bad battery to charge, etc.

Q: How soon can I get samples for test to check quality?

A: The lead time for our standard products is 3-5 days. For customized products need 2-3 weeks or longer.

Q: Can you accept OEM&ODM service business?

A: Yes, we can. We have strong development teams with more than 15 senior engineers.

Q: Payment terms?

A: T/T with orders or pay some deposit, and support L/C for large amount.

Q: Production lead time?

A: 3-4 weeks for standard power supplies

Q: What is the warranty for your product?

A: 24 months

Q: How to select charging current not to hurt batteries?

A: It is up to charge what type of battery?
To charge Lead Acid battery, normally set charging current = 0.2C of battery capacity
To charge Lithium, LifePO4 batteries, and need to check battery spec that can withstand the max charging current. Normally it can permit higher current to charge at 0.5-2C.
To charge Ni-Mh batteries, the charger has MCU control to make sure safe charging, and normally to charge with little current at less than 0.2C.
