SPECIFICATIONS

Exposure: 0.1ms~1h

FPS/Resolution: 19@5440x3648 48.8@2736x1824 59.4@1824x1216 8 Bit / 12 Bit

G Sensitivity Dark Signal: 462mv with 1/30s 0.21mv with 1/30s

Interface: USB3.0

MOQ: 1 Pc

Pixel: 2.4μmx2.4μm

Sensor/size: 20M/IMX183(C, RS) 1 "(13.056x8.755)

Warranty: 12 Months

brand name: Magic Earth

camera resolution: 20MP

customized support: OEM,ODM

illumination: None

model number: MTR3CMOS20000KPA

place of origin: ZHEJIANG

type: Fluorescence Microscope,Illuminated Microscope,Scanning Probe Microscope,Biological Microscope,Stereo Microscope,Electron Microscope,Digital Microscope,Trinocular Microscope

warranty: 1 year

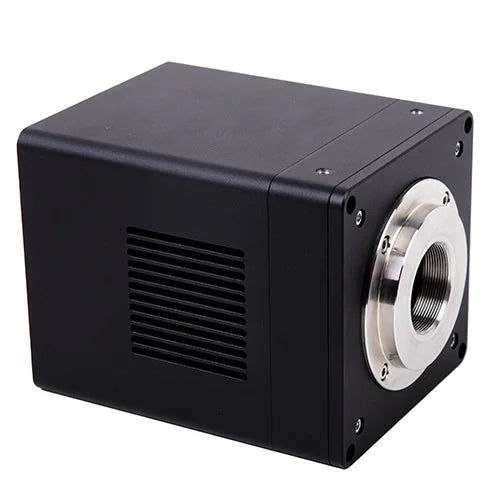

Product Description

Feature:
* Standard C-Mount Camera with SONY Exmor CMOS sensors from 0.5M to 45M;
* Two-stage TE-cooling with controllable electric fan;
* Sensor chip cooling up to 42°C below ambient temperature;
* Working temperature can be regulated to specified temperature in 5 minutes;
* Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
* IR-CUT/AR coated windows;

* Up to 1 hour long time exposure;
* USB3.0 5Gbit/second interface ensuring high speed data transmission;
* Ultra-FineTM color engine with perfect color reproduction capability;
* With advanced video & image processing application ToupView;
* Support both video and trigger modes;
* Windows/Linux/macOS/Android multiple platform SDK;

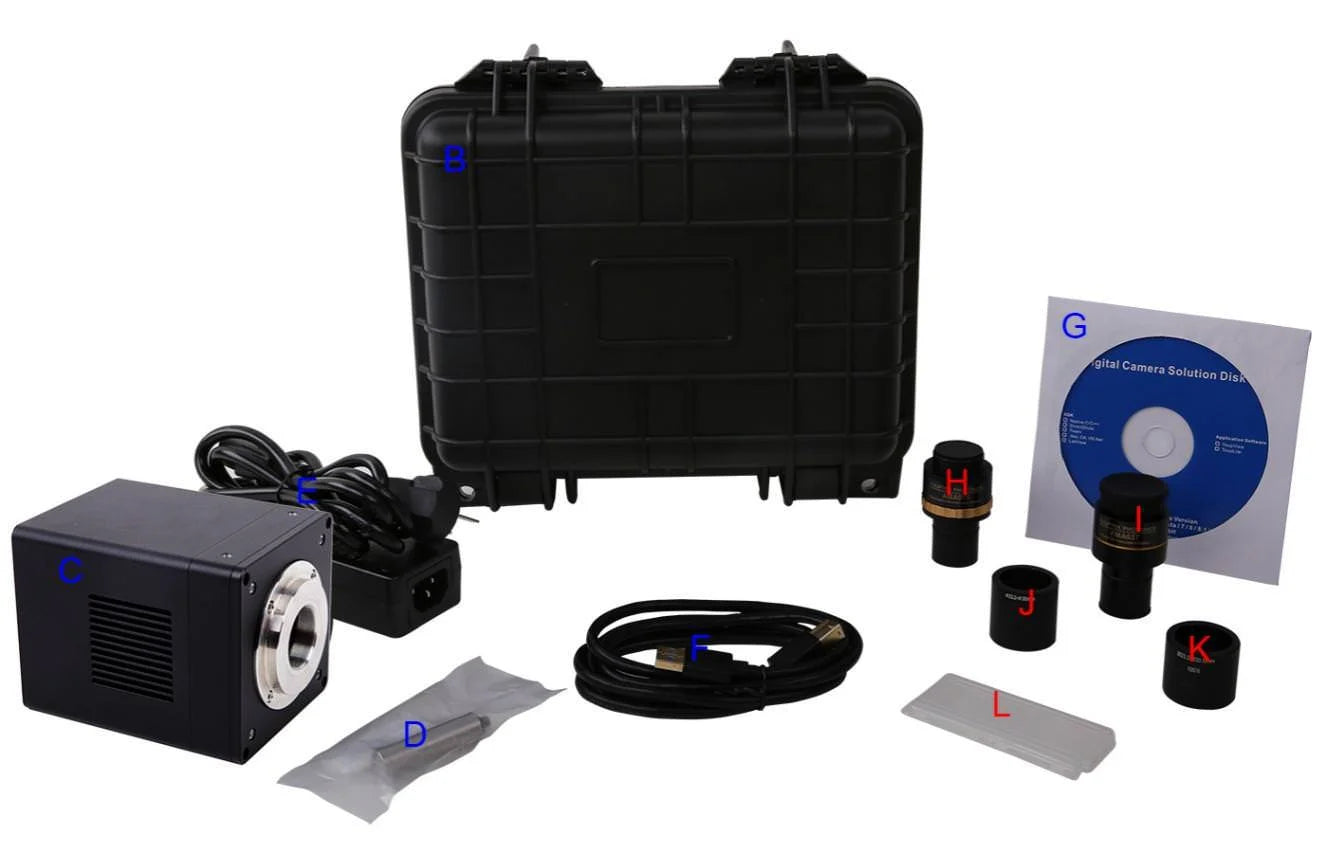

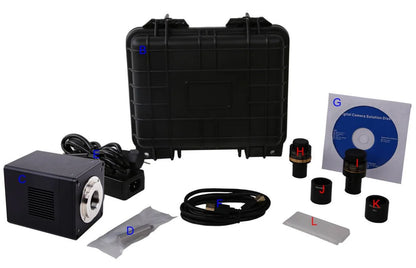

Packaging include:

A Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo(TBD)
B 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm(TBD)
C One MTR3CMOS series camera(C-mount)
D Drying tube and desiccant
E U disc(Driver & utilities software, Ø12cm)

Optional Accessory
F	Adjustable lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)
				C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)
G	Fixed lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)
				C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)
Note: For F and G optional items, please specify your Camera type(C-mount, microscope Camera or telescope camera) , we will help you to determine the right microscope or telescope Camera adapter for your application;

H	Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
I	Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
J	Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
K  (Calibration kit)	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

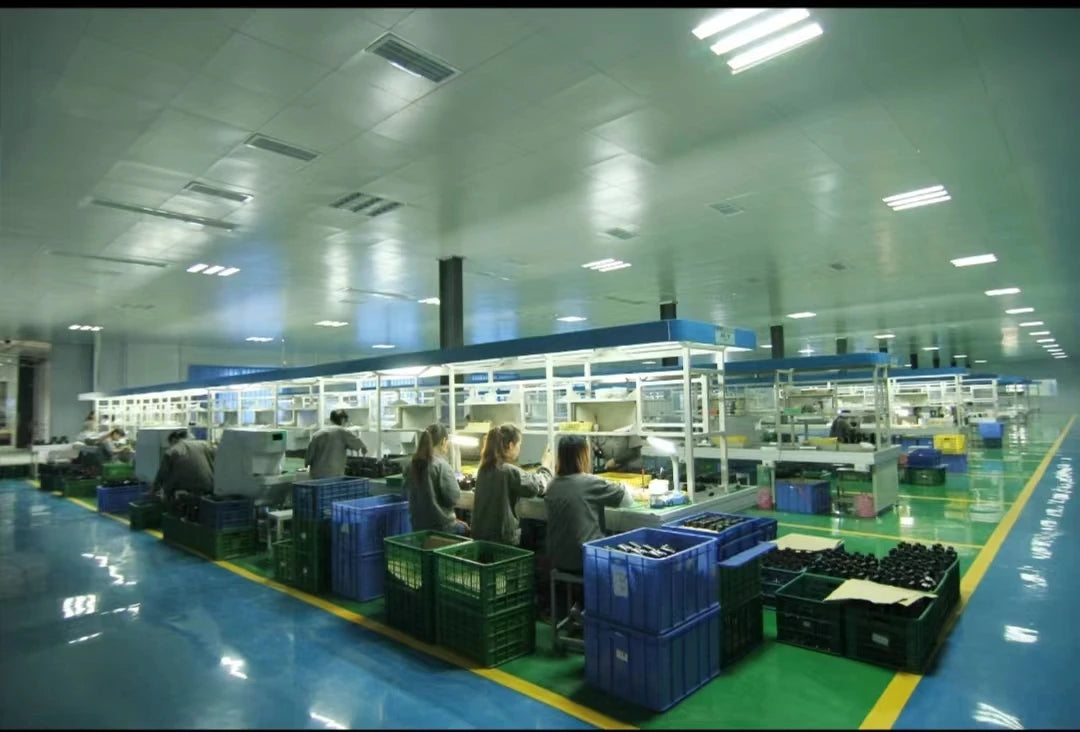

Company Profile
