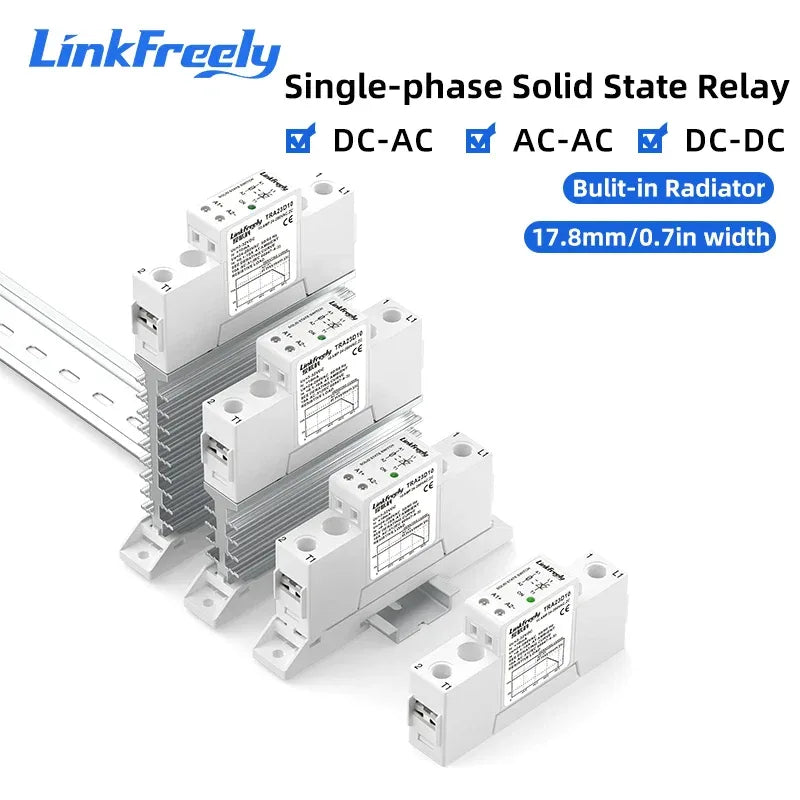

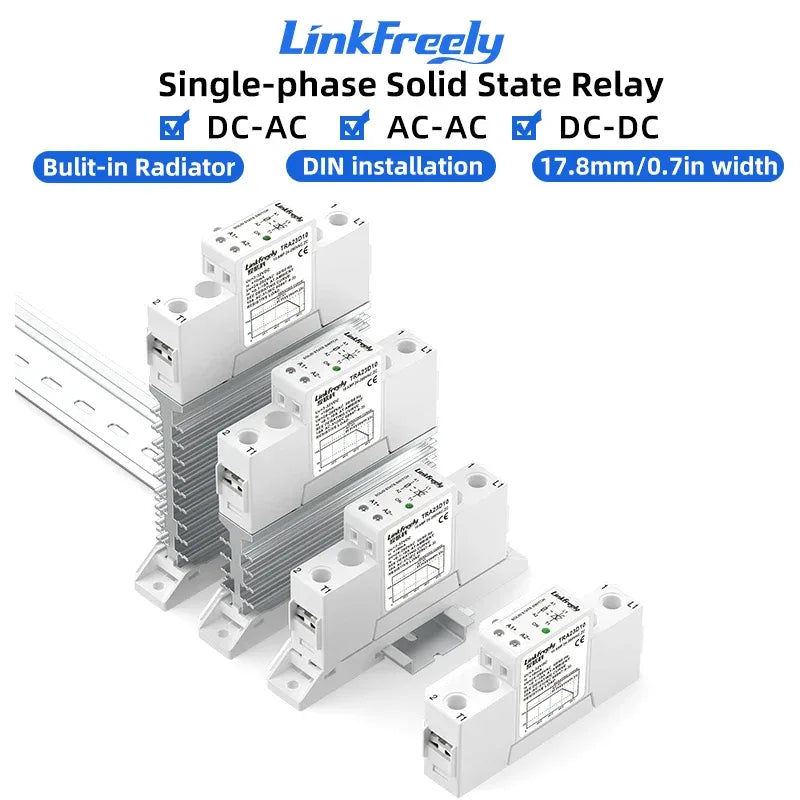

17.8mm Slim Solid State Relay Module Integrated Heatsink SSR DC-DC DC-AC AC-AC DIN Rail 40A DC AC Control Relay Patent Design
17.8mm Slim Solid State Relay Module Integrated Heatsink SSR DC-DC DC-AC AC-AC DIN Rail 40A DC AC Control Relay Patent Design
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: linkfreely
Certification: CE
Choice: yes
Contact Load: High Power
High-concerned chemical: None
Load Current: 40A
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Solid State Relay
Use: General Purpose
Voltage: 250V
is_customized: No
semi_Choice: yes

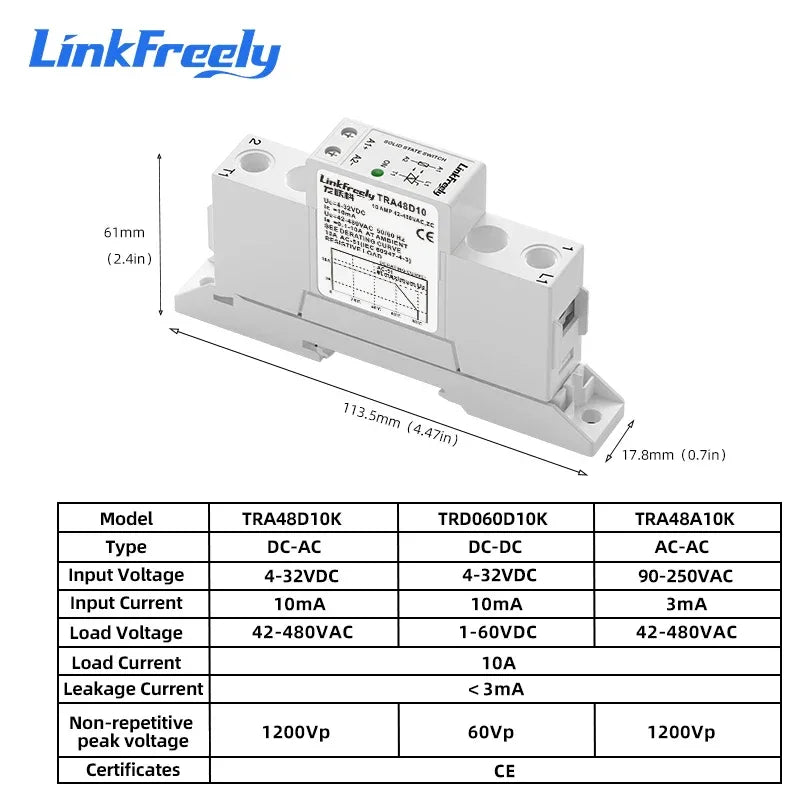

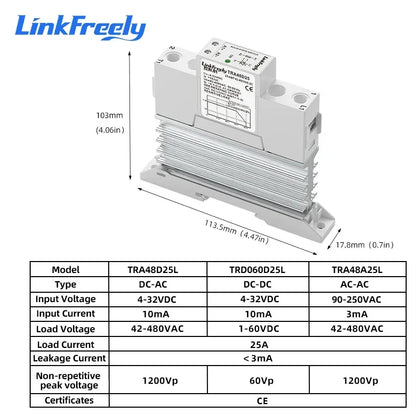

Parameter
Model |
TRA48D... |
TRD060D... |
TRA48A... |
Type |
DC-AC |
DC-DC |
AC-AC |
Input Voltage |
4-32VDC |
4-32VDC |
90-250VDC |
Input Current |
10mA |
10mA |
3mA |
Load Voltage |
42-480VAC |
1-60VDC |
42-480VAC |
Load Current |
10A, 25A, 40A |
||
Leakage Current |
＜3mA |
||
Non-repetitive |
1200Vp |
60Vp |
1200Vp |
Certificates |
CE |
||

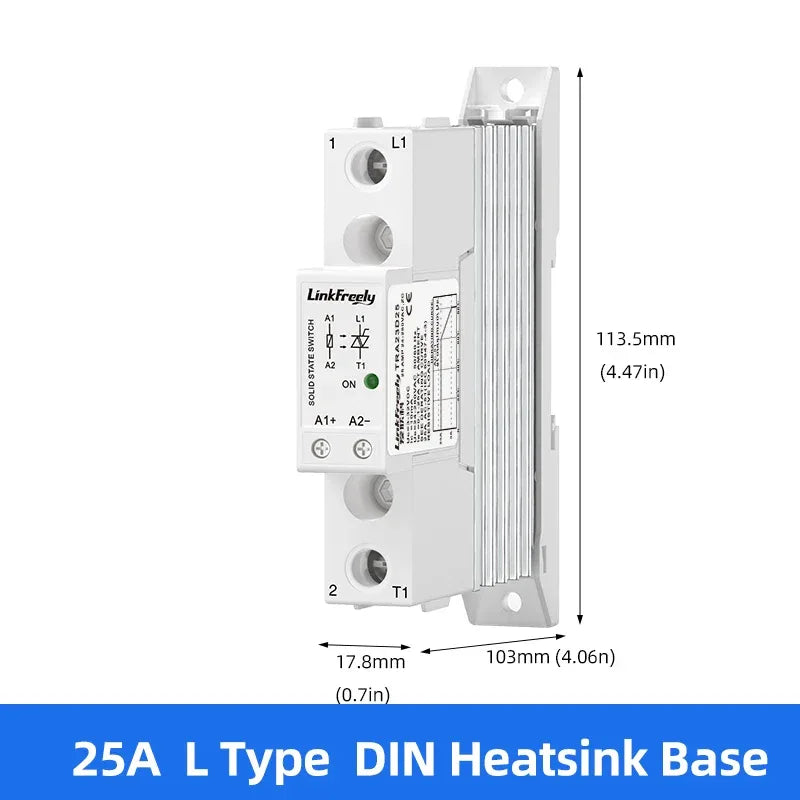

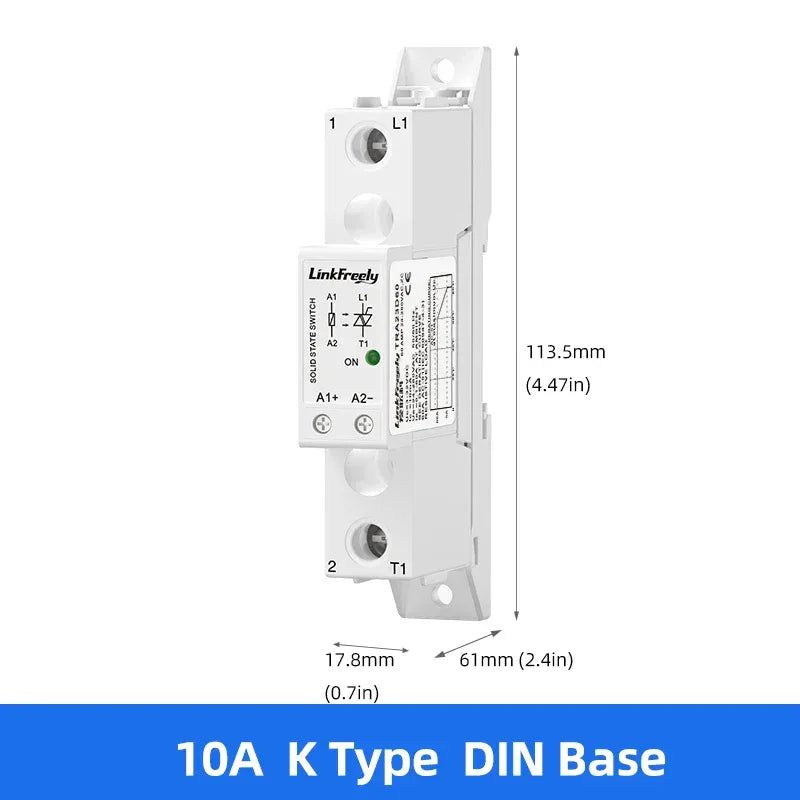

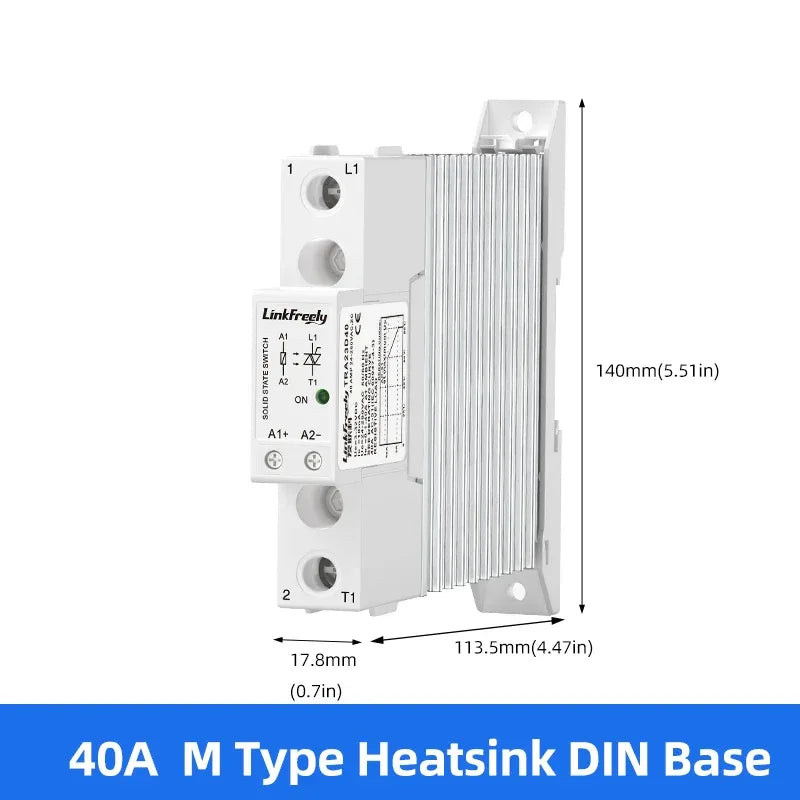

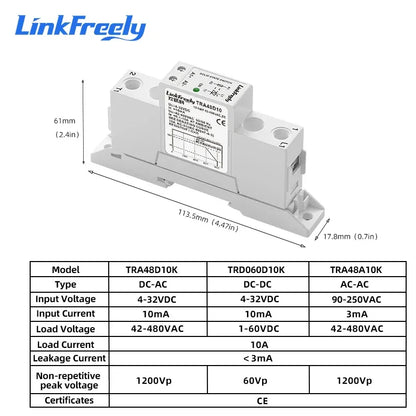

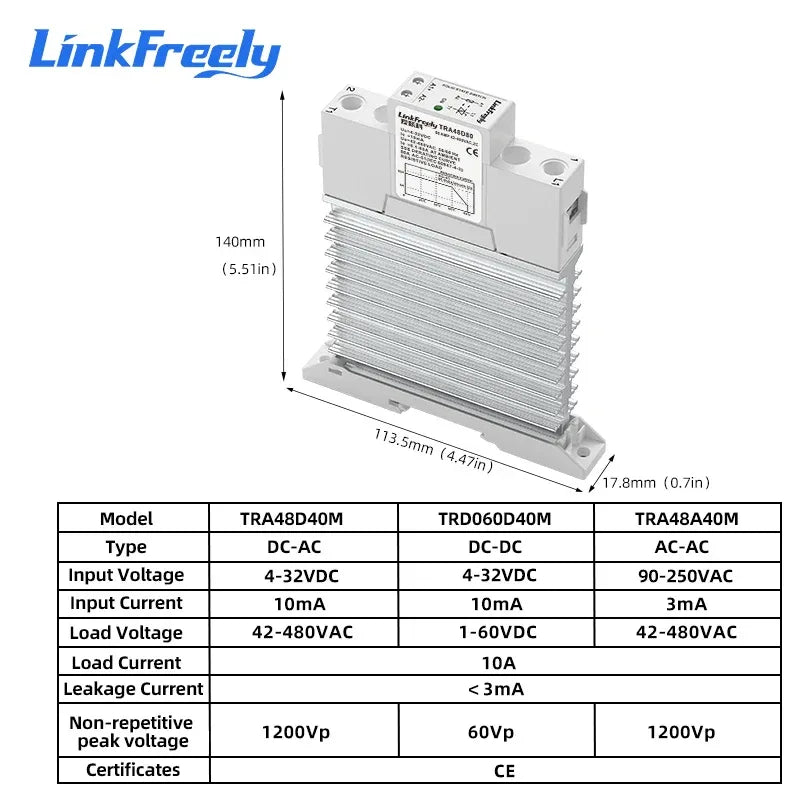

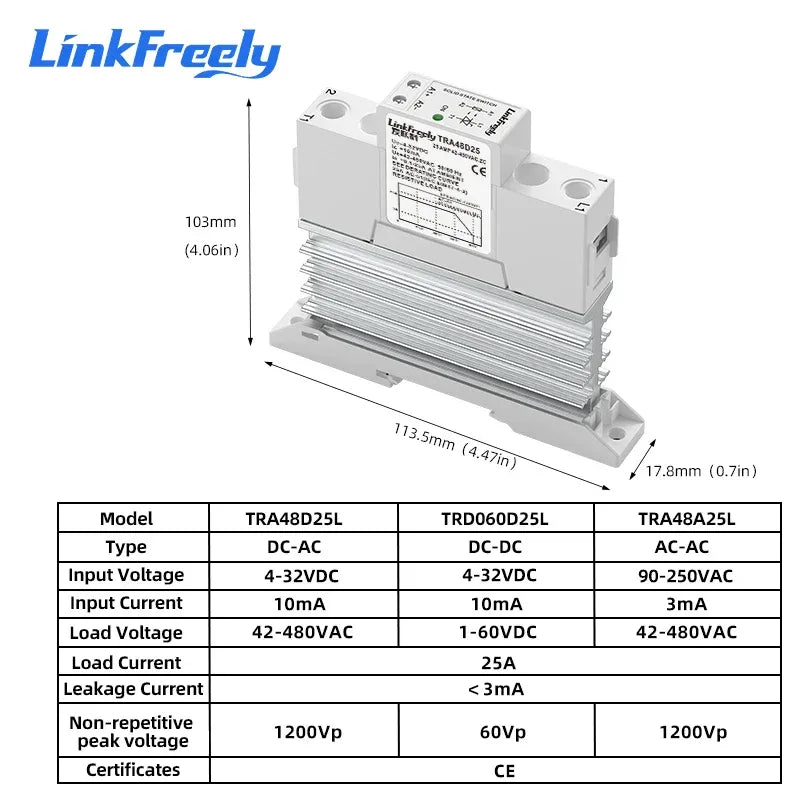

Size
Technical Specifications

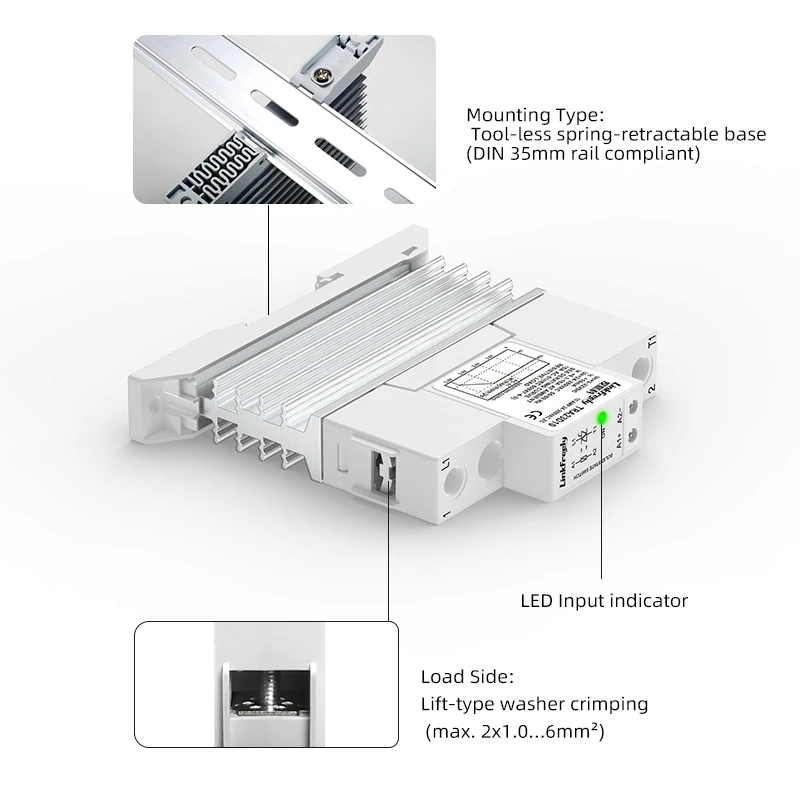

Mounting: Standard 35mm DIN rail
Width: 17.8mm (slimmest in class)
Current Rating:Â 10A / 20A / 30A / 40AÂ (selectable)
Control Types:Â DC-AC / DC-DC / AC-AC
Heat Dissipation:Â Integrated rail heat sink (no external fan needed)
Certifications:Â CE, RoHS compliant
Why Choose Our SSR?

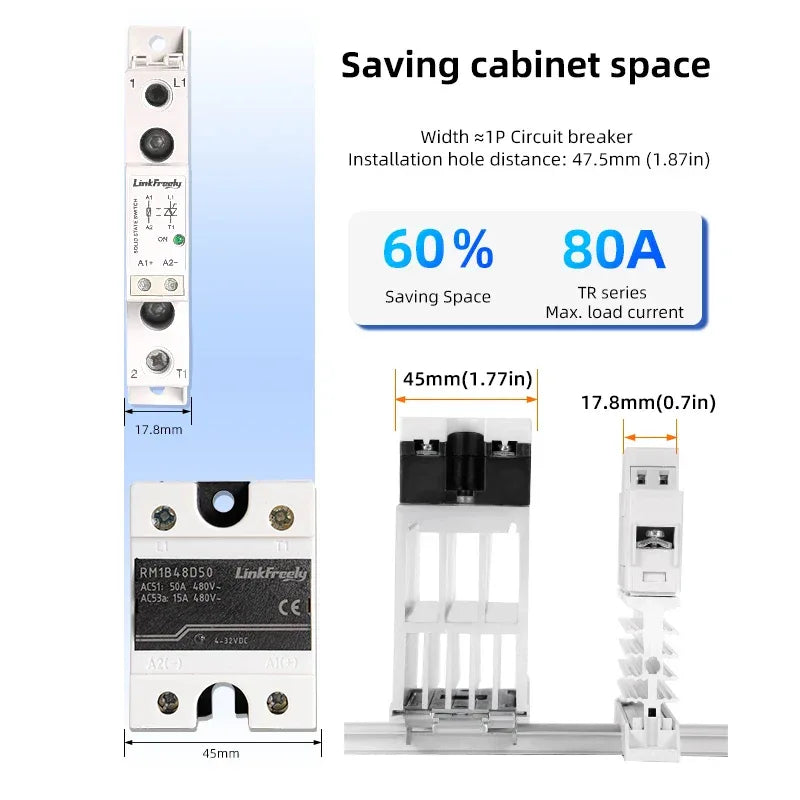

✔ Space-saving design for crowded control panels.
✔ Patent-backed cooling system prevents overheating.
✔ Plug-and-play installation with DIN rail clip.
✔ Silent & spark-free – Ideal for noise-sensitive environments.
Package Includes:
1x DIN Rail Solid State Relay (Specify model/current rating).
