SPECIFICATIONS

Application: measure power of laser

Certificate: CE

Detector aperture (mm): 40

Maximum energy density: 0.3J/cm², 1064nm, 1ns

Measurement uncertainty(±%): < 1

Nonlinearity with power(±%): < 1

Power accuracy(±%): < 3

Power range(W): 10mW - 100W (200W)

Product name: Power meter sensor

Spectral range(μm): 0.19 - 25

brand name: CAIHUANG

condition: New

key selling points: Competitive Price,Multifunction

place of origin: Guangdong, China

spare parts type: Please see the accessories list

warranty: 1 Year

weight (kg): 4.1 KG

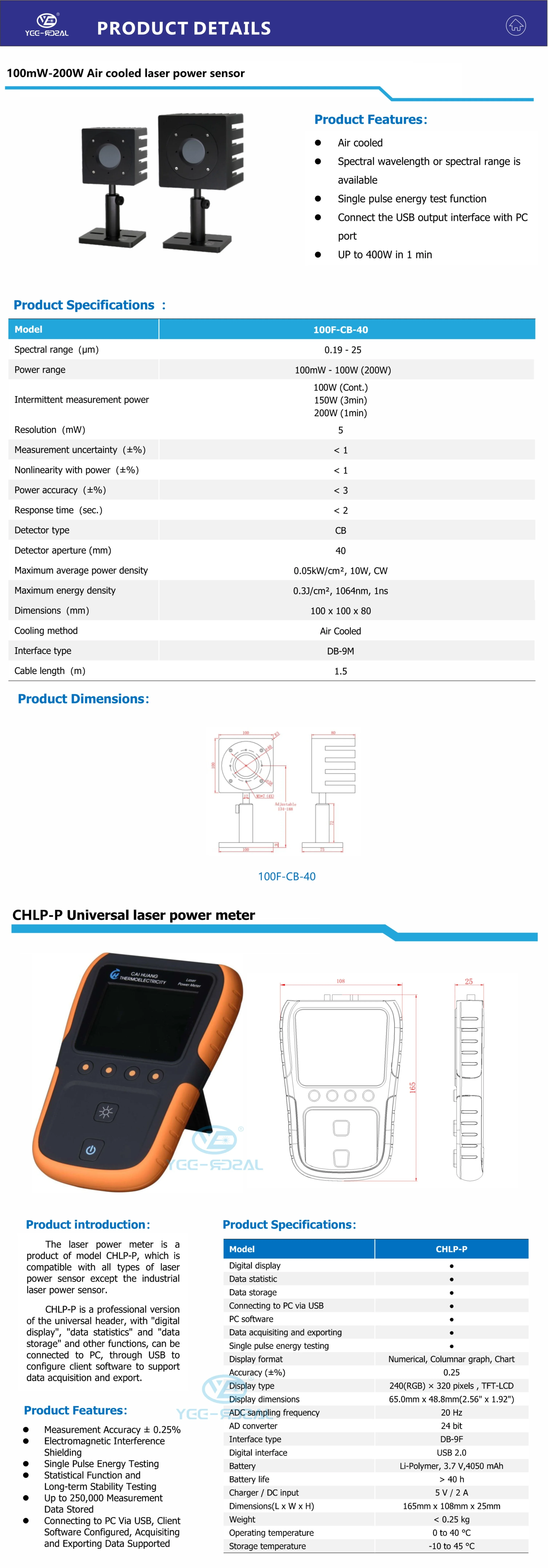

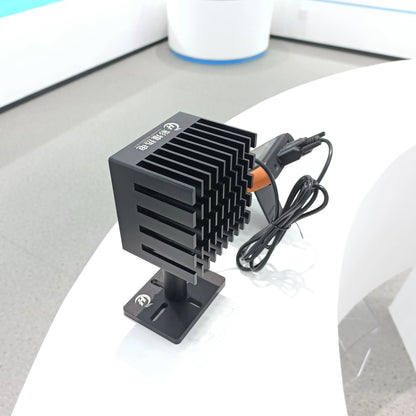

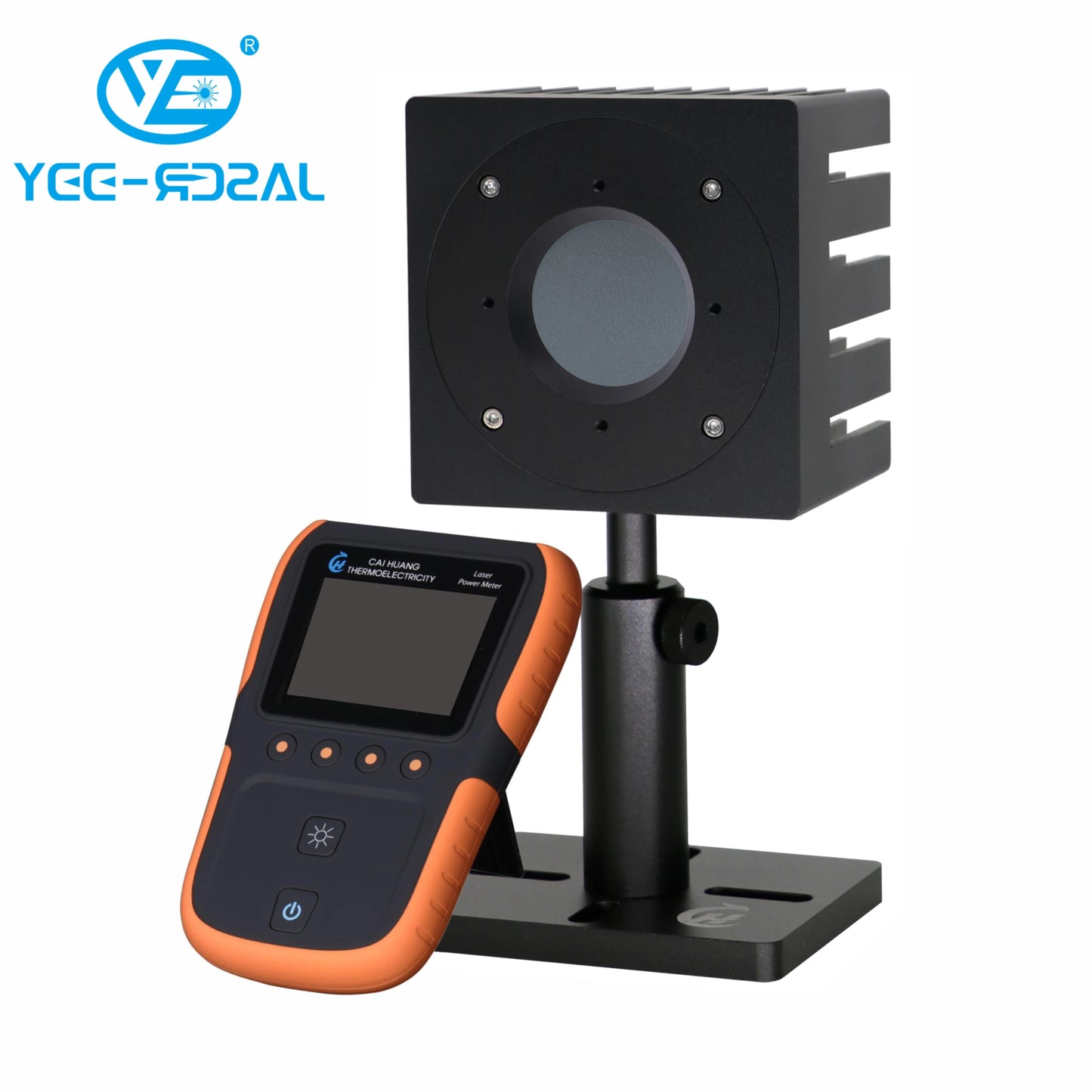

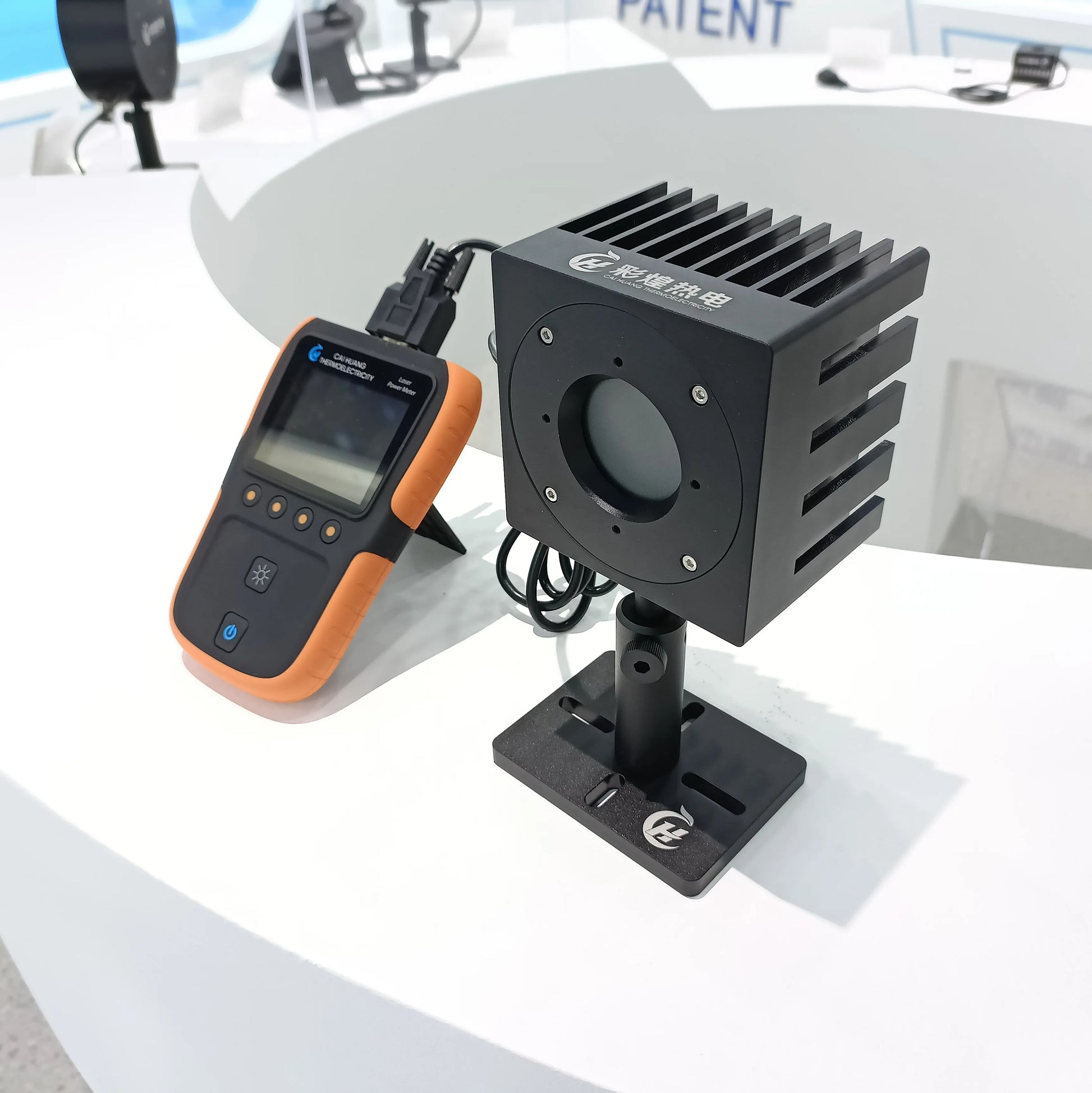

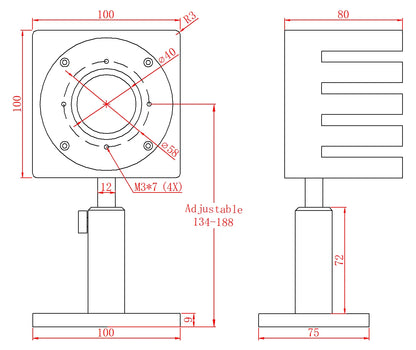

100mW-100W Air cooled laser power sensor

Product Introduction

This product has a maximum intermittent measurement power of 200W and is mainly used for the measurement of medium and low power lasers. The cooling mode is Air cooled, easy to use, easy to carry, and can be applied to different types of scenes.

Product Characteristics

· Air cooled
· 30mm detection caliber
· Single pulse energy test function
· USB interface output on PC side is optional
· The maximum intermittent measurement power of 1min can reach 200W

Application Field

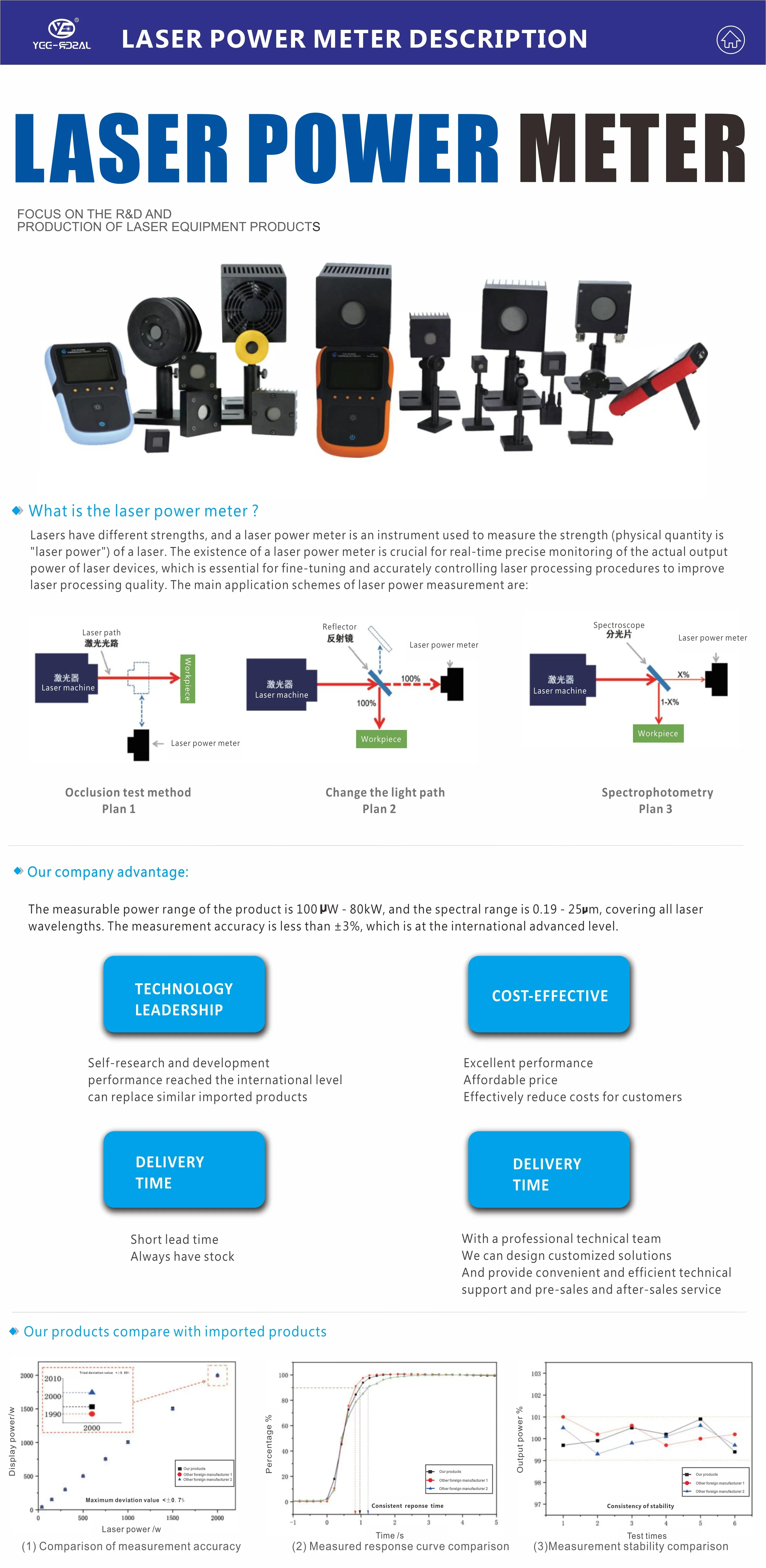

Laser power meter is an instrument used to measure the power of continuous laser or the average power of pulsed laser in a certain period of time. It has been widely used in optical component manufacturing, laser equipment manufacturing, photovoltaic,semiconductor, lithium battery, communications, medical, industrial manufacturing and national defense research and other fields,covering the middle and lower reaches of the laser equipment industry chain. Including laser medicine, laser marking, laser cutting, laser drilling, laser welding, 3D printing and many other industries.

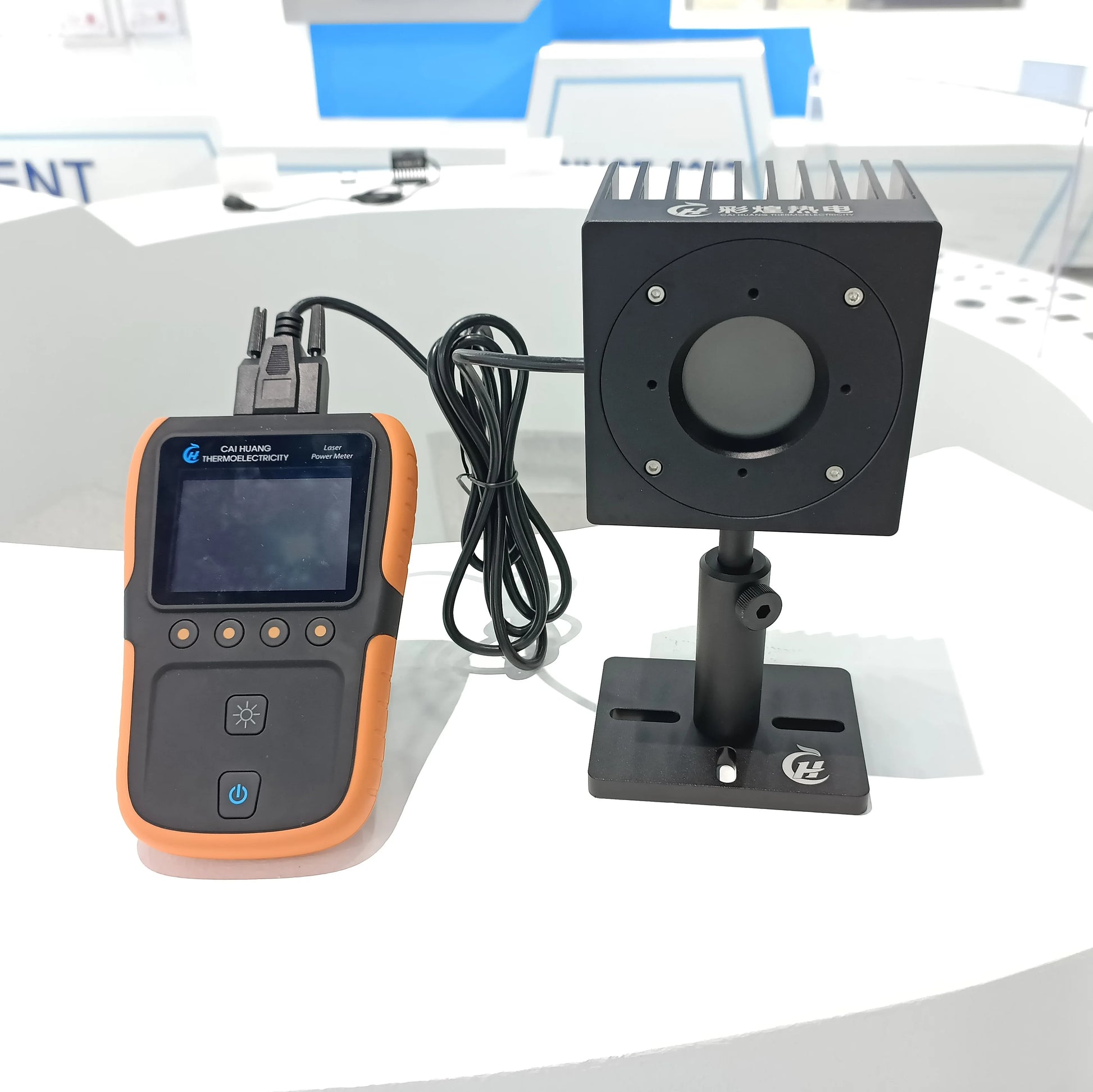

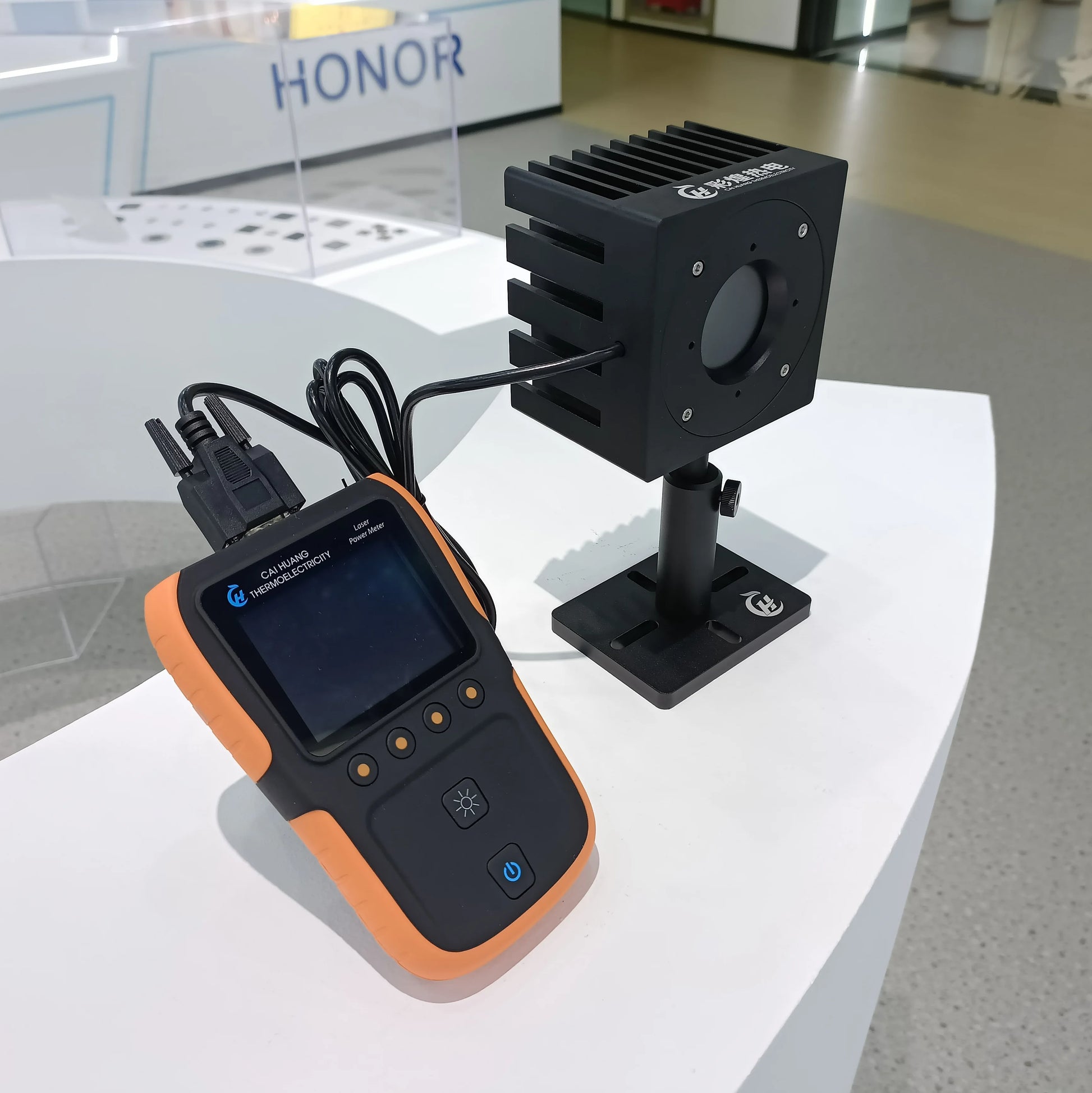

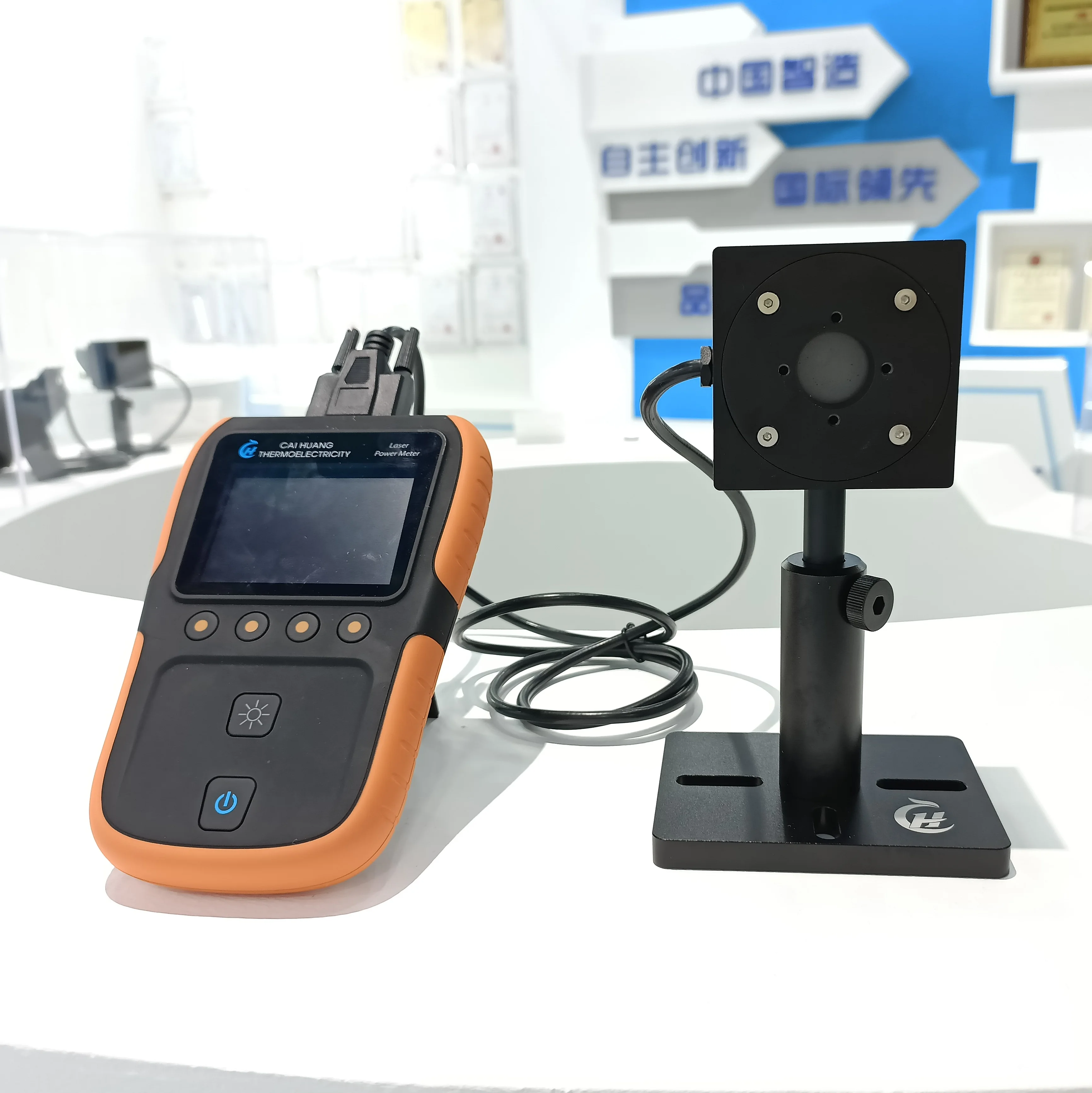

CHLP-P Universal laser power meter

CHLP-P is a professional version of the universal meter, compatible with all laser power meter probes except industrial type, with"digital display", "data statistics" and "data storage" functions, can be connected to a PC by USB, configure the user-side software, support data acquisition and export

Product Characteristics
· Accuracy up to ±0.25%
· Electromagnetic interference shielding
· Single pulse energy test
· Statistical and average function, long-term stability testing
· Up to 250000,<> measurement data can be stored
· You can connect to a PC via USB, configure the user-side software, and support data acquisition and export

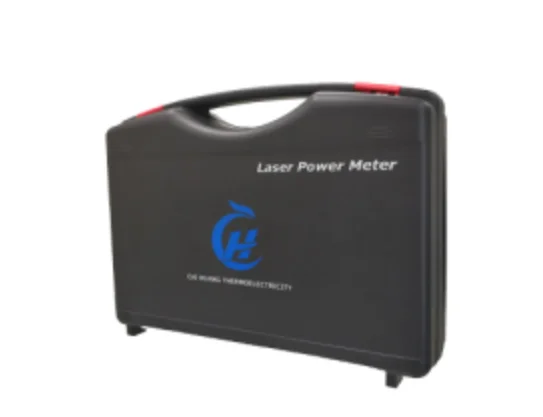

ABS packing box

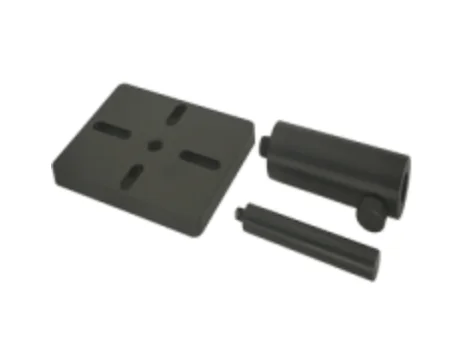

Holder and bottom base

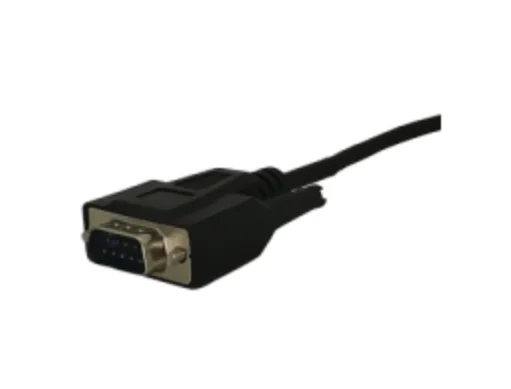

DB-9 Plug
