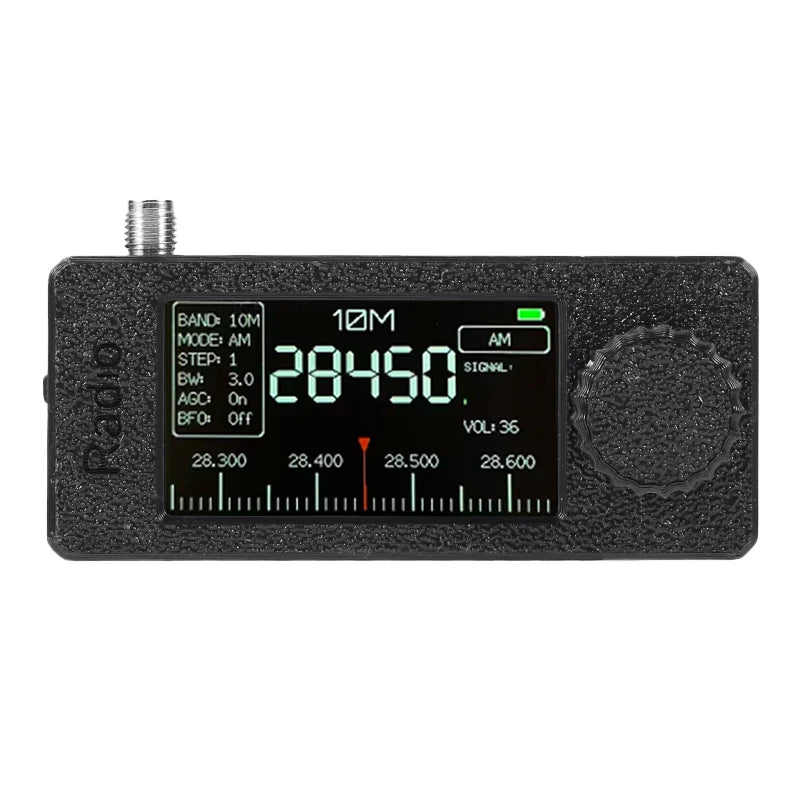

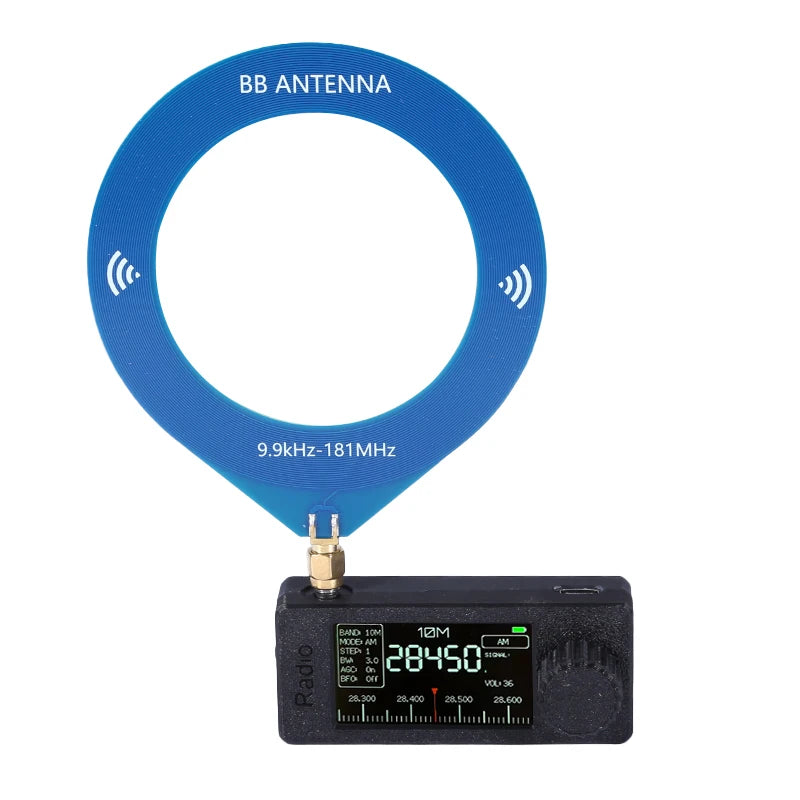

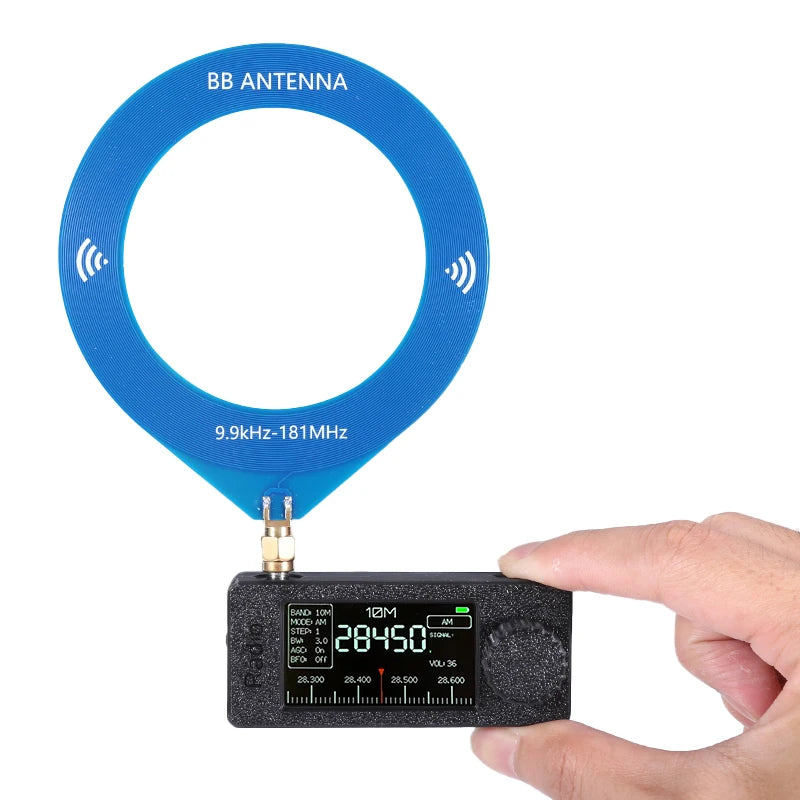

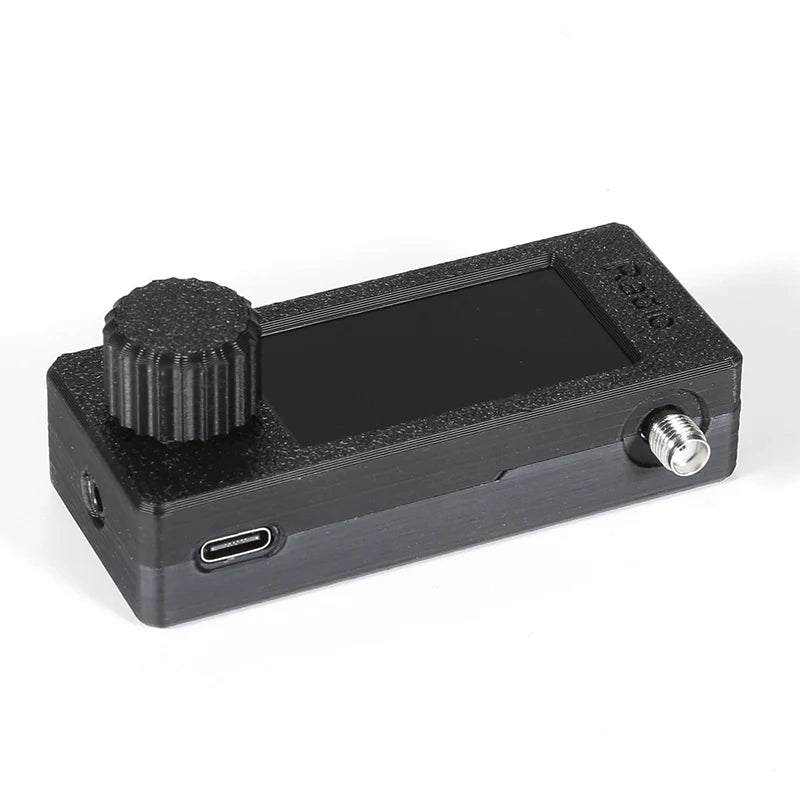

1.9inch IPS Screen LSB USB AM FM FM/AM Radio 0.5-108mhz SI4732 Mini Pocket Radio HF SW MW VHF Radio with Donut Antenna

Description ：

1.   1.9inch IPS HD color screen， ESP32-S3 main control,

2.  SI4732 DSP chip, support broadcasting full band, LSB/USB/AM/FM mode.

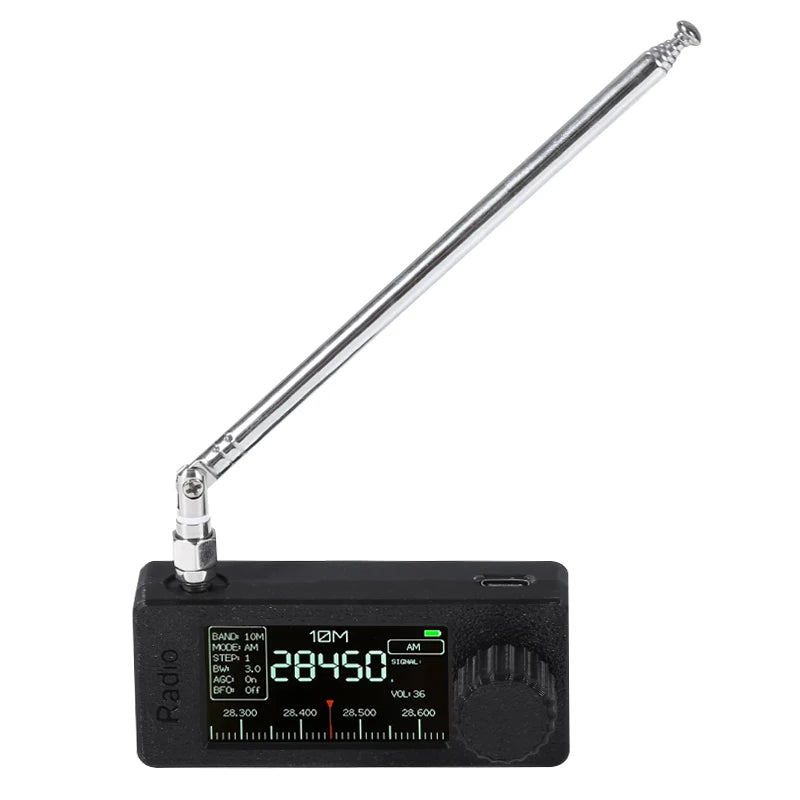

3.  Equipped with 70cm portable tie rod antenna can be used for reception.

4.  Built-in 800 mAh battery, battery life of about 10 hours or more.

5.  Shell petg 3D printing.

Parameters：

Master:ESP-32-S3

Receiving band:HF/SW/MW/VHF

Screen:1.9inch,170*320

Charging interface: TYPE-C (does not support fast charging)

Audio Interface:3.5mm

Battery Capacity:800ma

Body size:7.3*3.2*1.2cm

Antenna Style:Loop/Stretch

Package include：

1x MINI SI4732 Radio

1 x Antenna (Optional)

1 x USB cable
