SPECIFICATIONS

Body material: Ductile Cast Iron FCD450

Connection: Flanged JIS, ASME, DIN

Product name: Steam Traps

Size: DN15-DN25

Standard: JIS

Working Temperature: 350

Working medium: Warter

Working pressure: 1.6MPa

application: General

brand name: MIYAWAKI

customized support: OEM

media: Water

model number: ES8NF-5

place of origin: Japan

port size: DN15-DN25

power: Hydraulic

structure: Control

temperature of media: Medium Temperature

type: Steam Traps

warranty: 1 years

Model	Connections	Size	Operating Pressure Range	Max. Operating Temperature	Body Material
			Model	Connections		Size	MPa	℃
ES8NF-5	Flanged JIS, ASME, DIN	1/2''	1.6	350	Ductile Cast Iron FCD450
							3/4''
							1'''

Max. Operating Pressure
Model	MPa
ES8NF-5	0.5

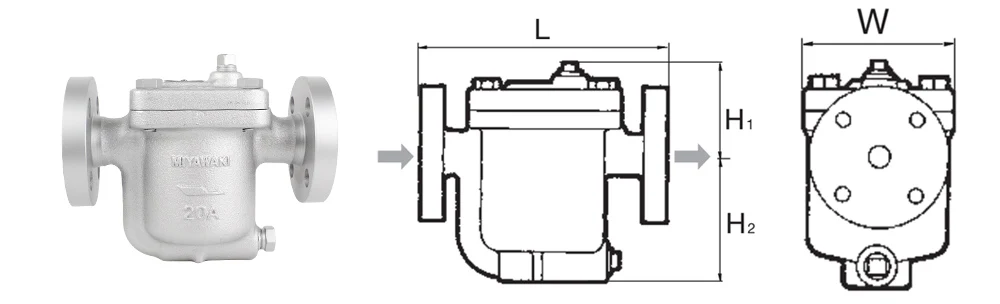

Dimensions (mm)
Model	L	H1	H2	W	Weight（kg）
15	175	73	90	100	5.3
20	195	68	95		53	5.7
25	215				51	32	53	6.8

Q1：Do you have your products in stock ?

A1：Yes . We have a large warehouse in Beijing

Q2：What is your mode of transportation ?

A2：You can choose any mode of transportation you want . For example , express airand shipping.

Q3：What's the minimum quantity ?

A3：According to the product , the quantity is different.

Q4：Are your products guaranteed ?

A4：All our products have a one-year warranty period.

Q5：How long will the product be ordered ?

A5：Spot products can be shipped at any time . Futures products can be orderedording to different products and different relatives . You can send an email for detailed inquiries.
